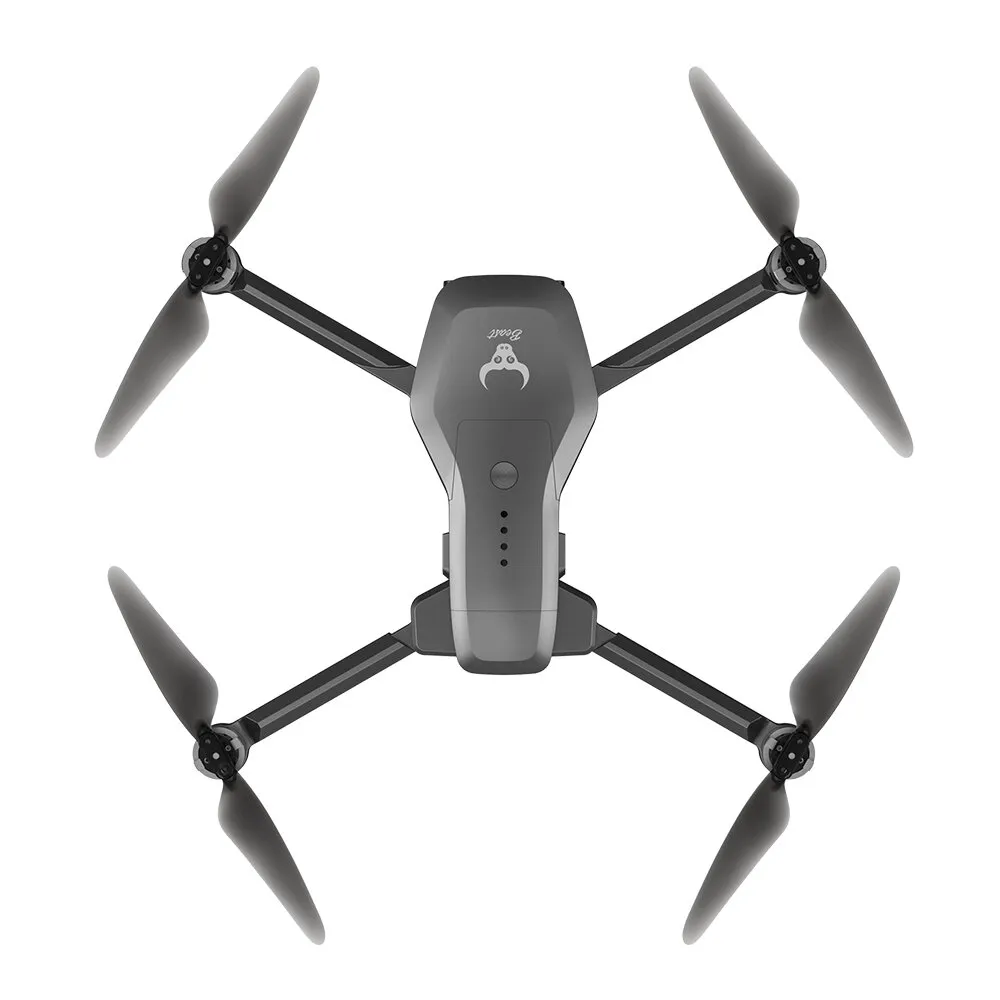

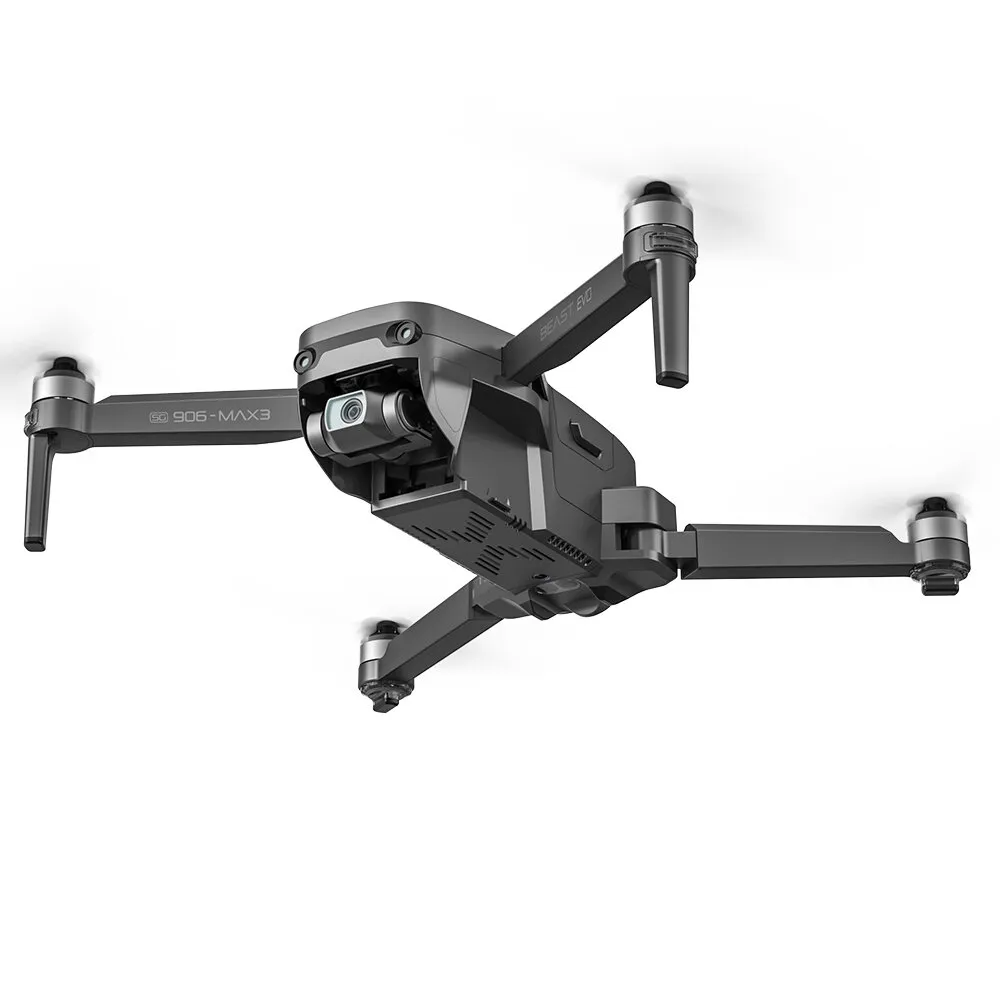

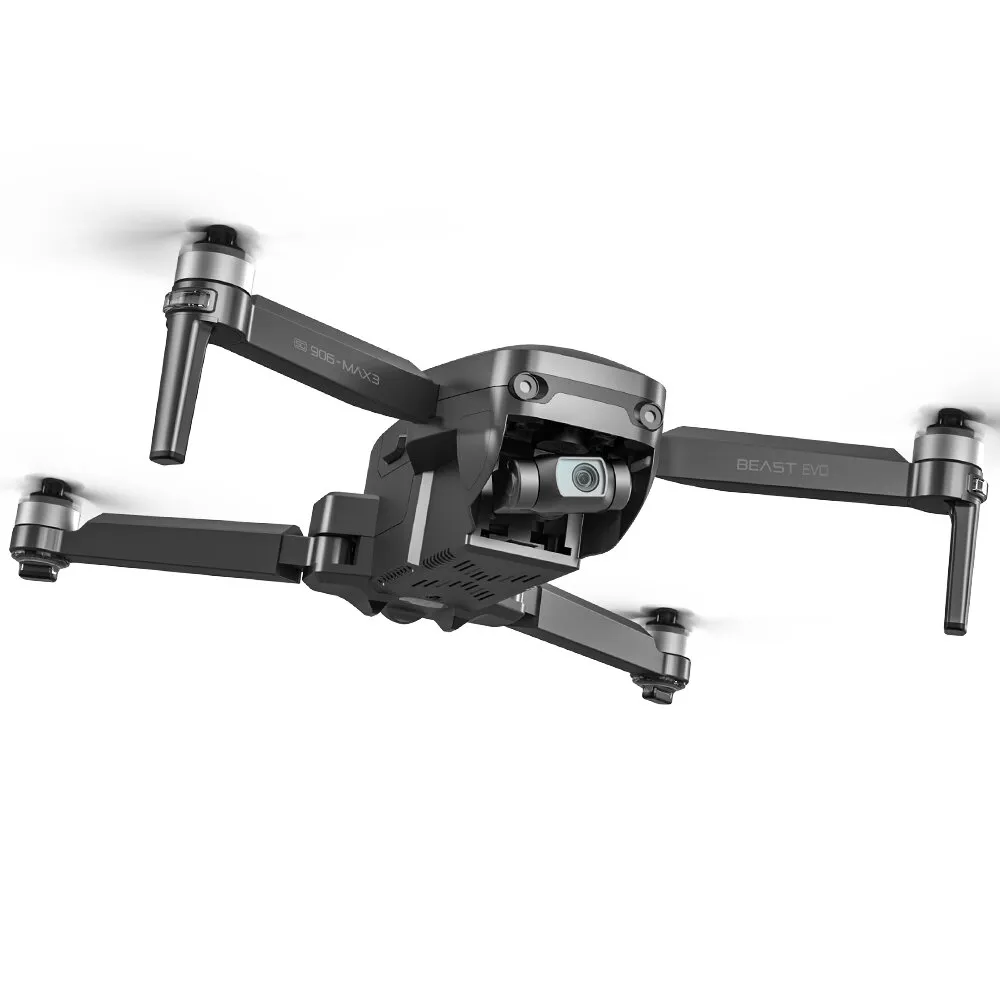

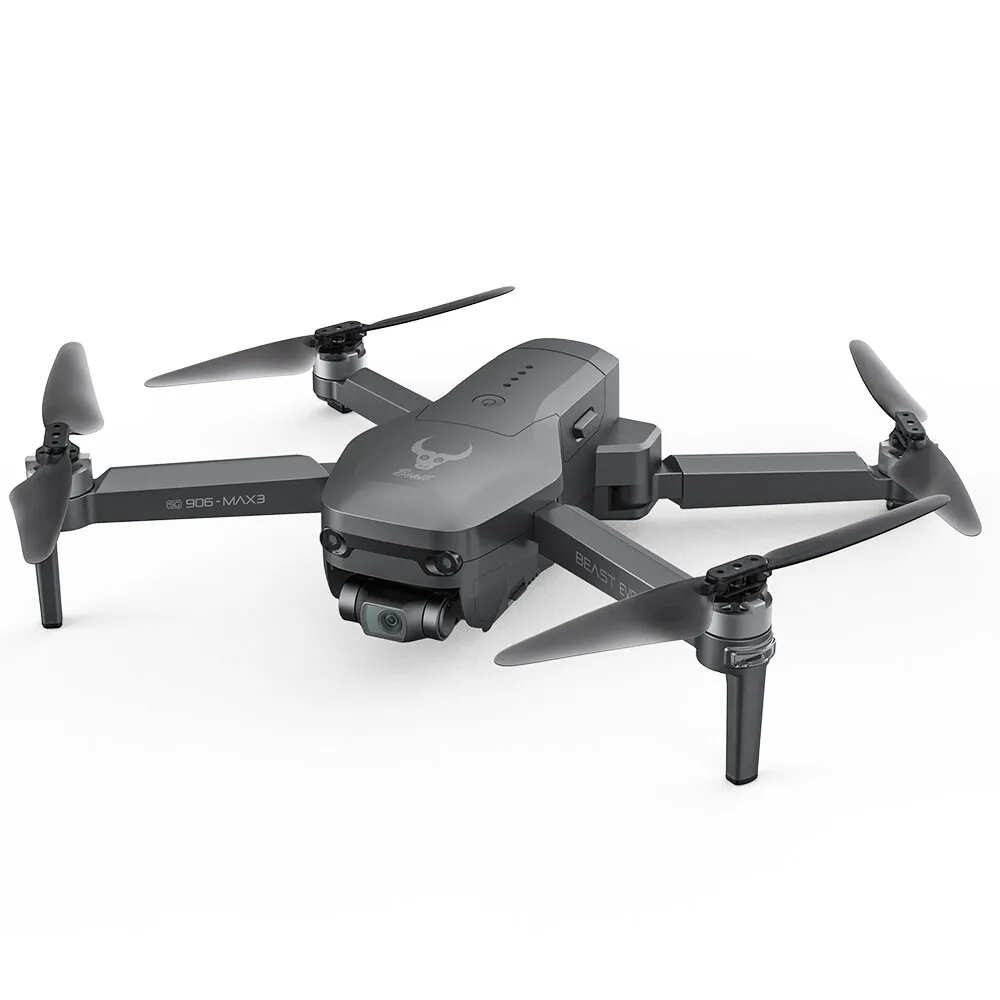

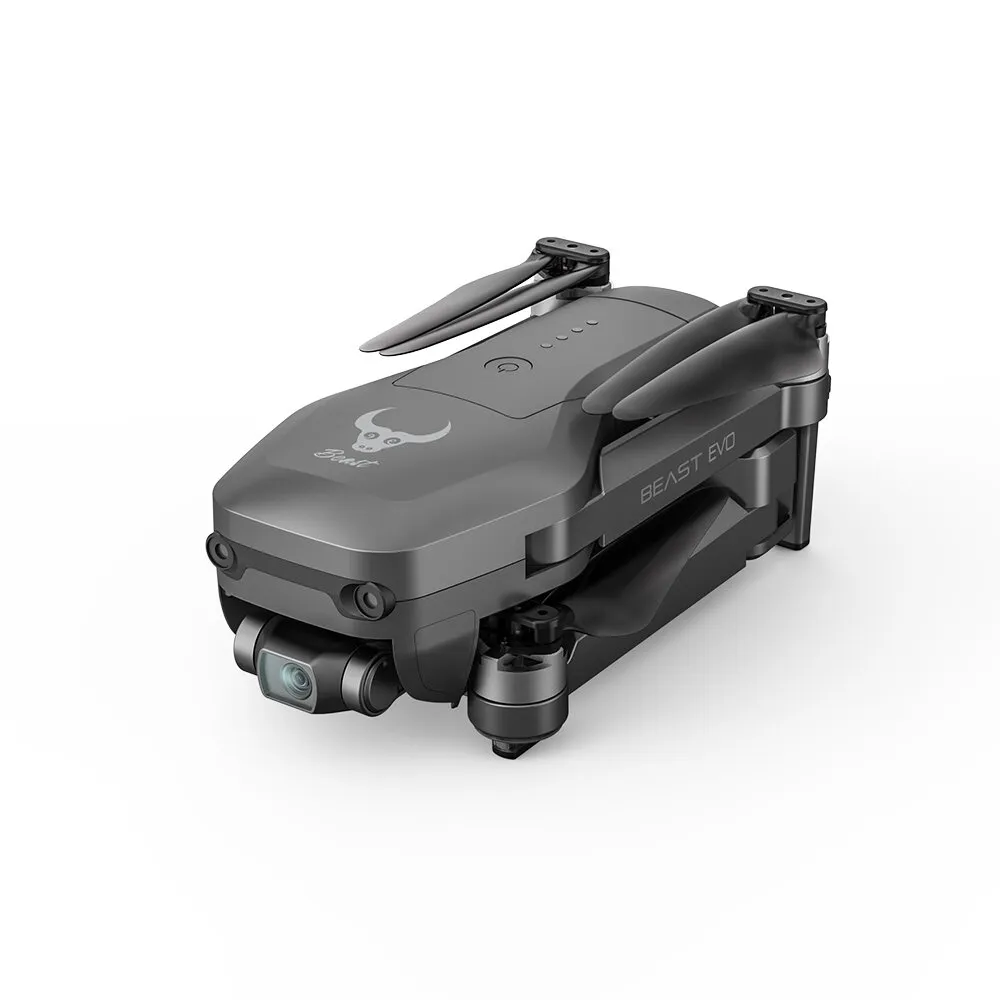

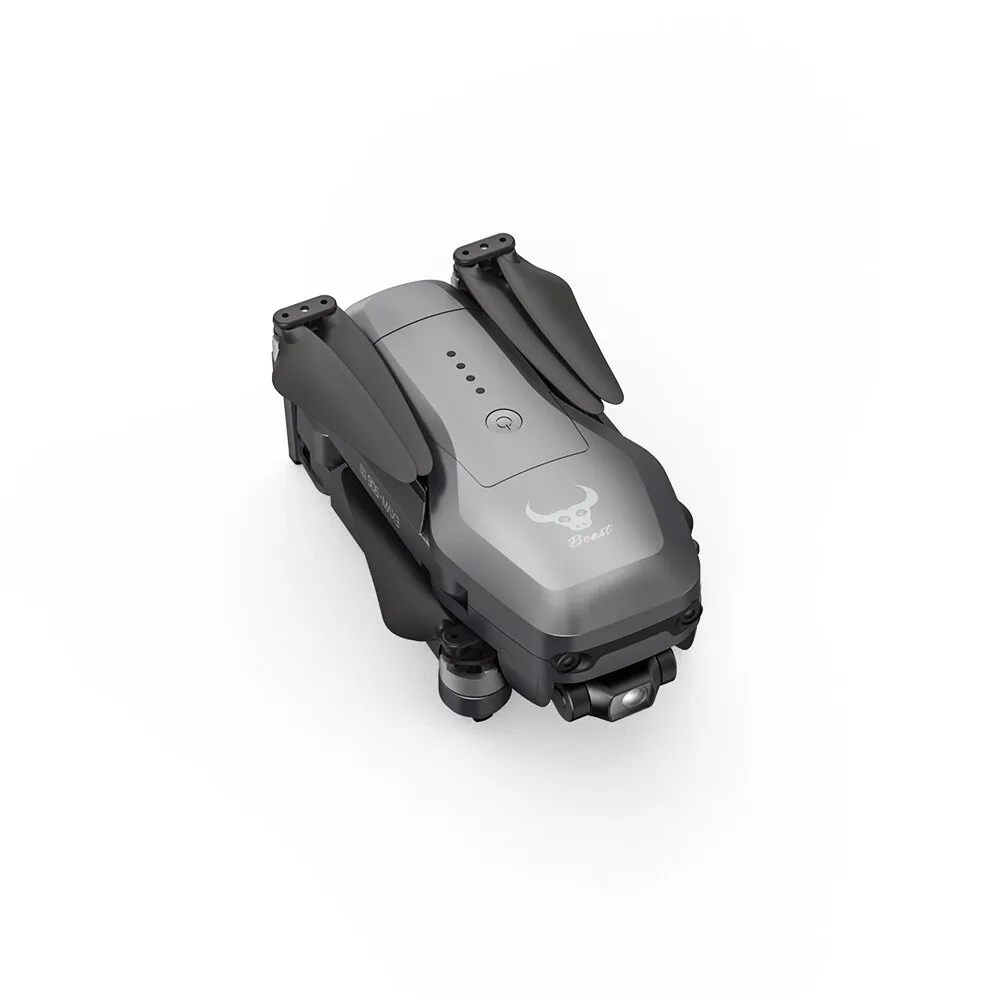

ZLL SG906 MAX3 BEAST EVO GPS 4KM Repeater Digital FPV with 4K EIS Camera 3-Axis Brushless Gimbal Vision Obstacle Avoidance RC Drone Quadcopter RTF
| Qty: | 4-7 | >=8 |
| Price: | $301.49 | $284.74 |
- weight: 485 g
Specifications:
| SG906 MAX3 | Item NO. | BEAST EVO |
| Color | Black | |
| Motor | 1806 Brushless Motor | |
| Motor Power | 1700/KV | |
| Wheelbase | 37cm | |
| Electric Power Adjustment | 30A | |
| Image transmission receiving method | Digtal Image Transmission + Repeater strong signal | |
| Gimbal | Three-Axis Brushless Gimbal | |
| Lens | Self-stabilizing electronic anti-shake Lens | |
| Obstacle avoidance detection range | 360 ° | |
| Obstacle avoidance detection range | ≤10M | |
| Max remote control phone clip size | 7inch | |
| Remote Control Battery | Bulit-in 3.8V 3000mAh Lipo Battery | |
| Drone Battery | 11.4V 3000mAh | |
| Control distance (Free interference and no occlusion) | 4000m | |
| Cruising mileage(max) | 8KM | |
| Wind resistance level(max) | level 6 | |
| Ascendant speed(max) | 4m/s | |
| Descent speed(max) | 3m/s | |
| Take-off altitude(max) | 4500m | |
| Flying speed(max) | 45km/h | |
| Flight time | About 30mins | |
| Charging time | About 8 hours | |
| USB Charging | 5V | |
| Product size | 17.4 x 8.4 x 7cm(Foldable) | |
| 28.3 x 25.3 x 7cm(Unfoldable) | ||
| Product's Weight | 576.8g | |
| Battery Weight | 173.2g | |
| Storage Card | 128G(Max) | |
| Camera Gimbal parameters | Image sensor | 1/3.2 Inches |
| Pixel | 4K HD Camera | |
| APP Name | XIL MAX（IOS Android） | |
| Gimbal Angle(adjustment angle range) | 110 ° automatic restores (Vertical) | |
| 65° automatic restores (Sideways) | ||
| 45° automatic restores (Horizontal) | ||
| Camera lens | Adjustable camera by transmitter, 110° | |
| Wifi image transmission distance | About 4000m | |
| GPS Follow me | 15m | |
| IMAGE Follow me | 1-5m | |
| Focal length | 50X | |
| Hand gesture shooting/video reconization | 1-5M | |
| Video resolution(Front camera) | 2048*1080（TF） | |
| 1920*1080P (APP) | ||
| Photo resolution(Front camera) | 3840*2160P(TF) | |
| 3840*2160P(APP) | ||
| Video resolution(Down-looking camera) | 1280*720p | |
| Photo resolution(Down-looking camera) | 1280*720p | |
| Main camera video maximum stream | 60Mbps | |
| Frame rate | 30 fps | |
| Obstacle Avoider | Measuring mileage | 0.05-20 meters |
| Measurement accuracy | 2% | |
| Measuring speed | 100HZ | |
| Resolution | 1cm | |
| Operating Voltage | 3.5-5.5VDC | |
| Power Consumption | 60NA@5V | |
| Communication Interface | 12C | |
| Communication Baud Rate | Up to 400k | |
| Communication Level | TTJ3.3VDC |
Note:
1. The maximum SD card supported by the drone: 256GB SDHC/SDXC UHS-I Speed Grade 1 or UHS-I Speed Grade 3 micro SD
2. It is recommended to use a mainstream brand microSD card with a minimum writing speed of 30MB/s or more. Other low-speed cards may not only cause videos and pictures to be unstorable, but also cause video transmission freezes and APP flashbacks.
Features:
- Built-in repeater in the remote control
- Front and rear visual obstacle avoidance function
- GPS/GLONASS double mode

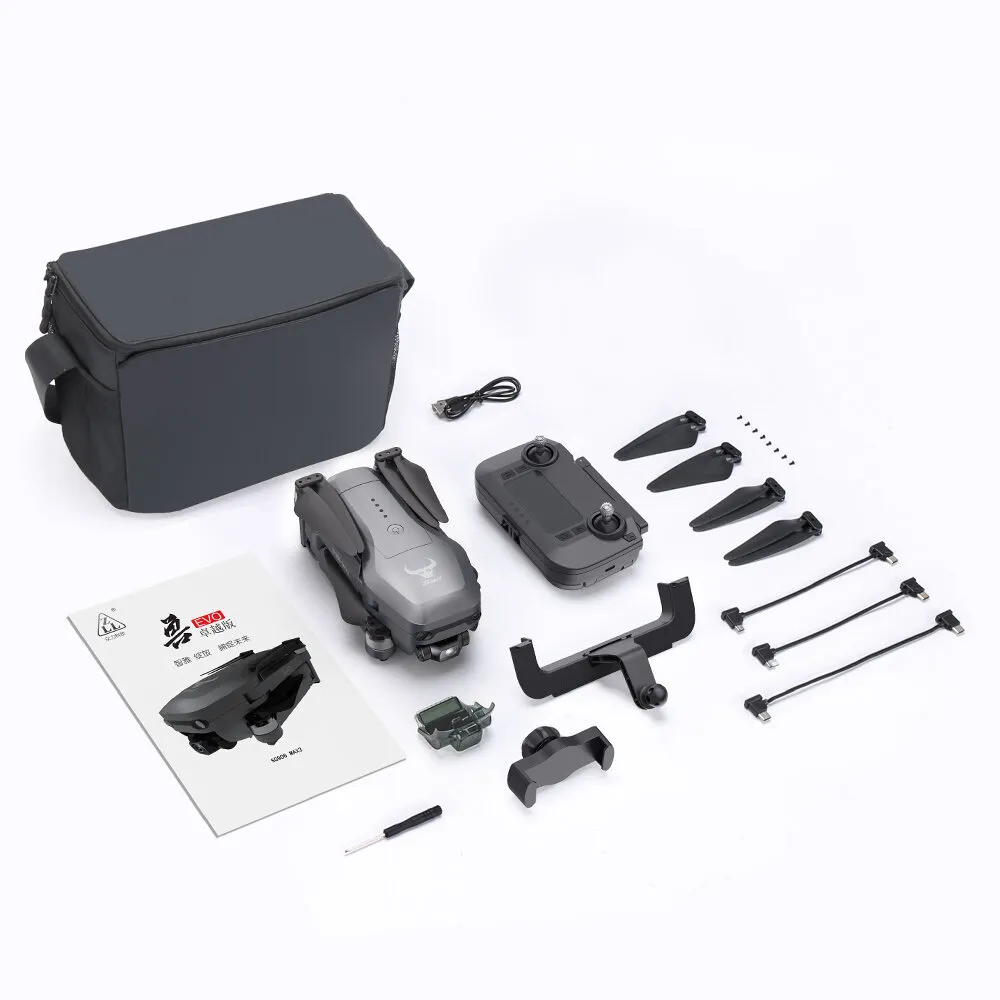

Package Included:
