XXD A2217 950KV 1100KV 1250KV 1500KV 2300KV 2700KV Outrunner Brushless Motor for RC Airplane Fixed Wing

KV

Parameters

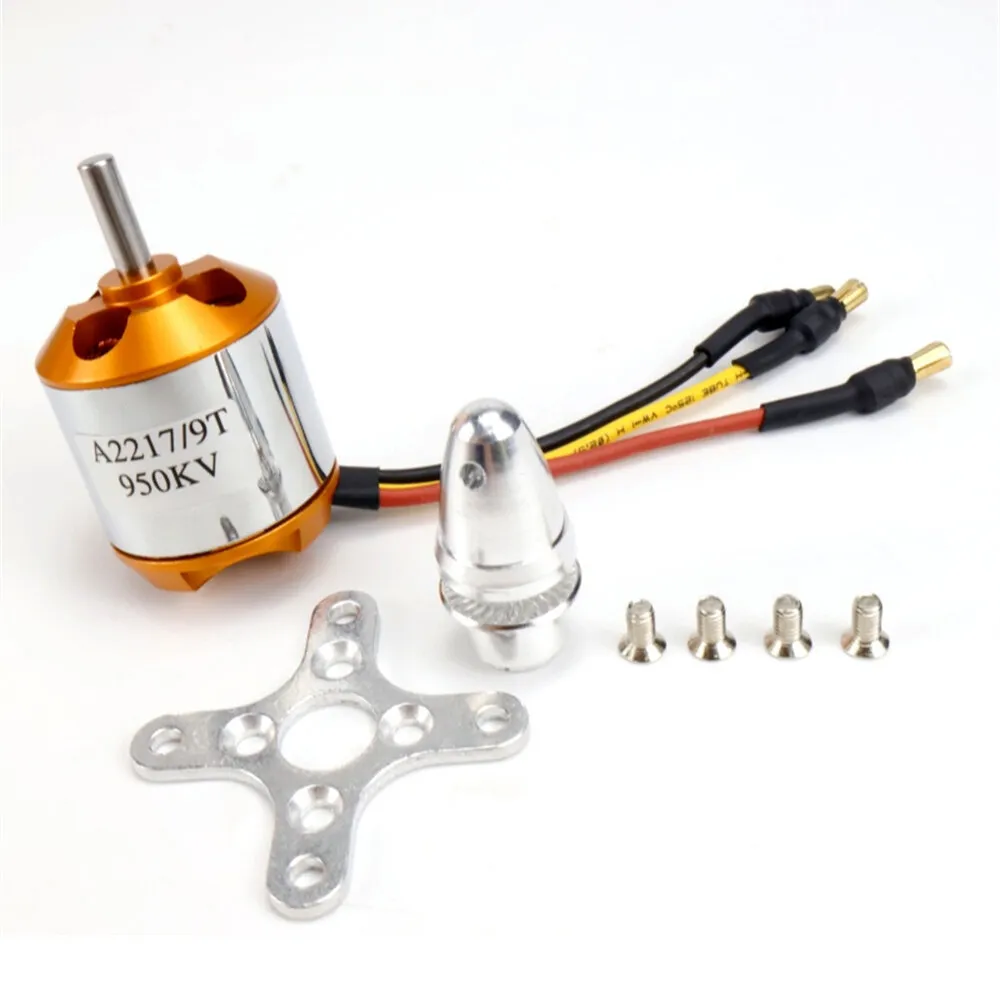

950KV

Product Name: A2217KV950 Brushless Motor

Product Weight: 68g

Dimensions: 27.8*32mm

Output Shaft Diameter: 4.0mm

KV Value: 950KV

Test Data:

11V 16.9A 7130 RPM, Thrust 955g

10.5V 15.8A 6980 RPM, Thrust 897g

10V 14.9A 6760 RPM, Thrust 853g

9.5V 13.9A 6580 RPM, Thrust 792g

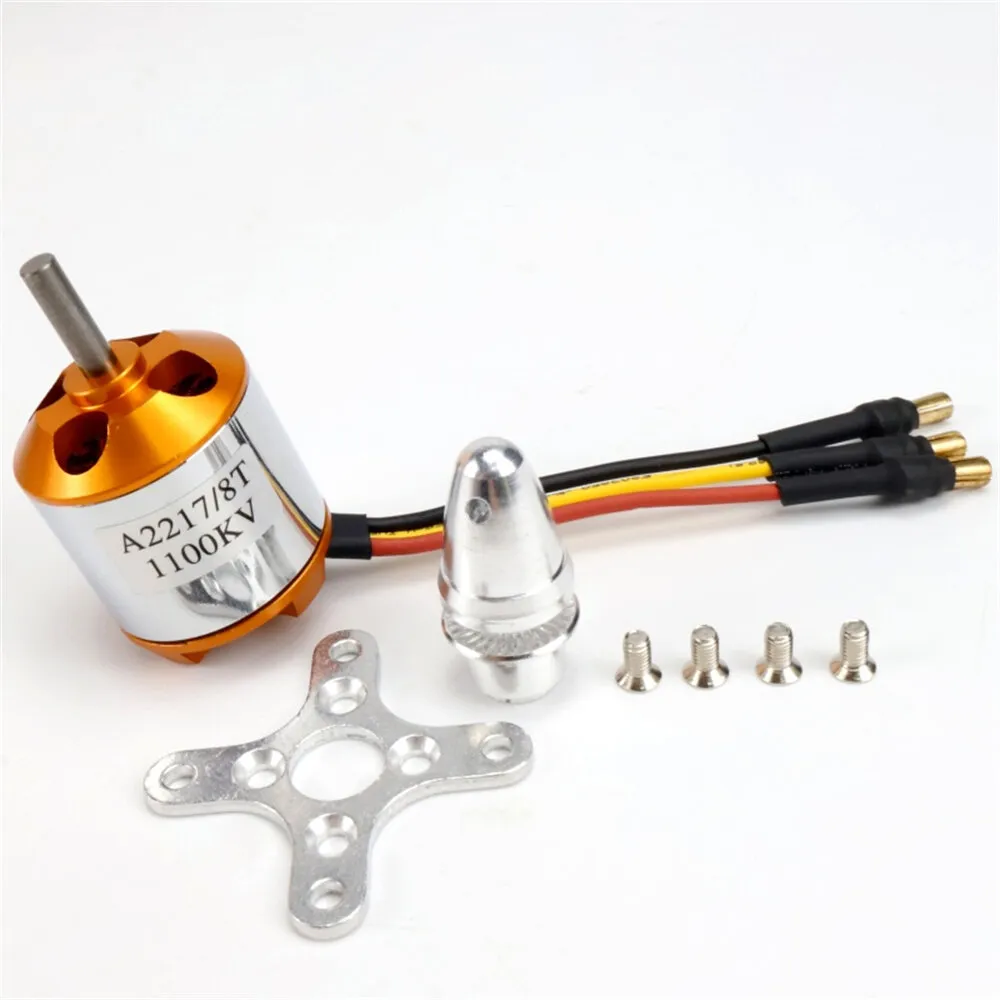

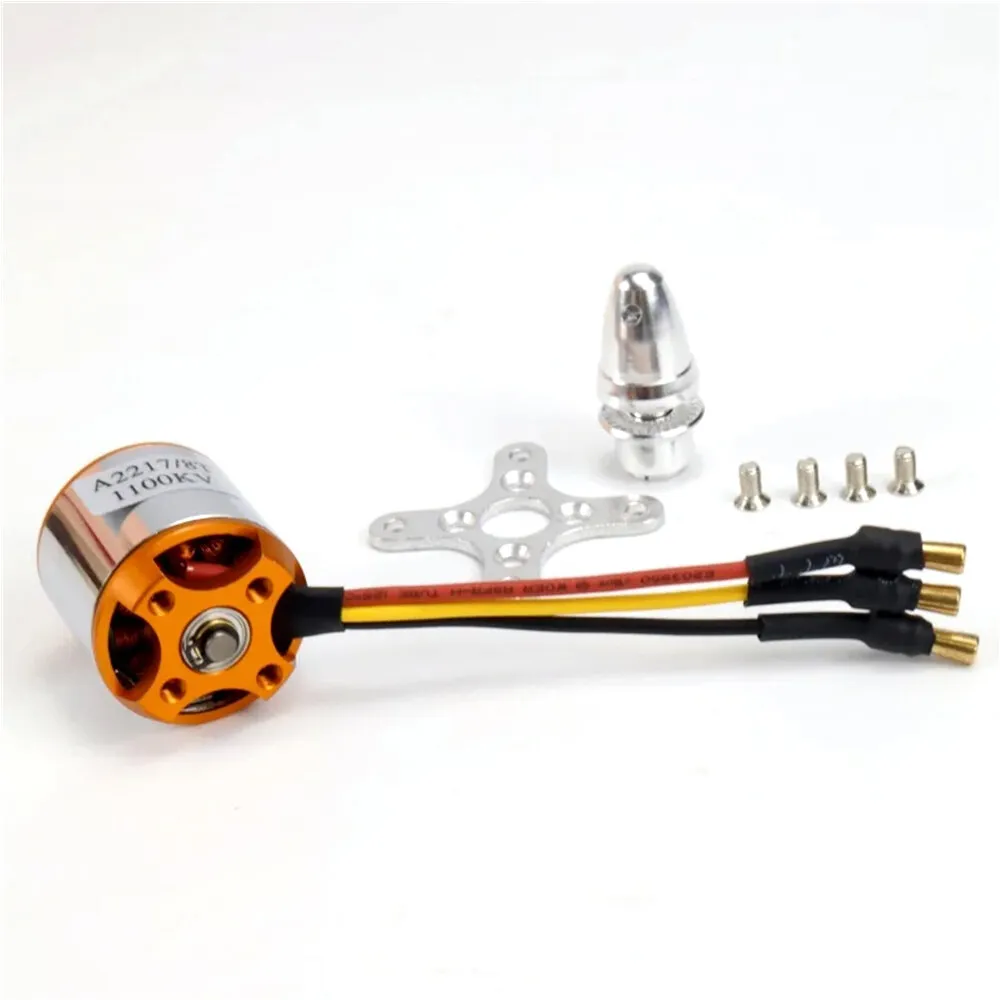

1100KV

Product Name: A2217KV1100 Brushless Motor

Product Weight: 68g

Dimensions: 27.8*32mm

Output Shaft Diameter: 4.0mm

KV Value: 1100KV

Test Data:

11V 19.5A 8450 RPM, Thrust 1012g

10.5V 17.4A 8220 RPM, Thrust 953g

10V 17.2A 8030 RPM, Thrust 903g

9.5V 15.9A 7730 RPM, Thrust 830g

1250KV

Product Name: A2217KV1250 Brushless Motor

Product Weight: 68g

Dimensions: 27.8*32mm

Output Shaft Diameter: 4.0mm

KV Value: 1250KV

Test Data:

11V 20.4A 10280 RPM, Thrust 1075g

10.5V 18.9A 9990 RPM, Thrust 995g

10V 17.8A 9620 RPM, Thrust 933g

9.5V 16.1A 9320 RPM, Thrust 855g

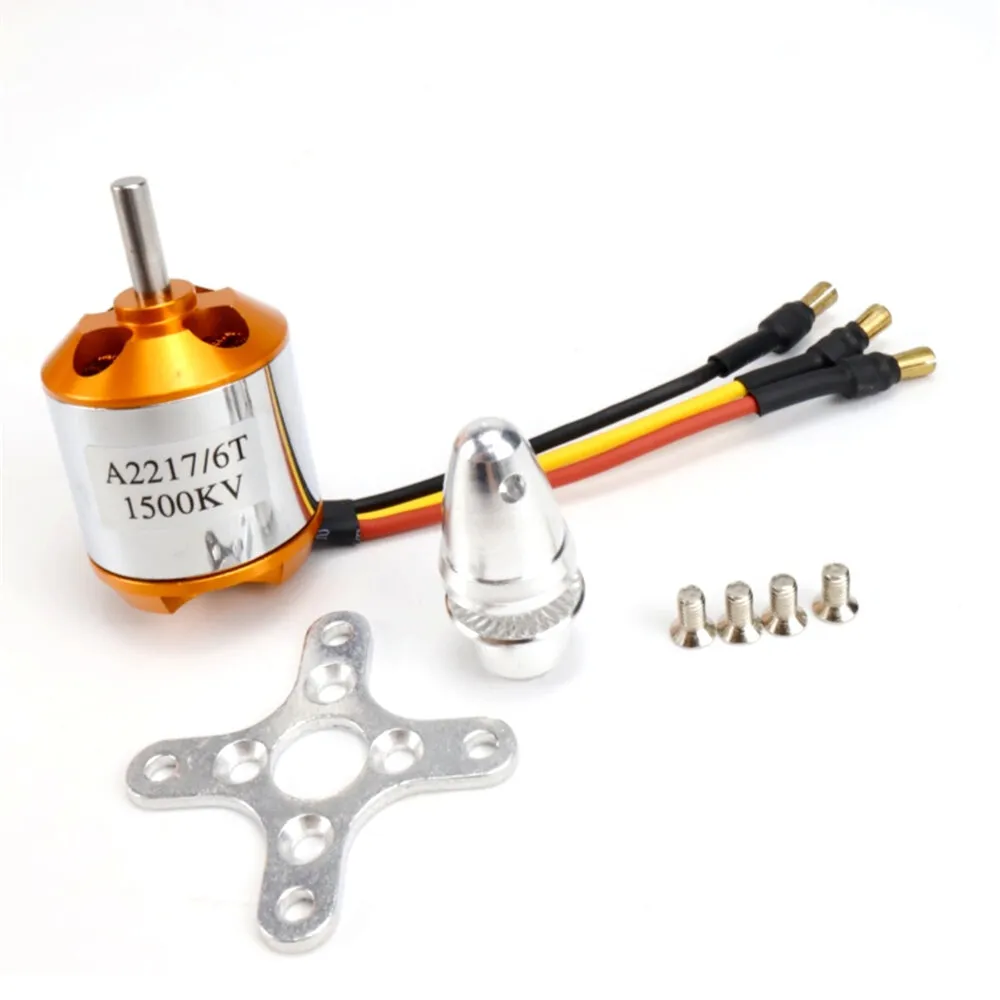

1500KV

Product Name: A2217KV1500 Brushless Motor

Product Weight: 68g

Dimensions: 27.8*32mm

Output Shaft Diameter: 4.0mm

KV Value: 1500KV

Test Data:

GWS8040HD:

11V 19.5A 13210 RPM, Thrust 963g

10.5V 17.9A 12730 RPM, Thrust 894g

10V 16.6A 12280 RPM, Thrust 816g

9.5V 15.2A 11820 RPM, Thrust 748g

GWS9050HD:

8V 18.6A 9030 RPM, Thrust 816g

7.5V 16.9A 8560 RPM, Thrust 739g

7V 15.1A 8080 RPM, Thrust 653g

6.5V 13.6A 7680 RPM, Thrust 578g

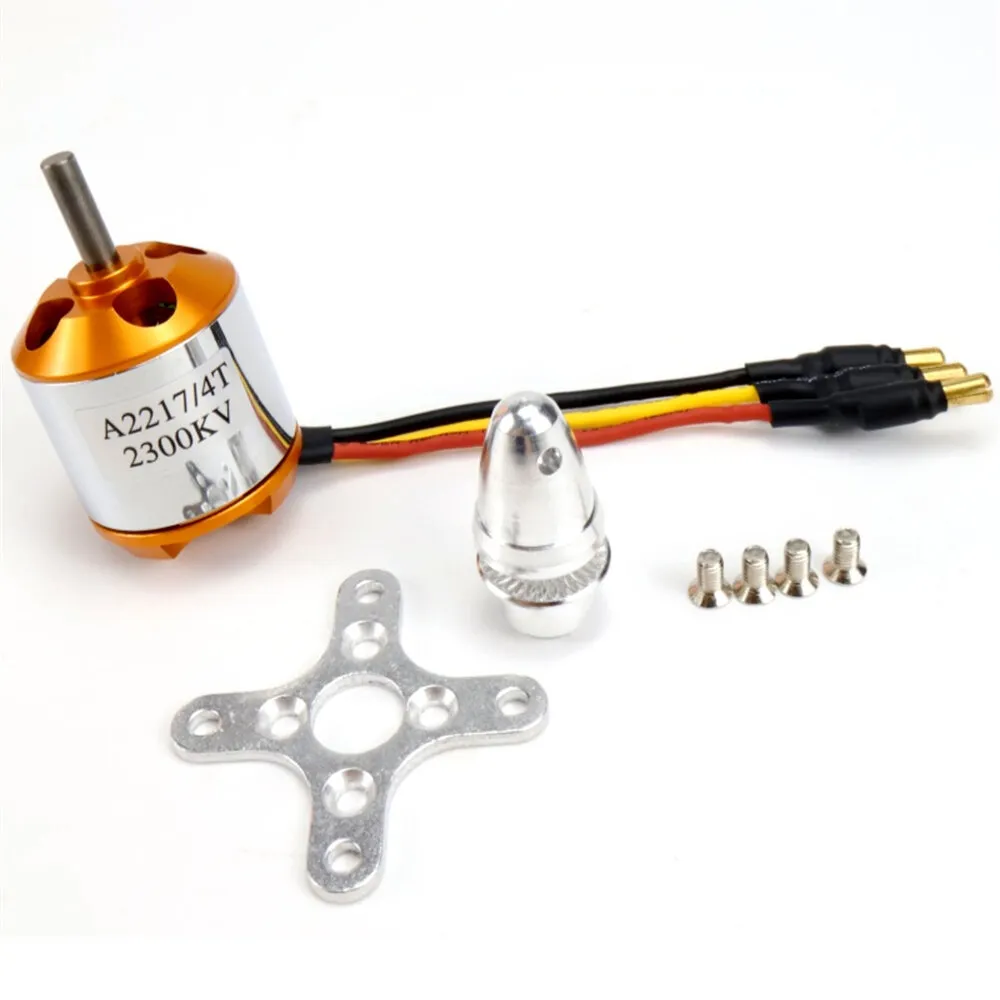

2300KV

Product Name: A2217KV2300 Brushless Motor

Product Weight: 68g

Dimensions: 27.8*32mm

Output Shaft Diameter: 4.0mm

KV Value: 2300KV

Maximum Efficiency: 78%

No-Load Current: 10V: 1.7A

Peak Current: 30A/60S

Optimal Efficiency Current: 8-28A (>70%)
