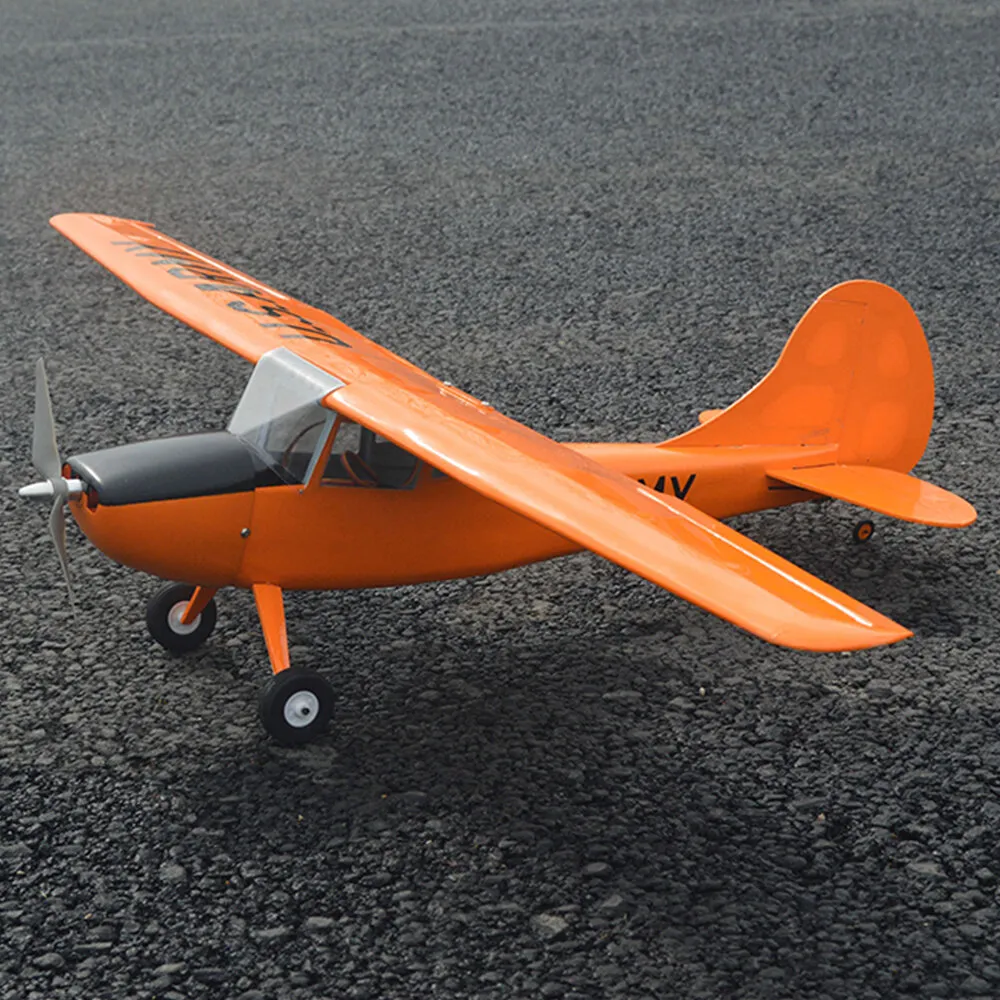

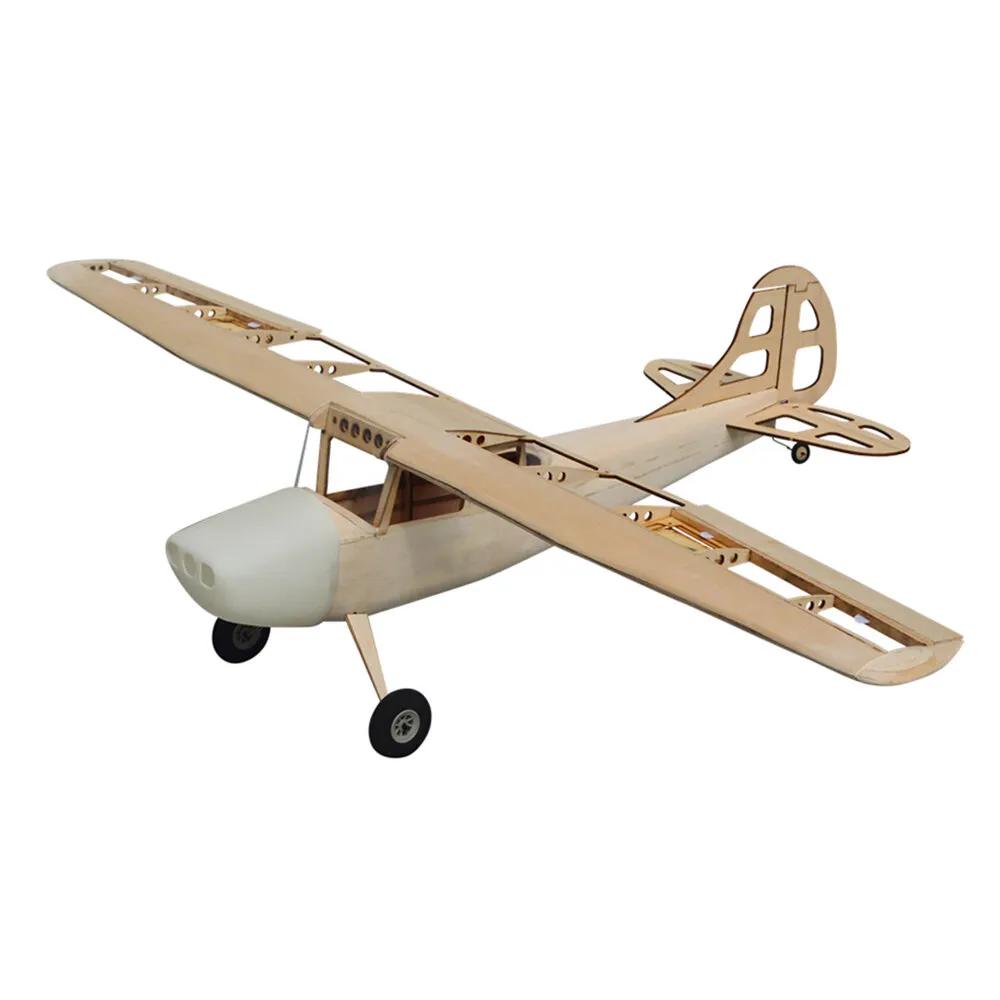

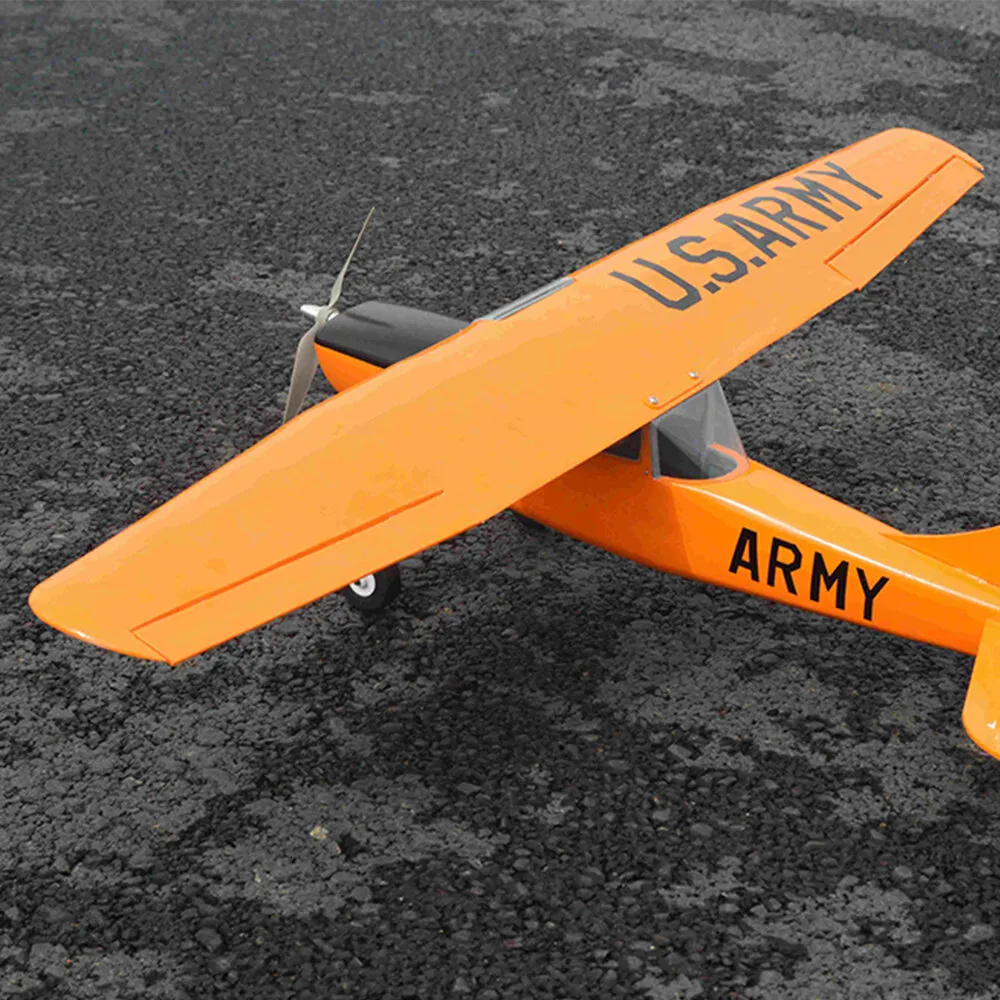

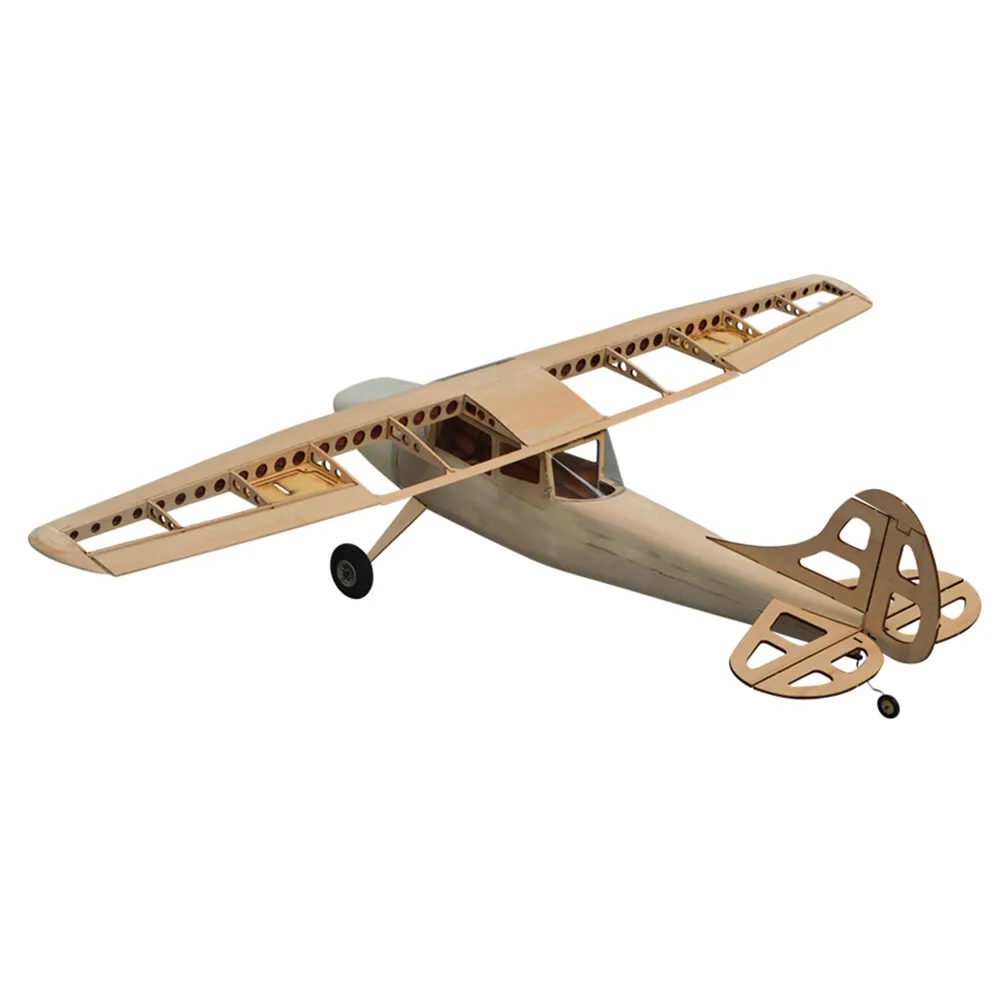

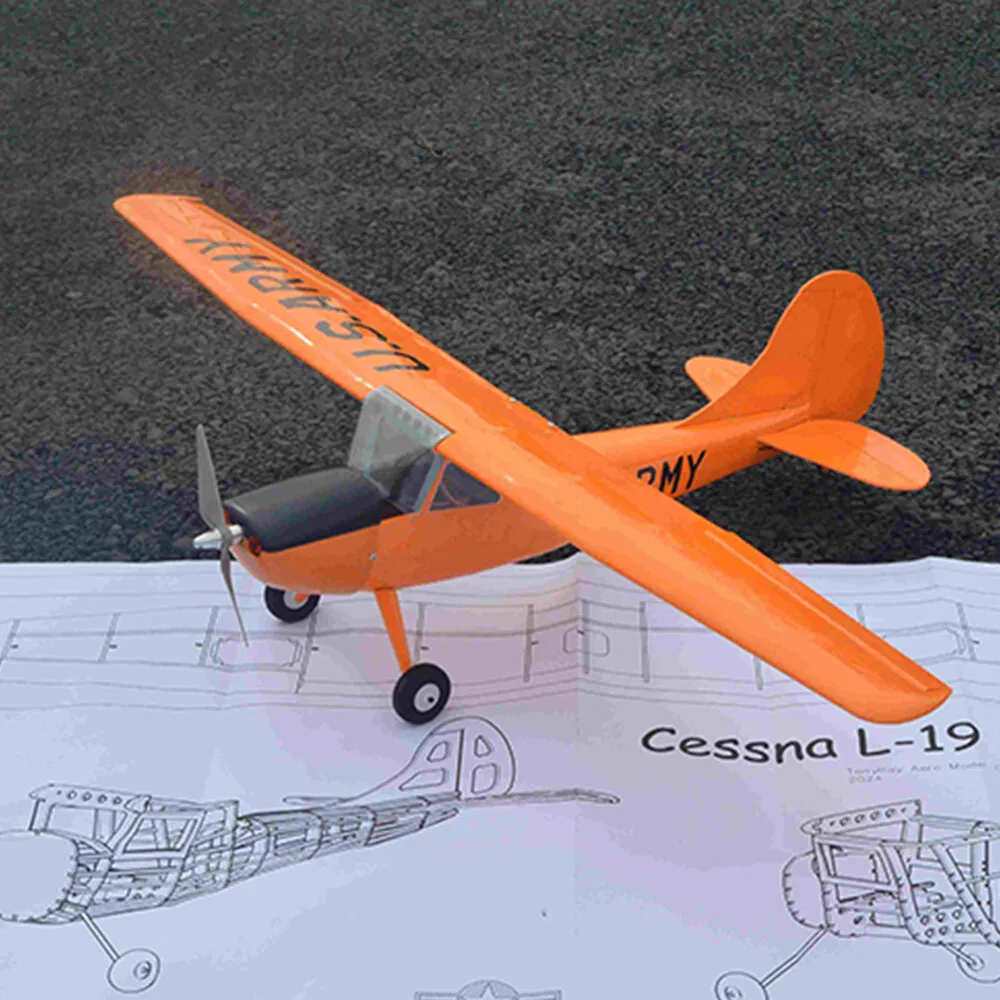

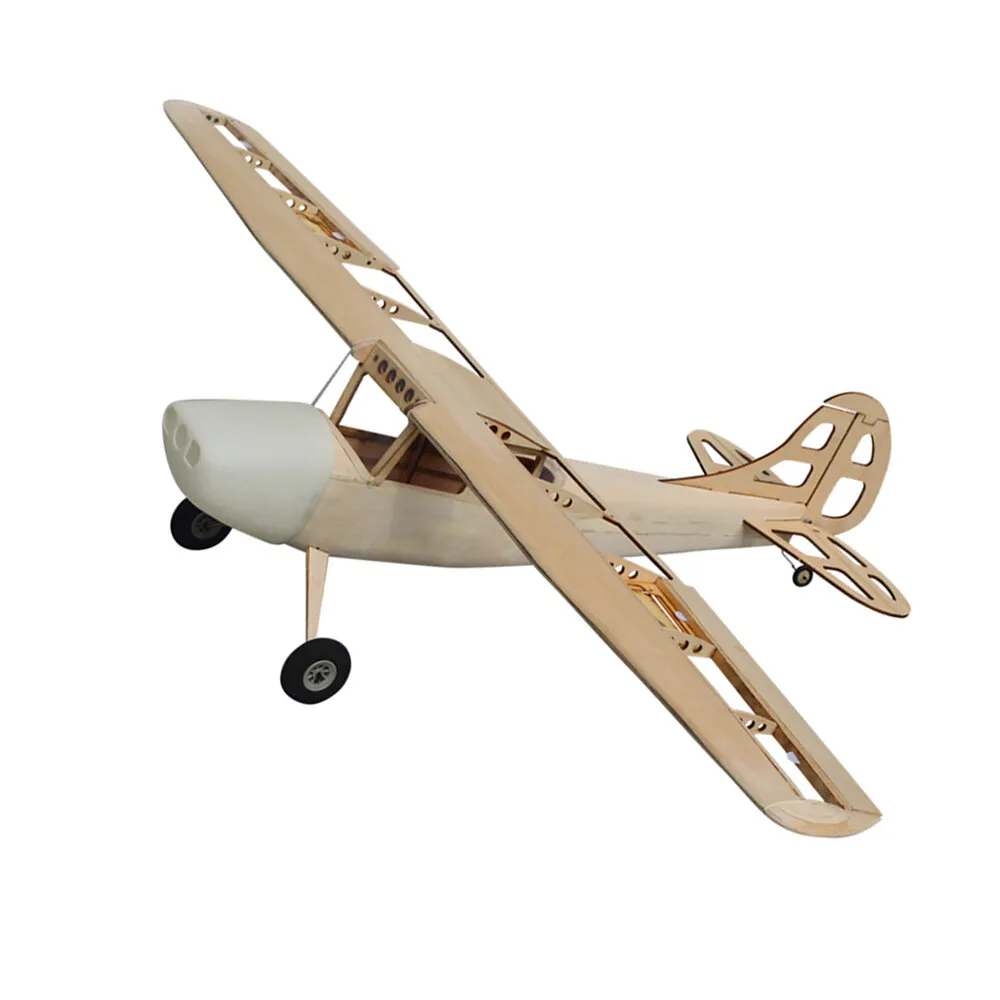

Tony Ray's Aero Model Cessna L-19 Bird Dog 750mm Wingspan Balsa Wood RC Airplane KIT

• weight: 485 g

Specifications:

Brand Name: Tony Ray's Aero Model

Item Name: Cessna L-19 Bird Dog

Material: Balsa Wood

WingSpan: 29.5 in / 75cm

Wing Area: 7.15 sq dm

Flying Weight: 150g-180g

Fuselage Length: 50cm

Scale: 1 / 15

Requires (Not Included):

RC transmitter with at least 4 channels

Aileron: 2.5g servos(ES9251) *2pcs

Rudder&Elevator: 2.5g servos(ES9251) *2pcs

Motor system: 1503 2750KV

English Manual, Click Here

Package Included:

1x 2.0mm Plywood
2x 2.0mm Balsa
1x 2.0mm Paulownia
4x 1.0mm Balsa
1x 1.0mm Plywood
1x PVC sheet
2x Paper hinge
2x PU wheels
4x pin
1x 25cm Steel rod (diameter:1.5mm)
1x 10cm Steel rod (diameter: 0.8mm)
2x Carbon rod (diameter: 1mm)
2x M2 Four Claws Nut
20x M2*8 Screws (Spacer Version)
3x M2*5 Screws (Spacer Version)
10x M1*3 Screws
15x M1.7*6 Screws (Spacer Version)
4x Heat shrinkable tube
2x Canopy

Note: This is KIT Version, all the electronic devices and glue are not included.
