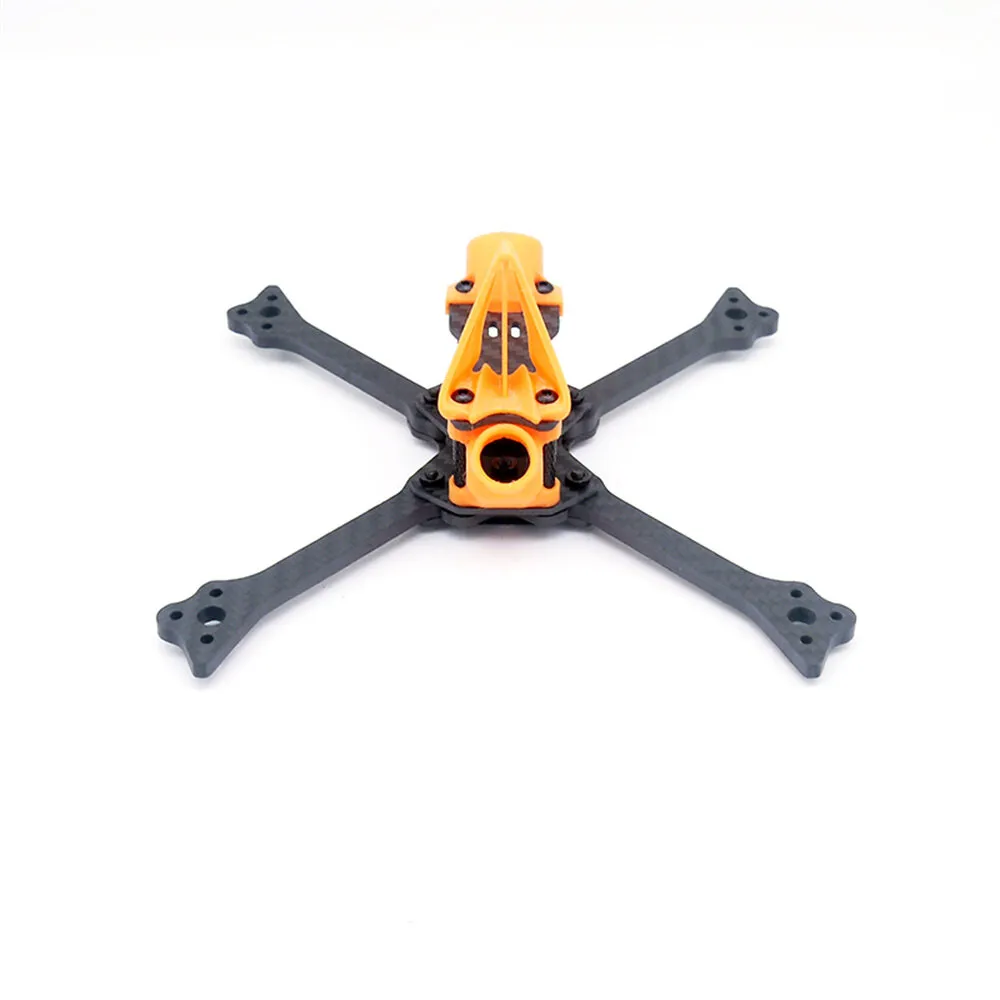

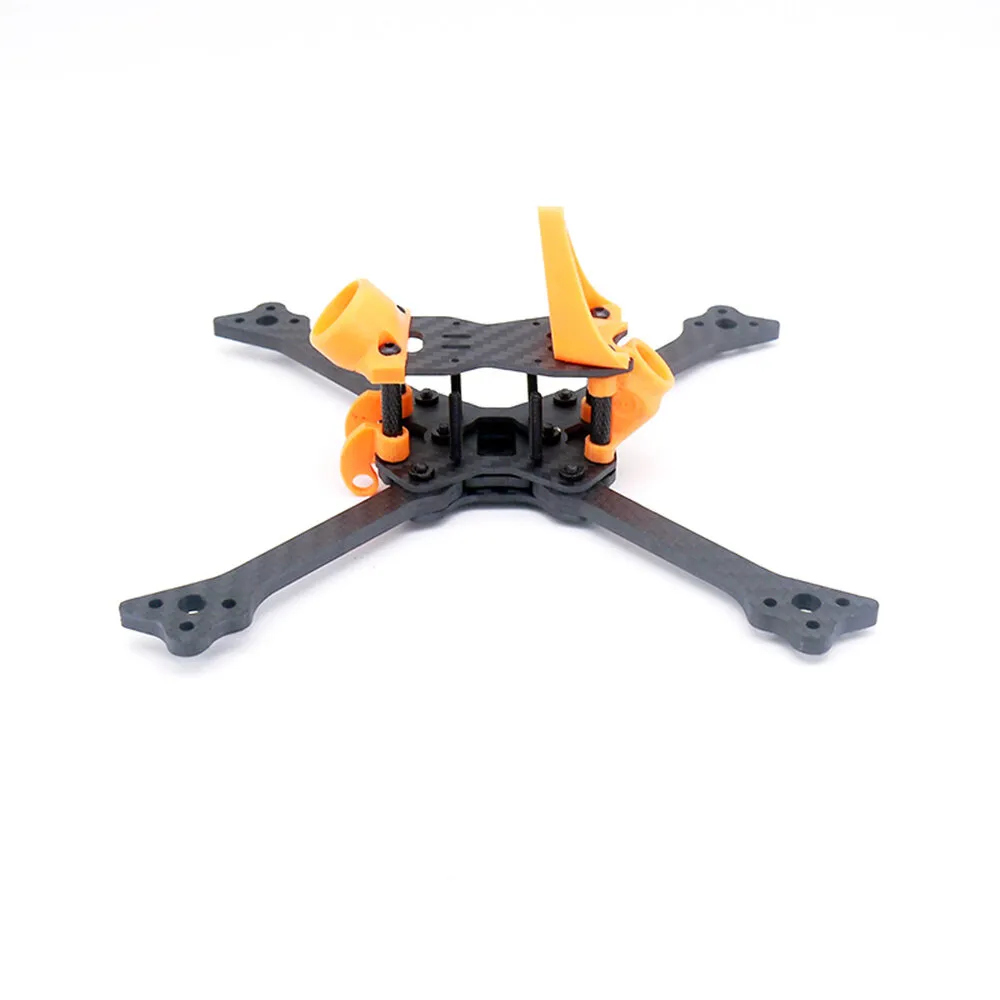

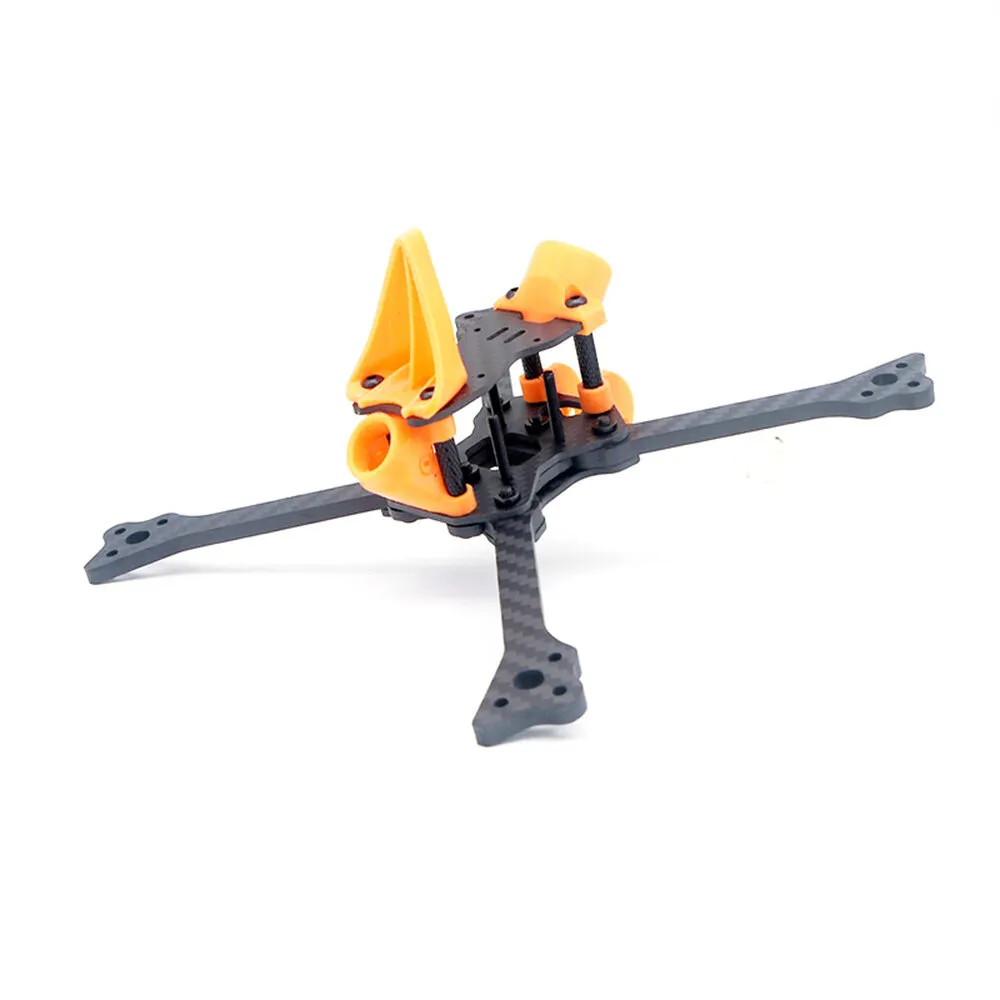

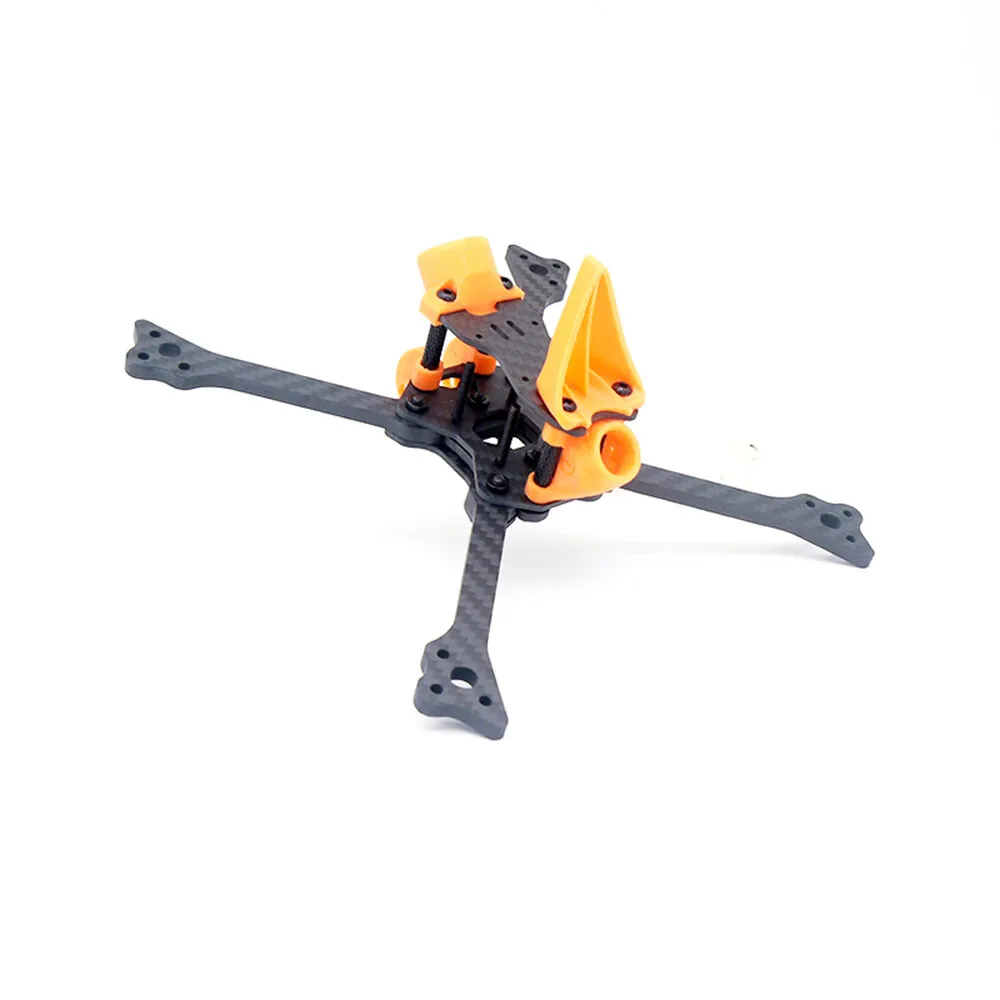

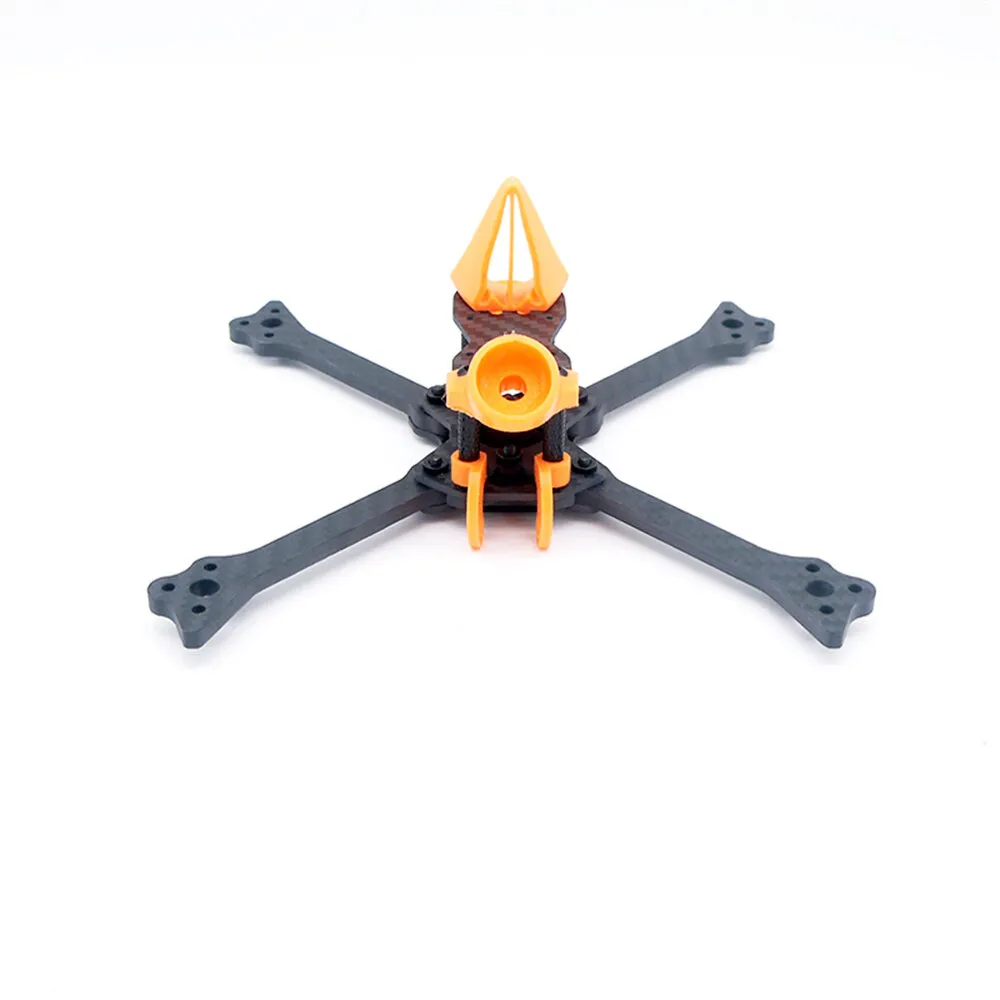

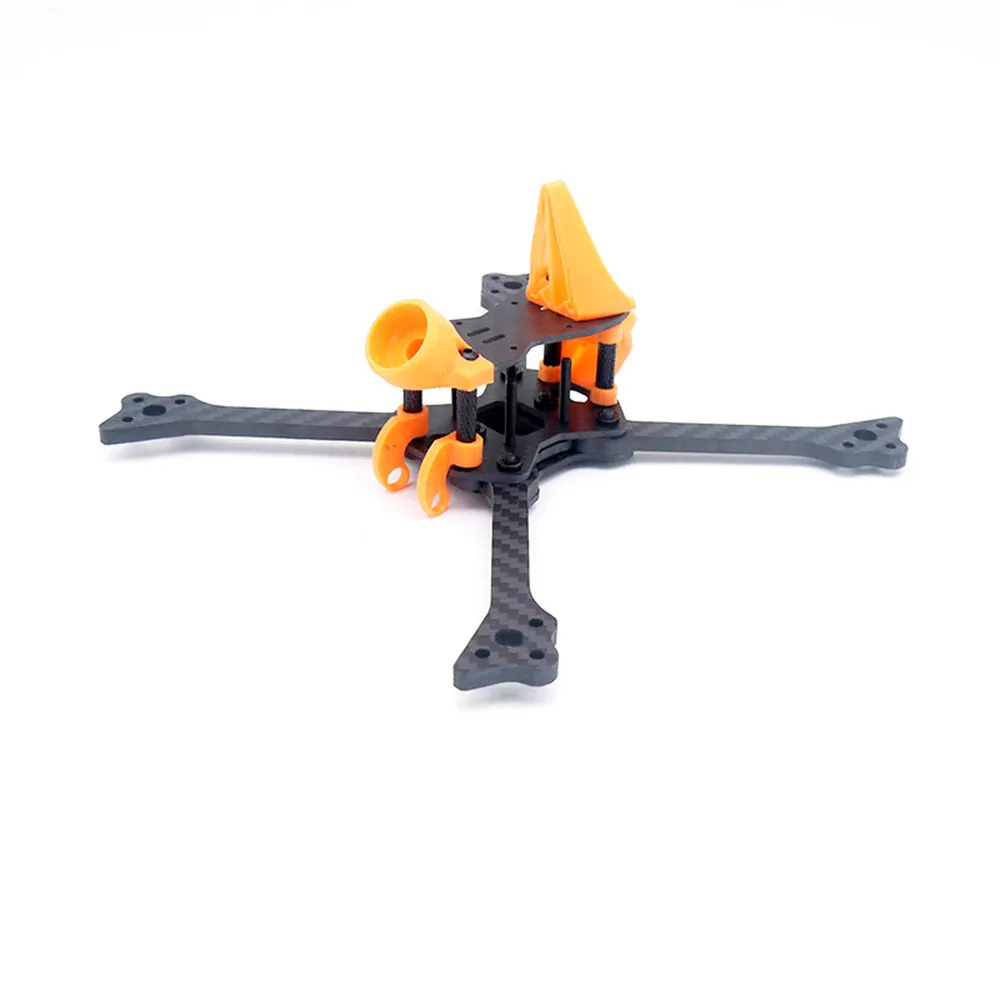

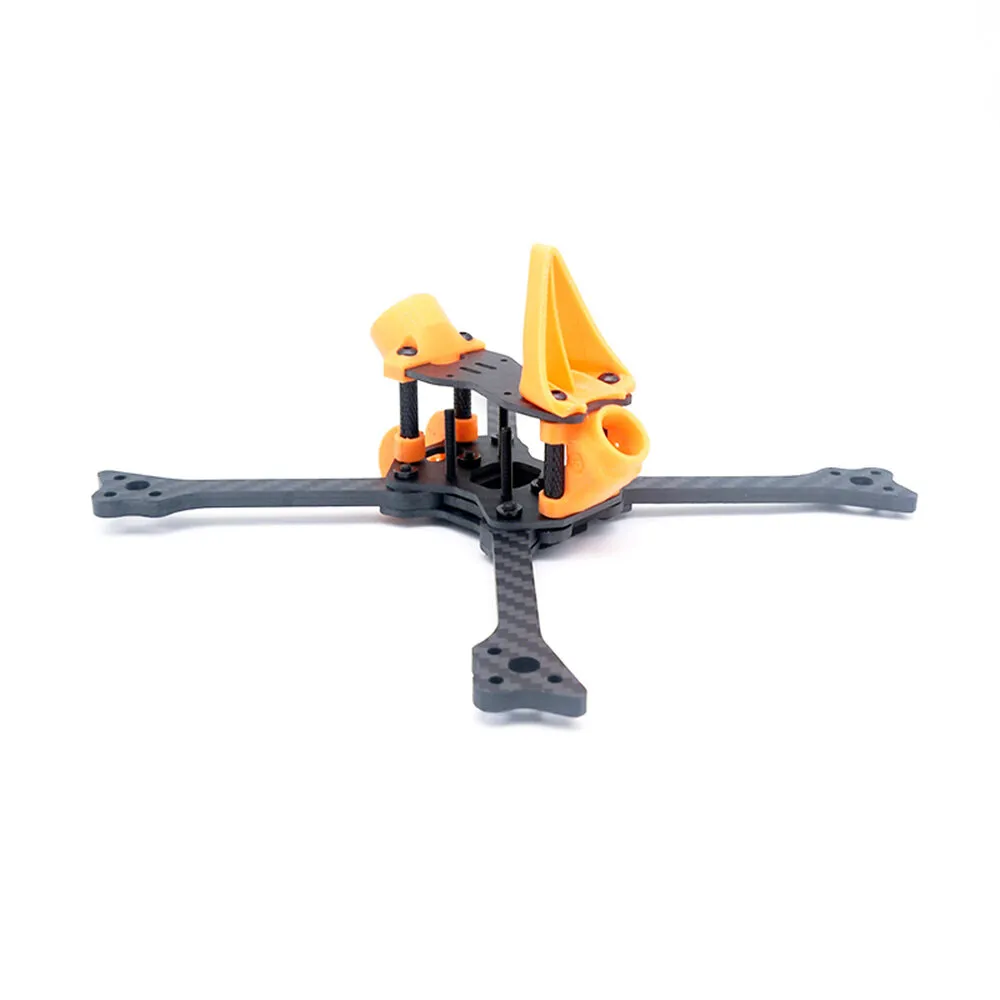

TEOSAW 533Pro 190mm Wheelbase 5mm Arm Thickness 5 Inch Carbon Fiber Frame Kit for DIY RC Drone FPV Racing

• weight: 485 g

Notice: 1. Comes unassembled. Need build by buyers.

2. This product has been upgraded from 533Lite to 533Pro. May 8, 2025

Specifications:
Brand: TEOSAW

Model: 533Pro
Wheelbase: 190mm

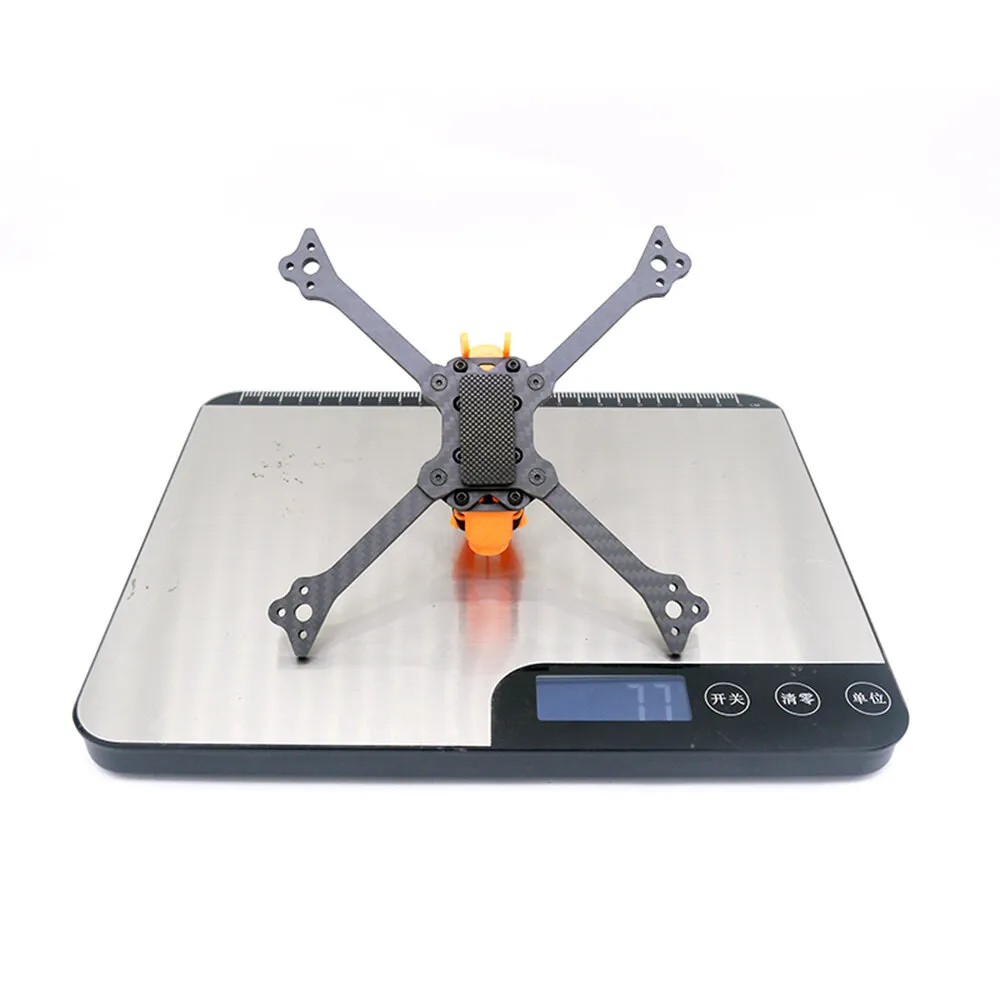

Weight: 77g
Arms Plate Thickness: 5.0mm

Clamping Plate Thickness: 3.0mm

Other Plate Thickness: 2.0mm

Recommend Propeller Size: 5.0 inch, Max 5.1 inch
Flight Controller Hole Distance: 20*20mm（M3）
Camera Installation Width: 14mm
Motor Installation Hole Position: 16*16mm（M3）
Structure: X-type Split
Aluminum Column Height: M3*25mm
Adapt to snail, nebula, aurora, vista sky terminal, etc., 915 antenna

Features:

Ultra-Lightweight Design: Even in the lightest configuration, it features 5mm arms and a sturdy, wobble-free midsection, giving the optimal blend of weight and durability.

Future-Ready Camera Solution: Adapts to the NANO (14x14) size cameras, offering flexibility for future camera upgrades and helping to maintain a low overall weight.

User-Friendly Flight Tower Installation: This frame supports 20x20mm flight tower installation, making the setup process easy and intuitive.

Changeable Flight Feel: Unique design allows pilots to modify their flight experience without adding extra weight or complexity.

Quick and Easy Maintenance: Thanks to the quick-release structure with a full carbon fiber mid-section, replacing an arm is as simple as loosening one screw.

Recommend Parts: ( NOT Included)

FC & ESC: 20x20mm HAKRC F7 2-6S FC & 35A BL_S 4in1 ESC Stack

Brushless Motor: iFlight XING-E Pro 2207 1800KV 3-6S /2450KV 2750KV 2-4S

Propeller: HQProp Ethix S3 Watermelon 5031 5x3.1 5 Inch 3-Blade Propeller

VTX: 20X20mm EWRF VTX 5.8Ghz 40CH 25-650mW Adjustable FPV Transmitter

FPV Camera: Caddx Ant 1.8mm 1/3 CMOS 1200TVL 16:9/4:3 Global WDR

Lipo Battery: ZOP Power 14.8V 850mAh 100C 4S LiPo Battery
Gaoneng GNB 22.8V 1100mAh 60C 6S LiPo Battery

Package Included:

1x Empty Frame Kit

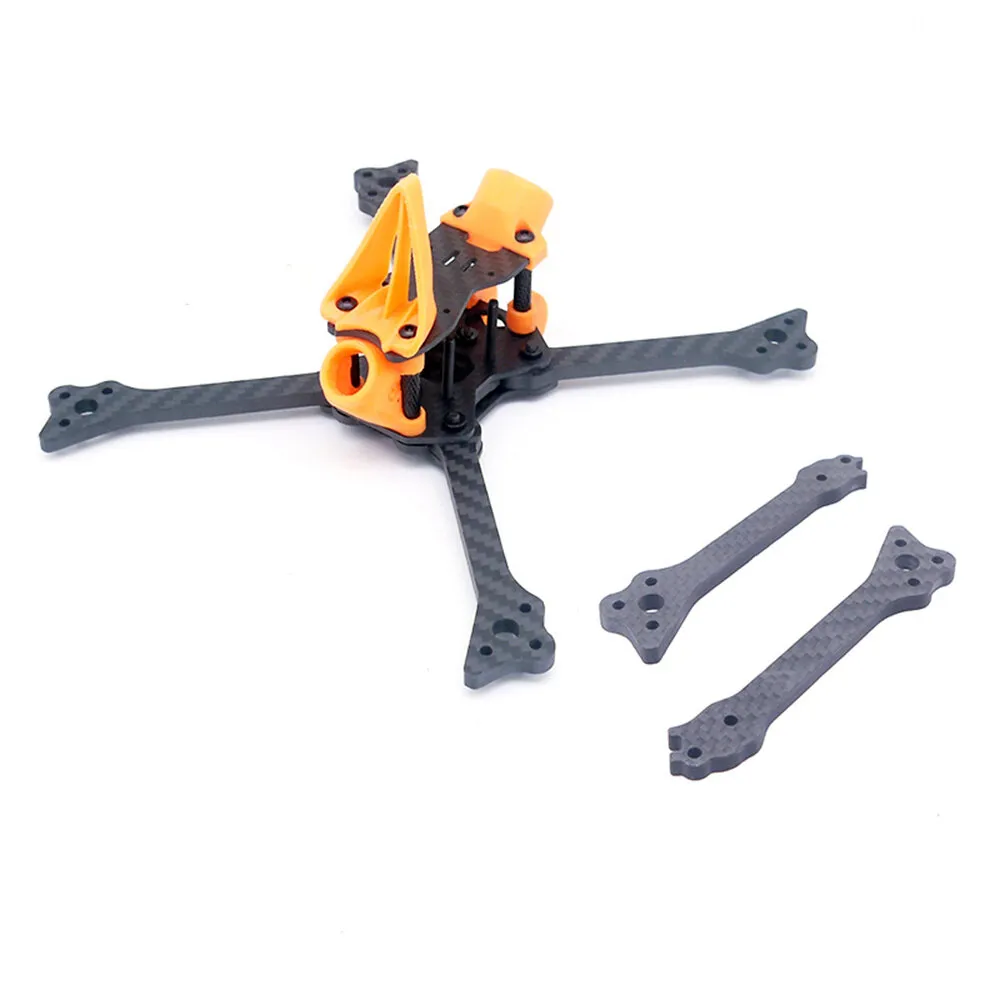

2x Additionally Replace Arm
