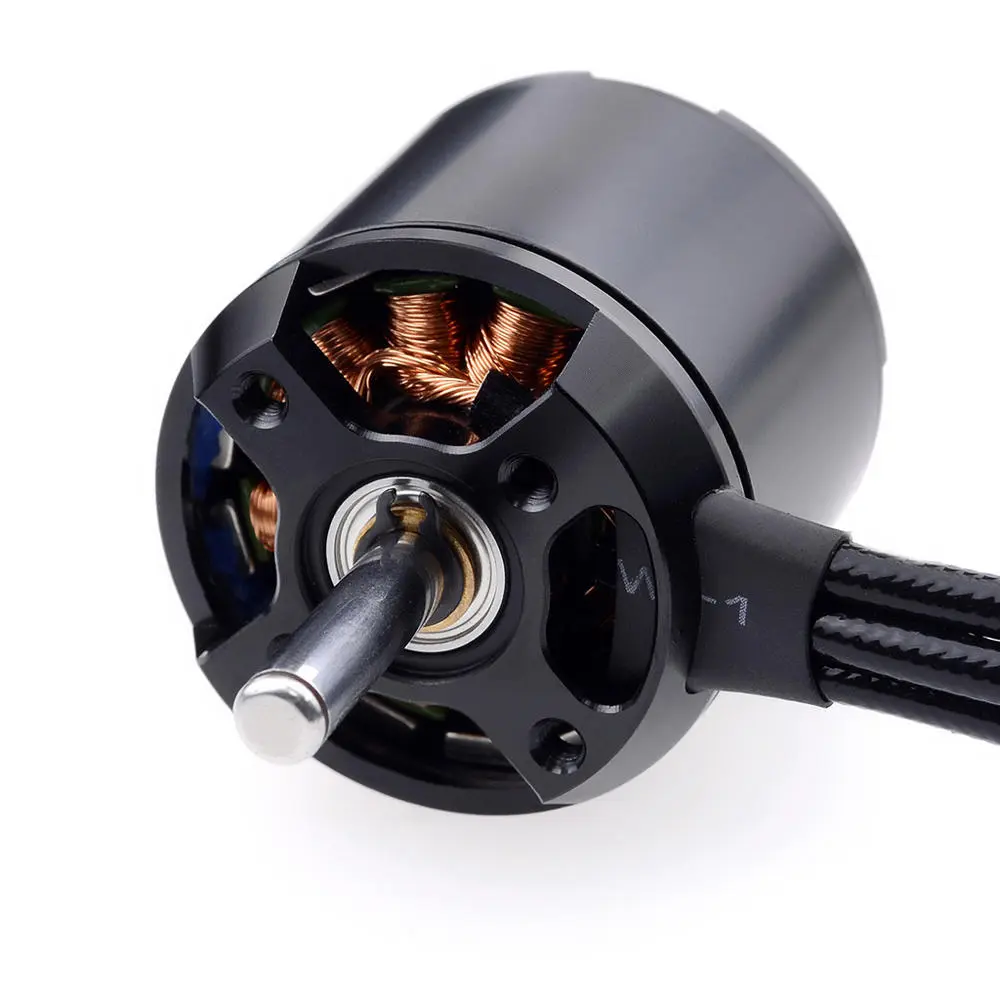

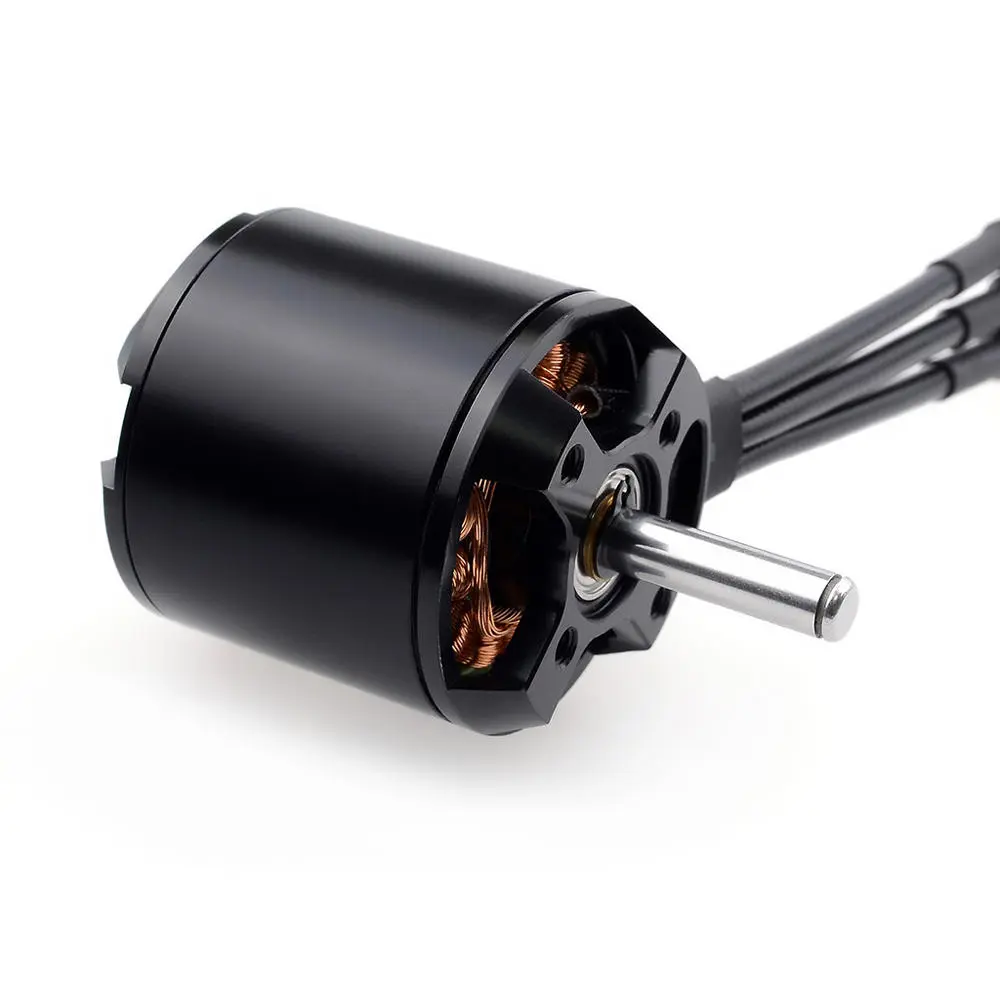

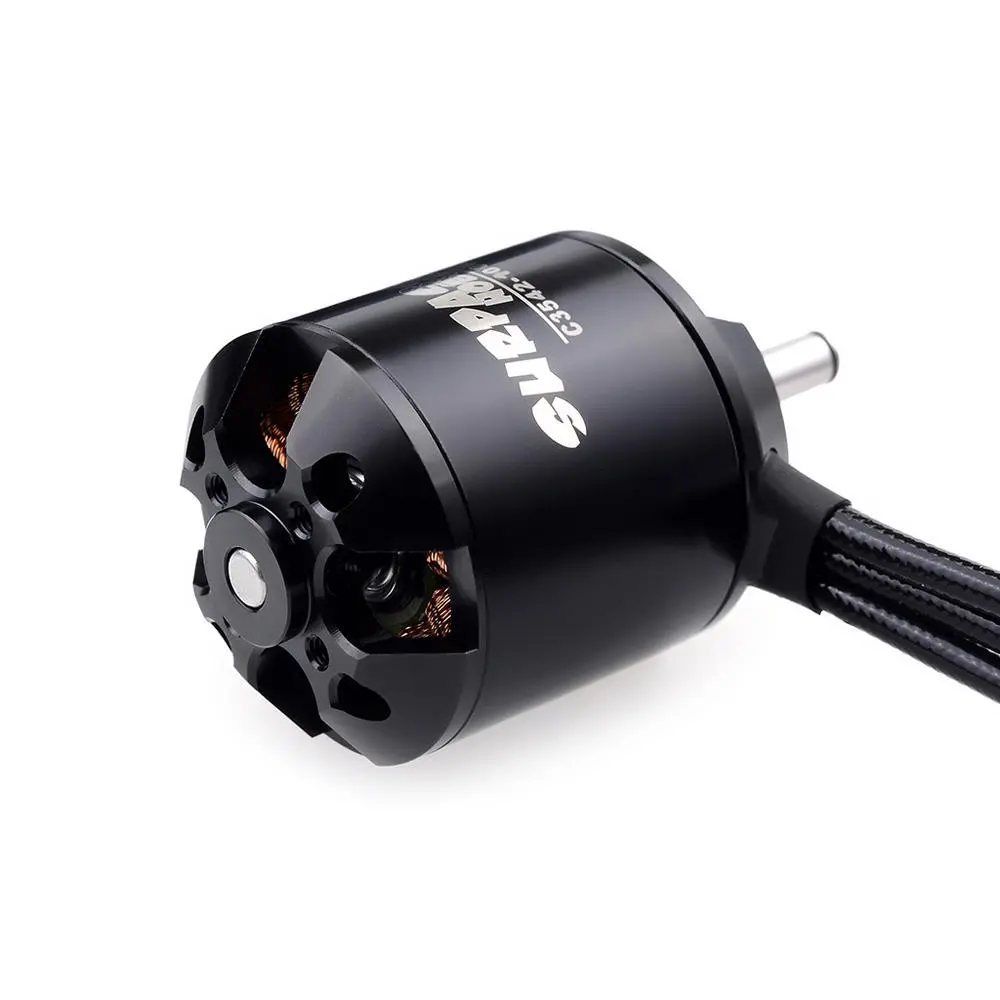

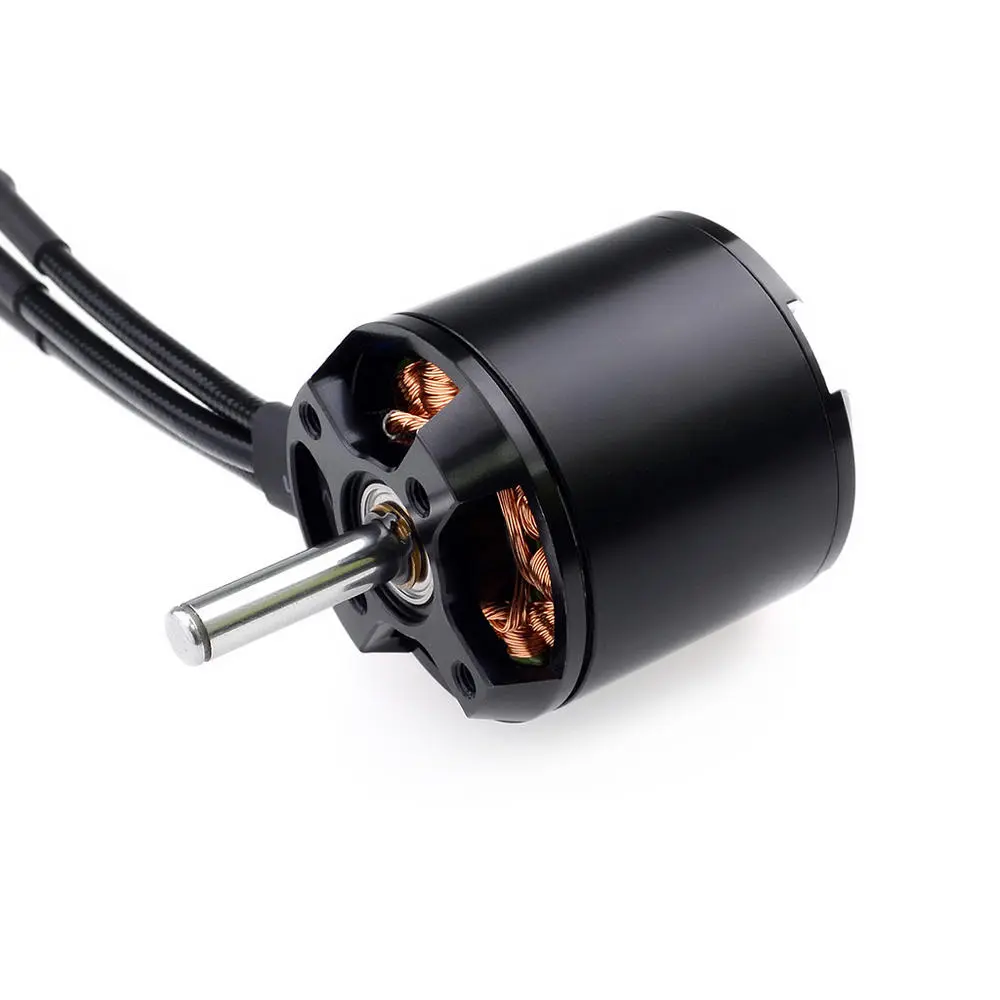

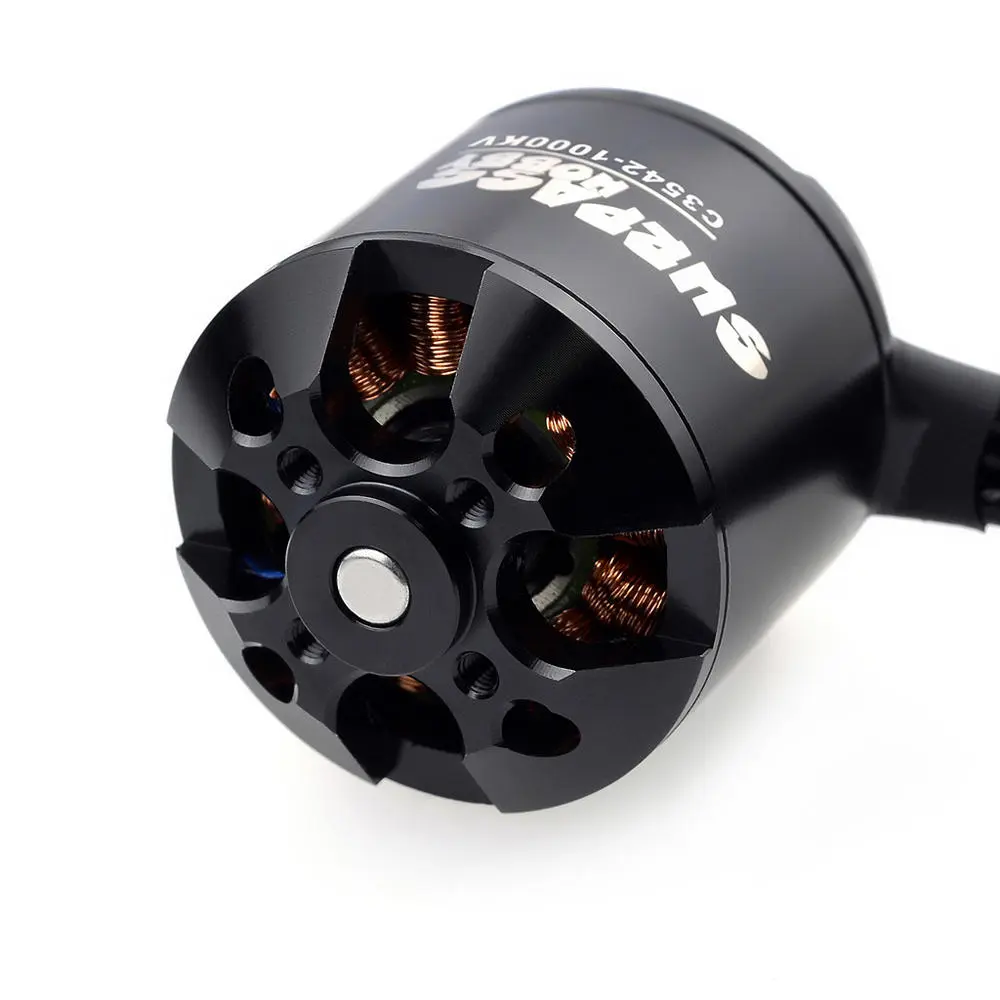

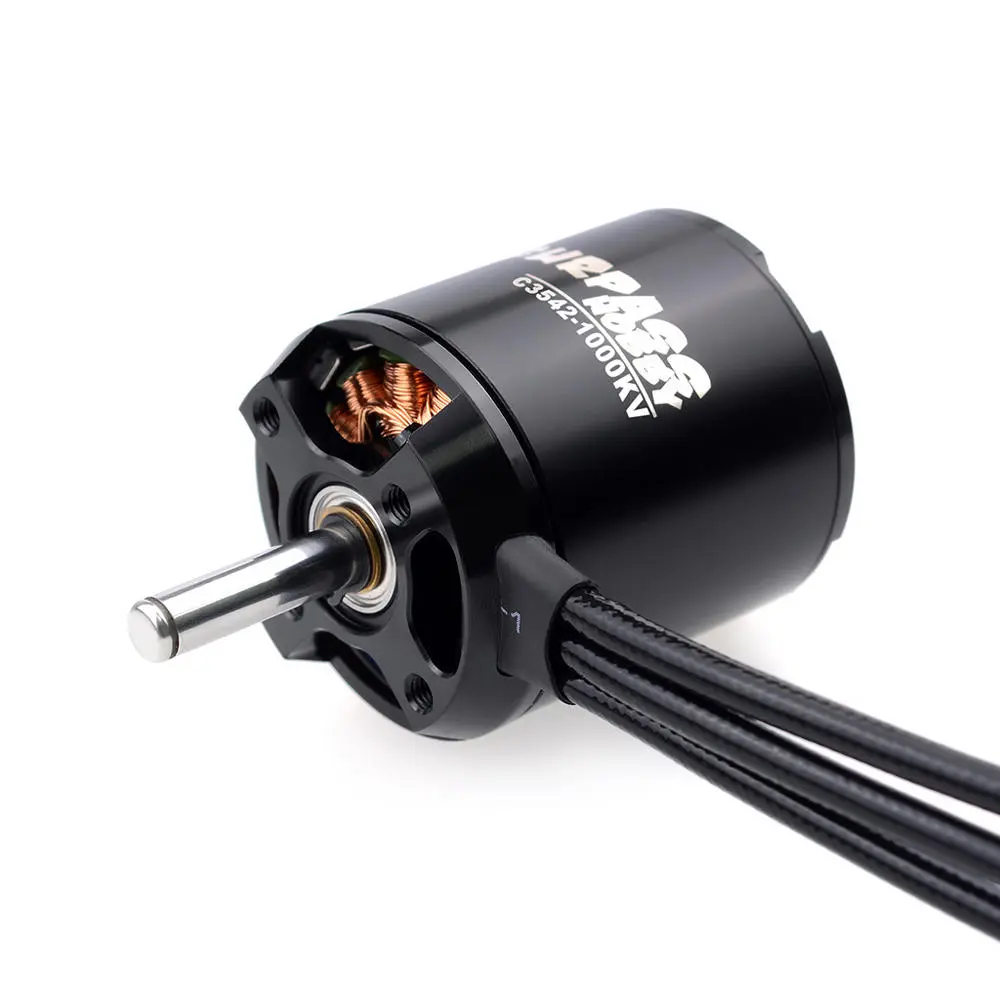

SURPASS Hobby C3542 1000KV/1250KV/1450KV Outrunner Brushless Motor for RC Airplane Fixed-wing EDF Ducted Fan Unit

SKUE04528

74 Reviews

USD 39.99

Wholesale Prices :

Qty:	4-7	>=8
Price:	$13.50	$12.75

Qty:

In stock

30-day Return Policy, Learn More

Description

weight: 485 g

Description:
Brand Name: SURPASS Hobby Item Name: C3542 MotorKV: 1000KV, 1250KV, 1450KV (optional)Color: Black

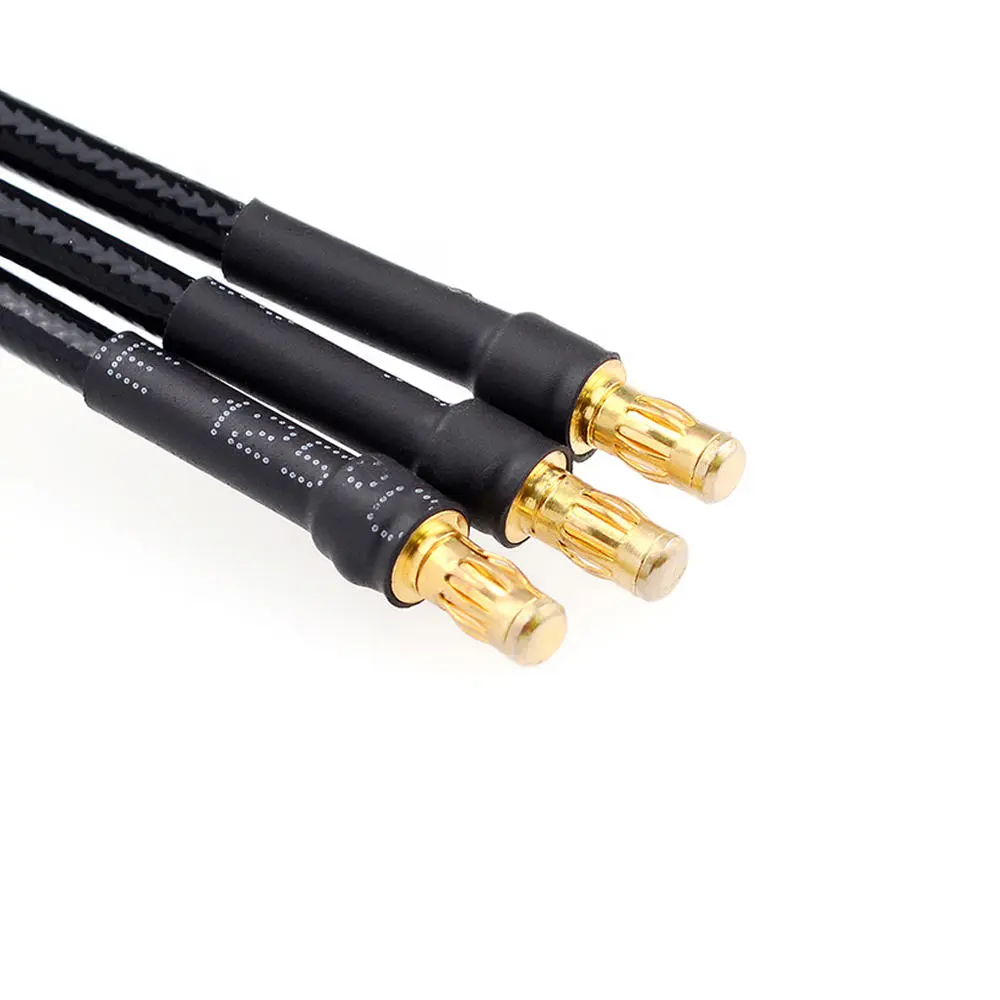

Shaft: 5.0mmConnector: 3.5mm

Application: Suitable for RC Airplane Fixed-wing EDF Ducted Fan Unit
Specifications:

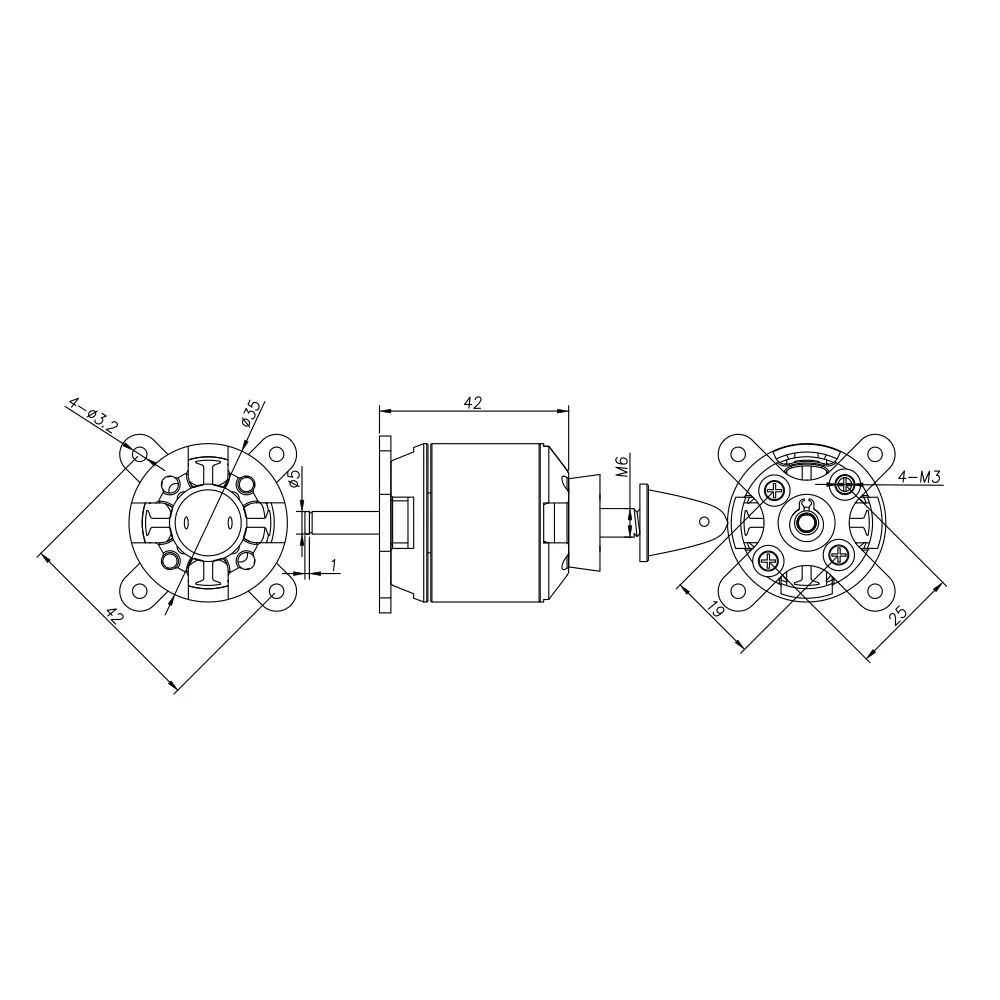

Model	KV	Max Watts(W)	Voltage Range(V)	Max Current(A)	Rotor Poles	No load Current(A)	Resistance(Ω)	Motor Size(mm)	Stator Size(mm)	Weight(g)	Prop(Inch)
C3542-04	1450	1050	7~15	78	14	2.3	0.021	￠35x42	￠28x20	132	125/117/13*8
C3542-05	1250	850	7~15	65	14	2.1	0.026	￠35x42	￠28x20	132	87/95/10*4
C3542-06	1000	750	7~15	55	14	2	0.039	￠35x42	￠28x20	132	106/126.5/13*8

Features:

- 14Pole 12Slot Hi-torque Motor Design.

- CNC Machined 6061 for T6 Billet Aluminum Heatsink Can.

- High Purity Copper Windings Maximizes Efficiency.

- High RPM ABEC5 Oversized Bearings.

- Precision balanced rotor, smoothness for best reliability and maximum RPM.

- Stator - Super Thin (0.2mm) Laminations.

- Precision Engineered for Maximum Energy Conversion.
- The outer rotor dynamic balance is controlled within 10mg, ensuring no abnormal noise, no jitter, and smooth running.
- The motor adopts waterproof design and related waterproof technology, which has a certain anti-corrosion function, and runs normally in the rain.

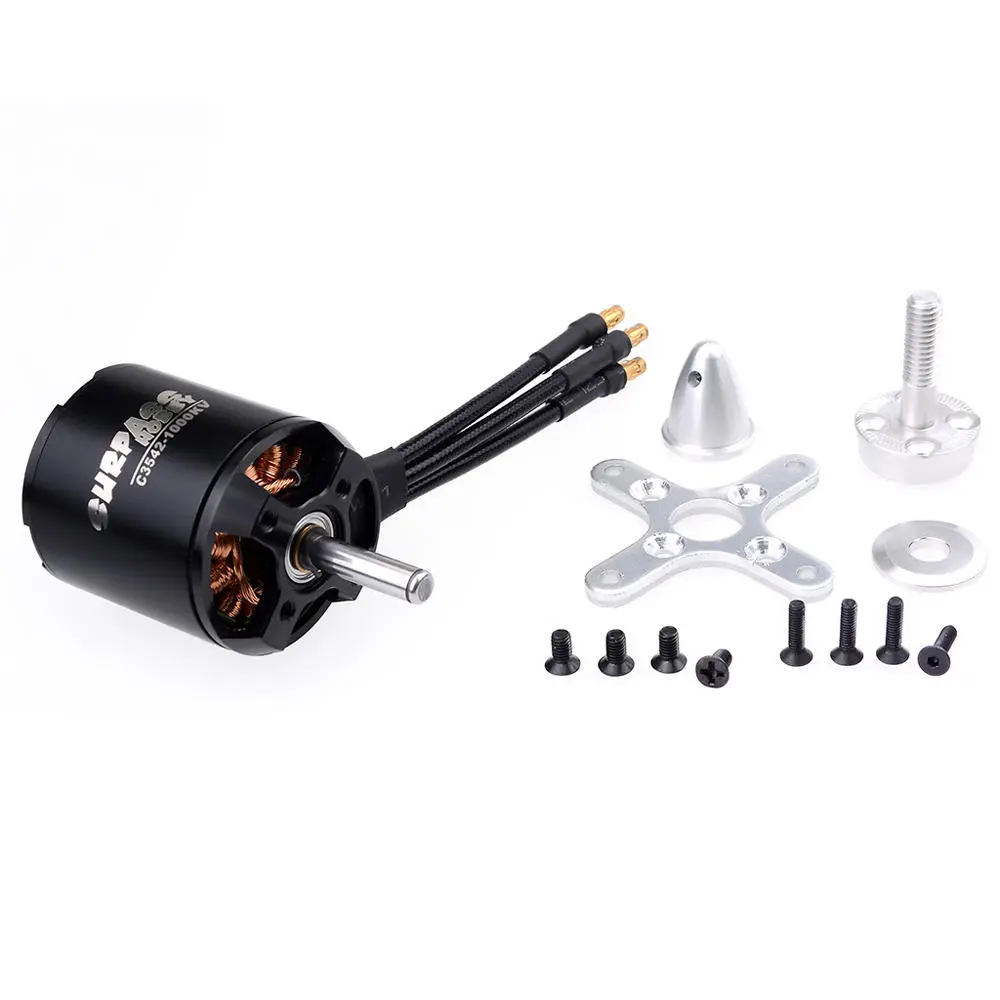

Package Included:

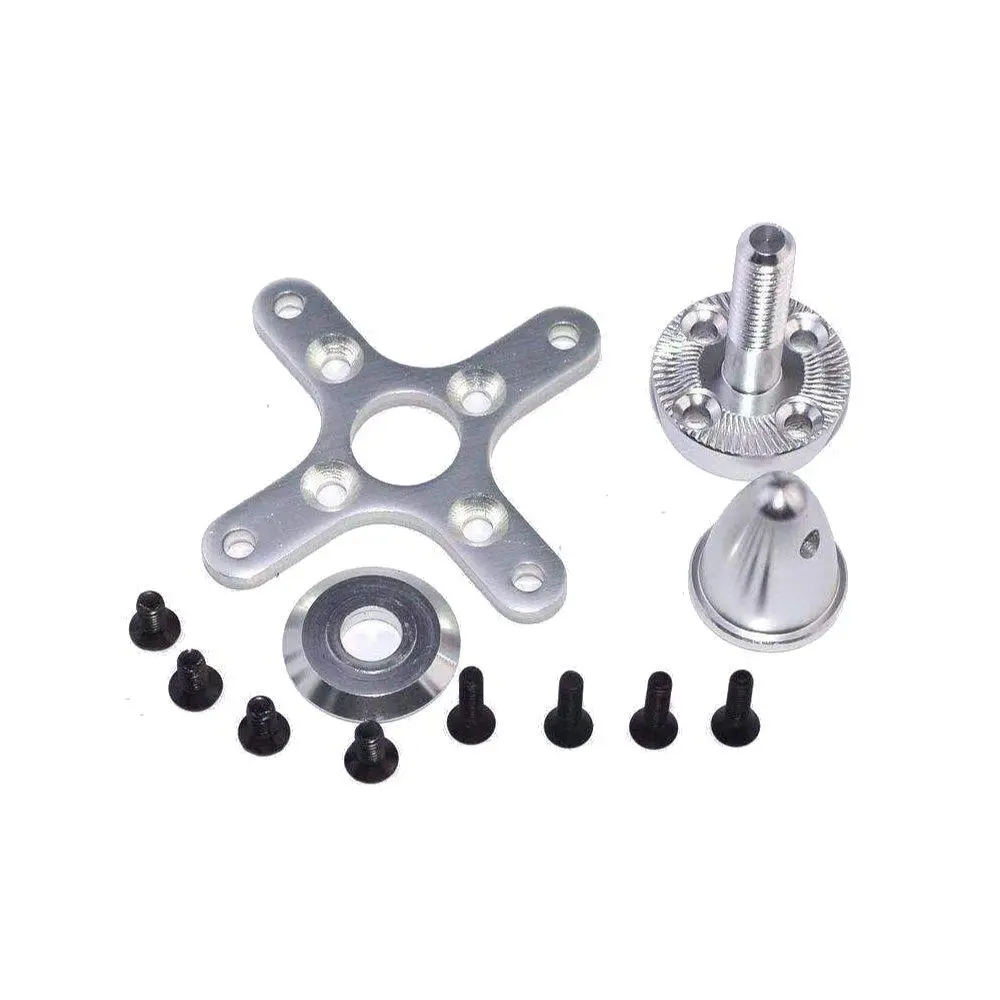

1x SURPASS Hobby C3542 Outrunner Brushless Motor1x Accessories

SURPASS Hobby C3542 1000KV/1250KV/1450KV Outrunner Brushless Motor for RC Airplane Fixed-wing EDF Ducted Fan Unit
