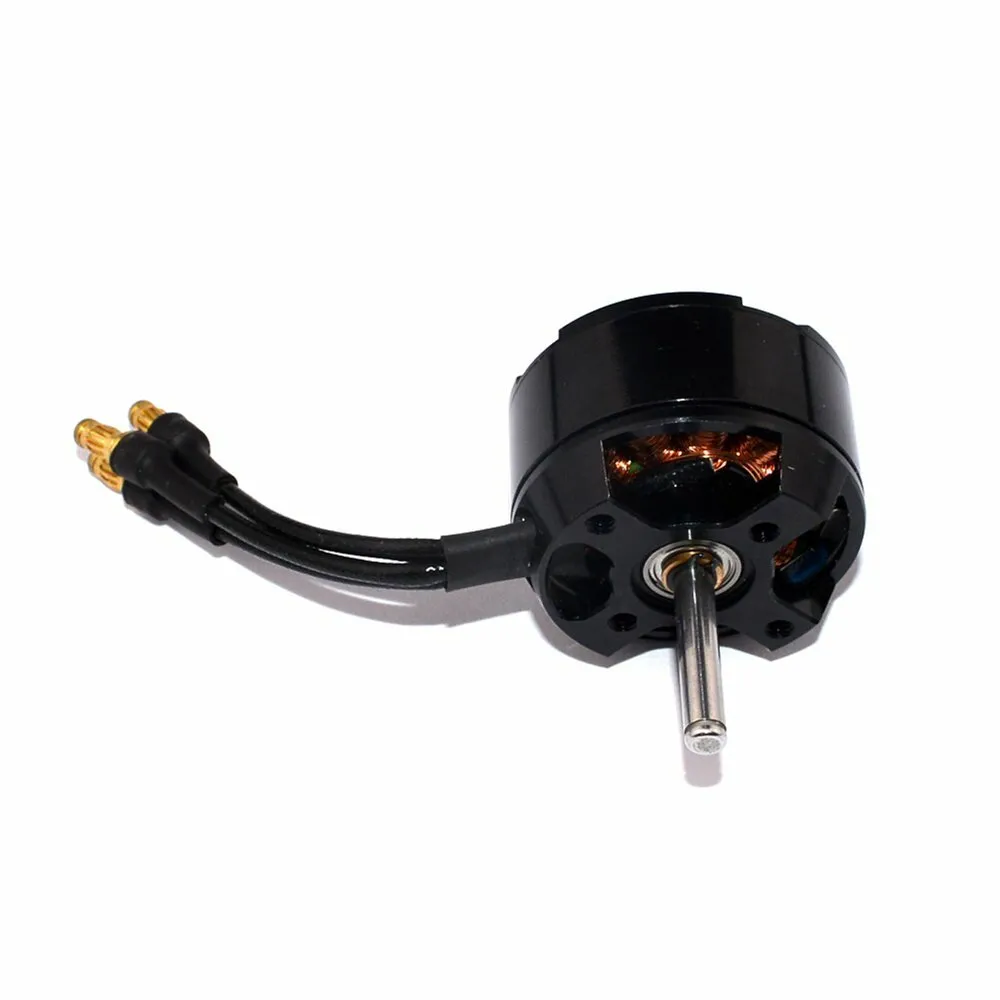

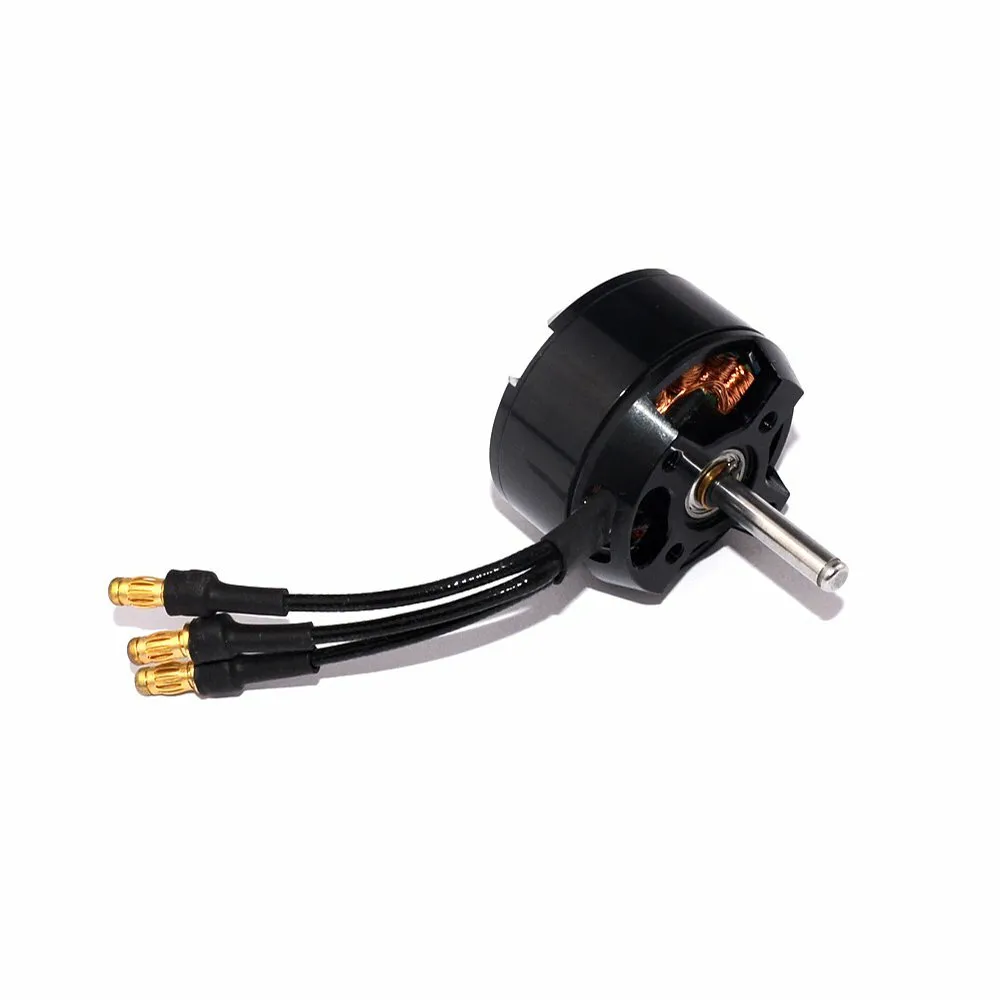

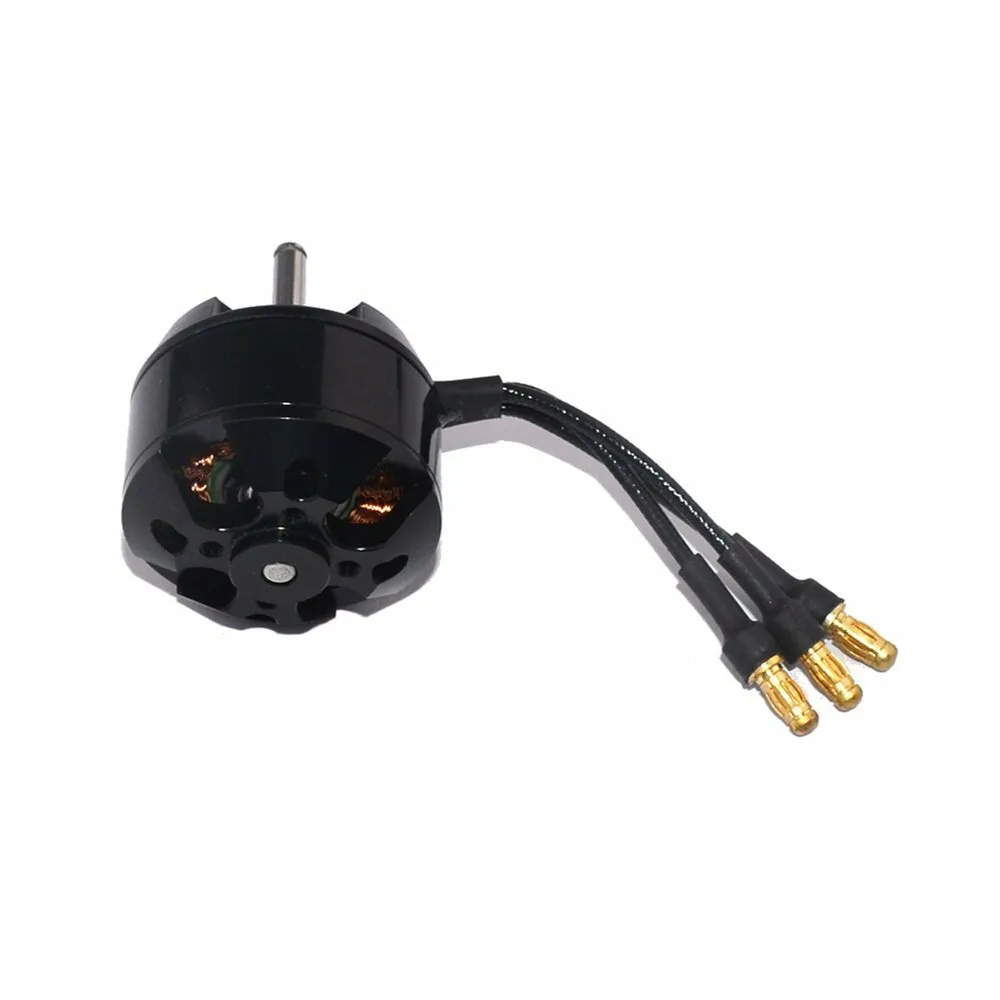

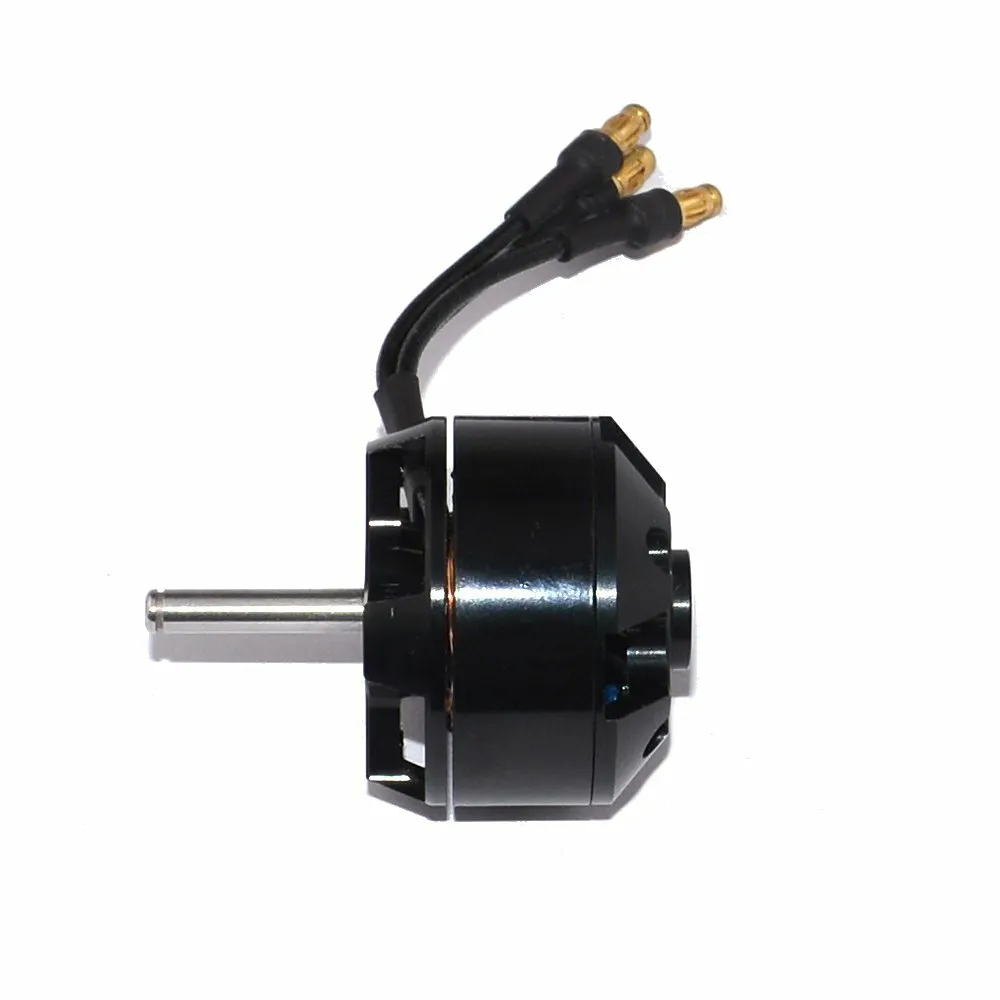

SURPASS Hobby C3530 1100KV/1400KV/1700KV Outrunner Brushless Motor for RC Airplane Fixed-wing EDF Ducted Fan Unit

SKUE04522

48 Reviews

USD 29.99

Wholesale Prices :

Qty:	4-7	>=8
Price:	$8.10	$7.65

Qty:

In stock

30-day Return Policy, Learn More

Description

weight: 485 g

Description:Brand Name: SURPASS Hobby Item Name: C3530(2808) MotorItem NO.: SP-028080-01KV: 1100KV, 1400KV, 1700KV (optional) Color: BlackApplication: Suitable for RC Airplane Fixed-wing EDF Ducted Fan Unit

Specifications:

Model	KV	Max Watt (W)	Voltage Range (V)	Max Current (A)	Rotor Poles	No Load Current (A)	Resistance (Ω)	Motor Size (mm)	Stator Size (mm)	Weight (g)	Prop (inch)
C2808-08	1700	420	7-15	42	14	1.8	0.041	35x30	28x8	78	74/66
C2808-10	1400	350		35		1.2	0.059				94.5/84/7*7
C2808-14	1100	310		30		0.7	0.113				95/104.7

Features:

- 14Pole 12Slot Hi-torque Motor Design.

- CNC Machined 6061 Billet Aluminum Heatsink Can.

- High Purity Copper Windings Maximizes Efficiency.

- High RPM ABEC5 Oversized Bearings.

- Precision balanced rotor, smoothness for best reliability and maximum RPM.

- Stator, Super Thin (0.2mm) Laminations.

- Precision Engineered for Maximum Energy Conversion.- The outer rotor dynamic balance is controlled within 10mg, ensuring no abnormal noise, no jitter, and smooth running.- The motor adopts waterproof design and related waterproof technology, which has a certain anti-corrosion function, and runs normally in the rain.

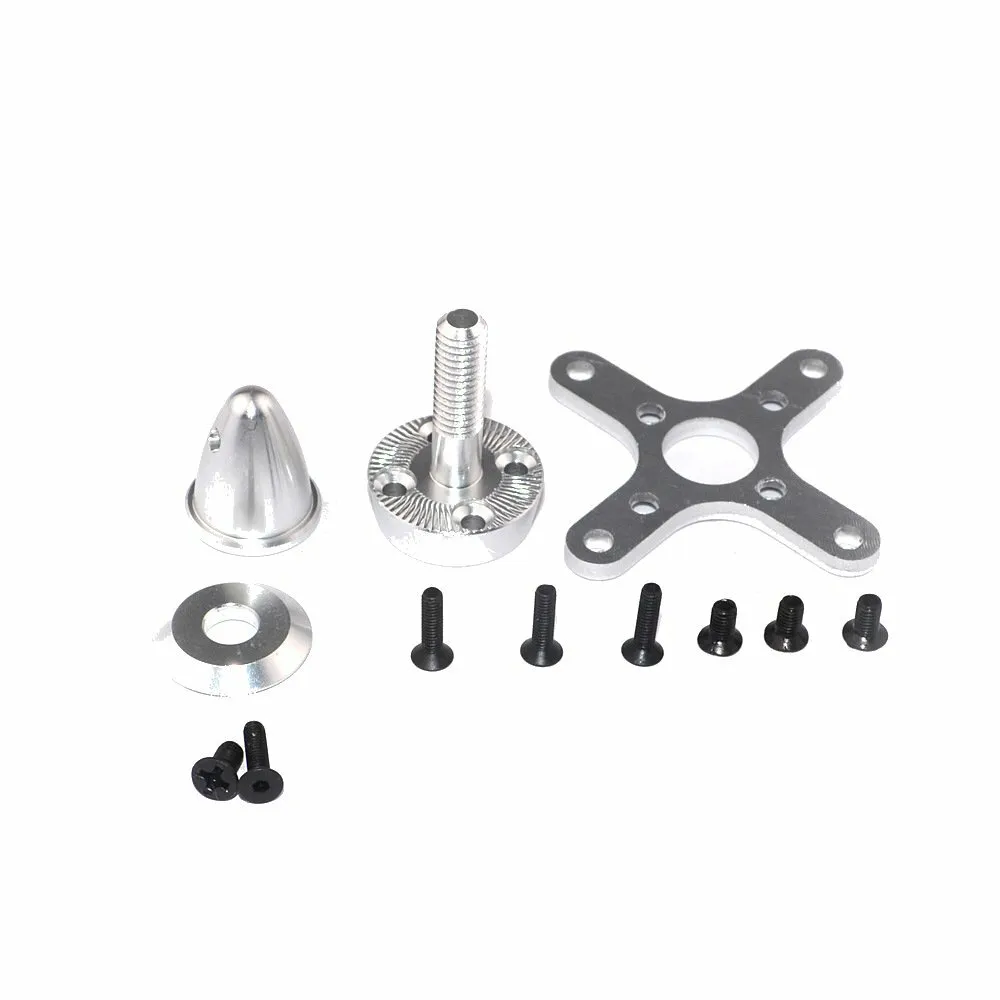

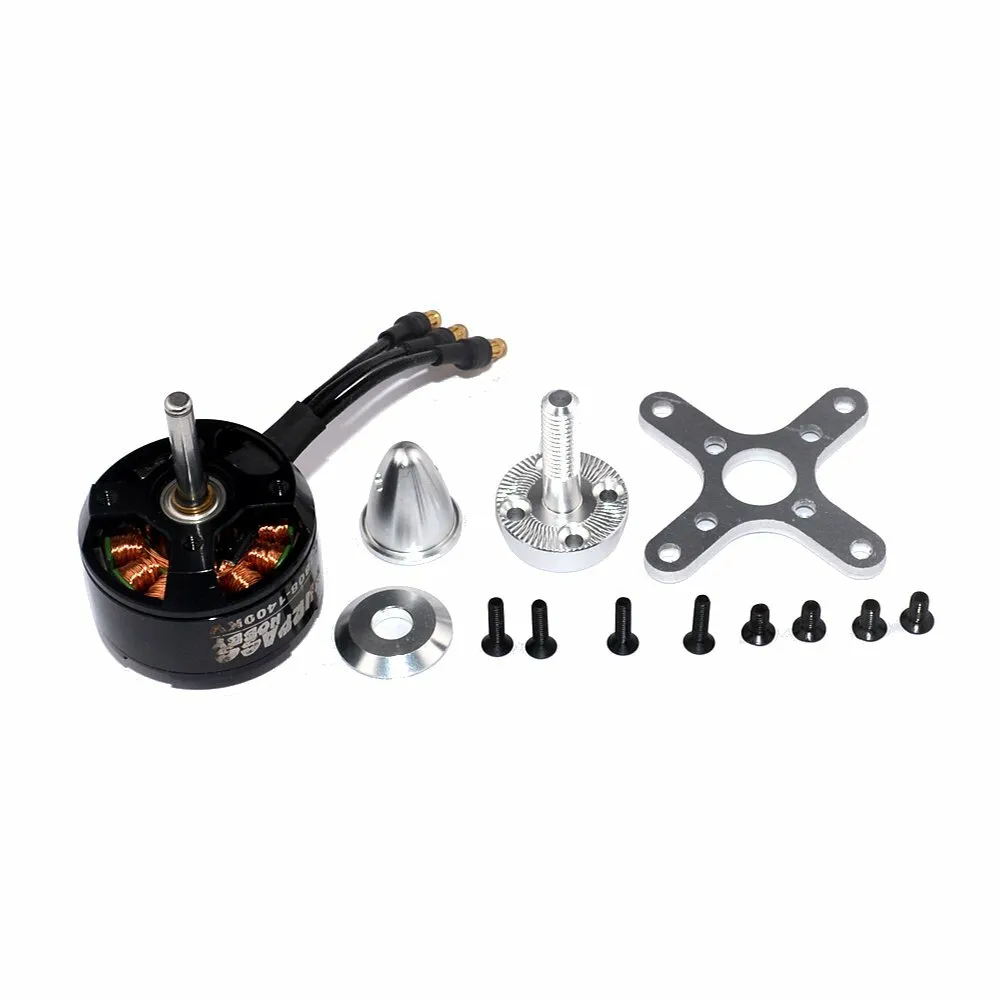

Package Included:1x SURPASS Hobby C3530 Outrunner Brushless Motor1x Accessories
