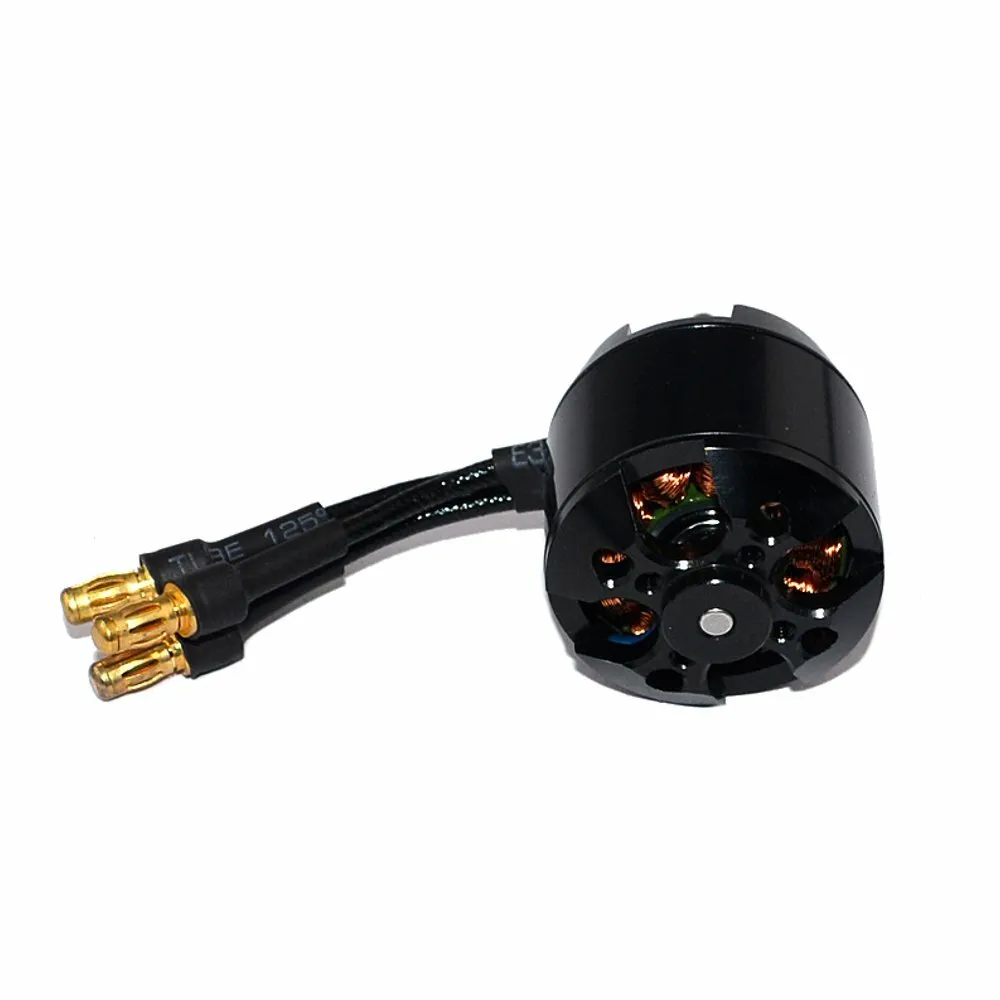

SURPASS Hobby C2830 750KV/850KV/1000KV/1300KV Outrunner Brushless Motor for RC Airplane Fixed-wing EDF Ducted Fan Unit

SKUE04515

71 Reviews

USD 29.99

Wholesale Prices :

Qty:	4-7	>=8
Price:	$5.85	$5.52

Qty:

In stock

30-day Return Policy, Learn More

Description

weight: 485 g

Description:
Brand Name: SURPASS Hobby
Item Name: C2830 Motor
KV: 750KV, 850KV, 1000KV, 1300KV (optional)
Color: Black

Connector: 3.5mm

Application: Suitable for RC Airplane Fixed-wing EDF Ducted Fan Unit

Specifications:

Model	KV	Max Watts(W)	Voltage Range(V)	Max Current(A)	Rotor Poles	No load Current(A)	Resistance(Ω)	Motor Size(mm)	Stator Size(mm)	Weight(g)	Prop(Inch)
C2830-09	1300	300	7~12	25	14	1.2	0.085	￠28x30	￠22x12	57	96/105/10*6
C2830-12	1000	260	7~15	21	14	0.9	0.152	￠28x30	￠22x12	57	94.5/106/10*5
C2830-14	850	240	7~15	19	14	0.6	0.189	￠28x30	￠22x12	57	115.5/96/10*4
C2830-15	750	230	7~15	18	14	0.6	0.221	￠28x30	￠22x12	57	115.5/107

Features:

- 14Pole 12Slot Hi-torque Motor Design.

- CNC Machined 6061 T6 Billet Aluminum Heatsink Can.

- High Purity Copper Windings Maximizes Efficiency.

- High RPM ABEC5 Oversized Bearings.

- Precision balanced rotor, smoothness for best reliability and maximum RPM.

- Stator - Super Thin (0.2mm) Laminations.

- Precision Engineered for Maximum Energy Conversion.
- The outer rotor dynamic balance is controlled within 10mg, ensuring no abnormal noise, no jitter, and smooth running.
- The motor adopts waterproof design and related waterproof technology, which has a certain anti-corrosion function, and runs normally in the rain.

Package Included:
1x SURPASS Hobby C2830 Outrunner Brushless Motor

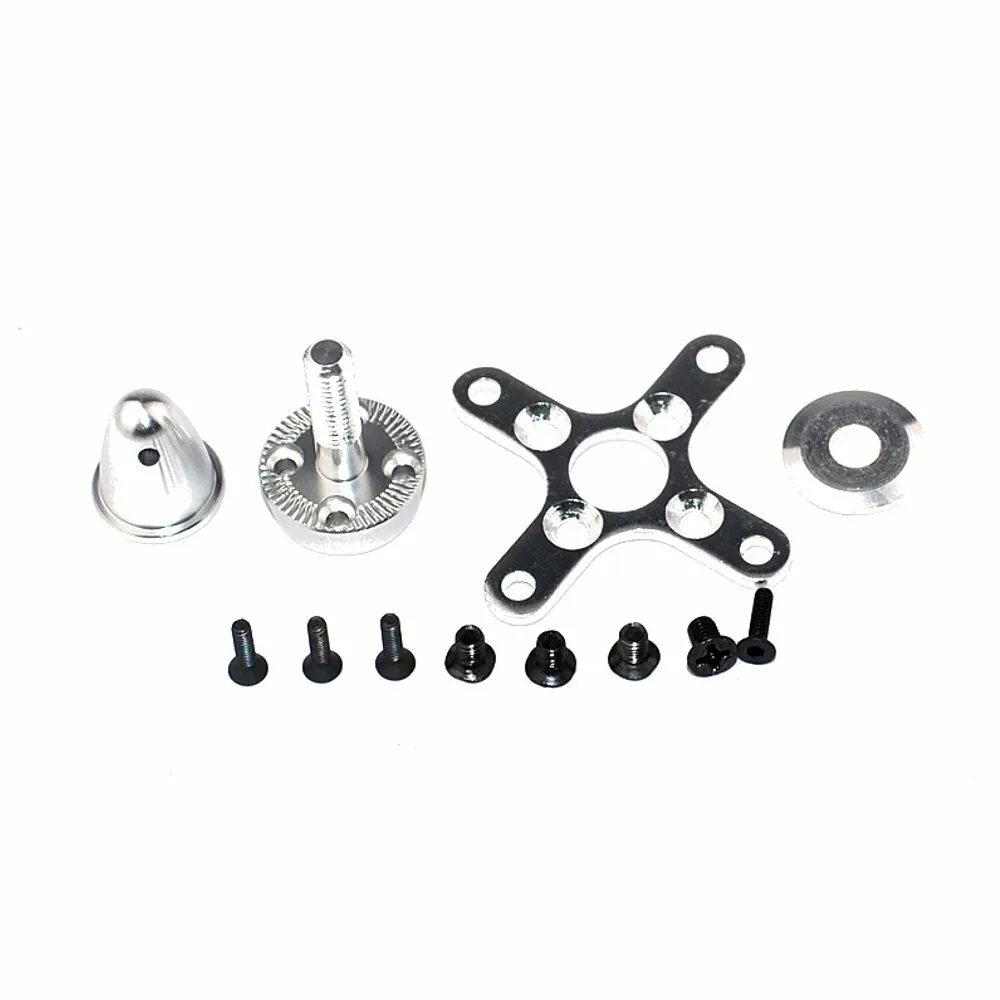

1x Accessories
