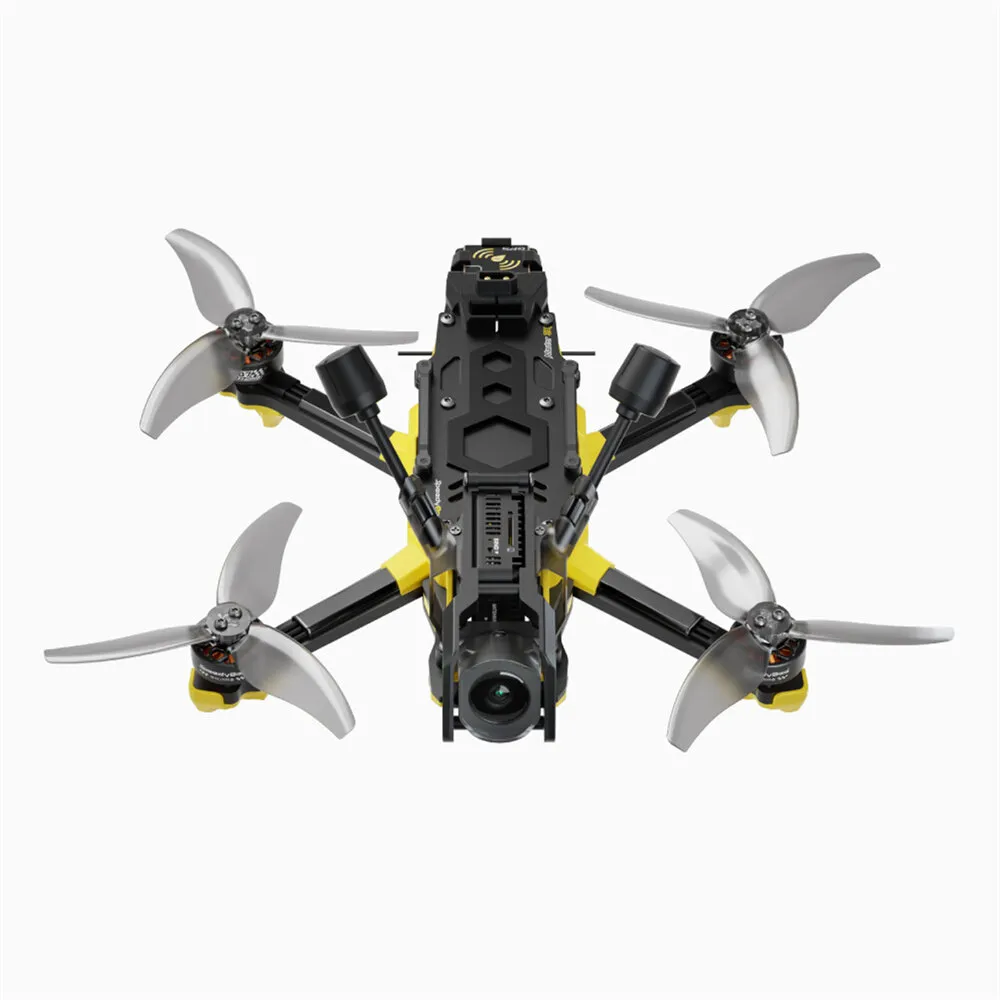

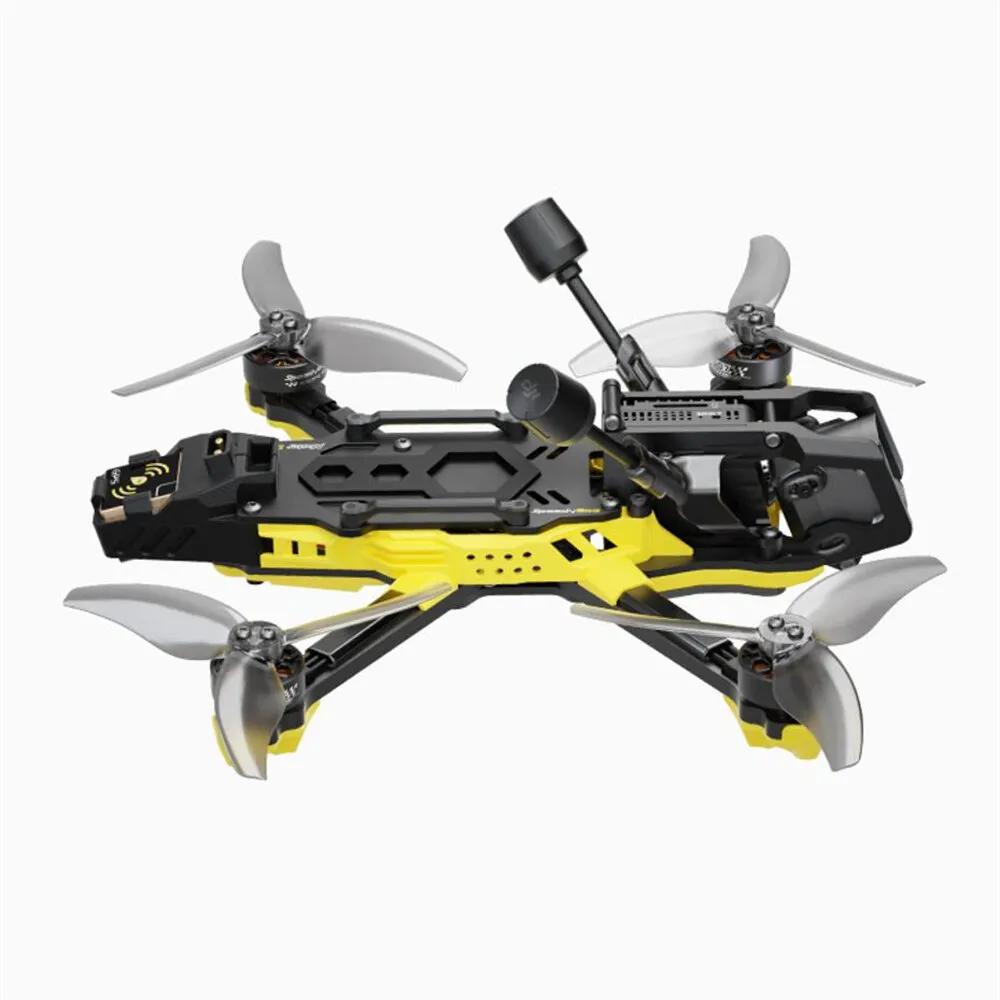

SpeedyBee Master 3X Modular 171mm 4S F4 FPV Racing Drone PNP BNF with O4 Pro / Power Version Optional

SKUL10218

3 Reviews

USD 299.99

Wholesale Prices :

Qty:	4-7	>=8
Price:	$151.64	$143.22

Qty:

In stock

30-day Return Policy, Learn More

Description

weight: 485 g

Product Introduction Clink Here.

Note: The Master 3X Power Version without Camera and VTX.

Description:

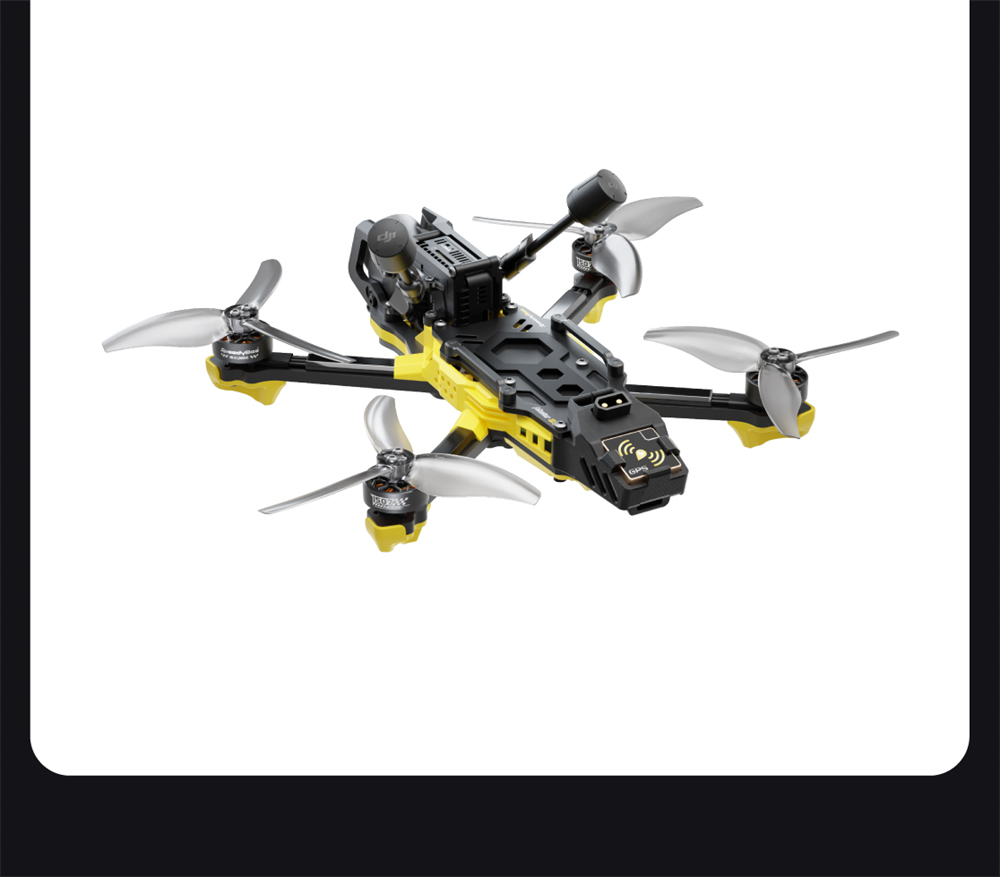

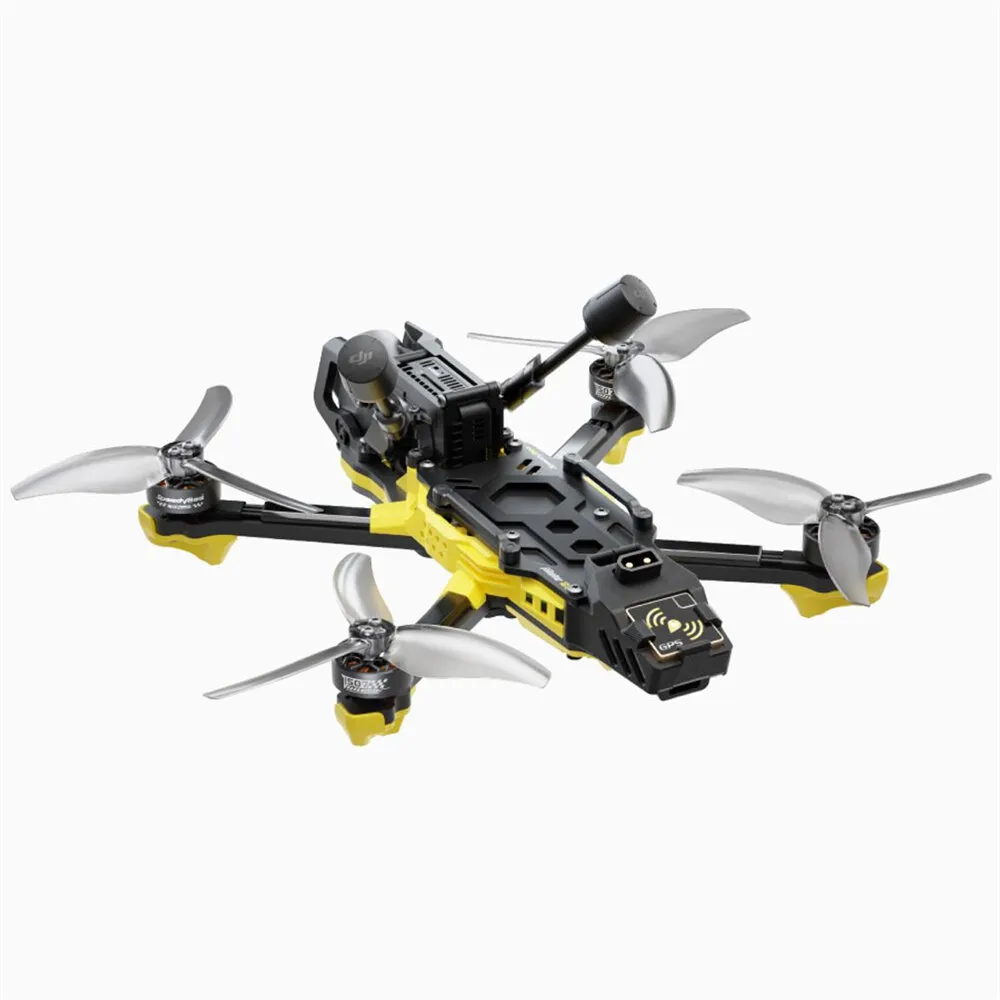

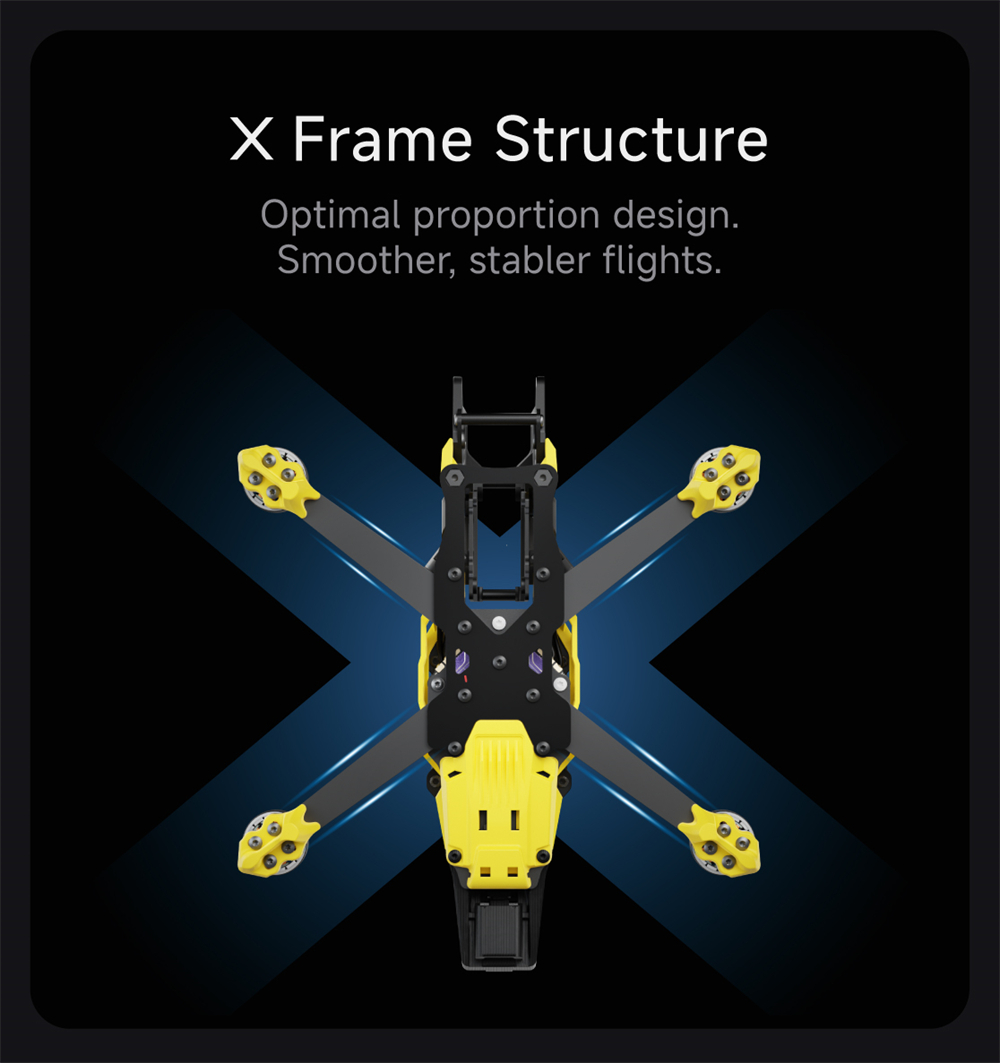

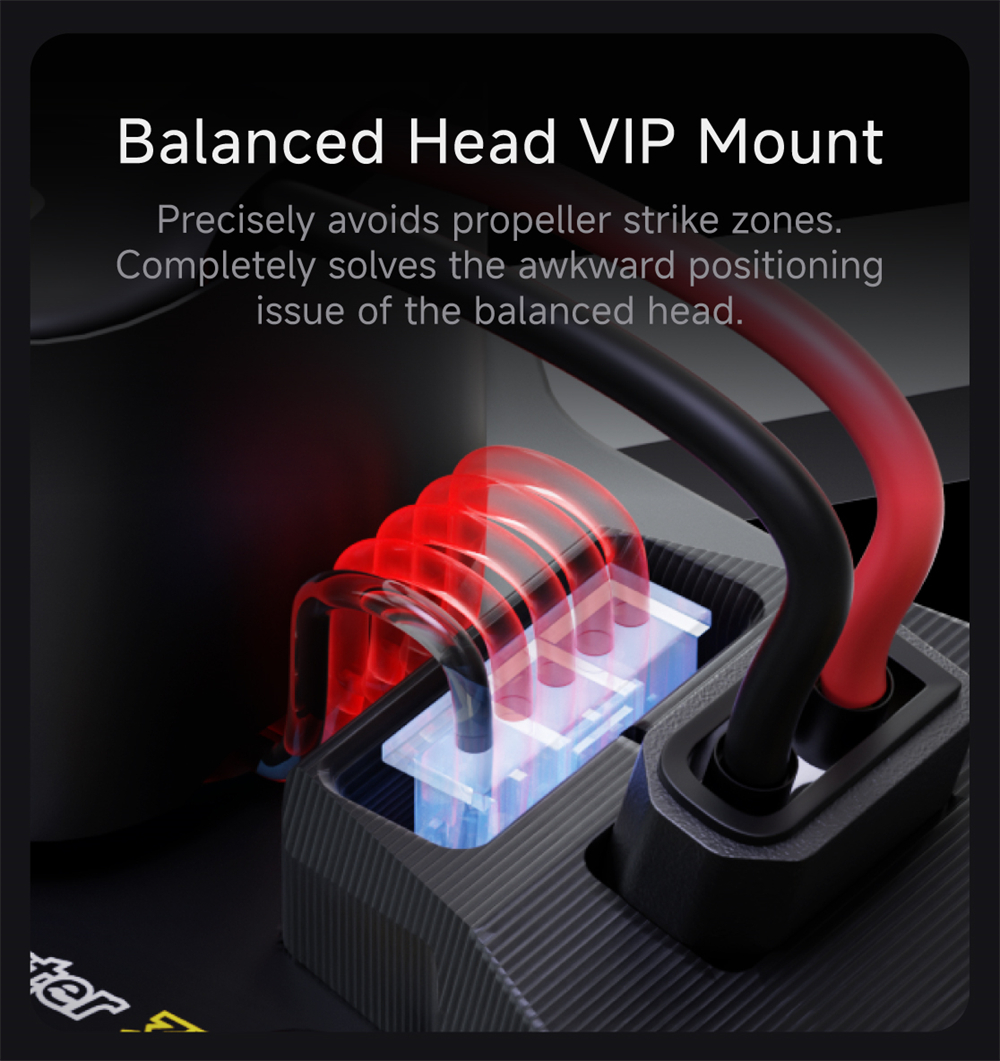

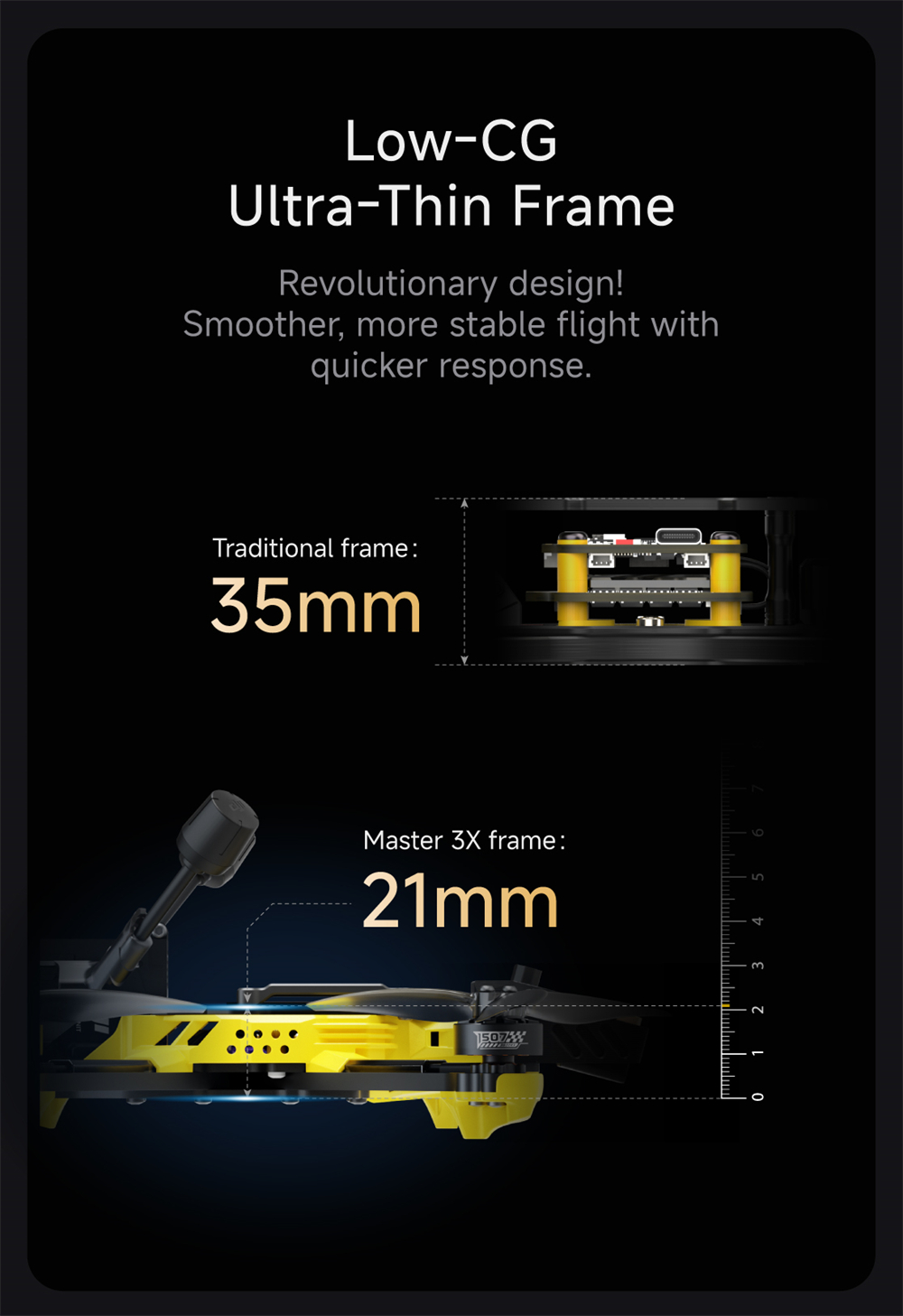

Born from SpeedyBee's modular DNA. Compatible with Bee25 head modules - upgrade endlessly,not replace endlessly. With a innovative balanced head mount, X-frame low-CG aggression, and seamless freestyle-to-cine fluidity, the Master 3X redefines FPVfreedom for rule-breaking pilots.

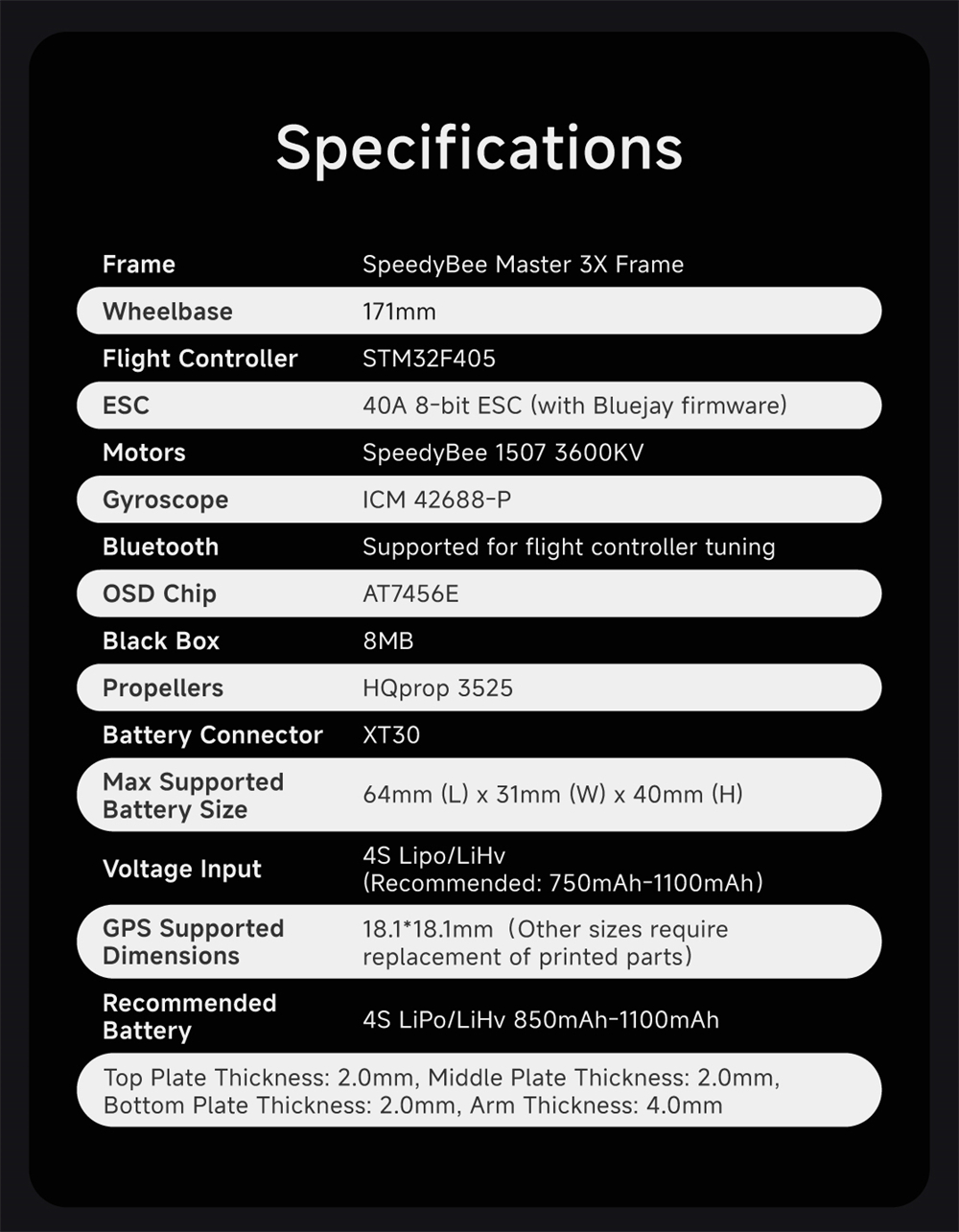

Specification:

Brand: SpeedyBee

Model: Master 3X

Item Name: 4S Power / O4 Pro Version FPV Drone (Optional)

Model	Power PNP Version (Without Head)	Power ELRS Version (Without Head)	Power PNP Version (Aluminum Head)	Power ELRS Version (AluminumHead)	O4 Pro PNP Version	O4 Pro ELRS Version
Frame	SpeedyBee Master 3X Frame

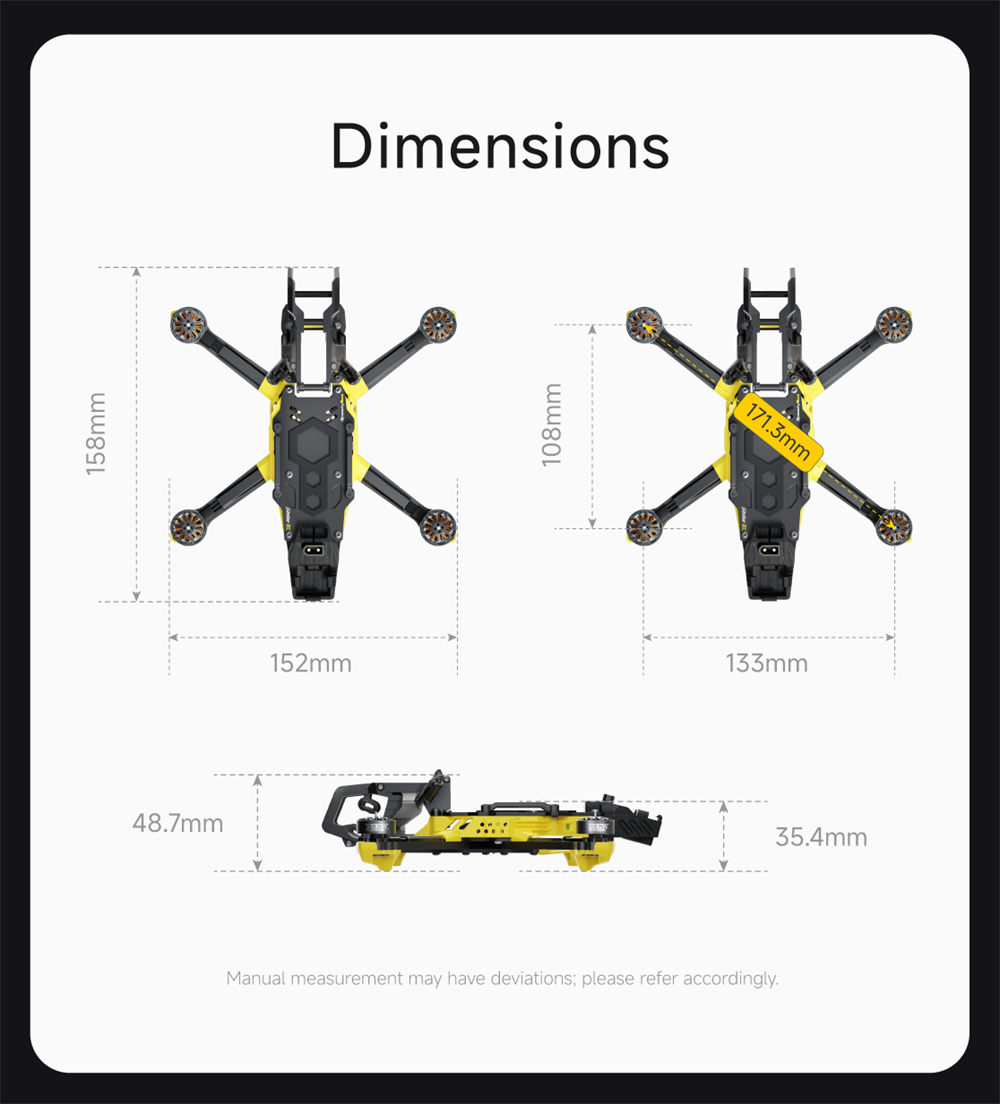

Wheelbase	171mm
Top Plate Thickness	2.0mm
Middle Plate Thickness:	2.0mm
Bottom Plate Thickness	2.0mm
Arm Thickness	4.0mm
Flight Controller	STM32F405
ESC	40A 8-bit ESC (with Bluejay firmware)
Motors	SpeedyBee 1507 3600KV
Gyroscope	ICM 42688-P
Bluetooth	Supported for flight controller tuning
OSD Chip	AT7456E
Black Box	8MB
Propellers	HQprop 3525
Battery Connector	XT30
Max Supported Battery Size	64mm (L) × 31mm (W) × 40mm (H)
Voltage Input	4S Lipo/LiHv(Recommended: 750mAh-1100mAh)
GPS Supported Dimensions	18.1*18.1mm (Other sizes require replacement of printed parts)
Receiver	None	SpeedyBee ELRS 2.4G	None	SpeedyBee ELRS 2.4G	None	SpeedyBee ELRS 2.4G
VTX	None	None	None (Compatible with O4 Pro Air Unit )	None (Compatible with O4 Pro Air Unit )	DJI O4 Pro Air Unit	DJI O4 Pro Air Unit
Camera	None	None	None (Compatible with O4 Pro Air Unit )	None (Compatible with O4 Pro Air Unit )	DJI O4 Pro Air Unit	DJI O4 Pro Air Unit
Weight	180±5g	180±5g	200±5g	200±5g	231±5g	231±5g
Recommended Battery(Not included)	4S LiPo/LiHv 850mAh-1100mAh

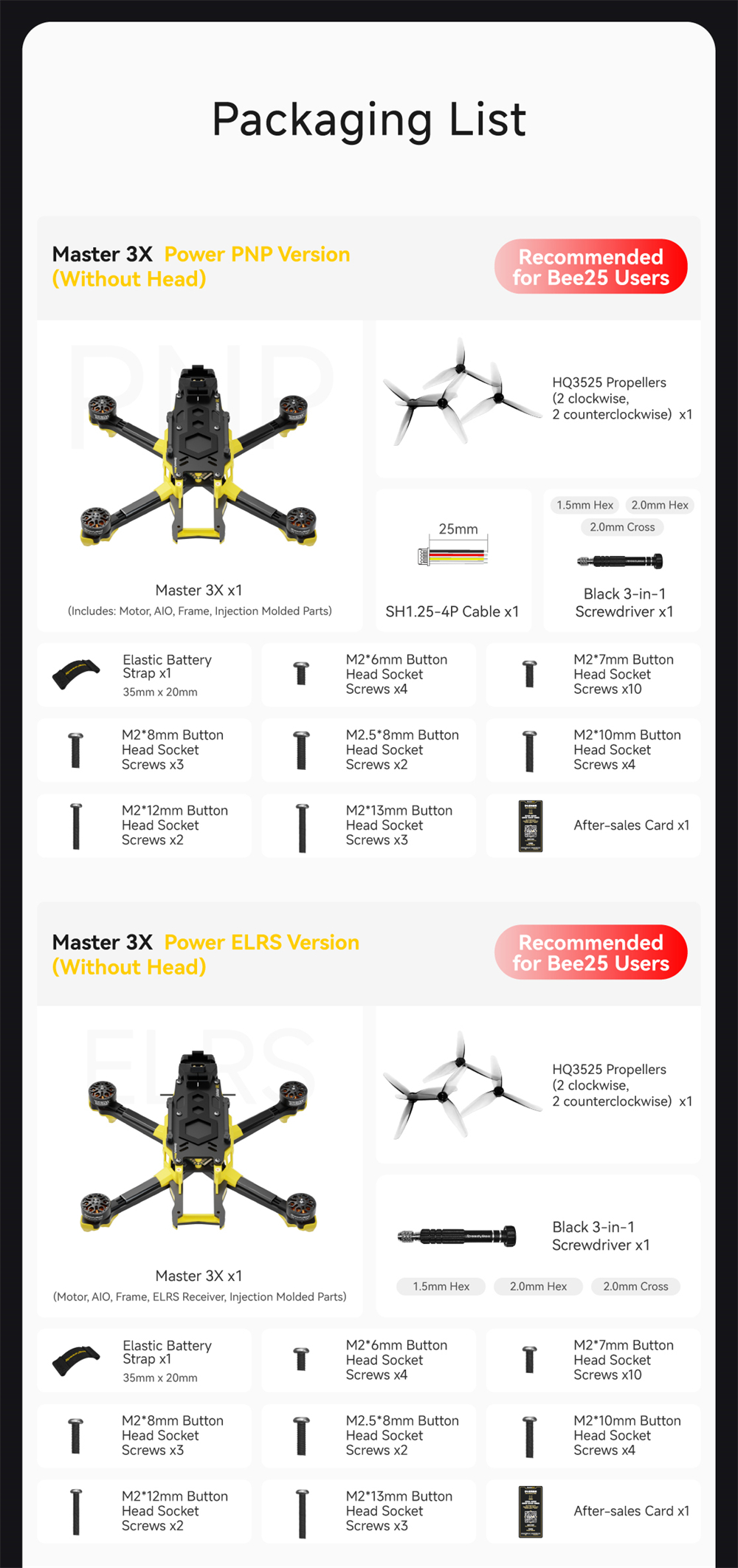

Package Included:

Model	Included

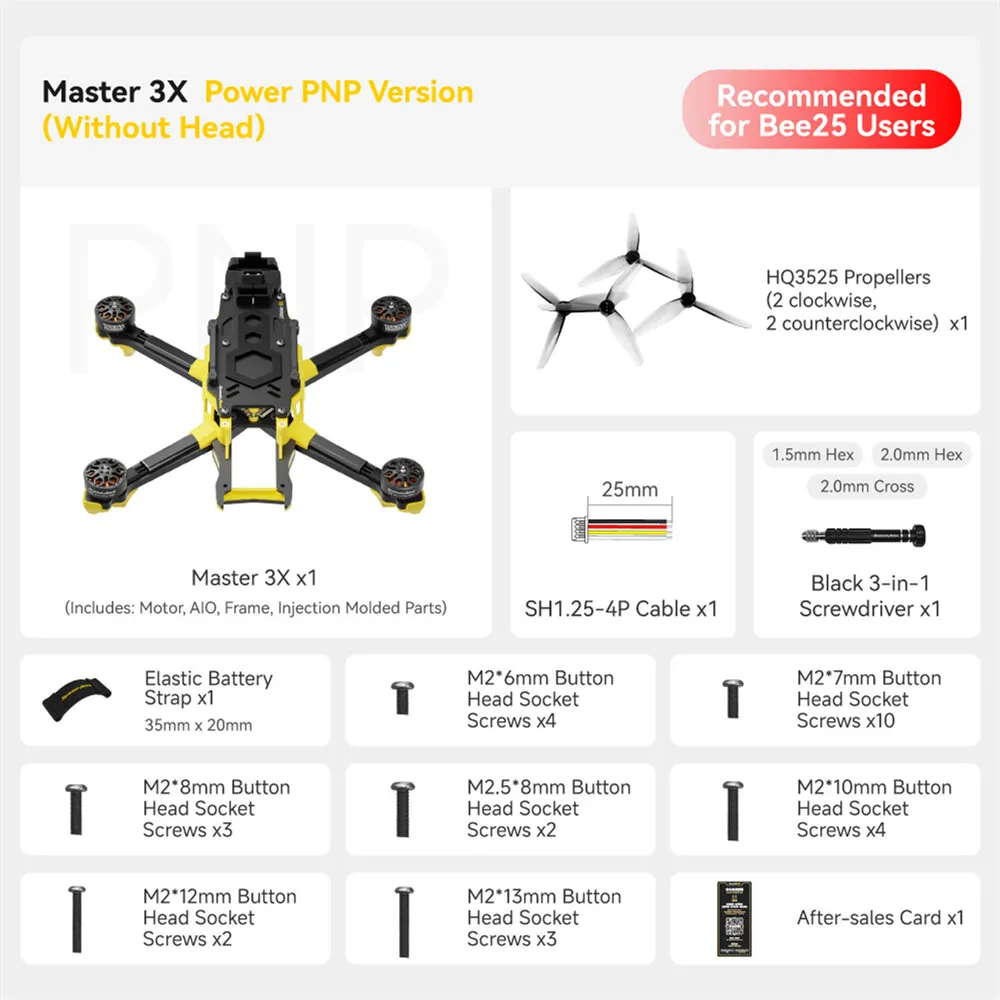

Power PNP Version (Without Head)	1x Master 3X (included: Motor, AIO, Frame, Injection Molded Parts) 1x HQ3525 Propellers (2x CW，2x CCW) 1x SH1.25-4P Cable 1x Black 3-in-1 Screwdriver (1.5mm Hex, 2.0mm Hex, 2.0mm Cross) 1x Elastic Battery Strap (35mm x 20mm) 4x M26mm Button Head Socket Screws 10x M27mm Button Head Socket Screws 3x M28mm Button Head Socket Screws 2x M2.58mm Button Head Socket Screws 4x M210mm Button Head Socket Screws 2x M212mm Button Head Socket Screws 3x M2*13mm Button Head Socket Screws 1x After-sales Card

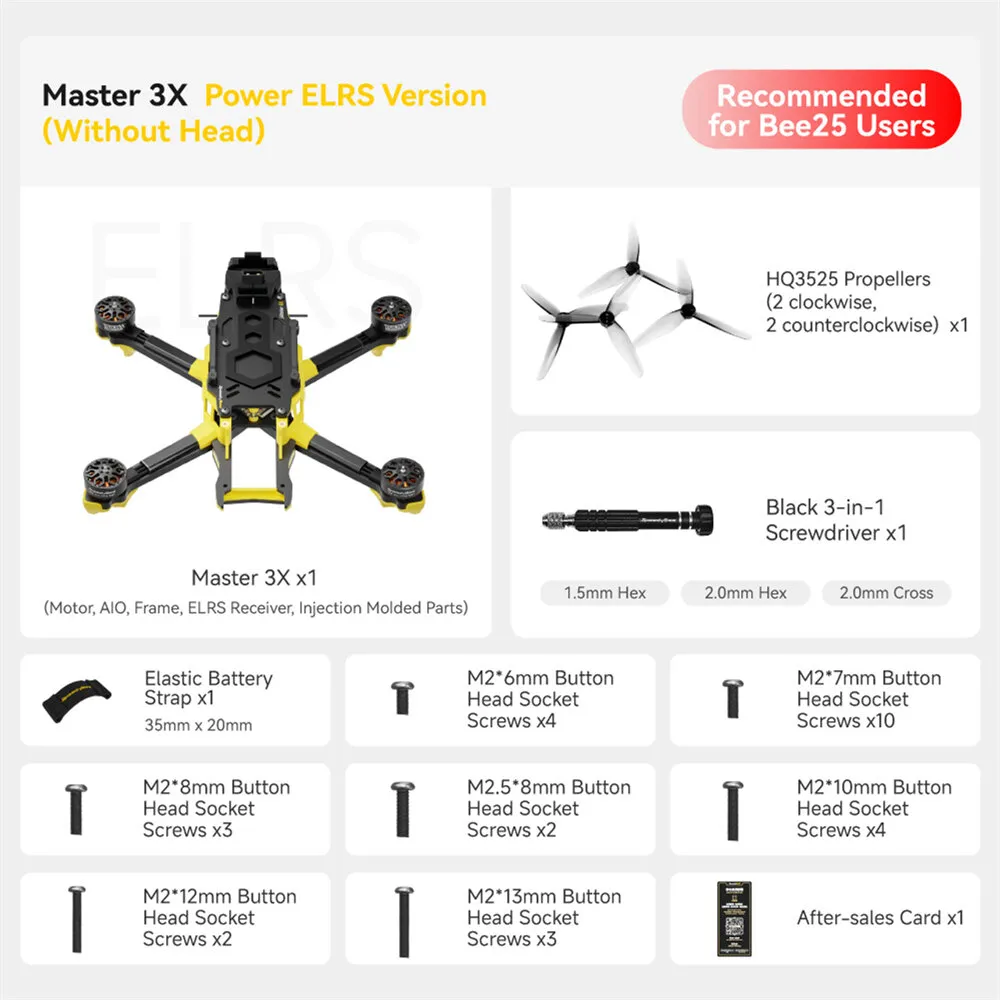

Power ELRS Version (Without Head)	1x Master 3X (included: Motor, AIO, Frame, ELRS Receiver, Injection Molded Parts) 1x HQ3525 Propellers (2 x CW，2x CCW) x1 1x Black 3-in-1 Screwdriver (1.5mm Hex, 2.0mm Hex, 2.0mm Cross) 1x Elastic Battery Strap (35mm x 20mm) 4x M26mm Button Head Socket Screws 10x M27mm Button Head Socket Screws 3x M28mm Button Head Socket Screws 2x M2.58mm Button Head Socket Screws 4x M210mm Button Head Socket Screws 2x M212mm Button Head Socket Screws 3x M2*13mm Button Head Socket Screws 1x After-sales Card

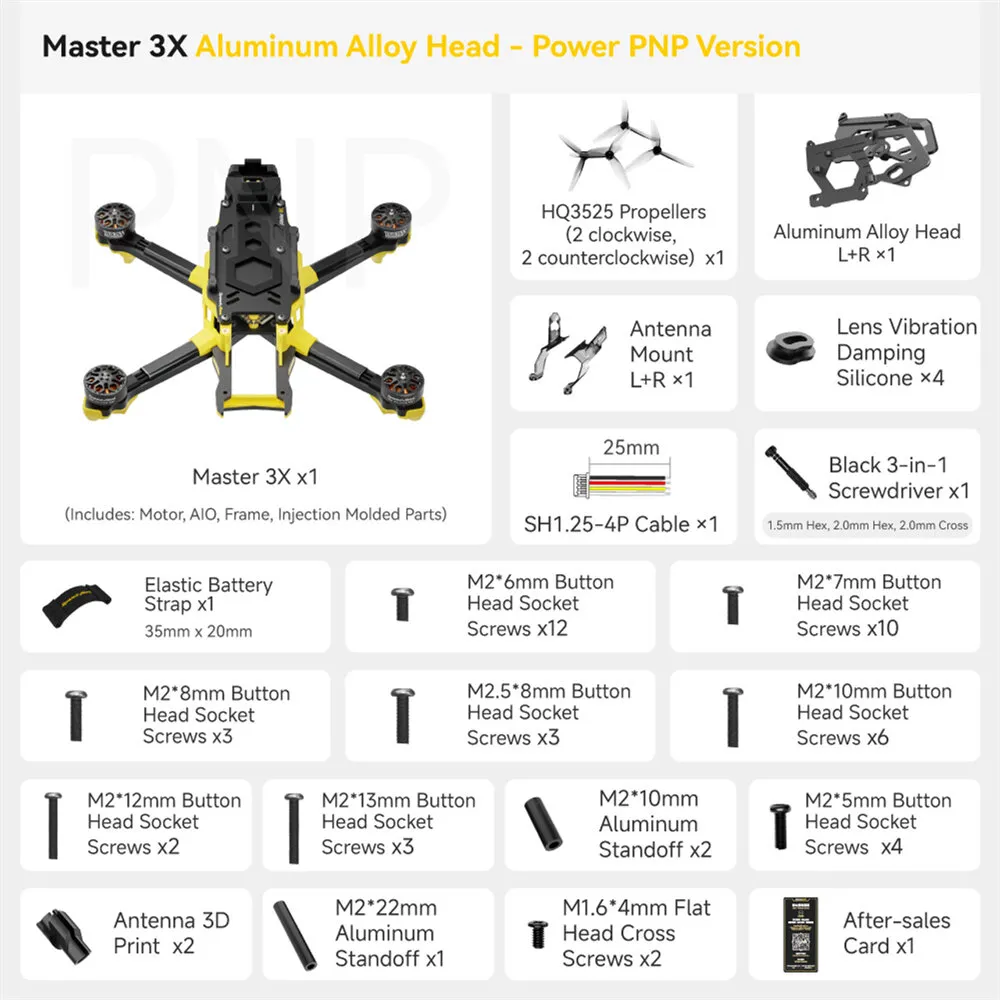

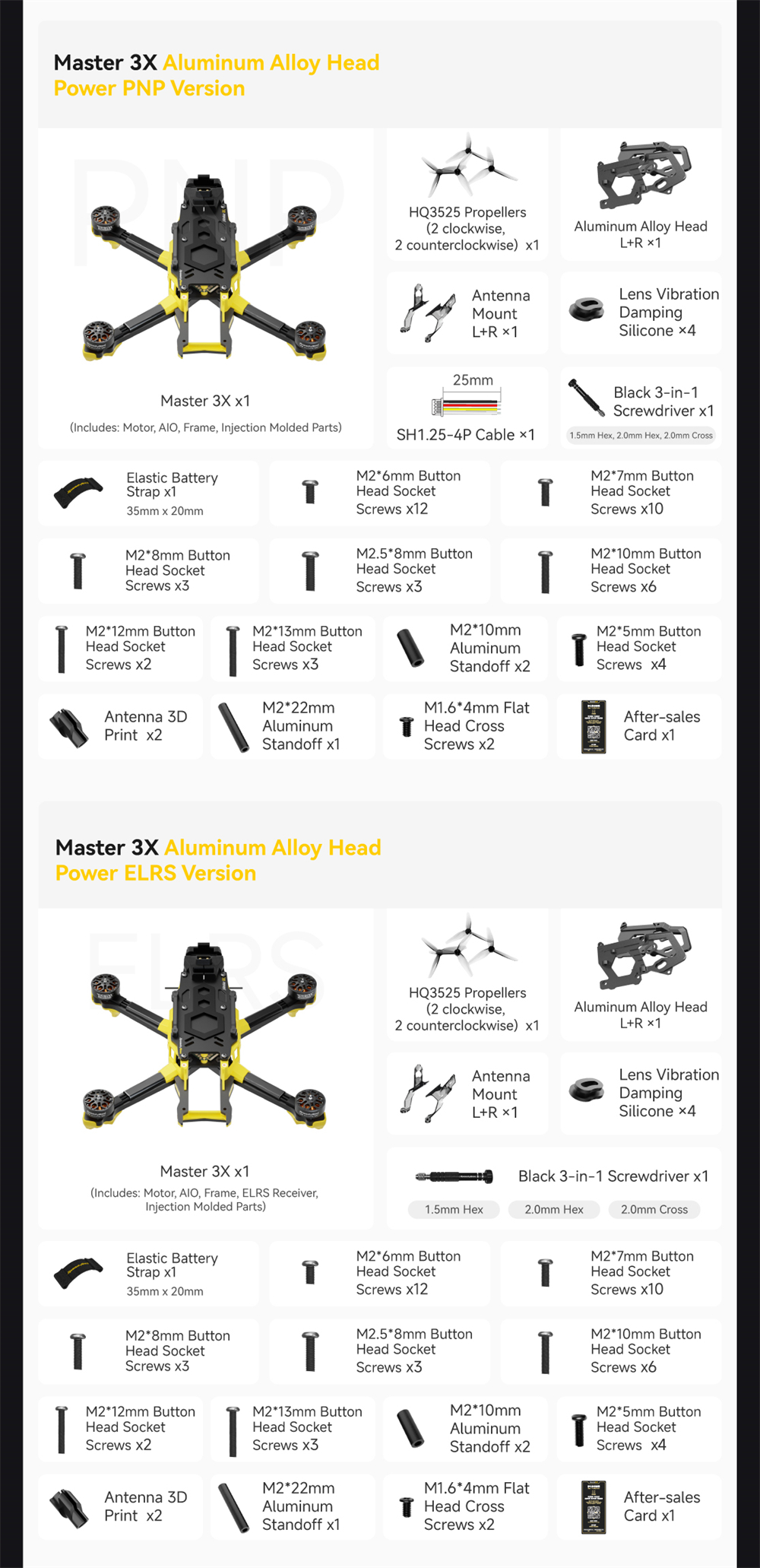

Power PNP Version (Aluminum Head)	1x Master 3X (included: Motor, AIO, Frame, Injection Molded Parts, Aluminum Alloy Head) 1x HQ3525 Propellers (2x CW，2x CCW) 1x Aluminum Alloy Head L+R 1x Antenna Mount L+R 4x Lens Vibration Damping Silicone 1x SH1.25-4P Cable 1x Black 3-in-1 Screwdriver (1.5mm Hex, 2.0mm Hex, 2.0mm Cross) 1x Elastic Battery Strap (35mm x 20mm) 12x M26mm Button Head Socket Screws 10x M27mm Button Head Socket Screws 3x M28mm Button Head Socket Screws 3x M2.58mm Button Head Socket Screws 6x M210mm Button Head Socket Screws 2x M212mm Button Head Socket Screws 3x M213mm Button Head Socket Screws 2x M210mm Aluminum Standoff 4x M25mm Button Head Socket Screws 2x Antenna 3D Print 1x M222mm Aluminum Standoff 2x M1.6*4mm Flat Head Cross Screws 1x After-sales Card
Power ELRS Version (Aluminum Head)	1x Master 3X (included: Motor, AIO, Frame, ELRS Receiver, Injection Molded Parts, Aluminum Alloy Head) 1x HQ3525 Propellers (2x CW，2x CCW) 1x Aluminum Alloy Head L+R 1x Antenna Mount L+R 4x Lens Vibration Damping Silicone 1x Black 3-in-1 Screwdriver (1.5mm Hex, 2.0mm Hex, 2.0mm Cross) 1x Elastic Battery Strap (35mm x 20mm) 12x M26mm Button Head Socket Screws 10x M27mm Button Head Socket Screws 3x M28mm Button Head Socket Screws 3x M2.58mm Button Head Socket Screws 6x M210mm Button Head Socket Screws 2x M212mm Button Head Socket Screws 3x M213mm Button Head Socket Screws 2x M210mm Aluminum Standoff 4x M25mm Button Head Socket Screws 2x Antenna 3D Print 1x M222mm Aluminum Standoff 2x M1.6*4mm Flat Head Cross Screws 1x After-sales Card

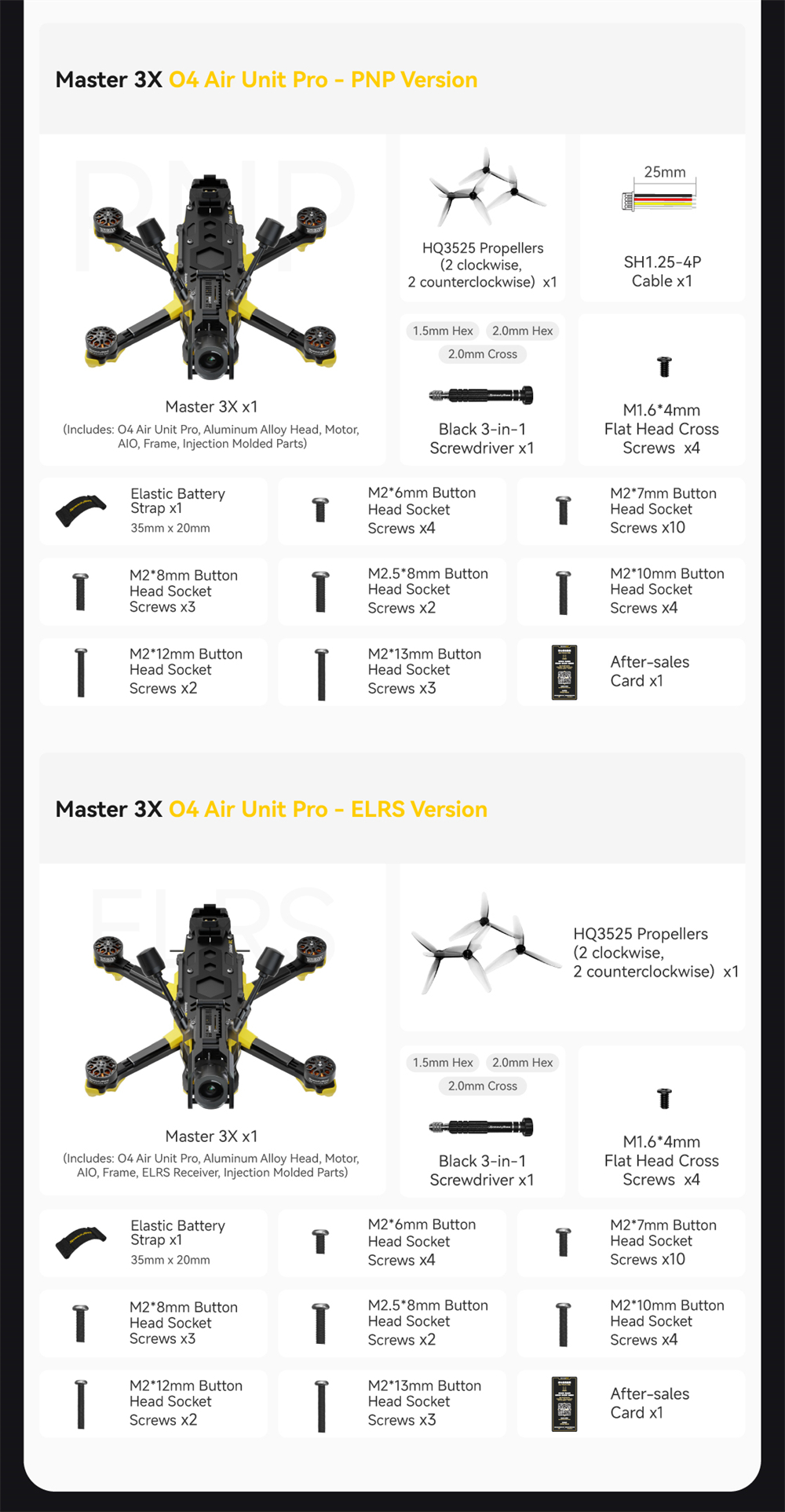

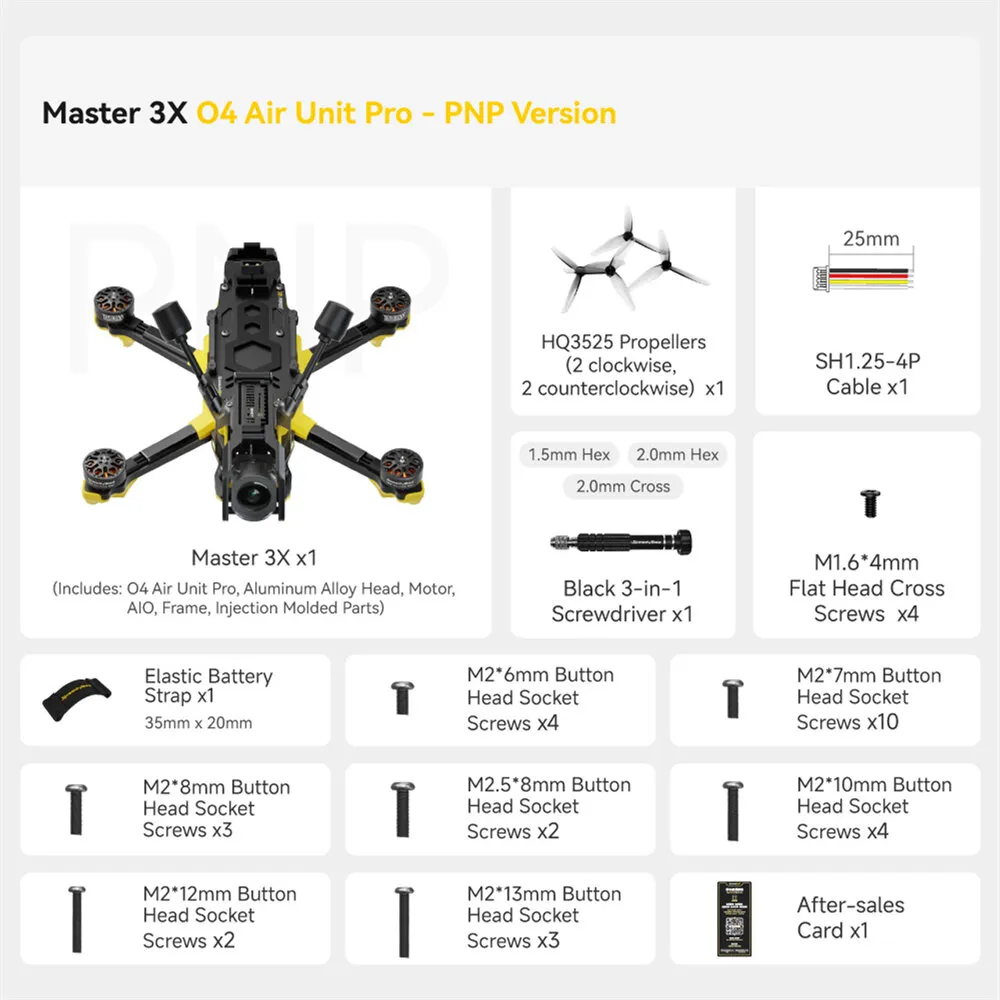

O4 Pro PNP Version	1x Master 3X (included: O4 Pro Air Unit, Aluminum Alloy Head, Motor, AIO, Frame, Injection Molded Parts) 1x HQ3525 Propellers (2x CW，2x CCW) 1x SH1.25-4P Cable 1x Black 3-in-1 Screwdriver (1.5mm Hex, 2.0mm Hex, 2.0mm Cross) 4x M1.64mm Flat Head Cross Screws 1x Elastic Battery Strap x1 (35mm x 20mm) 4x M26mm Button Head Socket Screws 10x M27mm Button Head Socket Screws 3x M28mm Button Head Socket Screws 2x M2.58mm Button Head Socket Screws 4x M210mm Button Head Socket Screws 2x M212mm Button Head Socket Screws 3x M213mm Button Head Socket Screws 1x After-sales Card

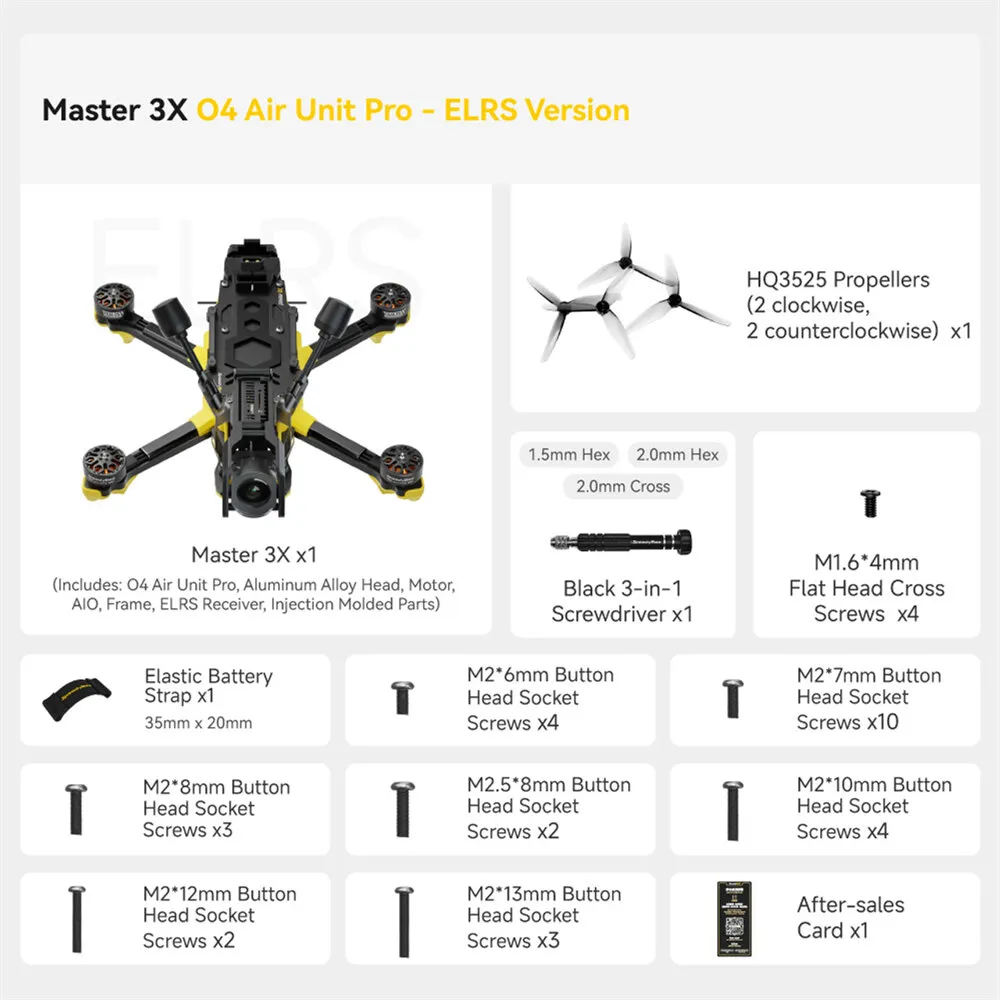

O4 Pro ELRS Version	1x Master 3X (included: O4 Pro Air Unit, Aluminum Alloy Head, Motor, AIO, Frame, ELRS Receiver,Injection Molded Parts) 1x HQ3525 Propellers (2x CW，2x CCW) 1x Black 3-in-1 Screwdriver (1.5mm Hex, 2.0mm Hex, 2.0mm Cross) 4x M1.64mm Flat Head Cross Screws 1x Elastic Battery Strap x1 (35mm x 20mm) 4x M26mm Button Head Socket Screws 10x M27mm Button Head Socket Screws 3x M28mm Button Head Socket Screws 2x M2.58mm Button Head Socket Screws 4x M210mm Button Head Socket Screws 2x M212mm Button Head Socket Screws 3x M213mm Button Head Socket Screws 1x After-sales Card
