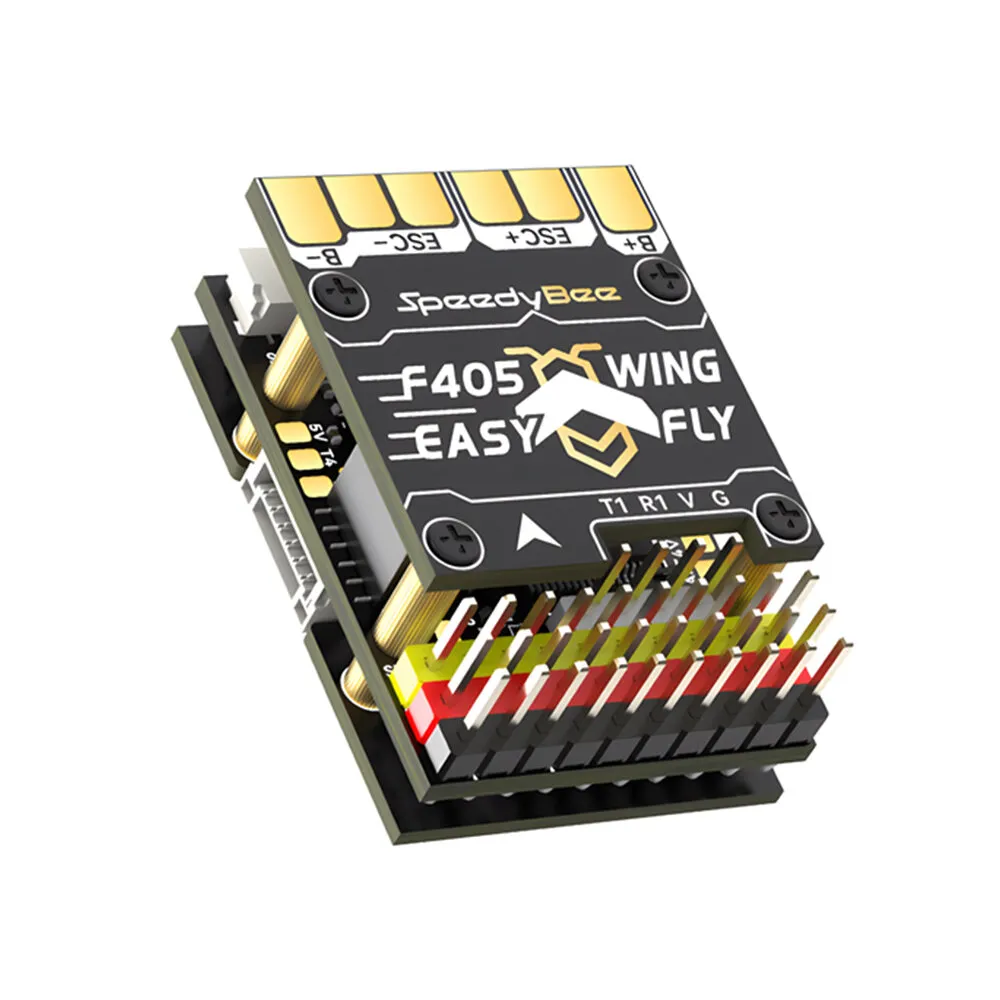

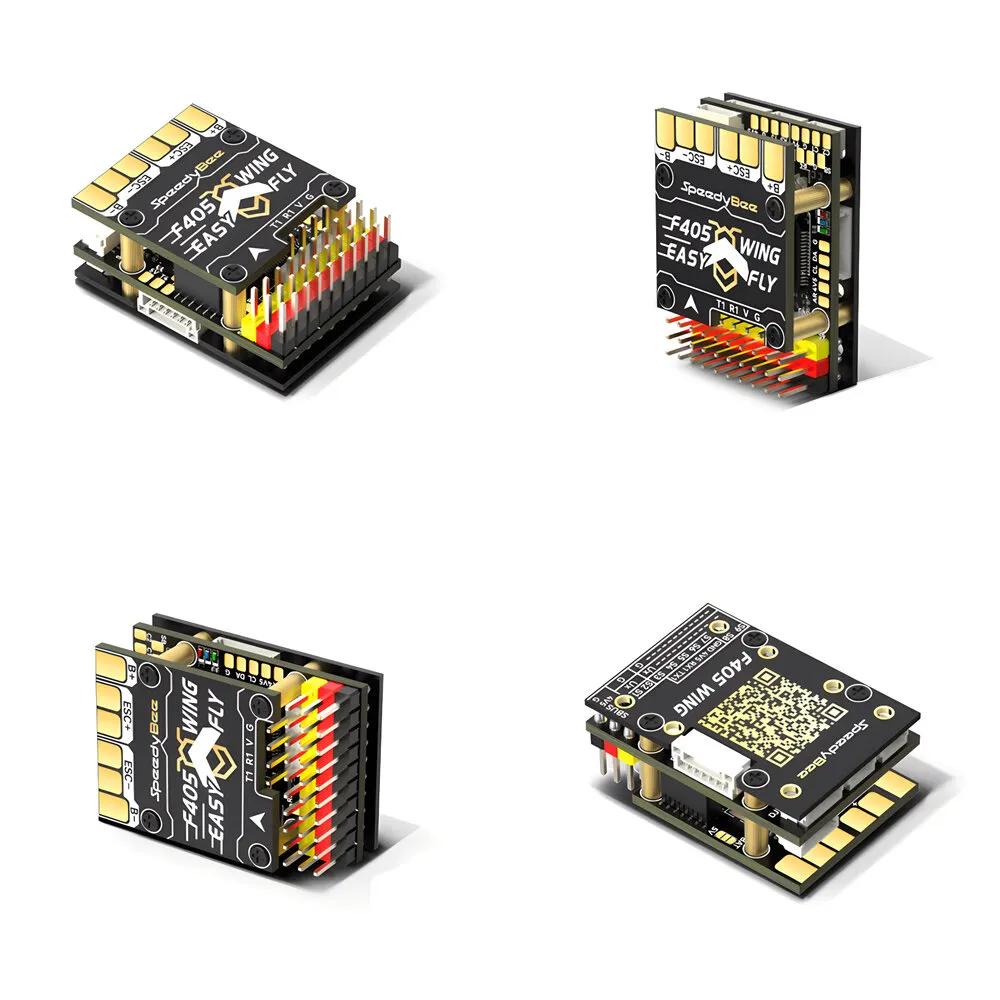

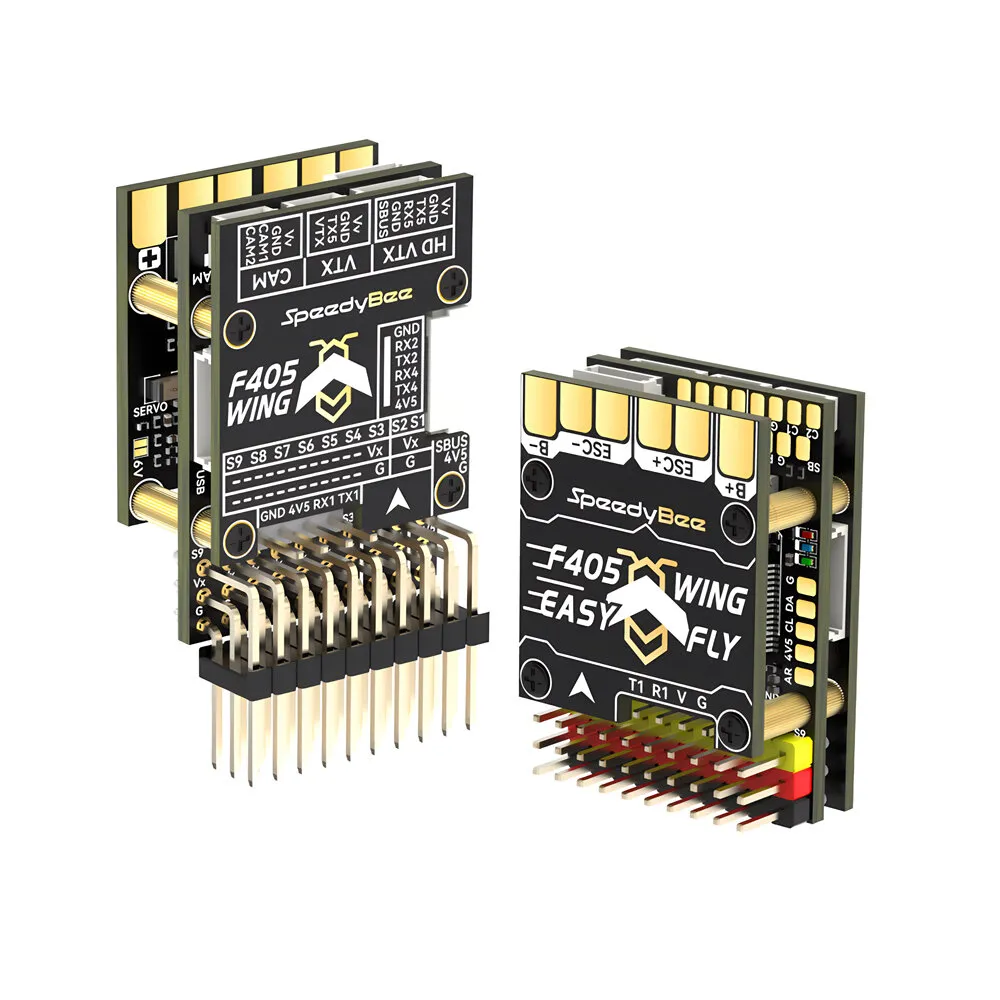

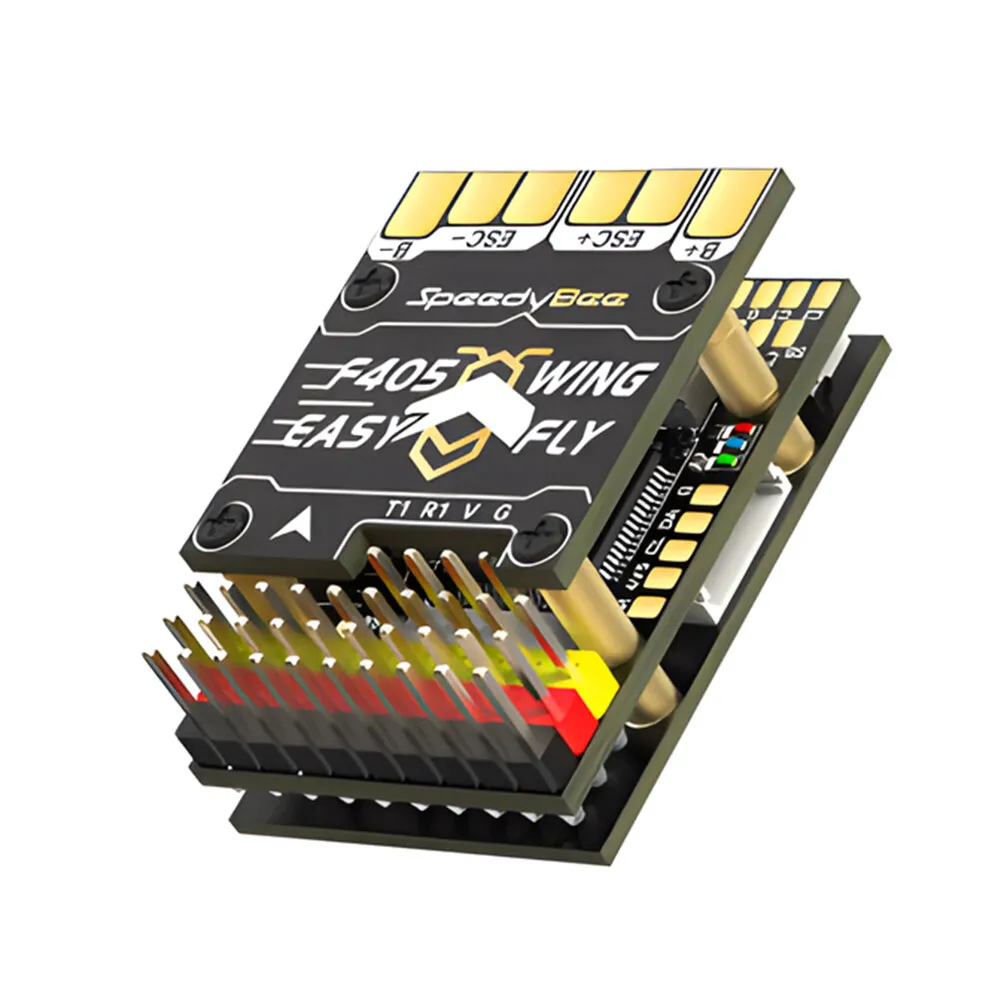

SpeedyBee F405 WING MINI Fixed Wing Flight Controller Support INAV Ardupilot VTOL for RC Airplane

Default to Camera1 Video Input (C1).

Switch between C1 and C2 using ArduPilot Relay or INAV Modes/USER.
Both cameras should have the same video format, either PAL or NTSC.

Output 5.2V +/- 0.1V DC Continuous current 2 Amps, 3A Peak Designed

for FC, Receiver, GPS module, AirSpeed Sensor, Telemetry module

The VTX power interface Vv offers two power supply options:

direct battery voltage or integrated BEC 5V (sharing the 5V4A Servo BEC voltage)
By default, it is set to battery voltage
(Ensure the VTX and camera input voltage range is compatible)
Switching to 5V power supply is possible via pad jumper (using Servo BEC output)
(If using this method, ensure the current requirements for both servo and VTX are sufficient)

Output 5V +/- 0.1V DC Continuous current 4 Amps, 5A Peak Voltage adjustable,

5V Default, 6V via jumper Designed for Servos.

Wireless Configuration

(long press BOOT button for 6 seconds to switch modes)
INAV:Please make sure the MSP switch on UART 6 is turned on and

set to a baud rate of 115200

ArduPilot:Please make sure the Serial 6 is set to baud rate 115200

and protocol Mavlink2

Wi-Fi (AP)mode, able to connect to

Speedybee APP, QGroundControl APP, MissionPlanner, etc.

WiFi: Speedybee eFLY-WIFI Password: 88888888

Wi-Fi (STA)mode, able to connect to QGroundControl APP,

MissionPlanner, etc.
Step 1: turn on Personal Hotspot;
Step 2: Set hotspot, locate NAME/Device Name/Hotspot name/etc.
Step 3: change the current name to eFLY and the password is, 88888888

3.2g
