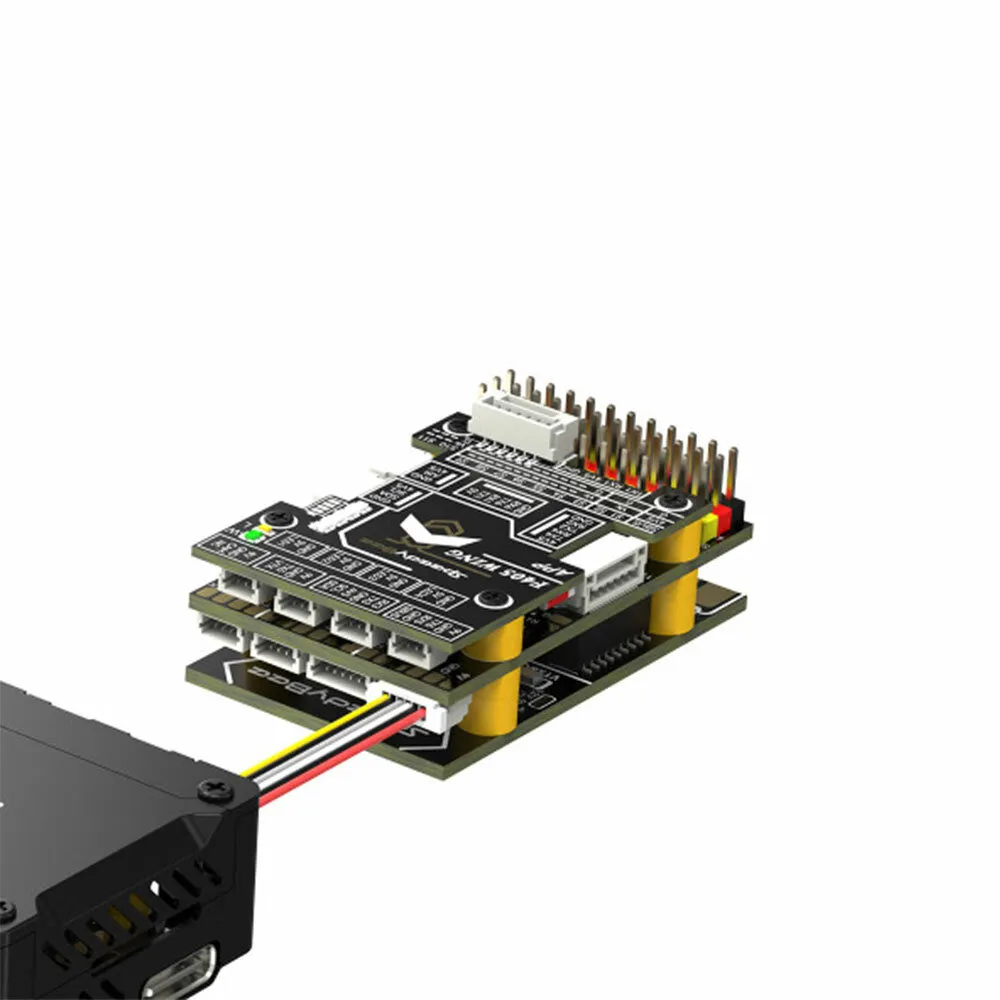

SpeedyBee F405 WING APP Fixed Wing Flight Controller Support Ardupilot VTOL for RC Airplane

SKUK12840

179 Reviews

USD 50.99

Wholesale Prices :

Qty:	4-7	>=8
Price:	$35.09	$33.14

Qty:

In stock

30-day Return Policy, Learn More

Description

weight: 485 g

Specifications:

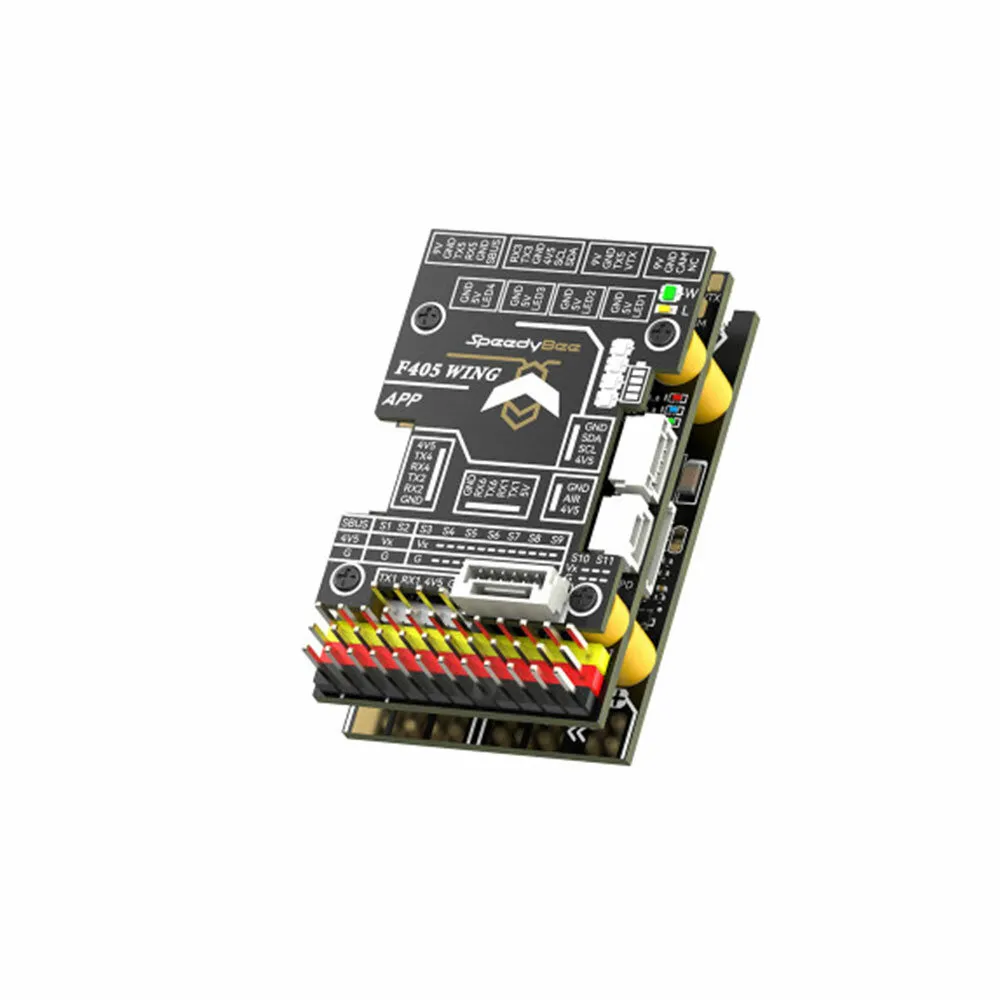

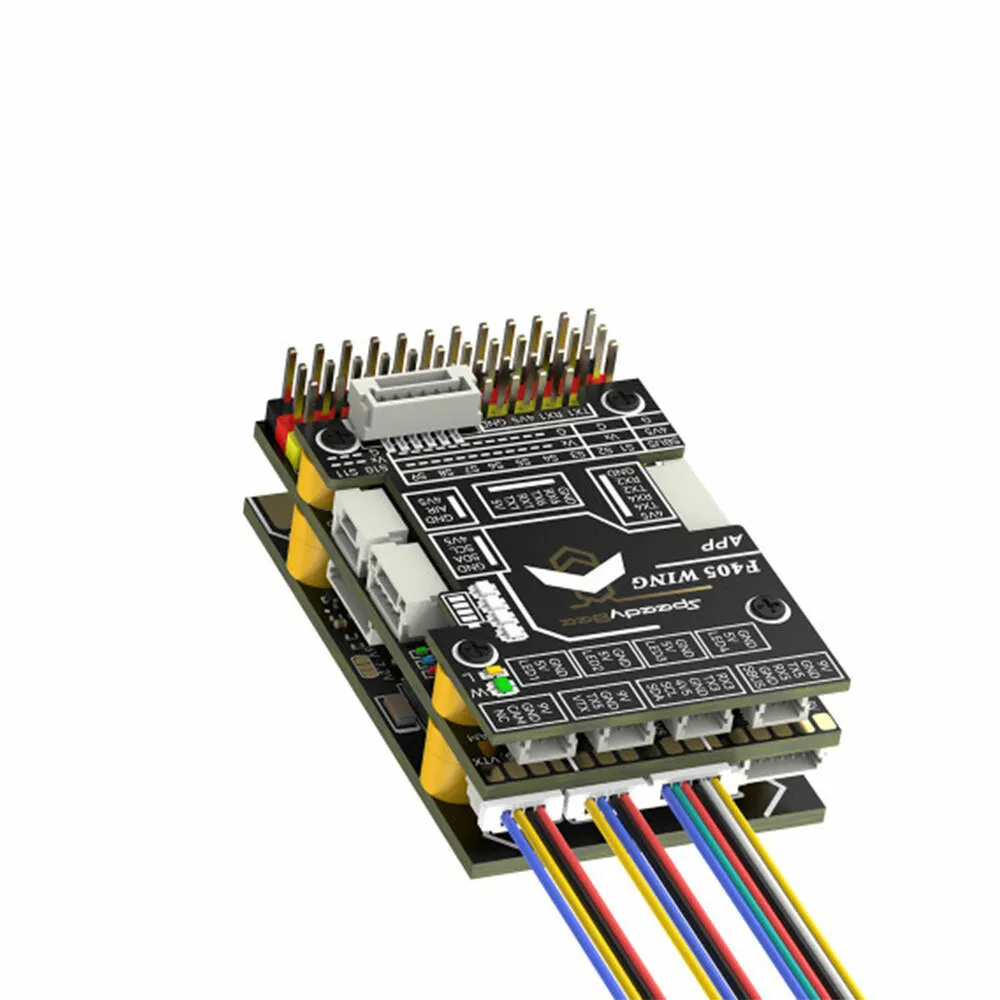

Product Name	SpeedyBee F405 WING FC board
MCU	STM32F405,168MHz,1MB Flash
IMU(Gyro&Accelerometer)	ICM-42688-P
Barometer	SPL006-001
OSD Chip	AT7456E
Blackbox	MicroSD Card Slot
UART	6 sets(USART1, USART2, USART3, UART4, UART5, UART6(Dedicated for Wireless board Telemetry connection))
I2C	1x Used for magnetometer, digital airspeed sensor
ADC	4x (VBAT, Current, RSSI, Analog AirSpeed)
PWM	12x (11+ "LED" pad)

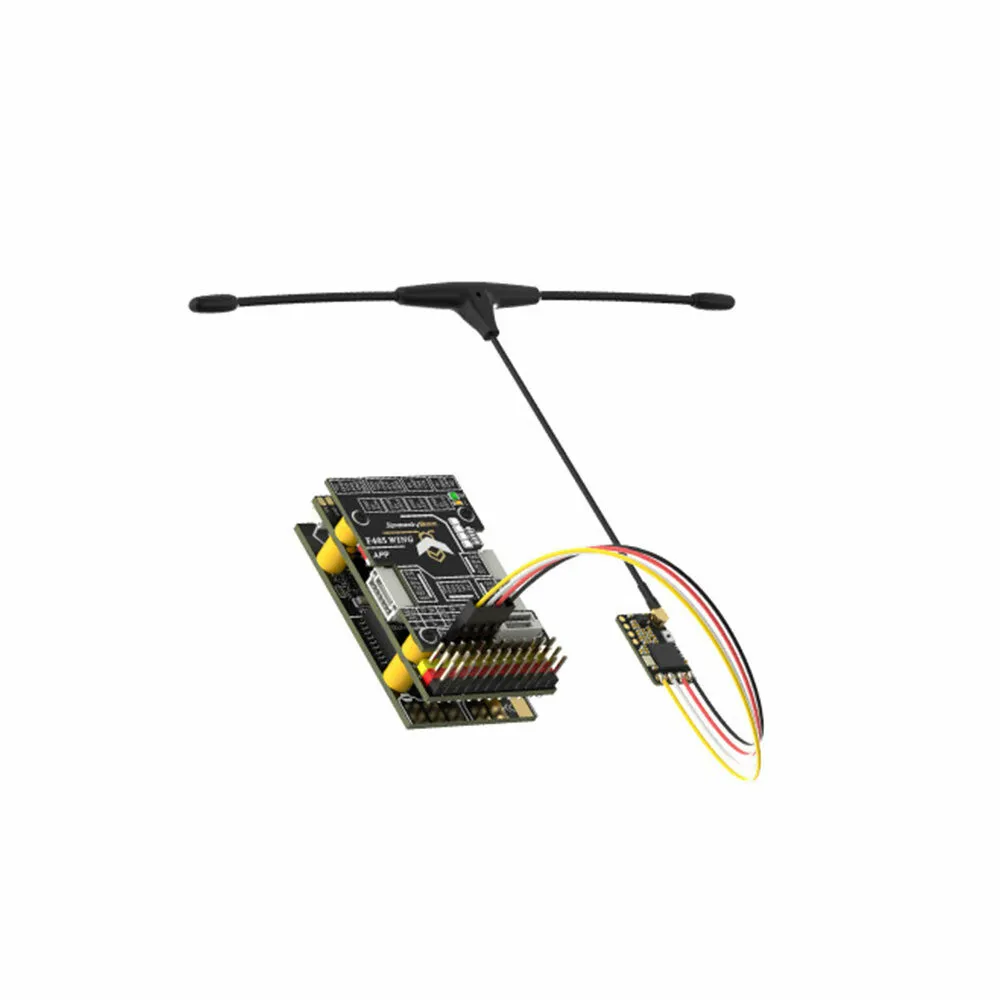

ELRS/CRSF receiver	Supported,connected to UART1
SBUS	Built in inverter for SBUS input (UART2-RX)
LED	3x LEDs for FC STATUS (Blue, Green) and 3.3V indicator(Red) 1x RGB
RSSI	Supported,Named as RS .
Supported FC Firmware	INAV:SpeedyBeeF405WING(default)ArduPilot: SpeedyBeeF405WING
Weight	8.9g

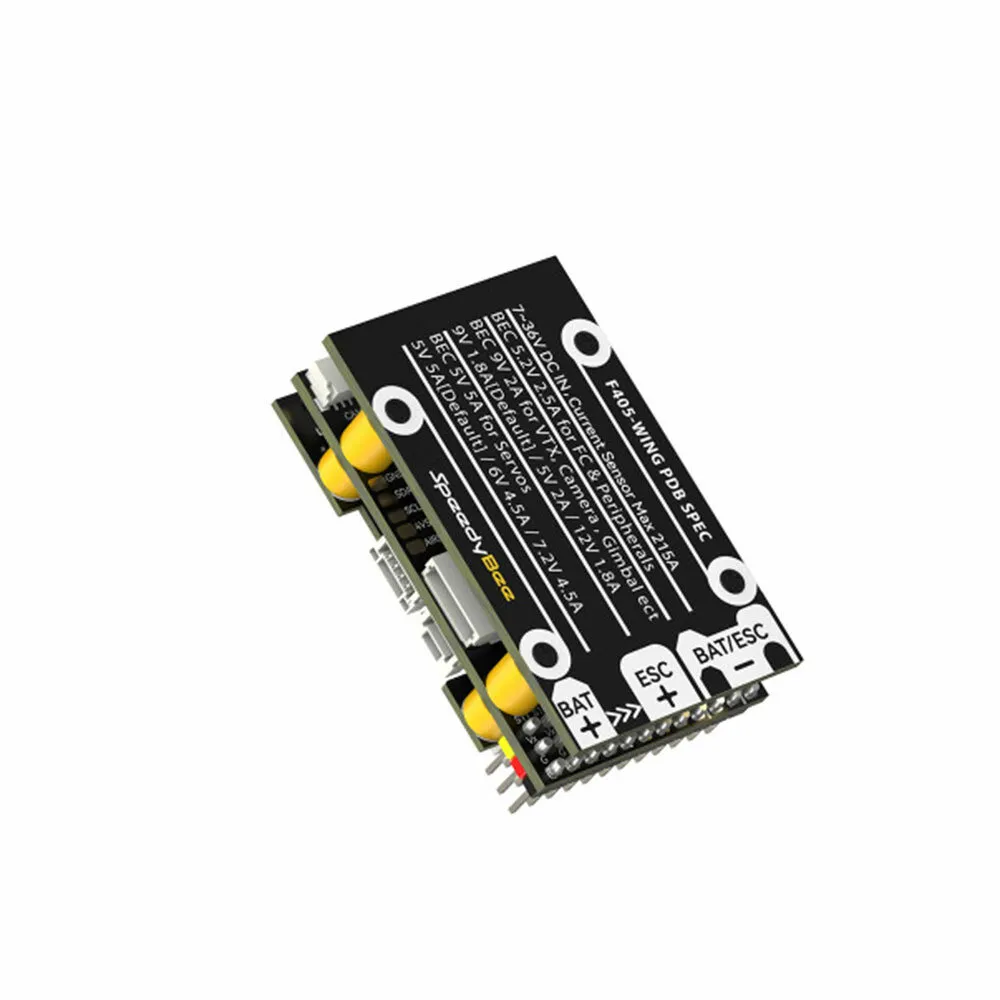

Product Name	SpeedyBee F405 WING PDB board
Input Voltage Range	7~36V (2~6S LiPo)
Battery Voltage Sensor	Connect to FC board VBAT, 1K:10K (Scale 1100 in iNav, BATT_VOLT_MULT 11.0 in ArduPilot)
Battery Current Sensor	90A continuous, 215A peak Connect to FC board Current (Scale 195 in iNav, 50 A/V in ArduPilot)
TVS Protective diode	Yes
FC BEC output	Output 5.2V +/- 0.1V DC Continuous current 2.4 Amps, 3A Peak Designed for FC, Receiver, GPS module, AirSpeed module, Telemetry module, WS2812 LED_Strip
VTX BEC output	Output 9V +/- 0.1V DC Continuous current 1.8 Amps, 2.3A Peak Voltage adjustable, 9V Default, 12V or 5V via jumper Designed for Analog Video Transmitter,Digital Video Transmitter, Camera.
Servo BEC output	Output 4.9V +/- 0.1V DC Continuous current 4.5 Amps, 5.5A Peak Voltage adjustable, 4.9V Default, 6V or 7.2V via jumper Designed for Servos.
Weight	11.4g

Product Name	SpeedyBee F405 WING Wireless board
Wireless Configuration (long press BOOT button for 6 seconds to switch modes)	BLE mode, connect to Speedybee APP
Wireless Configuration (long press BOOT button for 6 seconds to switch modes)	Wi-Fi mode, connect to QGroundControl APP, Speedybee APP, MissionPlanner, etc.
Wireless Configuration (long press BOOT button for 6 seconds to switch modes)	Classic Bluetooth SPP mode, connect to QGroundControl APP, MissionPlanner
LED strip controller (short press BOOT button to switch effects, long press 2 seconds to switch modes)	4x WS2812 LED strip connectors, adjustable colors and flashing modes
LED strip controller (short press BOOT button to switch effects, long press 2 seconds to switch modes)	Max 5.2V 1.3A, supports around 70pcs 5050 WS2812 LED beads
On-board battery level indicator	4x RGB indicator LED for battery level display by number of lights
Weight	4.2g

English Manual, Click Here

Package Included:
1x SpeedyBee F405 WING FC board

1x SpeedyBee F405 WING PDB board
1x SpeedyBee F405 WING Wireless board
1x SpeedyBee F405 USB extender
1x 90 Degree pin header(3x12)
3x Straight pin header(1x12)
1x White Straight pin header(1x4)
5x M2 x 12 copper Standoff Spacer
10x M2 x 4 small head cross screw
5x M3 x 4mm Silicone Grommets
1x 8pin SH1.0 USB extender cable(80mm)
1x 4pin SH1.0 Analog VTX cable(250mm)
1x 6pin SH1.0 GPS Module cable withou connector on another end(250mm)
1x 6pin Digital VTX cable(250mm)
1x 4pin SH1.0 to 3+2pin JST1.25FPV Cam cable(250mm)
1x 6pin GH1.25 Telemetry module cable(200mm)
1x 4pin Dupont single-head cable(150mm)
1x Double-sided tape for isolating pins and cables(32x9x1mm)
