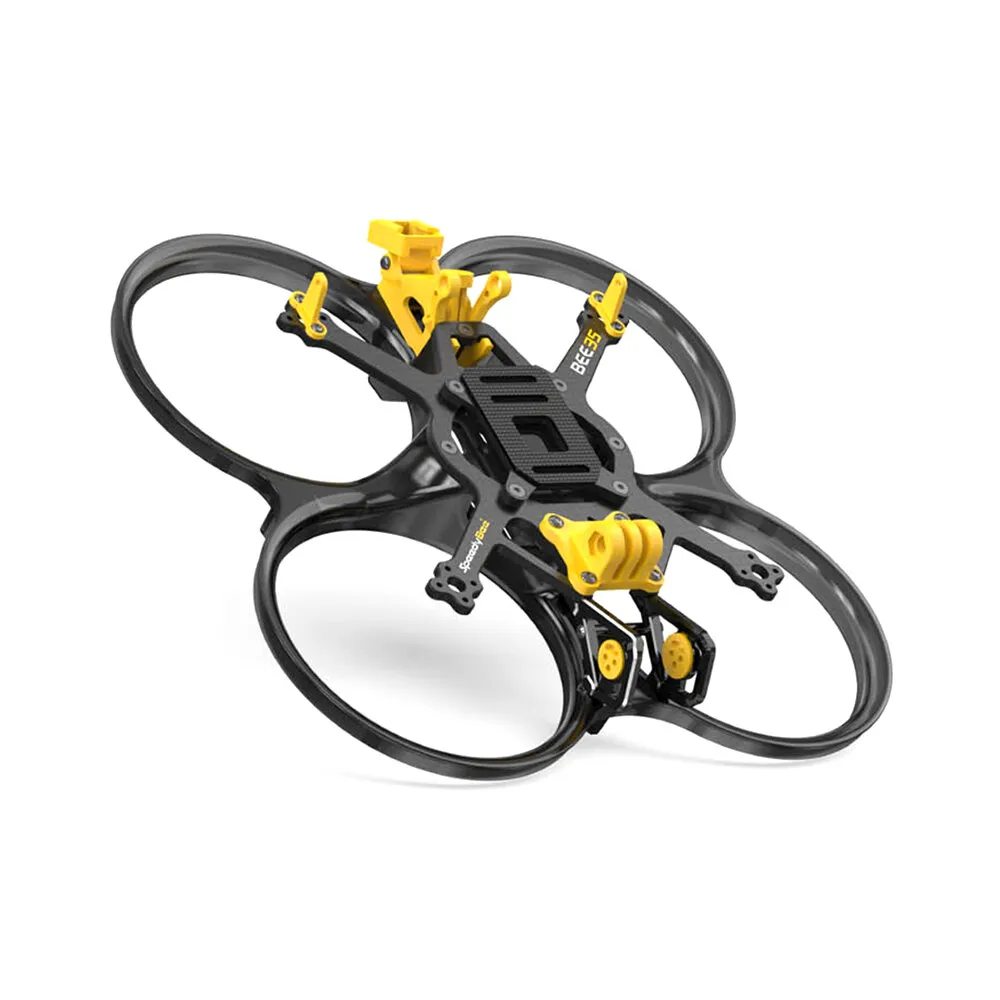

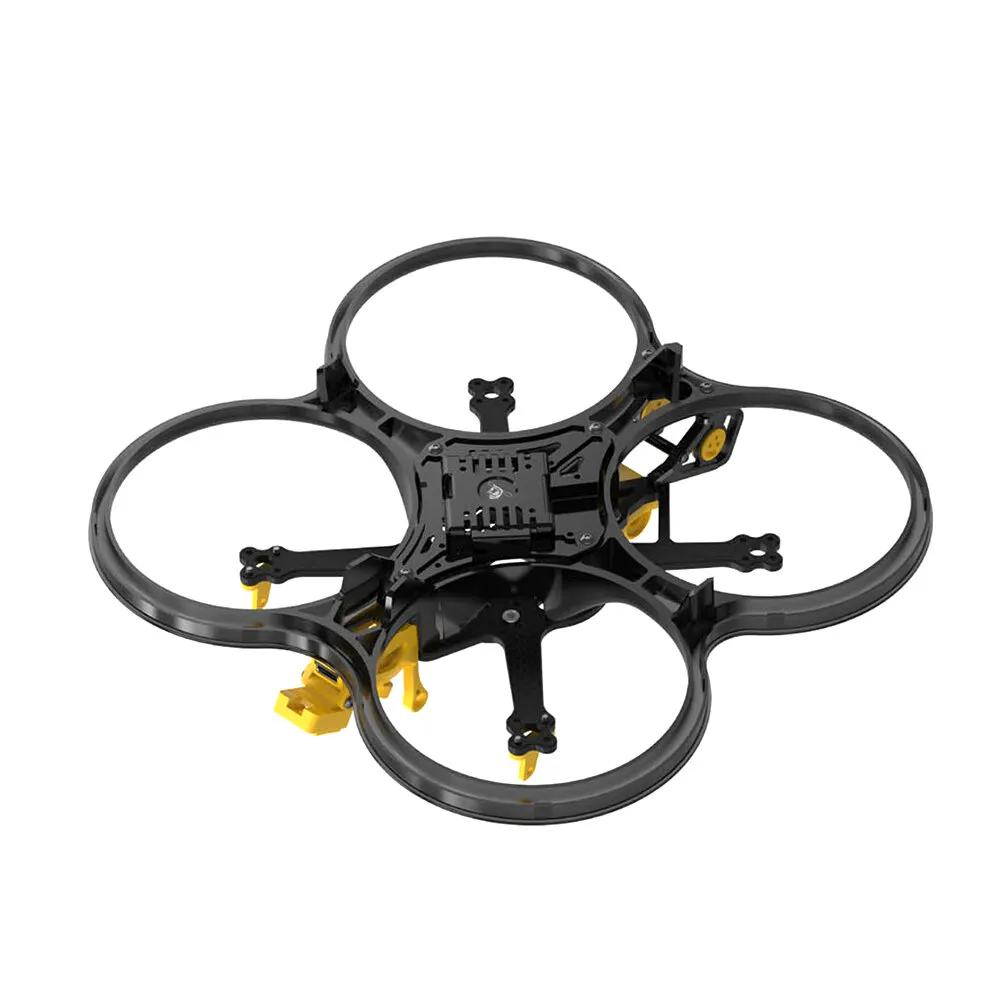

SpeedyBee Bee35 Pro LED 153mm Wheelbase 3.5 Inch Frame Kit Support DJI O3 for DIY CineWhoop RC FPV Racing Drone

SKUK36025
10 Reviews
USD 51.99
Wholesale Prices :
Qty: 4-7 >=8
Price: $41.39 $39.09
Qty:
In stock
30-day Return Policy, Learn More
Description
  • weight: 485 g

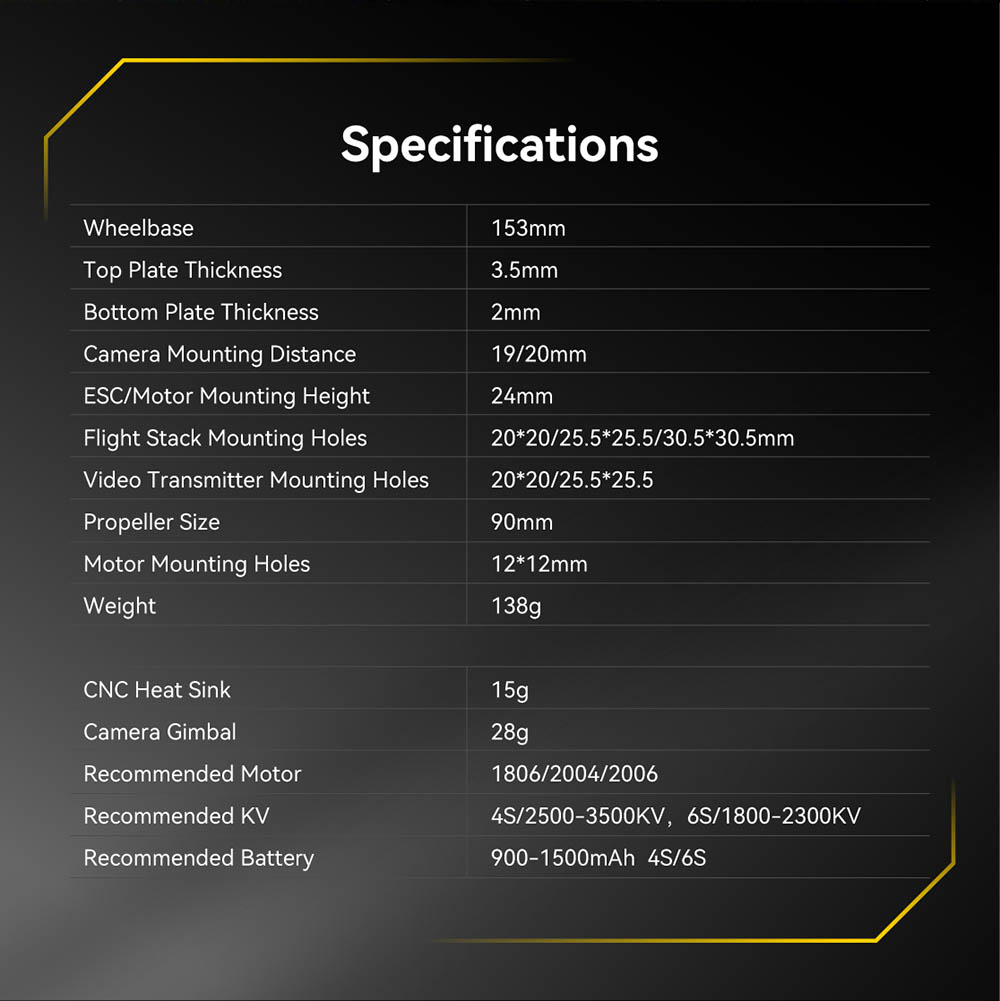

Specifications:

Brand: SpeedyBee

Version: Standard / Bee35 PRO


Product Name

SpeedyBee Bee35 Frame

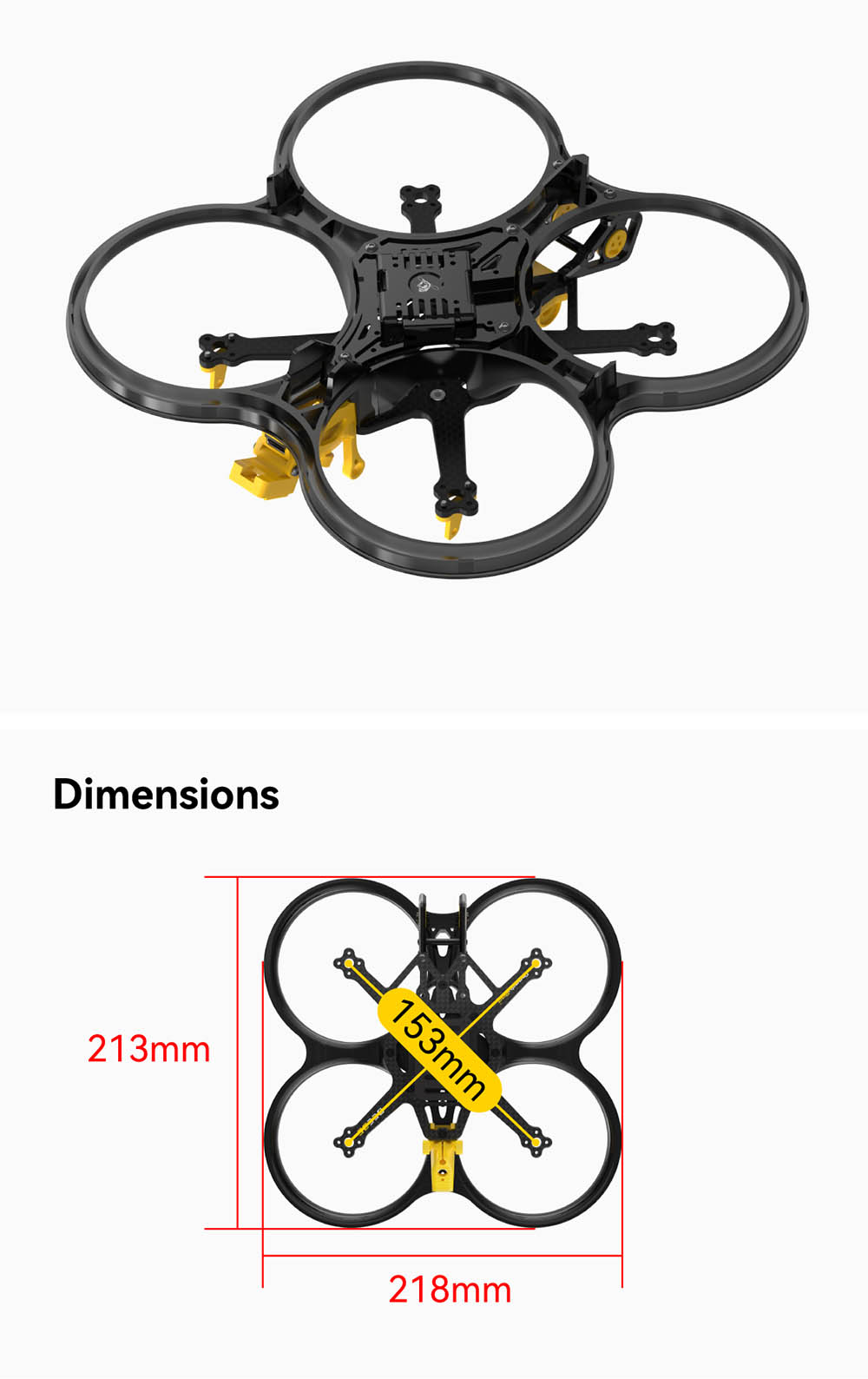

Wheelbase

153mm

Top Plate Thickness

3.5mm

Bottom Plate Thickness

2mm

Camera Mounting Distance

19/20mm

ESC/Motor Mounting Height

24mm

Flight Stack Mounting Holes

20*20/25.5*25.5/30.5*30.5mm

Video Transmitter Mounting Holes

20*20/25.5*25.5

Propeller Size

90mm

Motor Mounting Holes

12*12mm

Weight

138g

CNC Heat Sink

15g

Camera Gimbal

28g

Recommended Motor

1806/2004/2006

Recommended KV

4S/2500-3500KV,6S/1800-2300KV

Recommended Battery

900-1500mAh 4S/6S

Features:

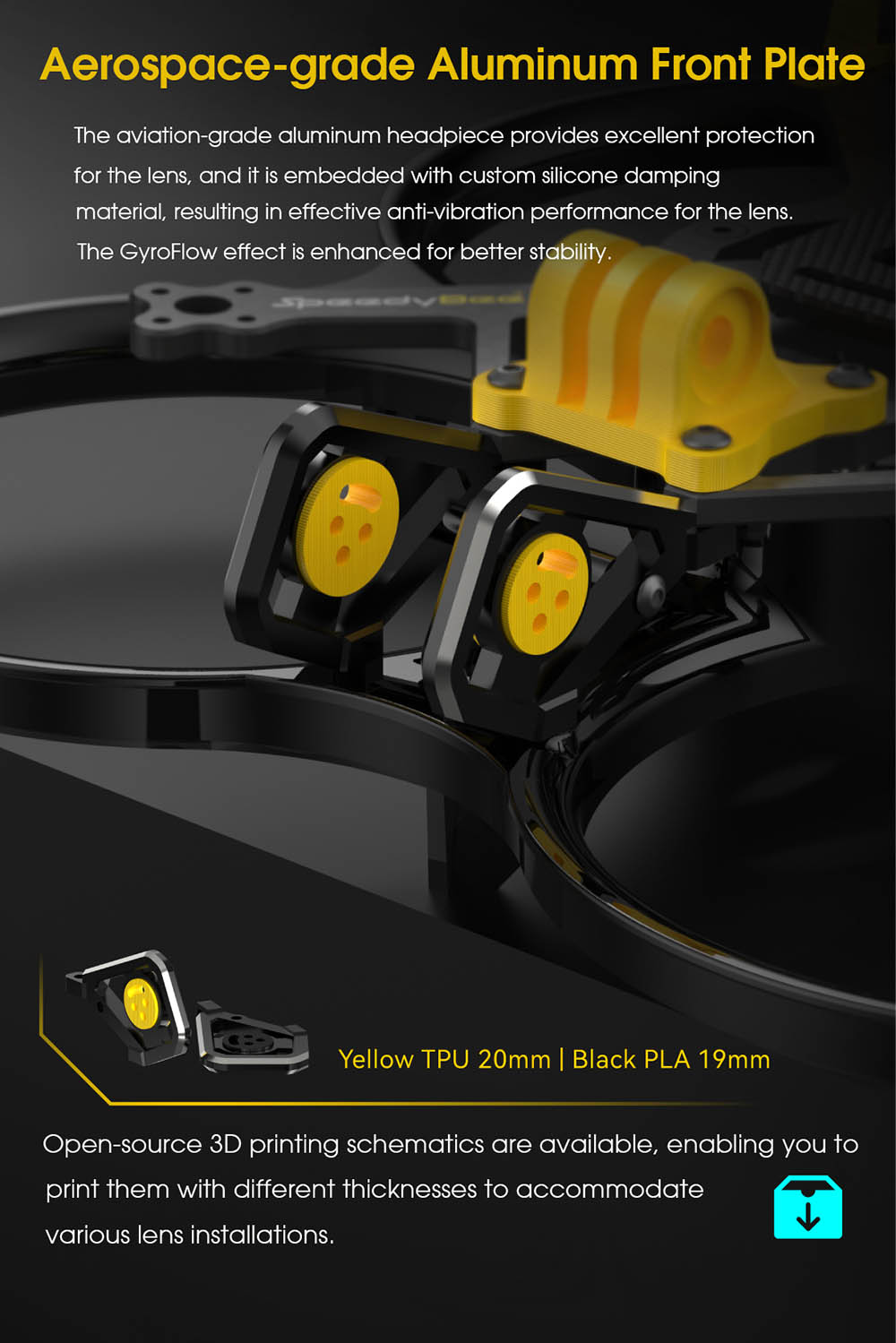

1.Customized aluminum alloy front end to effectively protect unobstructed DJI O3.

2.Customized silicone gel shock absorption for the DJI O3 lens, eliminating jelly effect.

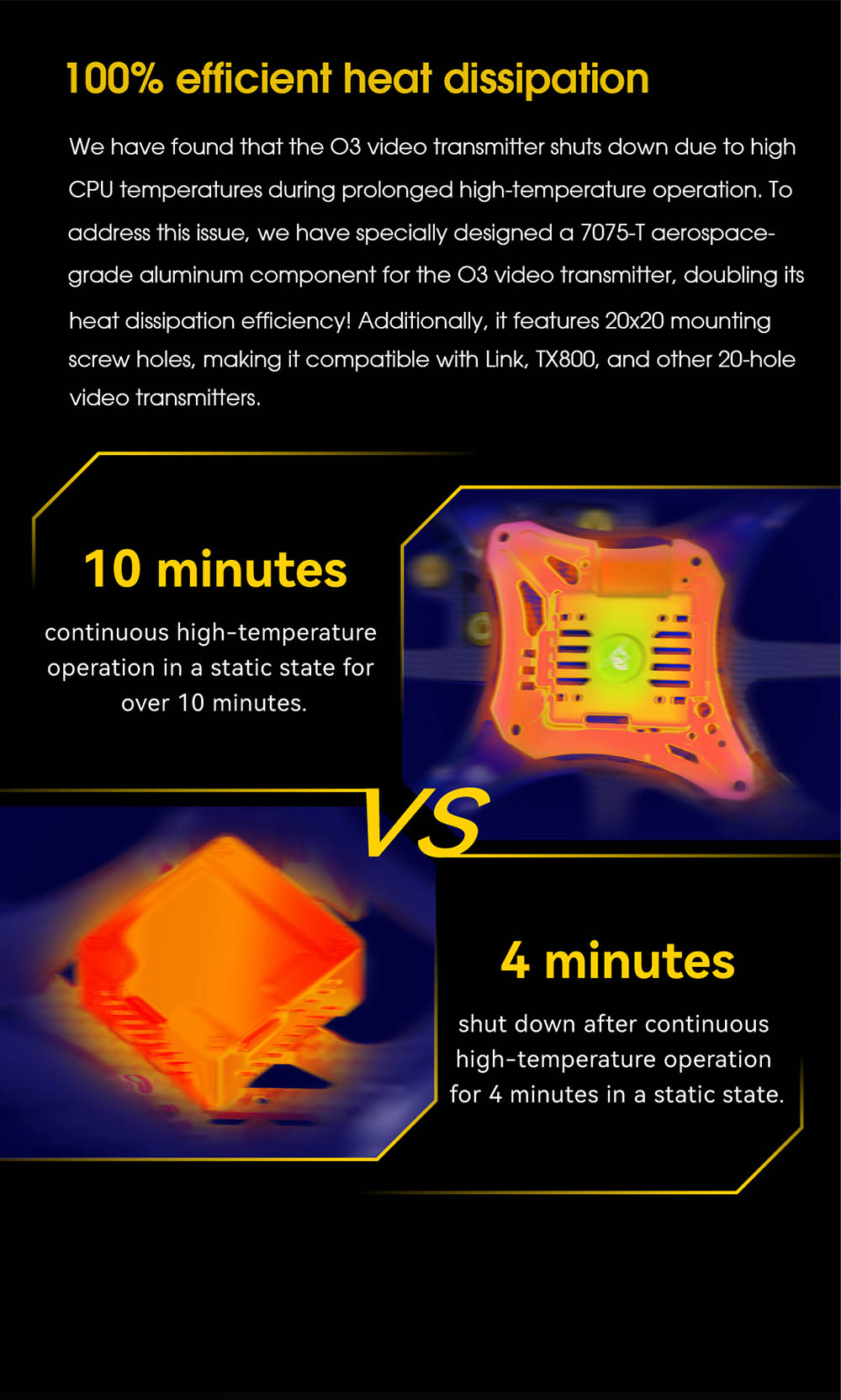

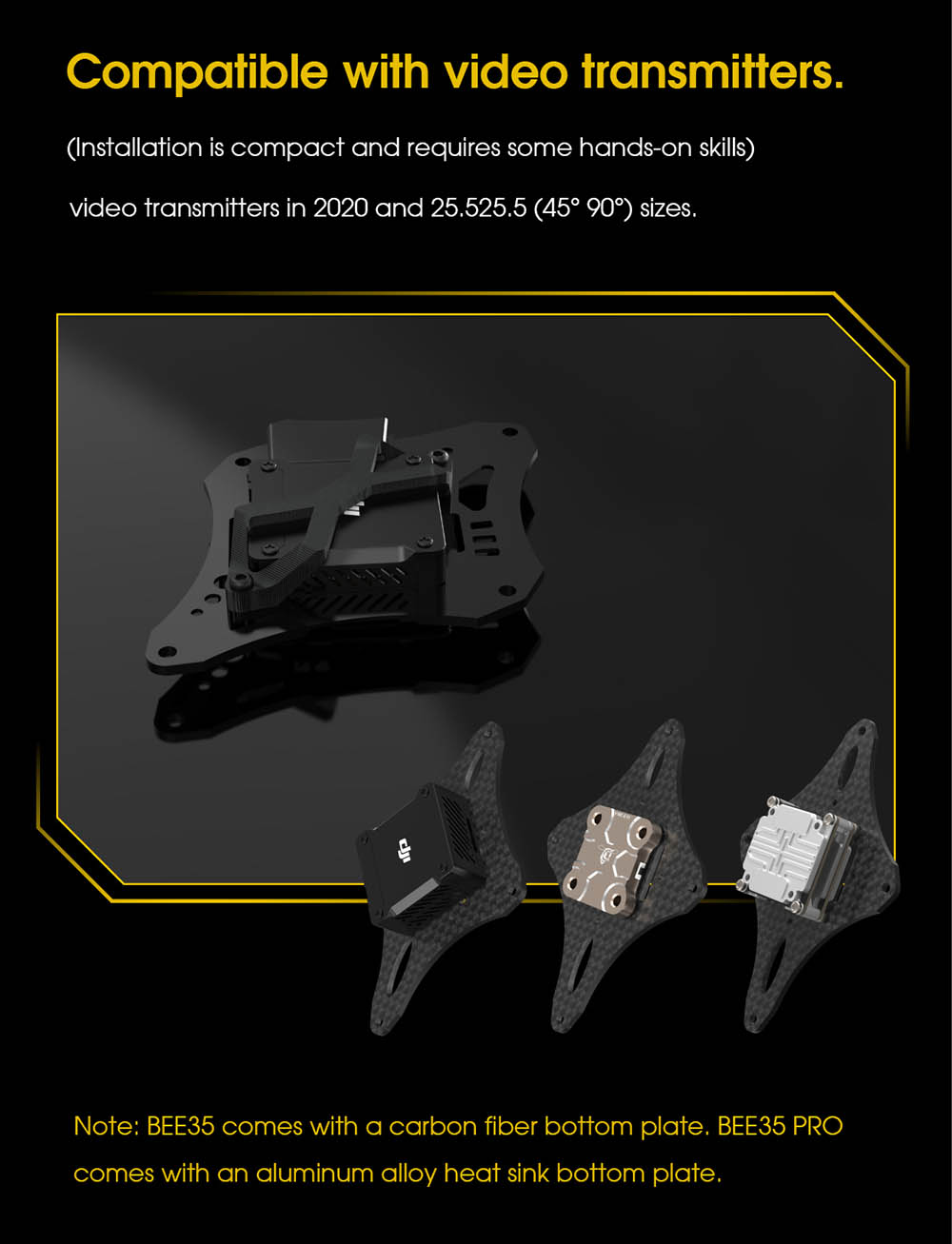

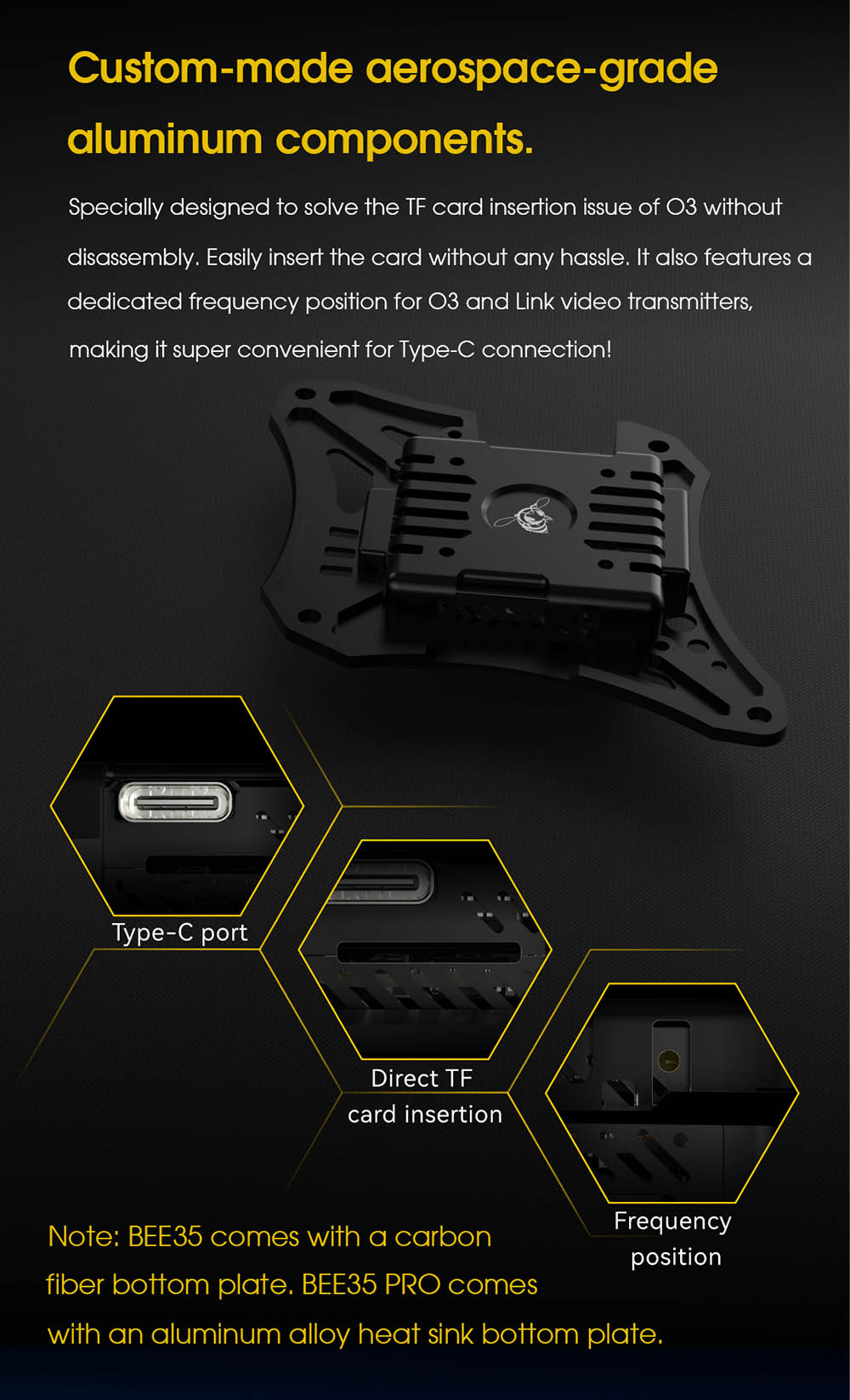

3.Customized aluminum alloy heat dissipation device at the bottom, seamlessly integrated with DJI O3 and RunCam link transmission, while also facilitating Type-C and memory card insertion for convenient frequency adjustments.

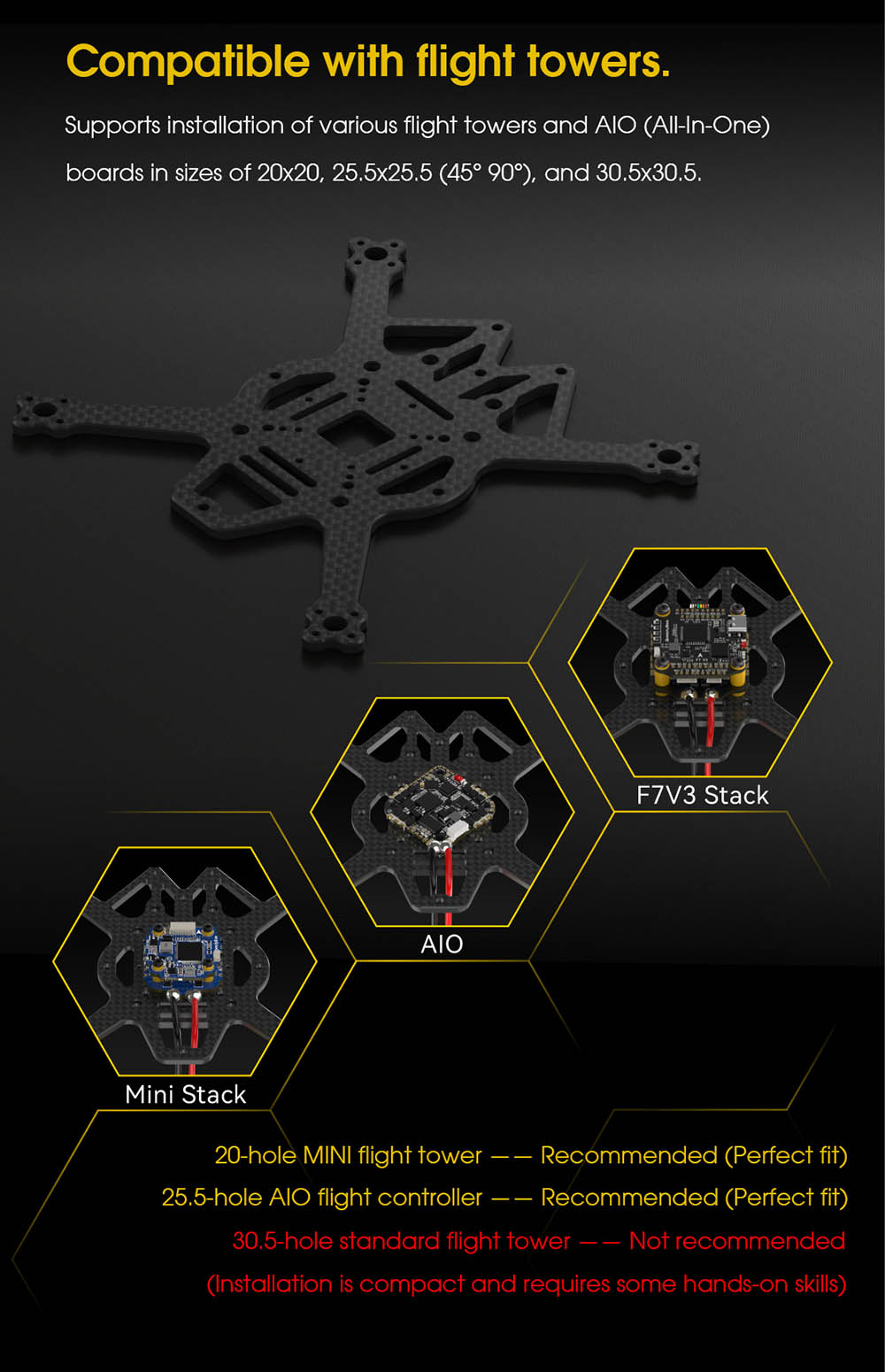

4.Flight tower compatibility: Hole patterns for 2020mm/ 25.525.5mm/30.5*30.5mm.

5.Battery compatibility: Horizontal and vertical mounting design, eliminating concerns about difficult installation after zip tie breakage.

6.No need to disassemble for flight controller connection, supporting both Type-C and micro connectors for flight towers.

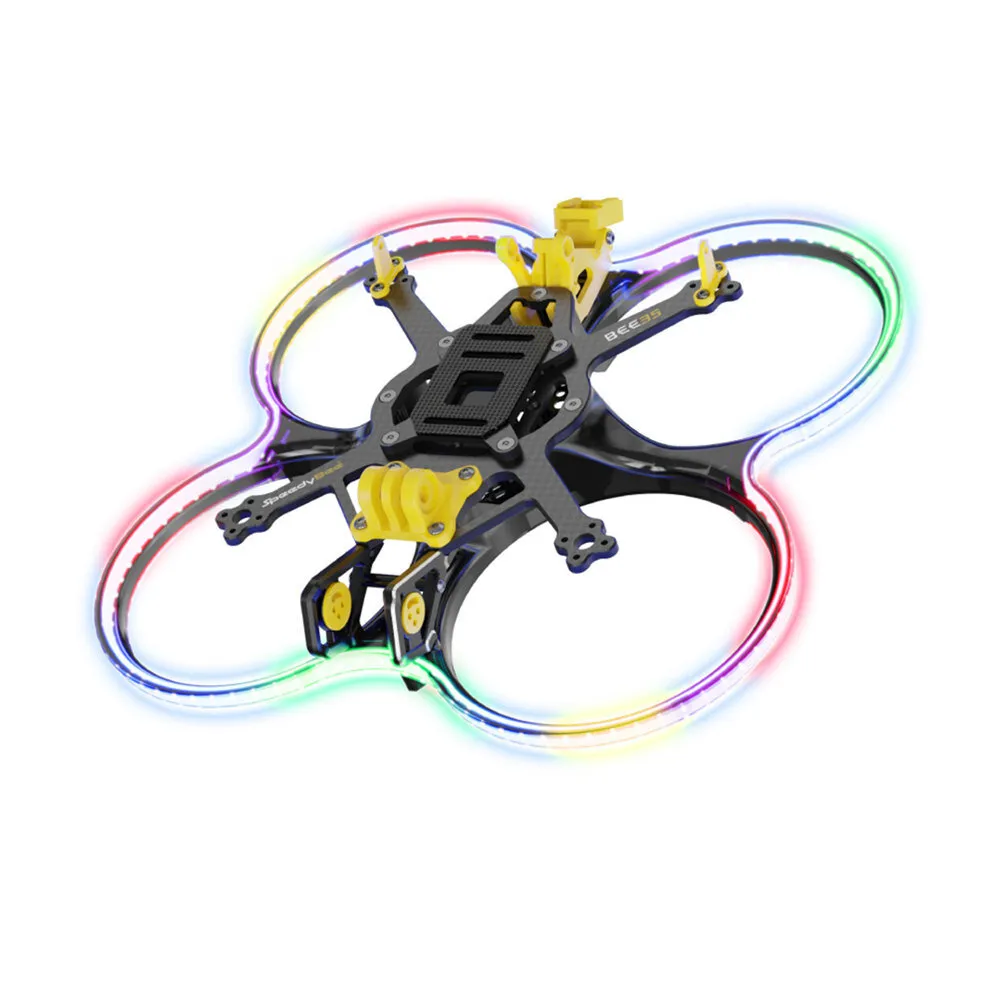

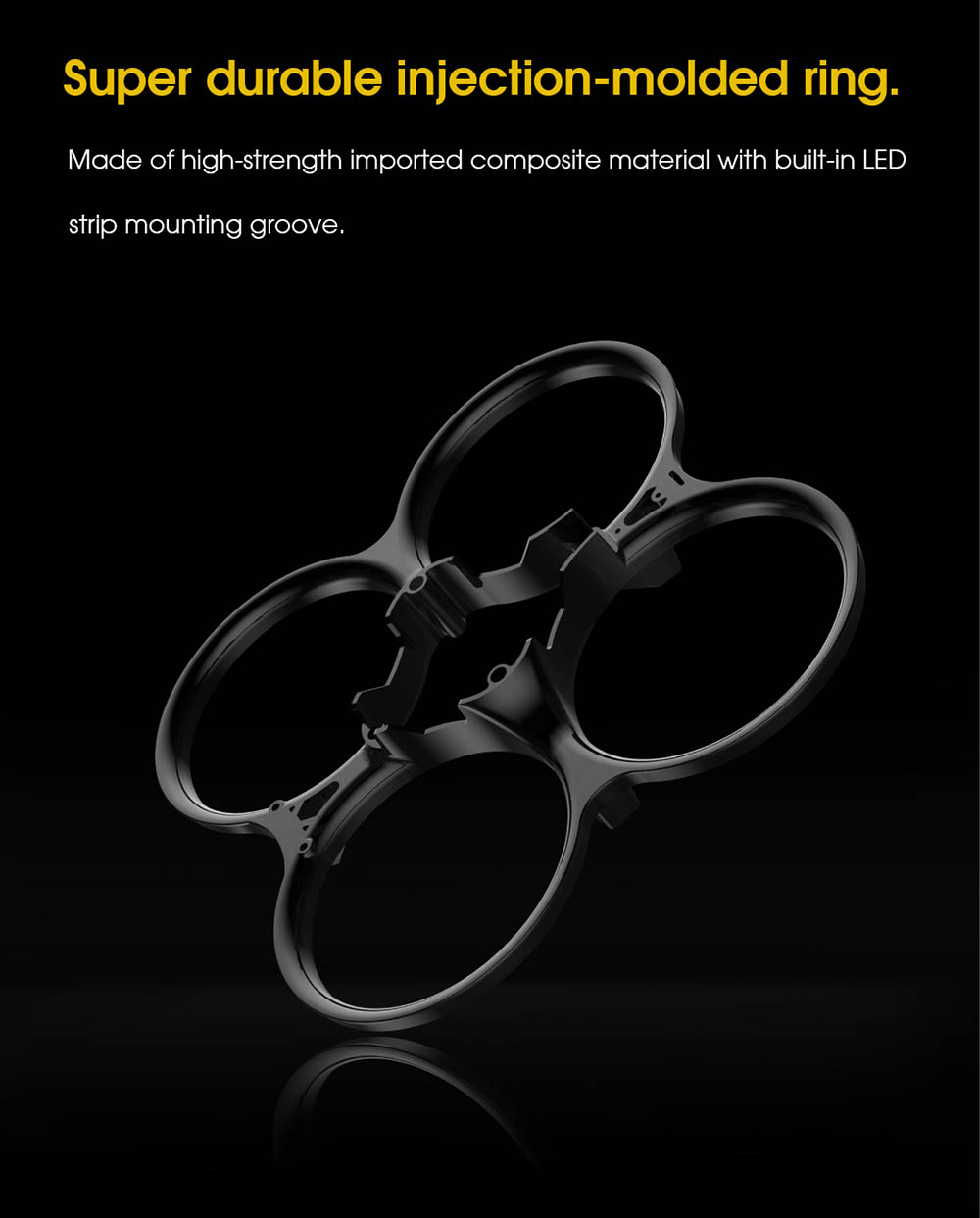

7.Highly durabl injection-molded protective ring with built-in LED strip groov, facilitating LED strip installation.

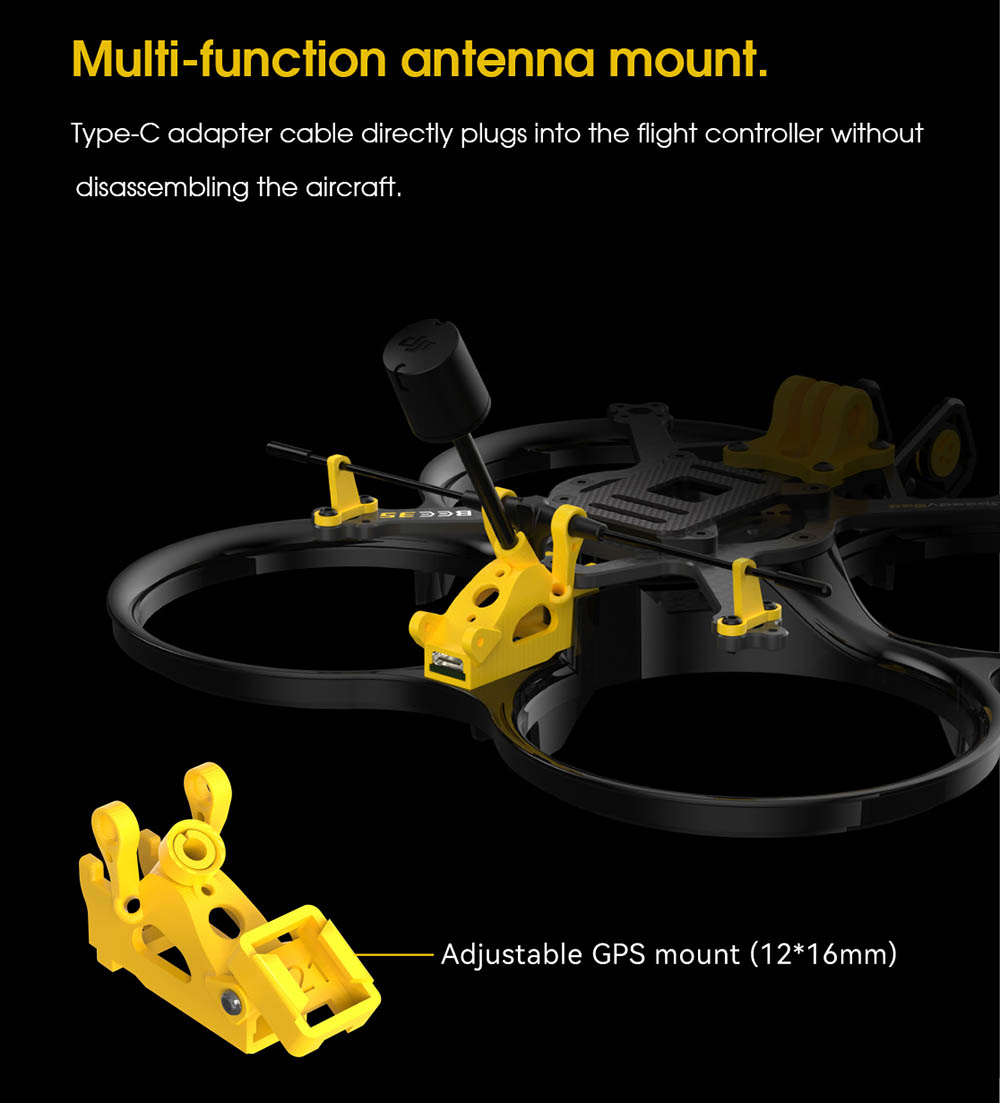

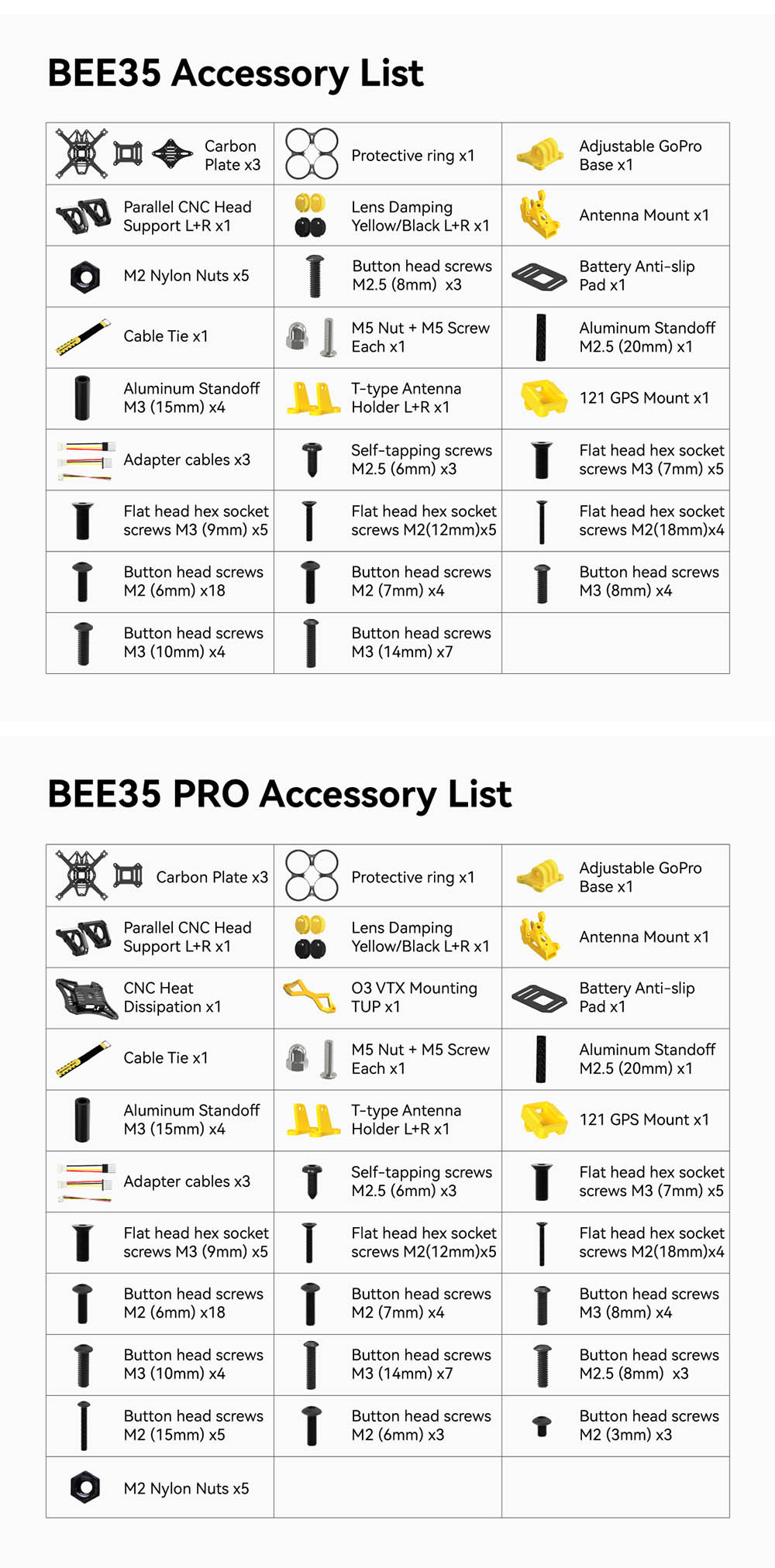

8.Complete set of printed parts, including GoPro mount, 121GPS mount, multi-functional antenna mount, and T-shaped antenna holder.

9.Adjustable GPS mount compatible with both GPS and MASTER 5 V2 GPS mounts, with 121GPS mount included as standard.

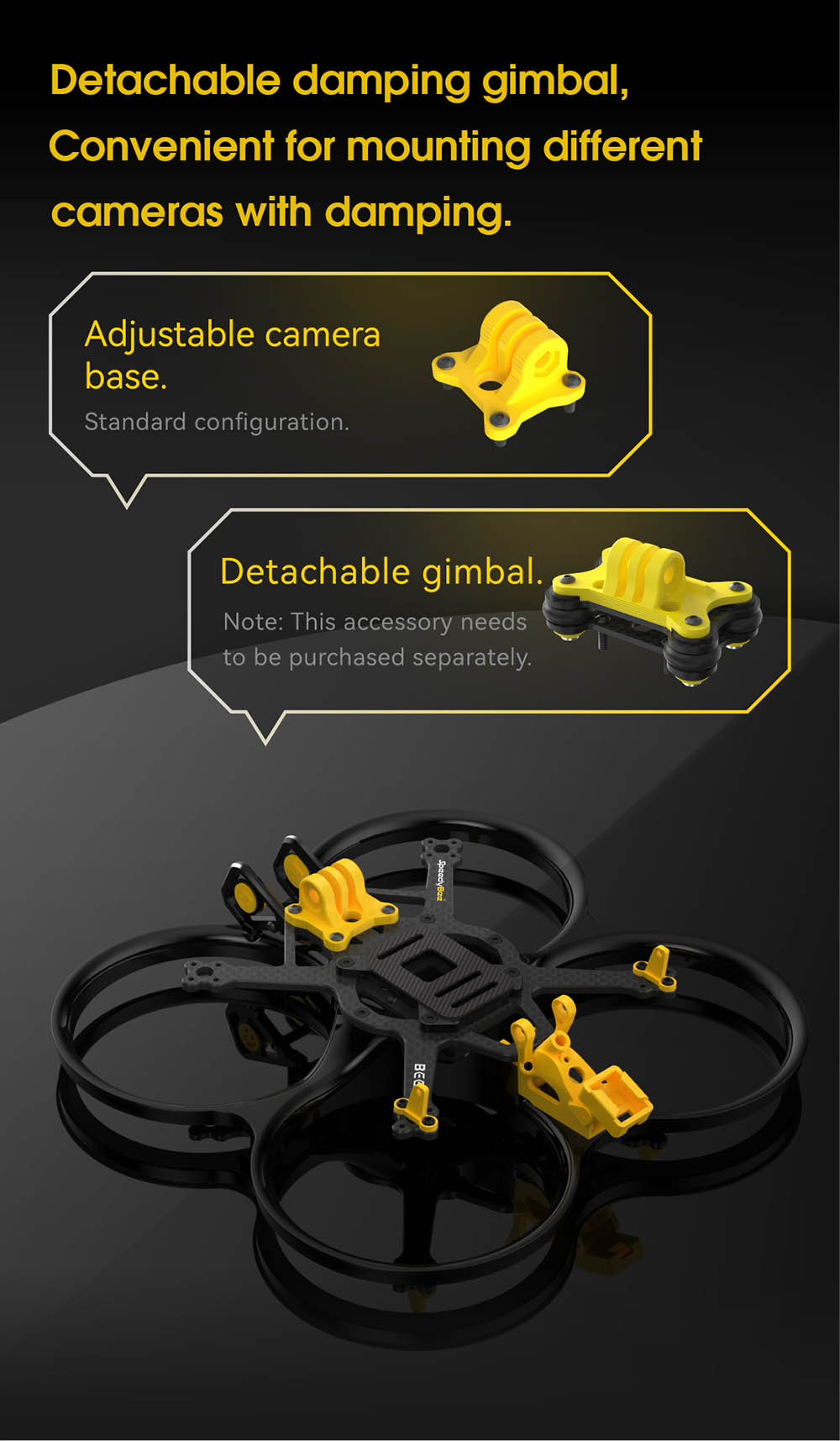

10.Supports detachable shock-absorbing gimbal (not included in standard package).

Package Included:

1x Empty Frame Kit
