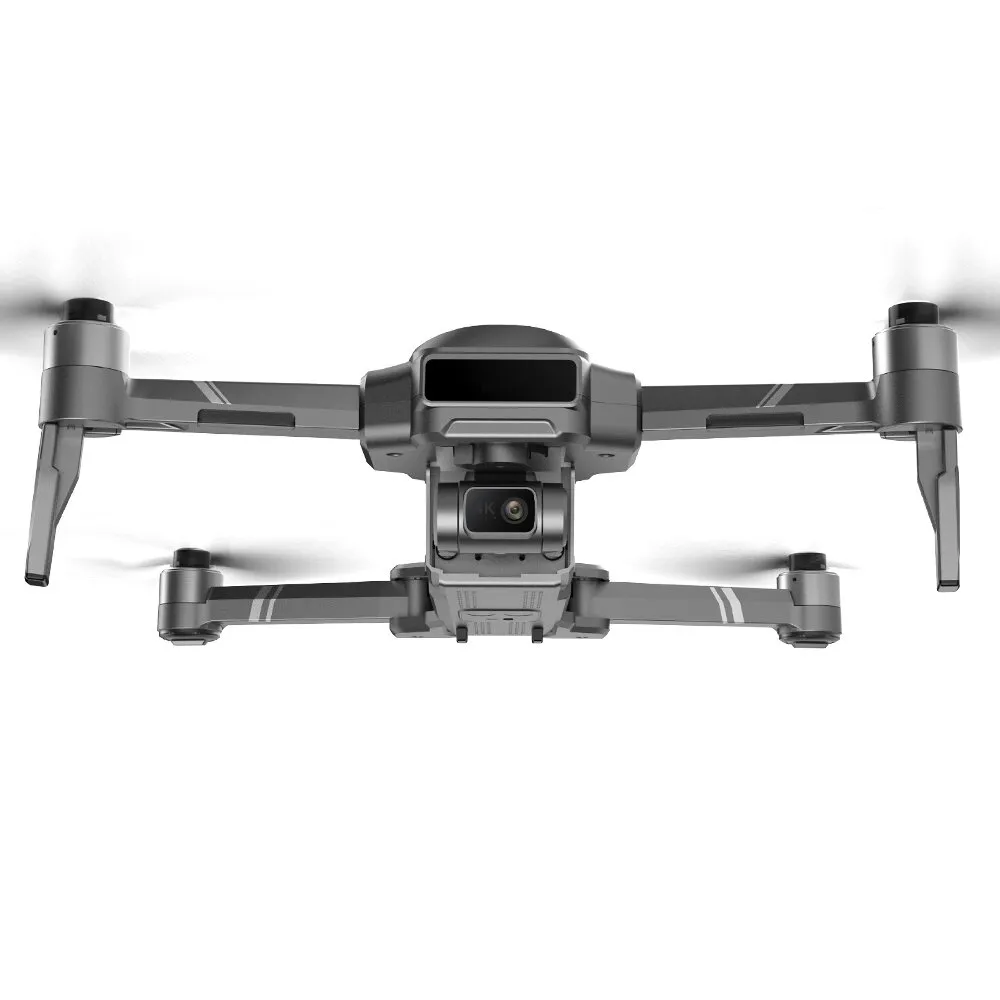

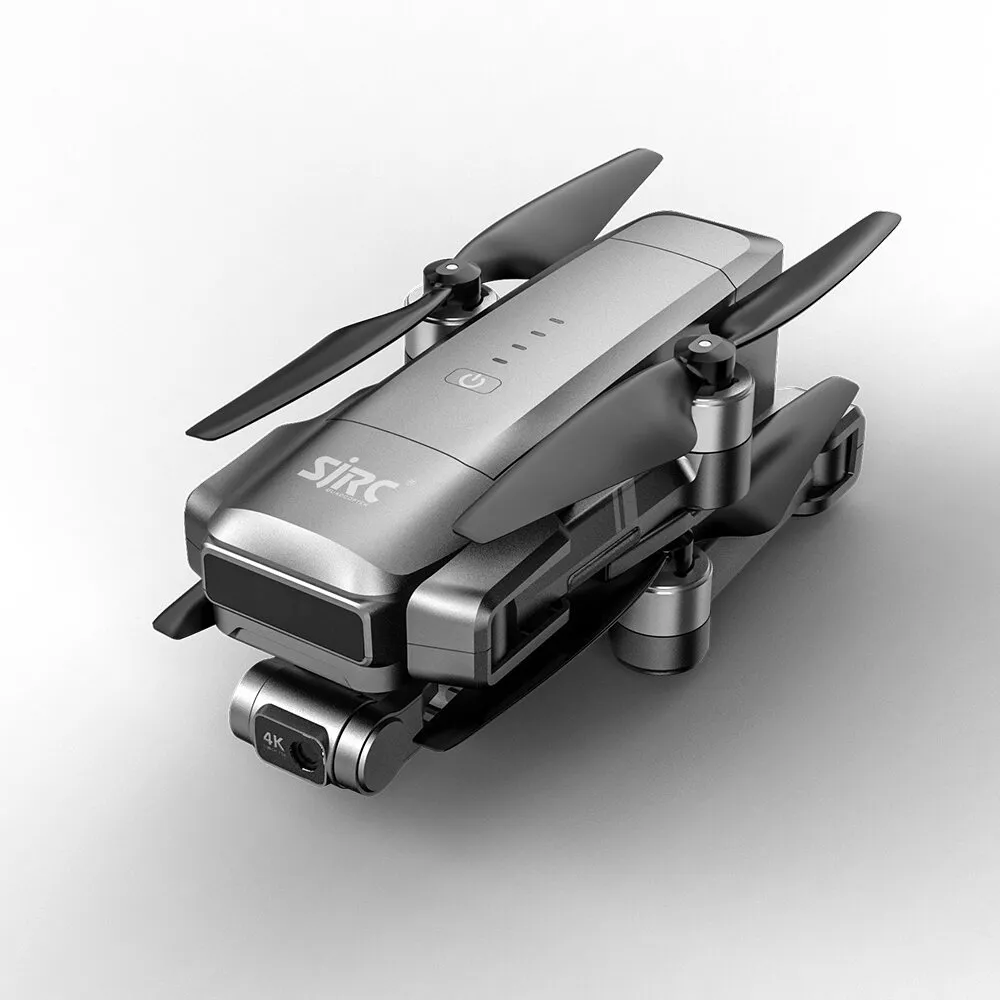

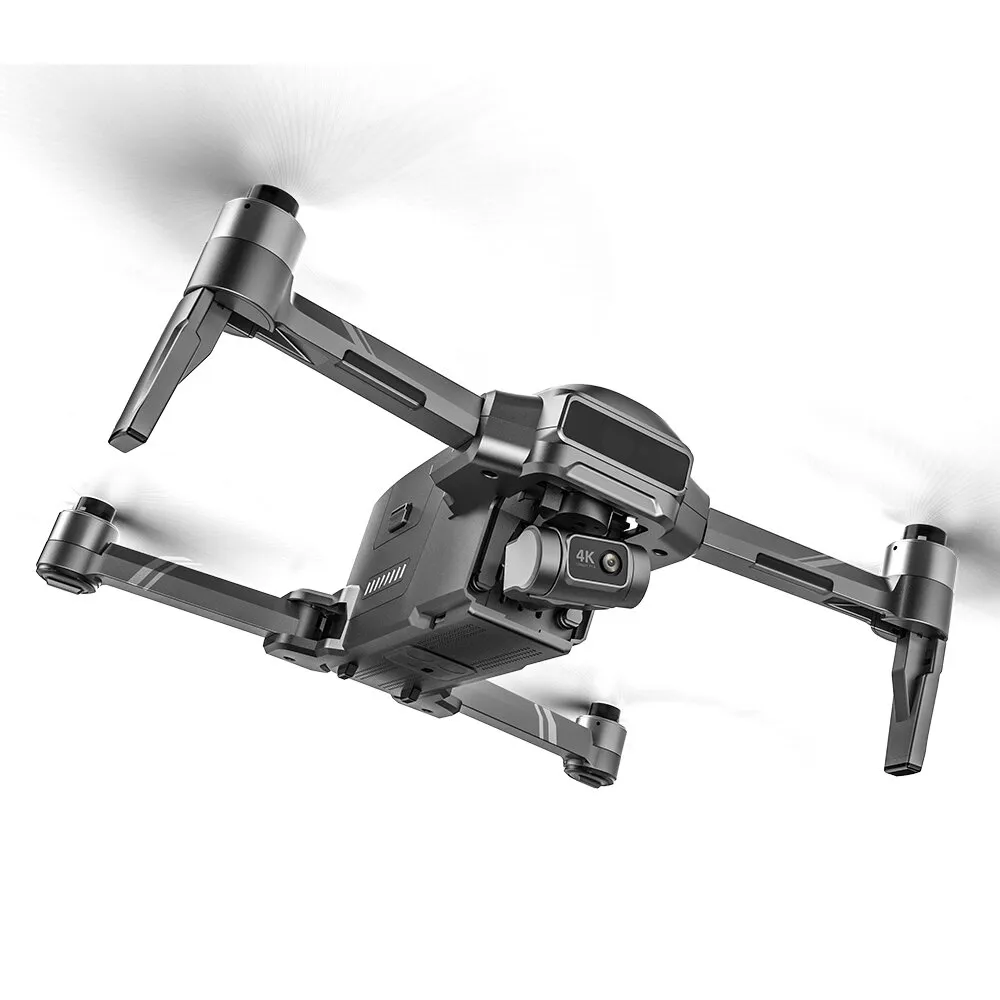

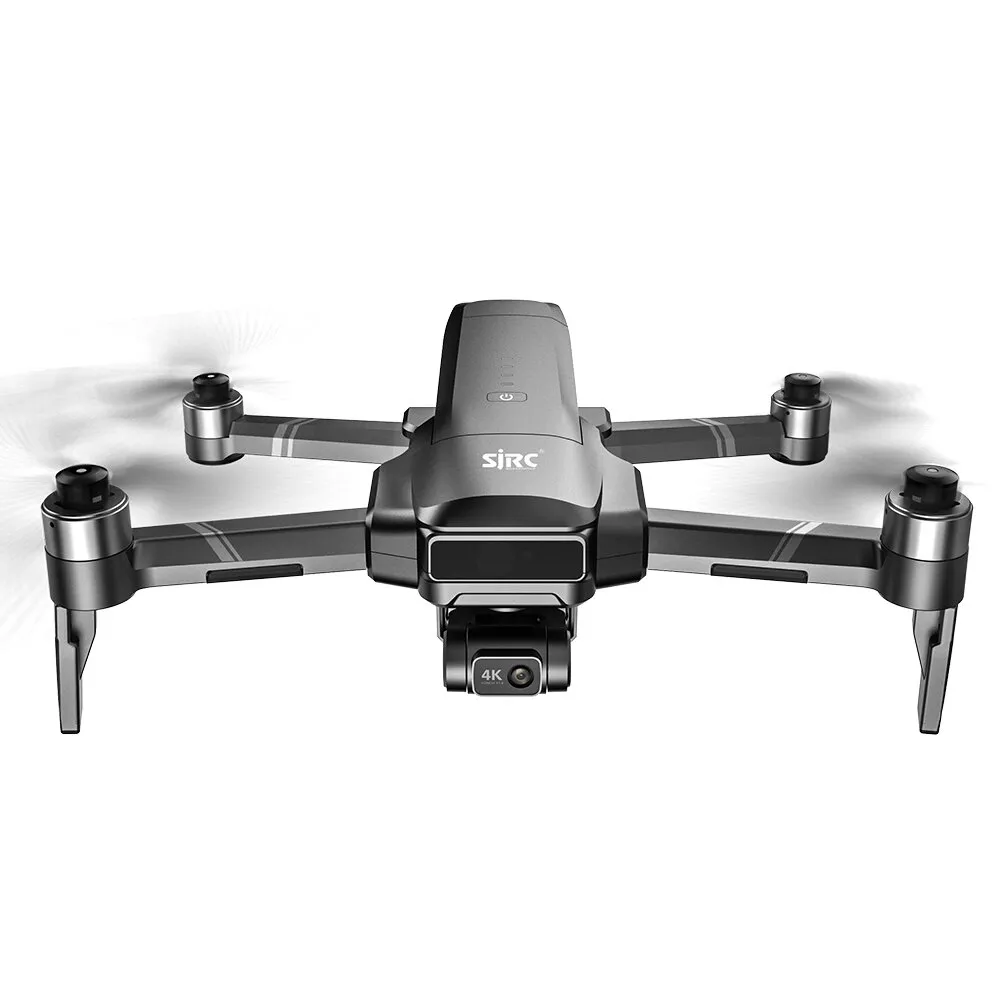

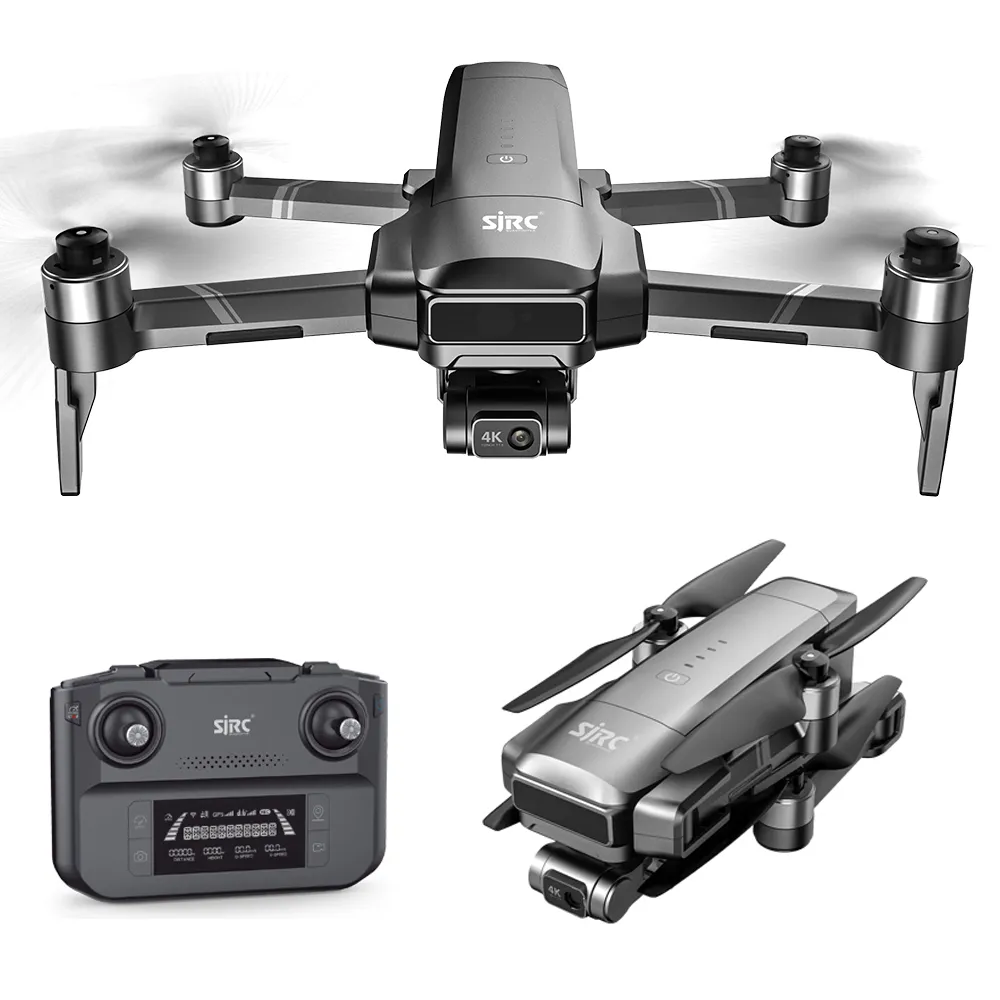

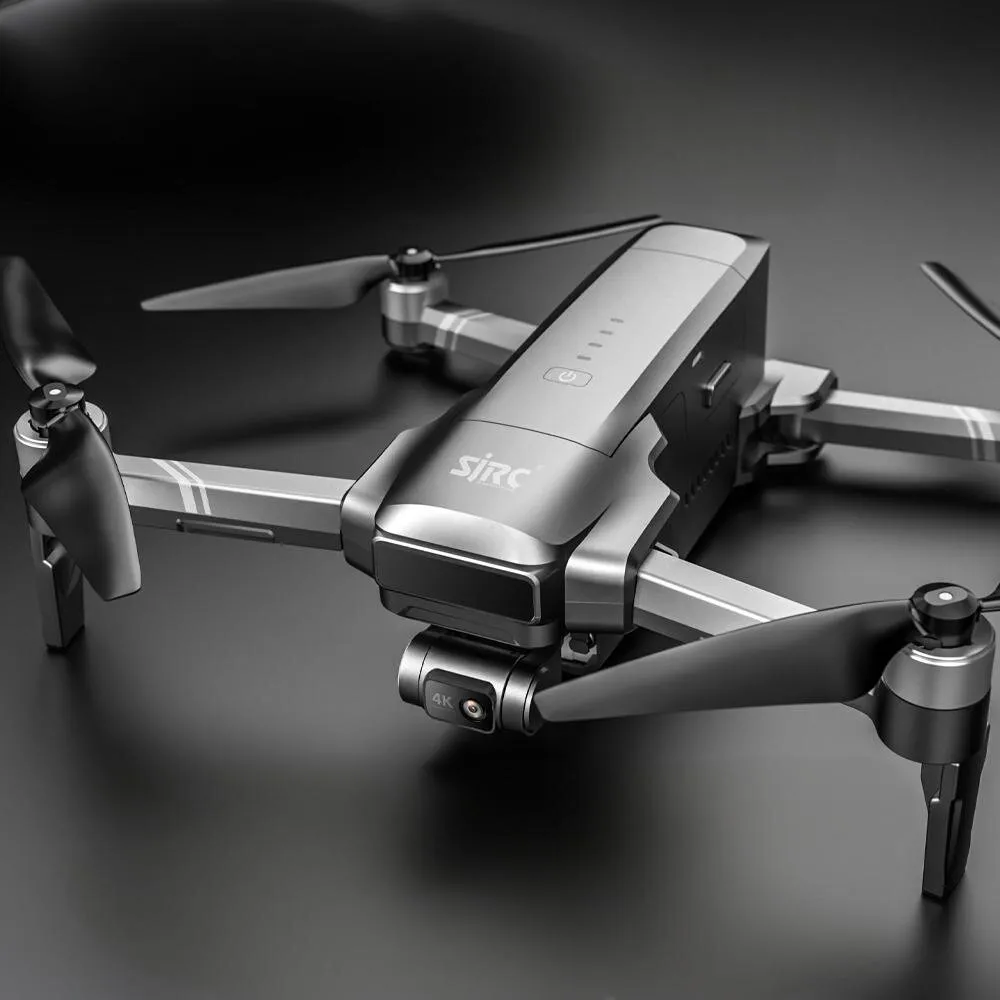

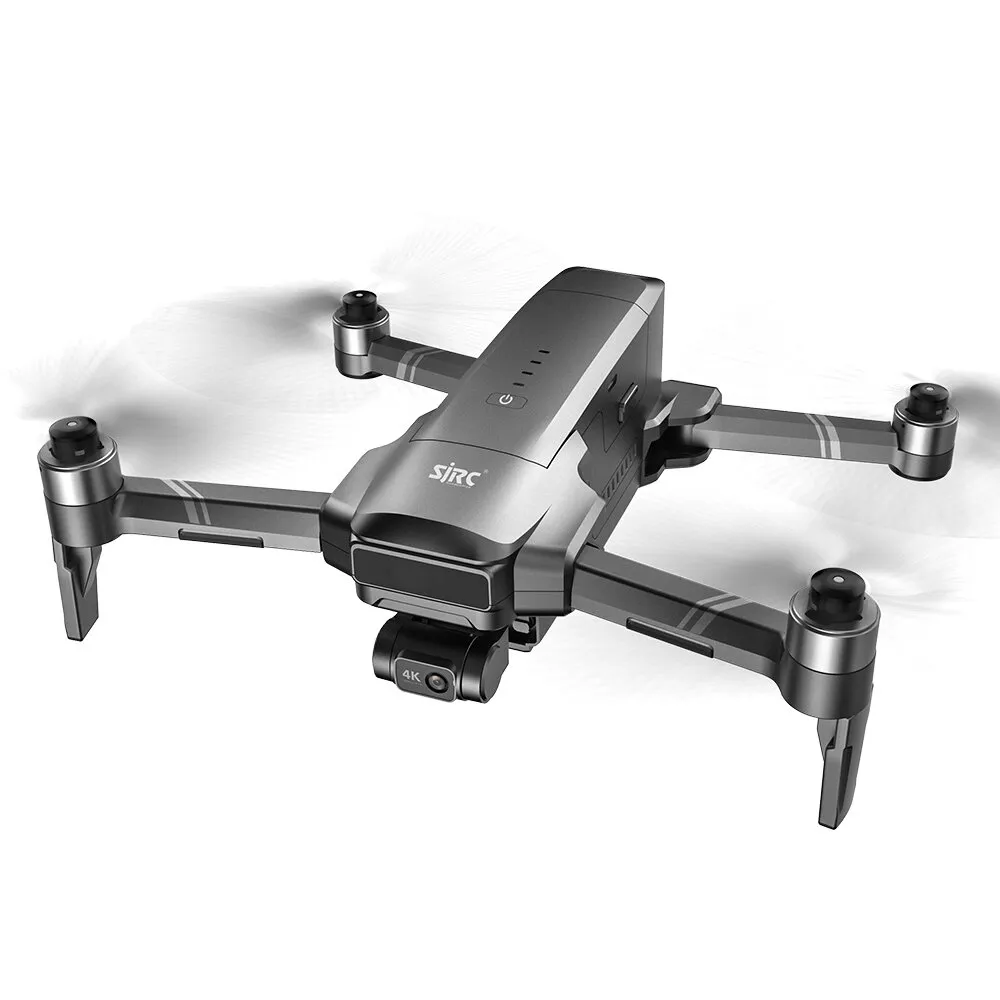

SJRC F22 S3 PRO GPS 6KM 5G Repeater Digital FPV with 4K HD EIS Camera 3-Axis Gimbal Lower Vision Module Optical Flow w/ Searchlight Brushless Foldable RC Drone Quadcopter RTF

• weight: 485 g

SJRC F22 S3 PRO GPS 6KM 5G Repeater Digital FPV with 4K HD EIS Camera 3-Axis Gimbal Lower Vision Module Optical Flow w/ Searchlight Brushless Foldable RC Drone Quadcopter RTF

Specifications:

Brand Name: SJRC

Item No.: F22 S3 PRO

Color: Silvery Grey

Motor: 1806 Brushless

Operating Frequency: 5G Bridge

Drone Battery: 11.1V 3500mAh 38.85Wh Lipo (Included)

Flight Time: About 40 min

Charging Time: About 120 minutes

USB Charging: 5V/3A Type-C 30W

Remote Control Mode: Mode 2 (Left Hand Throttle)

Remote Control Battery: Built-in 1500mAh Battery

Control Distance: About 6000m (No Interference, No Obstruction)

Transmitter Charging Time: About 110 minutes

Transmitter Operating Time: About 2.5 hours

Operating Voltage: 7.4V

FPV: 5G USB Digital Image Transmission

Operating Frequency: 5.18~5.32 GHz, 5.745~5.825 GHz

Support Protocol: 802.11a

FPV Range: About 6000m (No Interference, No Obstruction)

Video Transmission Frame Rate: 30fps / 60fps

Camera Pixel: 4K HD

Camera Lens: FOV 100°

Sensor: 1/2 inch

Viewing Angle: 56° (Horizontal), 33° (Vertical)

Equivalent Focal Length: 25cm

Focus Range: Fixed Focus

Photo Resolution: 3840 x 2160P (APP), 8000 x 6000P (SD Card)

Video Resolution: 1280 x 720P (APP), 3840 x 2160P (SD Card)

Photo Format: JPG

Video Format: MP4

SD Card: 32G-128G Class 10/U1 or above (Not Included)

Select FAT32 format for formatting and 64KB for allocation unit size (select the largest option)

Gimbal: 3 -Axis Brushless Mechanical

Pitch: -100° - +70°

Roll(X): -35° - +35°,

Heading: -15°- +15°

Adjustable Angle: -80°- +0°

Gesture Shooting: 1-3 M

Image Follow Me: 3-10M

GPS Follow Me: 10-100M

Optical Flow Mode: YesPosition: GPS / GLONASS

Mobile Device System Version: iOS 9.0 or later / Android 5.0 or later

Operating temperature: 0 ~ 40℃

Take-off Weight: 615 g (Battery 245g)

Features:
1. GPS returns to the take-off point with one click, low battery return, and no signal return.
2. ①GPS smart follow: follow the phone to fly;
②Image follow: identify the subject and follow the subject for 360-degree circumnavigation.
3. Gesture shooting recognition: within 1-3m from the aircraft, face the camera to make a photo/video gesture.
4. Route multi-point planning flight: the aircraft flies autonomously according to the pre-set route, and the player focuses on shooting.
5. Fixed-point surround: find the center point of the surround, and then move the desired surround radiuss through the joystick.
6. Intelligent functions: one-click long-distance flight, one-click skyward, one-click spiral, vertical screen aerial photography, time-lapse photography, panoramic photography.

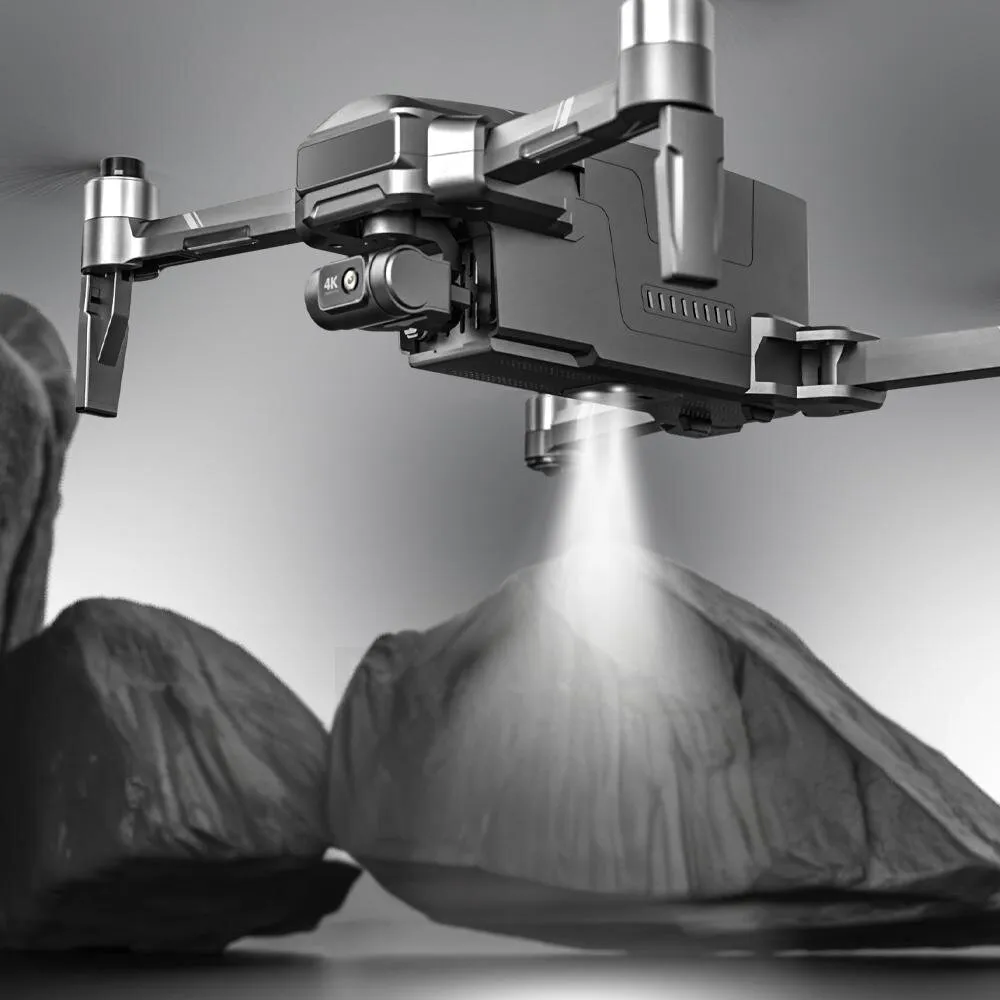

7. Downward ranging module: stable hovering at low altitude without GPS or weak signal; turn on the night vision auxiliary light to ensure your hovering performance in low-light environment.
8. USB digital image transmission: easy to use, long distance, stable transmission, strong anti-interference.
9. Aircraft recovery function:
Open the APP---Settings---Trajectory---Find aircraft, enter the map interface, and the map shows the aircraft's last distance, latitude and longitude.
10. Picture and video sharing: You can select single or multiple photos to share, and videos can only be shared one at a time.
11. The lens angle is 65°, and the camera can be adjusted to 80°.
12. 11.1V plug-in smart lithium battery, ultra-long battery life.

Function:
EIS electronic anti-shake/Brushless 3-axis gimbal/GPS positioning/Gesture photos/One click to return/Pointing flight/Orbiting flight/Automatic follow/Lost and returned/Low power return/Soar to the sky with one button/Mechanical head/Vertical screen shooting/One key screw/Time delay photography/Panoramic shooting/4K Camera/Electrically adjustable camera/Digital mapping approximately 6KM/Portable folding/Intelligent modular battery/Brushless motor/Farther away flight/Speed control

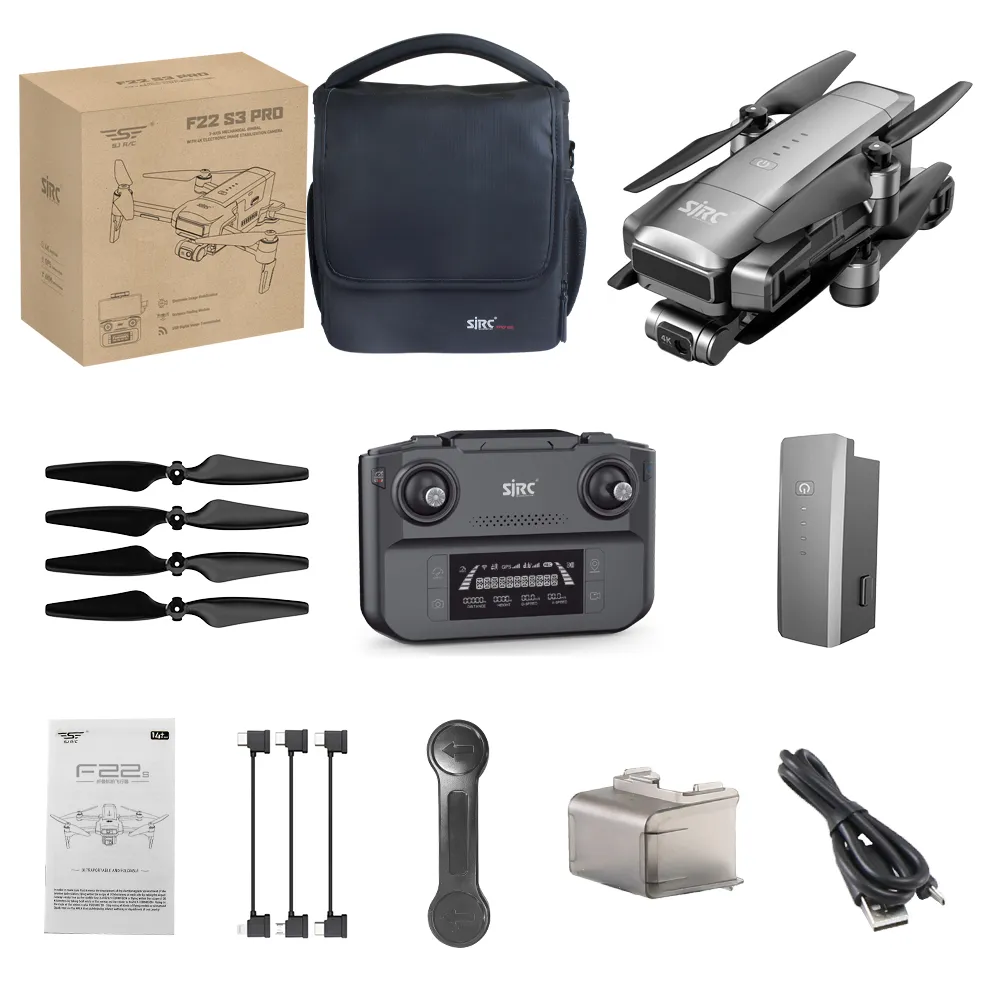

Package Included:

1 x F22 S3 PRO Drone

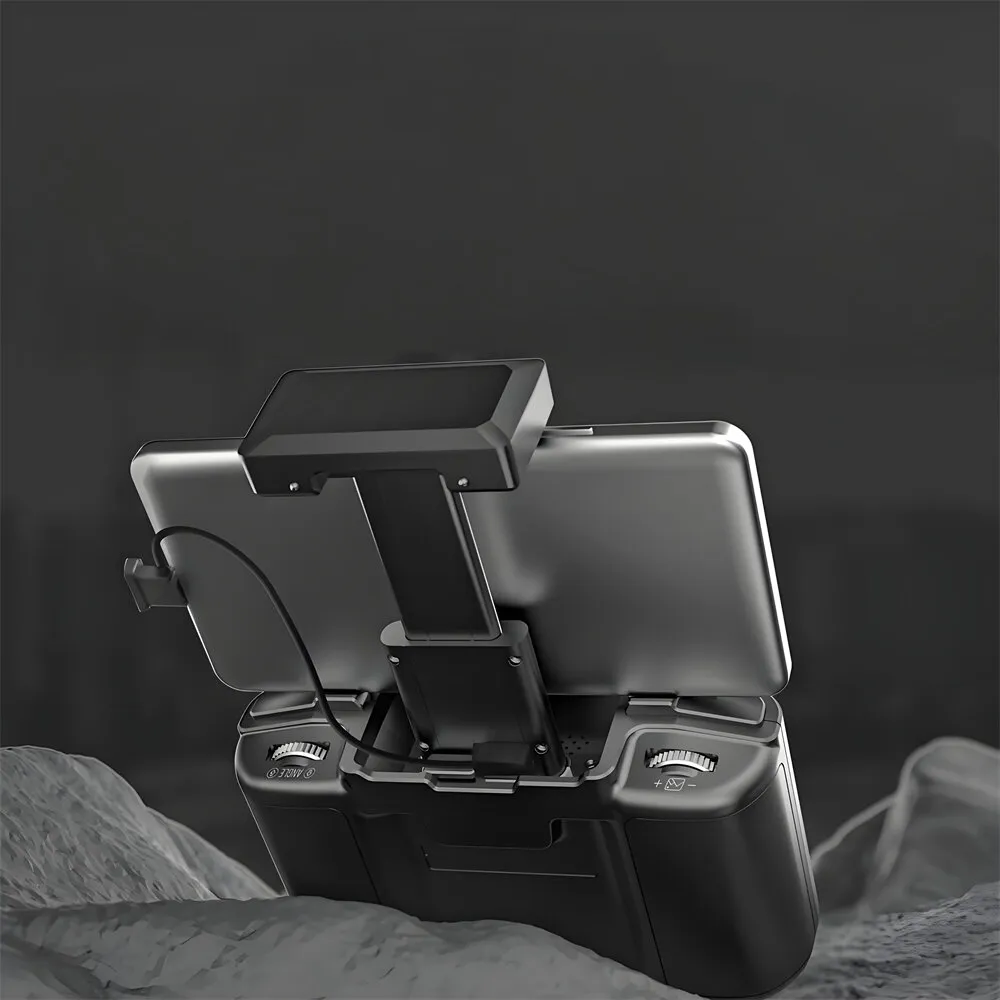

1 x Remote Controller

1 x Battery

1 x USB Charging Cable

4 x Spare Propellers

3 x RC Connected Cable

1 x Gimbal Cover

1 x Props Fixing Holder

1 x User Manual

1 x Storage Bag
