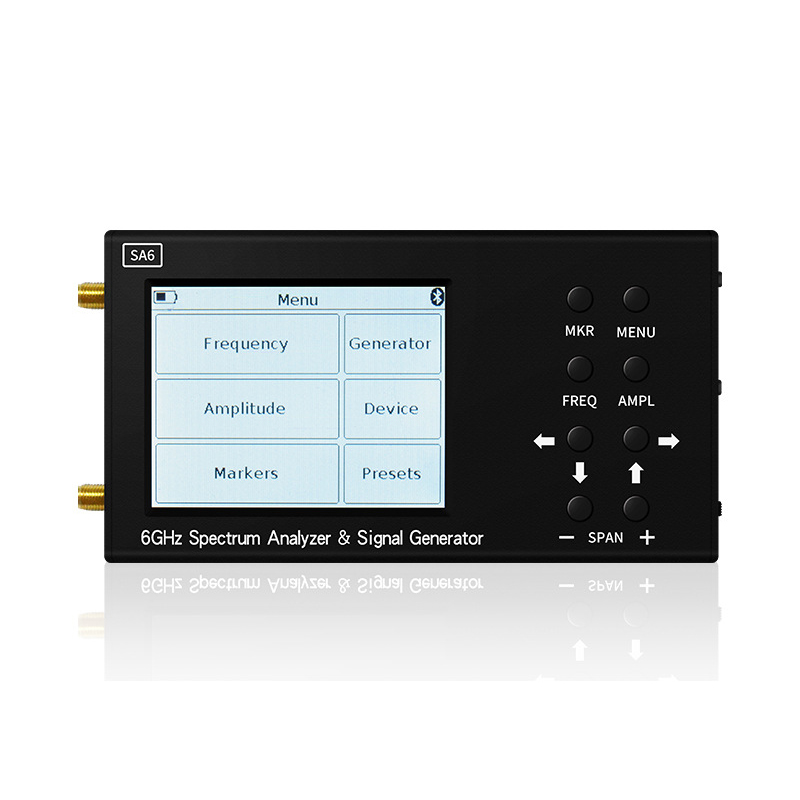

SA6 6G Portable Spectrum Analyzer Wi-Fi CDMA Laboratory 35-6200Mhz Signal Generator Tester

• weight: 485 g

Specifications:

Display frequency range	35 - 6200 MHz
Measuring frequency range	35 - 4500 MHz
Dynamic range of 35-3000 MHz frequency band	75 dB
Dynamic range of 3000-4500 MHz frequency band	70 dB
Maximum span	6165 MHz
Bandwidth	200 kHz, fixed,
Check 100MHz and Scanning speed of upper band	700MHz/sec
Scan 100 MHz	<0.25 seconds
Background noise up to 3000 MHz	<- 90 dBm
Background noise 3000-4500 MHz	<- 85 dBm
Background noise 4500-6200 MHz	<- 80 dBm
Wave impedance	50 Ω
Standing wave ratio within the operating frequency range	<1,5
Internal attenuator	0-30 dB
Error when attenuation is up to 10dB	2 dB
10 to 20dB attenuation error	5 dB
20 to 30dB attenuation error	8 dB
Tracking generator output power	- 15... 25 dBm
Accuracy in dynamic range	2,0 dB
Maximum input power of attenuator at 0dB	10 dBm
Maximum input power when attenuation is greater than 20dB	+20dBm
Maximum input measurement signal	+10 dBm
Maximum input DC voltage	25 V
Maximum current consumption when running with battery	450 mA
Maximum current consumption when running from USB	500mA (when charging)
Battery	2500 mA
Endurance	3 hours
Battery charging time	~5 hours

Features:

1. Wide Frequency Range: With a display frequency range of 35-6200 MHz and a measuring frequency range of 35-4500 MHz, this portable spectrum analyzer is capable of analyzing a wide range of frequencies, making it a versatile tool for various applications.

2. High Dynamic Range: The dynamic range of this spectrum analyzer is impressive, with a range of 75 dB for frequencies between 35-3000 MHz and 70 dB for frequencies between 3000-4500 MHz. This allows for accurate and precise measurements, even in the presence of strong signals.

3. Fast Scanning Speed: With a scanning speed of up to 700MHz/sec in the upper band and a scan time of less than 0.25 seconds for a 100 MHz span, this spectrum analyzer can quickly and efficiently analyze signals, saving valuable time and increasing productivity.

4. Low Background Noise: The background noise levels of this spectrum analyzer are low, with levels of <-90 dBm up to 3000 MHz, <-85 dBm between 3000-4500 MHz, and <-80 dBm between 4500-6200 MHz. This ensures that the signals being analyzed are clear and accurate, without interference from background noise.

5. Portable and Convenient: This spectrum analyzer is designed to be portable and convenient, with a battery life of up to 3 hours and a rechargeable 2500 mA battery. It also has a compact and lightweight design, making it easy to carry and use in various locations. Additionally, it can be charged via USB, making it a convenient tool for on-the-go use.

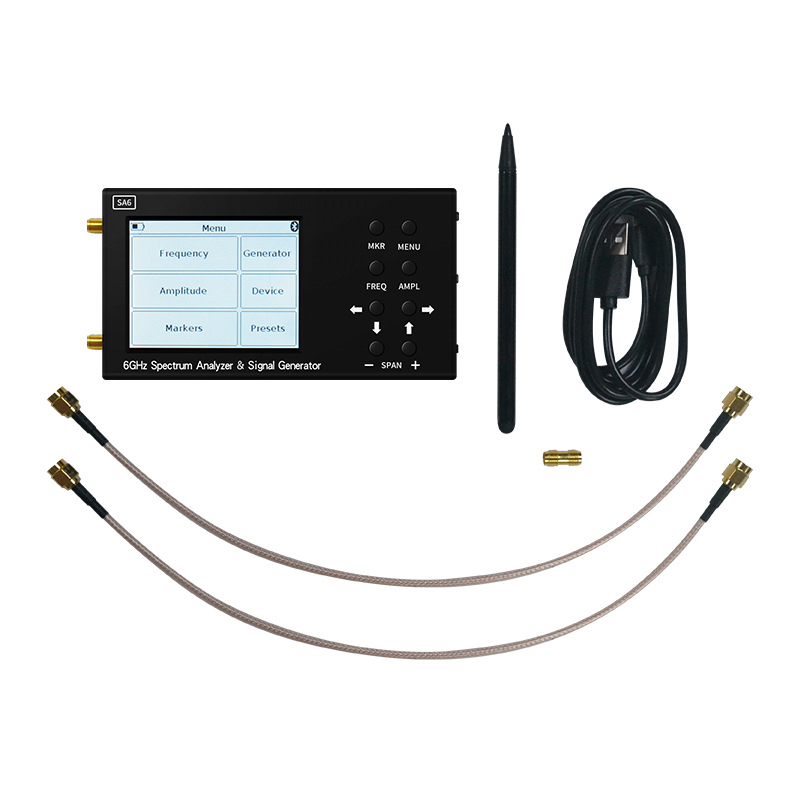

Package Include:

SA6 spectrum analyzer *1
SMA-SMA 30cm extension line *2
Typc-USB 10cm data cable *1
Touch pen *1
SMA-KK through *1
