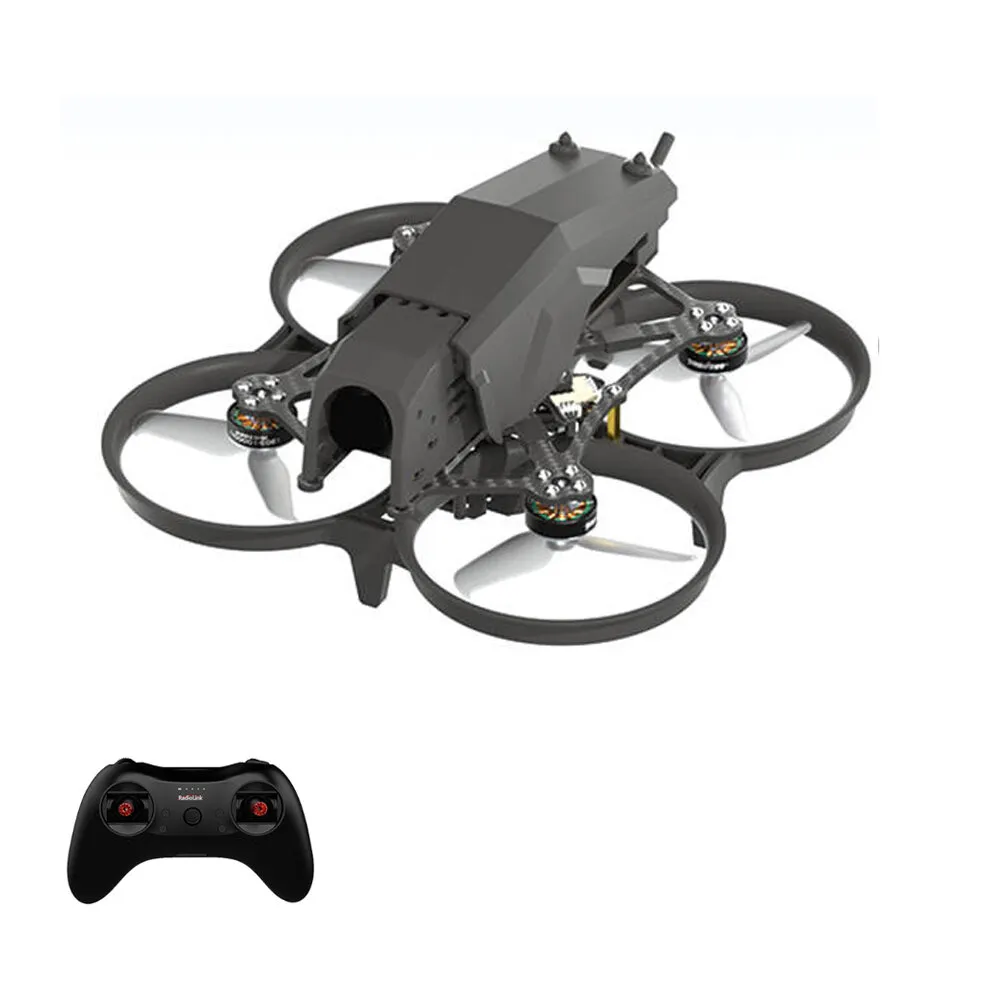

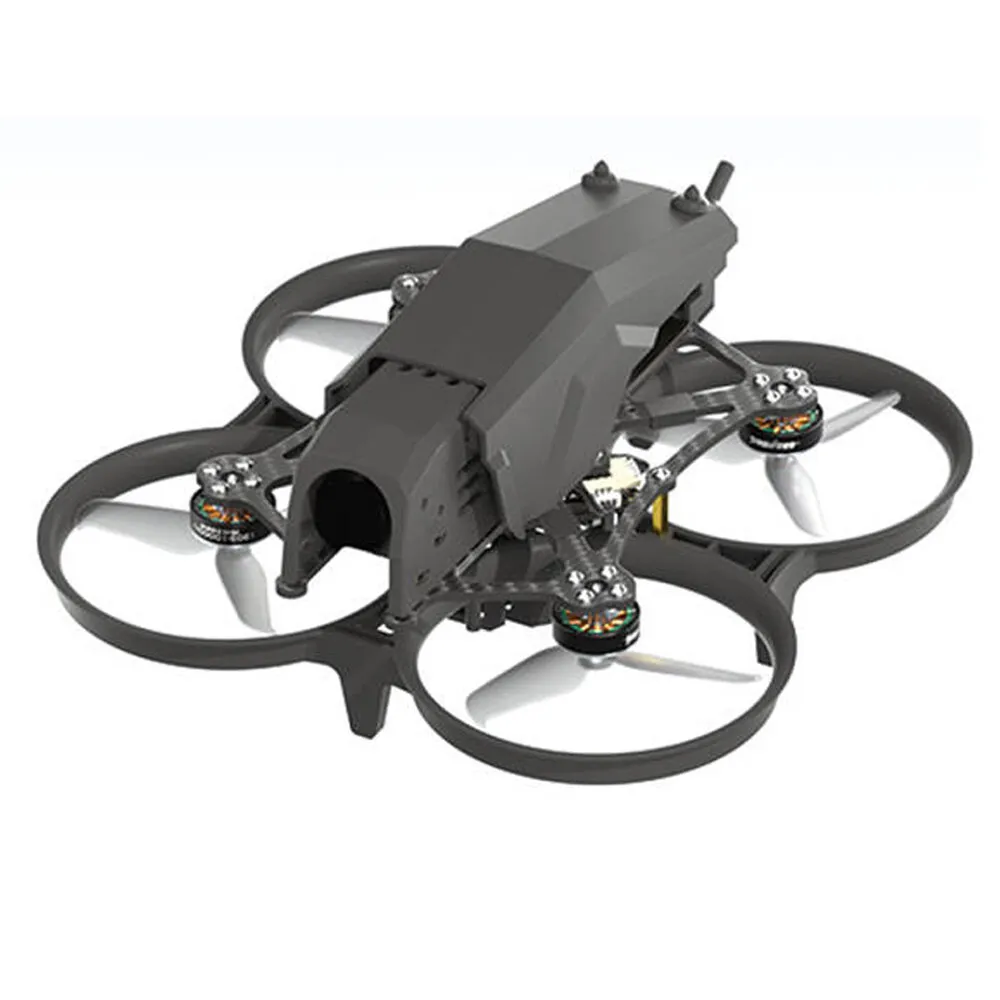

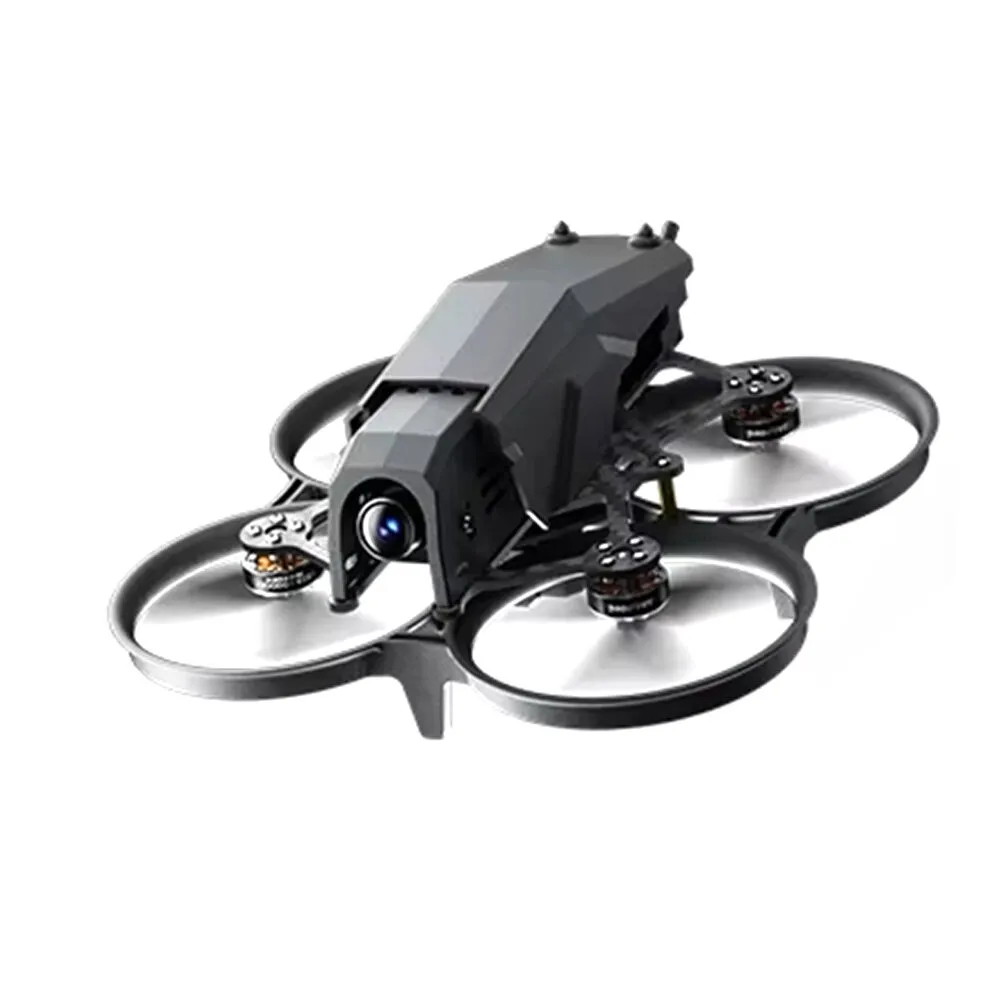

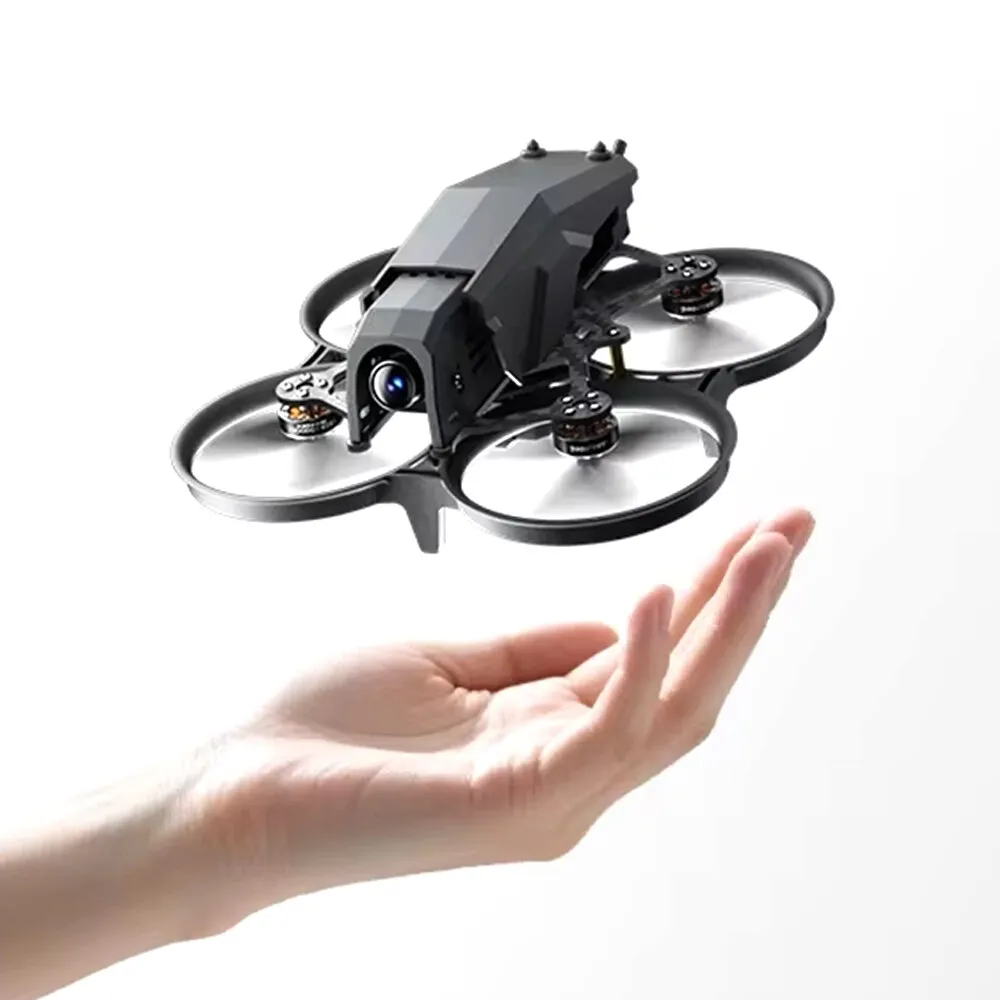

Radiolink F108 110mm 2.5 Inch 2S Optical Flow Fixed Point Brushless Whoop FPV Racing Drone with Left Hand Throttle T8S Remote Control FPV Goggles Monitor

FPV Drone

Weight of Drone (Without Battery):

120g

Takeoff Weight Without Load:

165g

Dimension Frame:

153*153*70mm

Diagonal Length:

110mm

Material Frame:

Carbon Fiber

Shell Material: Full-Coverage Propeller Guards:

Black TPE fine frosted finish; Camera and Battery Fixing Part: Black ABS and PC fine frosted finishNylon and Fiber

Flight Time:

7 Minutes

Ascnt Speed:

50km/h

Horizontal Speed(at sea level, no wind):

110km/h

Flight Distance:

2000 meters, maximum range is tested in an unobstructed area free of interference

Max Service Ceiling Above Sea Level:

Same as the flight distance, the flight distance and height can be set as you need in GeoFence of Mission Planner

Maximum Wind Resistance:

Moderate breze

Flight Modes:

It is default with Pos-Hold Mode, Alt-Hold Mode, Stabilize Mode, Manual Mode and Turtle Mode

Positional Accuracy:

20 centimeters

Operating Temperature:

-30℃~85℃

Power System

Motor:

SZ-SPEED 1303-10000KV Motor

Flight Control System:

Radiolink All-In-One Flight Controller ArduBeta_aio with 4-in-i ESC and OSD module integrated

Battery:

Gemfan 2512 Propellers

Propeller:

Gensace 2S 850mAh 35C XT30 Battery

Positioning System

Optical Flow:

Optical Flow and Laser Two-in-one Module

Operating Voltage:

3.7～5.0V

Operating Current:

≤70mA

TOF FOV:

HFOV: 20°; VFOV: 17°

Operating Temperature:

-20 to 60°C

Measurement Distance:

4 meters indoors/ outdoors

Light Source Wavelength:

940nm

Optical Flow FOV:

Horizontal/Vertical: 30°

Frame Rate:

50Hz

Ambient Illumination:

>20Lux

Maximum Measurement Speed:

7m/s at a height of 1 meter

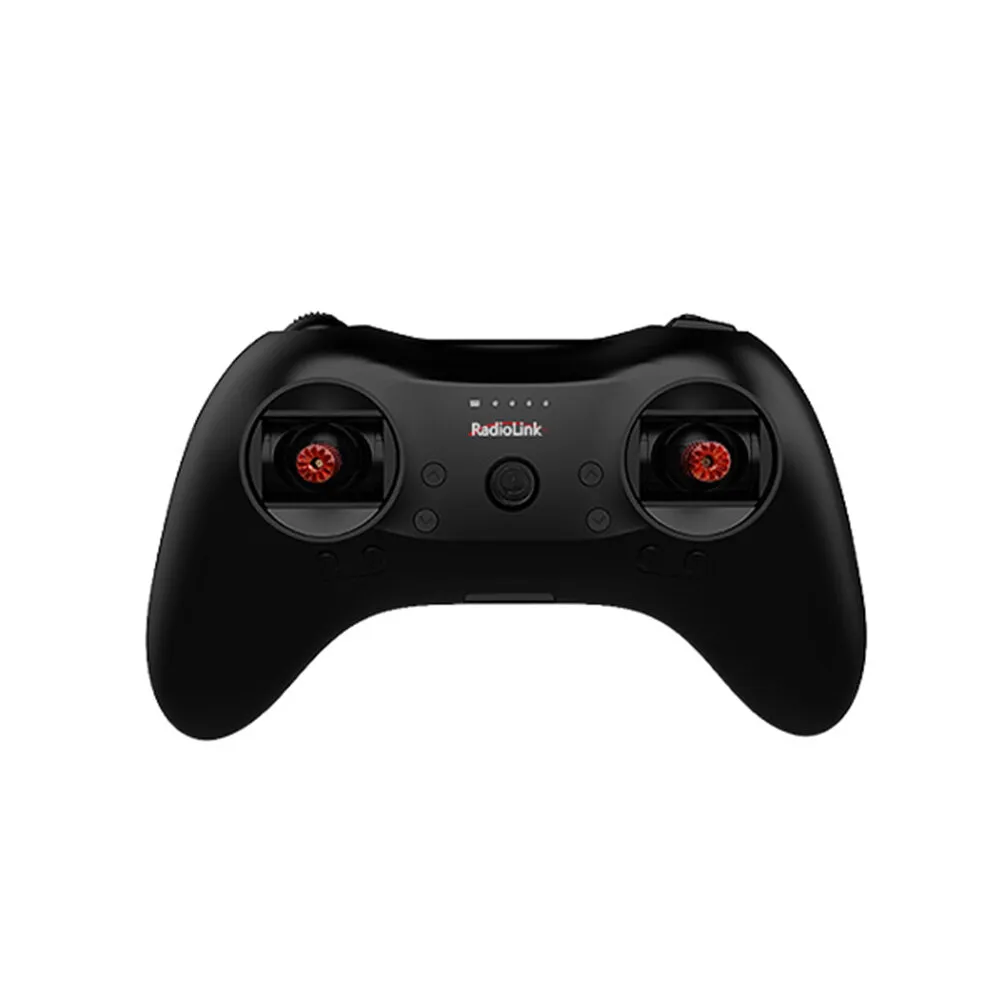

Remote Control System

Transmitter:

Radiolink 8 channels transmitter T8S

Receiver:

R8SM

Frequencies Band:

2.4GHz ISM(2400MHz~2483.5MHz）

Transmission Power:

<100mW(20dbm)

Control Distance:

2000 meters, maximum range is tested in an unobstructed area free of interference

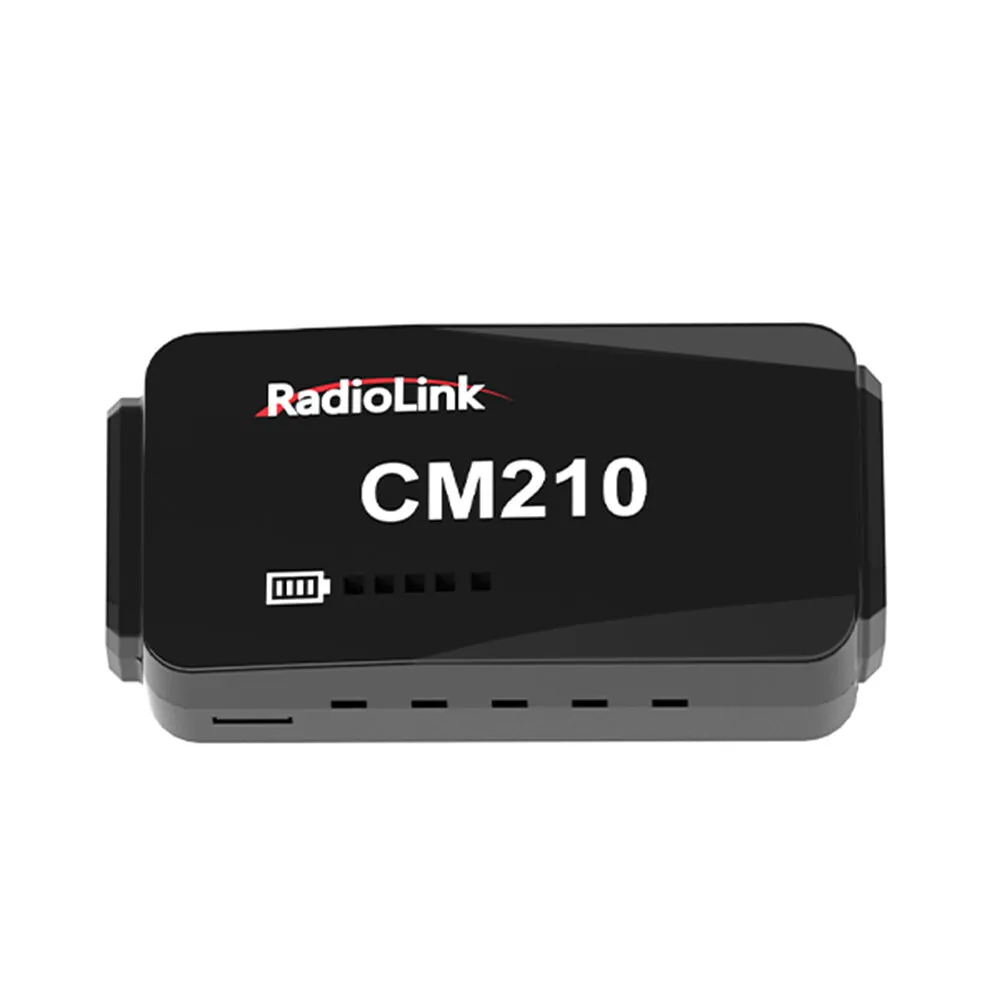

Charger System

Charger:

Radiolink CM210

Charging Input:

DC 5V

Charging Current:

1A@5V/2A@5V

Compatible Battery:

only for 2S LiPo battery

Analog Video Transmission Video Transmission

Model:

ZENCHANSI BROWN BEAR 008

Communication Frequency:

5.725-5.850GHz

Power:

50 mW /200 mW /600mW/Power off(PitMode)

Current(12V):

350mA(50mW)/510mA(200mW)/750mA(600mW)

Input Voltage:

7-24V DC

Antenna:

MMCX ANT

Dimension:

27*27*4.8mm(1.06"*1.06"*0.19")

Camera

Model:

Caddx sable camera

Sensor:

1/3” Inch Starlight Sensor

Resolution:

1200TVL

FOV:

130°(4:3) / 165°(16:9)

Image:

4:3 & 16:9(Switchable)

Min. Illumination:

0.001LUX

Wide Power Input:

5-27V

Working Temperature:

-20°C ~ +60°C

Weight:

5.9g

Dimension:

19*19*20mm

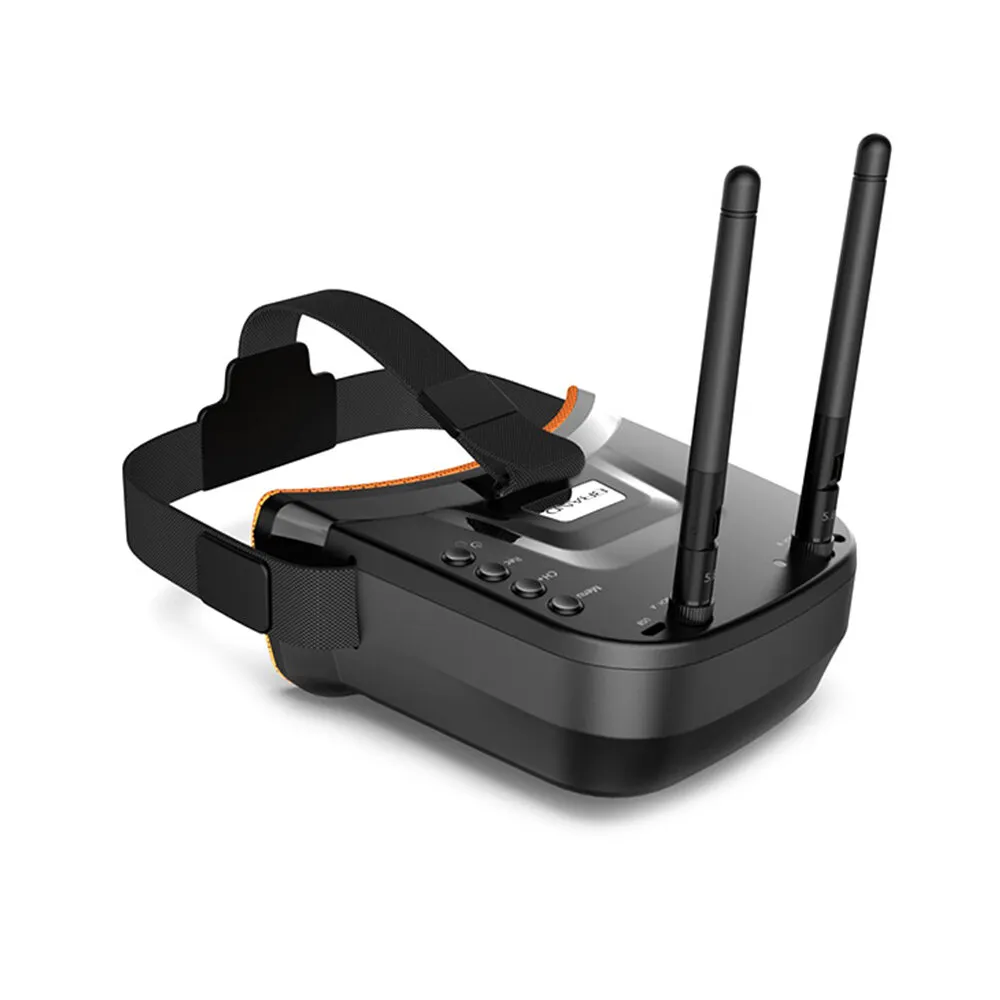

Goggles(Can Be Selected)

Model:

Mini FPV Goggles

Communication Frequency:

5.725-5.850GHz

Resolution:

480*320

Display Ratio:

16:9

Brightness:

350cd/m²

Video Delay:

Video time-delay less than 20ms

Power Adapter:

DC 5V/1A (USB interface)

Current:

360 ~ 400mA

Battery:

3.7V/1200mAh, each full charge revive around 2.5hr working time

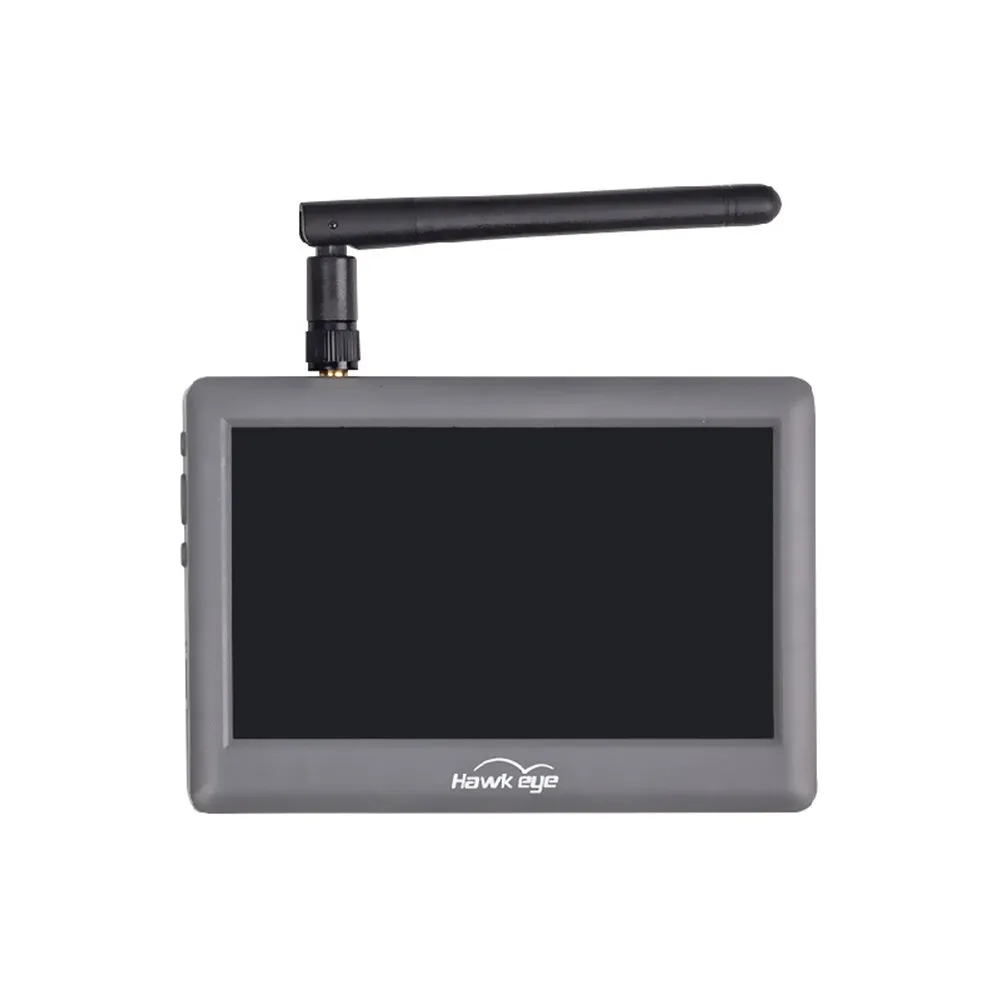

FPV Monitor(Can Be Selected)

Model:

Hawk eye all-in-one 4.3 inch FPV Monitor

Resolution:

480*3(RGB) *272

Backlight:

LED

Brightness:

500 cd/m2

Aspect Ratio:

16:9

Response Time:

10ms

Color System:

PAL/NTSC

Working Time:

About 2.5 hours

Input Signal:

Video (PAL/NTSC)

Output Signal:

Video

Antenna Interface:

RP-SMA

Sensitivity:

-94db
