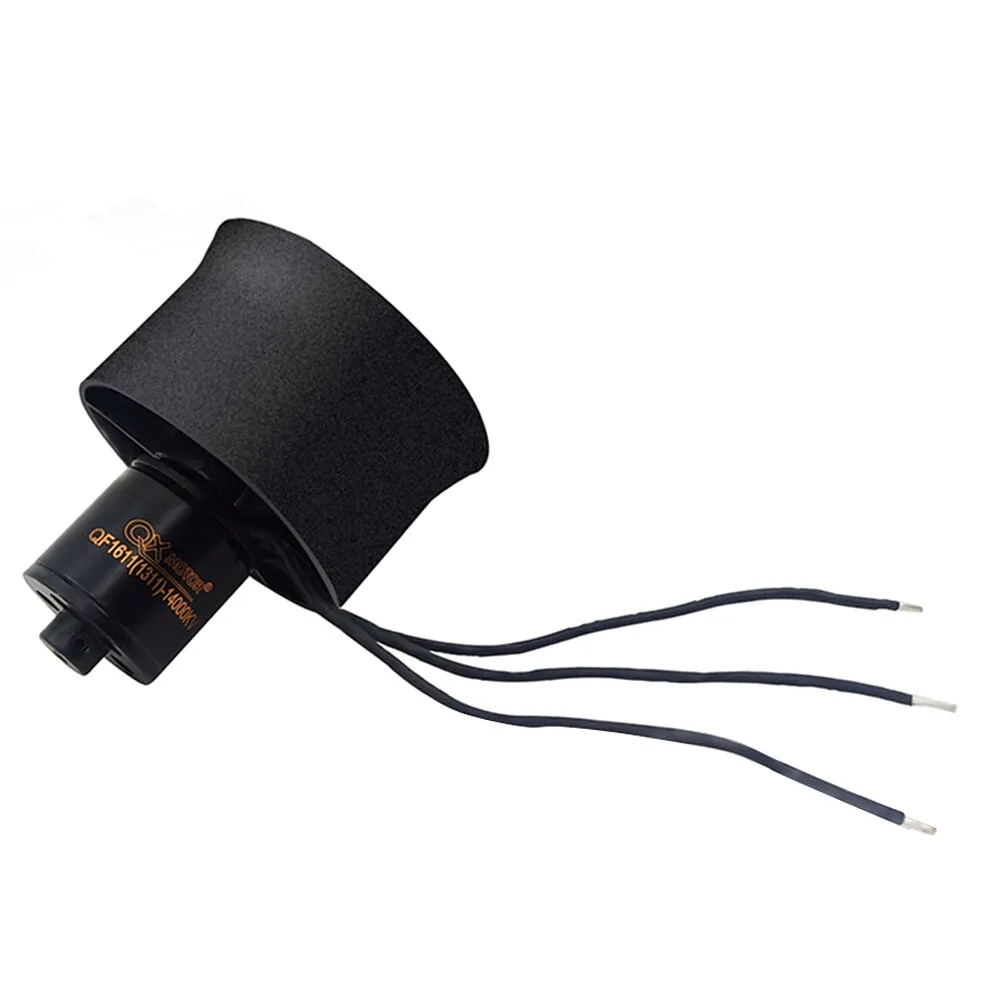

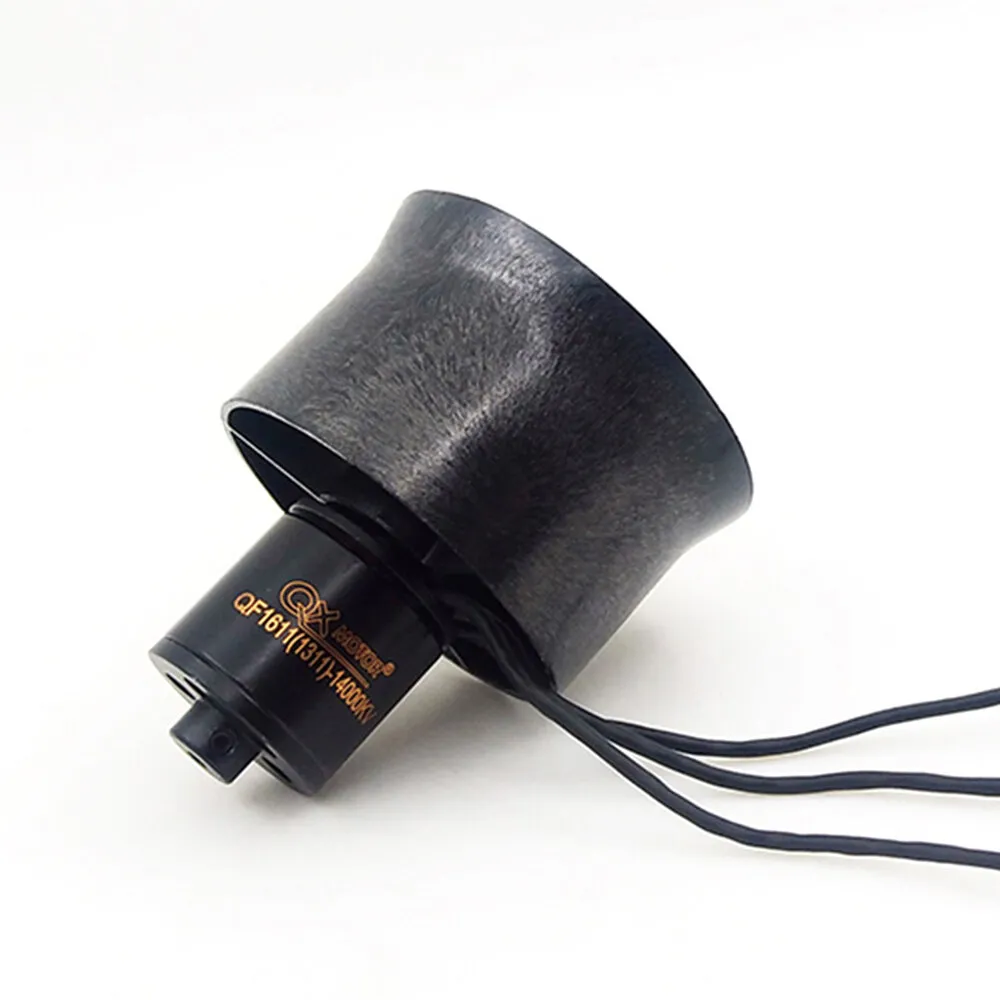

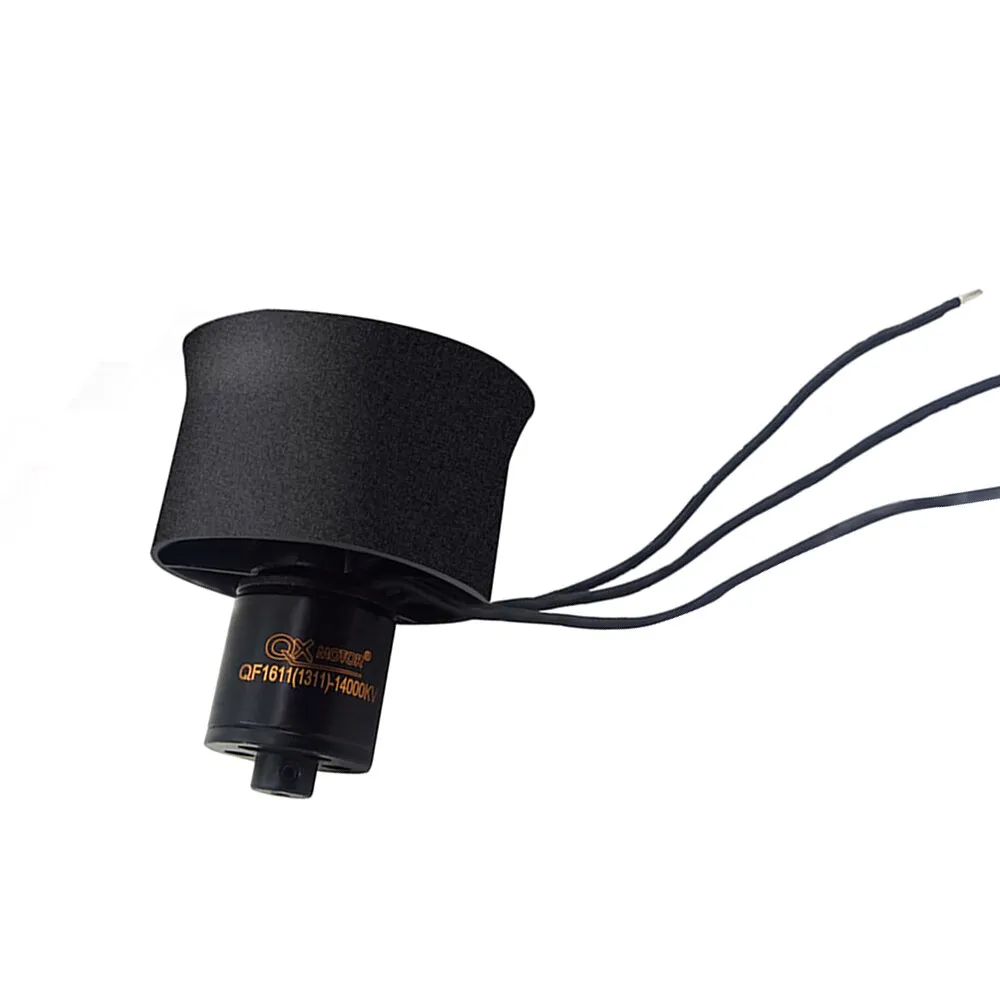

QX-MOTOR 30mm EDF 6-Blade Ducted Fan With QF1611-14000KV Brushless Motor 2-4S for RC Airplane

• weight: 485 g

Specifications:

Brand: QX-MOTOR

Model: QF1611

KV (rpm): 14000KV

Configuration: 9N6P

Shaft Diameter: 1.5mm

Motor Diameter: 16.3mm

Weight: 21.8g

Number of cells: 2-4S Lipo

Max continuous power/10S: 160W

Max continuous current/10S: 20A

Test Data:

Features:

High Performance: The QX MOTOR QF1611 14000KV motor provides high thrust and efficiency, ensuring a remarkable flight performance. Perfect for small fixed-wing and ducted fan aircraft modifications.

Quality Material: Crafted using premium Japanese imported materials that guarantee higher efficiency and excellent dynamic balance.

Improved Design: The 6-blade ducted fan is specifically designed to deliver powerful thrust and high efficiency. Ideal for model enthusiasts seeking impressive performance.

Cool Operating Temperatures: Despite the high power output, the QF1611 14000KV motor operates at relatively low temperatures, ensuring longevity and reliability.

Compact and Lightweight: Weighing just 21.8g with a motor diameter of 16.3mm, the QF1611 is compact and lightweight, providing powerful performance without weighing down your model aircraft.

EDF Set Version Included:

1x QX-MOTOR 30mm EDF 6-Blade Ducted Fan With QF1611-14000KV Brushless Motor

EDF+ESC Version Included:

1x QX-MOTOR 30mm EDF 6-Blade Ducted Fan With QF1611-14000KV Brushless Motor

1x QX-MOTOR 20A 2-3S ESC
