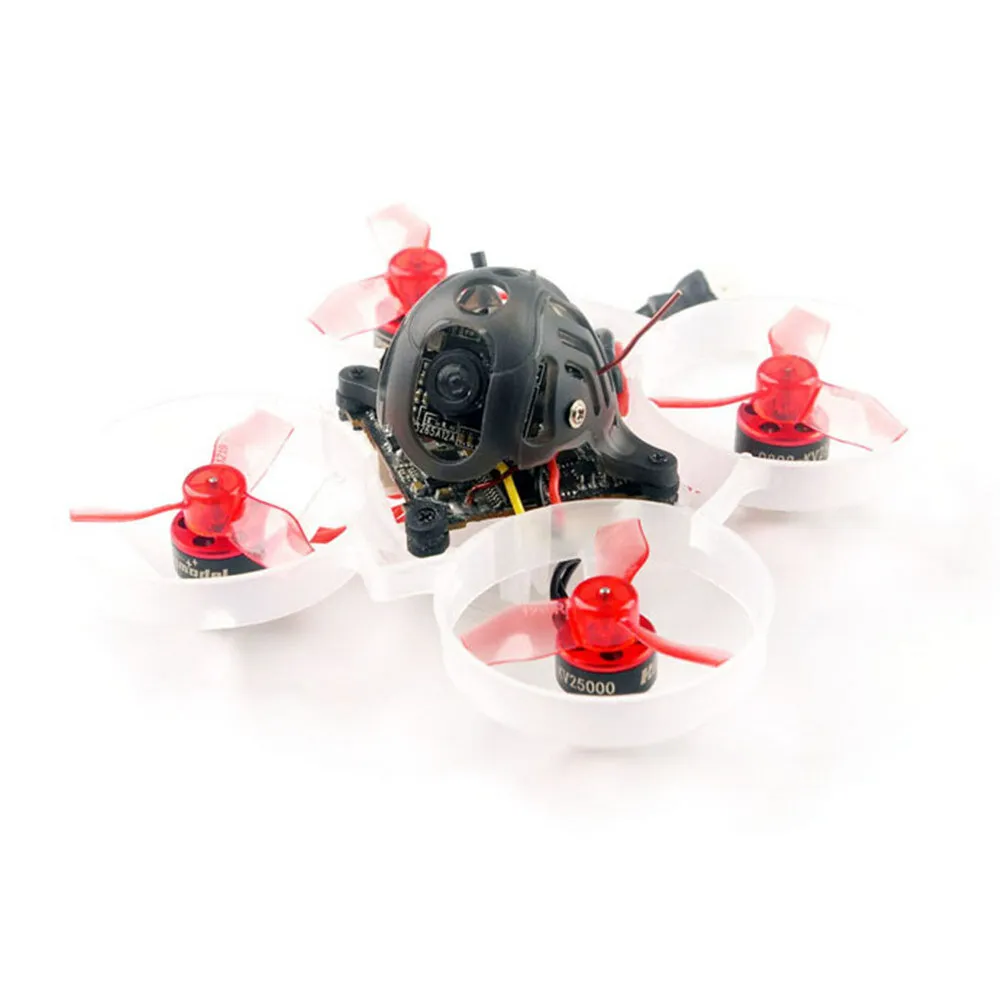

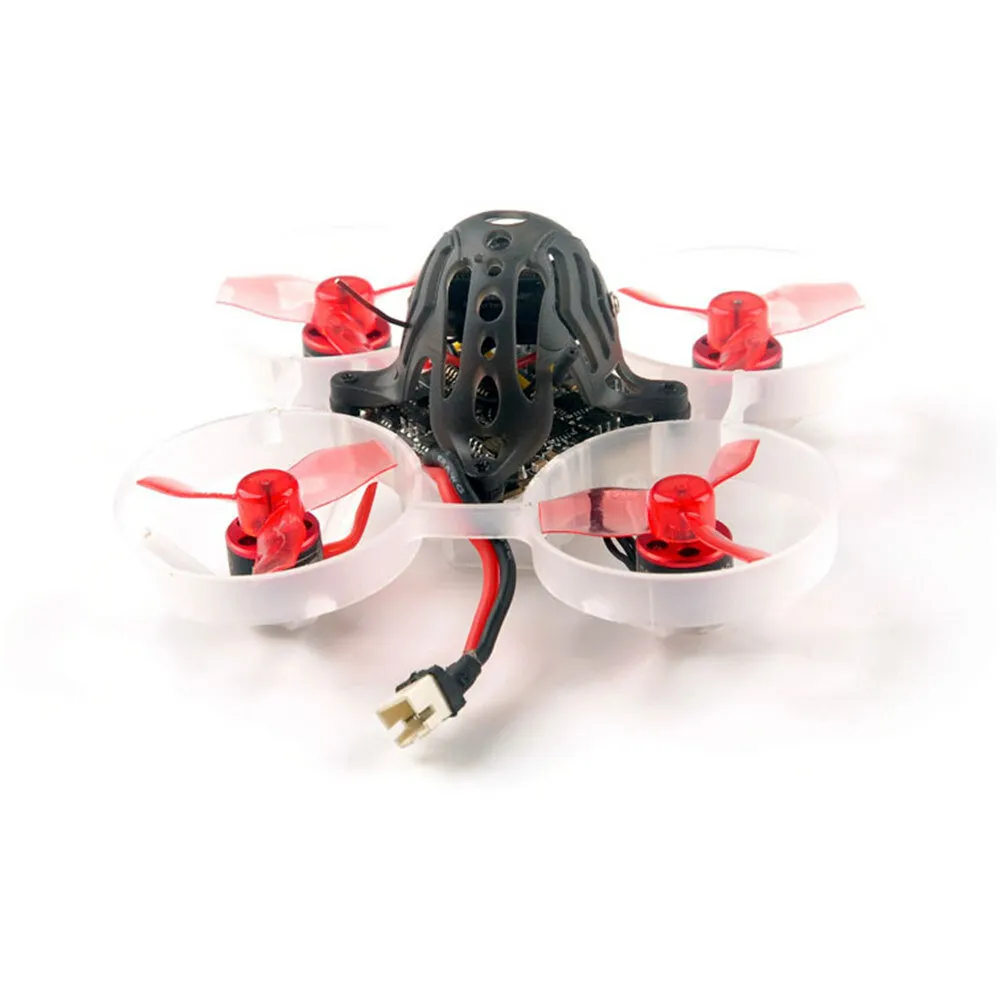

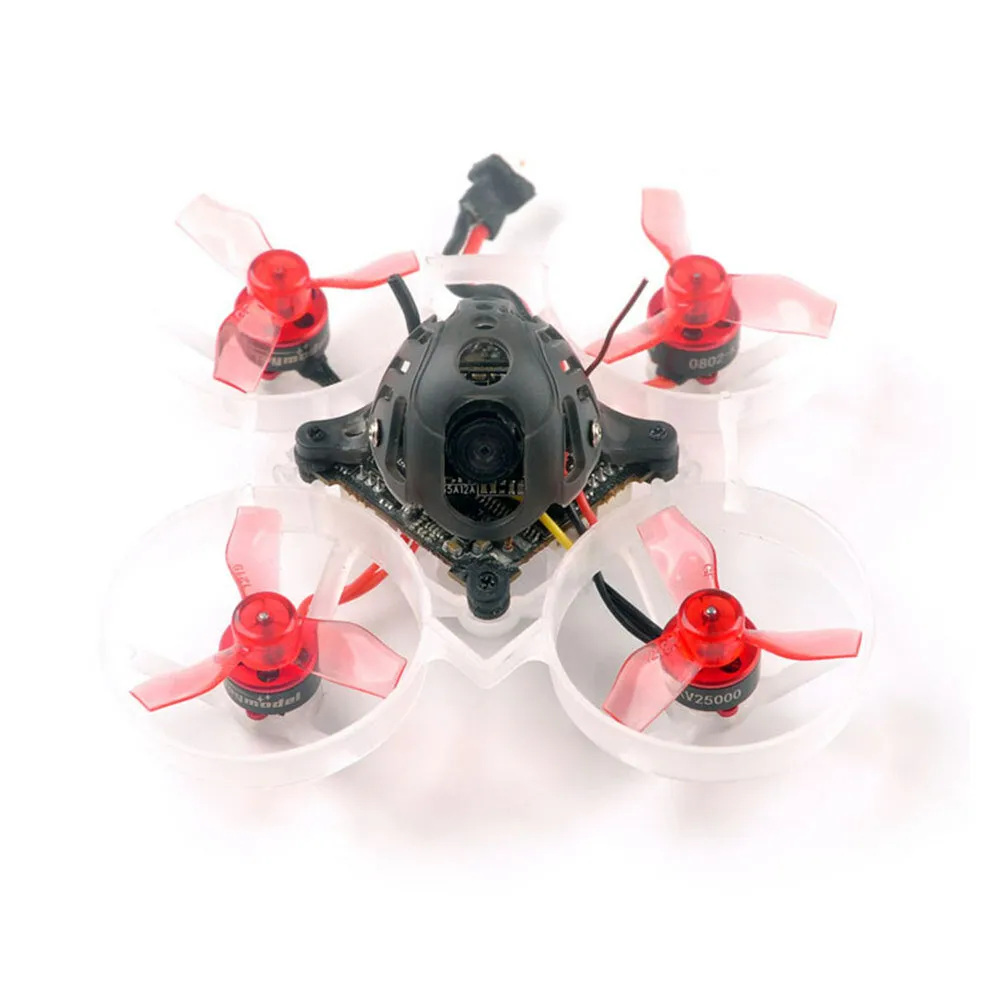

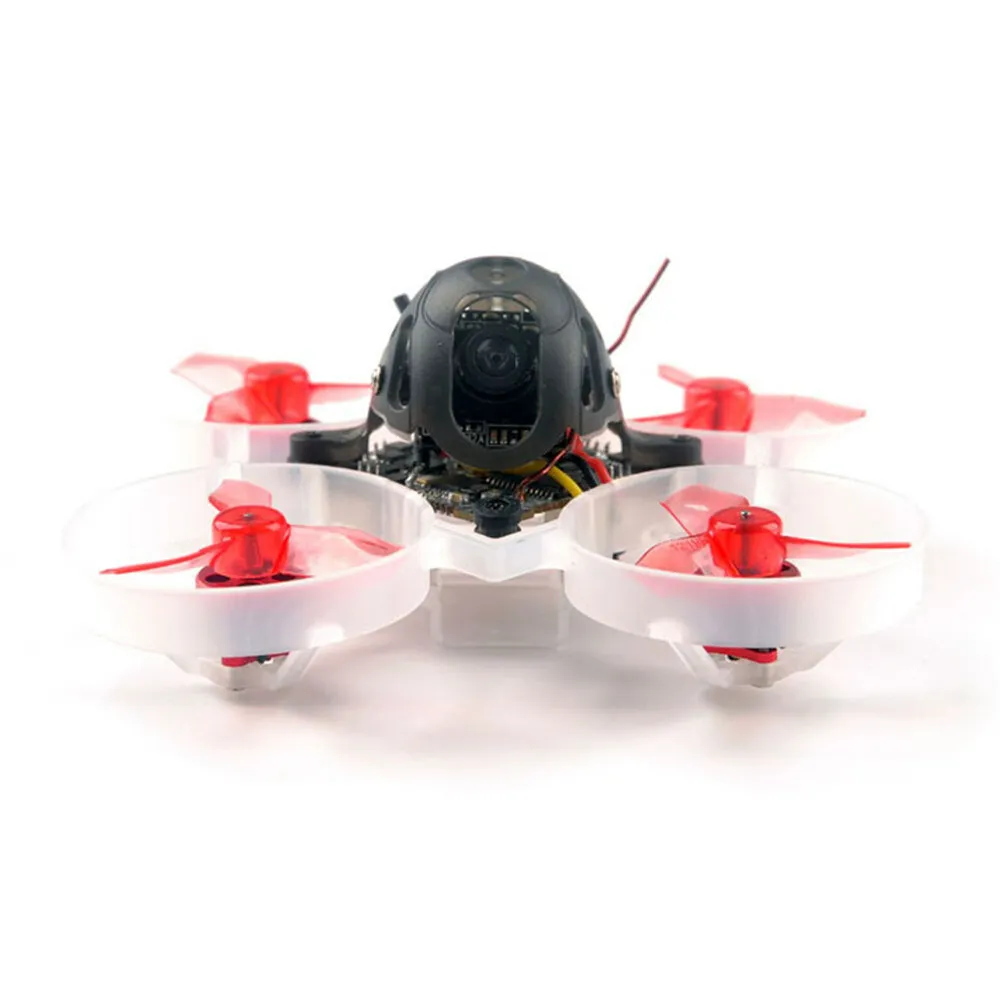

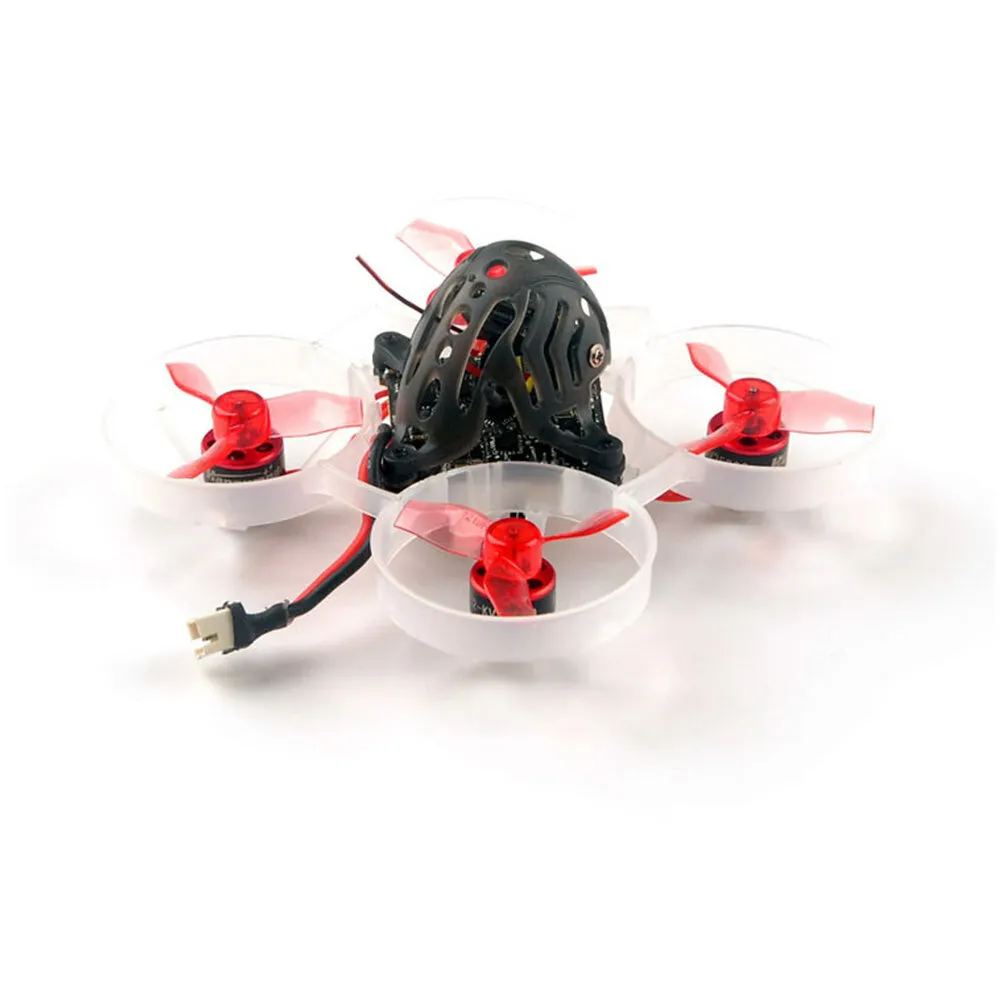

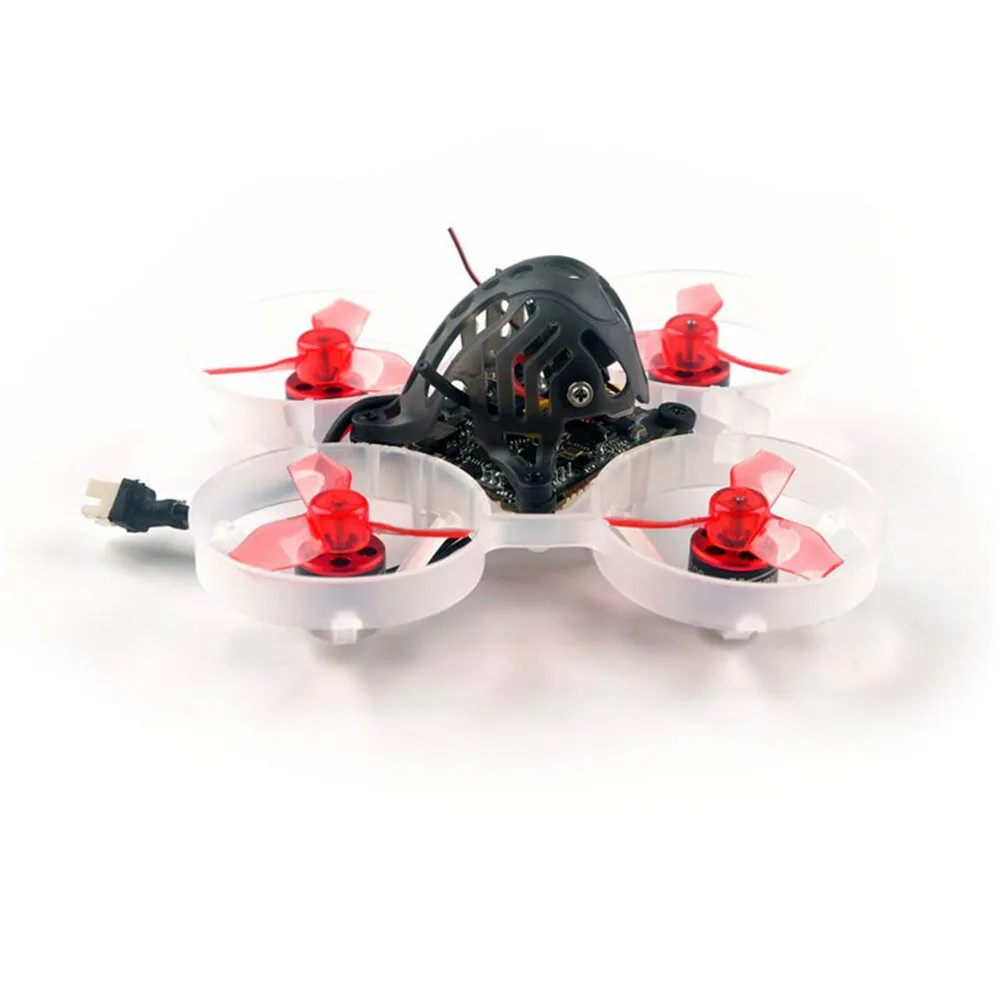

Only 20g Happymodel Mobula6 65mm Crazybee F4 Lite 1S Whoop FPV Racing Drone BNF w/ Runcam Nano 3 Camera
| Qty: | 4-7 | >=8 |
| Price: | $77.39 | $73.09 |
- weight: 485 g
Notice:
1.Because the MPU6000 is out of production, the flight controller and related Drone will gradually be replaced by ICM20689 or BMI270.
2. The Camera of Mobula6 FOV is changed to 140 degree due to the earliest lens was stopped to production .
Please view the new spec from Runcam website https://shop.runcam.com/runcam-nano-3/
3. The flight controller of DSM2/DSMX version Mobula6 has been updated to be CrazybeeX DXS V1.0 after Dec.9th 2020 , it has built-in DSM2/DSMX spi receiver , so it won’t come with an external Nano_sp09 receiver.
4. The battery brand that comes with the product is Tattu or Happymodel, which is shipped randomly.( Pls look at the photos showed)
Click here to buy replace parts together.
Specification:Brand Name: HappymodelModel: Mobula6Item Name: 65mm Crazybee F4 Lite 1S Brushless Whoop FPV Racing Drone BNFOptional Version: Frsky Receiver ( Compatible with ACCST D8/D16, Recommend D8 mode)
Flysky Receiver ( Compatible with AFHDS and AFHDS-2A Flysky transmitter)Drone Wheelbase: 65mm
| Crazybee F4 LiteFlight Controller Built-in ESC & Receiver & VTX | Frsky SPI RX version) CRAZYBEE F4 Lite Frsky version Firmware target: CrazybeeF4FR (Flysky SPI RX version) CRAZYBEE F4 Lite Flysky version Firmware target: CrazybeeF4FS MCU:STM32F411CEU6 (100MHZ, 512K FLASH) Sensor: MPU-6000 or ICM20689 or BMI270 (SPI connection) Board size: 28.5 * 28.5MM Power supply: 1S battery input (DC 2.9V-4.35V) Built-in 5A(each) Blheli_S 4in1 ESC Dshot600 ready Built-in Betaflight OSD(SPI Control) Built-in 5.8G VTX Built-in SPI Frsky/Flysky receiver Built-in 5V 1A BEC Built-in voltage detection |
| Onboard Frsky Receiver Version | SPI BUS receiver Frsky D8 compatible Compatible Non EU transmitter D8 model- Frsky_x_lbt Support EU LBT Radio Transmitter Channels: 8ch Failsafe support No ground interference ( Transmitter and receiver 1 m from the ground): 100m~200m |
| Onboard Flysky Receiver Version | SPI BUS receiver Protocol: AFHDS and AFHDS-2A Switchable Channels: 8ch(AFHDS) or 14ch(AFHDS-2A) No ground interference ( Transmitter and receiver 1 m from the ground): 100~200m Failsafe support |
| Onboard 5A BLheli_S 4in1 ESC | MCU upgraded to EFM8BB21 Power supply: 1S LiPo/LiPo HV Current: 5A continuous peak 6A (3 seconds) Support BLHeliSuite programmable Default protocol: DSHOT600 |
| SE0802 19000KV / 25000KV Motor | Model: SE0802 KV: 19000KV / 25000KV Motor Configu-ration:9N12P Stator Diamter:8mm Stator Length:2mm Shaft Diameter:Φ1mm Motor Dimension(Dia.*Len):Φ10.5mm*14.9mm Weight(g):1.9g No.of Cells(Lipo):1S only |
| Gemfan 1219 3-Blade Propeller | Brand Name: Gemfan Center Thickness:5mm Prop Disk Diameter:31mm Center Hole Inner diameter:1.0mm Quantity: 4 CW & 4 CCW Weight:0.28g |
| Onboard 5.8G 40CH 25mW VTX | Output power: 25mwFrequency: 40CHInput voltage: 3.3V 5.5VCurrent consumption: 300mA(type)Frequency: 5.8GHz 5bands 40 channelsWith Rac band Smartaudio ready |
| Runcam Nano 3 FPV Camera | Model: RunCam Nano 3 Image Sensor: 1/3" CMOS Horizontal Resolution: 800TVL Lens : 2.3mm(M6.5) FOV 140° Signal System: NTSC Camera Image: 4:3 S/N Ratio: >50dB Electronic Shutter Speed: Auto Auto Gain Control (AGC): Auto Min. Illumination: 0.01Lux@1.2F D-WDR: Auto Power:DC 3-5.5V Current: 110mA@5V 120mA@3.3V Net Weight: 1.2g Dimensions: L14mm*W14mm*H9mm |
| Lipo Battery ( Included) | Continuous Discharge Rate: 30C Size: 57mmx12mmx7mm Weight: 8g Connector: PH2.0Quantity: 4 PCS |

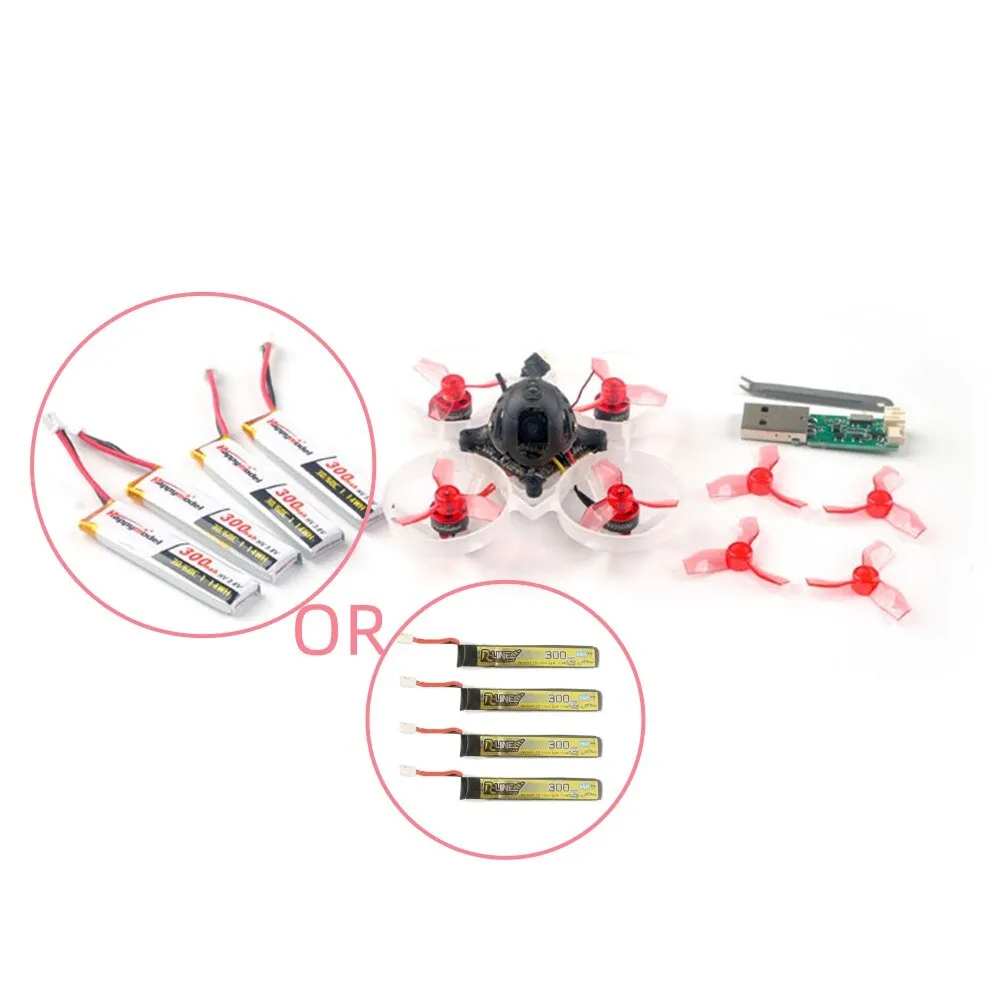

Pacakge Included:1x Mobula6 1S FPV Racing Drone4x 1S 300mAh 30C Lipo Battery1x 1S Lipo/LIHV USB Charger1x Propeller disassemble Tool
