NanoVNA-V2 F 50k-3G Vector Network Analyzer with 4.3inch Display HF VHF UHF Antenna Analyzer

• weight: 485 g

Description:
NanoVNA-V2 portable vector network analyzer is a new generation product based on OwOComm's S-A-A-2 design, which has been greatly upgraded and developed. The measuring range is extended to 50KHz-3000MHz, and the dynamic range is larger, reaching 80db. It can be used to debug the diplexer with UV band frequency, with a simple, flexible and fast operation interface that is more accurate and practical. This small vector network seconds kill the performance of all versions of this kind of NanoVNA series on the market.

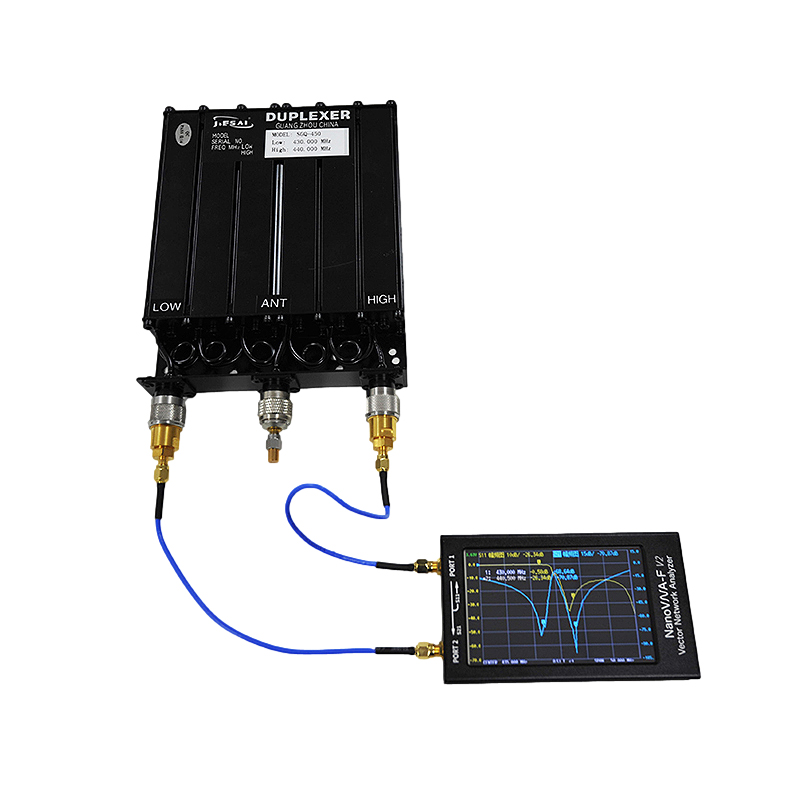

It can test the standing wave impedance of the antenna, the insertion loss isolation of the filter, the attenuation shortening coefficient phase of the cable, the amplification factor of the antenna amplifier, the frequency meter function, the cable length group delay function, and the most important thing is to debug the duplexer with uv frequency. It is highly recommended to kill any other version of NanoVNA on the market.


Specifications:
1. Measuring frequency range: 50 kHz-3000 MHz;
2. RF output power:-9 DBM (error within 1 GHz: plus or minus 1 dB);
3. Frequency accuracy: < 0.5ppm
4. Dynamic range of 4.S21: 70dB(1.5GHz) and 60dB(3GHz)
5.S11 dynamic range: 50dB(1.5GHz) and 40dB(3GHz).
6.2 Port return loss: 20dB typ(1.5GHz) and 13dB min(3GHz).
7.USB interface: USB Type-C communication mode: CDC (serial)
8. Number of calibration points: 101 points
9. Number of scanning points: 101 points
10. Display tracking: 4 tracks
11. mark: 4 mark points (the mark bar can move up and down on the screen).
12. Settings are saved: 5 (after saving, you can call them directly the next time you start up, without recalibration, and the saved parameters before the last shutdown will be automatically called when you start up next time).
13. Scanning time: about 1.9s/time (50kHz ~ 3000MHz full frequency band).
14. Measurable S parameter, voltage standing wave ratio SWR Smith chart phase diagram, group delay, ...;
15.4.3 inch IPS LCD screen, the viewing angle of IPS TFT (800x480) is close to 180, which won't hurt eyes if used for a long time;
16. The aluminum alloy casing is adopted to effectively shield electromagnetic interference, which makes S21 better than the dynamic range of 80dB in 1GHz.
17. Compact design, body size of 125mm*75mm*20mm, small and portable;
18. The RF interface is SMA, which is convenient for connecting various tested parts;
19. Using 5000mAh ultra-large capacity lithium battery, the battery life can reach 7 hours;
20. Full touch screen design, supporting three side buttons at the same time, flexible and convenient operation;
21. Support menu switching between Chinese and English;
22. Support screen brightness level;
23. Upgrade the firmware by means of virtual USB flash drive, without a programmer, only one USB cable is needed to upgrade the firmware;
22. Expand a USB power output interface with 5V/1A output (it can be used as a charging treasure);
24. Using large current 2A to charge IC, the charging time is shorter;
25. Support the upper computer, which can be used as the display interface;
26. Weight of plastic packaging box: 400g

Package Include:

Host x1
SMA-JJ RG405 connecting line 20cm x2
Calibrator Set x1(50Ω standard load x1, open calibration x1, short calibration x1)
SMA-F double-headed hole x1
SMA elbow outer screw inner hole to inner screw inner needle x1
Type-C data line x1
Touch pen x1
