Matek Systems F722-WING STM32F722RET6 Flight Controller Built-in OSD for RC Airplane Fixed Wing

Description:
Brand name: Matek

MCU: 216MHz STM32F722RET6

IMU: MPU6000 (SPI)

Baro: BMP280 (I2C)

OSD: AT7456E (SPI)

Blackbox: MicroSD card slot (SPI)

5x Uarts (1,2,3,4,6) with built-in inversion

1x Softserial-Tx

2x Motors, 6x Servos outputs

1x I2C

4x ADC (VBAT, Current, RSSI, AirSpeed)

3x LEDs for FC STATUS (Blue, Red) and 3.3V indicator(Red)

Switchable Dual Camera Inputs

Switchable 5V/9V for Camera/VTX

High-precision Current Sense

TR/SA VTX control: Yes

WS2812 Led Strip : Yes

Beeper : Yes

RSSI: Yes

Analog Airspeed sensor: Yes

Digital Airspeed sensor: Yes

FC Firmware

INAV Flight/BetaFlight

Target: MATEKF722SE

PDB

Input voltage range: 9~36V (3~6S LiPo) w/TVS protection

2x ESC power pads

Battery Voltage Sensor: 1:10 (Scale 1100)

Current Senor: 132A, 3.3V ADC, Scale 250

BEC 5V output

Designed for Flight controller, Receiver, OSD, Camera, Buzzer, 2812 LED_Strip, Buzzer, GPS module, AirSpeed

Continuous current: 2 Amps, Max.3A

BEC 9V /12V output

Designed for Video Transmitter, Camera, Gimbal ect.

Continuous current: 2 Amps, Max.3A

12V option with Jumper pad

BEC Vx output

Designed for Servos

Voltage adjustable, 5V Default, 6V or 7.2V via jumper

Continuous current: 5 Amps, Max.6A

Output Ripple: 50mV (VIn=24V, VOut=5V@5A load)

BEC 3.3V output

Designed for Baro / Compass module and Spektrum RX

Linear Regulator

Continuous current: 200mA

Physical

Mounting: 30.5 x 30.5mm, Φ4mm with Grommets Φ3mm

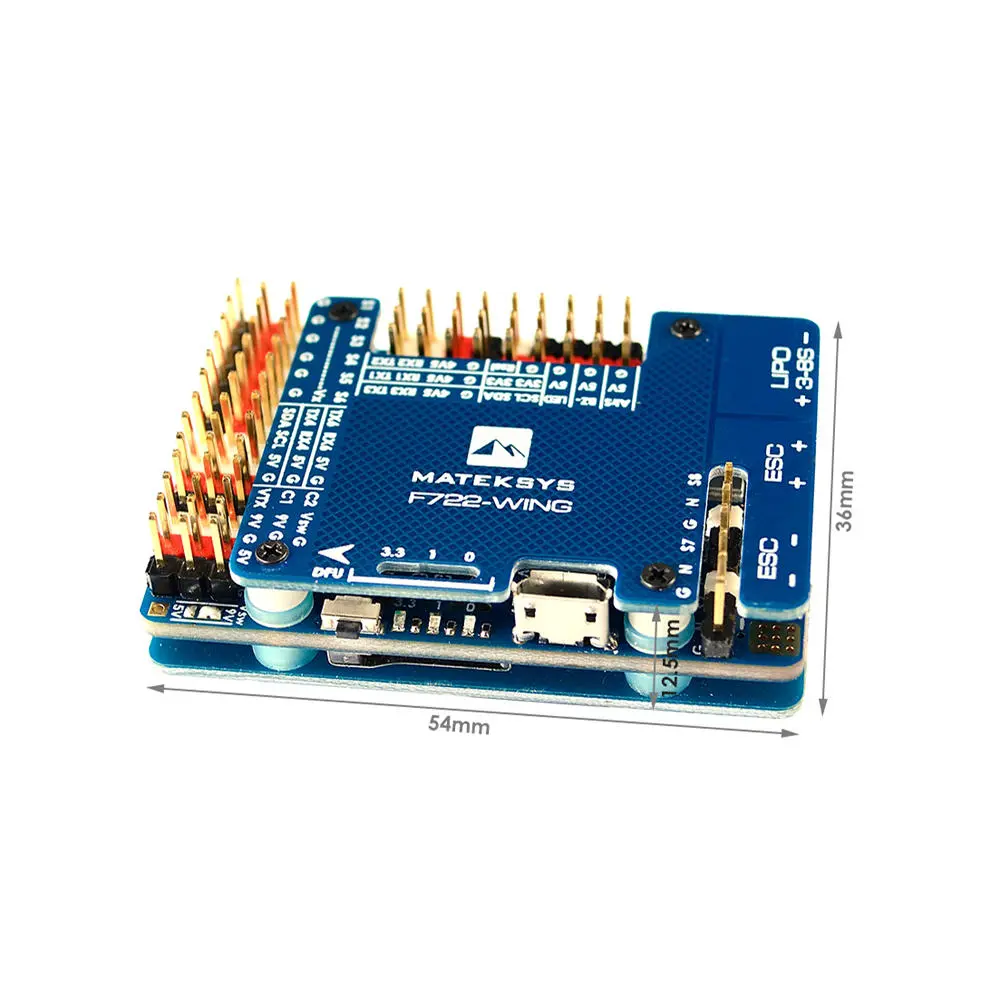

Dimensions: 54 x 36 x 13 mm

Weight: 25g

F722-WING VS F405/F411-WING

	F722-WING	F405-WING	F411-WING
MCU	216MHz STM32F722	168MHz STM32F405	100MHz STM32F411
IMU	MP6000	MP6000	MP6000
BARO	BMP280	BMP280	BMP280
OSD	AT7456E	AT7456E	AT7456E
BlackBox	MicroSD	MicroSD	/
Firmware	INAV BetaFlight	INAV ArduPilot	INAV BetaFlight
Dual Camera In	Yes	/	/
5V/9V Switcher	Yes	/	/
Current Sense	High precision 132A	104A	78A
Max.Voltage	36V(8S)	30V(6S)	30V(6S)
Motors	2	2	2
Servos	6	7	5
UART	5	6	2
Softserial	1	1	1
Uart Inversion	All	RX2	RX1
5V for FC	2A	2A	2A
9V for VTX	2A	2A	/
Vx for Servos	5A	5A	3A
LDO 3.3V	200mA	500mA	200mA
Size	54x36	56x36	41x28
Weight	25g	25g	12g
