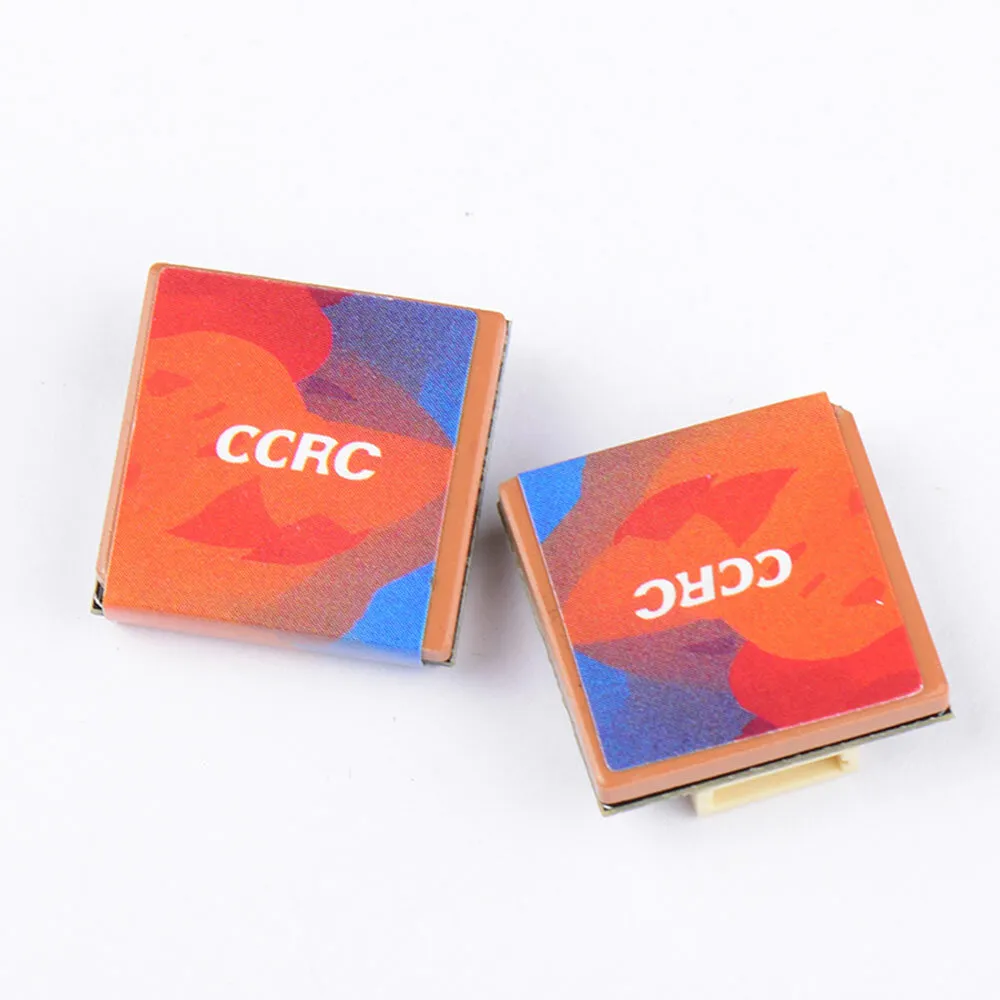

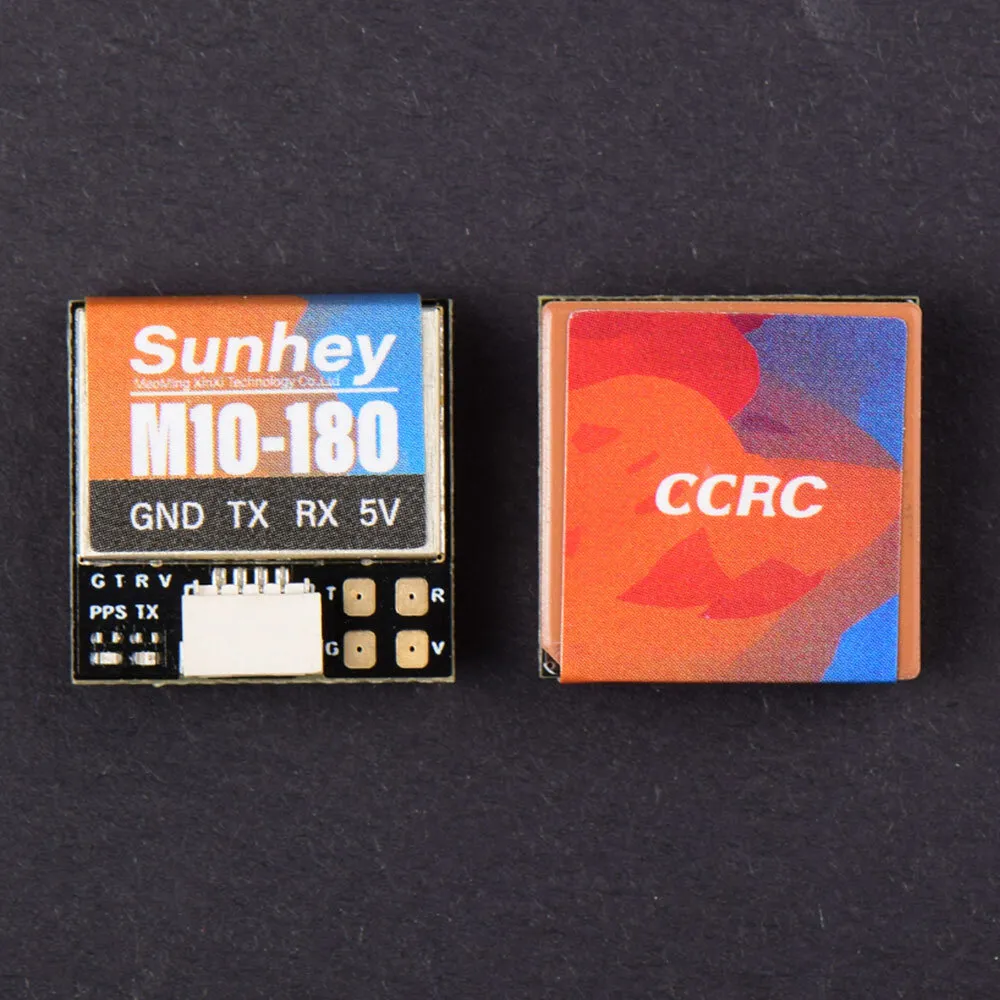

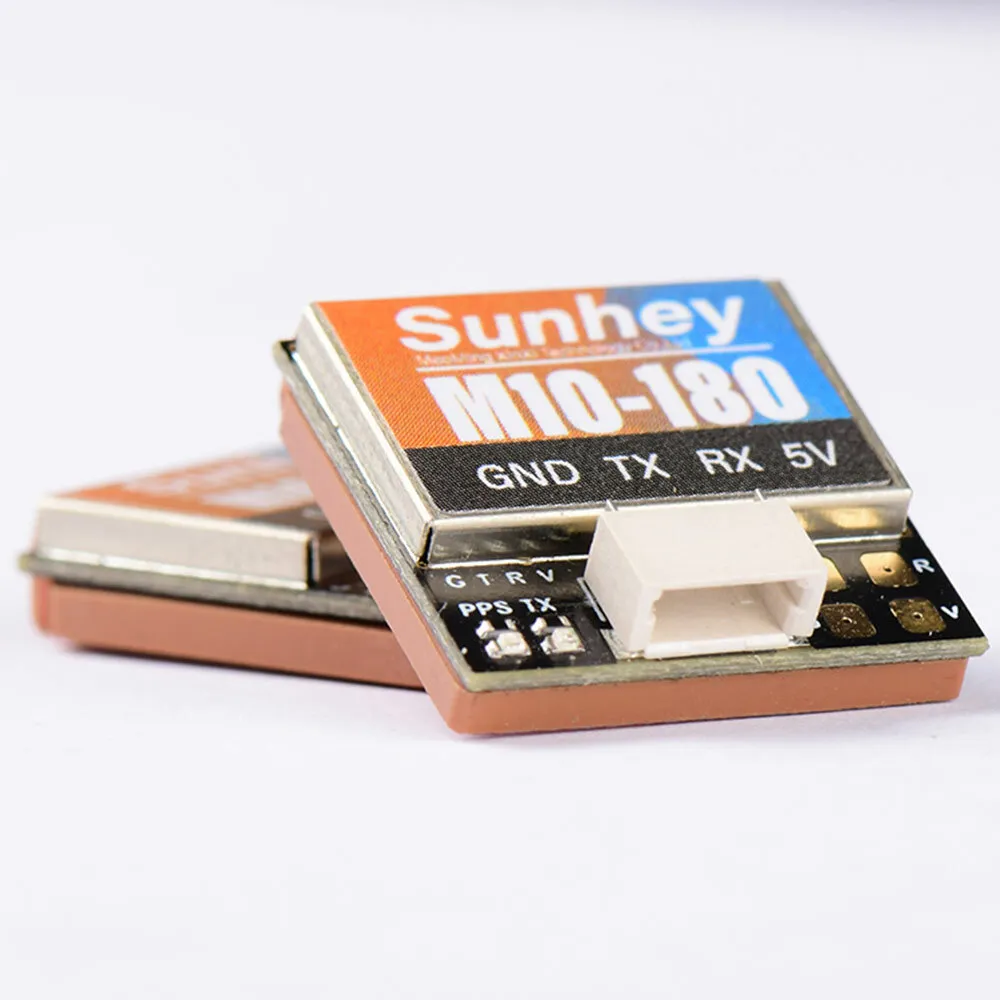

M10 Series M10-180 M10C-180 GPS Module for RC Helicopter Quadcopter Airplane FPV Racing Drones

• weight: 485 g

Specifications:
Item Name: GPS Module

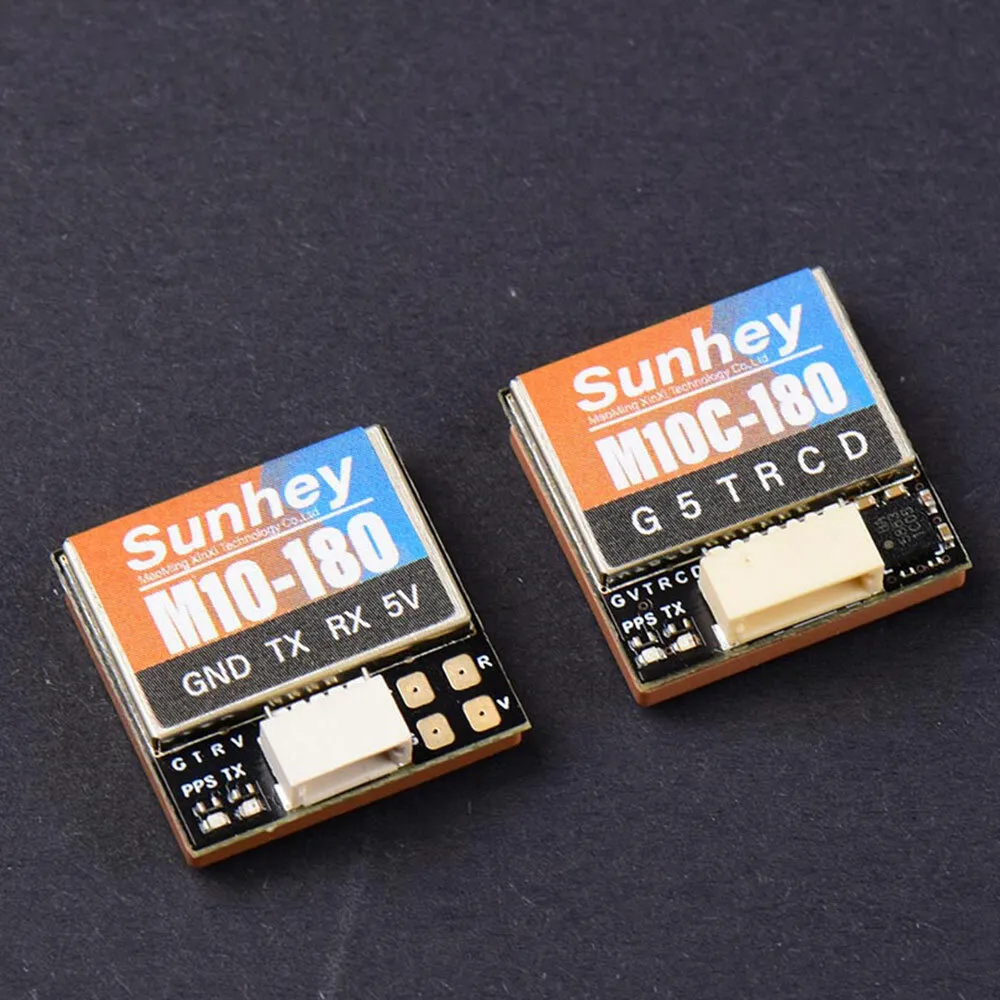

Optional Version: A ( M10 180) / B ( M10C 180 , come with Compass)
Number of concurrent satellits: 3
Maximum update rate: 10Hz
Agreement: NMEA/UBX
Maximum number of satellits: 32
Positioning accuracy: 1.5m CEP
Hot start: Supported
Starting speed: Cold start 26" Hot start 1"
BAUD: 4800-921600bps default115200bps
Height restrictions: ≤50000m
Speed limit: ≤500m/s
Acceleration limit: ≤4g
Working voltage: 5V
Operation temperature: -40℃~+85℃
Antenna size: 18×18×2mm
Product size: 18×18×6mm
Product weight: 4.5g
PPS indicator light: Blue light, always on when powered on; Flashing after positioning
TX indicator light: Power on and send TTL data flashing

Features:

The RC M10 Series GPS Module is a cost-effective gadget that spotlights enhanced positioning speed and numerous satellie tracking.

Equipped with a swift cold start time of 26 seconds and a hot start time of 1 second, it assures efficient operation.

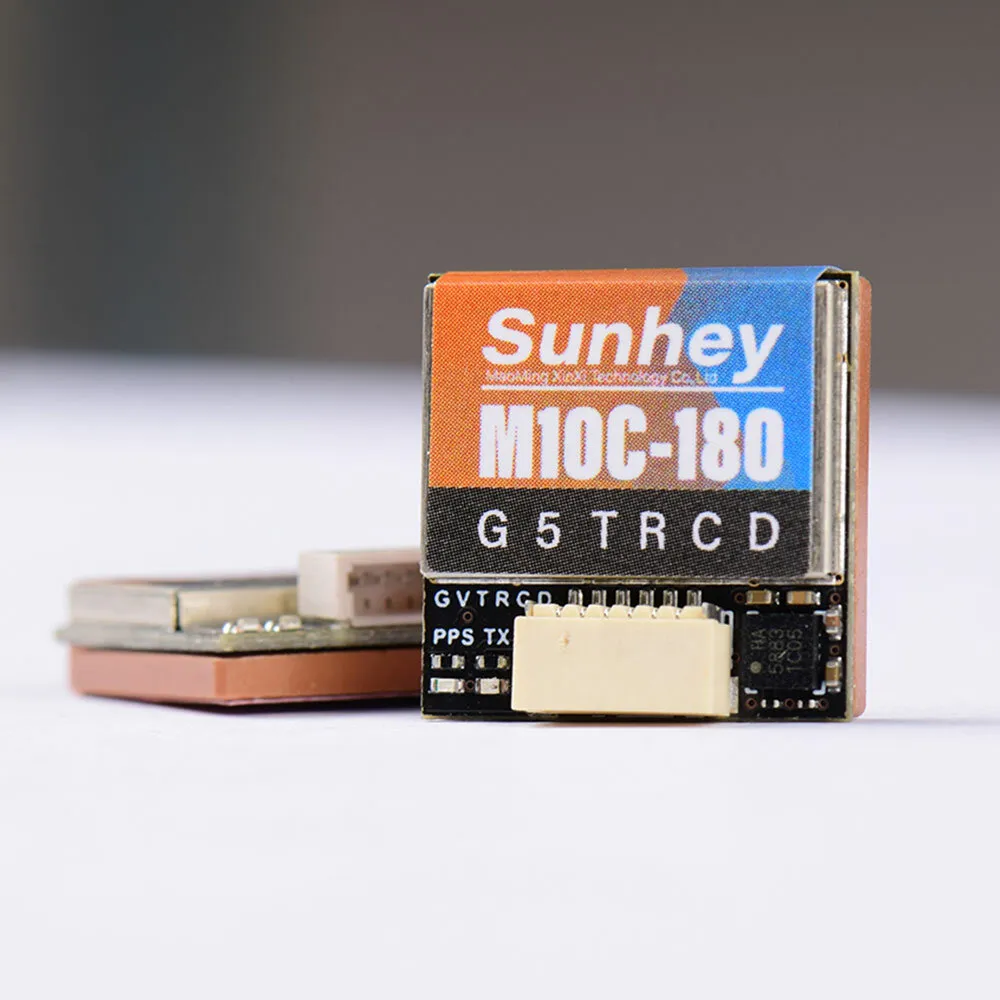

The M10C-180 GPS version comes with an integrated electronic compass for accurate direction discernment.

The high-efficiency ceramic antenna ensures effective signal reception and reliable performance.

Its mini size and light weight make it perfect for even the smallest aircraft, ensuring it fits perfectly without causing any inconvenience.

Package Included:
1x GPS Module
