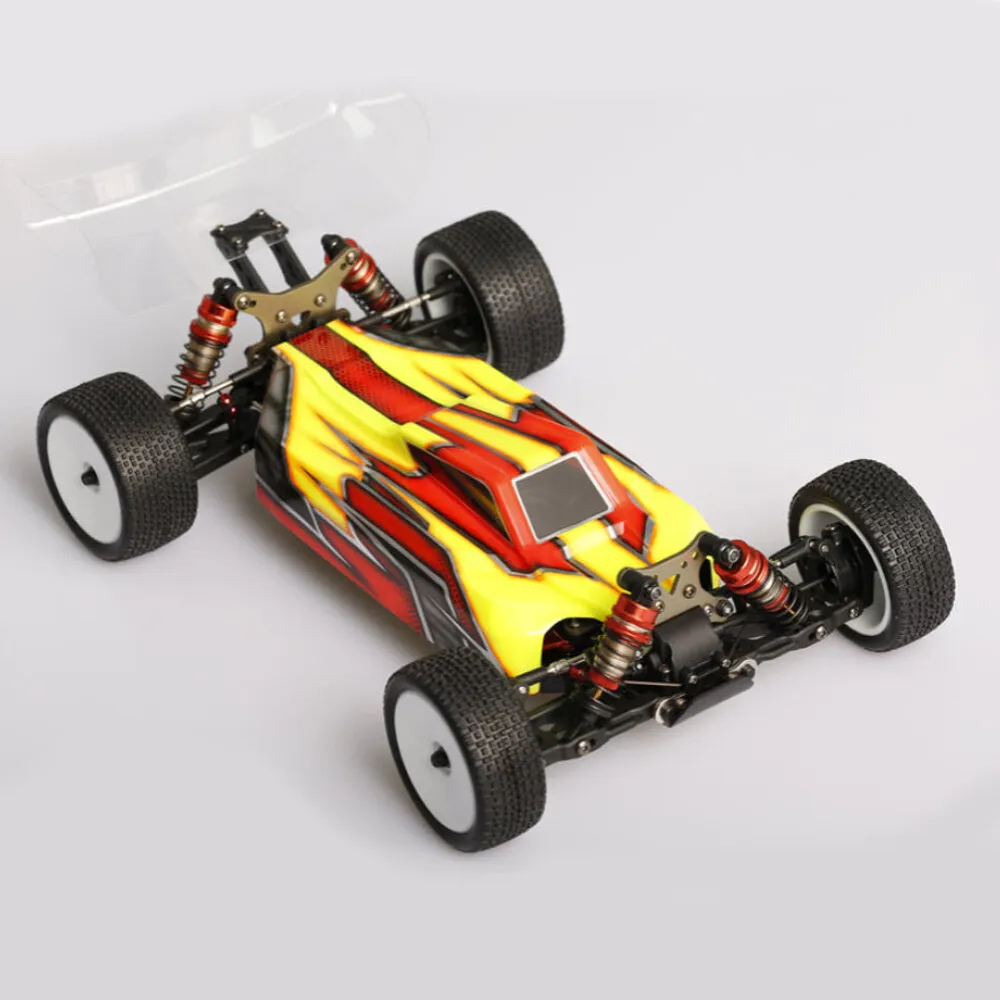

LC Racing LC12B1 1/12 Off Road RC Car Basic/Pro Kit Vehicle Models

• weight: 485 g

Note:

1. There are two versions, one with electric parts included, and one without.

2. The version with electric parts includes 35A 2-3S waterproof ESC by Hobbywing (L6148),EL28 4500kv 2845 brushless motor (LCE008).Batan D115F Digital servo.

3. The version without electric parts includes Batan D115F Digital servo.

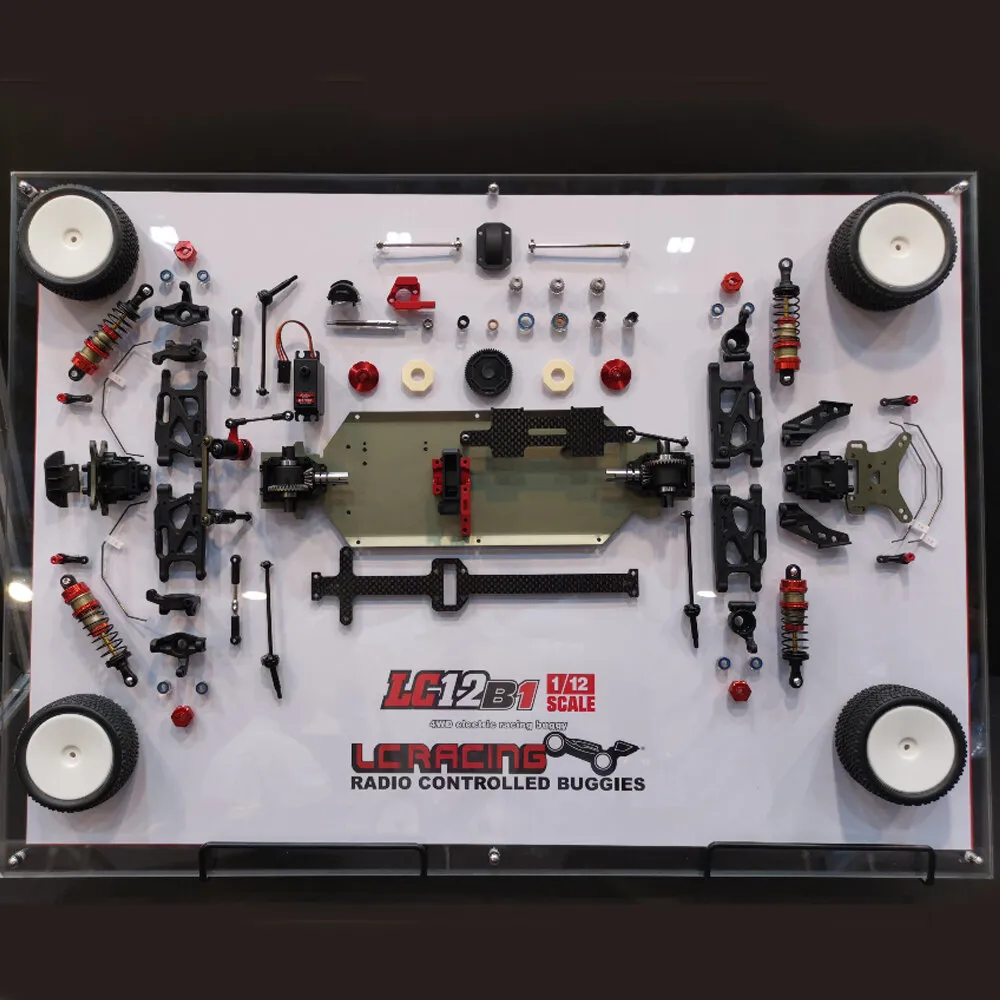

Features:New competition mid motor layoutCentral slipper clutch, improved cornering speed, new designed aluminum central bulkhead.One piece 2.0mm carbon fiber upper deckIndependent (floating) battery mount, allows battery to be mounted to the chassis without touching it.2.0mm 6061 Aluminum chassis.Differential and DrivetrainFront and rear bevel and drive gear oil filled differentials Adjustable center slipper clutch with 60T spur gear.2 pad slipper clutchFront and rear CVD for maximum performanceFull set of 24 high speed sealed ball bearingsSuspensionHigh quality spring steel suspension mount front and rear.Front and rear anti roll bars.Aluminum shock with 3mm shock shaft.Body (unpainted)All new high downforce low profile lexan body.All new lexan wing.SpecificationsClass: 1/12th scale 4WD competition rc car.Width: 205mmLength: 352mmWheelbase: 233mmReduction ratio: 2.46Differential pinion: 15T front and rearDifferential bevel: 37T front and rearWeight:1.05kg(race ready)Kit Includes1/12 LC12B1 4WD Competition rc car. (Assembly required)Pre-mounted off road wheels and tiresFront and rear anti roll bars 1.0mm, 1.2mm and 1.5mm.Batan D115F Digital servo60T Spur Gear and 17,18.19T pinon gears

35A 2-3S waterproof ESC by Hobbywing (L6148) ----->>>>> Optional purchase

EL28 4500kv 2845 brushless motor (LCE008) ----->>>>> Optional purchase

You will need:Transmitter and ReceiverBattery (NiMH 6 cell 2/3c or 95x30mm Lipo) and Charger 380 size motor ----->>>>> Optional purchase

ESC ----->>>>> Optional purchase

Gear Differential OilShock OilAssembly toolsPaint for lexan body
