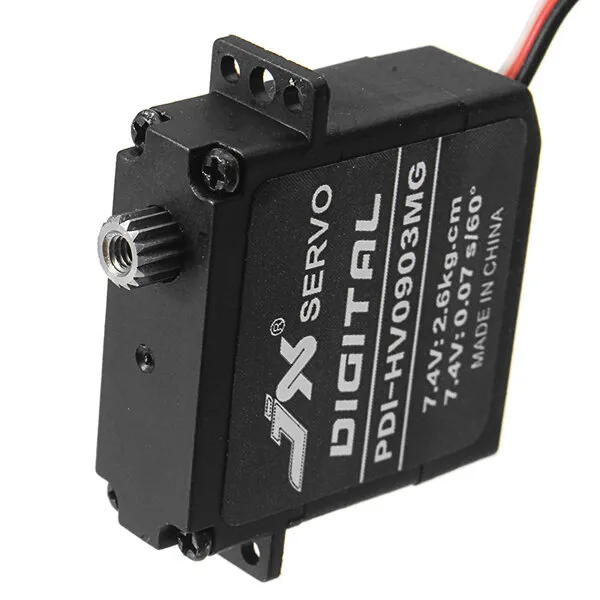

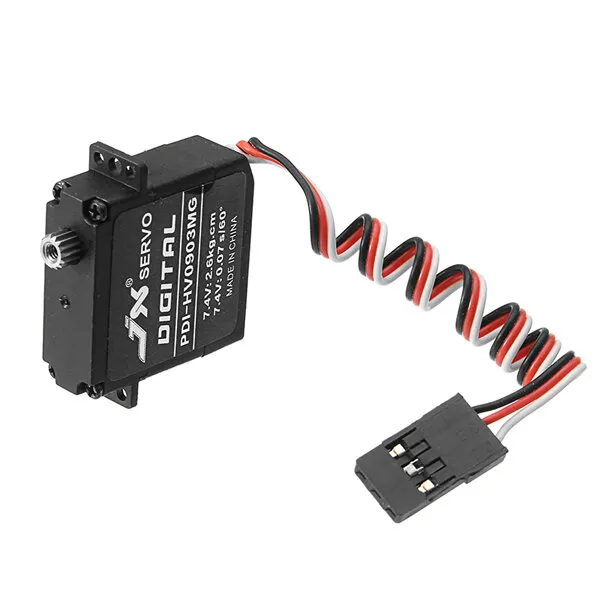

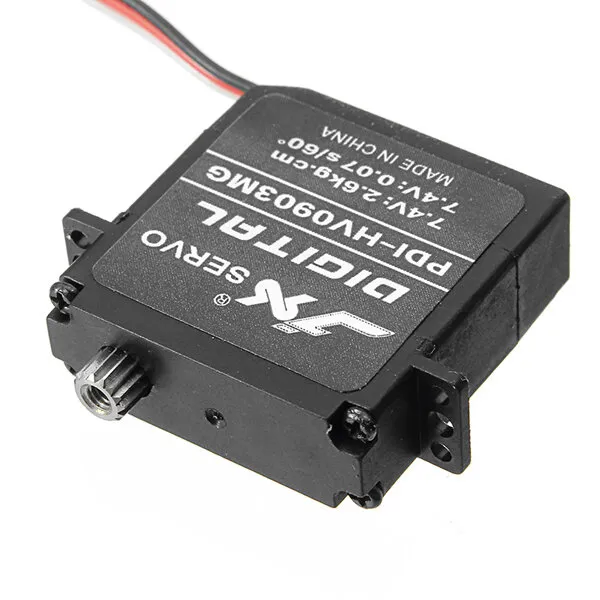

JX Servo PDI-HV0903MG 9.4g High Torque Digital Standard Servo For RC Model Airplane

SKU640635

47 Reviews

USD 29.99

Wholesale Prices :

Qty:	4-7	>=8
Price:	$5.40	$5.10

Qty:

In stock

30-day Return Policy, Learn More

Description

weight: 485 g

JX Servo PDI-HV0903MG 9.4g High Torque Digital Standard Servo For RC Model

Description:
Brand name: JX
Item number: PDI-HV0903MG 9.4g High Torque Digital Standard Servo

Dead band: 2μs

Control System: +Pulse Width Control

Working frequence: 1520μs / 330hz

Operating Voltage: DC6~7.4 V

Operating Temperature Range: -10 to + 60°C

Operating Speed (6V): 0.09sec/60°

Operating Speed (7.4V): 0.07sec/60°

Stall Torque (6V): 2kg.cm

Stall Torque (7.4V): 2.6kg.cm

Potentiometer Drive: Direct Drive

Dimensions: 23.5X8X24mm

Weight: 9.4g (0.33oz)

Connector Wire Length: JR/Futaba 150 mm

Bearing: 2BB

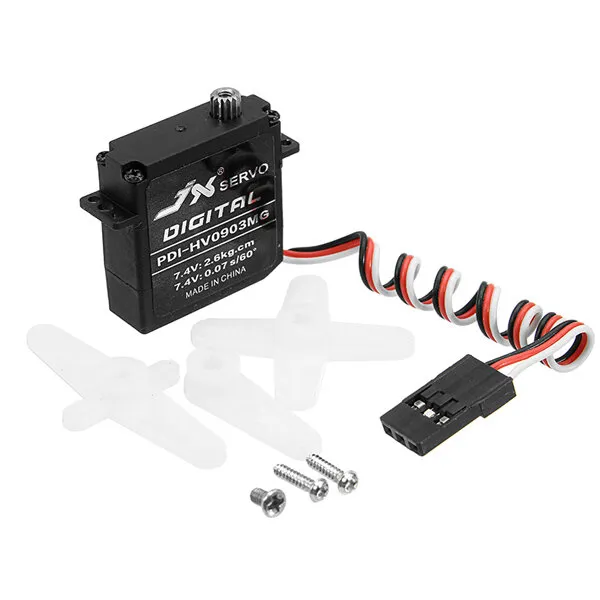

Package Included:
1X JX PDI-HV0903MG 9.4g High Torque Digital Standard Servo

JX Servo PDI-HV0903MG 9.4g High Torque Digital Standard Servo For RC Model Airplane

More Details

customers reviews ( 47 )

4 / 5.0

5 stars 93.7%

4 stars 4.3%

3 stars 0%

2 stars 0%

1 stars 2.2%

View All Reviews (47)

By markjansen

Really great servos, use them in all my slope soaring planes.

2025-03-26 00:00:00

By BG534124459

2025-03-25 00:00:00

By BG331236944

Okay

2025-02-24 00:00:00

By BG854504712

Vyborné servo, žádná vůle, ještě nemám vyzkoušeno středění. Přišlo rychle 10 dnů. Doporučuji

2024-08-08 00:00:00

By markjansen

boxes were pretty banged up. but the servos look ok.

2024-07-29 00:00:00

By José

Todo correcto y muy rapido

2024-07-02 00:00:00

By BG331542914

Not testet but looks good

2024-06-20 00:00:00

By doktorbg

Bought to use them in a small 160cm full composite glider. Very good resolution and centering, Weight about 10g is OK as well ( one side lever with cutted connector - welded into internal cable in the wing). Works with 5V power supply with enough torque and speed even this is declared like HV servo. Overall perfect servo for gliders up to 2,5m wingspan. Strongly recommended !!!

2024-06-10 00:00:00

By petr.hruby

Super.

2024-05-20 00:00:00

By thomas85

I never buy this servo again. Just ordered 3 of them, 1 is totally dead, not working at all. The 2nd one is shaking in the center position, and the third one is shaking as well but just a small amount, so there's only one I can barely use. I just tested all on the desk with servo tester, the other two which was working looked good, but after I just glued in a foam aircraft I realized that when the ailerons are connected, the center position are unreliable, it shakes everytime I touch the aileron joystick and never stops. Really Sh*t quality, I don't recommend to anyone.

2024-05-16 00:00:00
