JJRC Q130 1/14 2.4G 4WD Brushed Brushless RC Car Short Course Vehicle Models Full Proportional Control

• weight: 485 g

Attention:

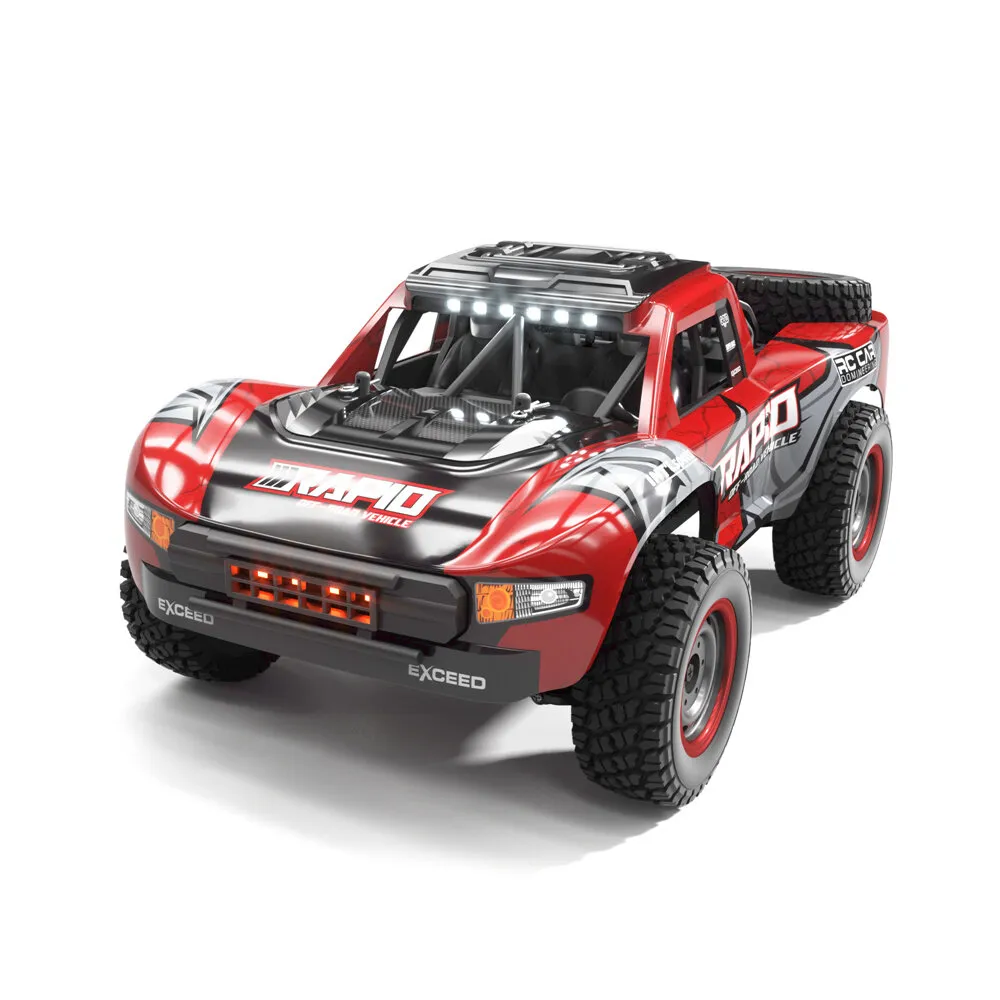

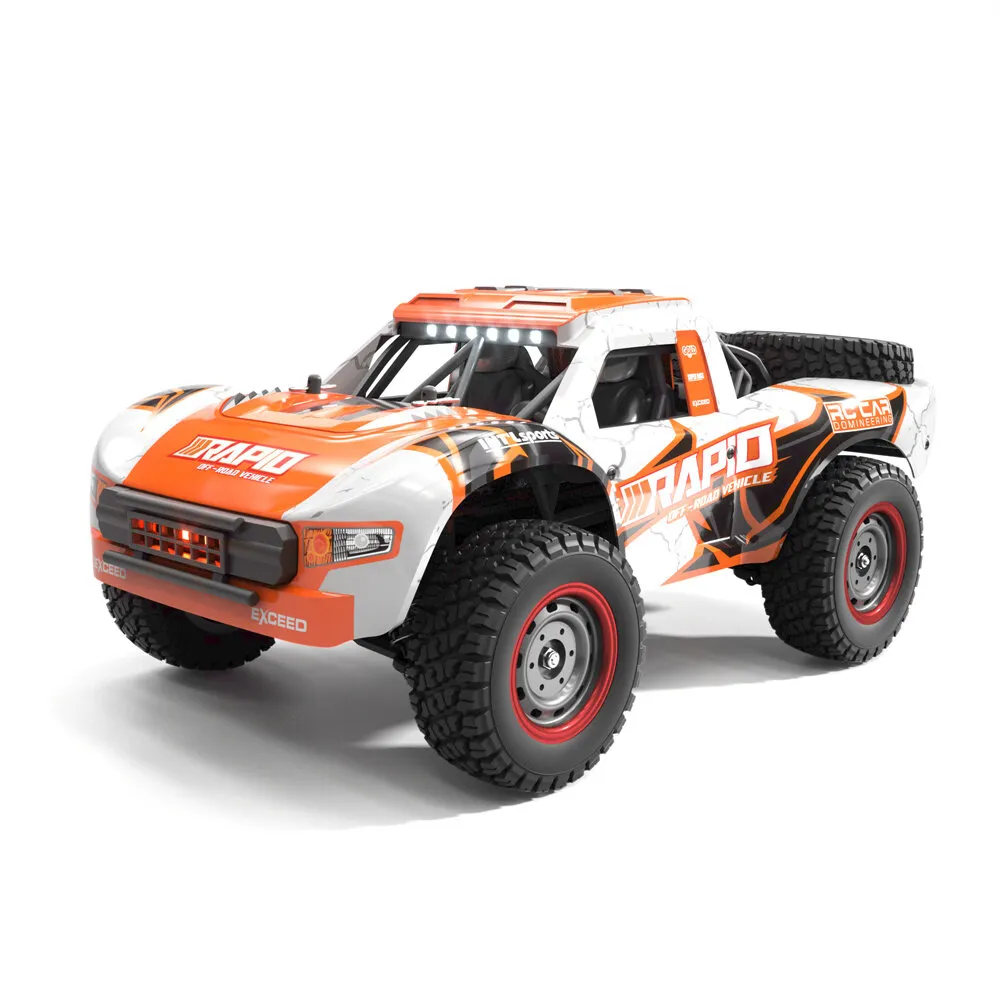

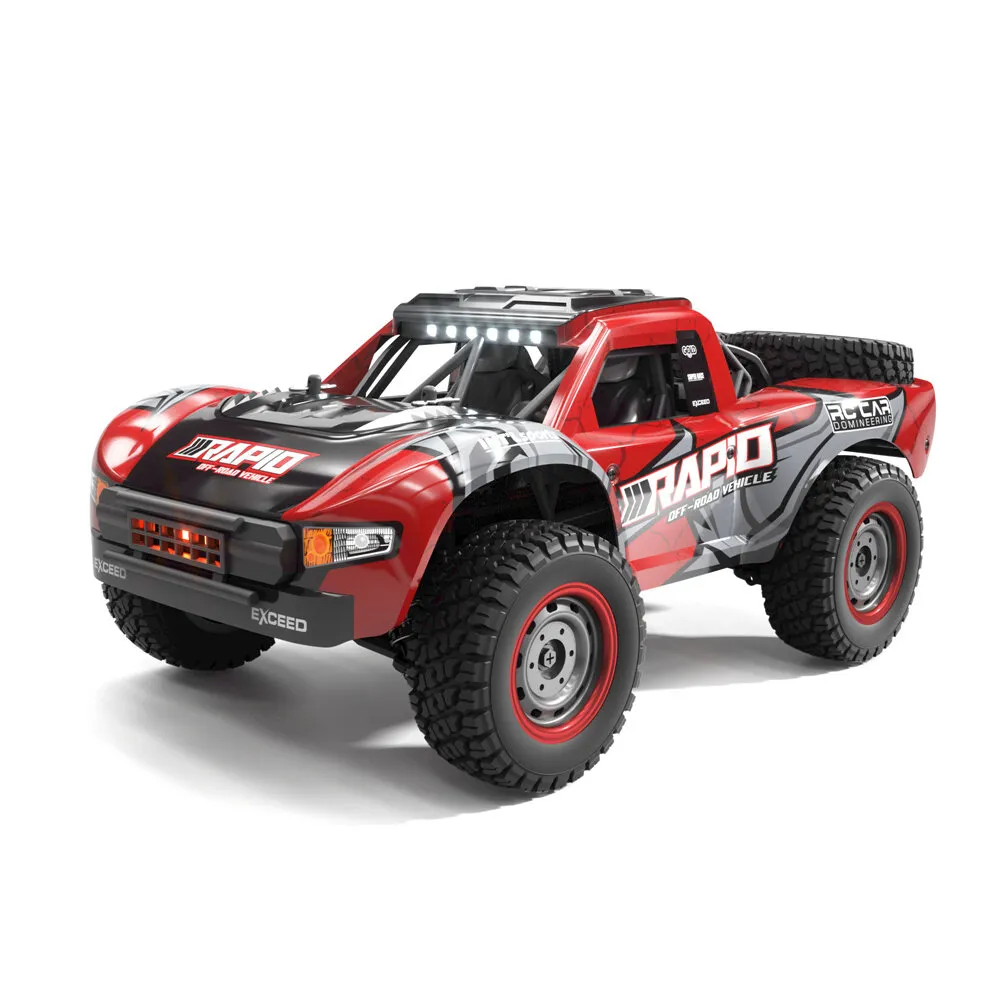

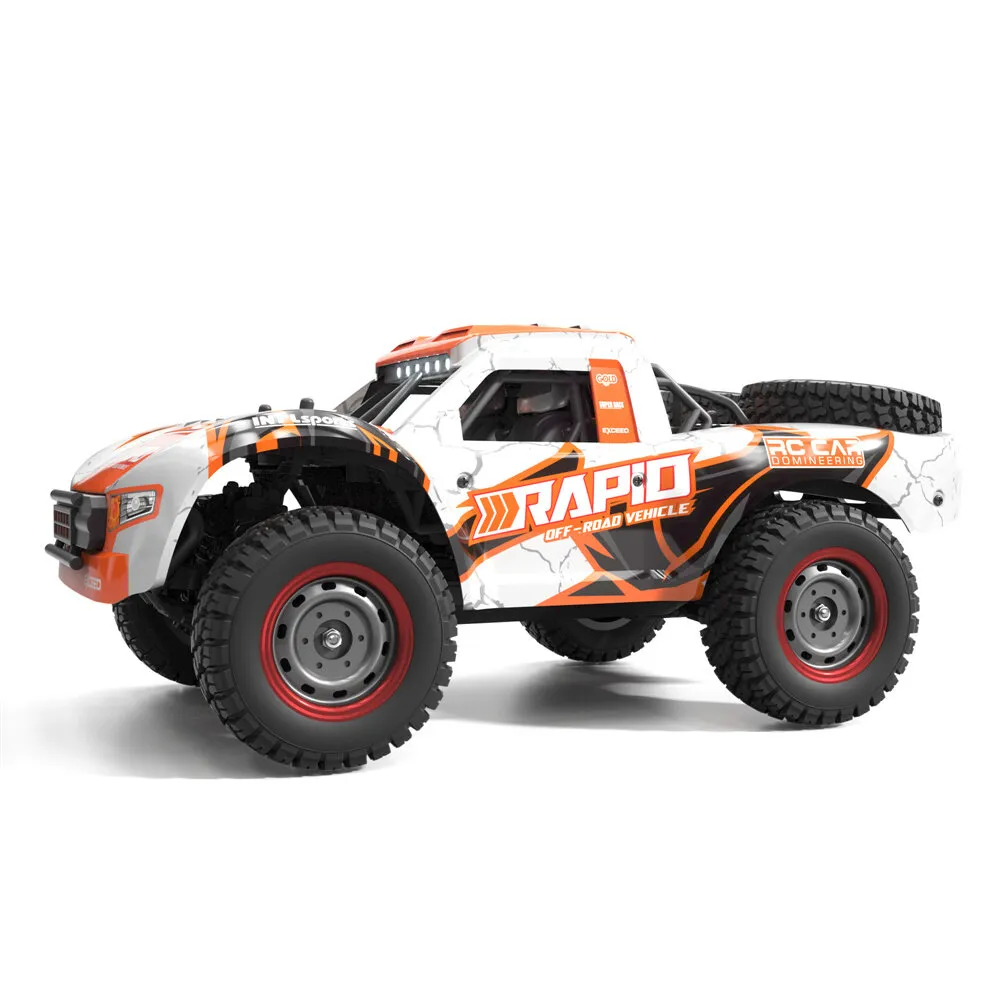

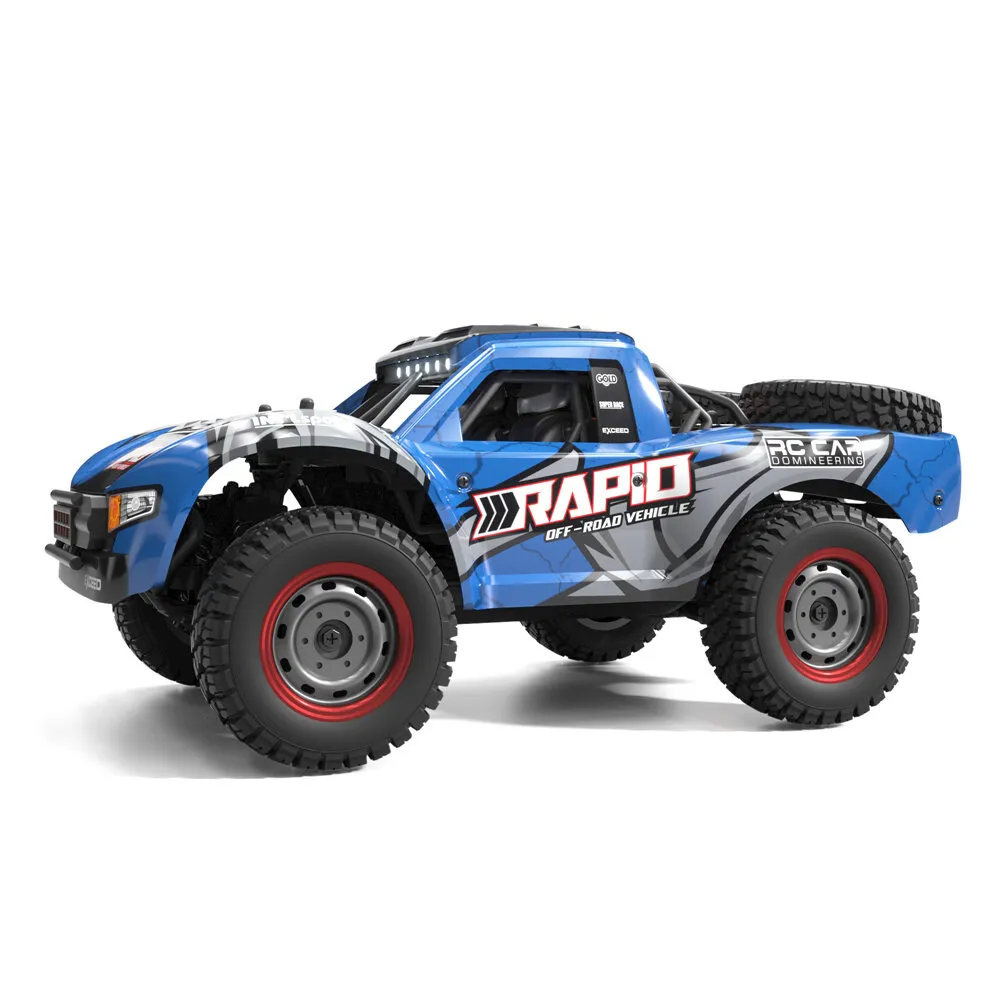

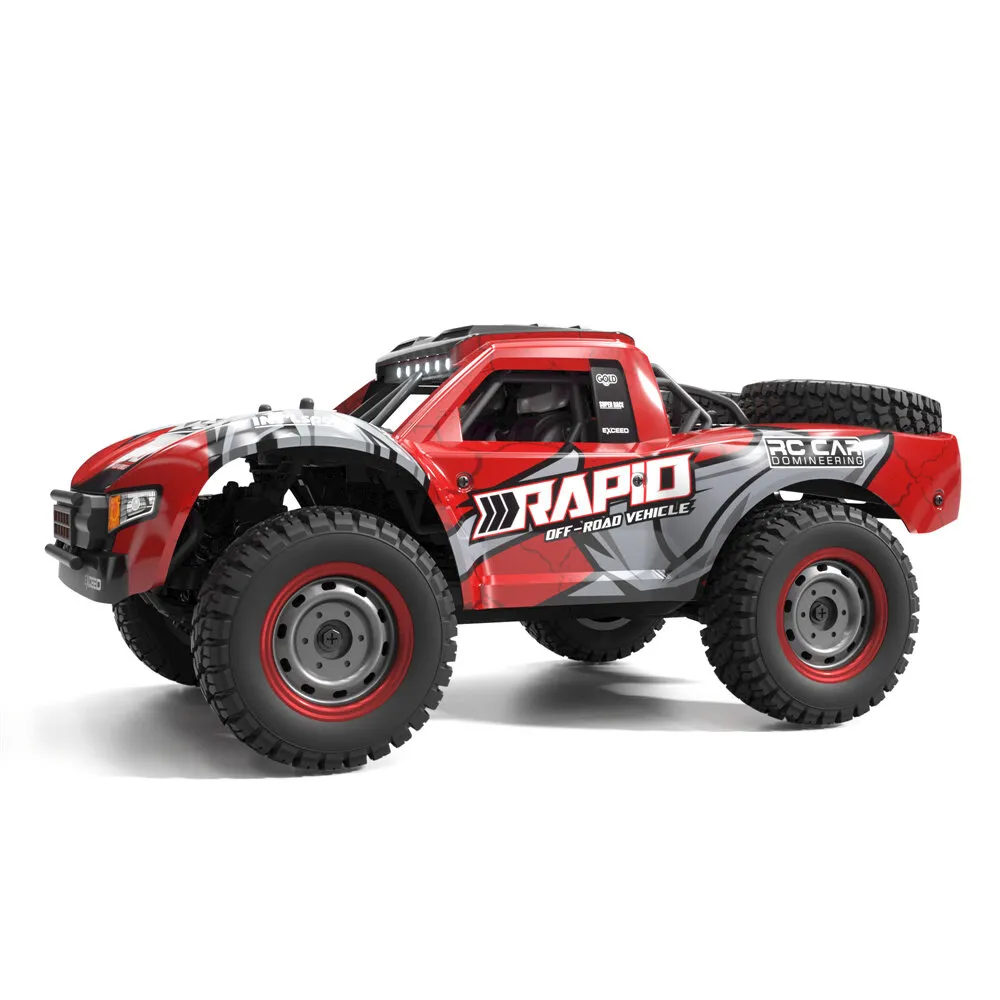

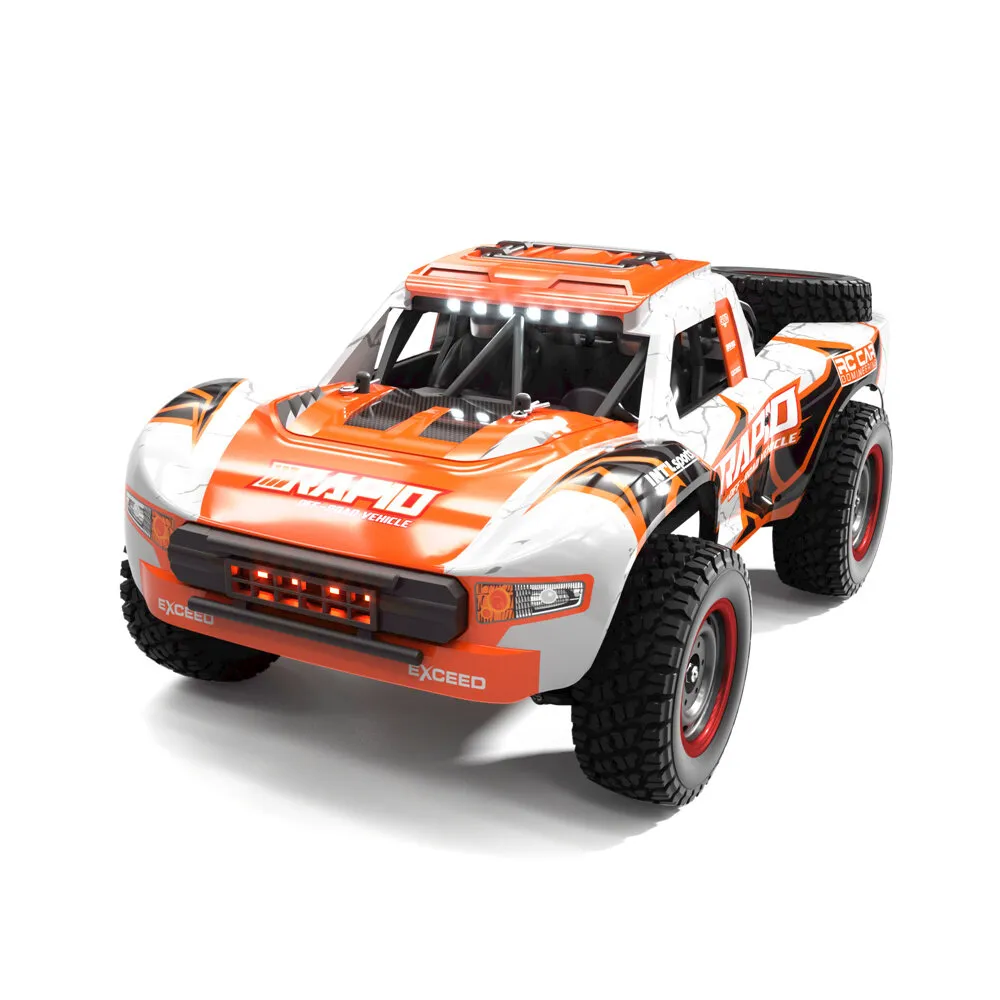

The Red A,blue A are brushed version,the orange B is brushless version.

Brushed A version:

Description:

Attention:

1: Charging protection: constant current and constant voltage balanced charging, protection function for battery overcharge and overcurrent.

2: Motor anti-jamming protection: When overloaded, the motor stops working.

3: High temperature protection: When the working temperature is higher than the setting, the drive control circuit stops working, and resumes working after the temperature drops to a safe value.

4: ESC low-voltage power-off function, when the battery is lower than 6.3-6.4V, it will automatically power off to prevent the battery from being damaged due to over-discharge.

Function:

1. Using the simulation structure design, it has the control feeling of a real car, and realizes full-scale continuously variable transmission, high-speed driving, rapid acceleration, deceleration, braking, reversing, left turn, right turn;

2. Applicable venues: flat ground, sandy ground, muddy ground, grassland.

3. Four-wheel drive: front and rear upright spring shock absorption, double wishbone independent suspension system;

4. 2.4G full-scale synchronous remote control system. Full-scale throttle/steering;

5. 2.4G splash-proof four-way 30A integrated ESC/receiver;

6. Front wheel cross ball joint drive shaft, rear wheel split dog bone drive shaft;

7. Five-wire 17G steering gear;

8. Super battery power: 7.4V, 18650-1300mAh Li-ion battery (T plug), discharge rate 10C;

9. The whole car adopts 16 ball bearings;

10. Metal second floor, metal front and rear arm yards, metal middle drive shaft;

11. The car shell is made of high toughness explosion-proof PVC car shell;

12. The car shell is equipped with LED headlights, LED roof lights, and LED tail lights; (three modes: constant light, slow flash, fast flash);

13. Simulated off-road tires with strong grip;

Package included:

1*RC Car

1*Controller

1*Rechargeable battery(built-in)

1*Charger

Brushless B version:

Description:

Attention:

1: Charging protection: constant current and constant voltage balanced charging, protection function for battery overcharge and overcurrent.

2: Motor anti-jamming protection: When overloaded, the motor stops working.

3: High temperature protection: When the working temperature is higher than the setting, the drive control circuit stops working, and resumes working after the temperature drops to a safe value.

4: ESC low-voltage power-off function, when the battery is lower than 6.3-6.4V, it will automatically power off to prevent the battery from being damaged due to over-discharge.

Function:

1. Using the simulation structure design, it has the control feeling of a real car, and realizes full-scale continuously variable transmission, high-speed driving, rapid acceleration, deceleration, braking, reversing, left turn, right turn;

2. Applicable venues: flat ground, sandy ground, muddy ground, grassland.

3. Four-wheel drive: front and rear upright spring shock absorption, double wishbone independent suspension system;

4. 2.4G full-scale synchronous remote control system. Full-scale throttle/steering;

5. Metal differential, metal differential cup, powder planetary gear, powder driving gear, powder main gear;

6. Metal CVD front drive shaft, metal rear dog bone, metal wheel cup;

7. Three-line 17G digital steering gear;

8. 7.4V, 18650-1500mAh Li-ion battery (T plug), discharge rate 15C;

9. New remote control panel function: rudder size adjustment;

10. The whole car adopts 16 ball bearings;

11. Metal second floor, metal front and rear arm yards, metal middle drive shaft;

12. The car shell is made of high toughness explosion-proof PVC car shell;

13. The car shell is equipped with LED headlights, LED roof lights, and LED tail lights; (three modes: constant light, slow flash, fast flash);

14. Simulated off-road tires with strong grip;

Package included:

1*RC Car

1*Controller

1*Rechargeable battery(built-in)

1*Charger
