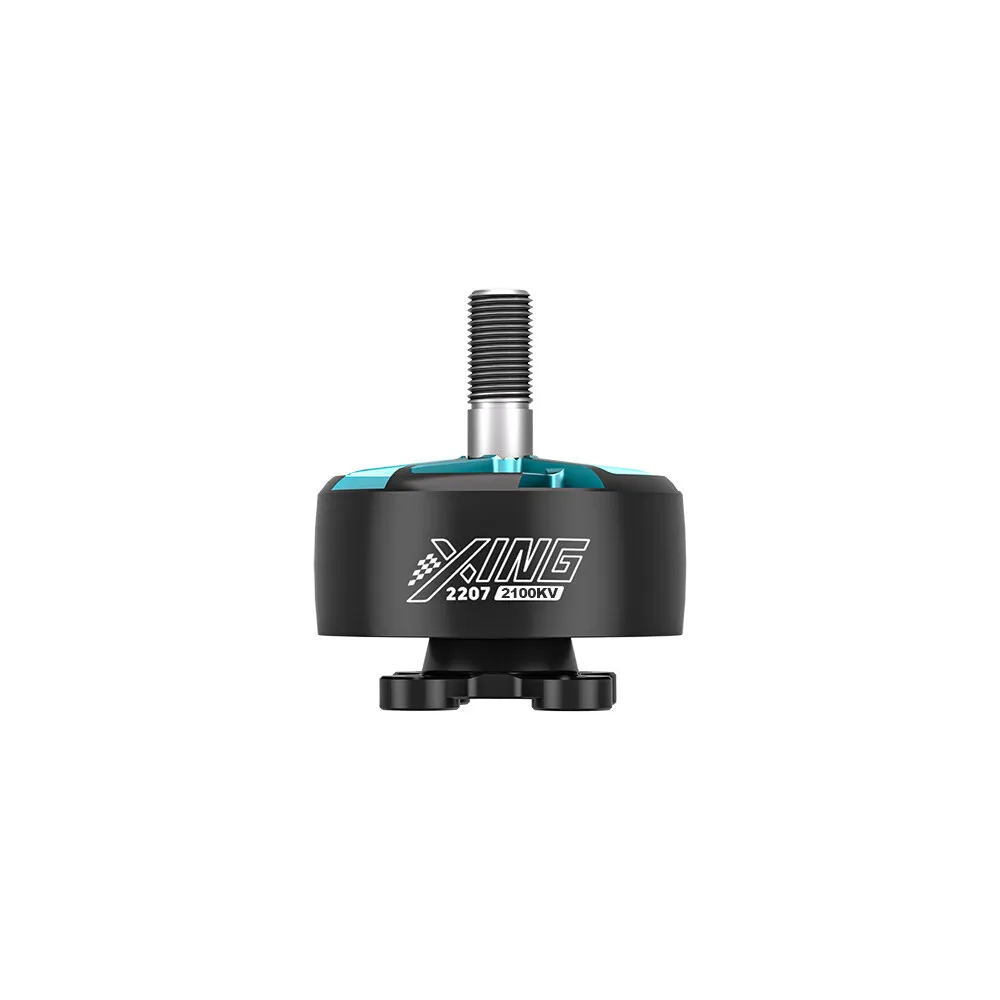

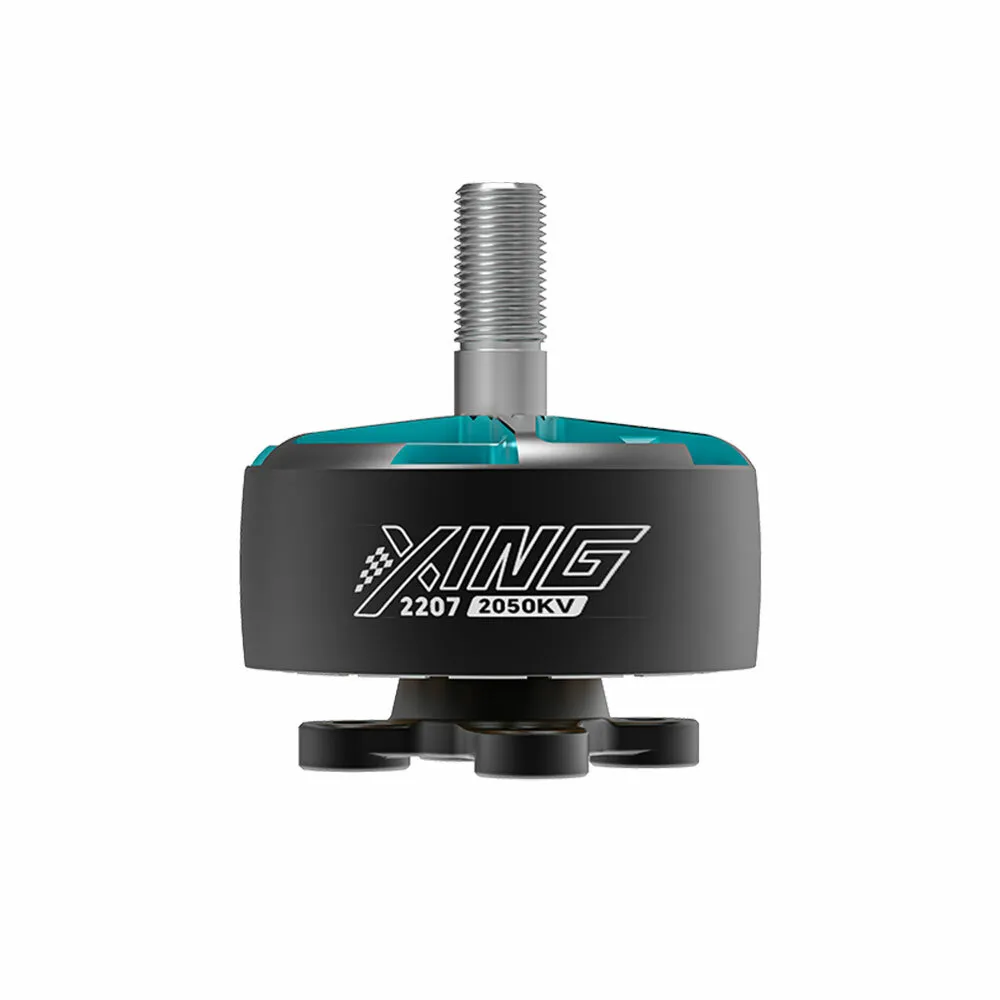

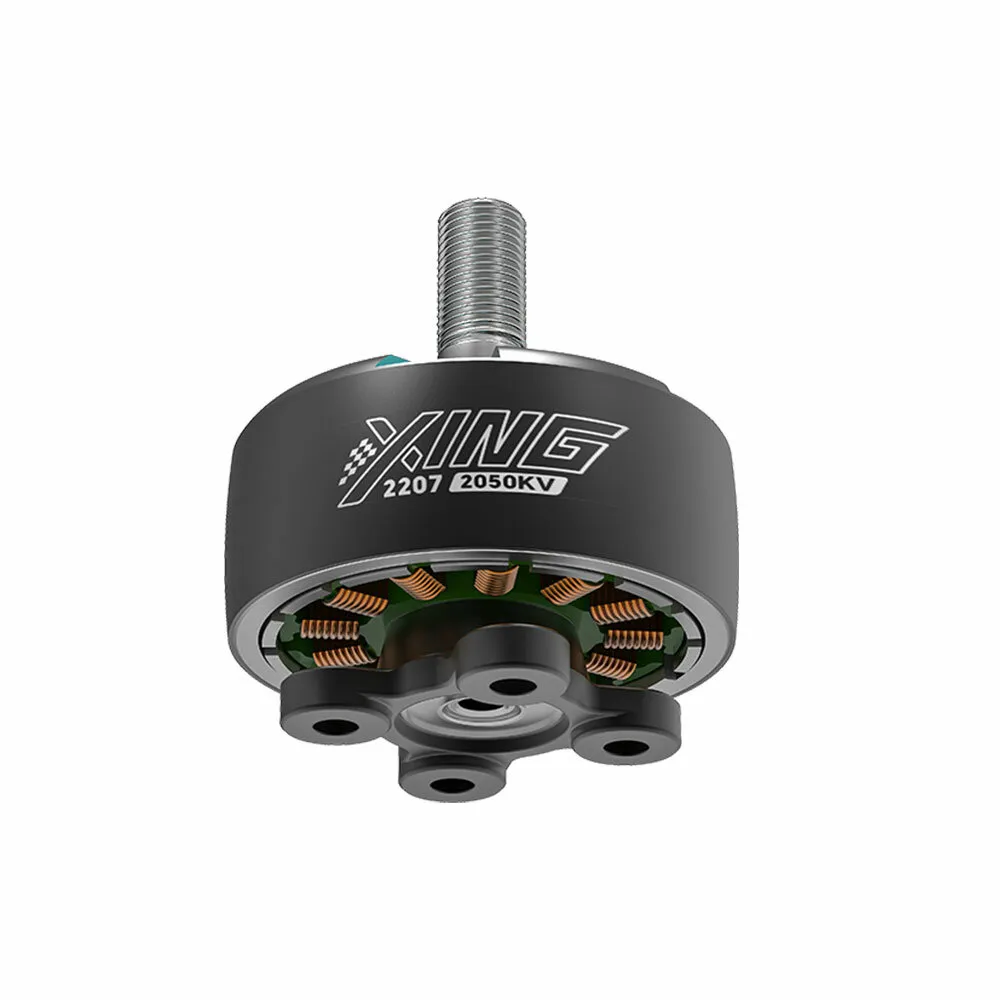

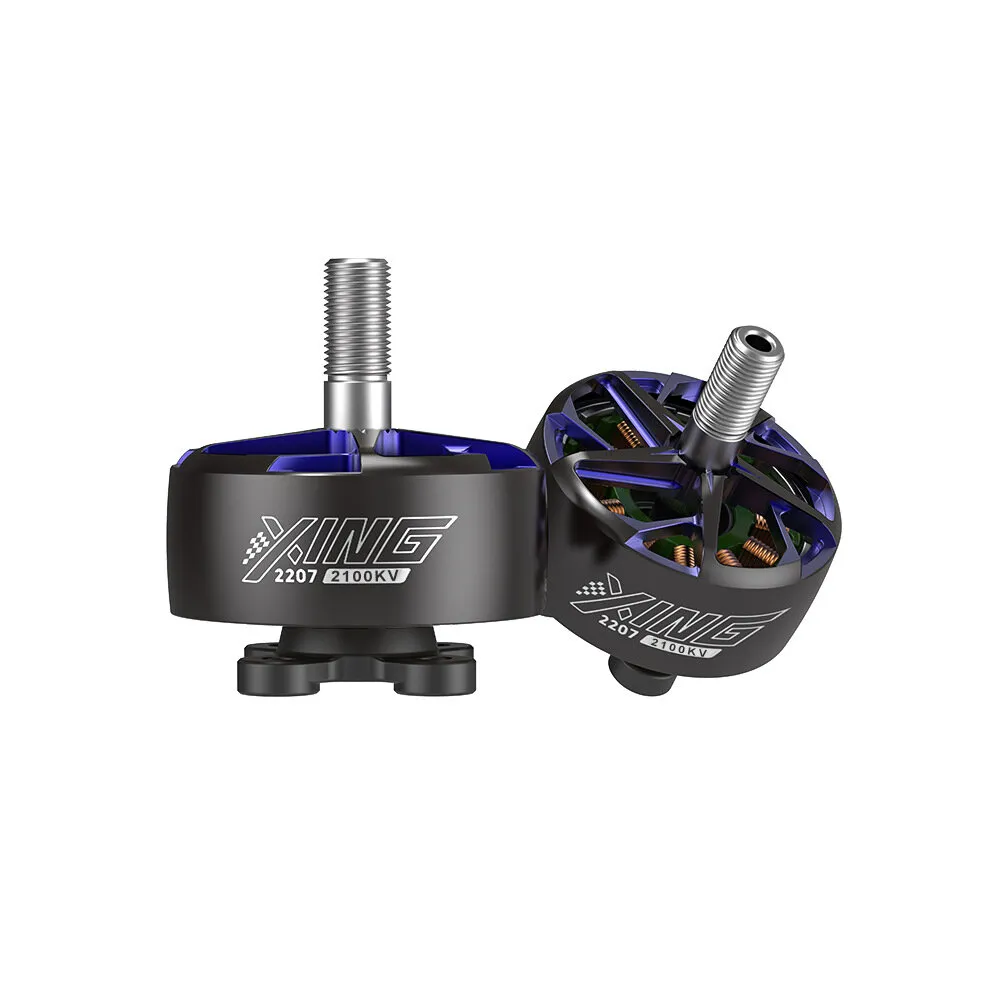

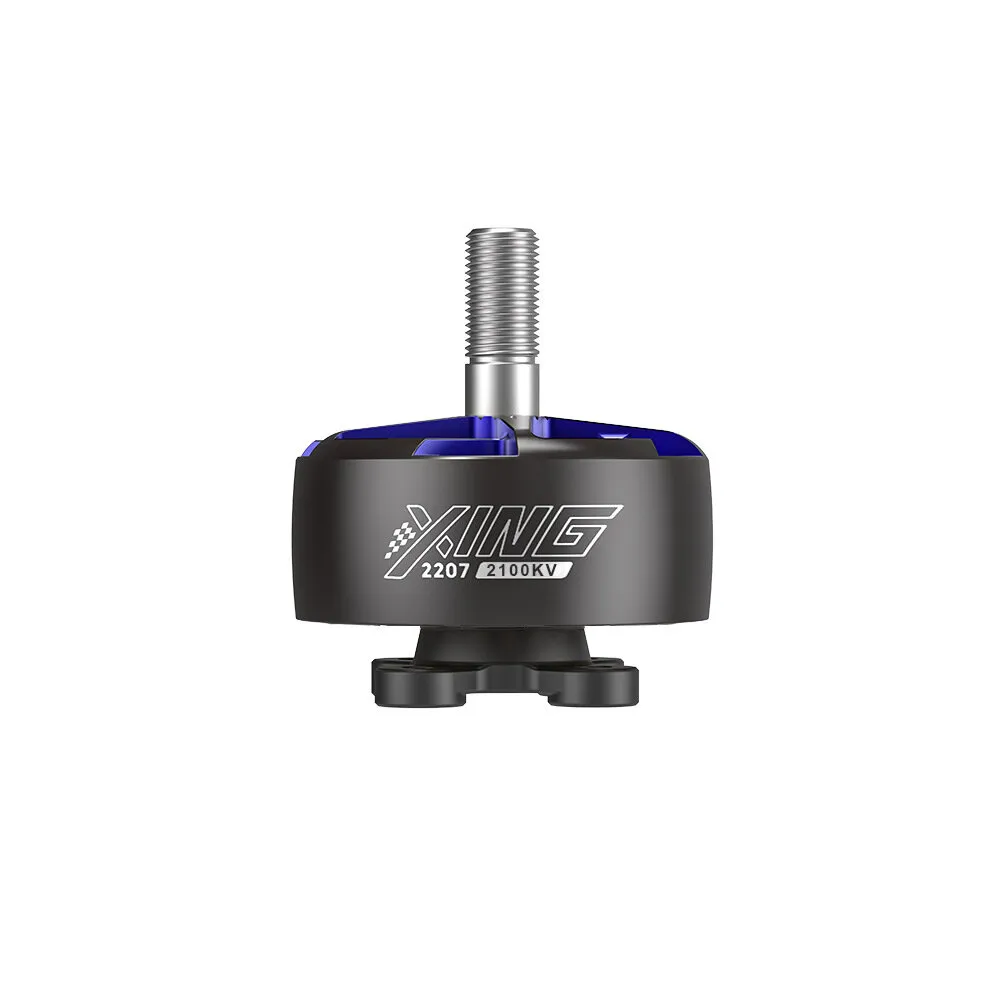

iFlight XING R5 2207 2050KV / 2100KV 6S Brushless Motor 5mm Shaft for RC Drone FPV Racing

• weight: 485 g

Specifications:
Brand: iFlight
Model: R5 2207
KV: 2050KV / 2100KV (Optional)
Weight(included wire): 34.6g
Dimension: 28.2*31.5mm
Interphase Resistance: 56.3mΩ
Input Volts: 25.2V
Peak Current: 49.53A
Max Watt: 1166.4W
Mounting Holes: 16*16 φ3mm
Shaft Diameter: 5mm
Shaft Protruding Length: 12.5mm
Lead: 150mm/20AWG
Magnet: N52H Curved
Configuration: 12N14P
Bearing Type: NSK
Bearing Specification: φ9*φ4*4
Winding: Single Strand copper winding

Features:

Race-Optimized: This motor is specifically designed for Race drones, for example, Mach R5 Racing drone.

Superior Response Time: New center-slotted N52H curved arc magnets help drastically reduce the motor's response time.

High-Quality Materials: Built with high-quality materials and a durabl bell and shaft joint for longer life.

Enhanced Efficiency: The small air gap and stator lamination help increase efficiency and power.

High Power: Capable of handling a maximum power of 1166.4W, making it perfect for high-performance drones.

Drawing Picture and Test Table

Package Included:
1 x Xing 2207 Brushless Motor
4 x M3*8 screws
1 x M5 Nut
