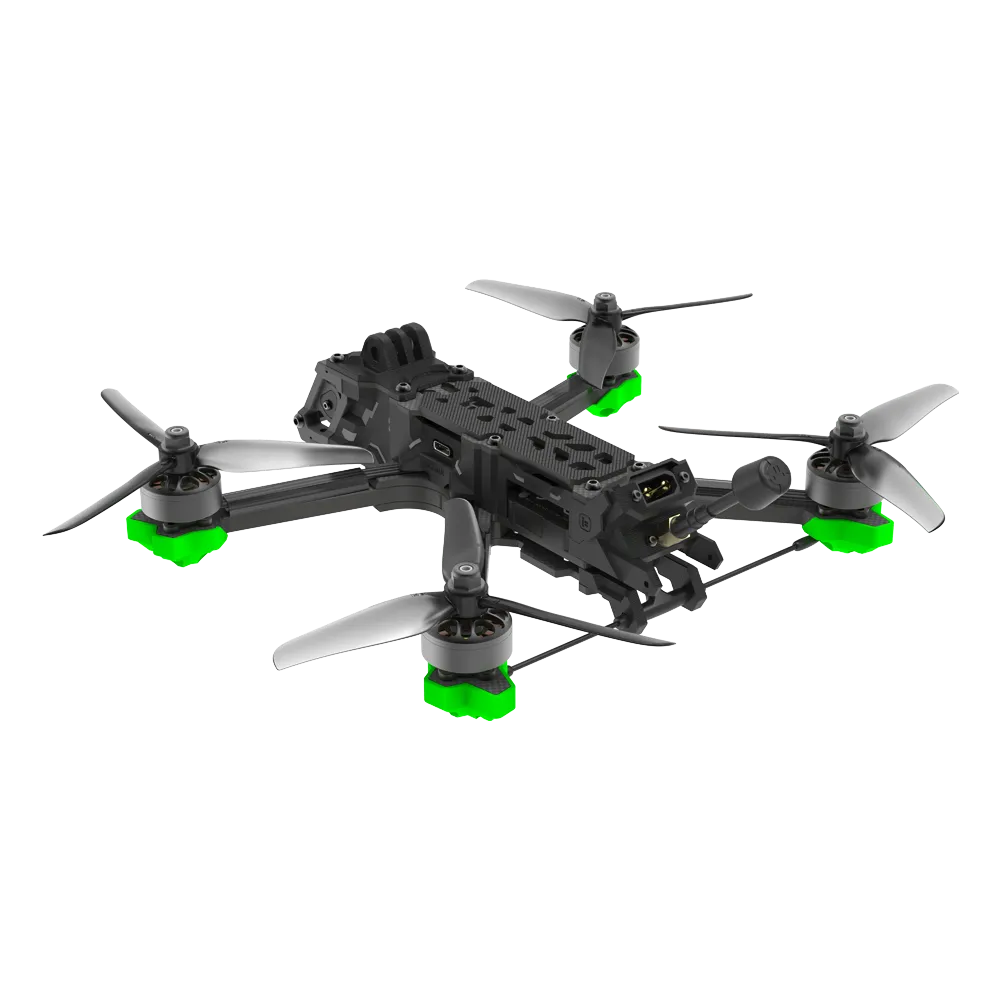

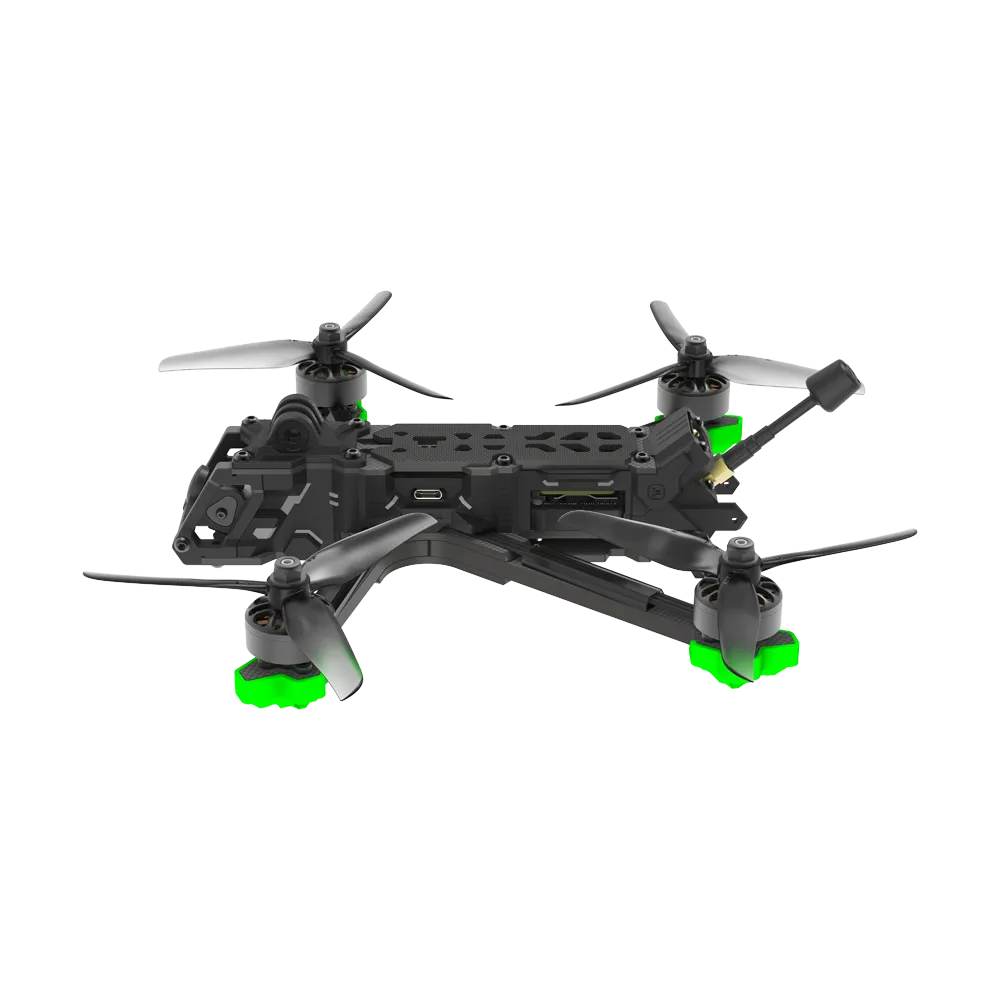

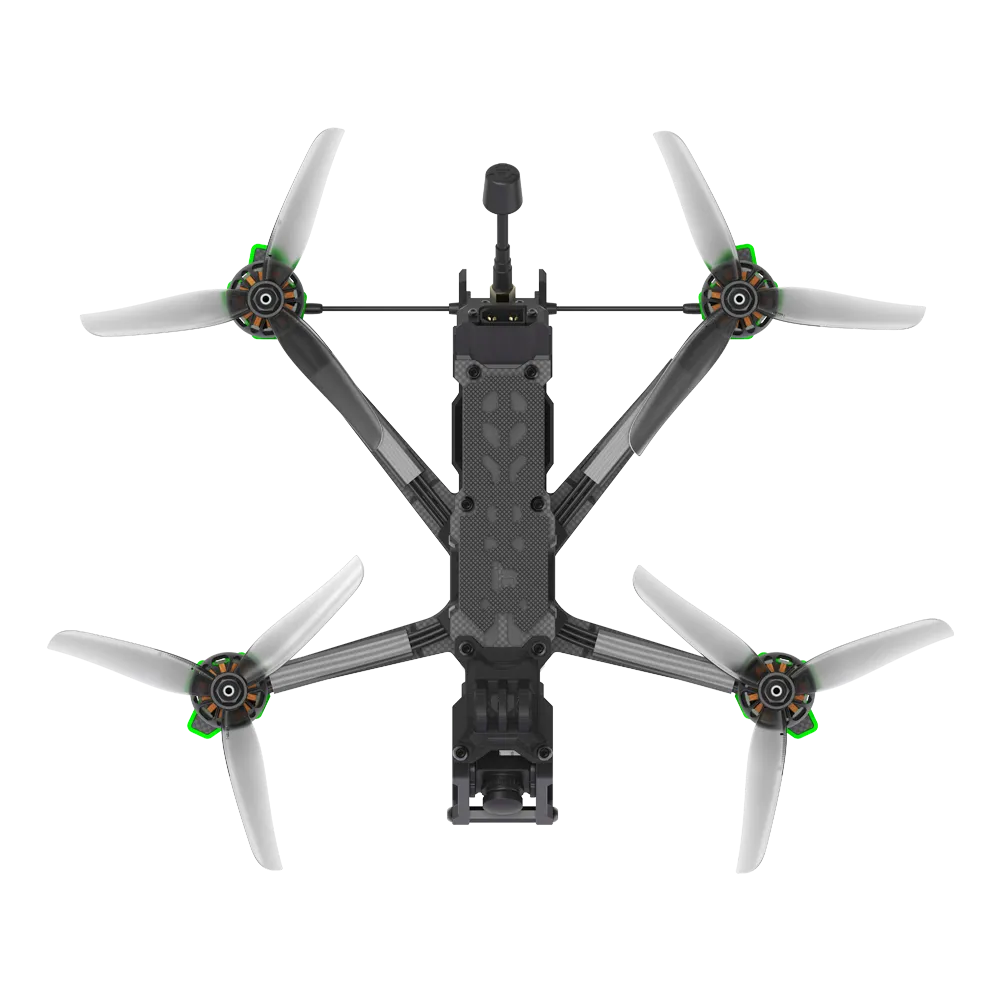

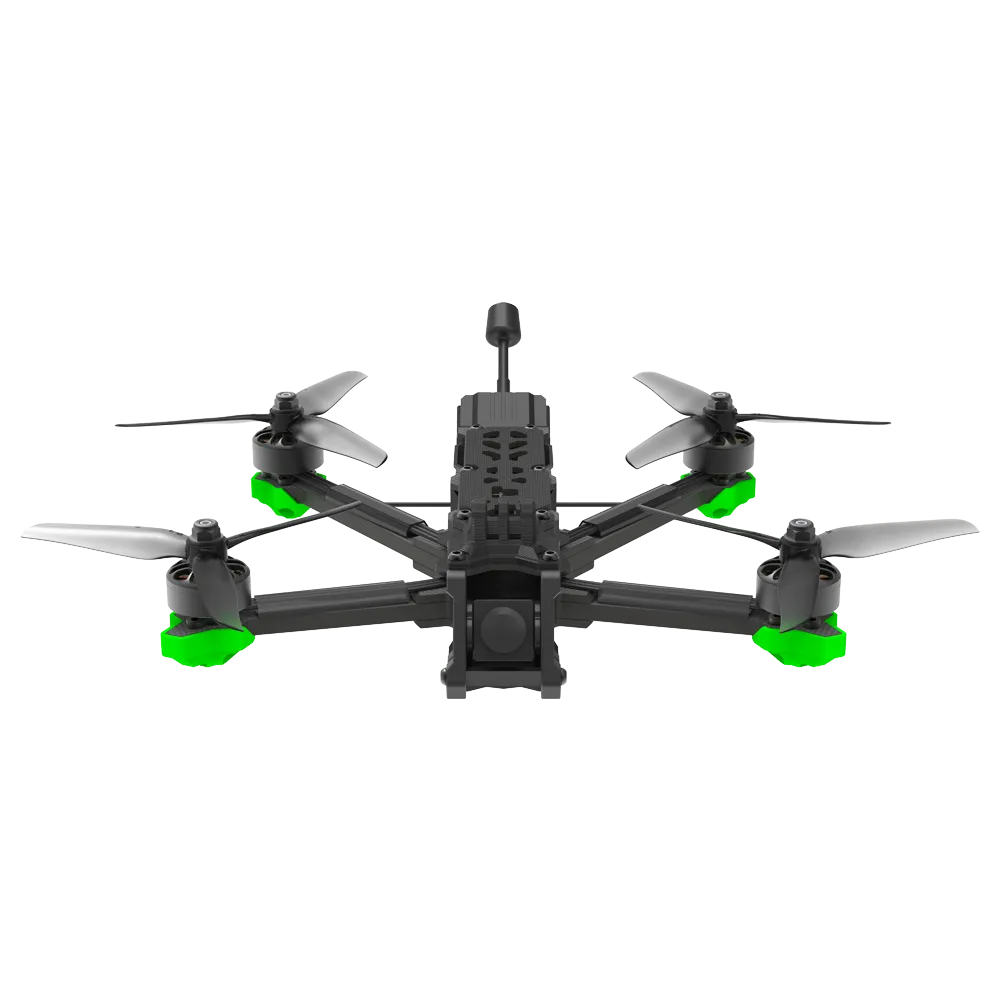

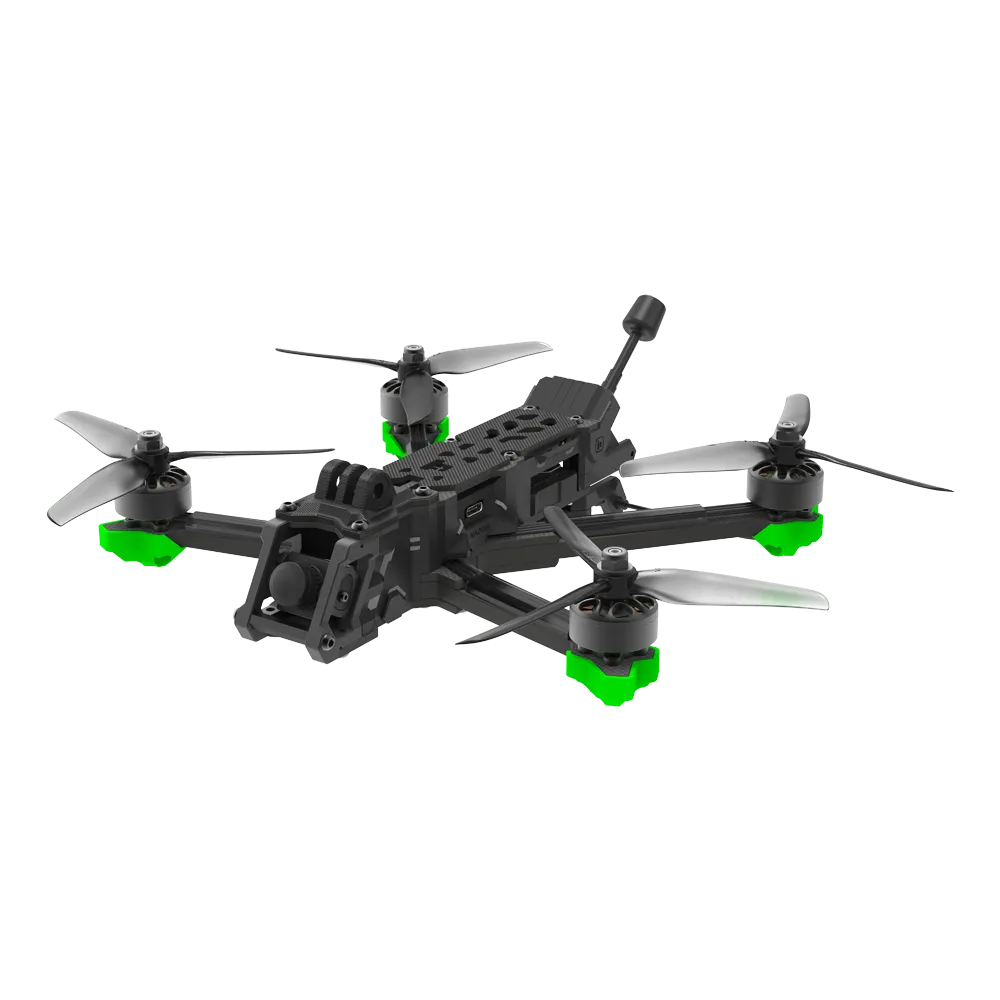

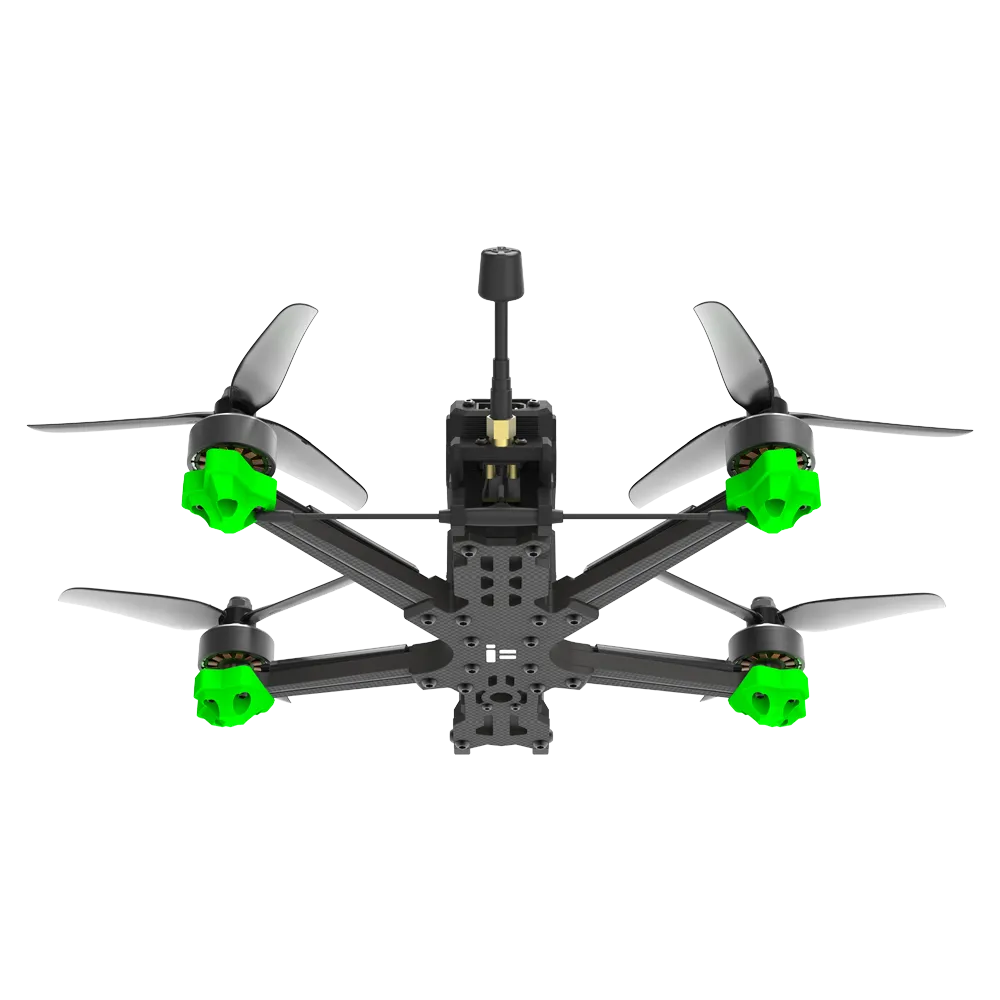

iFlight Nazgul5 Evoque F5 F5D V2 DeadCat GPS Version HD / Analog 4S / 6S 5 Inch FPV Racing Drone

SKUI37392

70 Reviews

USD 582.96

Wholesale Prices :

Qty:	4-7	>=8
Price:	$351.89	$332.34

Qty:

In stock

30-day Return Policy, Learn More

Description

weight: 485 g

Notice: It is upgrade into new V2 Version. ( May 12th, 2023. Beijing Time)

USA Warehouse: Still Old V1 Version

CN Warehouse: V1 / V2 stock mix. Will send Randomly.

Diffirence:

- V2 Comes with New F5X V2 frame ( Like pohotos showed)

- V2 Comes with BLITZ Whoop 1.6W VTX ( Analog Version) ; V2 Comes with Runcam Link WASP ( HD Version)

V1 is 5.8GHz SucceX Mini Micro 600mW VTX ( Analog Version)

Specifications:

Brand: iFlight

Model: Evoque F5 V2( F5D, DeadCat Type)

Version: Analog / HD ( Optional)

Voltage: 4S / 6S ( Optional)

Evoque F5 F5D V2 Analog	Weight: 445grams Takeoff Weight: Approx. 610 g Dimensions (L×W×H): 190×136×36 mm Diagonal Distance: 225 mm Max Speed: 130 Km/h (Manual Mode) Maximum Takeoff Altitude: 5000 m Max Hover Time: Approx. 8 mins Maximum Flight Distance: 5 km Max Wind Speed Resistance: 100 Km/H (Level 5) Operating Temperature Range: -10° to 40° C (14° to 104° F) Antennas: Single Antennas
FC // BLITZ Mini F7 Flight Controller （HD & Analog） ( Link)	MCU: STM32 F722 Gyro: BMI270 Barometer: DPS310 OSD Chip: AT7456 Flash: 16MB (Blackbox flash) UARTS: 6 Motor outputs: 4x (SH1.0 connector) I2C serial: SDA / SLA pads Smartaudio / IRC Tramp VTX protocol supported LED controller: Yes Beeper pad: Yes Firmware target: IFRC-IFLIGHT_BLITZ_F722 Mount pattern: 20x20 mm / 4mm PCB hole diameter, silicon grommets for M3 screws Dimensions: 30.5x27 mm Weight: 5g
ESC // BLITZ Mini E55 4IN1 ESC (HD & Analog) ( Link)	- DIMENSION: 3542MM - MOUNTING HOLES: 2020MM/Φ4MM - WEIGHT: 11.3G - SUPPORTS 2-6S LIPO INPUT - MCU： G071 - CONSTANT: 55 AMPS - BURST: 60 AMPS - CURRENT SENSOR: YES - BEC: NO - CURRENT RATE: 100 - SUPPORTS: DSHOT DSHOT150/300/600/MULTISHOT/ ONESHOT ETC. - FIRMWARE: BLHELI 32 - TARGET: IFLIGHT_BLITZ_G1
XING-E Pro 2207 Motor ( Link)	4S Version: 2207 2750KV 6S Version: 2207 1800KV
VTX & Camera (HD)	CADDX Nebula Pro Vista HD Digital System
VTX & Camera ( Analog)	VTX: Product Name: BLITZ Whoop 1.6W VTX Input voltage: 7V～34V Interface: MMCX Power levels: PIT/25mW/400mW/800mW/1600mW Channels: 40 (including Raceband) Mounting pattern: 30.5x30.5mm/Φ3 Lightweight: 18.9g (excluding antenna) VTX telemetry: IRC Tramp Betaflight IRC Tramp Configuration: Please download the attached VTX table for Betaflight! RC Tramp VTX table values: 25mW/400mW/800mW/1600mW Camera: RaceCam R1 Mini 1200TVL 2.1mm lens 19*19 FPV Camera

M8Q-5883 GPS

GPS module: GPSSAM-M8Q

Frequencies: 72 channel

Compass module: QMC5883L

Baud Rate: 4800bps-115200bps (Default - 9600bps)

Sensitivity: Tracking: -162dBm， Capture: -160dBm，Cold Start：-148dBm

Cold start: <29s

Hot start: <2s

Accuracy: Horizontal <2.5m average), SBAS < 2.0m average, Timepulse: RMS 30 ns

Maximum height: 50.000m

Maximum speed: 500 m/s

Speed accuracy: 0.05 m/s

Maximum acceleration: ≦ 4G

Refresh Rate: 10 Hz

GPS patch antenna size: 15 x 15 mm

Total dimensions: 20 x 20 x 10.5 mm

Weight: 8g

Input Voltage: 3.3V-5V，current 25mA

GPS pin definition: RX/TX UART

Compass pin definition: SDA/SLA

Package included：

1 x Nazgul5 Evoque F5 V2 F5D HD/Analog FPV Drone (Deadcat)

1x GPS

4 x Nazgul F5 Prop

2 sets of Battery Pads

4 x Battery straps

1 x Screws bag
