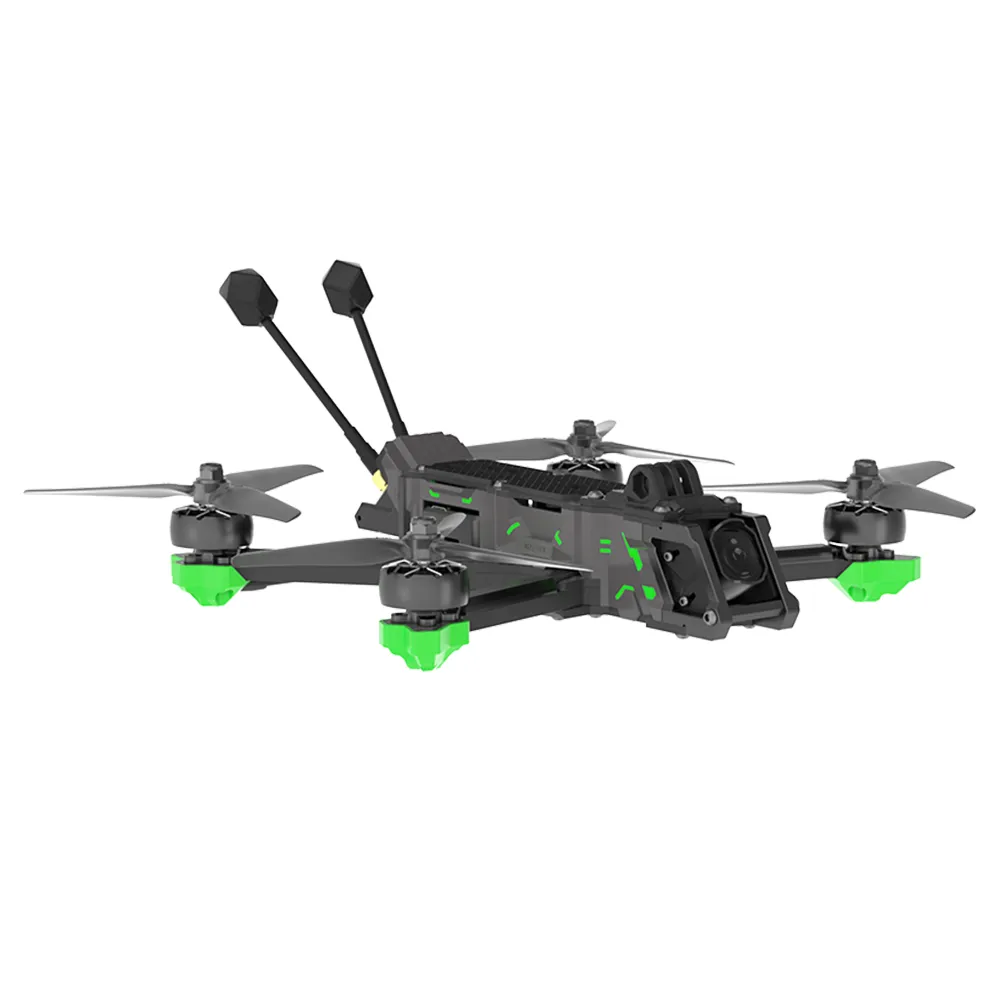

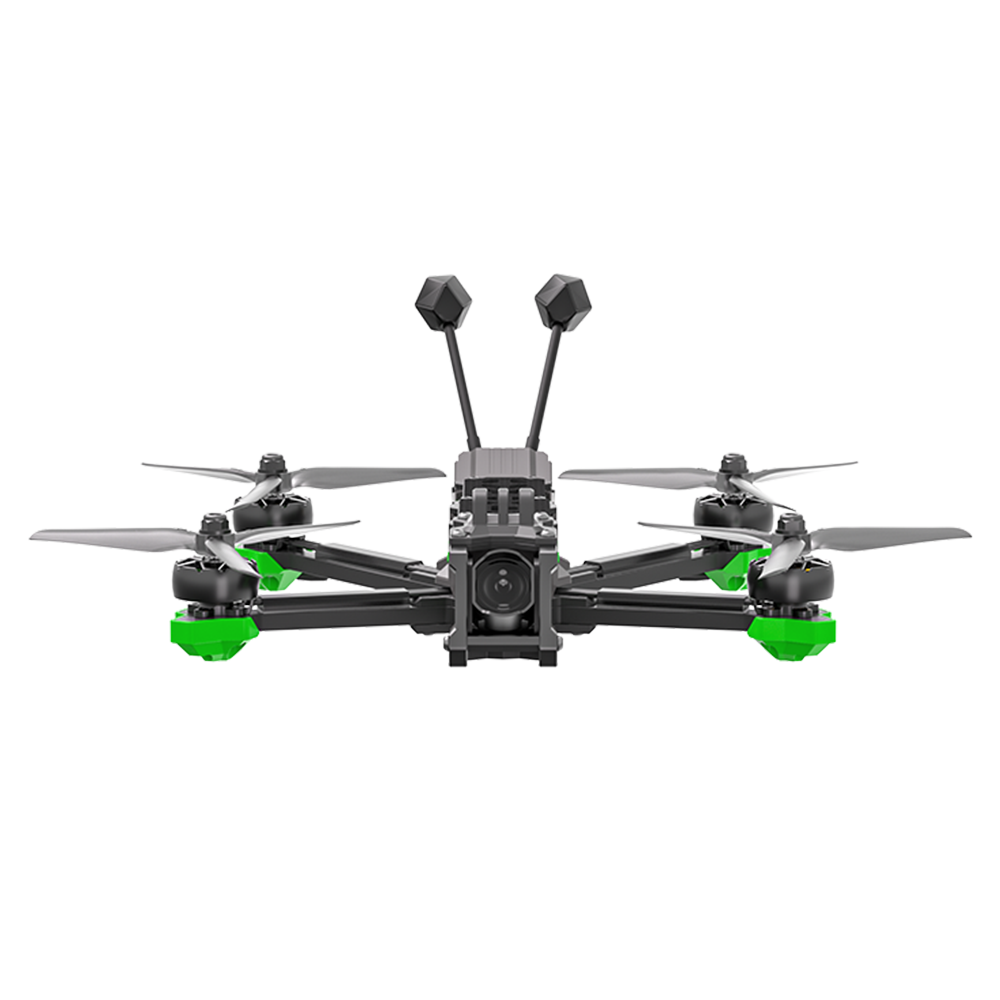

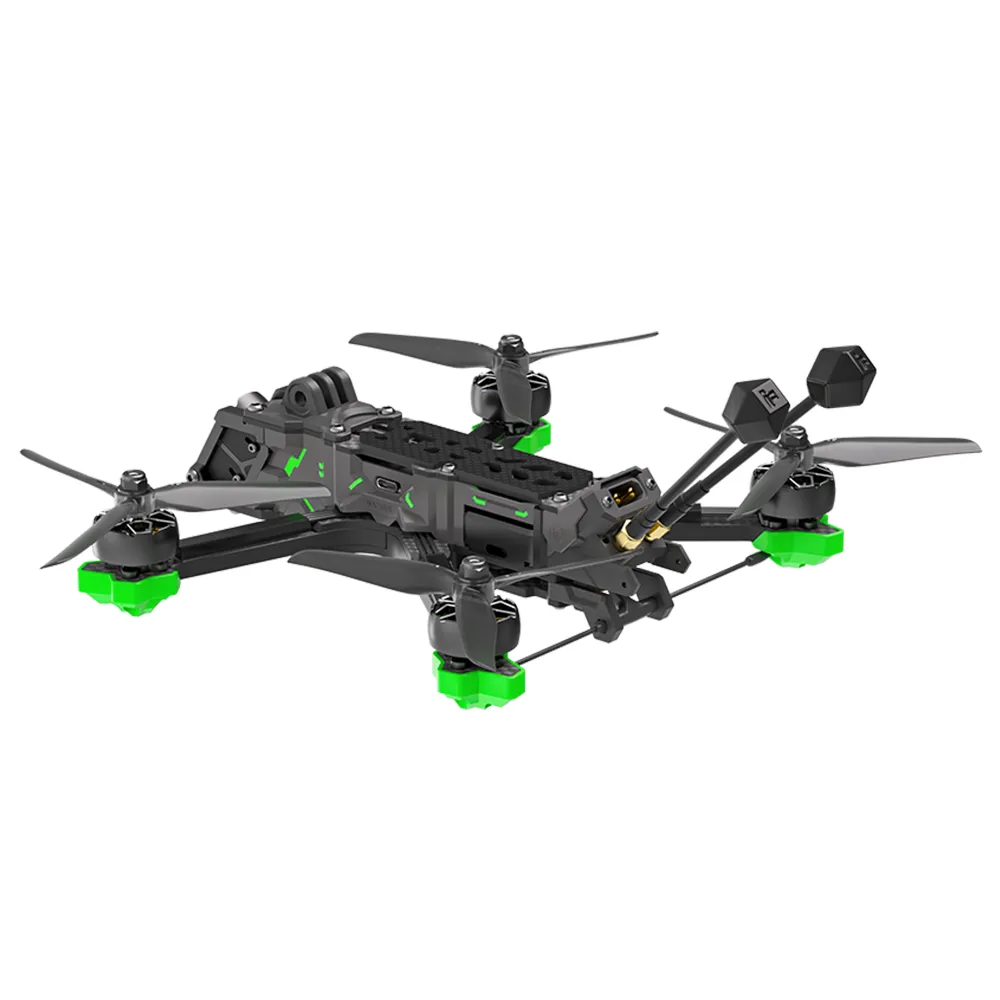

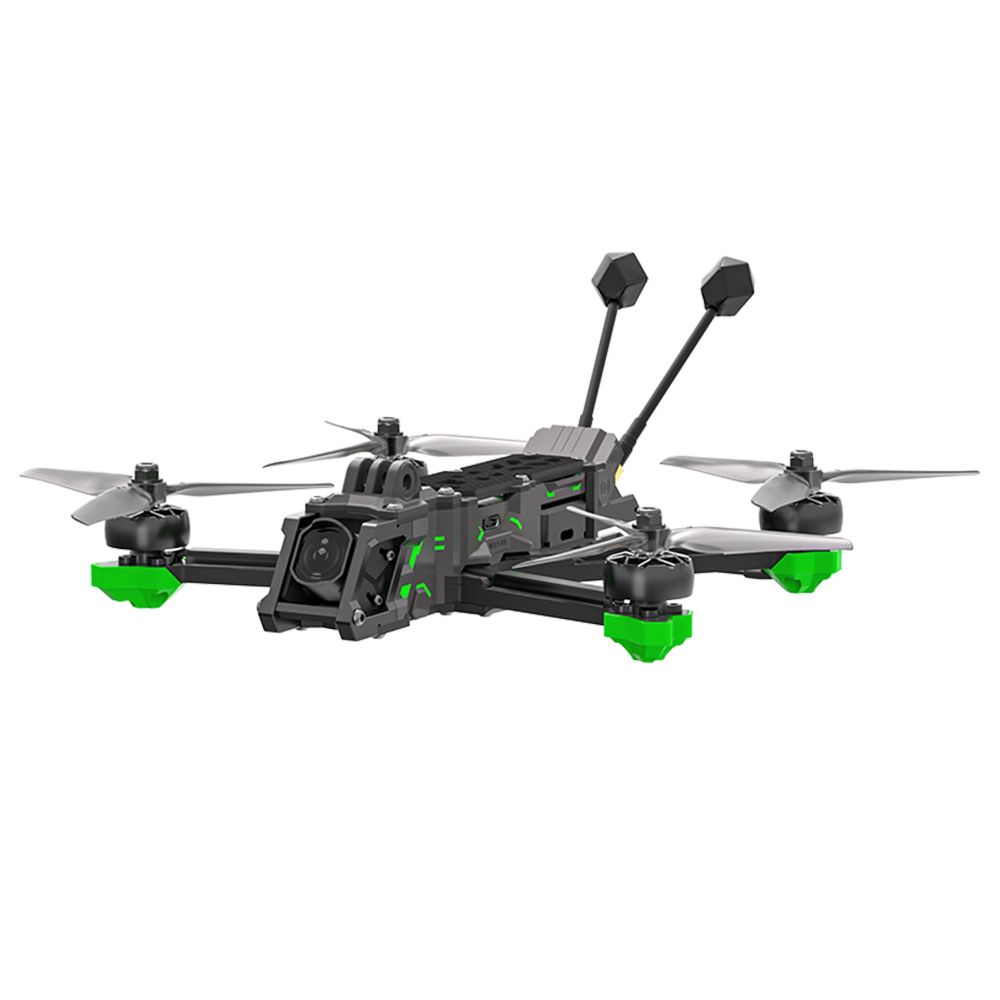

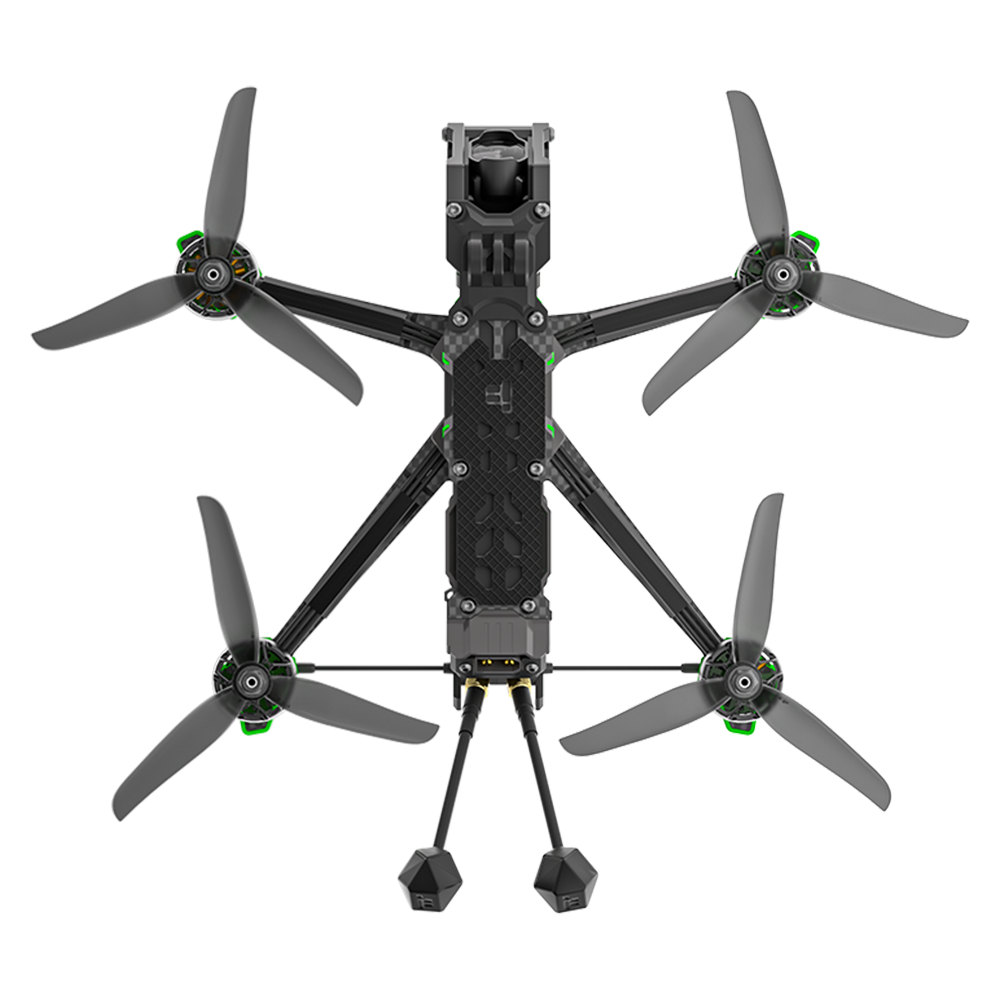

iFlight Nazgul Evoque F5 F5D V2 O4 Pro 6S 5 Inch Freestyle FPV Racing Drones PNP BNF with GPS BLITZ Mini F722 FC HD Digital System

• weight: 485 g

Description:
Experience the next generation of pre-built FPV drones with iFlight's latest offering, setting a new standard in Bind-And-Fly simplicity and performance. This drone integrates DJI's latest O4 Pro Air Unit, featuring an advanced 1.1/1.3-inch image sensor for capturing intricate details even in low-light conditions. Enjoy seamless real-time video transmission at up to 1080p/100fps, ensuring an immersive flying experience. The upgraded frame and electronics not only enhance durability but also provide enthusiasts with top-tier performance right out of the box. Welcome to the future of FPV flight with iFlight – where setup is simple, yet the thrill and capability are unmatched.

Highlights:
Smooth and Powerful XING2 Motors
The latest upgrade of our bestseller XING motors, no compromises taken! Durabl unibell (one-piece bell) technology, strong titanium alloy shaft with reinforced bell joint, crash resistant 7075 aluminum bell, smooth and long-lasting Japanese NSK bearings, center slotted N52H curved arc magnets and our XING O-ring bushing gap protection.

Latest Nazgul Frame for Maximum Protection
The old days are over, getting your electronics full of dirt and wet grass every time you crash. Our latest frame reduces contamination that could build up on your flight controller or ESCs, preventing failure or short circuits. Strategic airflow to keep your components cool and clean without taking any shortcut in weight or performance. Illuminated side panels and 360-degree TPU protective parts.

O4 Video Transmission, Enhanced Perception
DJI O4 video transmission's enhanced stability lets you fully immerse yourself in each flight and provides greater safety. It boasts up to 13 km of maximum video transmission distance, a transmission latency as low as 24 ms, 1080p/100fps high-definition image quality, and a maximum transmission bitrate of 60Mbps. (Source DJI)

4K Stabilized Video with 155° Ultra-Wide Angle
Together with high-grade imaging performance, it delivers exceptional visuals that will keep your audience on the edge of their seats. (Source DJI)

Secured Battery Plug with Anti-Spark Filter
Plugging in a battery can create a loud spark at the connector which is caused by the high battery current rushing into the low ESR capacitor first as well as filling up ESC capacitance. We’ve added a protective circuit to extend the lifespan of XT60 connectors and prevent rapid voltage or current spikes which can protect your electronics from damage.

Specificaiton:
Brand: iFlightModel: Nazgul Evoque F5D V2Product Name: 6S 5 Inch O4 ProFreestyle FPV Drone
FC: BLITZ Mini F722 Flight Controller
ESC: BLITZ Mini E55 4-IN-1 2-6S 55A ESC
Video Transmission: DJI O4 Air Unit
Frame wheelbase: 223±2mm
Motor: XING2 2207 1750KVmotors
Prop: Nazgul F5 propellers
Weight: 436±5g
Takeoff Weight: Approx. 712±10g (With 1480mAh Battery)
Dimensions (L×W×H): 190*136*36±2mm
Max Speed: 190 km/h
Maximum Takeoff Altitude: 3200 m
Maximum Hover Time: Approx. 7.5 mins (No load With 6S 1480mAh)
Maximum Flight Distance: 5 km
Maximum Wind Speed Resistance: Level 7
Operating Temperature Range: -10° to 40° C (14° to 104° F)
Antennas: Dual Antennas
GNSS： GPS+SBAS+Galileo+QZSS+Glonass (Optional)

Video Transmission
Product Name: DJI O4 Air Unit Pro
Image Sensor: 1/1.3-inch
Lens: FOV: 155°
ISO: 100-25600
Video Resolution: 1080p/100fps H.265
Video Format: MP4, Max Video Bitrate: 130Mbps
Color Mode: Normal Mode/D-Log M
Stabilization: RockSteady 3.0+ ; Stabilization function off (When RockSteady is enabled, the shooting angle only supports standard.)
Live View Quality: 1080P@100fps
Operating Frequency: 5.170-5.250 GHz & 5.725-5.850 GHz
Transmitter Power (EIRP): 5.1GHz＜23dBm(CE)/5.8GHz＜33dBm(FCC)/＜14dBm(CE)/＜30dBm(SRRC))
Max Video Transmission Range: With DJI Goggles 3/DJI Goggles N3: 15 km (FCC), 8 km (CE), 8 km (SRRC)
Communication Bandwidth: Max 60 MHz
Antenna: Dual antennas
Built-in Storage: 4GB
Supported SD cards: microSD (up to 512GB)
Operating Temperature: -10° to 40° C
Weight: Air Unit (camera module included): Approx. 32 g
Dimensions: Transmission Module: 33.5×33.5×13 mm (L×W×H)

Compatibility
DJI Goggles 3 / DJI Goggles N3+ DJI FPV Remote Controller 3
DJI Goggles 2 / DJI Goggles Integra+ DJI FPV remote control 2
(Or another Radio to match the RX in the Drone)
The flight control firmware needs to be configured to support the SBUS protocol in order to use the DJI FPV remote controller.

Package Included:
1 x Evoque F5 6S O4 HD BNF/PNP
2 x Antennas
1 x Battery Pad
1 x Propeller(Pairs)
1 x Battery Strap
