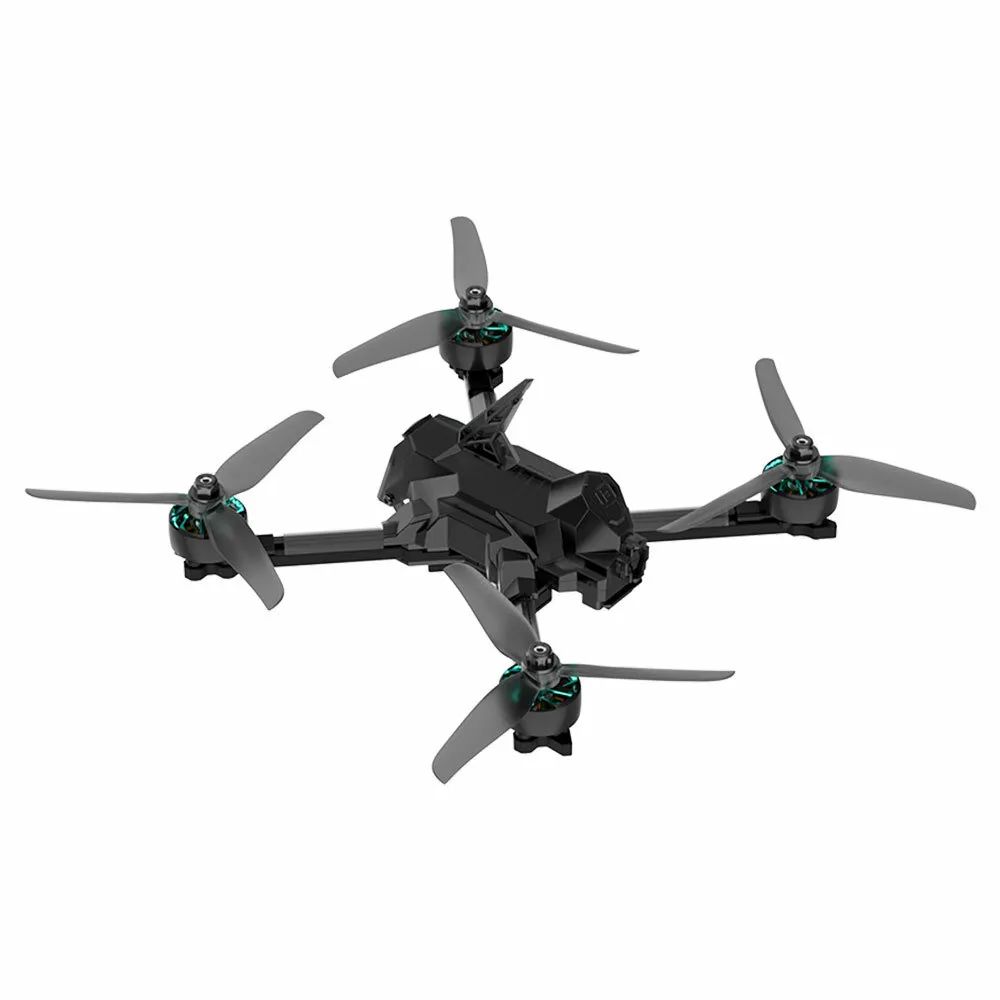

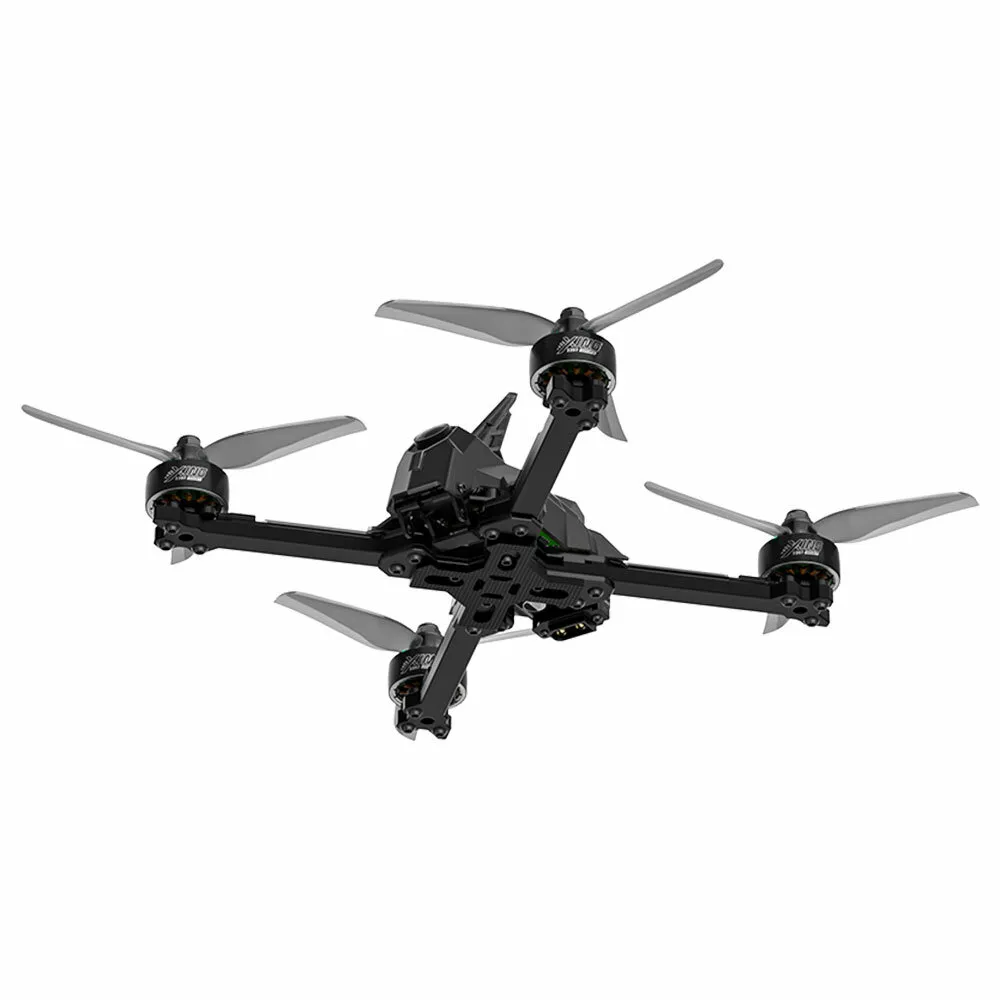

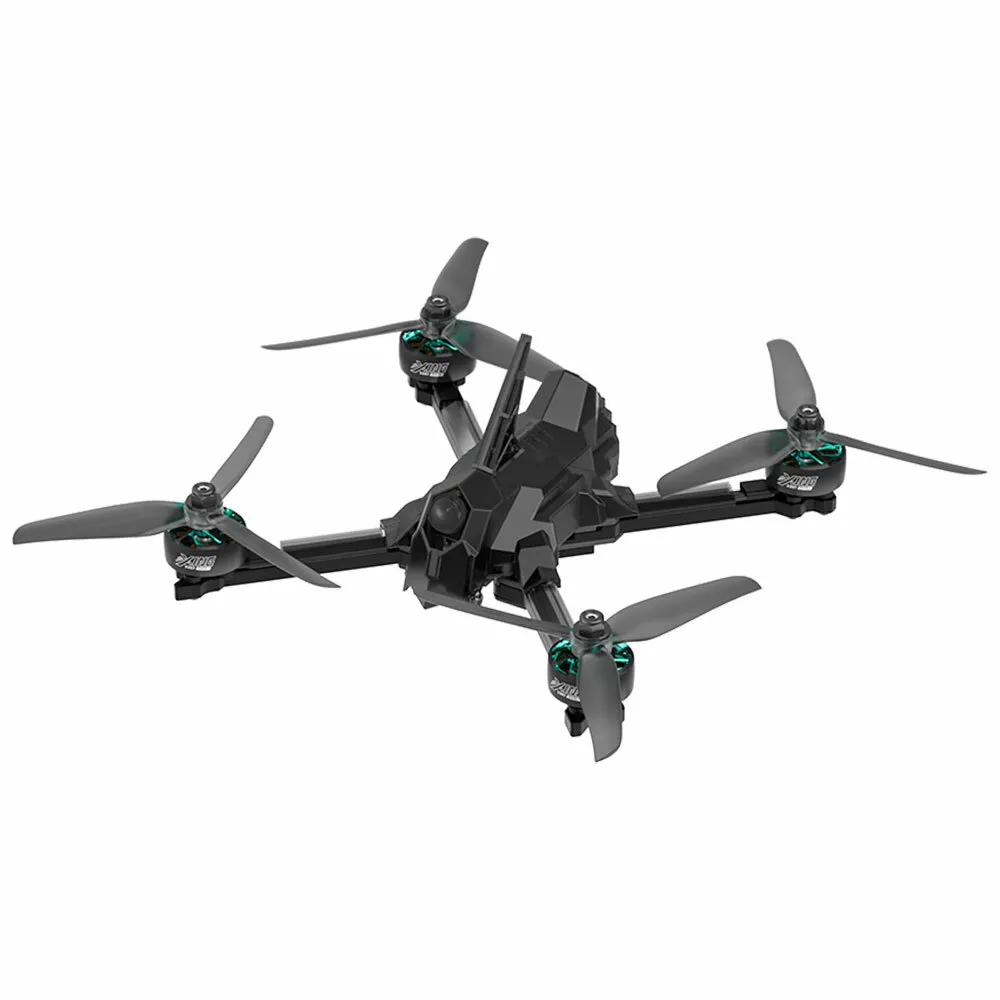

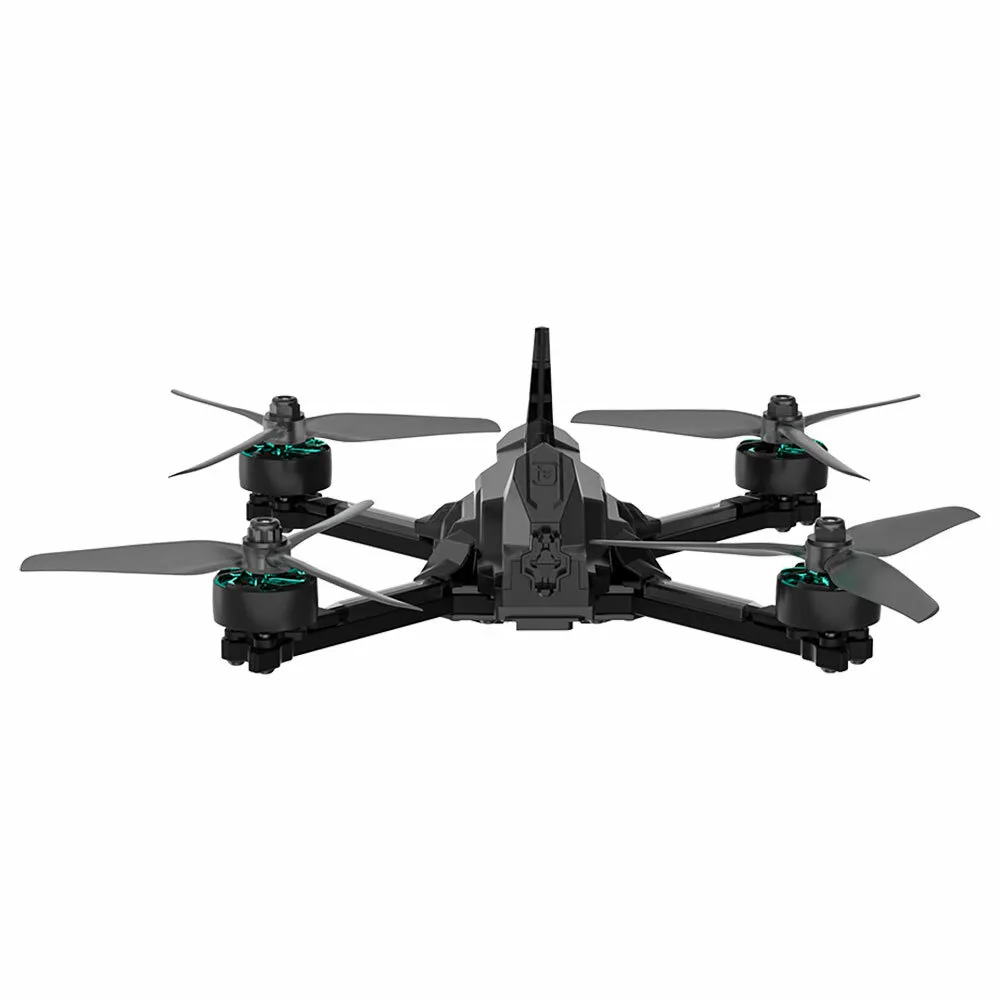

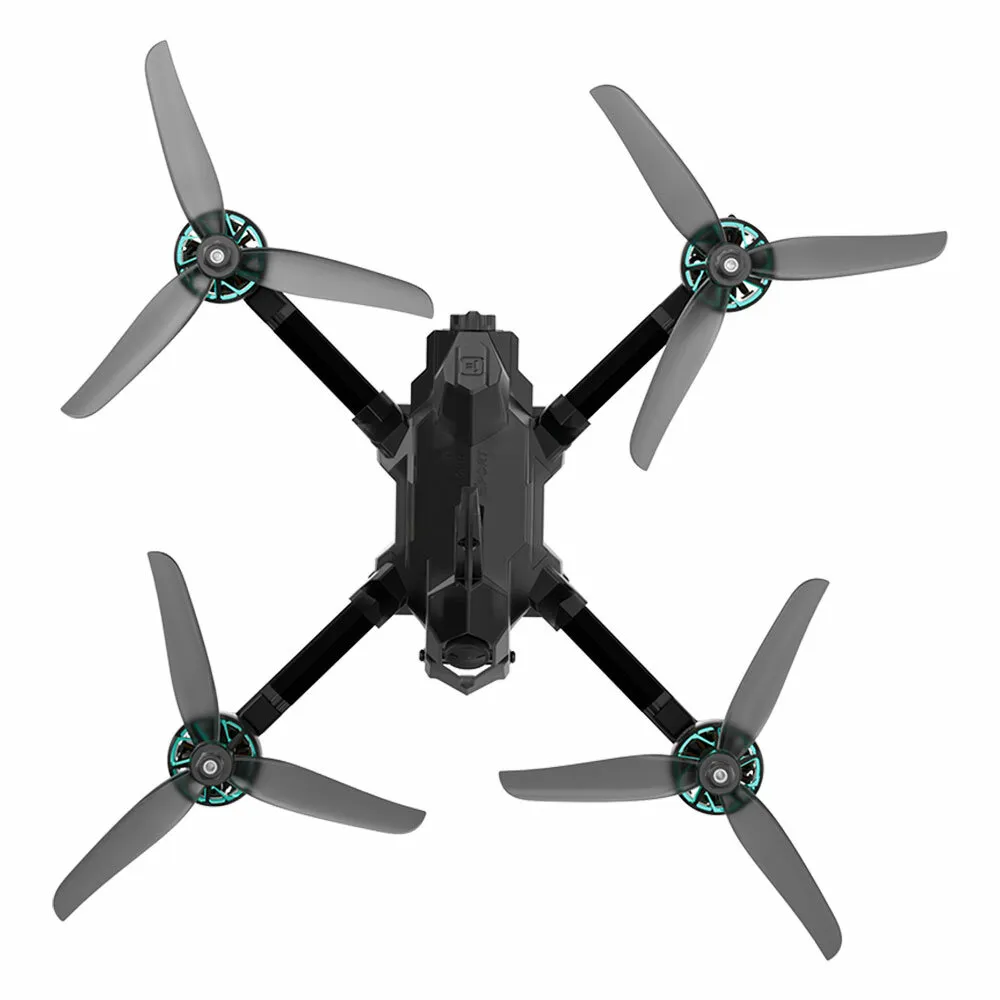

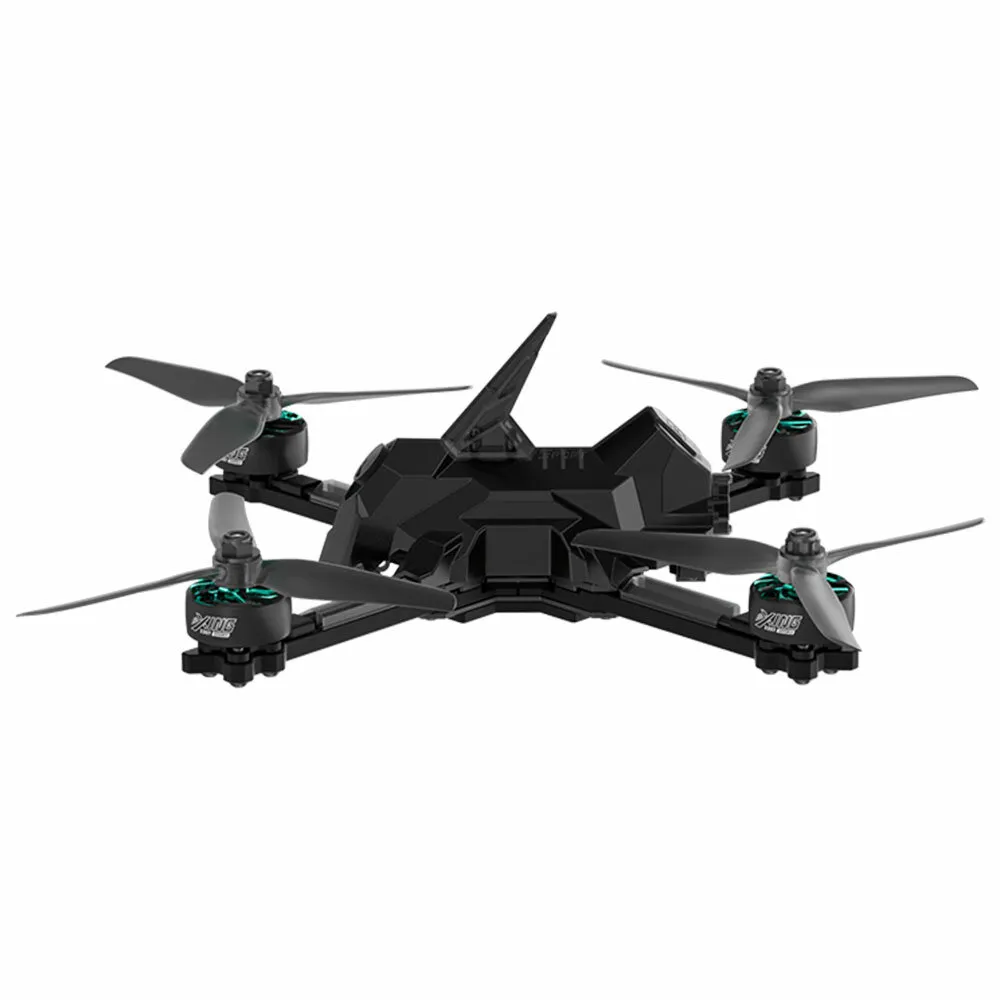

iFlight Mach R5 Sport 6S HDZero 5 Inch FPV Racing Drone PNP BNF with MINI F7 55A ESC HDZero Race V3 Digital HD System

• weight: 485 g

Compatibility:

This version requires the use of the corresponding HDZERO goggles, or the addition of the HDZERO module to Analog goggles.

Not compatible with DJI remote controls and DJI goggles.

Description:

The Mach R5 Sport aims to provide racing pilots a high-quality finished FPV drone while still allowing for DIY customization. By utilizing carbon plates and plastic components, the internal structure layout has been significantly improved. This not only facilitates easy maintenance but also reduces the weight of the drone while enhancing overall stability. The organized space layout guarantees that hardware components can be positioned logically, thus minimizing the risks of damage from crash impacts.

Highlights:

Lightweight and Compact
As a well-built 5-inch drone, the Mach R5 Sport weighs only 300 grams. Its redesigned frame layout ensures precise fitting of all components inside the canopy, maximizing space utilization and overall compactness.

Innovative Quick-Release Aero Sell
The unique canopy is not only engineered with aerodynamics, but also features quick-release buckle for easy replacement and maintenance with just a twist. The shell also helps to shield the electronics from dirt and moisture so you can have more confidence in critical situations.

Convenient User Experience
- Secured battery plug to prevent the power cable from being hit by the propellers, and with built-in antenna to keep everything well protected and enhancing the overall appearance.
- The front-mounted receiver slot simplifies receiver replacement, and the new wire shielding tube design can place LED strips for protection, effectively preventing damage.

DIY customized space
- Standard 20*20 mounting holes, compatible with HDZERO and others VTX.
- Antenna mount can be added with silicone pads, adapting to more regular VTX antennas.
- Canopy cover available in carbon plate with TPU, can be replaced by removing 6 screws.

Specifications:

Product Name: Mach R5 Sport 6S HDZero
FC: BLITZ Mini F722 Flight Controller
ESC: BLITZ E55R 4-IN-1 2-6S 55A ESC
Video Transmission: HDZero Race V3 VTX
Camera: HDZero Nano 90 CAM
Frame: 210mm wheelbase
Motor: R5 2207 2050KV motors
Prop: Nazgul R5 V2 propellers
Weight: 300g
Takeoff Weight: Approx. 525g ( test With 6S 1400mAh battery, not included)
Dimensions (L×W): 148*148*51 mm
Max Speed: 208km/h
Maximum Takeoff Altitude: 6000 m
Max Hover Time: Approx. 12 mins (test With 6S 1400mAh no load, not included)

Max Wind Speed Resistance: Level 6
Operating Temperature Range: -10° to 40° C (14° to 104° F)
Antennas: Single Antenna
GNSS: N/A

Video Transmission:
Product Name: HDZero Race V3 VTX
Antenna Interface: IPEX
Input Volts: 4~12V
Output Power: 25mW、200mW
Frequency: 5.725~5.850GHz
FC protocol: Smart Audio/MSP
Weight: 5.5g
Mounting pattern: 20*20mm M4
Dimensions: 32*28*5mm

Recommend Lipo Battery: ( NOT Included)

TATTU R-LINE 3.0 6S 22.2V 1400mAh 120C 6S1P LiPo Battery XT60 Plug
iFlight Fullsend 22.2V 1400mAh 130C 6S LiPo Battery XT60 Plug

Packing List:
1 x Mach R5 Sport 6S HDZero BNF
1 x Battery strap
2 x R5 Prop(Pairs)
1 x Battery pad
