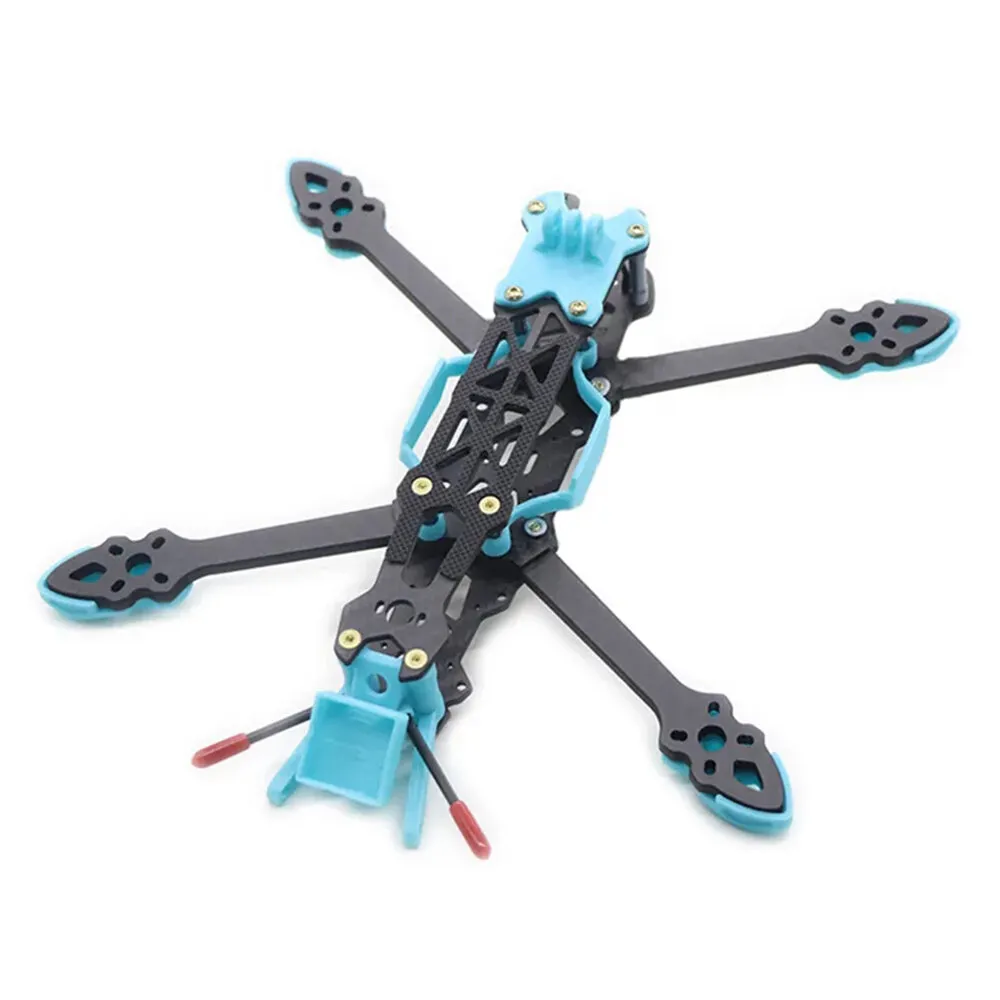

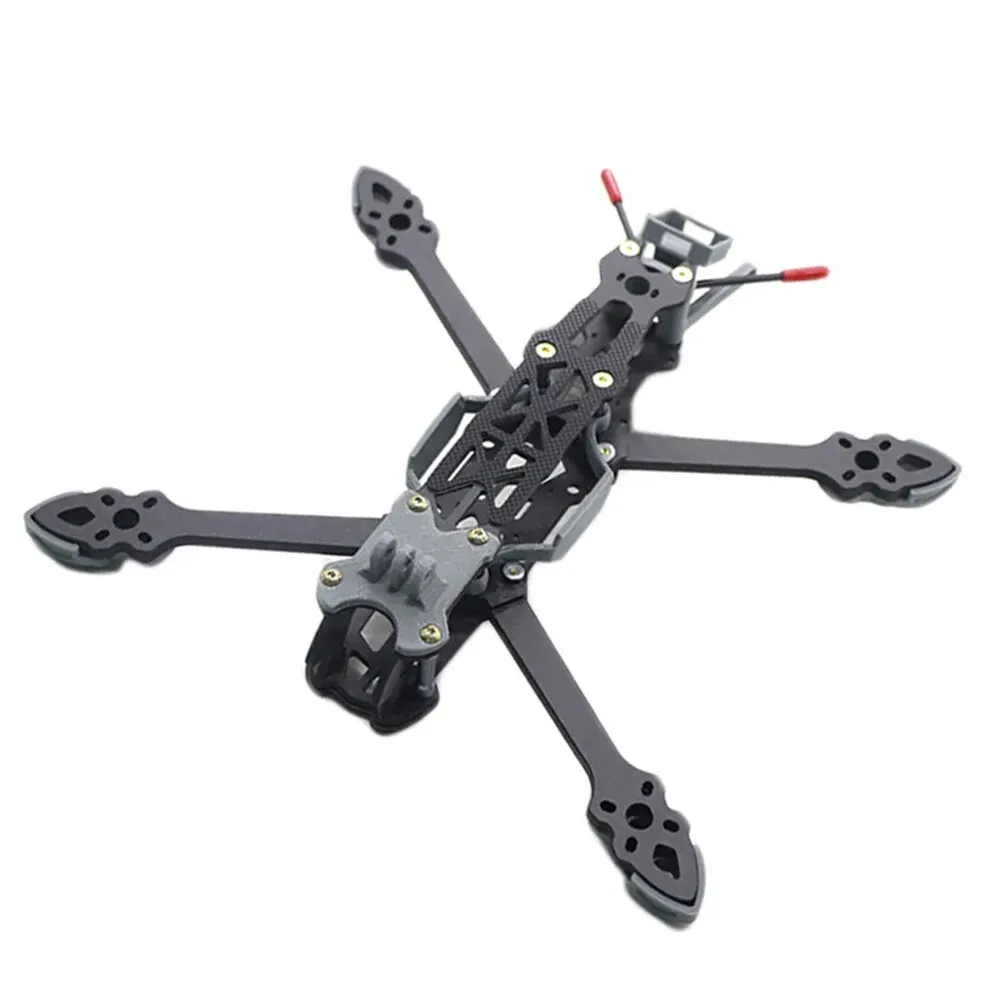

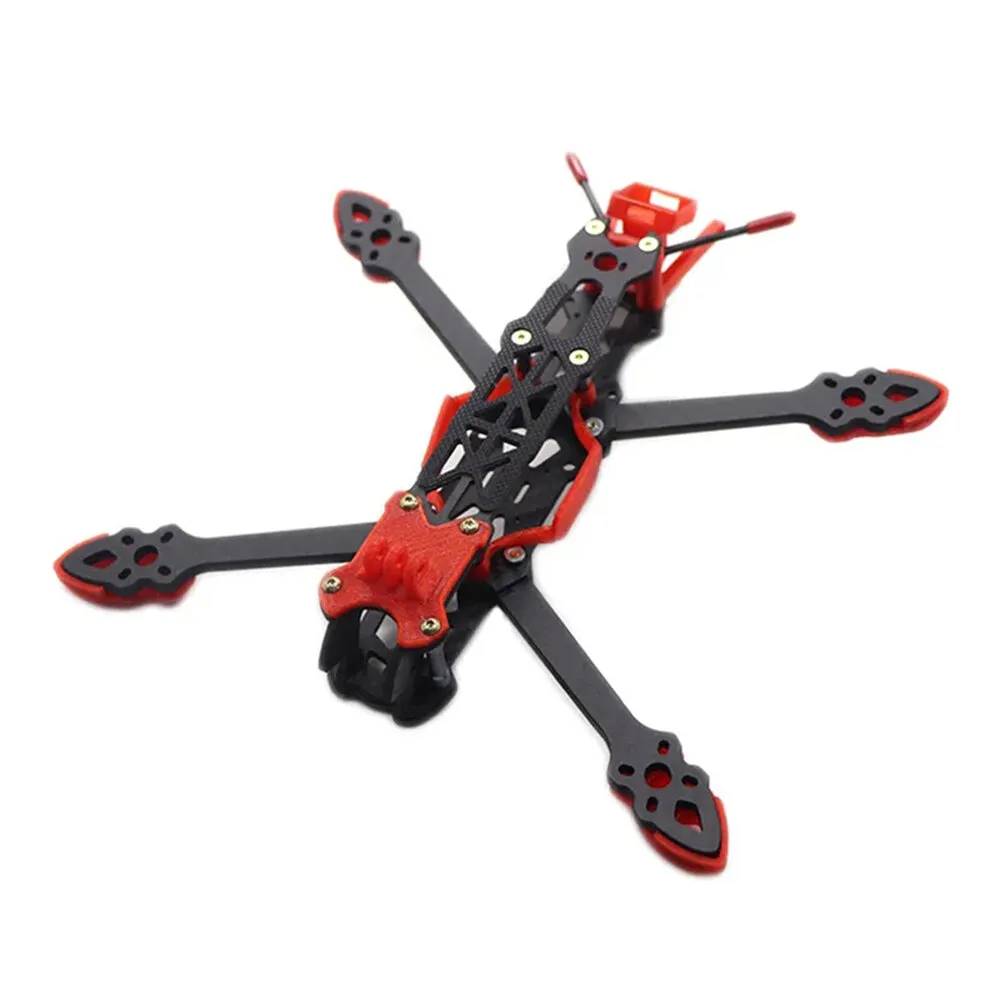

HSKRC MAK6 260mm Wheelbase Carbon Fiber 6 Inch Frame Kits 5mm Arm for DIY Long Range FPV Racing Drone

• weight: 485 g

Notice: Comes unassembled. Need build by buyers.

Specifications:
Brand: HSKRC

Model: MAK6
Color: Red/Grey/Blue
Item name: 260mm Wheelbase Frame Kit
Wheelbase:260mm
Arm thickness: 5MM
Upper center board: 2.5MM
Lower center plate: 2.5MM
Camera protection frame board thickness: 2MM
Plywood thickness: 2MM
Size: 162*203MM
weight: about 120g/130g(3D Prints included)

Recommended configuration(not included):
Flight control: F4/F405/F722
Motor: 2207/2305/2306
ESC: 30A-50A Split/4-in-1
Battery: 4S 1500mAh ~ 6S 1300mAh
Propeller: supports up to 6 inches (6042)

Features:

-Flight is smooth and FPV shooting is easier and more elegant.

-H-shaped structure does not affect the flying experience at all. On the contrary, compared with the X-shaped structure, the arm is shorter and lighter. At the same time, the arm strength is higher.

-The H-shaped layout has more installation space in the middle section of the cabin and a lower center of gravity, making the flight more stable.

-The installation size of the FPV lens is 19mm wide, suitable for micro lenses such as Flathead Brother 2, Raze micro/Toothless micro.

-Flight control installation positions with two hole spacings of 30.5*30.5 and 20*20 are reserved at the front and rear of the cabin. Suitable for the installation of a variety of flight control equipment.

-Fixed motor mounting hole spacing: 16*16/16*19/19*19mm are compatible.

-The corners of the entire machine are chamfered to create a fine workmanship and reasonable structure. Of course, there are also customized thickened aluminum tubes to ensure the strength of the frame.

Package Included:
1x Frame Kit
