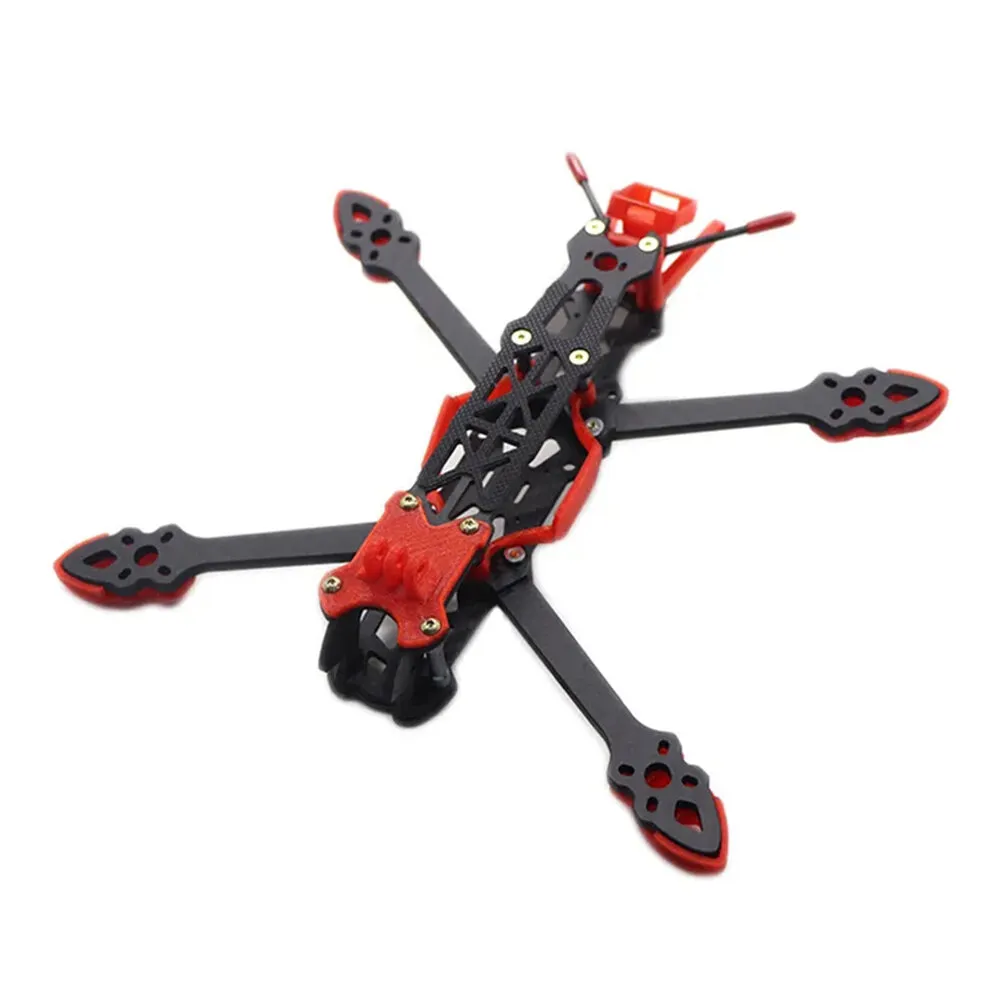

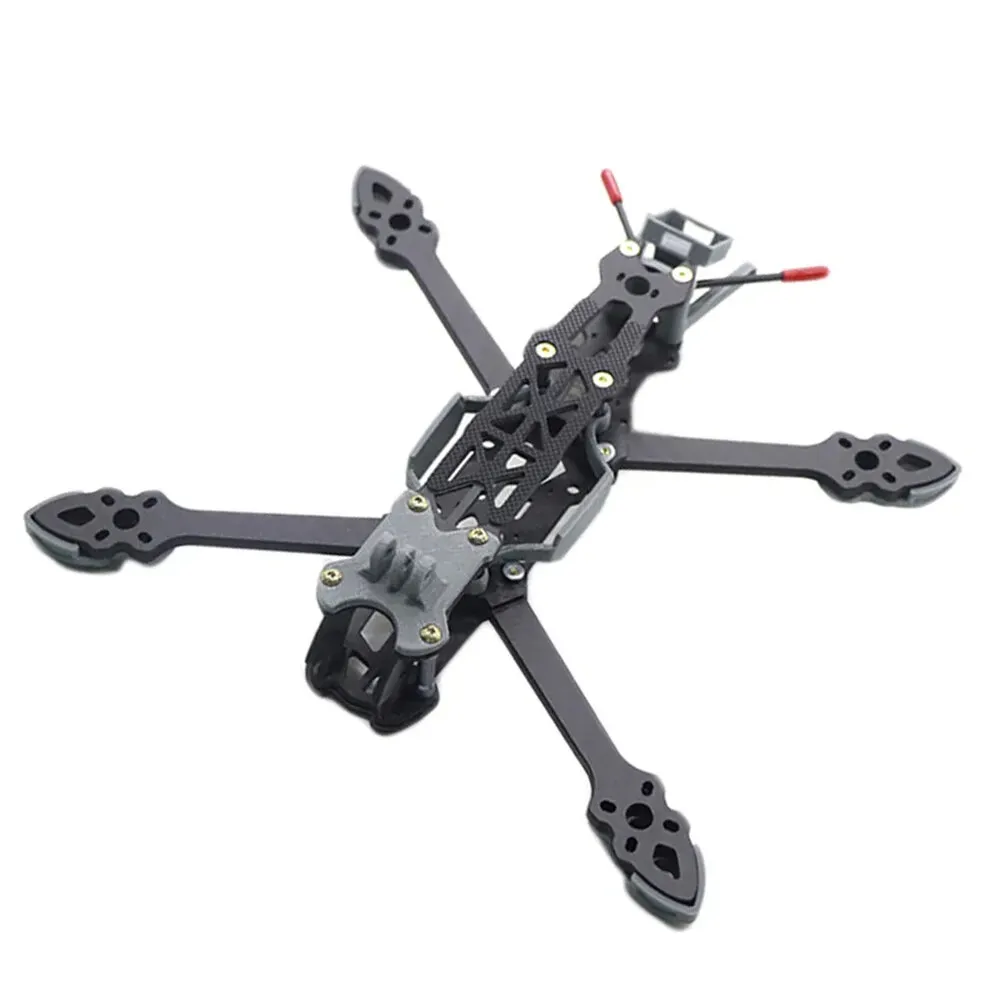

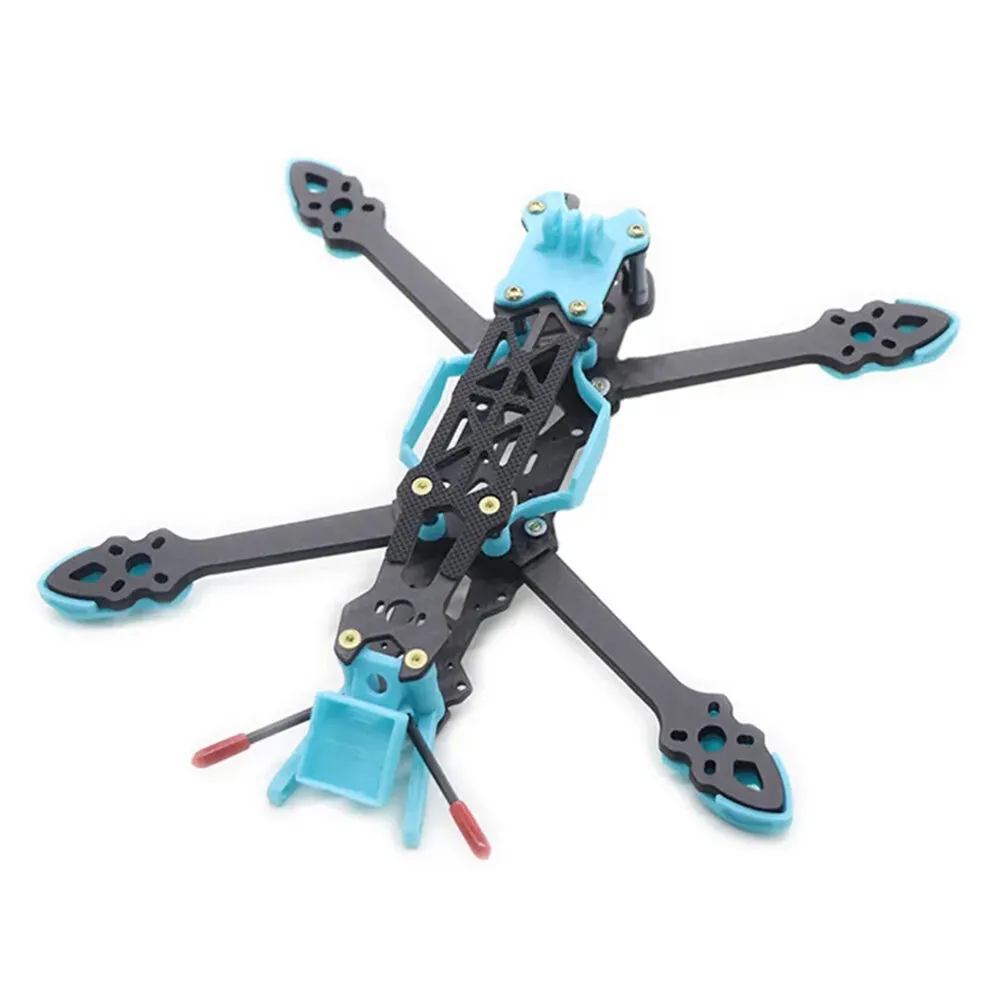

HSKRC MAK4 7 Inch 295mm Carbon Fiber Frame Kit 5mm Arm Thickness for DIY Long Range RC FPV Racing Drone

• weight: 485 g

Notice: It is Empty Frame. Comes unassembled. Need build by buyers.

Specifications:
Brand name: HSKRC

Model: MAK4

Item name: 295mm wheelbase Carbon Fiber Frame Kit
Color: Red/Grey/Blue
Wheelbase:295mm
Arm thickness: 5MM
Upper center board: 2.5MM
Lower center plate: 2.5MM

Camera Mount Width: 19mm
Camera protection frame board thickness: 2MM
Plywood thickness: 2MM
Size: 193*223MM
weight: about 128g

Recommended configuration(not included):
Flight control: 20x20mm 30.5x30.5mm F4/F405/F722
Motor:2306/2806.5/2806
ESC: 35A-60A Split/4-in-1
Battery: 4S 1800mAh ~ 6S 2200mAh
Propeller: supports up to 7 inches (7040)

GPS: BN220 (22x20x6mm)

The following Parts are compatible:( NOT Included)

Features:

-Flight is smooth and FPV shooting is easier and more elegant.

-H-shaped structure does not affect the flying experience at all. On the contrary, compared with the X-shaped structure, the arm is shorter and lighter. At the same time, the arm strength is higher.

-The H-shaped layout has more installation space in the middle section of the cabin and a lower center of gravity, making the flight more stable.

-The installation size of the FPV lens is 19mm wide

-Flight control installation positions with two hole spacings of 30.5*30.5 and 20*20 are reserved at the front and rear of the cabin. Suitable for the installation of a variety of flight control equipment.

-Fixed motor mounting hole spacing: 16*16/16*19/19*19mm are compatible.

-The corners of the entire machine are chamfered to create a fine workmanship and reasonable structure. Of course, there are also customized thickened aluminum tubes to ensure the strength of the frame.

Package Included:
1x Frame Kit

1x Set of 3D Printed Parts
