Holybro Micro M10 GPS Module with IST8310 Compass 4.7-5.2V Ceramic Patch Antenna for RC Drone FPV Racing Helicopter Airplane

• weight: 485 g

Introduction:

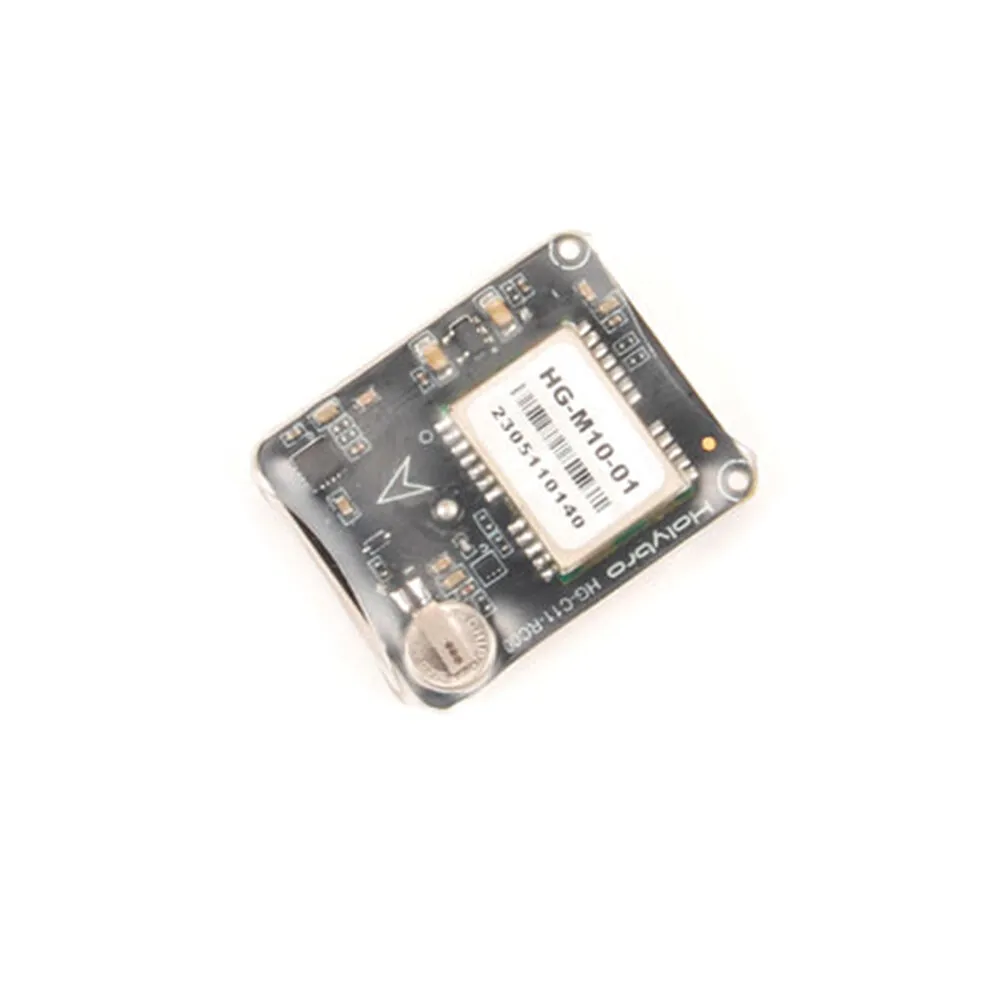

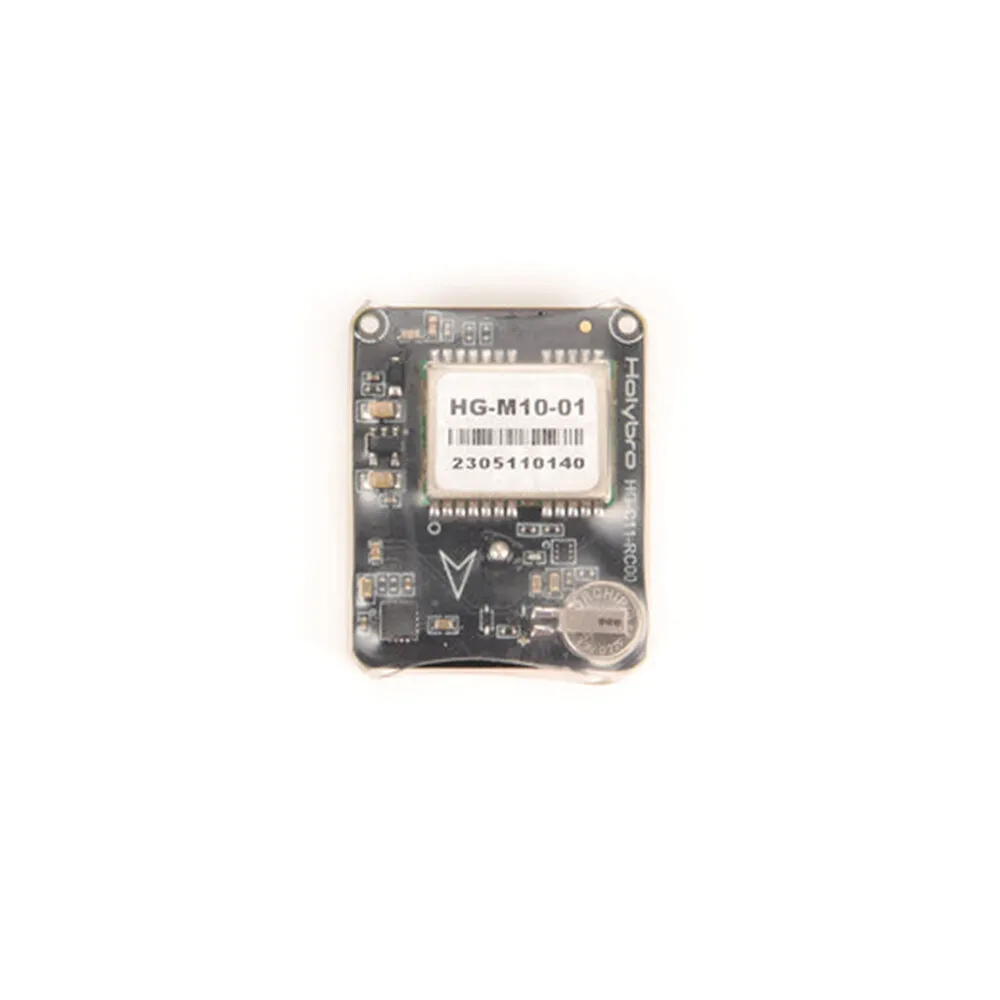

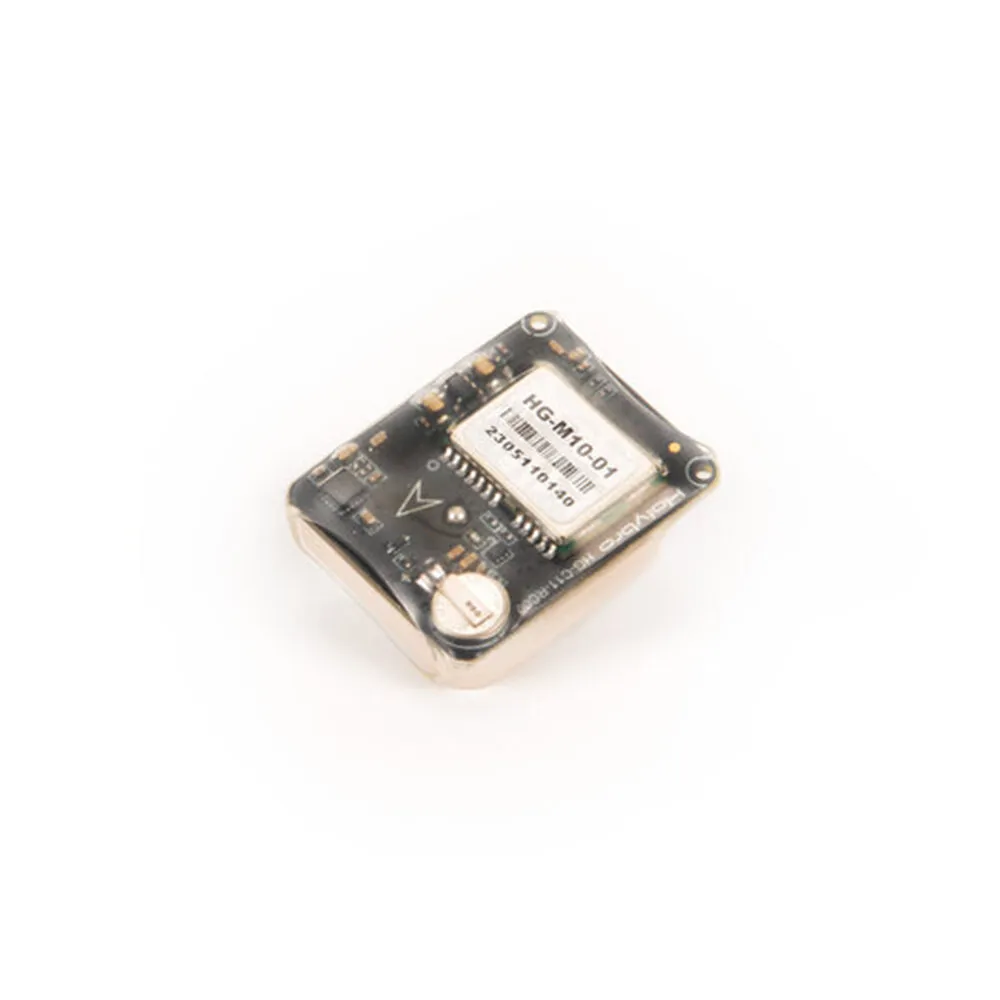

This new design incorporates the Ublox latest 10 Generation GNSS Chip and IST8310 digital compass, providing a convenient method of mounting the compass away from sources of interference that may be present in the confines of the vehicle. It features active circuitry for the ceramic patch antenna, rechargeable backup battery for warm starts.

Specification:
GNSS Receiver: Ublox M10 Receiver
Number of Concurrent GNSS: Up to 4 GNSS (BeiDou, Galileo, GLONASS, GPS, QZSS)
Compass: IST8310
Frequency Band: GPS L1, Galileo E1, GLONASS L1, BeiDou B1, SBAS L1, QZSS L1
Output Protocol: UBX (U-blox), NMEA
Nav. Update Rate: Up to 25 Hz (single GNSS), Up to 10 Hz (4 concurrent GNSS)
GNSS Augmentation System: SBAS: WAAS, EGNOS, MSAS, QZSS: L1S (SLAS)
Default Baud Rate: 38400
Input Voltage: 4.7-5.2V
Accuracy: 1.5m
Speed Accuracy: 0.05 m/s
Port Type: JST-GH-6P

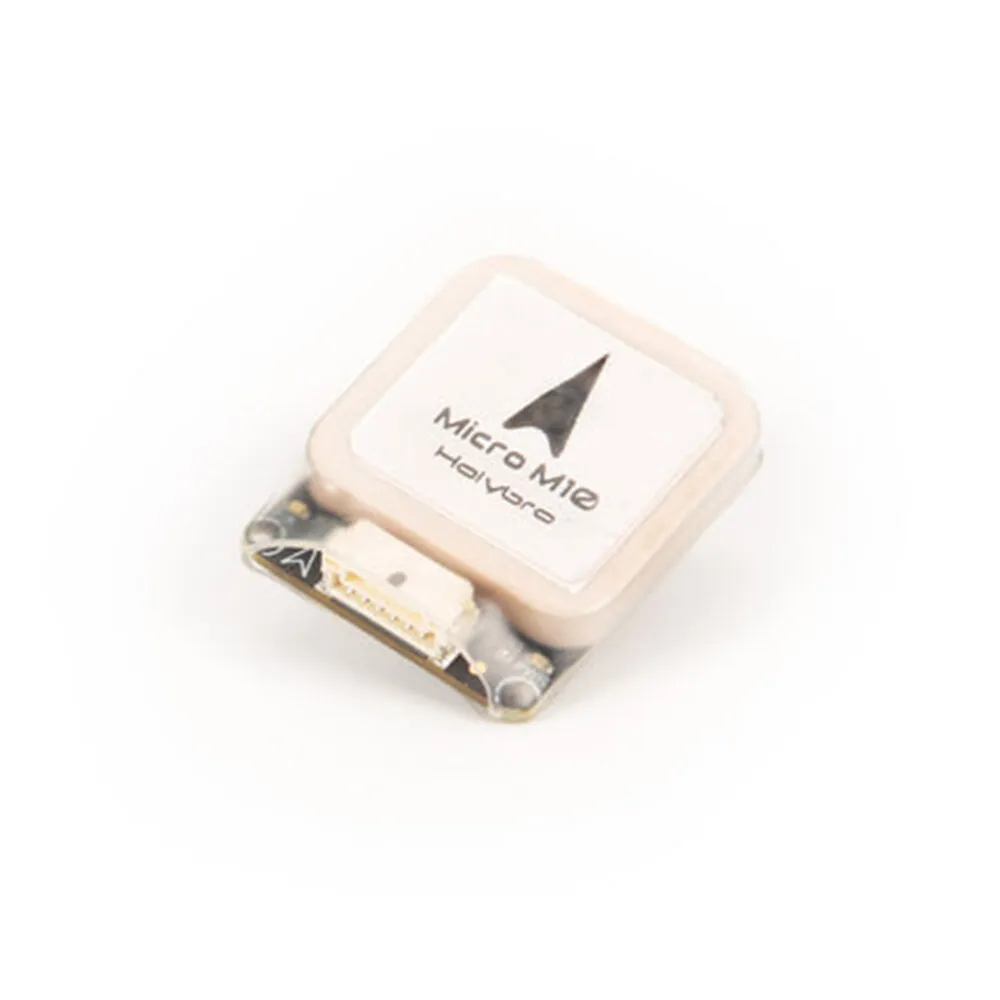

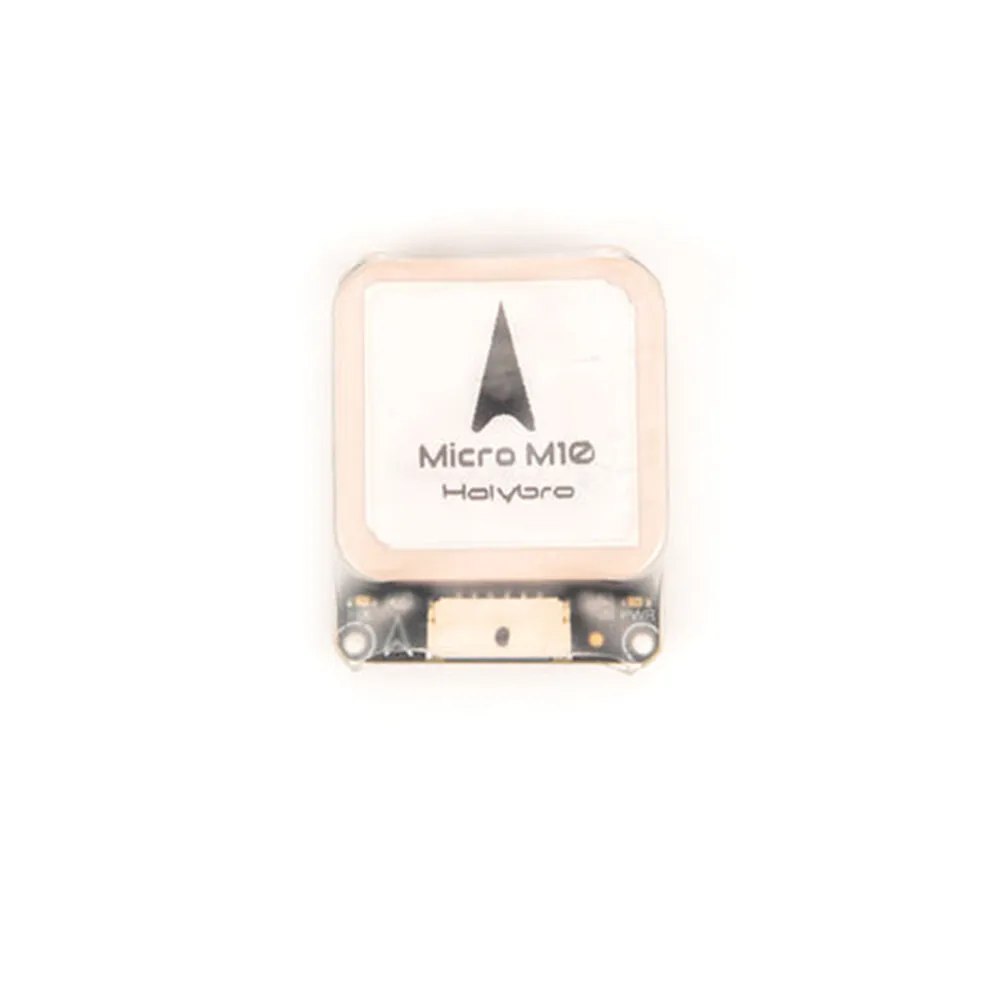

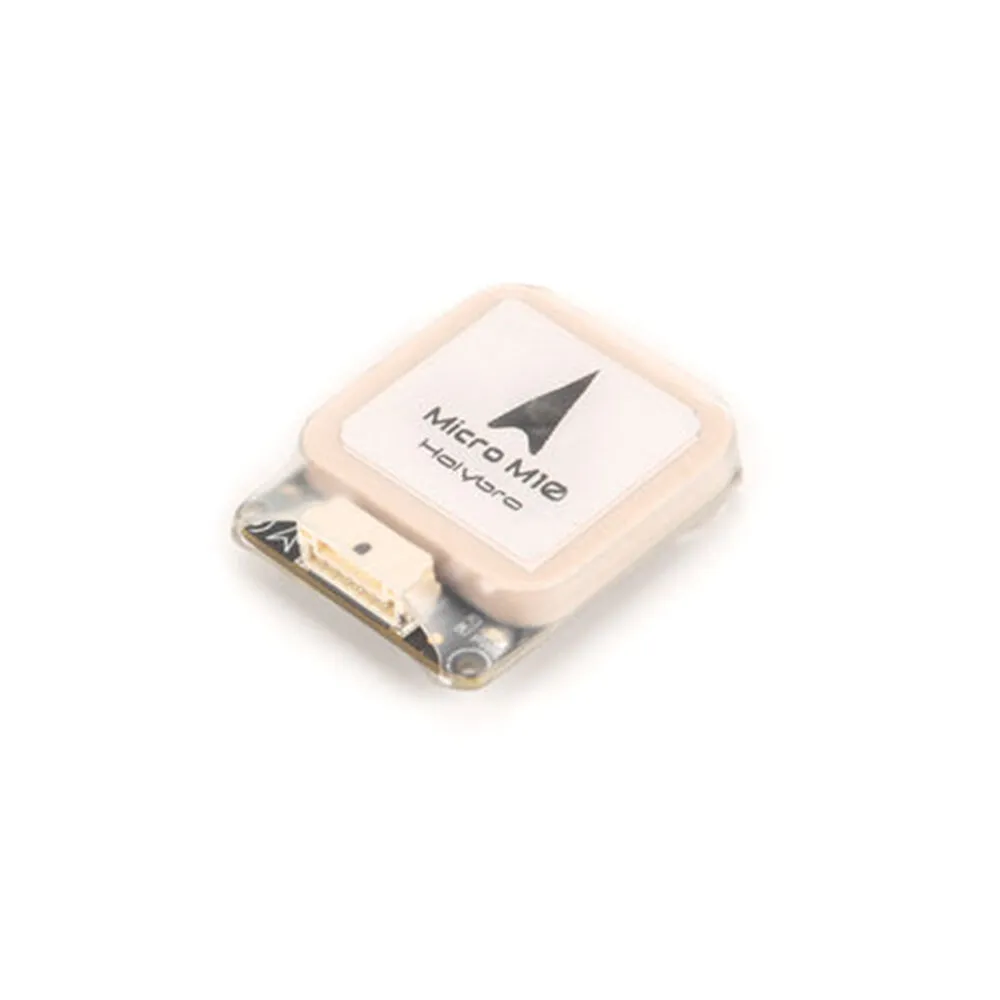

Antenna: 25 x 25 x 4 mm ceramic patch antenna
Power consumption: Less than 200mA @ 5V
Operating Temperature: -40~80C
Dimension: 32 x 26 x 9mm

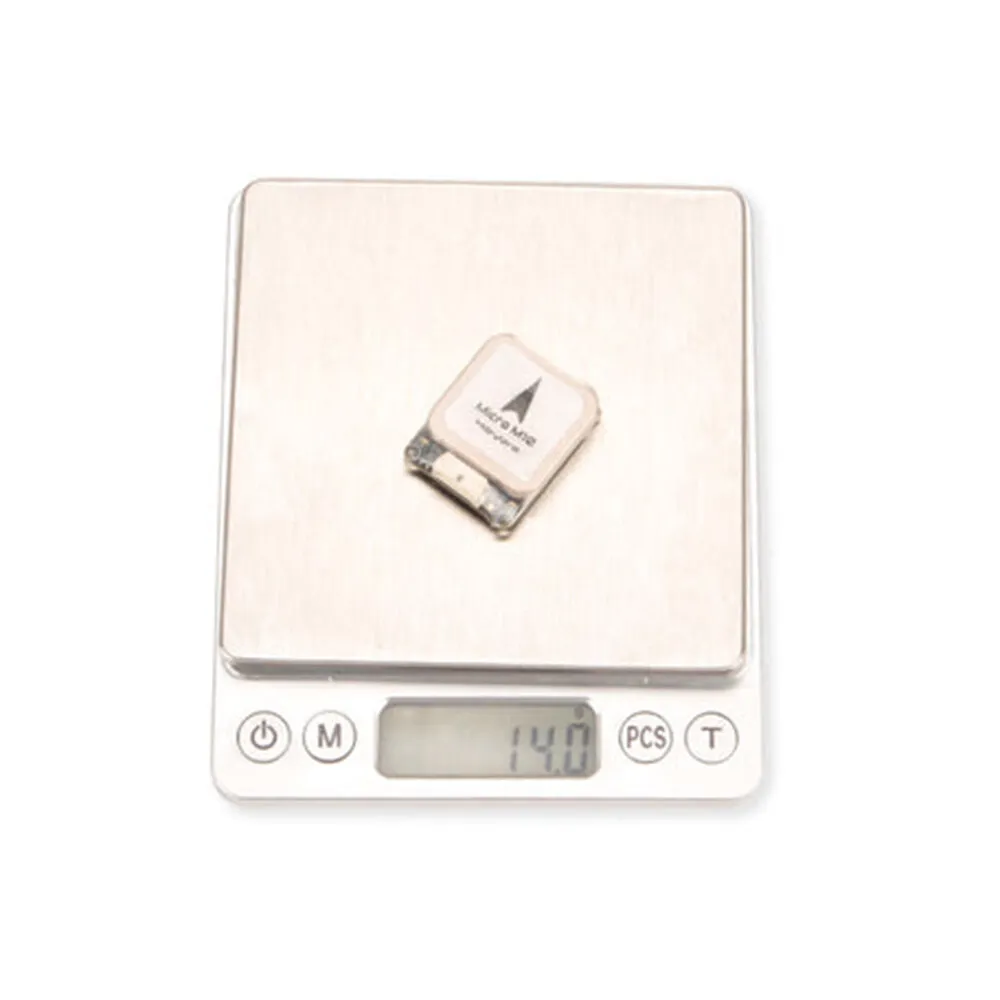

Weight: 14g

Features:

Advanced GNSS Receiver: Featuring Ublox's 10th Gen GNSS chip, the Holybro Micro M10 GPS Module offers exceptional accuracy and reliability by supporting up to four global navigation satellte systems concurrently.

Integrated IST8310 Compass: The included compass provides precise orientation data, ensuring the highest level of navigation accuracy for your vehicle.

High Update Rate: With an update rate of up to 25 Hz for single GNSS and up to 10 Hz for 4 concurrent GNSS, you can rely on real-time, accurate positioning data.

Compact and Efficient Design: Despite its small size and low power consumption of less than 200mA @ 5V, this GPS module delivers robust performance, making it a great fit for any setup.

Ready to Use Package: The Holybro Micro M10 GPS Module comes complete with a 15 cm JST GH 6 Position Connector and a 15 cm JST-GH 6pin Colored Silicon Cable, providing everything you need to enhance your navigation system.

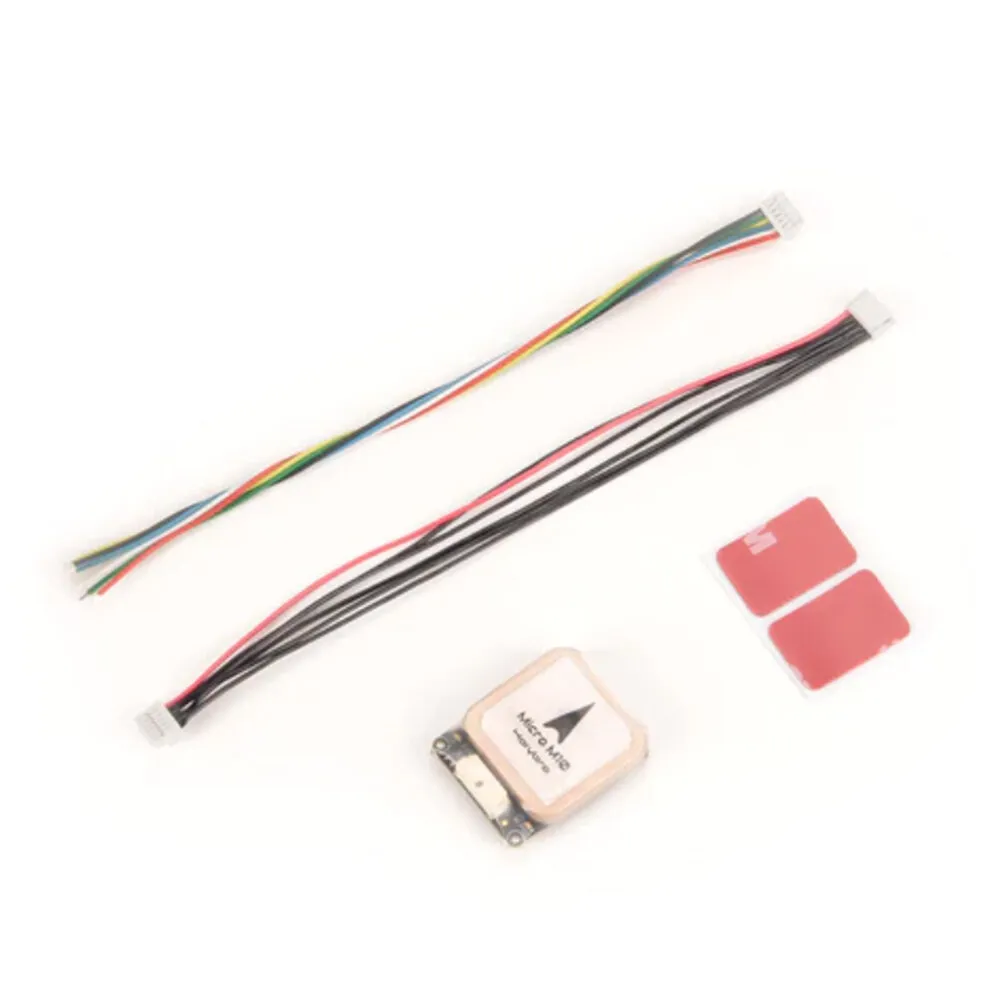

Package Included:

1x Micro GPS Module
1x JST GH 6 Position Connector (15 cm)
1x JST-GH 6pin Colored Silicon Cable (15 cm)
