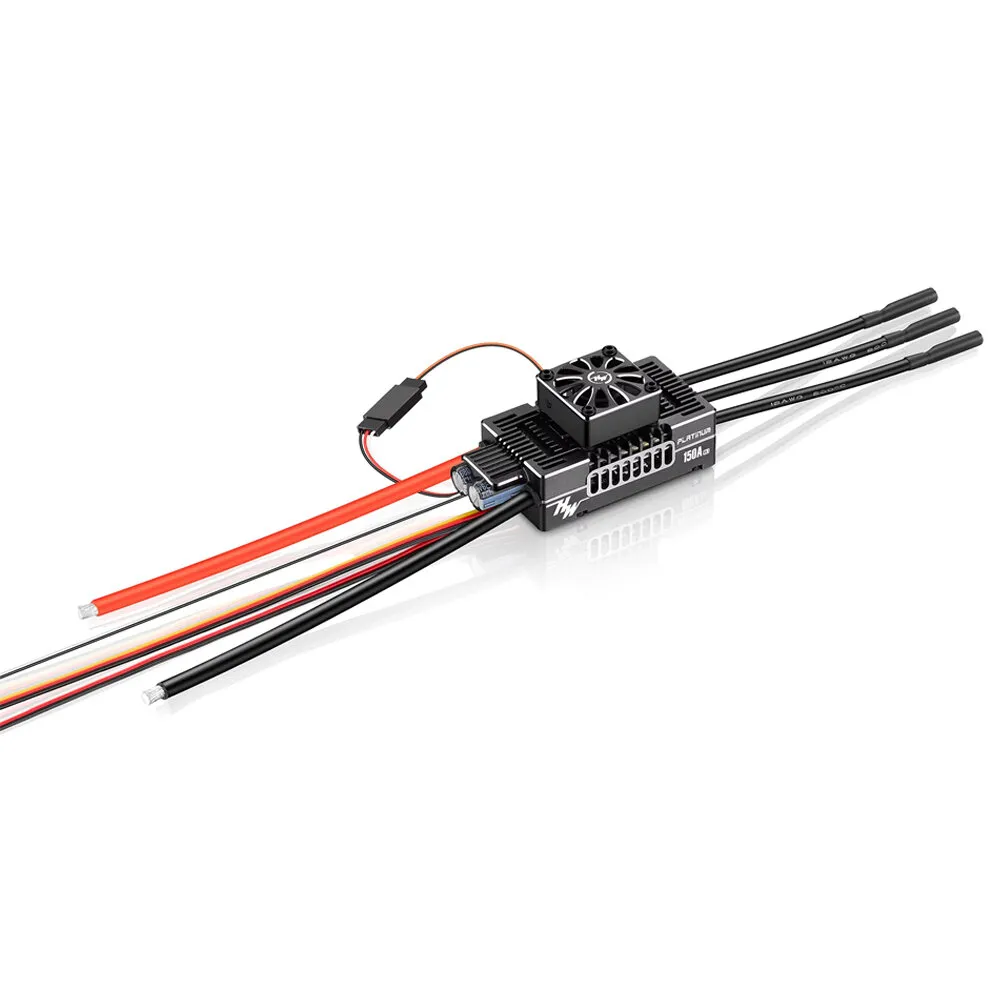

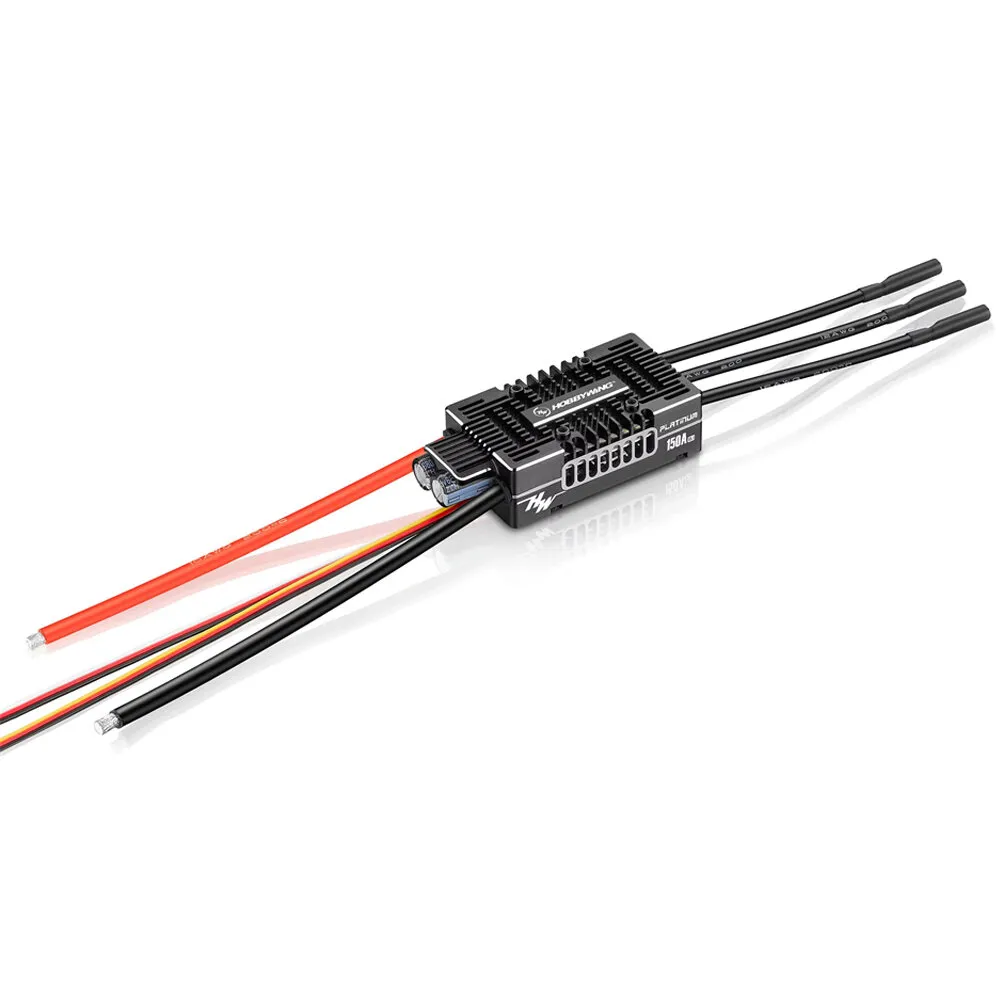

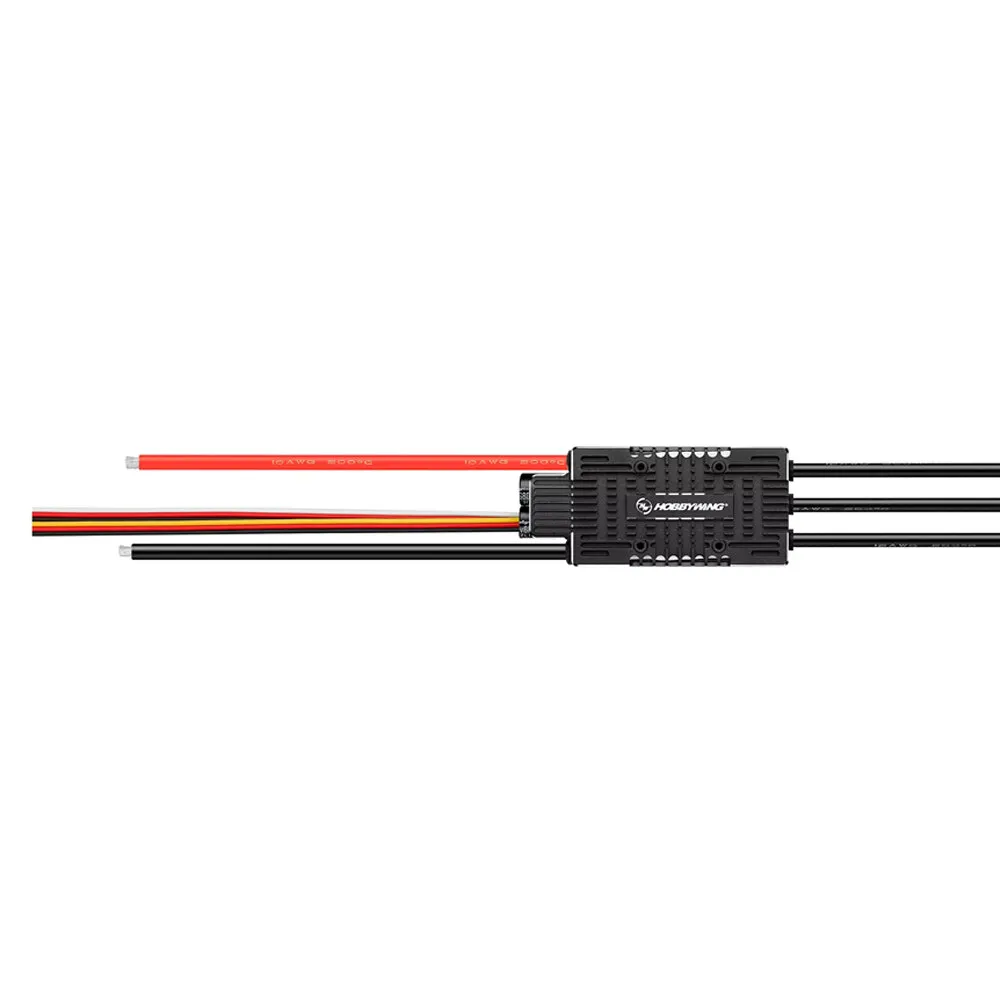

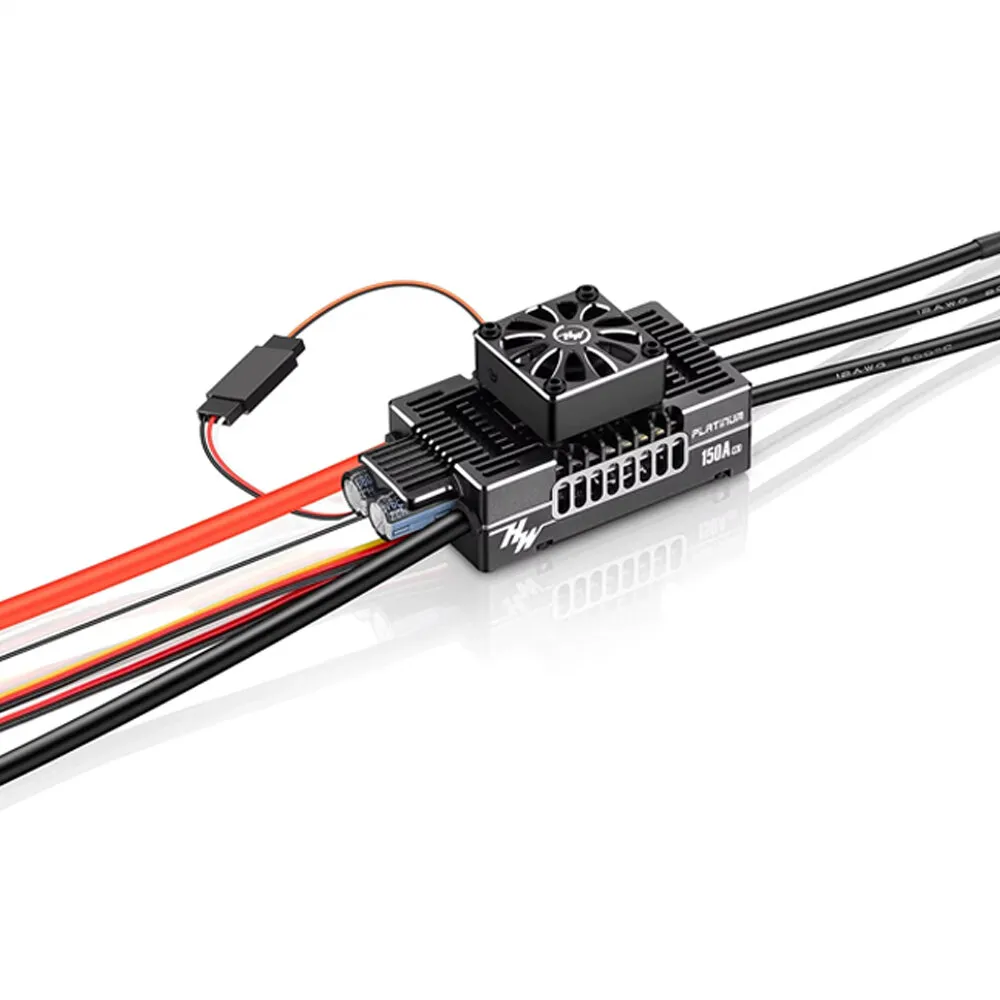

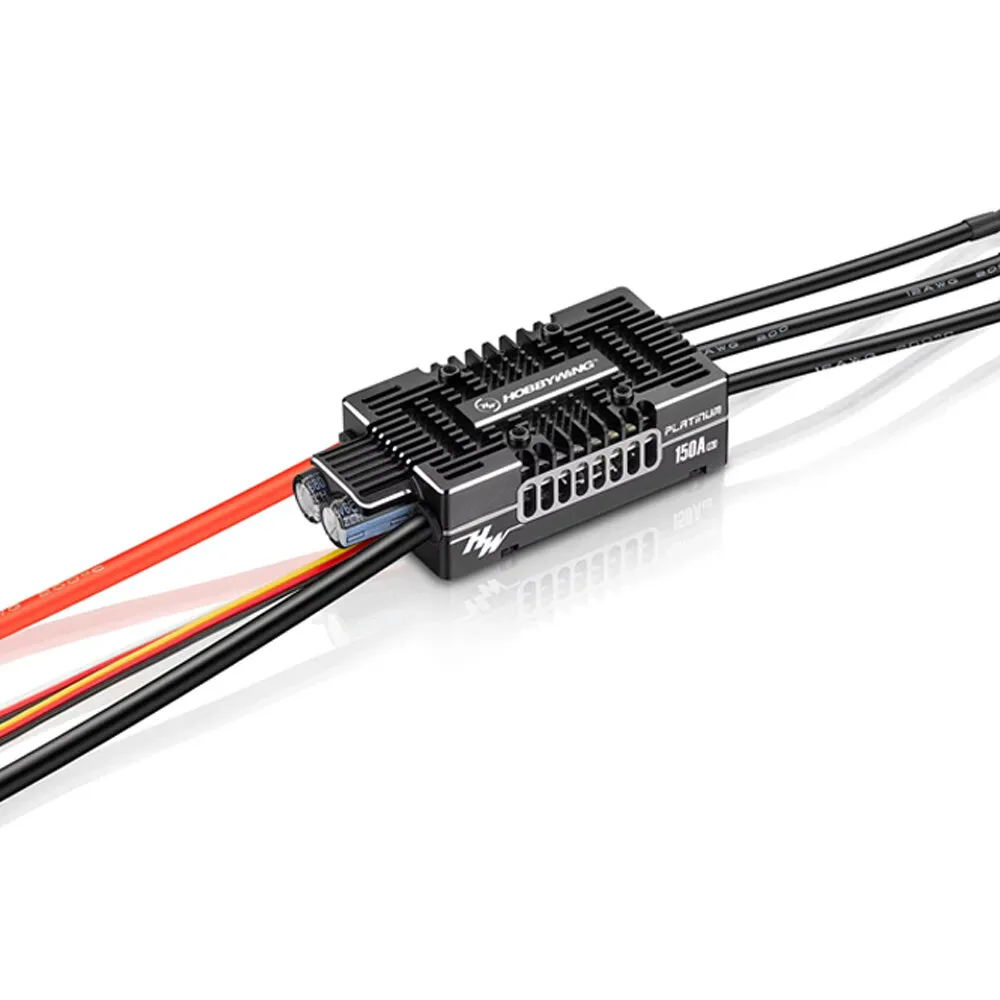

Hobbywing Platinum HV 150A V5.1 3-8S Switchable 5-8V 10A BEC Brushless ESC Speed Controller For 520-580 Class Electric RC Helicopter

Product Name

Platinum 150A V5.1 ESC

Product Number

30203501

Type

Brushed/Brushless: BL

High Voltage/Regular: Regular

Specifications

Cont./Peak Current: 150A/180A

Input Voltage: 3-8S Lipo

BEC Output: Switch Mode:5-12V & Cont. 10A，Peak 30A

Wires & Connectors

Input Wires:Red-10AWG-150mm*1/Black-10AWG-150mm*1

Output Wires:Black-12AWG-100mm*3

Input Connectors : No

Output Connectors: 4.0mm Gold Connectors (Female)

ESC Programing via

Transmitter: Not Support

LED Program Card: Not Support

LED Program Box: Not Support

LCD Program Box: Supported

OTA Programmer: Supported

Program Port: Separate Program Port

Firmware

Firmware Upgrade: Supported

Telemetry Function

Mikado VBar；Futabas S.Bus2；etc.

Size & Weight

Size: 83.2*37.1*22.5mm (without fan)

Weight: 150.4g (with wires, no fan)

Application

520-580 class electric helicopter (main blade length 520-580mm),or fixed-wing
