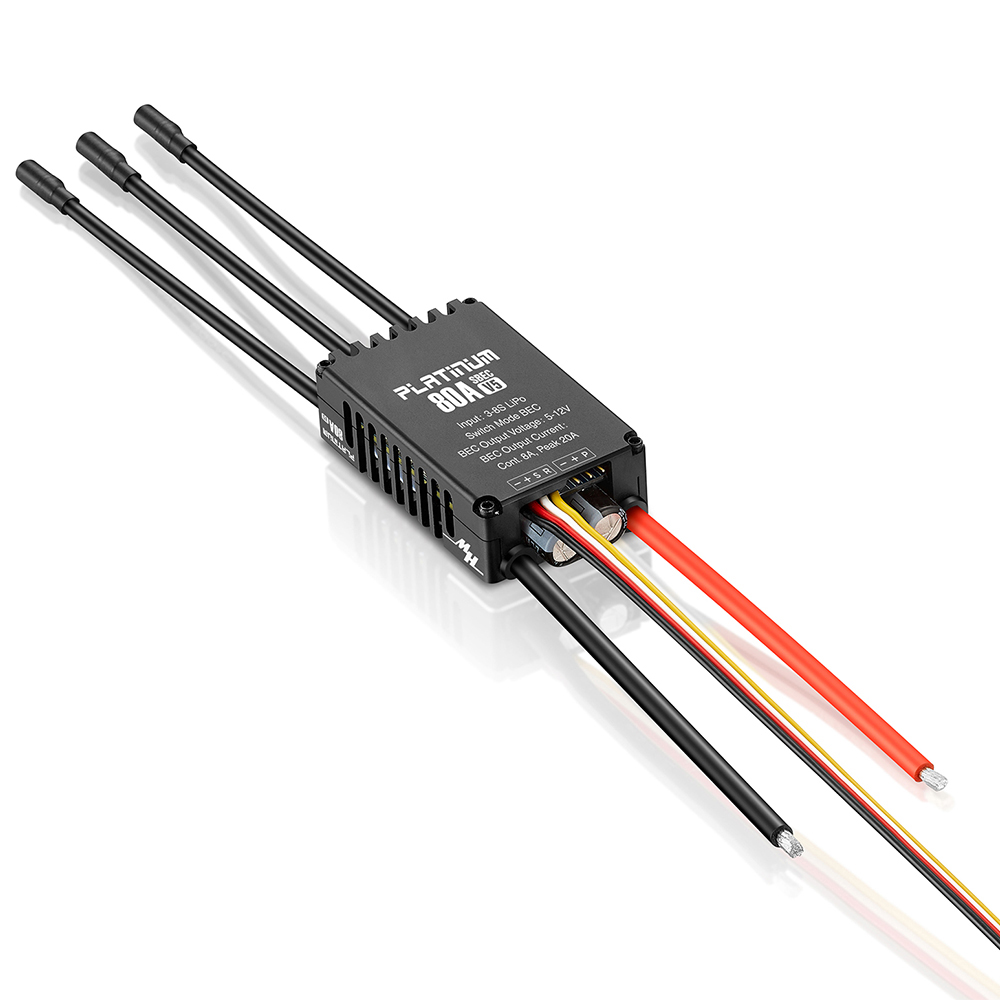

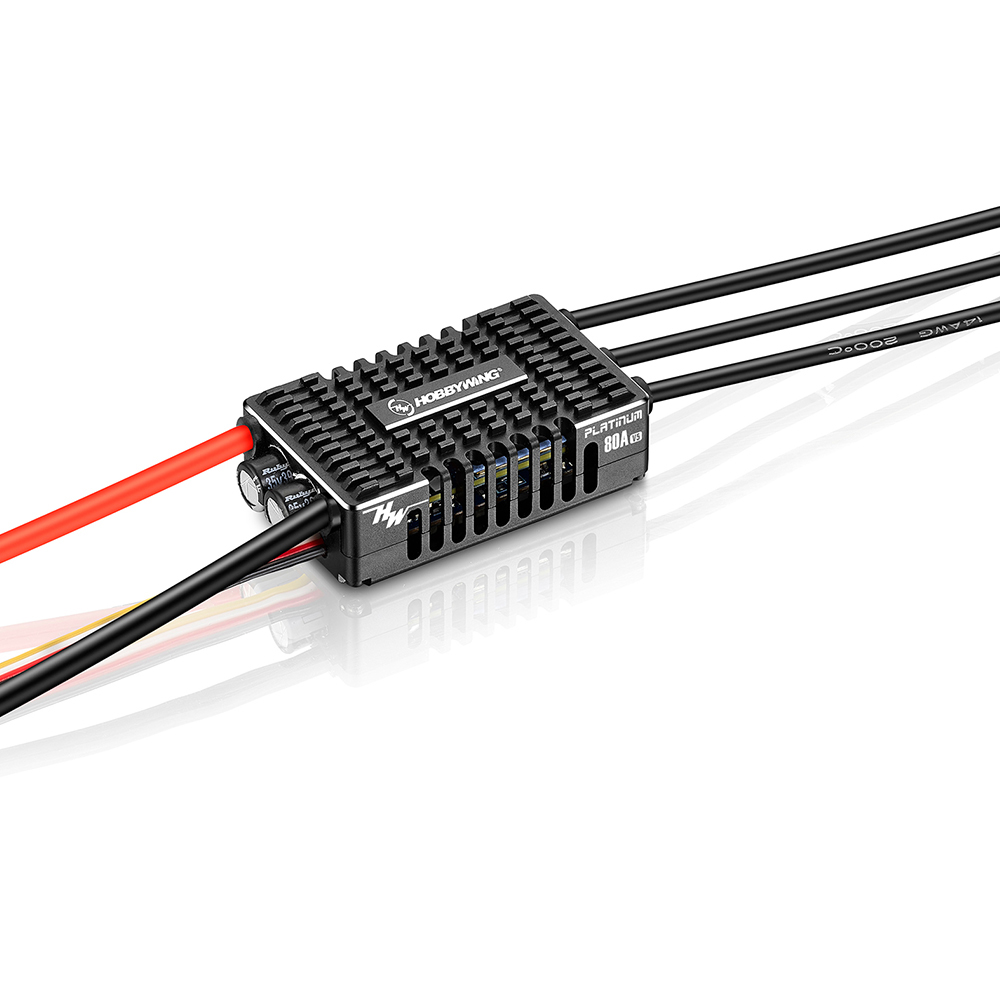

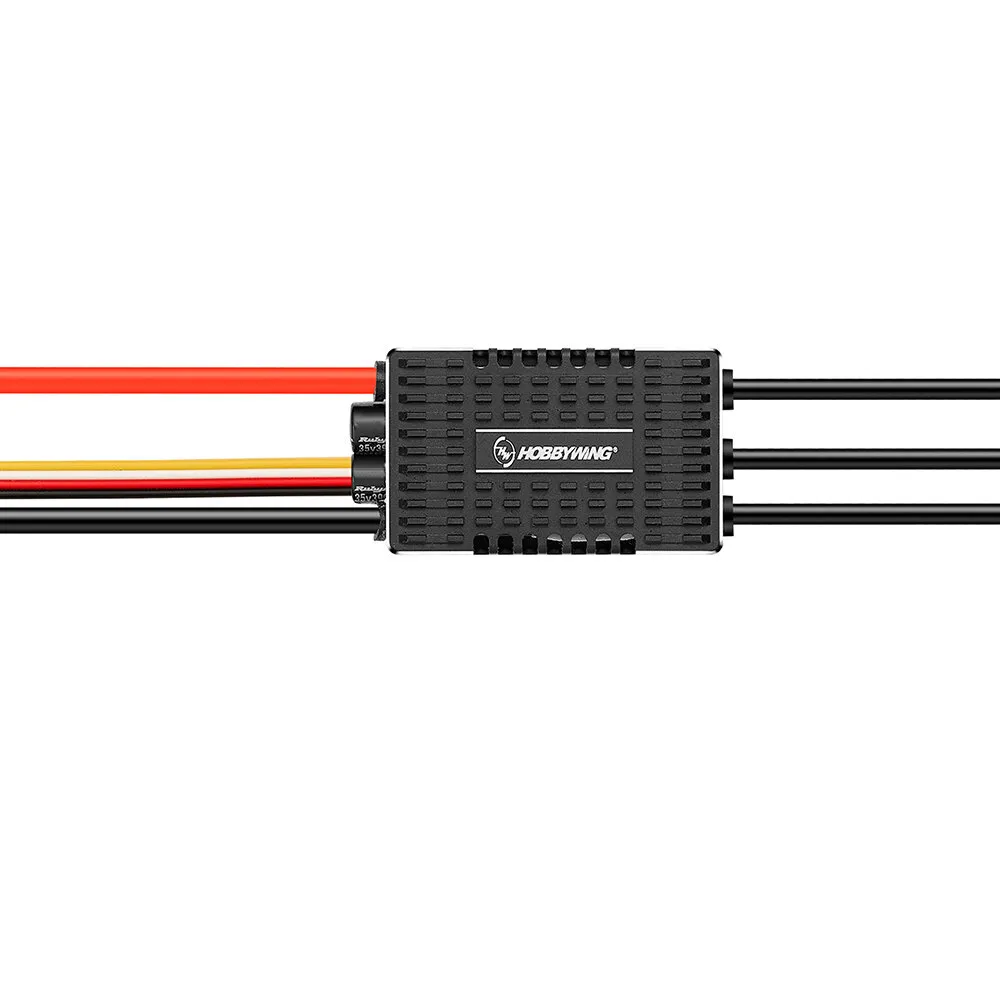

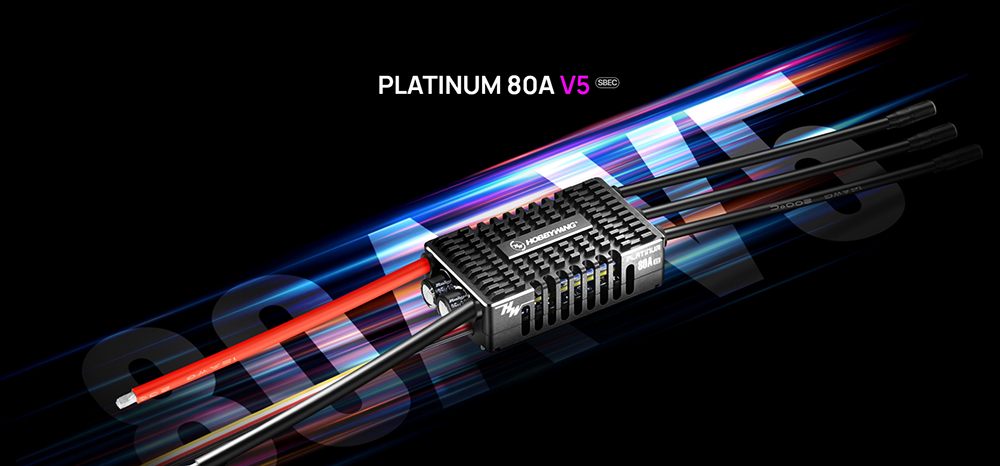

Hobbywing Platinum 80A V5 VBar Telemetry Ready Brushless ESC for Helicopter

SKUK72447
4 Reviews
USD 76.99
Wholesale Prices :
Qty: 4-7 >=8
Price: $63.89 $60.34
Qty:
In stock
30-day Return Policy, Learn More
Description
  • weight: 485 g
Specifications:

Product Name

Platinum 80A V5

Product Number

30203201

Type

Brushed/Brushless

BL

High Voltage/Regular

Regular

Specifications

Cont./Peak Current

80A/120A

Input Voltage

3-8S Lipo

BEC Output

Switch Mode5-12V & Cont. 8APeak 20A

Wires & Connectors

Input Wires

Red-12AWG-100mm*1/Black-12AWG-100mm*1

Output Wires

Black-14AWG-100mm*3

Input Connectors

No

Output Connecotors

3.5mm Gold Connectors (Female)

ESC Programing via

Transmitter

Not Supported

LED Program Card

Not Supported

LED Program Box

Not Supported

LCD Program Box

Supported

OTA Programmer

Supported

Program Port

Separate Program Port

Firmware

Firmware Upgrade

Supported

Telemetry Function

Mikado VBarFutabas S.Bus2etc.

Size & Weight

Size

60.5*33*17.6mm (without fan)

Weight

77.5g (with wires, no fan)

Application scope

325-420 class electric helicopter (main blade length 325-420mm),or fixed-wing

Features:

1.High-quality brushless ESC engineered for smooth and efficient performance.

2.Double-sided open design enhances heat dissipation, solving the "sandwich" stacking circuit heat issue.

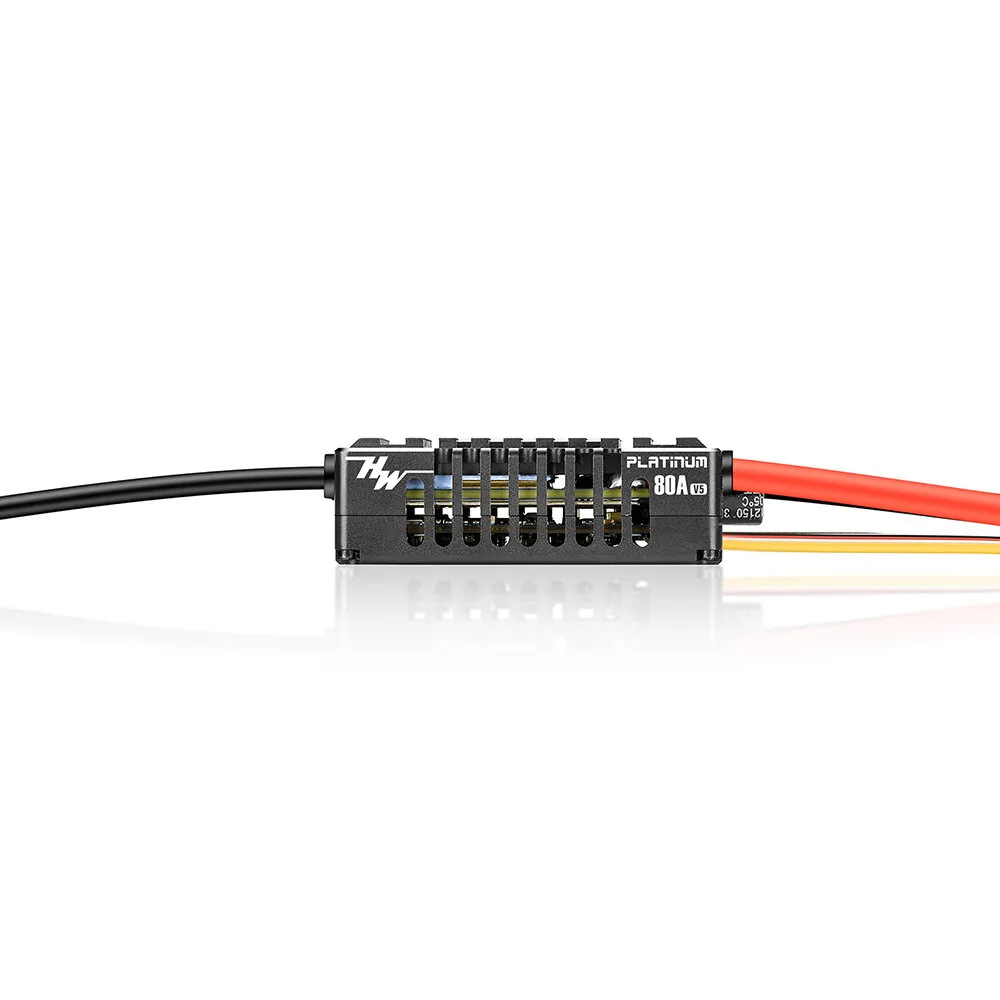

3.Side window design allows airflow through the ESC interior for rapid heat removal from circuit components.

4.Capacitor heat dissipation structure with thermal adhesive for additional cooling support to external capacitors.

5.Advanced fin and duct design channels powerful airflow from the cooling fan, boosting heat dissipation and improving stability.

Package Included:

1x Hobbywing Platinum 80A V5 VBar Telemetry Ready Brushless ESC


Hobbywing Platinum 80A V5 VBar Telemetry Ready Brushless ESC for Helicopter

Hobbywing Platinum 80A V5 VBar Telemetry Ready Brushless ESC for Helicopter

Hobbywing Platinum 80A V5 VBar Telemetry Ready Brushless ESC for Helicopter

Hobbywing Platinum 80A V5 VBar Telemetry Ready Brushless ESC for Helicopter

Hobbywing Platinum 80A V5 VBar Telemetry Ready Brushless ESC for Helicopter

Hobbywing Platinum 80A V5 VBar Telemetry Ready Brushless ESC for Helicopter

Hobbywing Platinum 80A V5 VBar Telemetry Ready Brushless ESC for Helicopter

Hobbywing Platinum 80A V5 VBar Telemetry Ready Brushless ESC for Helicopter

Hobbywing Platinum 80A V5 VBar Telemetry Ready Brushless ESC for Helicopter

Hobbywing Platinum 80A V5 VBar Telemetry Ready Brushless ESC for Helicopter

Hobbywing Platinum 80A V5 VBar Telemetry Ready Brushless ESC for Helicopter
