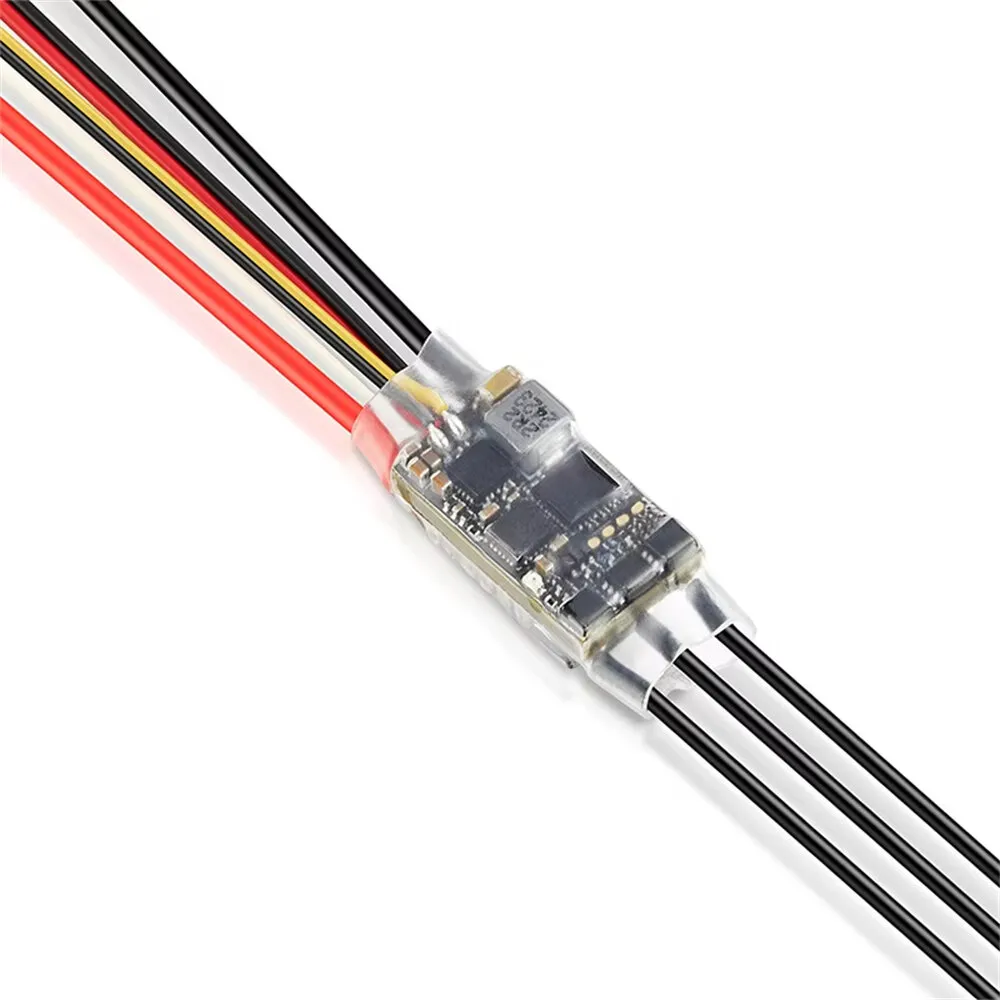

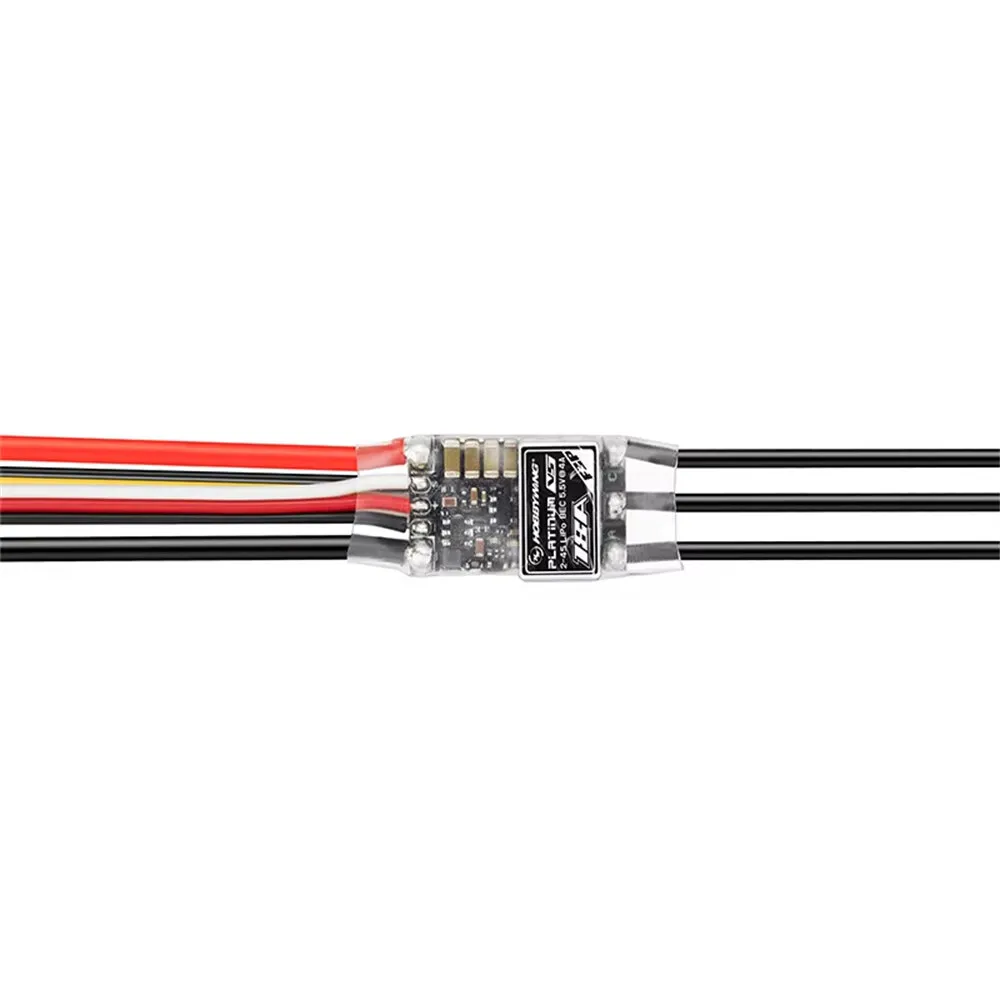

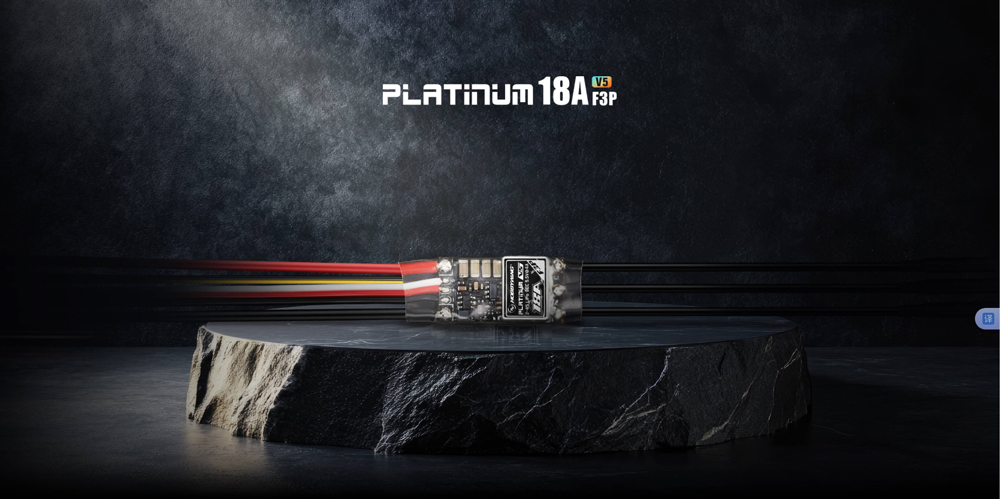

HobbyWing Platinum 18A V5 Brushless ESC 2-4S Lipo for 120g-320g F3P Aerobatics Fixed-wing RC Airplane

Product Name

Platinum 18A V5 F3P ESC

Product Number

30202100

Type

Brushed/Brushless: Brushless

High Voltage/Regular: Regular

Specifications

Cont./Peak Current: 18A/30A

Input Voltage: 2-4S LiPo

BEC Output: Switch Mode：5.5V & Cont. 4A，Peak 6A

Wires & Connectors

Input Wires: Red-18AWG-100mm*1/Black-18AWG-100mm*1

Output Wires: Black-20AWG-100mm*3

Input Connectors: No

Output Connectors: 2.0mm Gold Connectors (Female)

ESC Programing via

Transmitter: Not Supported

LED Program Card: Not Supported

LED Program Box: Not Supported

LCD Program Box: Supported

OTA Programmer: Supported

Program Port: Separate Program Cable

Firmware

Firmware Upgrade: Supported

Telemetry Function

For Futaba S.Bus2；etc.

Size & Weight

Size: 24.6*12.8*7.5mm

Weight: 11.9g (INCL wires)

Application

120g-320g F3P electric fixed-wing
