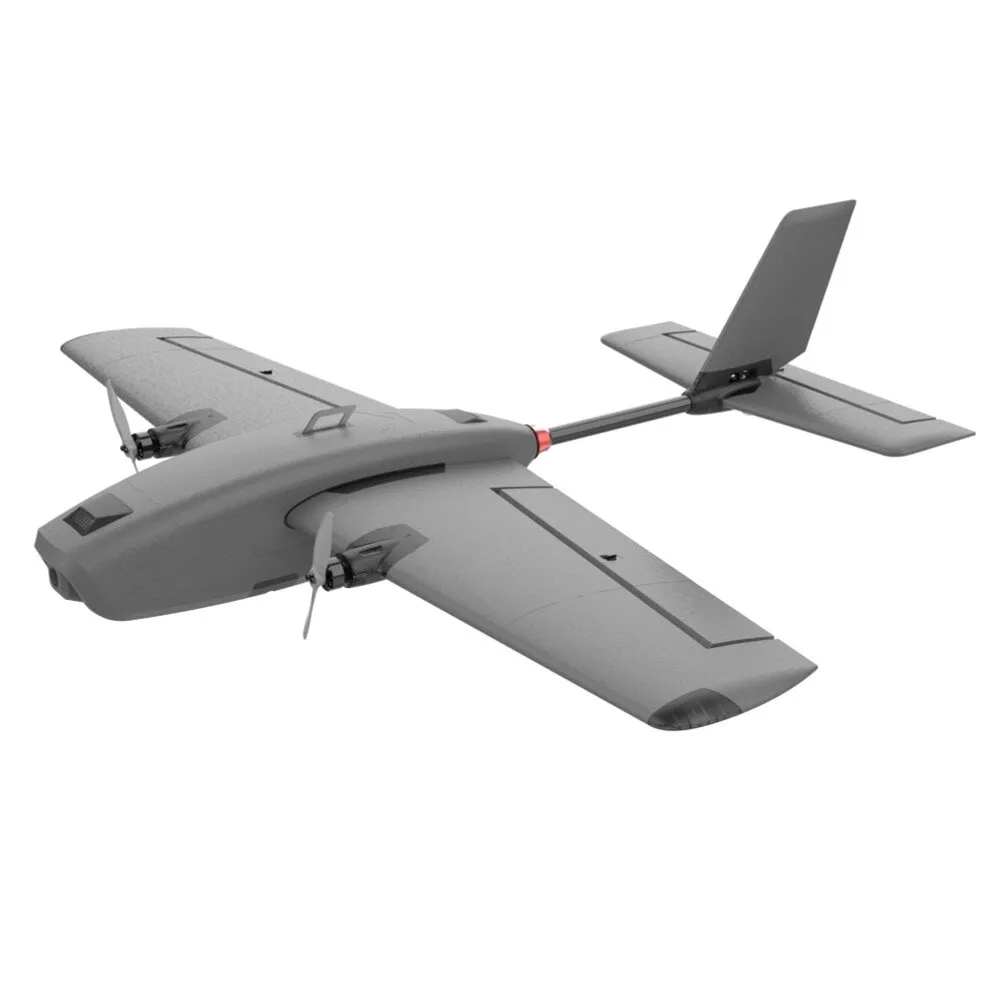

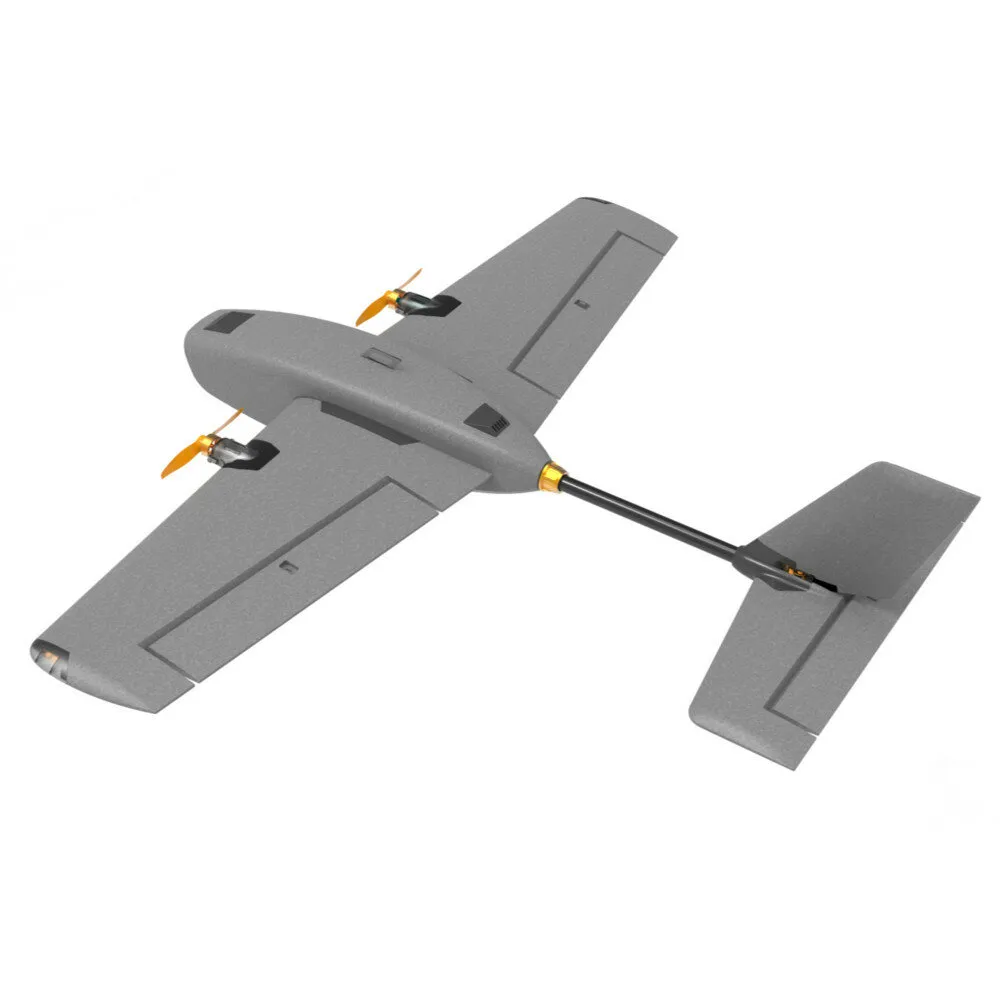

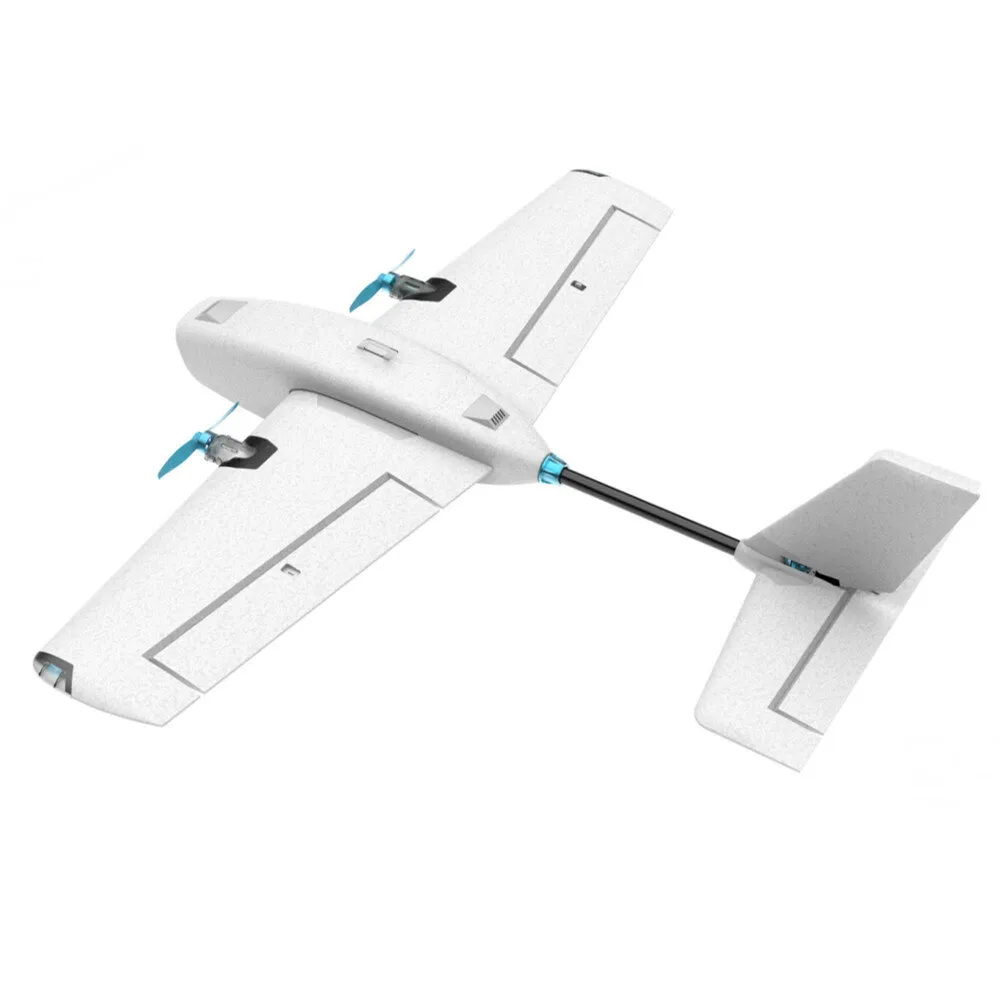

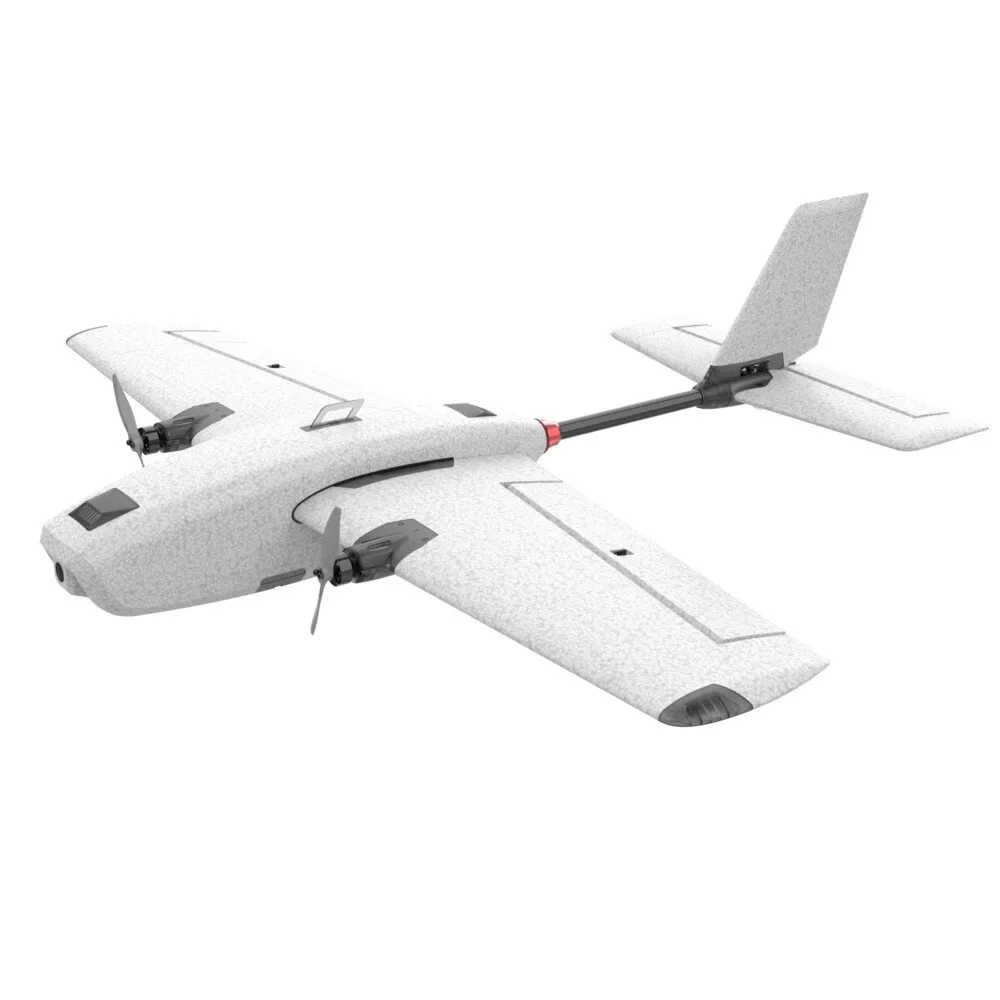

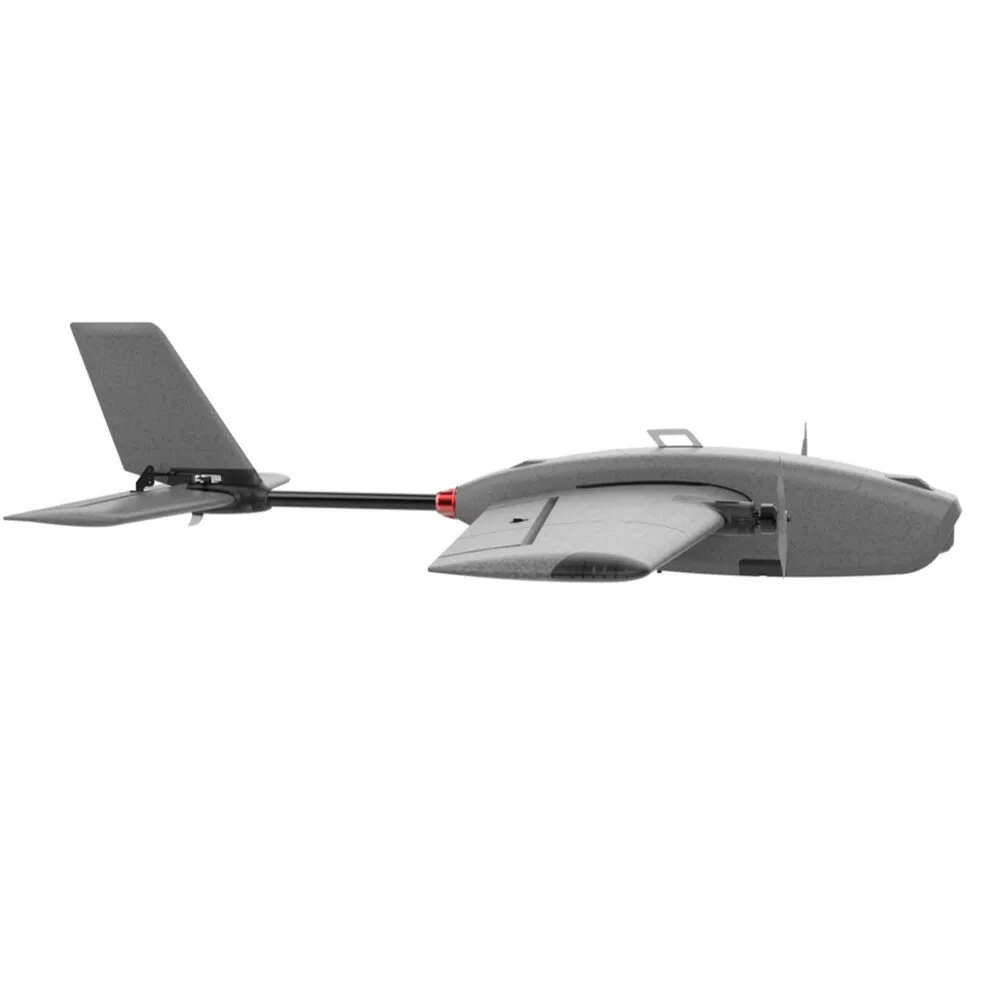

HEE WING T-1 Ranger 730mm Wingspan Dual Motor EPP FPV Racer RC Airplane Fixed Wing KIT/PNP

• weight: 485 g

Overview:

Hee Wing RC's most popular model! It's small, twin motor and easy to disassemble for transportation.

T1 Ranger - PNP PRO comes mostly assembled with preinstalled electronics.

PNP vs PNP Pro

- PNP Pro comes with the newer more powerful 1406 instead of 1404 motors, 25A instead of 20A ESC, 7g Digital Metal Gear Servo instead of 5g Digital Plastic Gear Servo, RGB Navigation Lights and Driver Board.

Specifications:

Brand Name: HEE WING

Item Name: T-1 Ranger, T-1 Ranger PRO (optional)

Color: Grey, White (optional)

Version: KIT, PNP (optional)

Material: EPP / ABS+PC / carbon fiber / aluminum

Wingspan 730mm

Length: 645mm

Height: 140mm

Empty Weight: 155g (white) / 205g (grey)

Takeoff Weight: 350g ~ 500g

Cabin Space: Length 245mm x Width 51mm x Height 48mm

Minimum Flying Speed: <20km/h

Maximum Flight Speed: >120km/h

Maximum Cruising Range: >25km

Maximum Cruise: >65Mins

Tensile Force: >600g (measured statically with the brushless version of 3S)

Packing Size: 400mm * 230mm * 155mm

Package Weight: 880g (PNP)

T-1 Ranger PNP Power System:

Motor: FX-1406-3150KV brushless

ESC: FX-25A brushless

Propeller: FX-3830

Servo: FX-5g

T-1 Ranger PRO PNP Power System:

Motor: FX-1406-3150KV

Brushless ESC: FX-25A

Propeller: FX-3830

Servo: FX-7G metal gear digital servo

Features:

1. Small, lightweight and portable at 730mm wingspan.

2. Quick disassembly design. Assemble and disassemble for transportion in a minute.

3. Powerful twin motor for thrust to weight ratio as high as 1.71 *PNP version only.

4. Superb aerodynamic design. Stable at low speed.

5. Large internal space to carry battery and electronics with high flexibility to achieve the best CG.

6. Front and rear hatch for maximum flexibility organising your electronics.

7. Dedicated front FPV camera mount.

8. White foam is now the same high dense version as Gray foam.

9. New revised air intake for better cooling.

10. Easily detachable main wings reduce damage during a crash.

T-1 Ranger KIT Version Included:

1x HEE WING T-1 Ranger 730mm Wingspan Dual Motor EPP FPV RC Airplane KIT

1x Decals

Assembly Manual, Click Here

T-1 Ranger PNP Version Included:

1x T1 Ranger - PNP (color of your choice)

- Preinstalled 2x 1404 BL motor, 2x FX-20A ESC, 3x 5G Digital Servo, 5V 2A UBEC, 2x 3830 propellers, Quick Release Wiring Plug for the Main Wings.

Assembly Manual, Click Here

Requires your own/not included

Radio - Minimum 4 channels.

Receiver - Minimum 4 channels.

Battery: 2-4S 1300mAh - 5000mAh or 450-500gram *recommended

Charger: supports 2-3S LiPo charging

T-1 Ranger PRO PNP Version Included:

1x HEE WING T-1 Ranger PRO Airplane

- Preinstalled 2x FX1406-3150KV BL motor, 2x FX-25A ESC, 3x 7g Digital Metal Gear Servo, RGB Lights Driver Board, 5V 2A UBEC, 2x 3830 propellers, Quick Release Wiring Plug for the Main Wings.

Requires your own/not included:

Radio - Minimum 4 channels.

Receiver - Minimum 4 channels.

Battery: 2-4S 1300mAh - 5000mAh or 450-500gram *recommended

Charger: supports 2-4S LiPo charging

Note

- T1 Ranger PNP comes with plastic wheel/landing gear.

- Each of your main wings, tail and fuselage are individually box within the external shipping box for maximum protection during shipping.
