Happymodel SuperX HD ELRS 1-2S AIO Flight Controlelr Built-in 12A ESC and UART ELRS Receiver for Digital Whoop RC Drone FPV Racing

SKUK34935
6 Reviews
USD 53.99
Wholesale Prices :
Qty: 4-7 >=8
Price: $43.19 $40.79
Qty:
In stock
30-day Return Policy, Learn More
Description
  • weight: 485 g

Notes:

Before buying this flight controller, make sure you have good soldering skills and can solder tiny pads.

Any flight controller failure caused by welding errors is not covered by the warranty. The motor plugs didnot

pre-solder in our factory.


Specifications:

Brand: Happymodel

Model: SuperX HD ELRS

Flight controller

SuperX HD ELRS

Betaflight 4.4.2 firmware ready

Firmware target: CRAZYBEEF4DX
MCU:STM32F411CEU6 (100MHz, 512K FLASH)
Sensor: BMI270 or ICM42688P (SPI connection)
Power supply: 1-2S Lipo Lihv battery input (DC 2.8V~8.7V), only support 1s input for this drone
Built-in 12A(each) Blheli_S 4in1 ESC Dshot300 read

Built-in UART elrs receiver , elrs v3.0 ready, support WIFI and pass-through firmware update

Bluejay ESC Firmware ready
Built-in 5V 1A BEC
Built-in voltage detection

No betaflight analog osd chip

Onboard 4in1 ESC

Power supply: 1-2S LiPo/LiPo HV

Current: 12A continuous peak 15A (3 seconds)
Support ESC-Configurator and BLHELI_S Suite configurator
Factory firmware: Z-H-30 - Bluejay, 0.19, 48kHz
Default protocol: DSHOT300

Onboard UART ExpressLRS 2.4GHz Receiver

RF Frequency: 2.4GHz

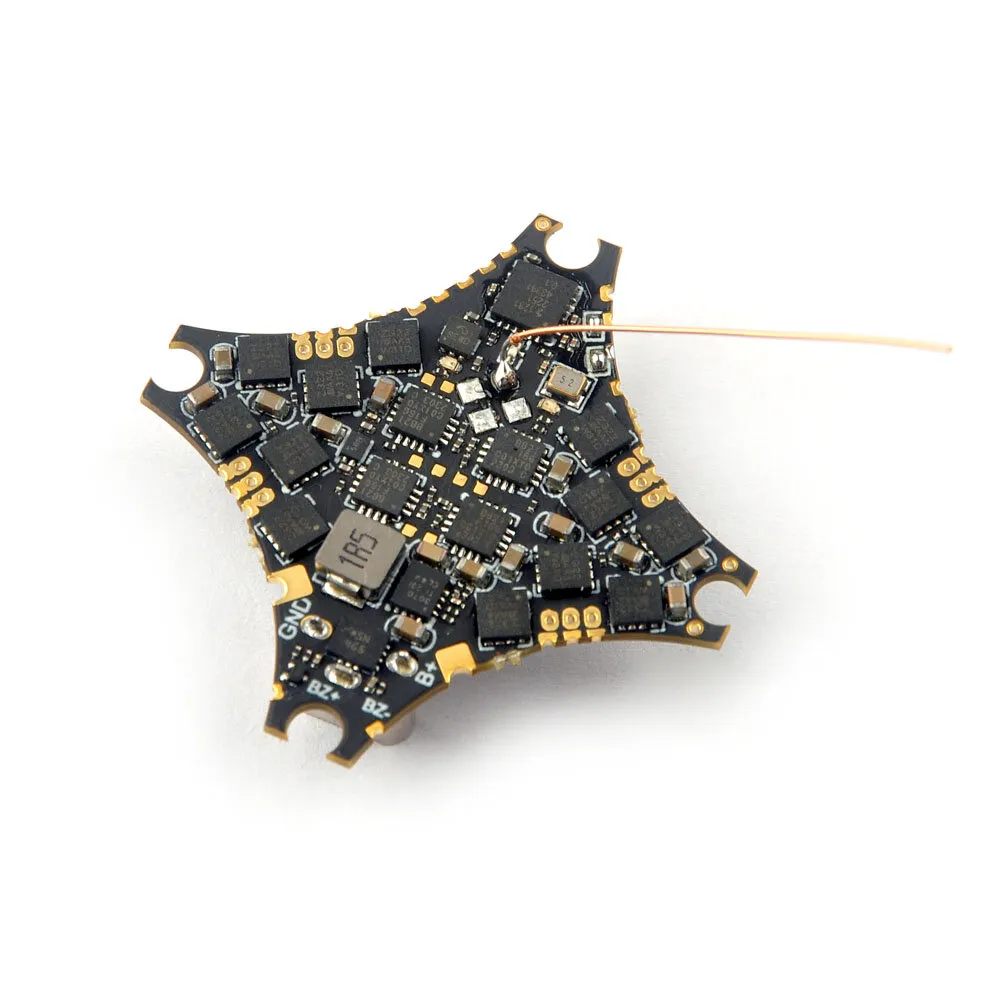

Antenna: enameled copper wire 31mm length
Telemetry output Power: <12dBm
Receiver protocol: CRSF
Default firmware version: ExpressLRS V3.0.1

The same hardware with Happymodel EP1 receiver

Could update firmware via ExpressLRS configurator or WIFI or Betaflight pass-through

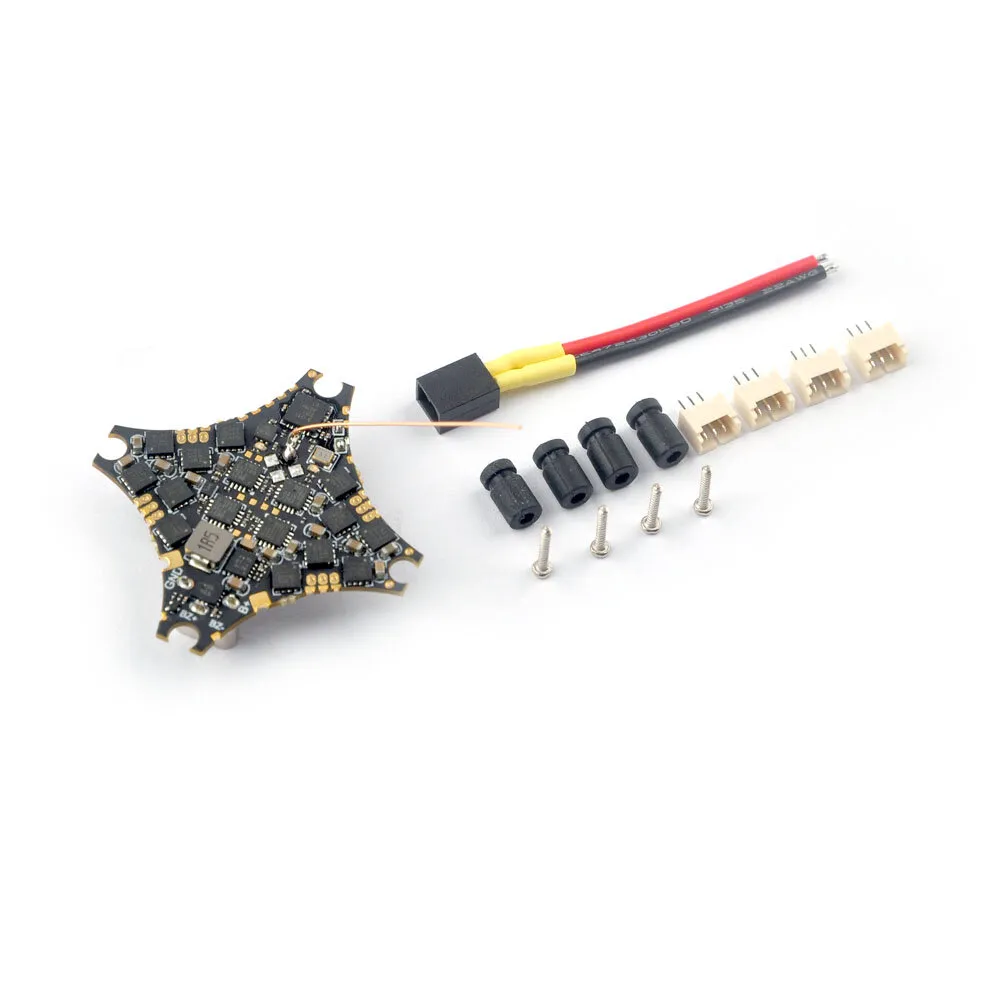

Package Included:

1x HappyModel SuperX HD ELRS 1-2S AlO Board


Happymodel SuperX HD ELRS 1-2S AIO Flight Controlelr Built-in 12A ESC and UART ELRS Receiver for Digital Whoop RC Drone FPV Racing

Happymodel SuperX HD ELRS 1-2S AIO Flight Controlelr Built-in 12A ESC and UART ELRS Receiver for Digital Whoop RC Drone FPV Racing

Happymodel SuperX HD ELRS 1-2S AIO Flight Controlelr Built-in 12A ESC and UART ELRS Receiver for Digital Whoop RC Drone FPV Racing

Happymodel SuperX HD ELRS 1-2S AIO Flight Controlelr Built-in 12A ESC and UART ELRS Receiver for Digital Whoop RC Drone FPV Racing

Happymodel SuperX HD ELRS 1-2S AIO Flight Controlelr Built-in 12A ESC and UART ELRS Receiver for Digital Whoop RC Drone FPV Racing

Happymodel SuperX HD ELRS 1-2S AIO Flight Controlelr Built-in 12A ESC and UART ELRS Receiver for Digital Whoop RC Drone FPV Racing

More Details






customers reviews ( 6 )

4 / 5.0
5 stars 83.4%
4 stars 16.7%
3 stars 0%
2 stars 0%
1 stars 0%
View All Reviews (6)

By nobuo

JP
small and light FC but soldering is very difficult.
2025-05-03 00:00:00

By Raphy3430

DE
toller kleiner aio
2025-04-30 00:00:00

By BG452136362

AT
The flight controller works really well. I've built a toothpick with it. Note that the plugs for the motor wires are already soldered to the PCB. Not the easiset to unsolder them, but it can be done. This board requires soldering skills - but i guess having fun is what this board is bought for anyhow. The only downside/bug is that the ELRS antenna is connected somewhere in the middle of the board, so once a VTX is put on top, reception is rather bad. In case somebody found a solution here, please post it. (I have noticed that there is place to solder a IPEX plug, but I have not found one at happymodel)
2024-11-10 00:00:00

By BG175425341

DE
für einen 65 mm whoop mit WS 1s lite Kit hd gekauft. funktioniert einwandfrei der vtx ist über den 3,7 Volt PAD verbunden und macht keine Probleme immer super Bild auch wenn die Batterie am Ende ist.
2024-03-26 00:00:00

By BG424403525

NL
The parts are all as expected, the delivery time was very fast, around 10 days to the Netherlands.
2024-02-22 00:00:00

By benjy

EE
Nice little FC for HD whoops. Full ELRS receiver on board, upgradeable via wifi.
2024-02-10 00:00:00
