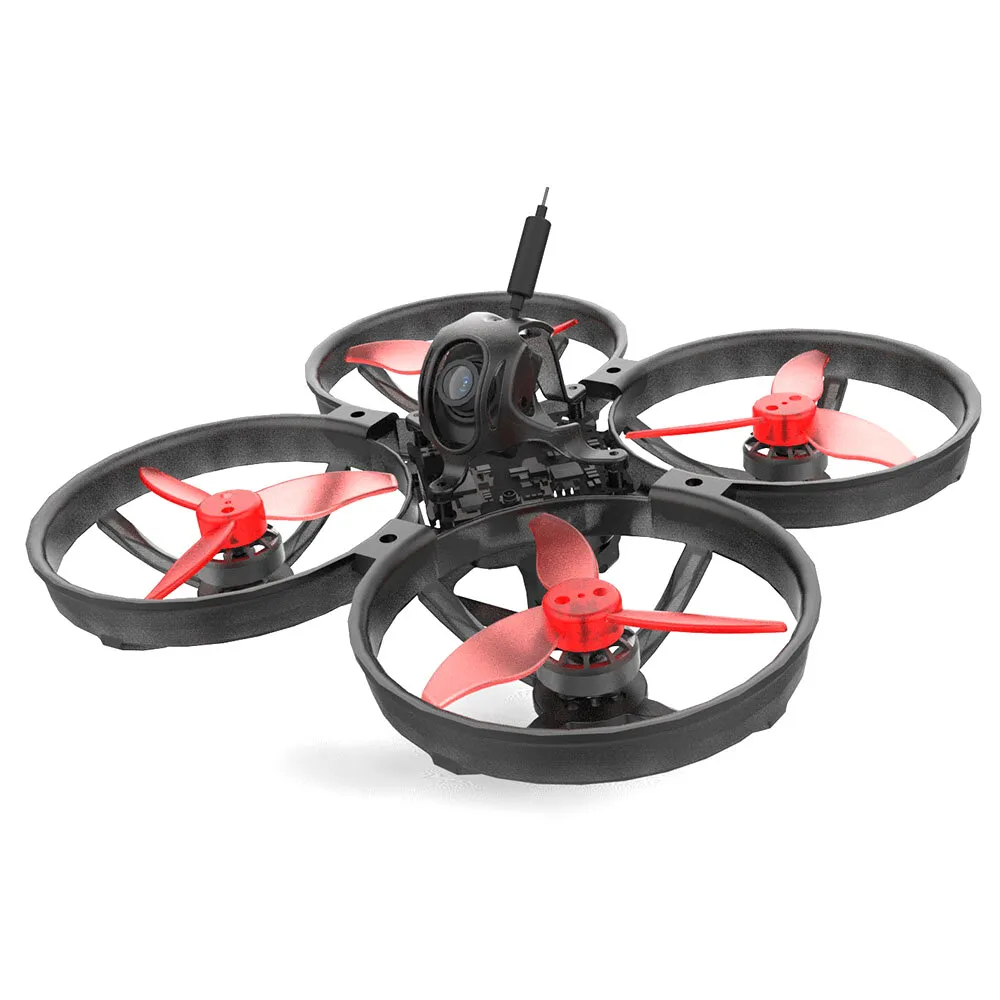

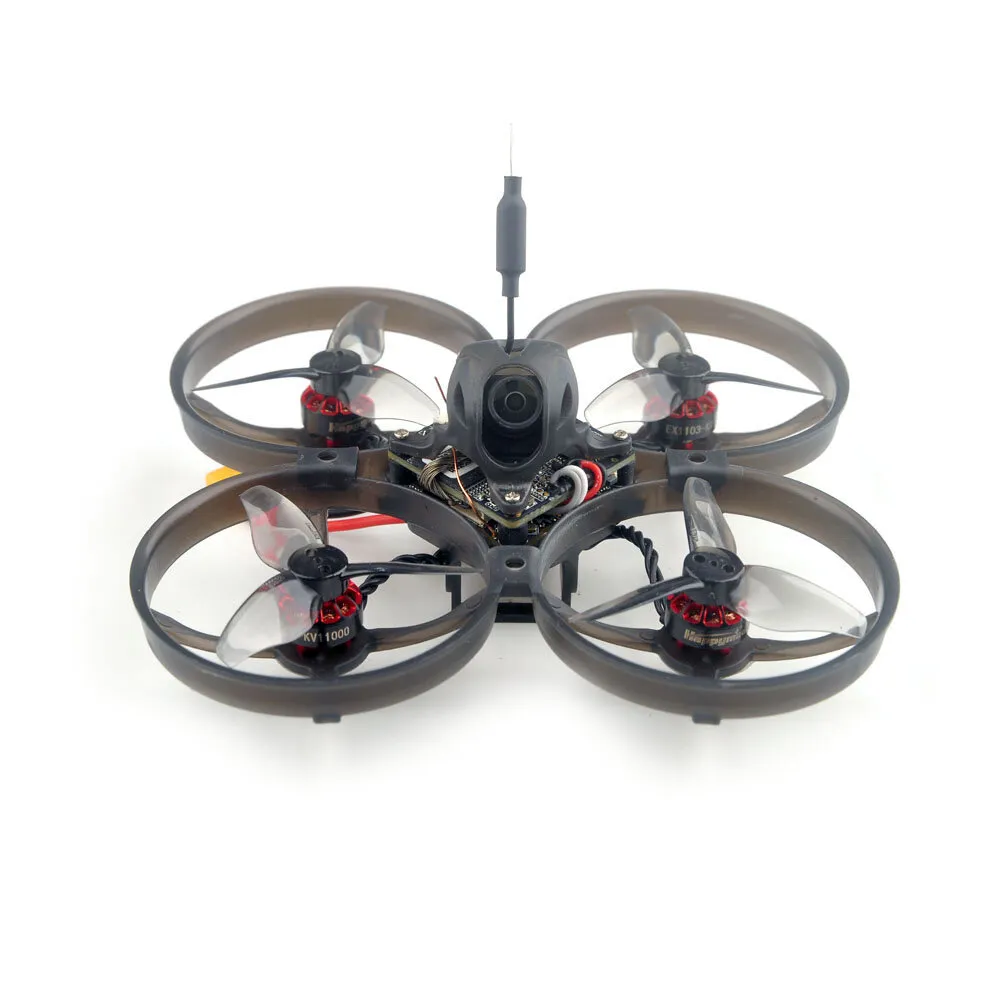

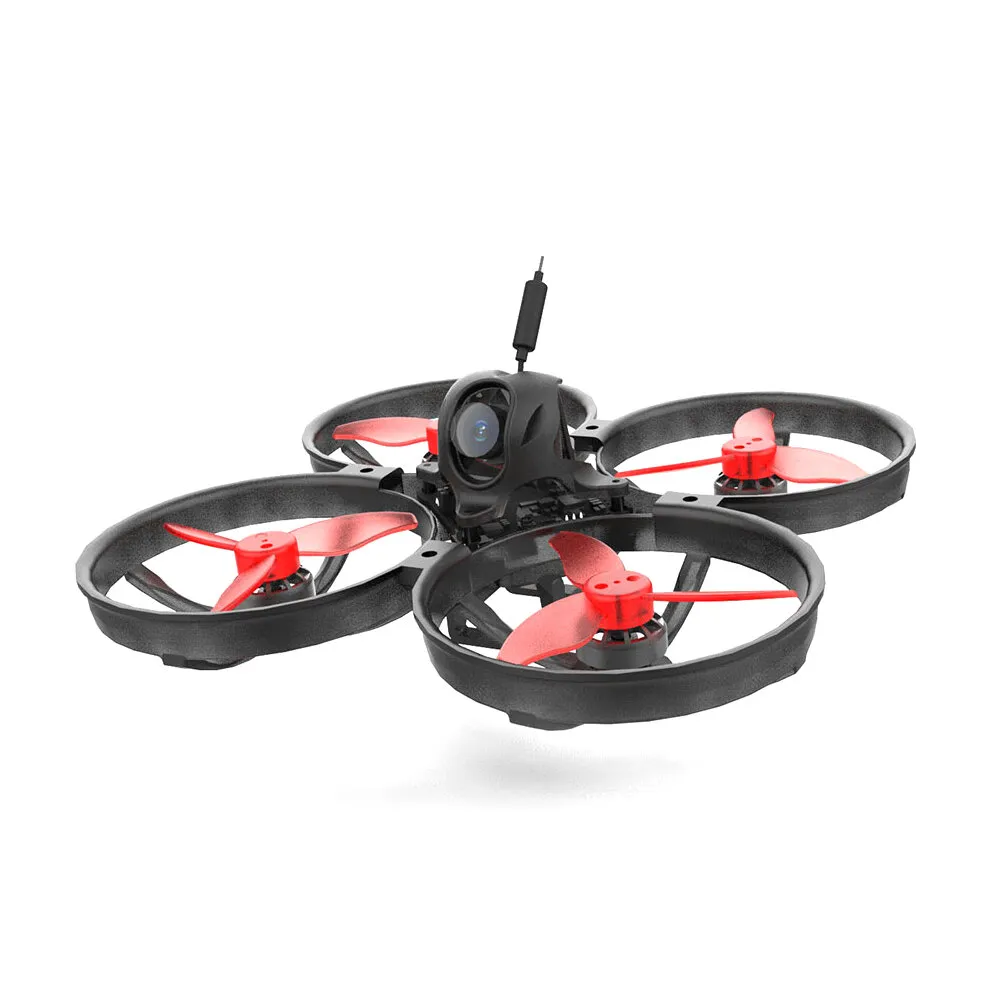

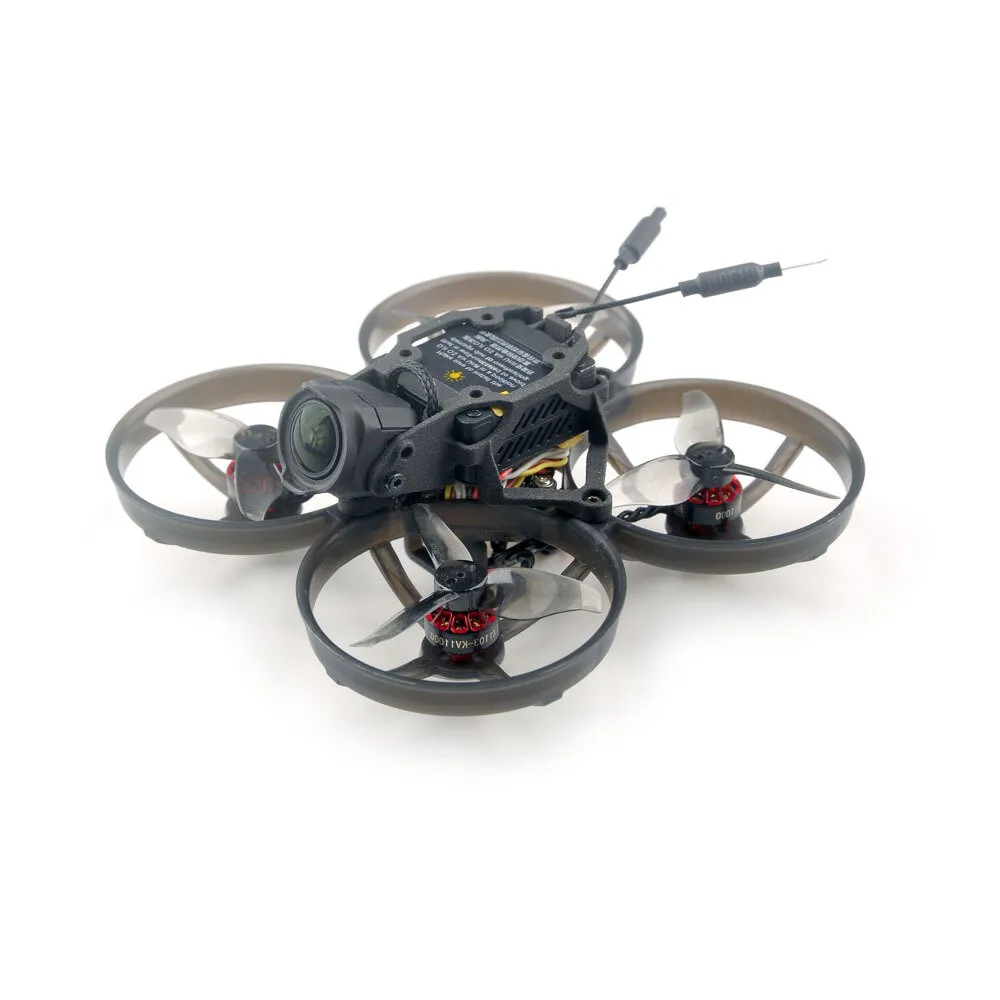

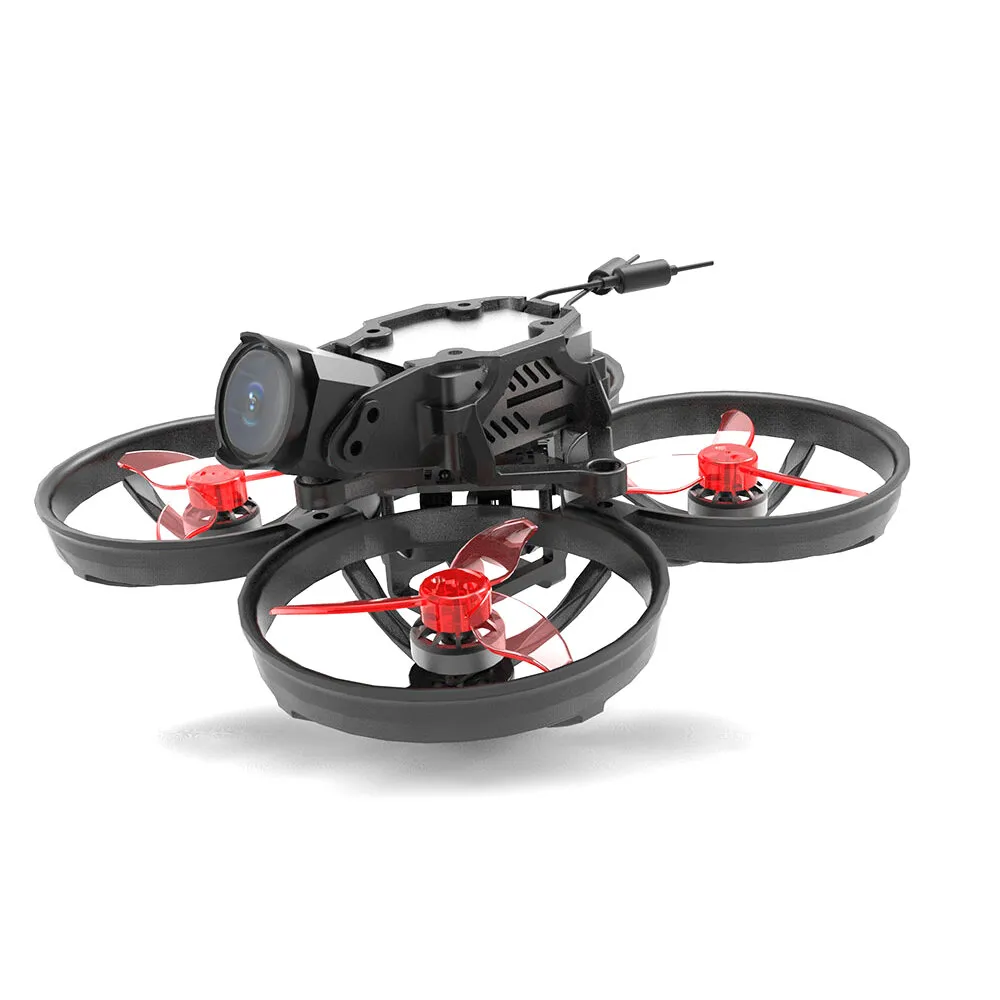

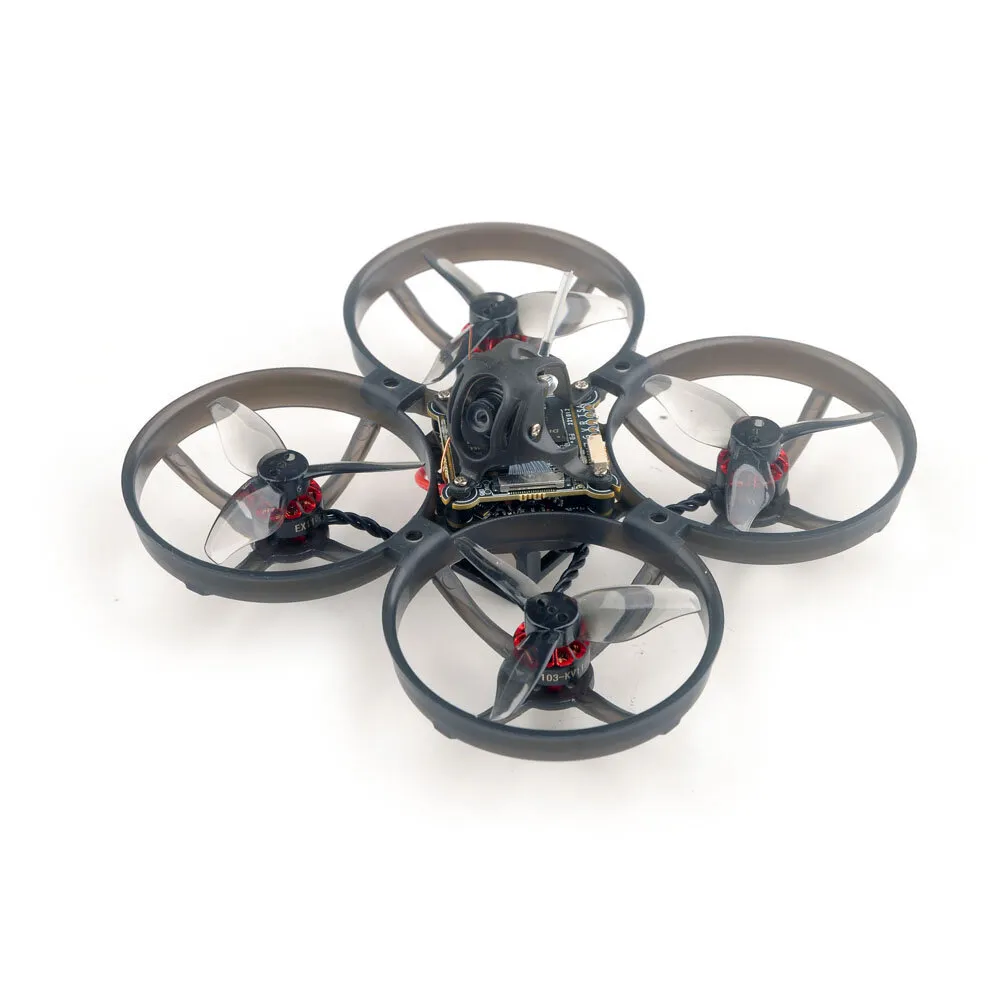

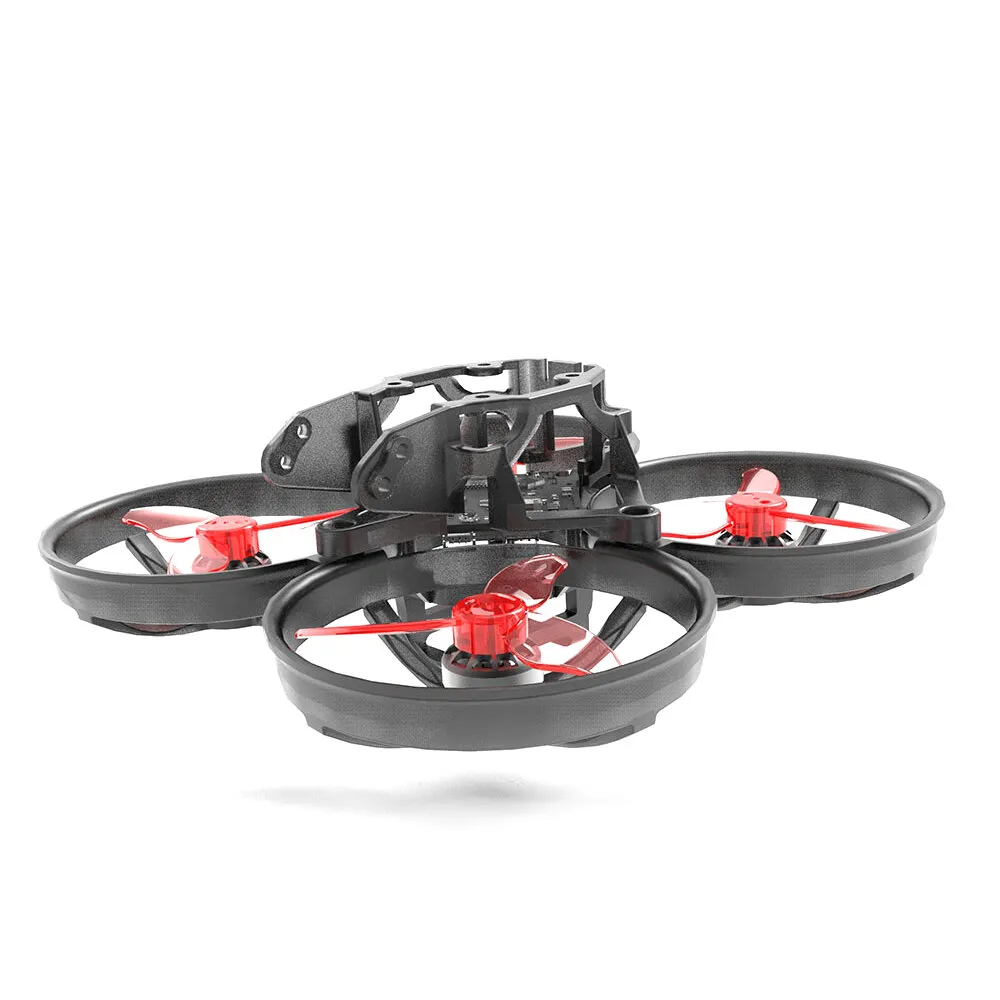

Happymodel Mobula8 Digital HD 2S 85mm Whoop FPV Racing Drone ELRS BNF with DJI O3 Air Unit / HDZero / Walksnial Digital System
| Qty: | 4-7 | >=8 |
| Price: | $75.59 | $71.39 |
- weight: 485 g
Notice: for DJI O3 and Lite for DJI O3 Version, now add TBS Receiver for option. ( DJI O3 + TBS / Lite for DJI O3+TBS)
Aug. 9th,2023
| Version | Lite for DJI O3 | DJI O3 | HDZero | WalkSnail | Lite for DJI O3+TBS | DJI O3+TBS |
| Receiver | Onboard UART ELRS RX ELRS V3.0 | Onboard UART ELRS RX ELRS V3.0 | Onboard UART ELRS RX ELRS V3.0 | Onboard UART ELRS RX ELRS V3.0 | External TBS CRSF Nano RX | External TBS CRSF Nano RX |
Specification:
The New Mobula8 Digital HD Micro FPV whoop comes with a new flight controller which is specific for Digital HD CINEWHOOP. Built in UART ExpressLRS receiver and 12A 4IN1 BLheli_S ESC.
The same Brushless motor and Gemfan 2023 propeller like the Mobula8 Analog version. Comes With DJI O3, Walksnail avatar and HDZERO VTX option. Smooth flight and High definition video transmission would bring us exited FPV experience.
Features:
Digital HD FPV experience
New CrazyF405 ELRS HD flight controller
Powerful and Smooth
UART ExpressLRS receiver
Built-in blackbox for Gyroflow and PID Tune
| Motor | Mode: EX1103 11000KV Configu-ration:9N12P Stator Diamter:11mm Stator Length:3mm Shaft Diameter:Φ1.5mm Motor Dimension(Dia.*Len):Φ13.5mm*15.5mm Weight(g):3.8g No.of Cells(Lipo):1-2S |
| Propellers | Weight:0.88g Material: PC Pitch:2.3inch Props Dia:52.17mm Center Thickness:5mm Center Hole Dia:1.5mm |
| Flight Controller | MCU: STM32F405RGT6 (168MHZ, 1Mbyte FLASH) GYRO Sensor: BMI270 (SPI connection) Mount hole size: 25.5mm*25.5mm Power supply: 1-2S battery input (DC 2.9V-8.7V) Built-in 12A(each) Blheli_S 4in1 ESC Built-in Serial ExpressLRS 2.4G Built-in BMP280 Barometer Built-in 8MBp blackbox Built-in voltage meter sensor , voltage meter scale 110 Built-in current meter sensor , current meter scale 470 |
| Onboard 4in1 ESC | Power supply: 1-2S LiPo/LiPo HV Current: 12A continuous peak 15A (3 seconds) Support BLHeli_S Bluejay firmware Factory firmware: Bluejay ESC V0.19 Firmware target: Z-H-30 Default protocol: DSHOT300 When use 1s battery and high KV 0702/0802 motors, should set startup power to 1100/1200 |
Onboard UART ExpressLRS 2.4GHz Receiver: | Packet Rate option: 25Hz/50Hz/150Hz/250Hz/500Hz RF Frequency: 2.4GHz Antenna: enameled copper wire 31mm length Telemetry output Power: <12dBm Default firmware version: ExpressLRS V3.0.1 Firmware target: HappyModel EP 2400 RX Could update firmware via ExpressLRS configurator |
| DJI O3 Version | VTX & Camera: DJI O3 Air Unit Works with DJI FPV Goggles V2, DJI Goggles 2, and DJI FPV Remote Controller 2 |
| Walksnail Version | Camera: Avatar lite camera VTX: Avatar mini 1s module |
| HDZero Version | HDZero Nano Lite Camera & HDZero Whoop Lite VTX |
| Lite Version | NO VTX, NO Camera |
Package includes:
Mobula8 Frame x1
CrazyF4HD ELRS flight controller firmware target:BETAFLIGHTF4 x1
EX1103 KV11000 brushless motor x1
Gemfan Hurricane 2023 tri-blade propellers(4cw+4ccw) x1
Option1: DJI O3 Air unit x1
Option2: Walksnail avatar HD Mini 1S lite kit x1
Option3: HDZERO Whoop Lite bundle x1
Option4: No VTX and camera version x1
Canopy x1
Screw driver x1
