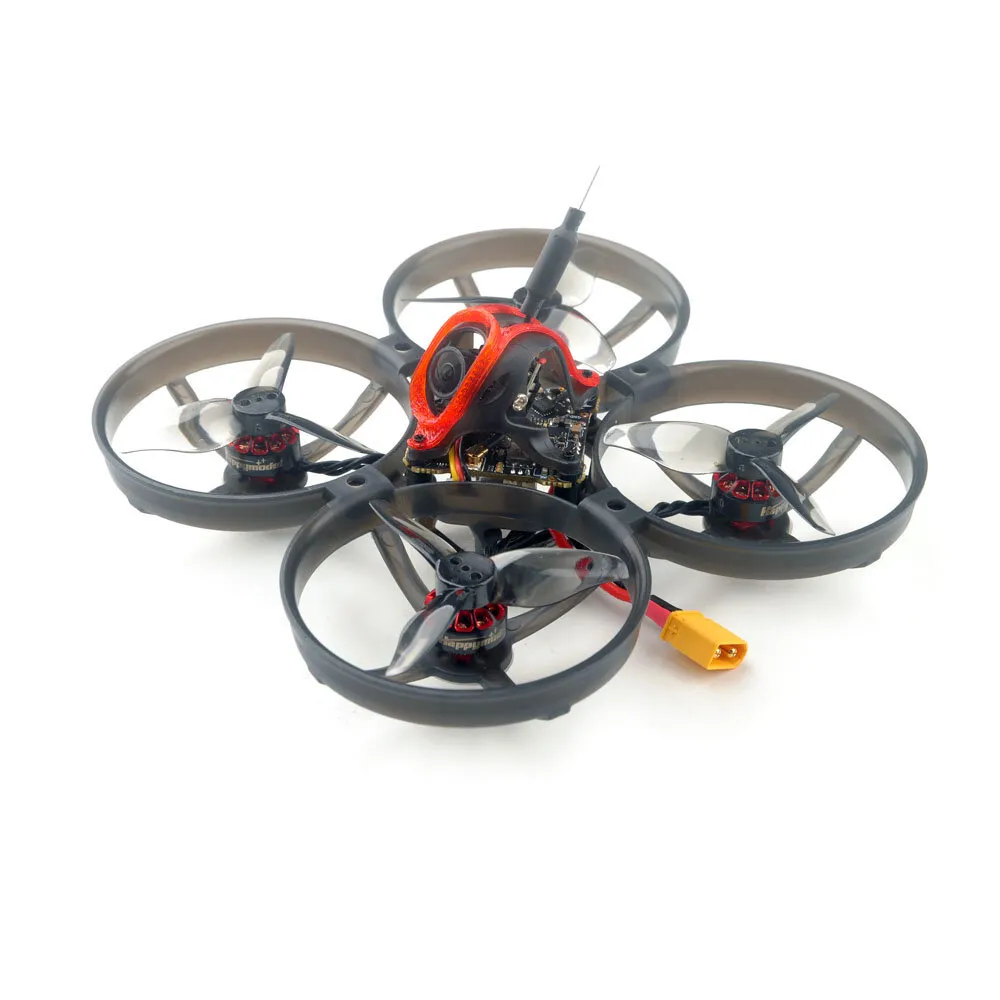

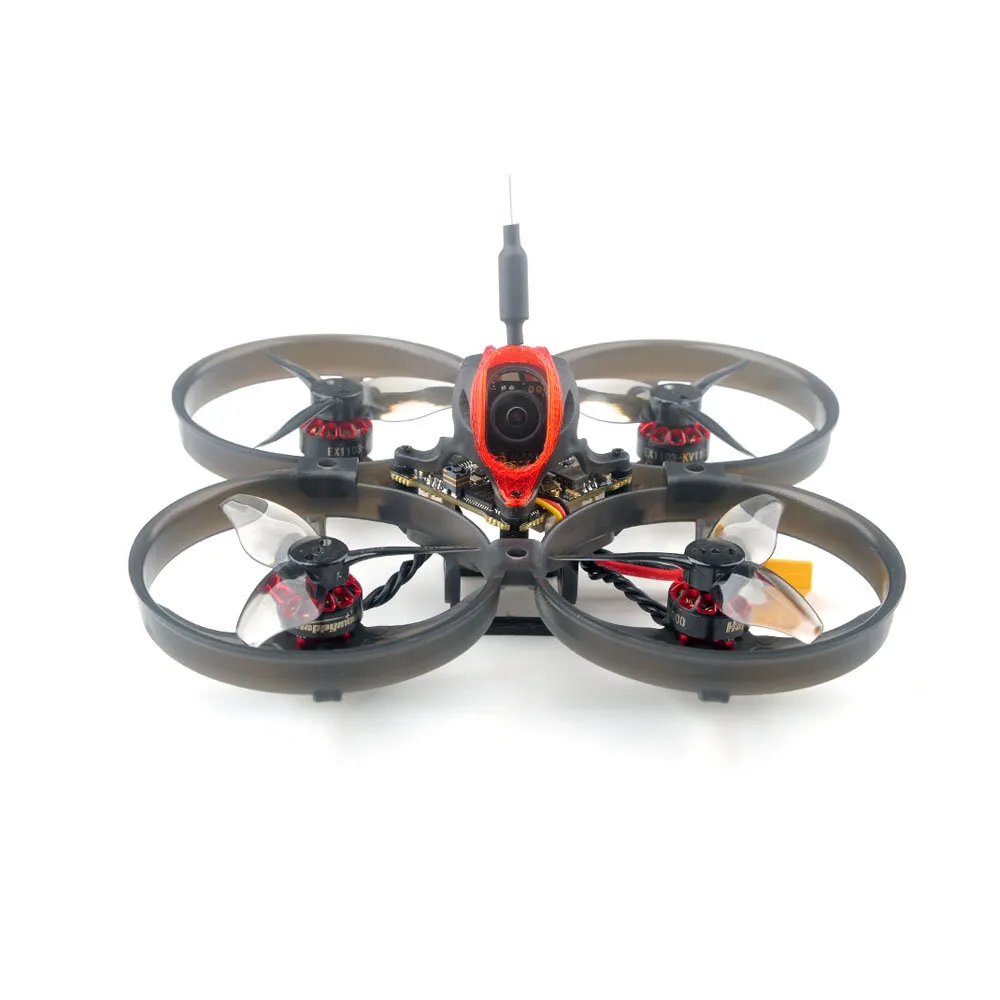

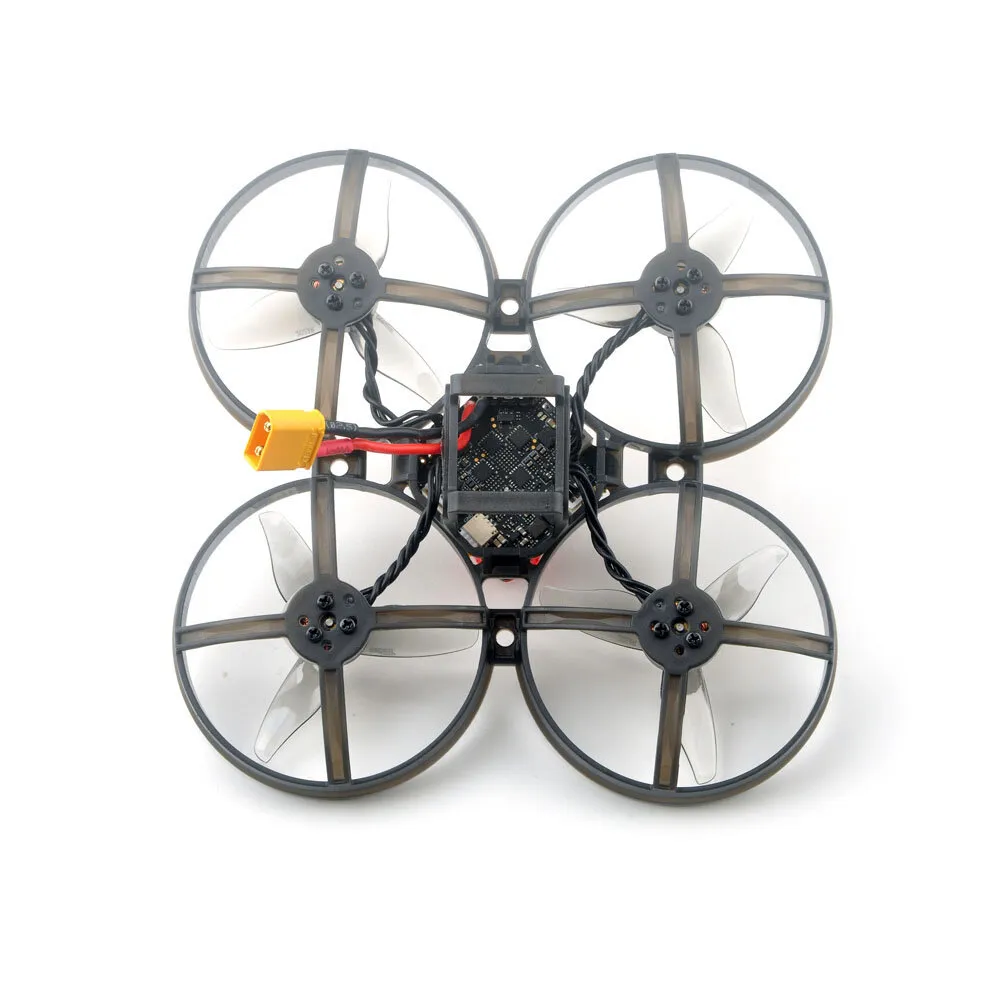

Happymodel Mobula8 1-2S 85mm Micro FPV Racing Mobula 8 2 inch micro RC Drone Whoop for backyard freestyle

X12 ELRS Pro v1.1 AIO 5-IN-1 Flight controller

MCU:STM32F411CEU6 (100MHZ, 512K FLASH) ,ESP32-PICO-D4
Sensor: ICM42688P(SPI connection)
Mount hole size: 25.5mm*25.5mm
Power supply: 1-2S battery input (DC 2.9V-8.7V)
Built-in 12A(each) Blheli_S 4in1 ESC
Built-in Betaflight OSD(SPI Control)
Built-in 5.8G OpenVTX 0mw~400mw (MSP control)
Built-in UART ExpressLRS v3.0.0
Built-in voltage meter sensor , voltage meter scale 110
Built-in current meter sensor , current meter scale 470

EX1103 KV11000 brushless motor

Mode: EX1103 KV11000
Configu-ration:9N12P
Stator Diamter:11mm
Stator Length:3mm
Shaft Diameter:Φ1.5mm
Motor Dimension(Dia.*Len):Φ13.5mm*15.5mm
Weight(g):3.8g
No.of Cells(Lipo):1-2S

Gemfan Hurricane 2023 tri-blade propellers(4cw+4ccw)

Weight:0.88g
Material: PC
Pitch:2.3inch
Props Dia:52.17mm
Center Thickness:5mm
Center Hole Dia:1.5mm

X12 5-IN-1 AIO flight controller

X12 ELRS V2.1 flight controller built-in ELRS 2.4G receiver Target: CRAZYBEEF4SX1280
X12 Frsky V2.1 flight controller built-in SPI Frsky 2.4G receiver Target: CRAZYBEEF4FR
X12 Flysky V1.0 flight controller built-in SPI Flysky 2.4G receiver Target: CRAZYBEEF4FS
X12 PNP V1.1 flight controller without onboard receiver Target: CRAZYBEEF4DX
MCU:STM32F411CEU6 (100MHZ, 512K FLASH)
Sensor: ICM20689 or ICM42688P(SPI connection)
Mount hole size: 25.5mm*25.5mm
Power supply: 1-2S battery input (DC 2.9V-8.7V)
Built-in 12A(each) Blheli_S 4in1 ESC
Built-in Betaflight OSD(SPI Control)
Built-in 5.8G OpenVTX 0mw~400mw
Built-in ExpressLRS 2.4G,Frsky D8/D16,Flysky AFHDS 2A
Built-in voltage detection
Built-in current sensor

Onboard 4in1 ESC

Power supply: 1-2S LiPo/LiPo HV
Current: 12A continuous peak 15A (3 seconds)
Support BLHeliSuite programmable
Firmware target: Z_H_30

Default protocol: DSHOT300
Support Bluejay firmware

Onboard SPI ExpressLRS 2.4GHz Receiver

Packet Rate option: 50Hz/150Hz/250Hz/500Hz
ExpressLRS Firmware version: V2.0
RF Frequency: 2.4GHz
Antenna : SMD antenna
Telemetry output Power: <12dBm
Receiver protocol: SPI ExpressLRS
Compatible with ExpressLRS V2.0 TX Module
Couldn’t flash separately ExpressLRS firmware
Could flash FC firmware to support ExpressLRS v3.0 TX module

Onboard SPI Frsky D8/D16 receiver Versio

SPI BUS receiver Frsky D8/D16 compatible
Compatible Non EU transmitter D8/D16 modelChannels: 8ch/16ch
No ground interference ( Transmitter and receiver 1 m from the ground): 200meterFailsafe support

Onboard SPI Flysky receiver Version

SPI BUS receiver
Protocol: AFHDS-2A
Channels: 14ch(AFHDS-2A)
No ground interference ( Transmitter and receiver 1 m from the ground): 200meter
Failsafe support

PNP Version
(without onboard receiver)

Full UART1 for external Receiver
Support CRSF/GHOST/SBUS/IBUS/DSMX protocol
IR1 pad(invert RX1) used for SBUS input

External TBS CRSF Nano receiver version

Original TBS Receiver ,CRSF Protocol , Official TBS transmitter compatible

Onboard 5.8g OPENVTX

Firmware version: OPENVTX
Smartaudio v2.1
PIT Mode support
RCE Mode support
Channels:48ch
Transmitting Power: 0/RCE/25mw/100mw/400mw
Power supply: DC 5V
Current (5v): <650ma (400mw)

Caddx ANT 1200tvl camera

Image Sensor: 1/3″ CMOS Sensor
Horizontal Resolution: 1200 TVL
TV System: NTSC or PAL
IMAGE: 16:9 or 4:3
Synchronization: Internal
Electronic Shutter: PAL: 1/50~100,000; NTSC: 1/60~100,000
S/N Ratio : >52dB (AGC OFF)
Video Output: CVBS

Lens: 1.8mm
Min. Illumination: 0.001Lux@F1.2
Auto Gain Control: YES
WDR: Global WDR
DNR: 3D DNR
Dimensions: 14*14mm(with bracket to 19*19mm)
Wide Power Input: DC 3.7-18V
Weight: 2g (N.W.)
