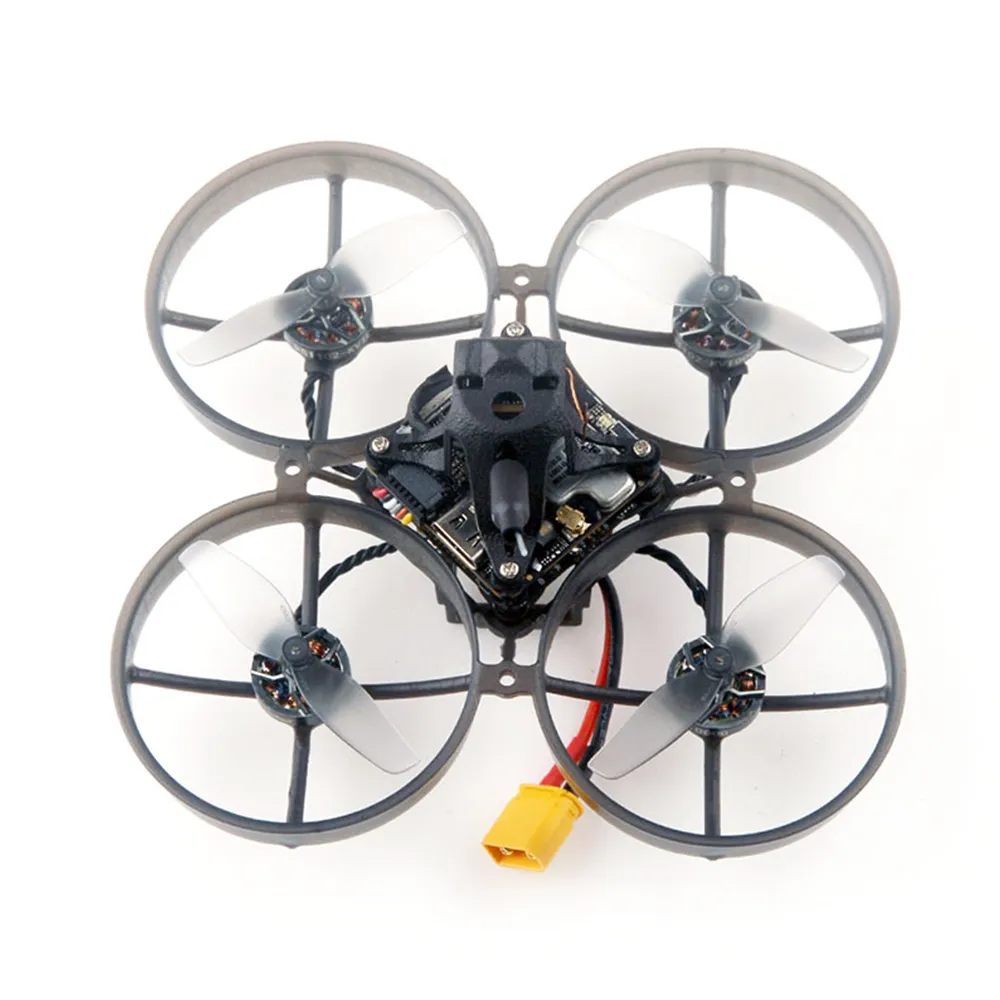

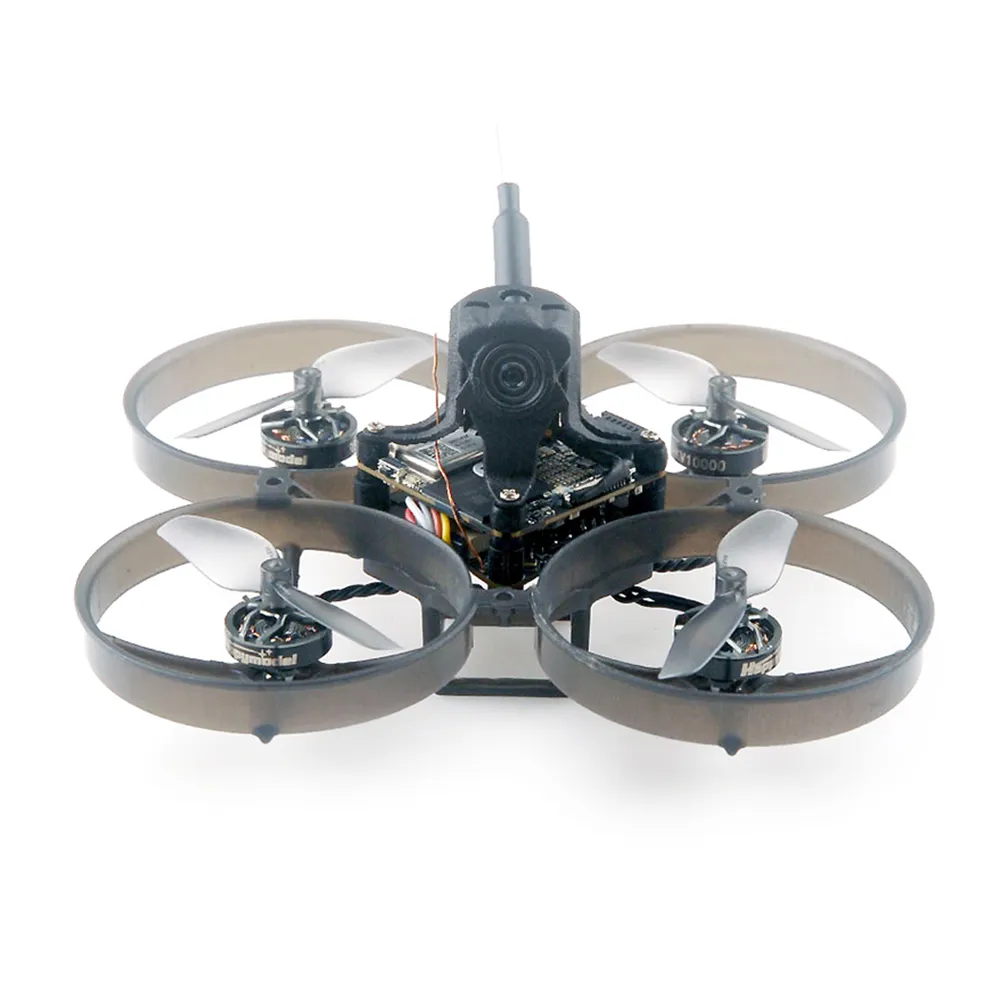

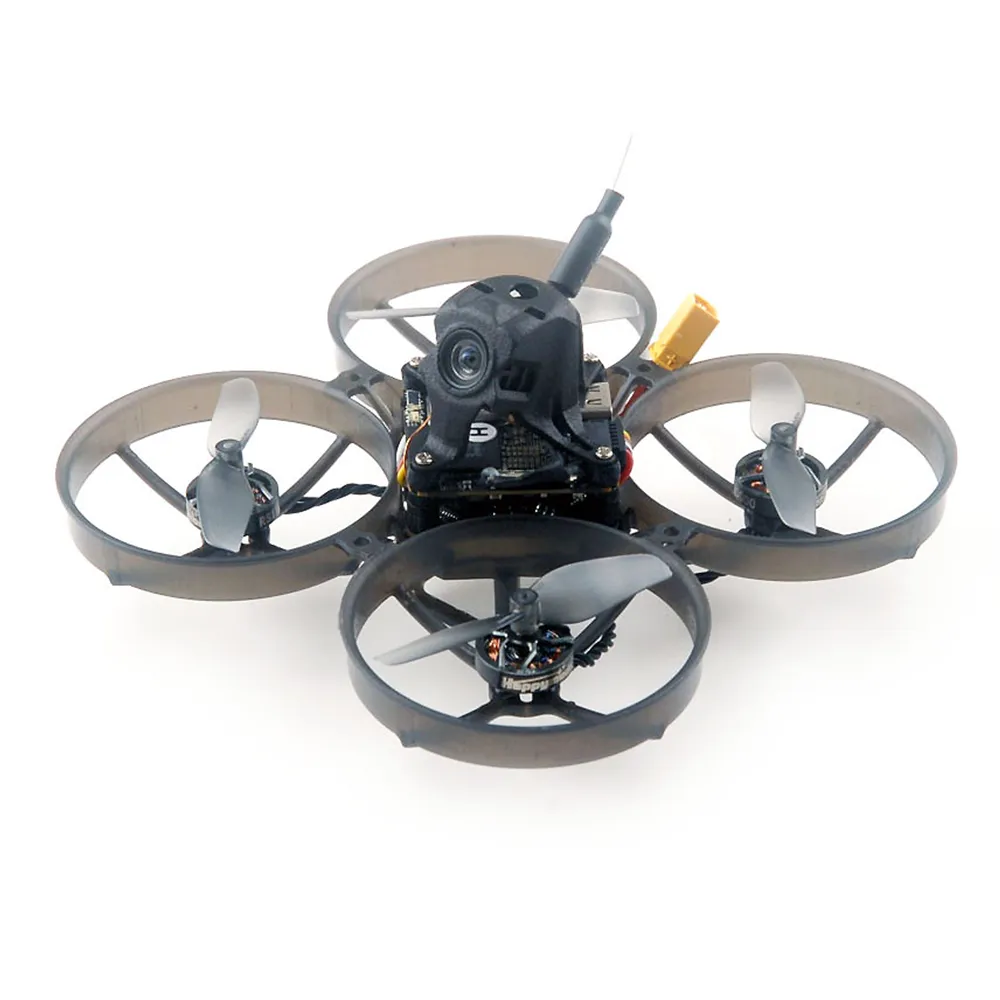

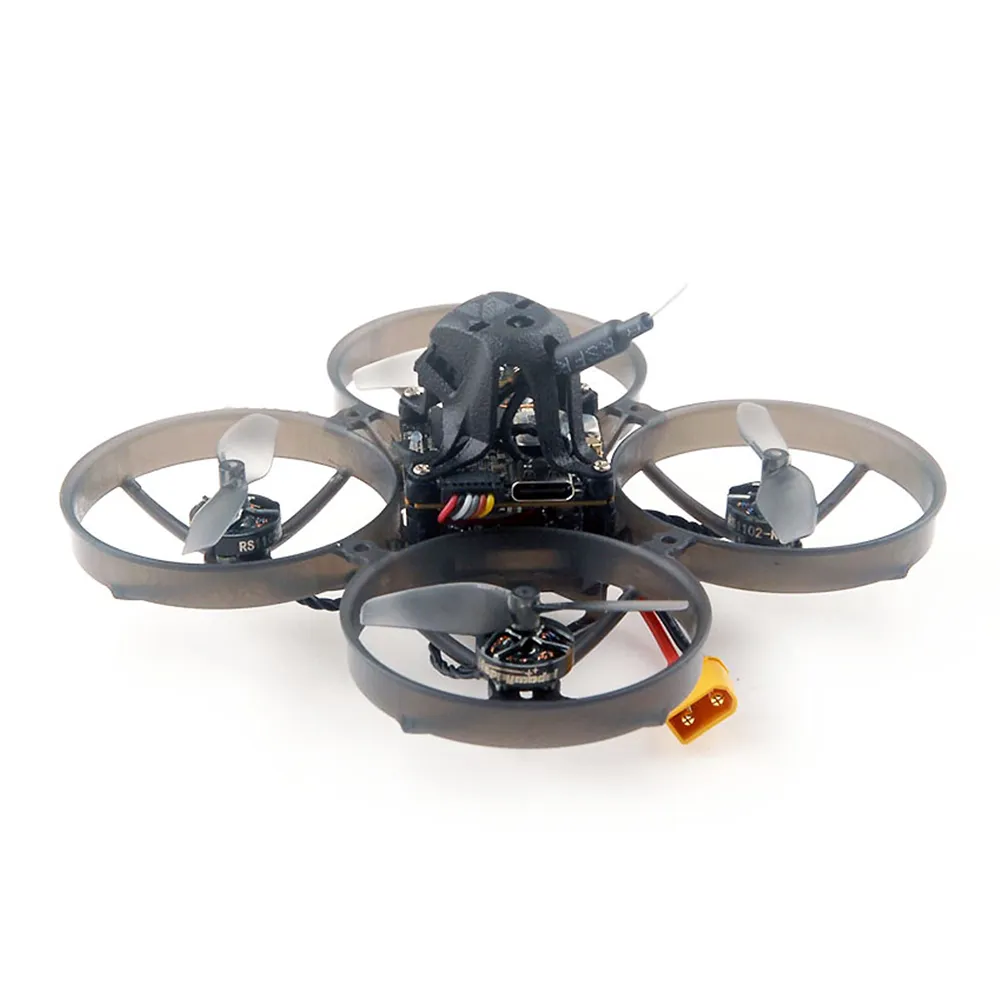

Happymodel Mobula7 80mm 2S Micro Whoop FPV Racing Drone BNF with CrazyF4HD ELRS FC DJI O4 Air Unit HD Digital System

Motor

Mode: RS1102 KV10000
Configu-ration:9N12P
Stator Diamter:11mm
Stator Length:2mm
Shaft Diameter:Φ1.5mm
Motor Dimension(Dia.*Len):Φ13.5mm*14mm
Weight(g):2.8g
No.of Cells(Lipo):1-2S

Propellers

Weight:0.25g
Material: Poly Carbonate
Pitch:0.9
Props Dia:45mm
Hub Thickness:5mm
Shaft:1.5mm

Flight controller

MCU: STM32F405RGT6 (168MHZ, 1Mbyte FLASH)
GYRO Sensor: BMI270 (SPI connection)
Mount hole size: 25.5mm*25.5mm
Power supply: 1-2S battery input (DC 2.9V-8.7V)
Built-in 12A(each) Blheli_S 4in1 ESC
Built-in Serial ExpressLRS 2.4G

Built-in BMP280 Barometer

Built-in 8MBp blackbox
Built-in voltage meter sensor , voltage meter scale 110

Built-in current meter sensor , current meter scale 470

Onboard 4in1 ESC

Power supply: 1-2S LiPo/LiPo HV
Current: 12A continuous peak 15A (3 seconds)
Support BLHeli_S Bluejay firmware
Factory firmware: Bluejay ESC V0.19

Firmware target: Z-H-30
Default protocol: DSHOT300
When use 1s battery and high KV 0702/0802 motors, should set startup power to 1100/1200

Onboard UART ExpressLRS 2.4GHz Receiver

Packet Rate option: 25Hz/50Hz/150Hz/250Hz/500Hz
RF Frequency: 2.4GHz
Antenna: enameled copper wire 31mm length
Telemetry output Power: <12dBm
Default firmware version: ExpressLRS V3.0.1
Firmware target: HappyModel EP 2400 RX
Could update firmware via ExpressLRS configurator

DJI O4 Air Unit

Weight:

Air Unit (camera module included): Approx. 8.2 g

Transmission Module: 30×30×6 mm (L×W×H)

Camera Module: 13.44×12.36×16.50 mm (L×W×H)

Camera Cable Length: 50mm

Coaxial Cable: 50 mm

3-in-1 Cable: 50 mm

Operating Frequency:

5.170-5.250 GHz

5.725-5.850 GHz

Operating frequency varies by region. Refer to local regulations.

Transmitter Power (EIRP):

5.1 GHz: <23 dBm (CE)

5.8 GHz:

<30 dBm (FCC)

<14 dBm (CE)

<30 dBm (SRRC)

Live View Quality: 1080p at 30/50/60/100fps

Item Name

Qty

Happymodel M80 Frame

1

CrazyF4HD ELRS flight controller firmware target:BETAFLIGHTF4

1

RS1102 KV10000 brushless motor

4

HQPROP 45MMX2 bi-blade propellers(4cw+4ccw)

1

DJI O4 Air unit

1

Canopy

1

Screw driver

1
