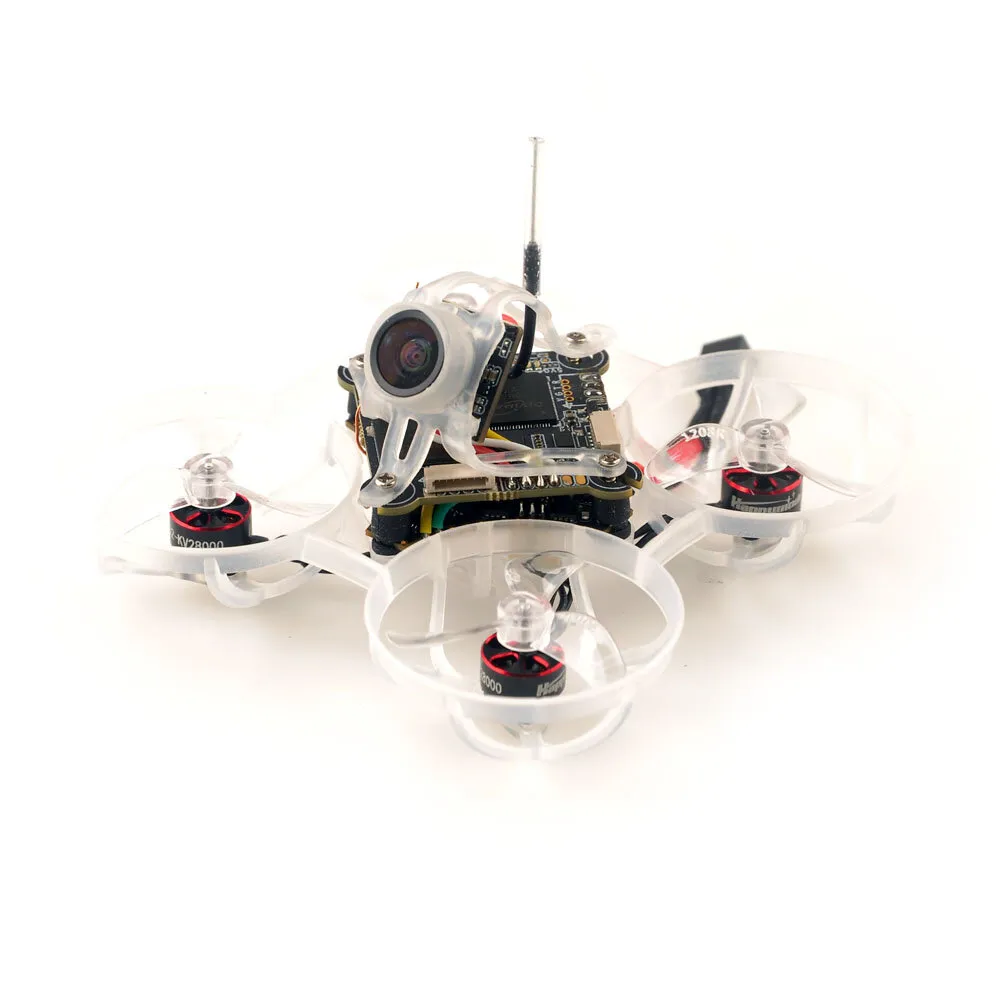

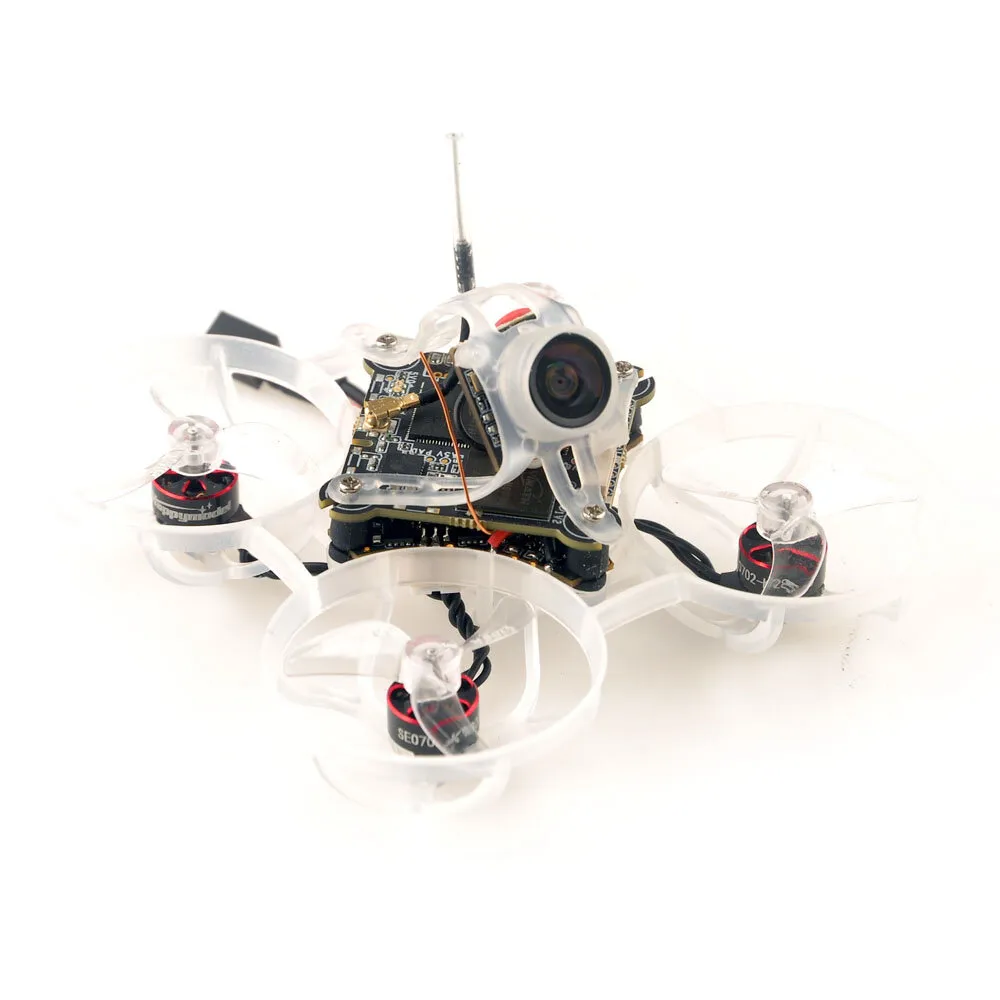

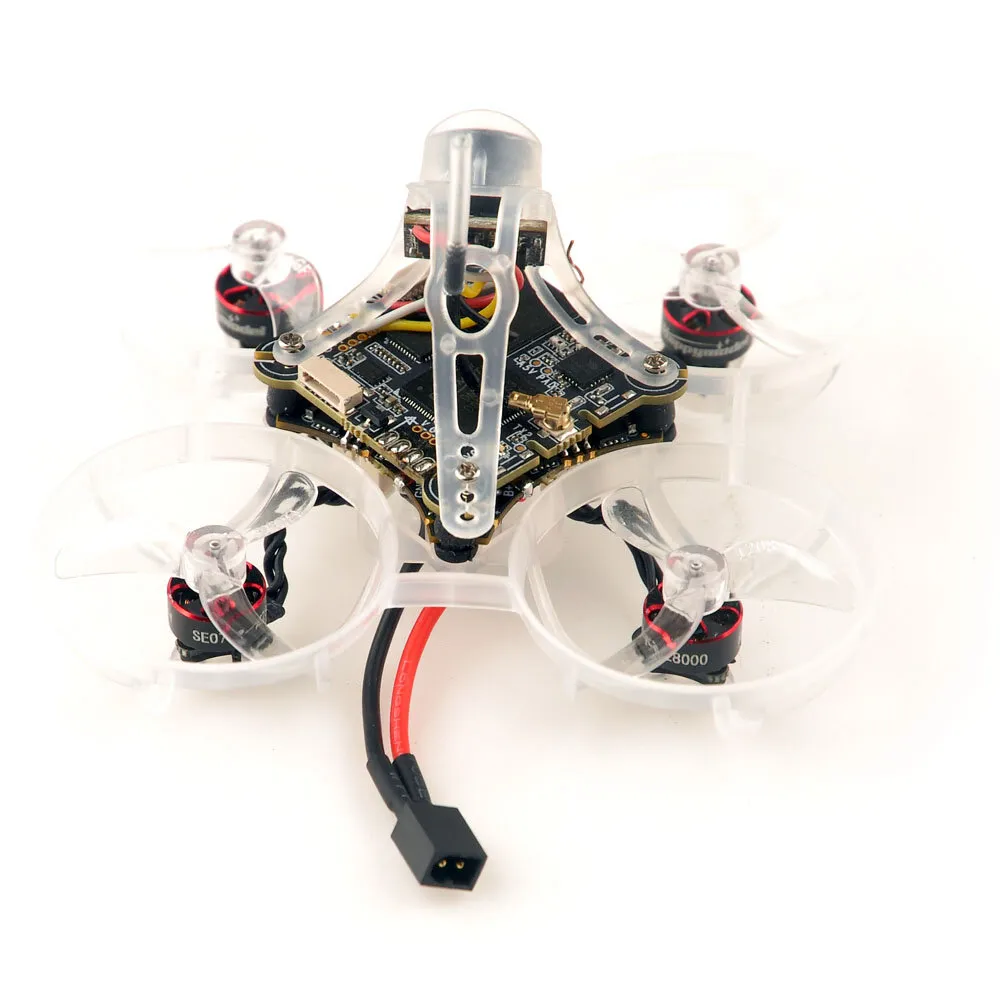

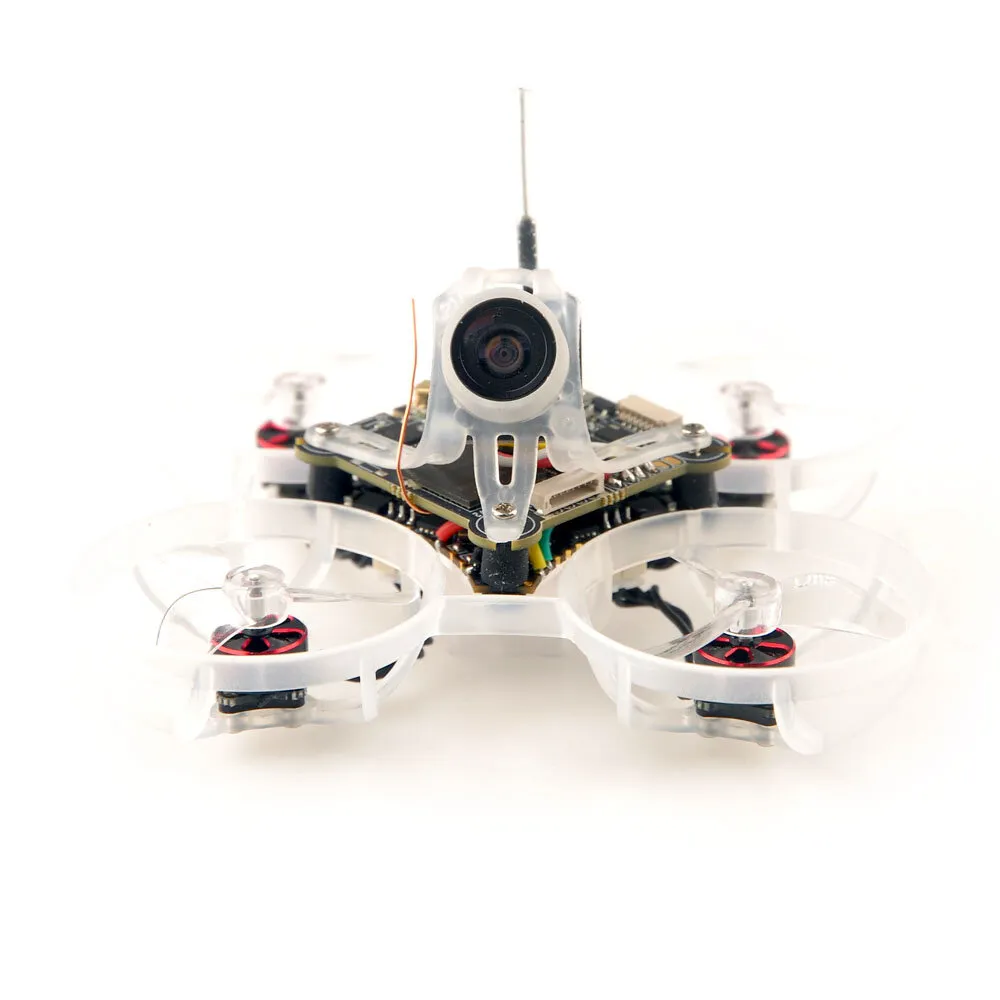

Happymodel Mobula6 ECO 2024 1S 65mm Ultra Light Micro HD Whoop RC FPV Racing Drone ELRS BNF with HDZero ECO VTX Camera

Motor

Mode: SE0702 KV28000
Configu-ration:9N12P
Stator Diamter:7mm
Stator Length:2mm
Shaft Diameter:Φ1mm
Motor Dimension(Dia.*Len):Φ9.5mm*14mm
Weight(g):1.49g
No.of Cells(Lipo):1S only

Propellers

Materials: PC

Inch: 31mm

Pitch: 0.8 in

Weight: 0.21g

Mount hole diameter: 1mm

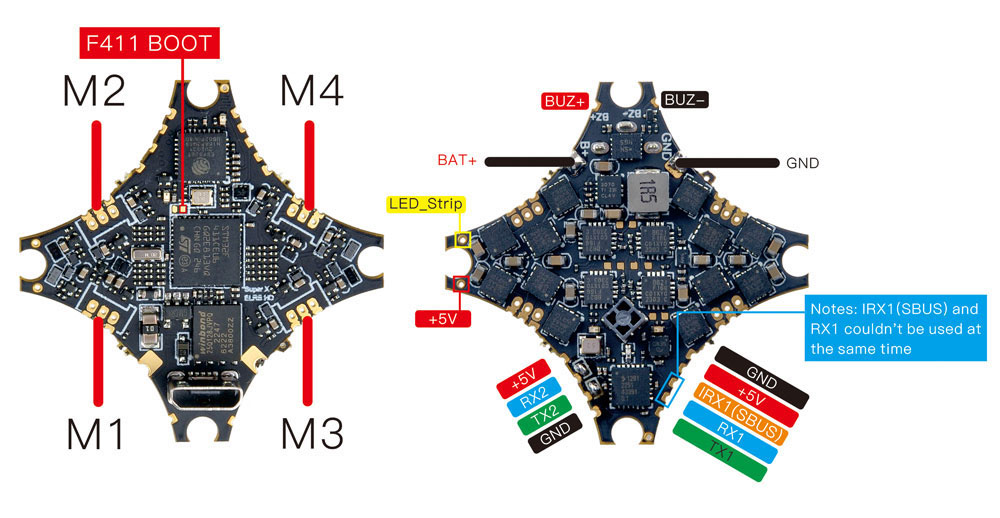

Flight controller

SuperX HD ELRS

Betaflight 4.4.2 firmware ready

Firmware target: CRAZYBEEF4DX
MCU:STM32F411CEU6 (100MHz, 512K FLASH)
Sensor: BMI270 or ICM42688P (SPI connection)
Power supply: 1-2S Lipo Lihv battery input (DC 2.8V~8.7V), only support 1s input for this drone
Built-in 12A(each) Blheli_S 4in1 ESC Dshot300 read

Built-in UART elrs receiver , elrs v3.0 ready, support WIFI and pass-through firmware update

Bluejay ESC Firmware ready
Built-in 5V 1A BEC
Built-in voltage detection

No betaflight analog osd chip

Onboard 4in1 ESC

Power supply: 1-2S LiPo/LiPo HV

Current: 12A continuous peak 15A (3 seconds)
Support ESC-Configurator and BLHELI_S Suite configurator
Factory firmware: Z-H-30 - Bluejay, 0.19, 48kHz
Default protocol: DSHOT300

Onboard Serial ExpressLRS 2.4GHz Receiver

RF Frequency: 2.4GHz

Antenna: enameled copper wire 31mm length
Telemetry output Power: <12dBm
Receiver protocol: CRSF
Default firmware version: ExpressLRS V3.0.1

The same hardware with Happymodel EP1 receiver

Could update firmware via ExpressLRS configurator or WIFI or Betaflight pass-through

HDZERO ECO VTX

Composite HD Video interface

1S-3S Input

25mW/200mW RF output

25.5x25.2 M2 soft mounting

Antenna Retention

32.4x32.5mm (29x29mm inner)

4.5grames/4mm Thickness (w/o shielding)

HDZERO ECO Camera

Image Sensor1/3”

Resolution: 720@60fps 4:3

LENS:FOV D:150° H:120° V:98°

Shutter:Rolling Shutter

Net Weight:1.6g (With Cable)

Dimensions: L14mm*W14mm*H13mm

Item Name

Qty

Mobula6 2024 1S 65mm whoop Drone Frame +Canopy

1

SuperX HD ELRS AIO flight controller

1

SE0702 KV28000 brushless motor

4

Gemfan 1208-3 31mm tri-blade propellers(4cw+4ccw)

1

HDZero ECO VTX

1

HDZero ECO Camera

1

Spare Canopy

1

Propeller disassemble tool

1

Screw driver

1
