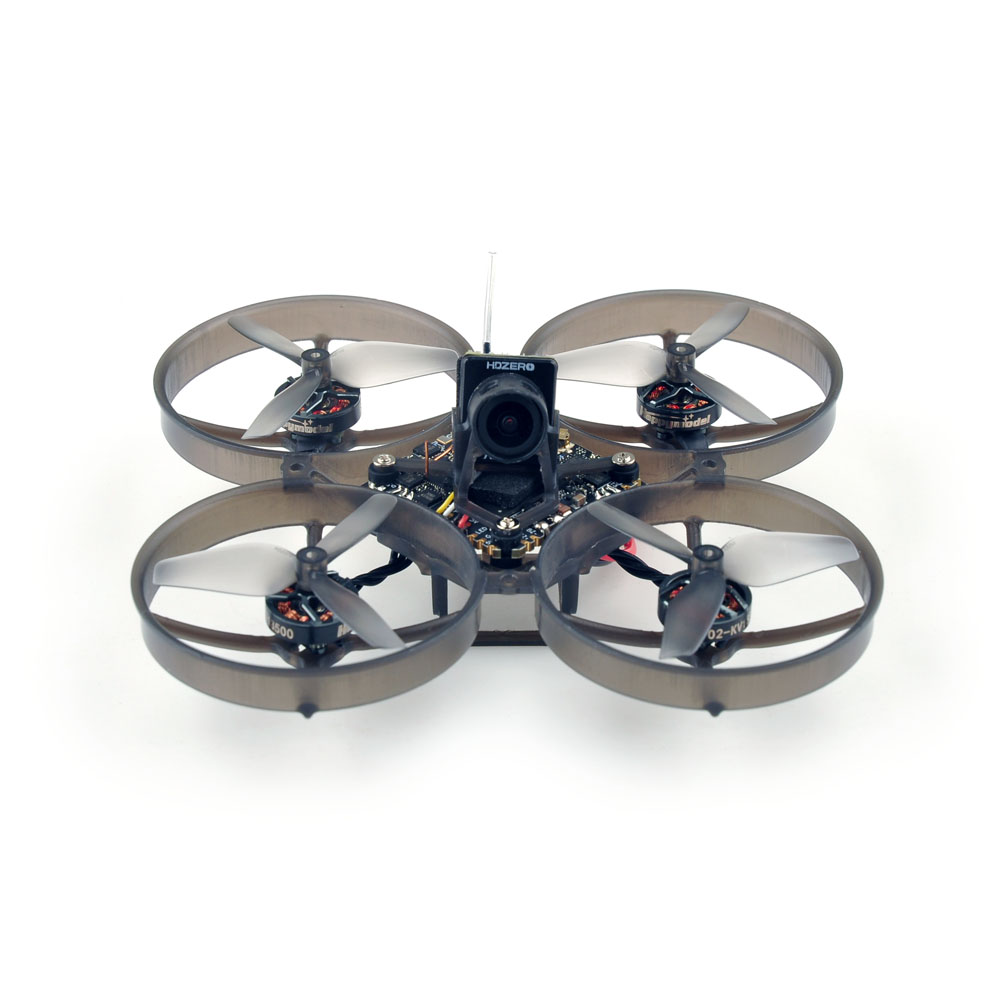

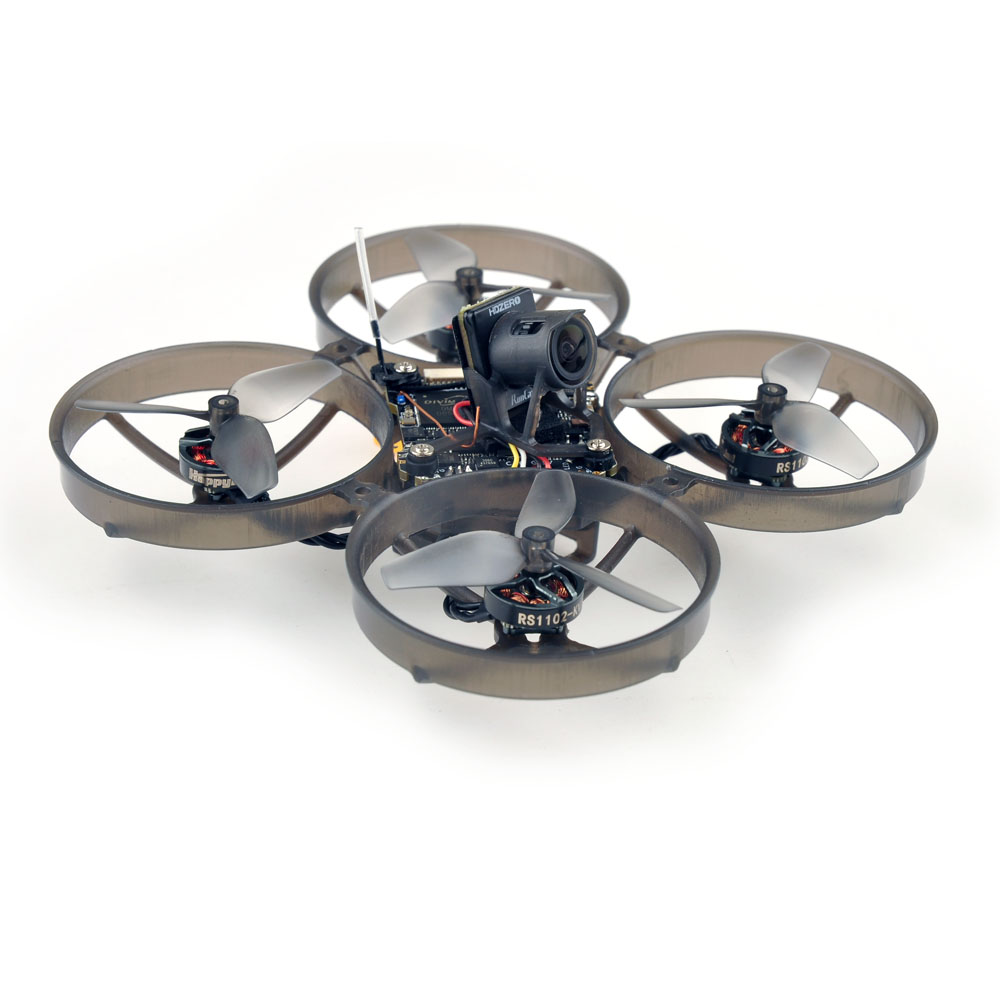

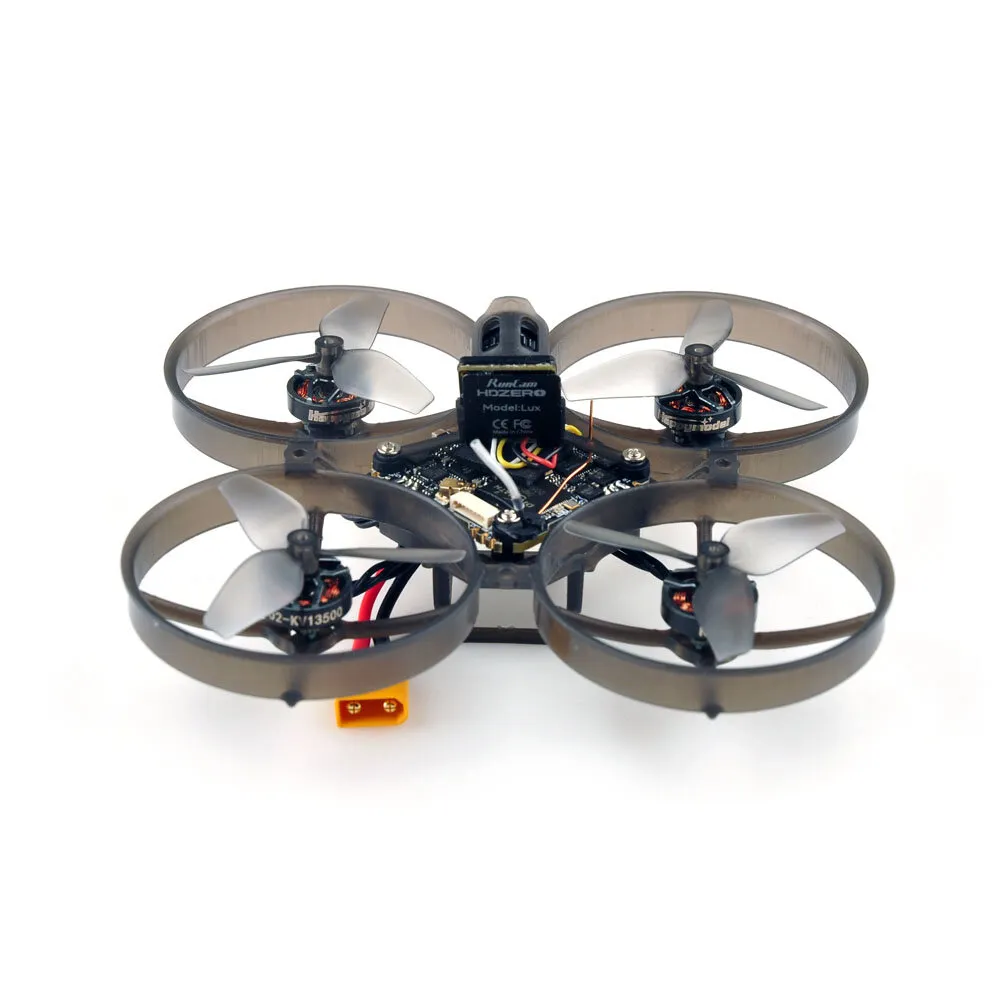

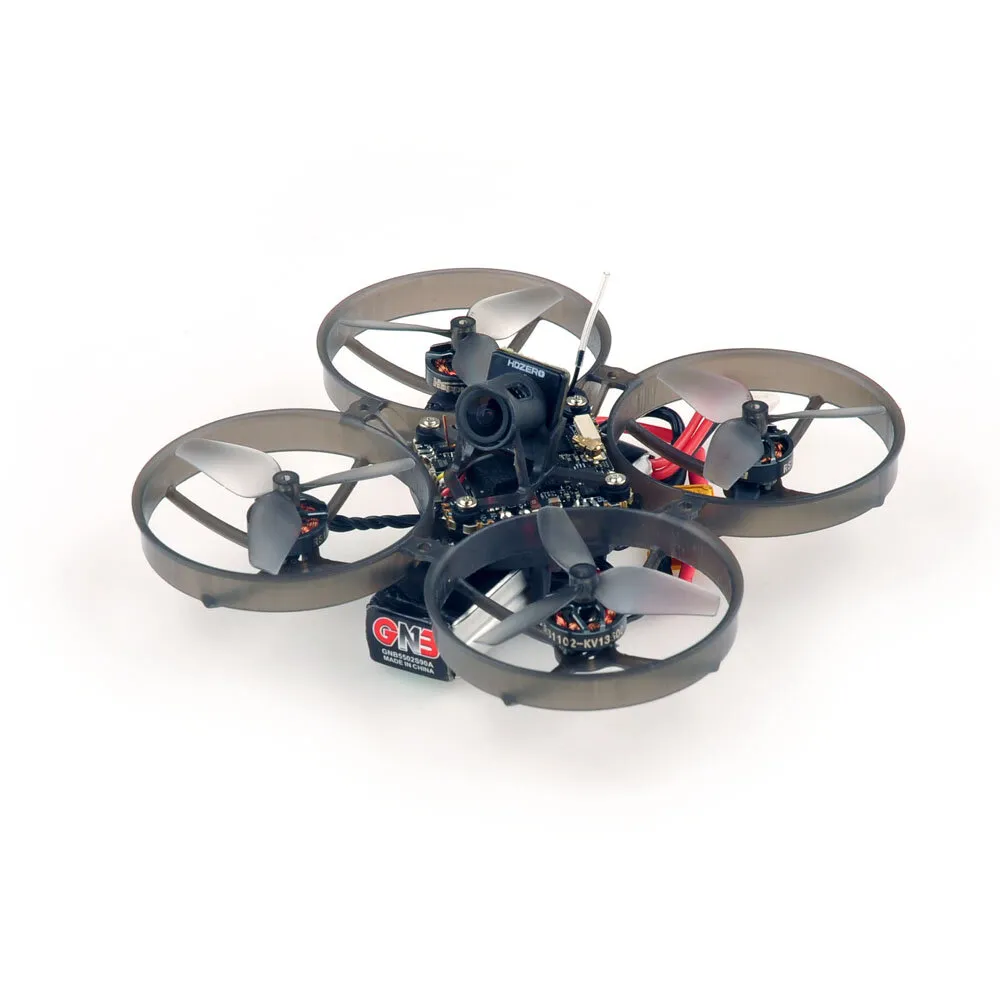

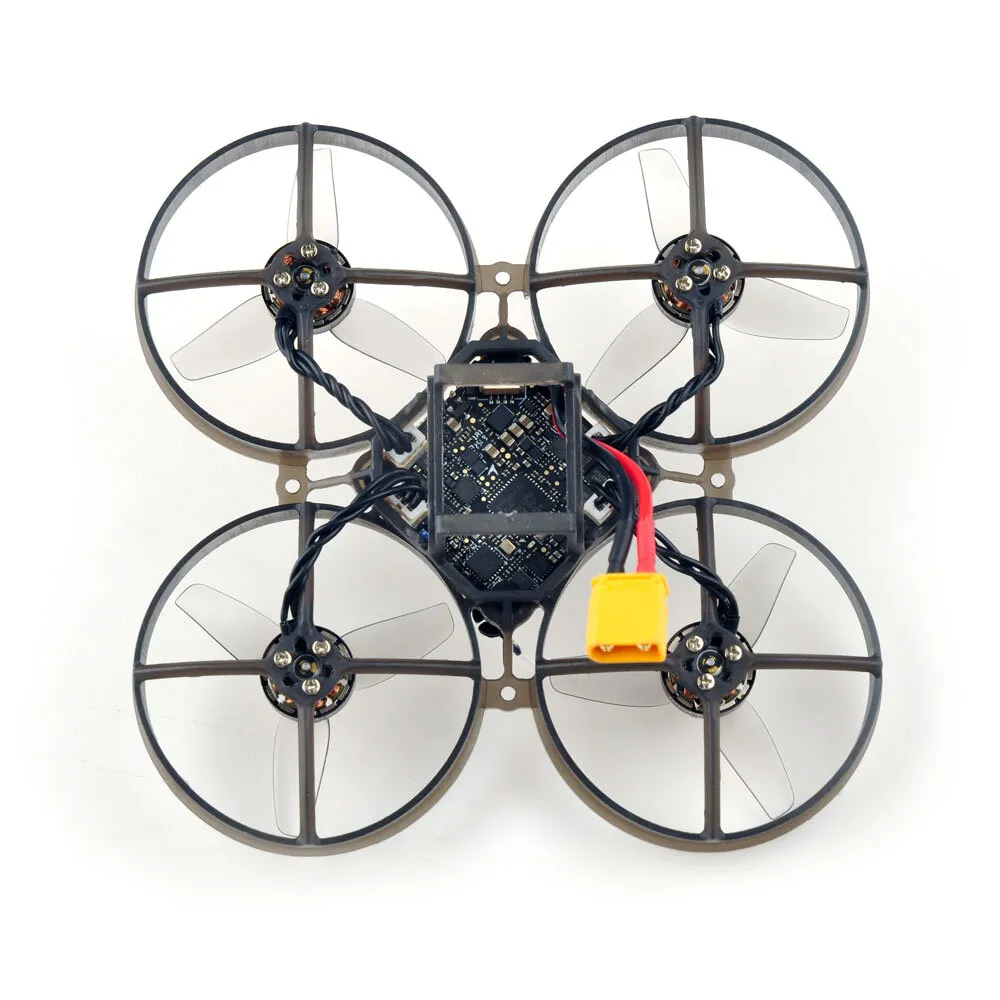

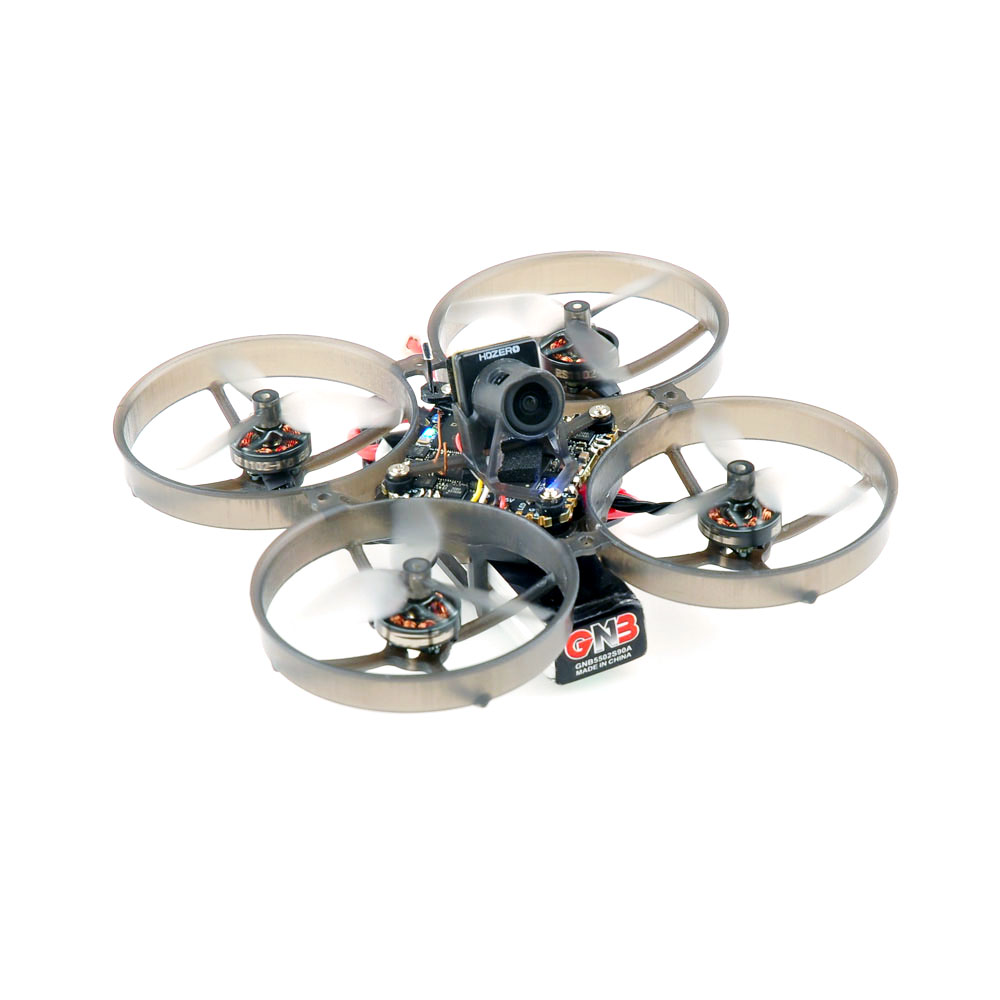

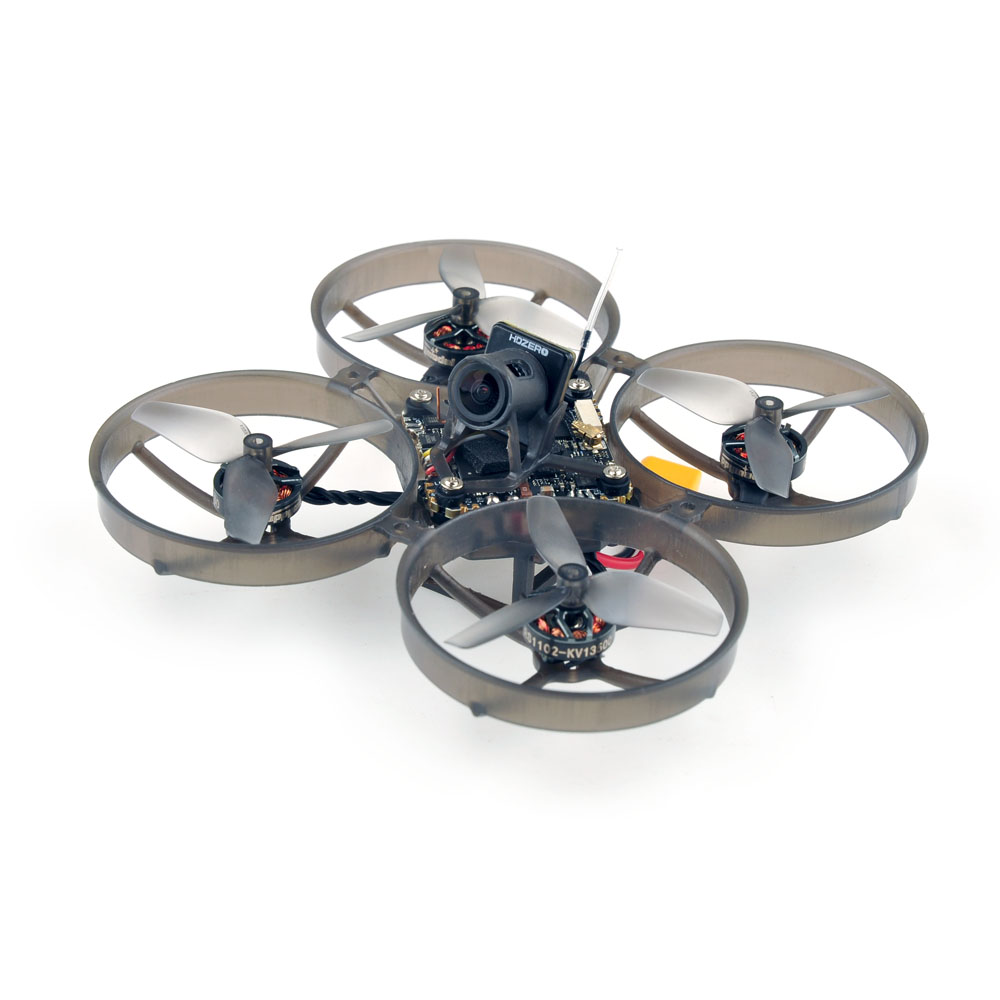

Happymodel M8 HDZero Lux 80mm 2S Micro Whoop Freestyle RC FPV Racing Drone BNF with 15A AIO HD Digital System

Motor

Mode: RS1102 KV13500
Configu-ration: 9N12P
Stator Diamter: 11mm
Stator Length: 2mm
Shaft Diameter: Φ1.5mm
Motor Dimension(Dia.*Len): Φ13.5mm*14mm
Weight(g): 2.8g
No.of Cells(Lipo): 1-2S

Propellers

Weight: 0.33g
Material: Poly Carbonate
Pitch: 0.9
Props Dia: 45mm
Hub Thickness: 5mm
Shaft: 1.5mm

Flight controller

MCU: STM32G473 (170MHz, 512K Flash)
Gyro: ICM42688
On board voltage and amperage meters
Built-in 15A(each) Blue Jay 4-in-1 ESC
Built-in 5.8G HDZero VTX
RF output: 25mw/200mW
Supported channels: R1-R8, F2/F4, L1-L8
UFL connector (ultra-lite linear antenna included)
Built-in Serial ExpressLRS 2.4GHz receiver
Built-in 5V 3A BEC
Flight controller firmware target: HDZERO_AIO15
Power supply: 2S battery (6.4v~8.7v)
Fully compatible with the popular whoop frames
Board size: 31.3×31.3mm with a 25.5×25.5 mounting hole size

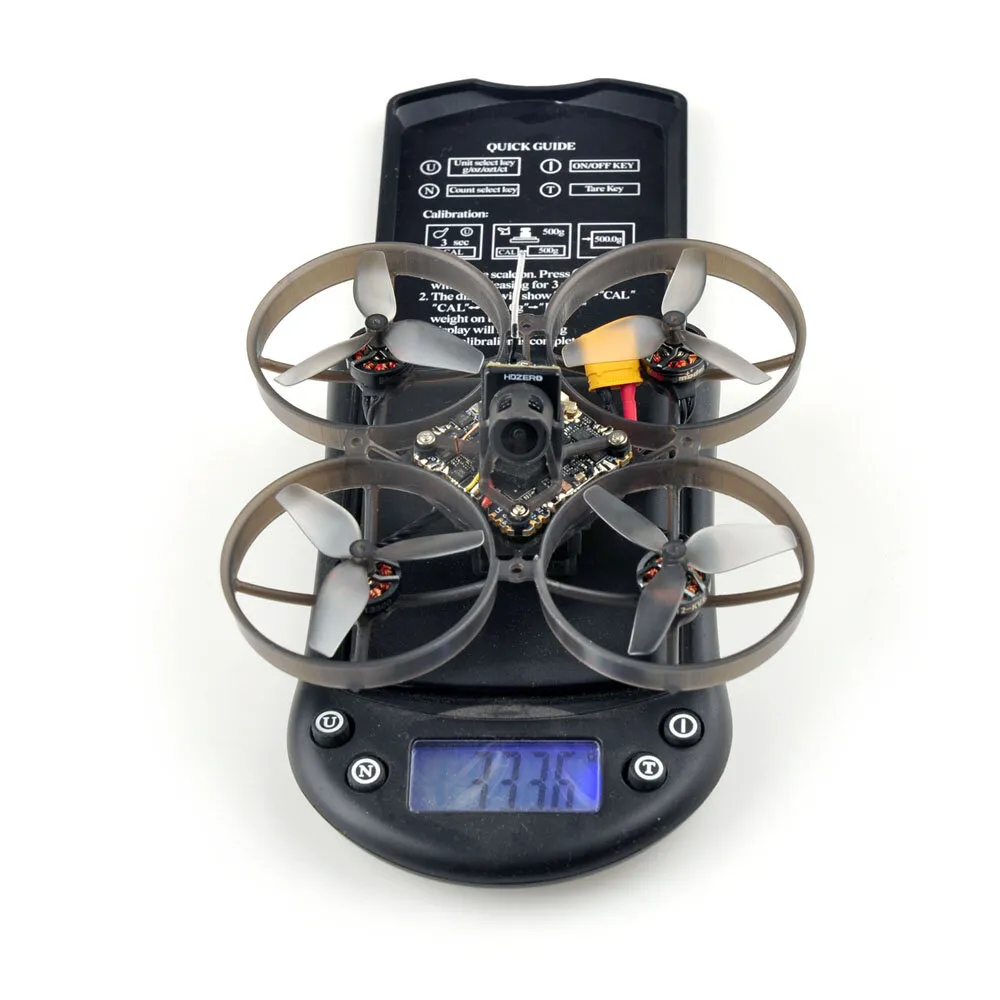

Weight: 7.2g (with motor plugs)

Onboard 4in1 ESC

PowerSupply: 2S LiPo/LiPo HV
Current: 15A continuous,18A peak (3 seconds)
Support BLHeli_S Bluejay firmware
Factory firmware: Bluejay ESC V0.19.2Firmware target: Z-H-30 48KHz
Default protocol: DSHOT300

Onboard UART ExpressLRS 2.4GHz Receiver

Packet Rate option: 50/100/150/250/333/500/D250/D500/F500/F1000Hz
RF Frequency: 2.4GHz
Antenna: Pre-soldered enameled copper wire 31mm length
Telemetry output Power: <12dBm

LUX camera

HDZero Lux Camera
Sensor size: 1/2 inch
Resolution: 720p60 4:3 and 16:9
FOV: D:155° H:126° V:94°(4:3)
FOV: D:145° H:126° V:70°(16:9)
WDR

Item Name

Qty

Happymodel M80 Frame

1

HDZERO AIO15 5-IN-1 Flight controller

1

RS1102 KV13500 brushless motor

4

HQPROP 45MMX3 tri-blade propellers(4cw+4ccw)

1

HDZERO LUX Camera

1

Canopy

1

Screw driver

1
