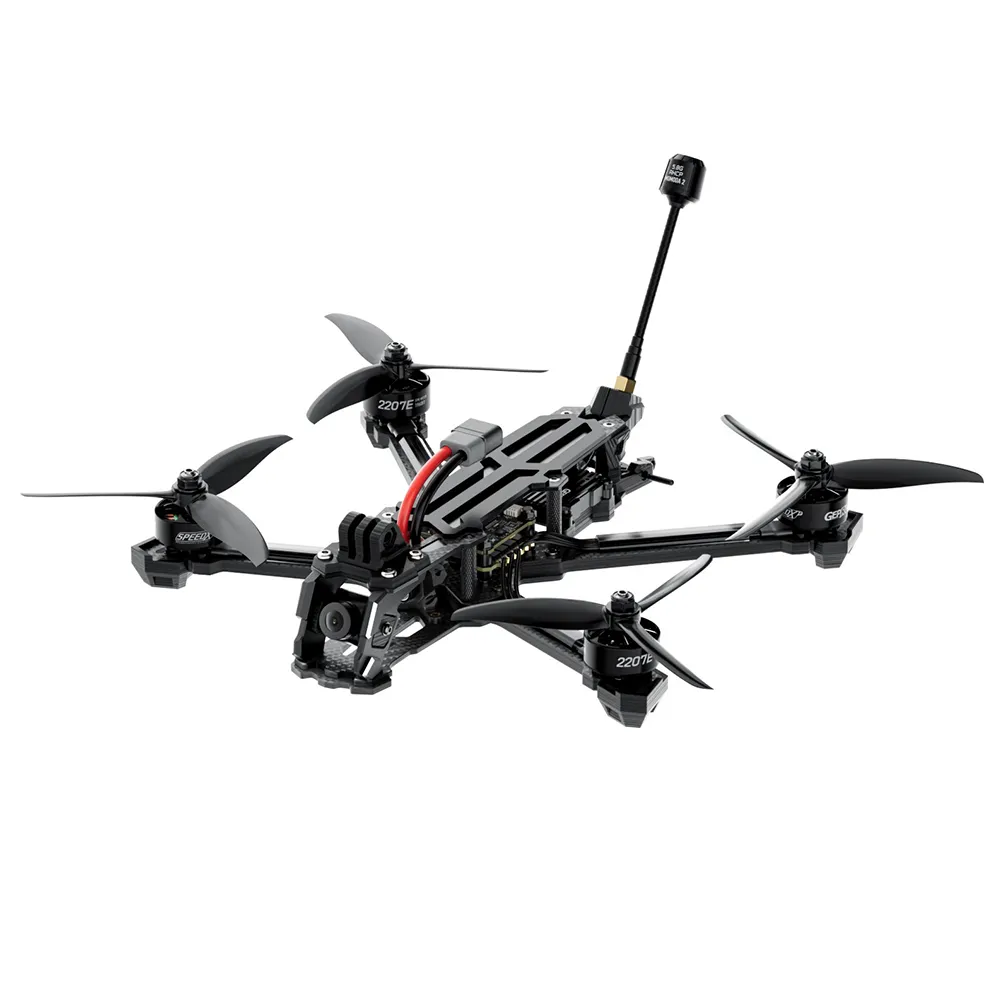

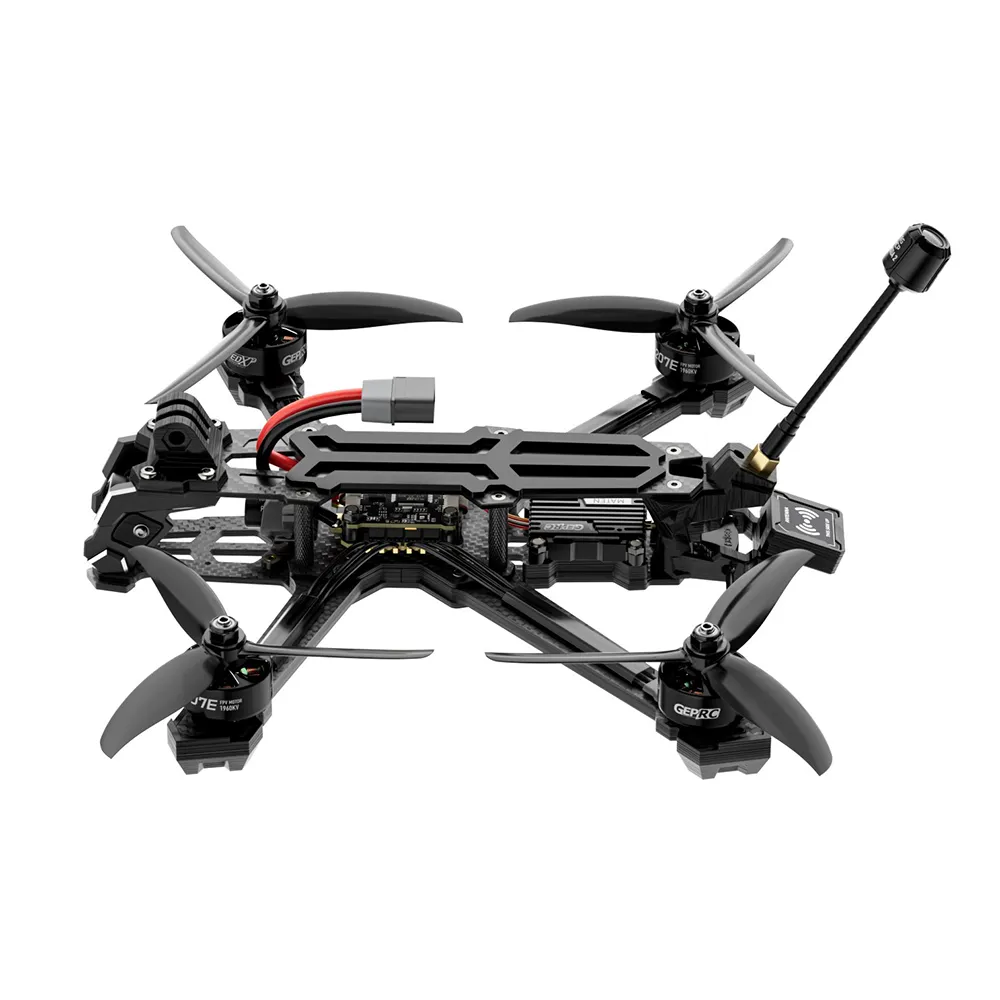

GEPRC Vapor D5 Analog 238.43mm 5 Inch 6S GPS Freestyle FPV Racing Drone PNP BNF with ELRS 2.4G / TBS NanoRX MATEN 5.8G 1.6W VTX

SKUL00832
0 Reviews
USD 236.99
Wholesale Prices :
Qty: 4-7 >=8
Price: $202.49 $191.24
Qty:
In stock
30-day Return Policy, Learn More
Description
  • weight: 485 g

Description:

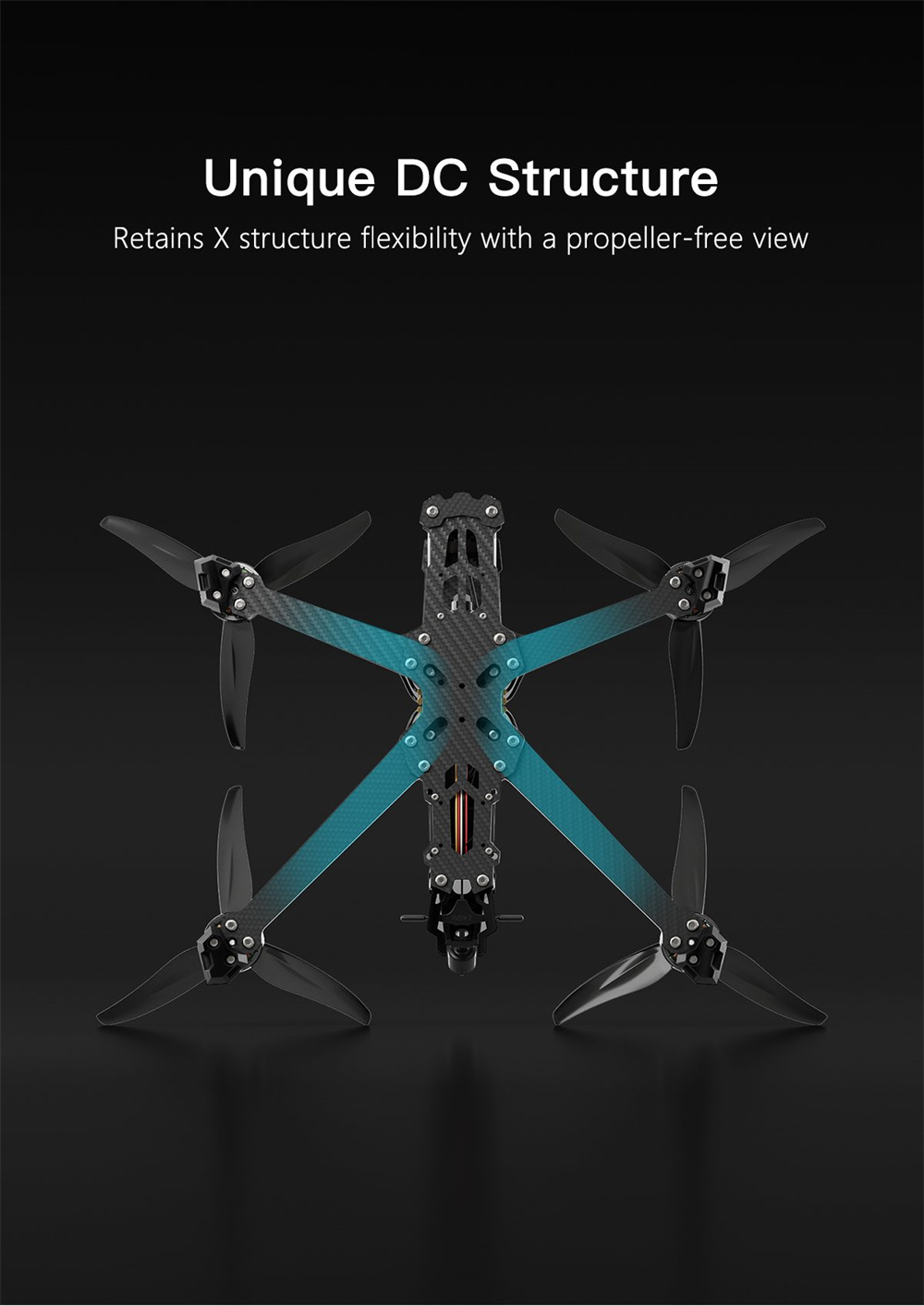

The Vapor-D features a DC structure that evolves from the Wide X version.

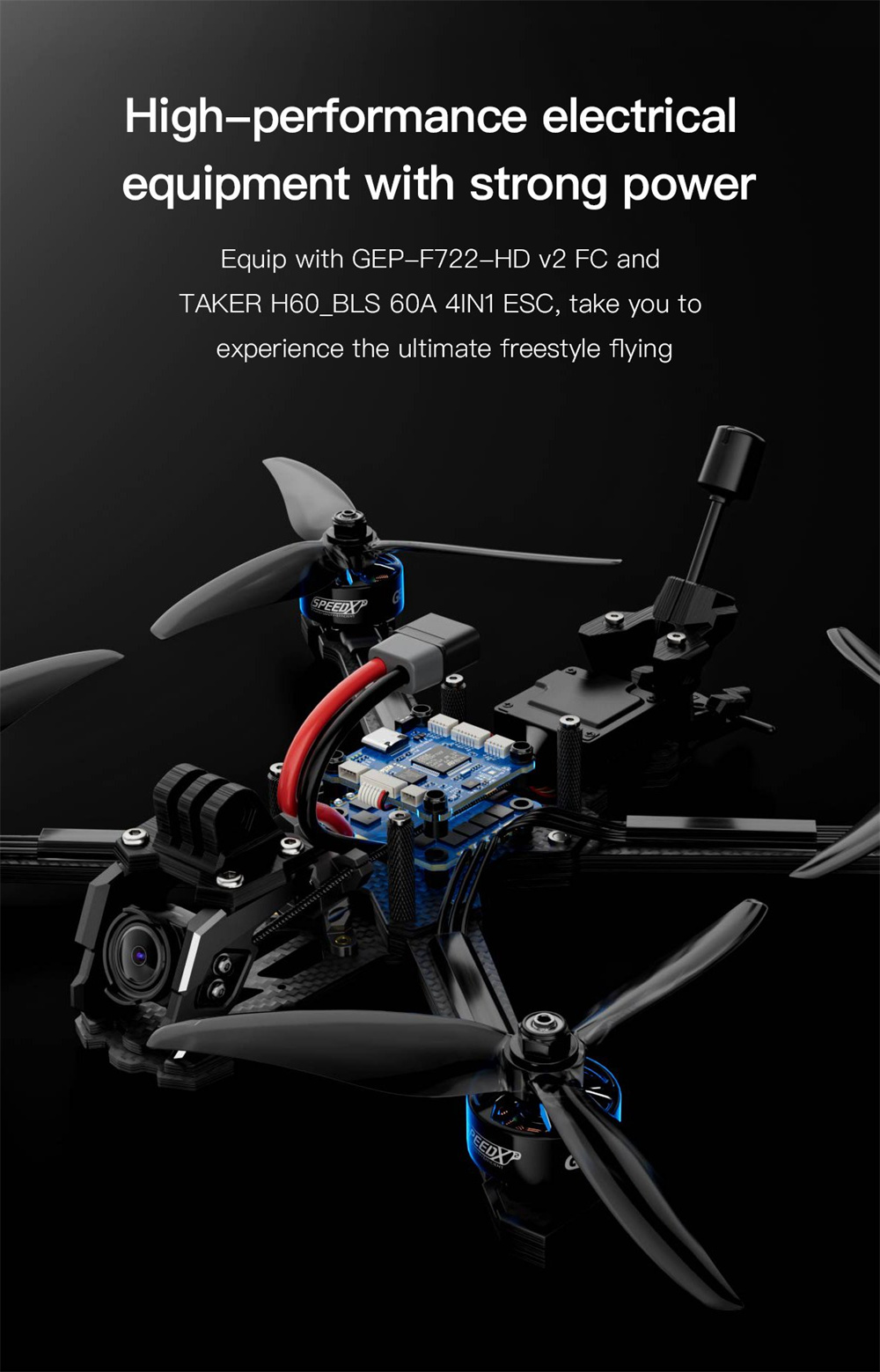

It delivers exceptional flight performance with the TAKER H60_BLS 60A 4-in-1 ESC and GEP-F722-HD V2 flight controller. Its unique DC design ensures the camera does not capture the propellers in view, boosting both video quality and flight enjoyment. With sleek CNC aluminum alloy side panels, the Vapor-D offers a perfect blend of style and strength.

Available in both 5-inch and 6-inch models, it’s made fo every pilot and every flying need

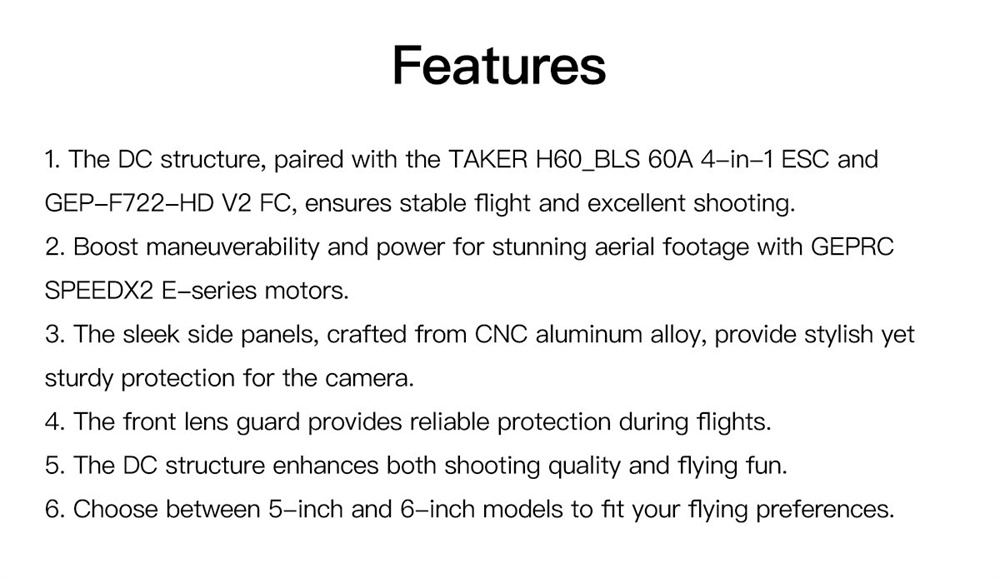

Feature:

- The DC structure, paired with the TAKER H60_BLS 60A 4-in-1 ESC and GEP-F722-HD V2 FC, ensures stable flight and excellent shooting.

- Boost maneuverability and power for stunning aerial footage with GEPRC SPEEDX2 E-series motors.

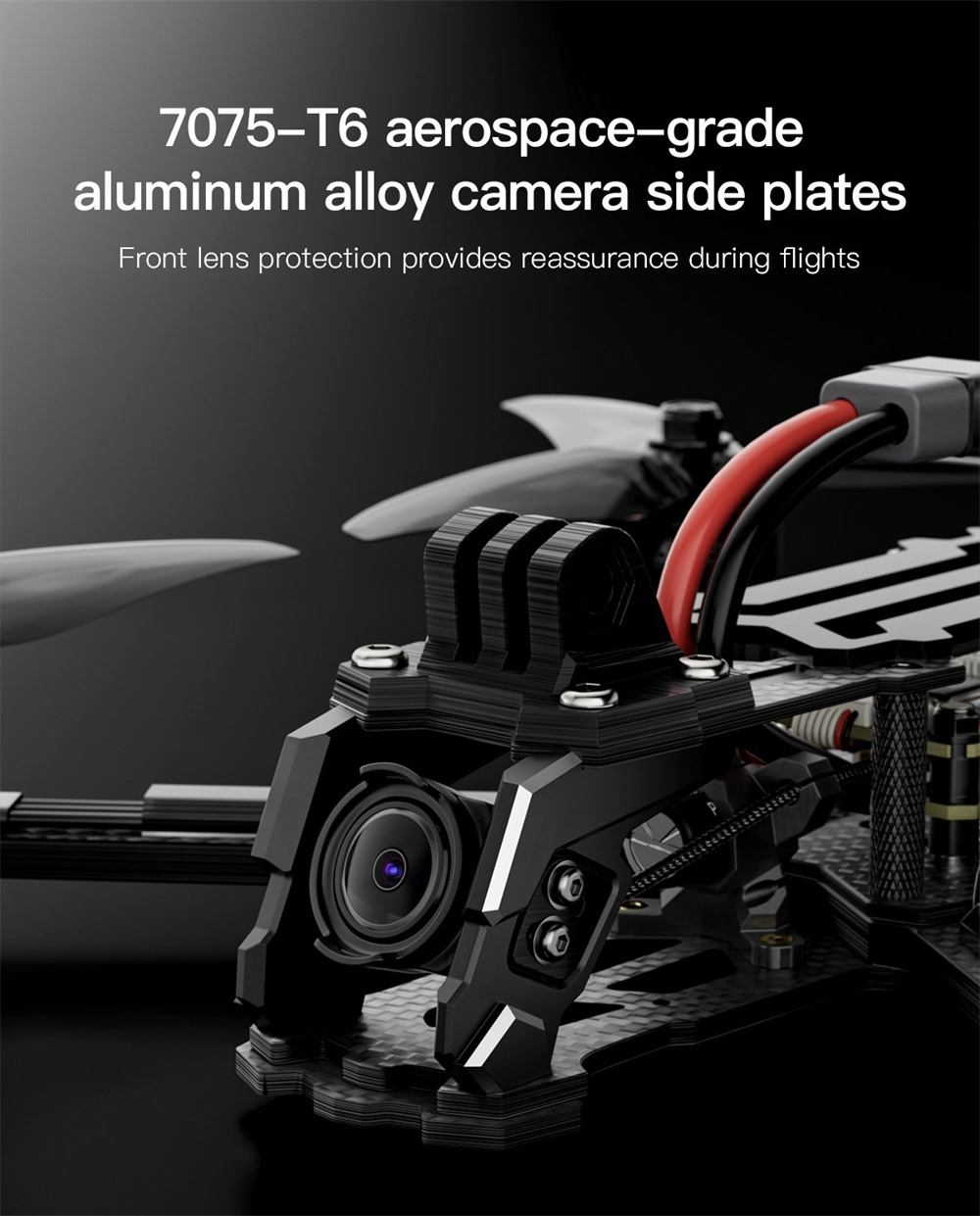

- The sleek side panels, crafted from CNC aluminum alloy, provide stylish yet sturdy protection for the camera.

- The front lens guard provides reliable protection during flights.

- The DC structure enhances both shooting quality and flying fun.

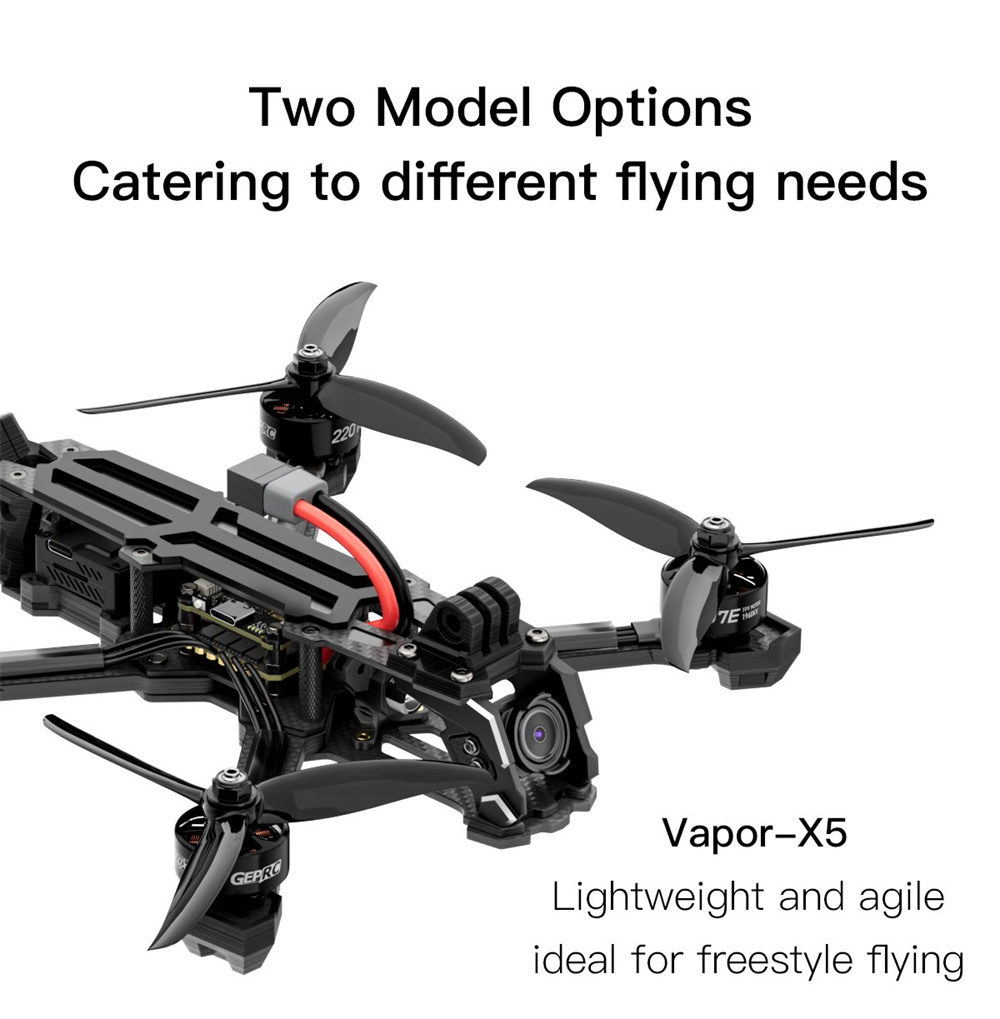

- Choose between 5-inch and 6-inch models to fit your flying preferences.

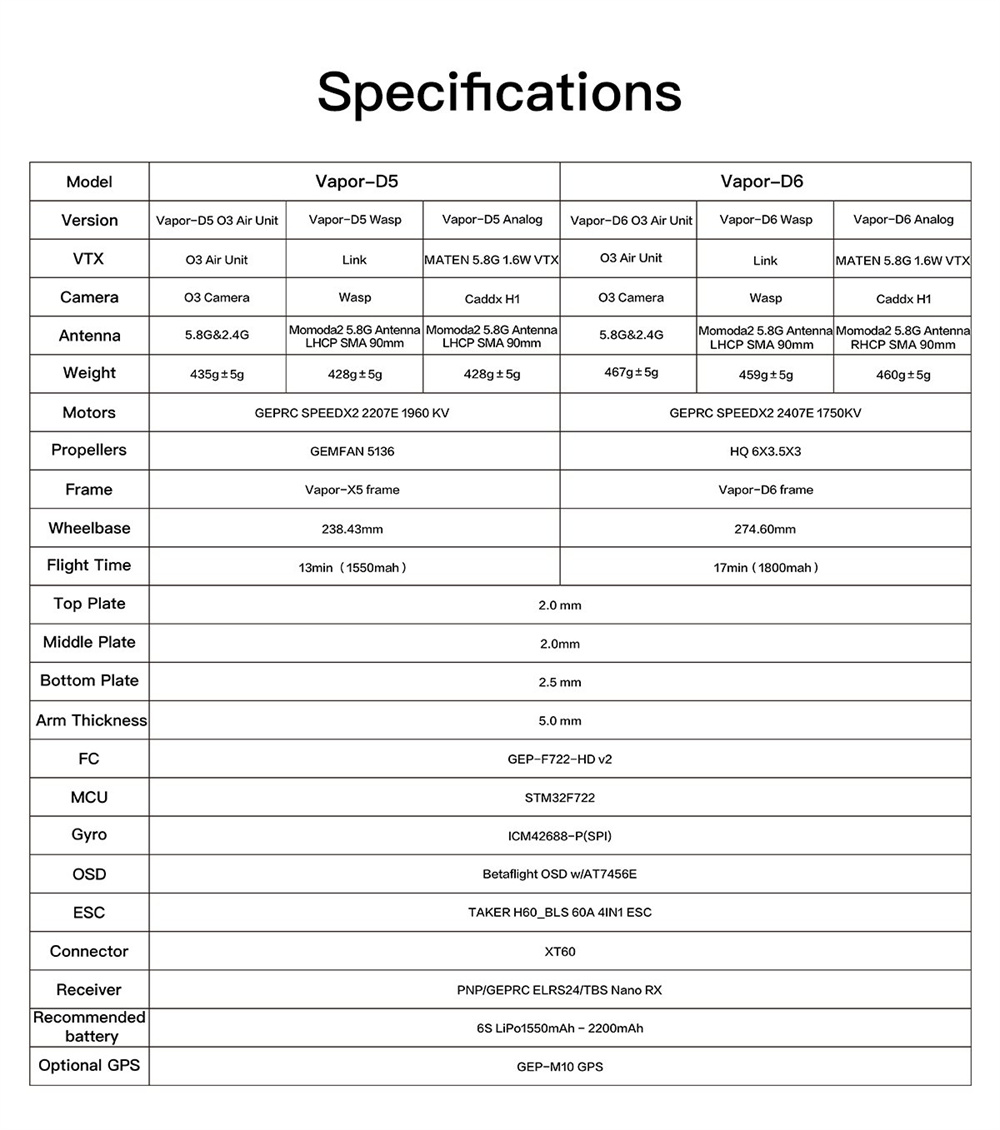

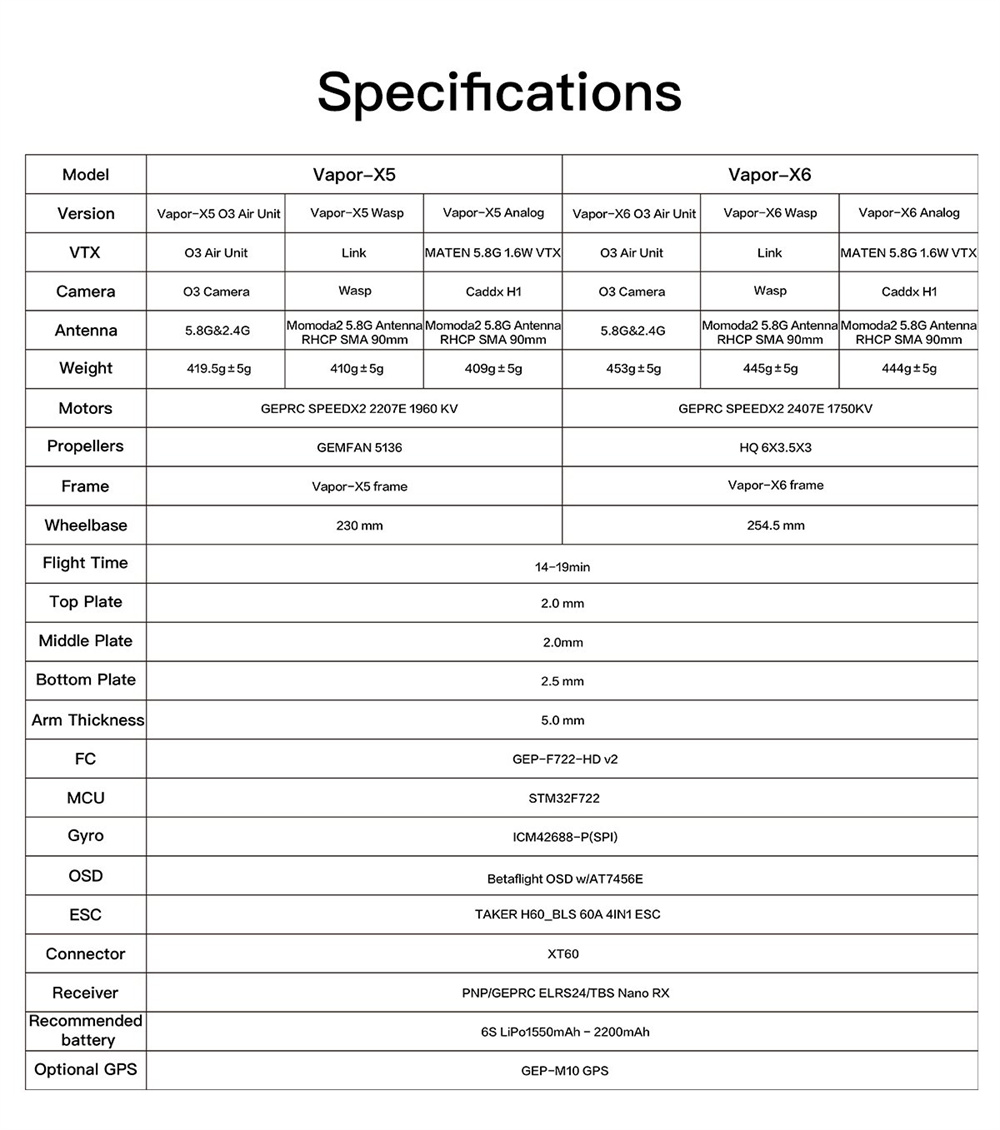

Specifications:

Brand: GEPRC

Model: Vapor D5 Analog

Item Name: 5 Inch 6S Freestyle FPV Drone

GPS: Geprc GEP M10 GPS

Model:

Vapor D5 Analog

Vapor D6 Analog

Version

Vapor D5 DJI O3 Air Unit

Vapor D5 Wasp

Vapor D5 Analog

Vapor D6 DJI O3 Air Unit

Vapor D6 Wasp

Vapor D6 Analog

VTX

DJI O3 Air Unit

Link

MATEN 5.8G 1.6W VTX

DJI O3 Air Unit

Link

MATEN 5.8G 1.6W VTX

Camera

DJI O3 Camera

Wasp

Caddx H1

DJI O3 Camera

Wasp

Caddx H1

Antenna

5.8G&2.4G

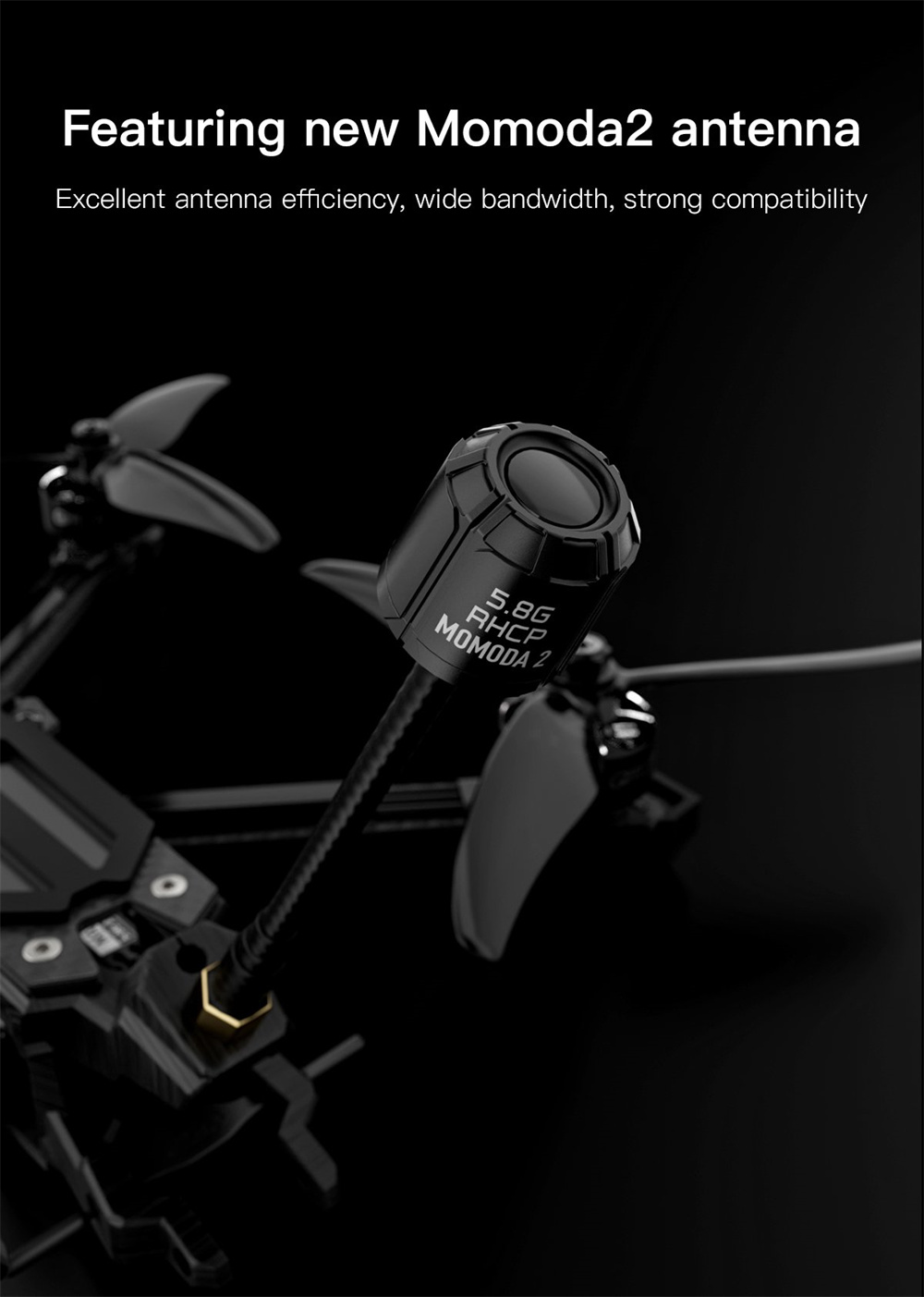

Momoda2 5.8G Antenna

LHCP SMA 90mm

Momoda2 5.8G Antenna

LHCP SMA 90mm

5.8G&2.4G

Momoda2 5.8G Antenna

LHCP SMA 90mm

Momoda2 5.8G Antenna

RHCP SMA 90mm

Weight

435g±5g

428±5g

428±5g

467g±5g

459±5g

460g±5g

Motors

GEPRC SPEEDX2 2207E 1960 KV

GEPRC SPEEDX2 2407E 1750KV

Propellers

GEMFAN 5136

HQ 6X3.5X3

Frame

Vapor-D5 frame

Vapor-D6 frame

Wheelbase

238.43mm

274.60mm

Flight Time

13min (1550mah)

17min (1800mah)

Top Plate

2.0 mm

Middle Plate

2.0mm

Bottom Plate

2.5 mm

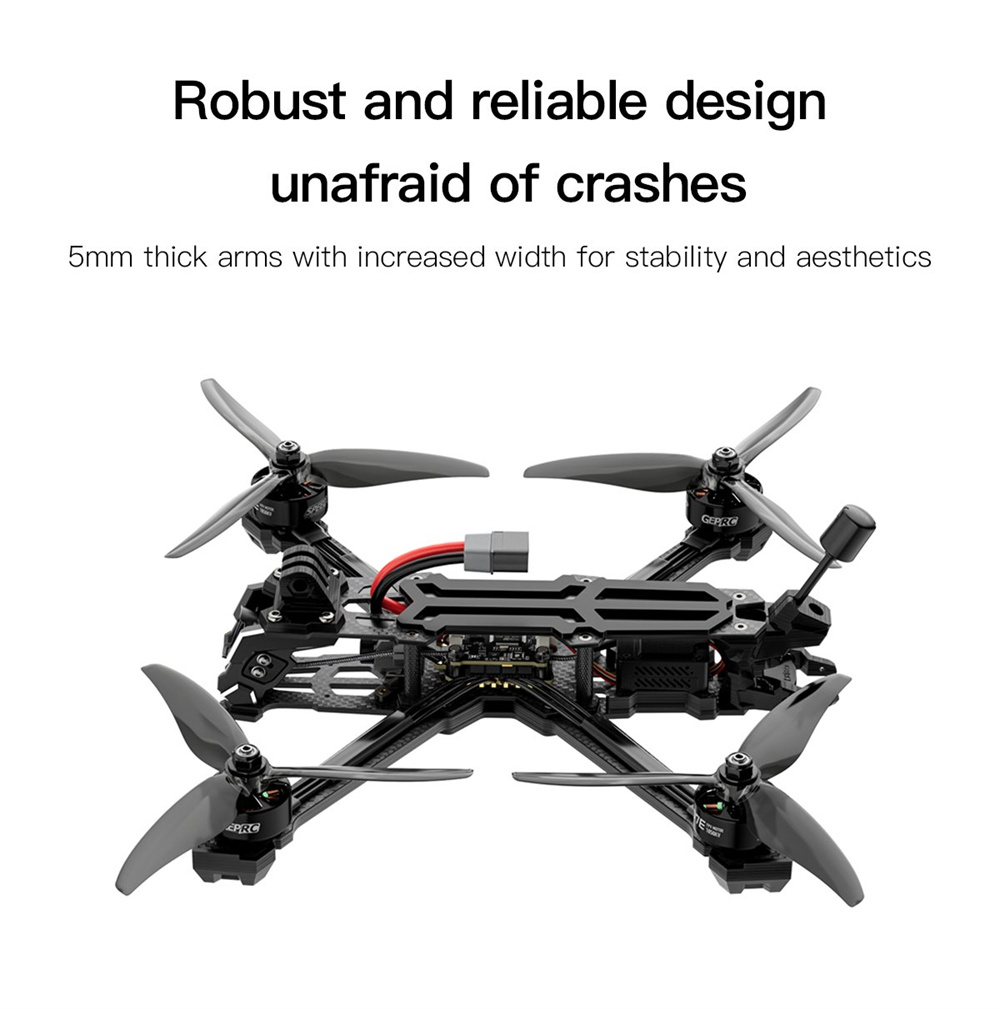

Arm Thickness

5.0 mm

FC

GEP-F722-HD v2

MCU

STM32F722

Gyro

ICM42688-P(SPI)

OSD

Betaflight OSD w/AT7456E

ESC

TAKER H60_BLS 60A 4IN1 ESC

Connector

XT60

Receiver

PNP/GEPRC ELRS24/TBS Nano RX

Recommended Battery

6S LiPo1550mAh - 2200mAh

Optional GPS

GEP-M10 GPS

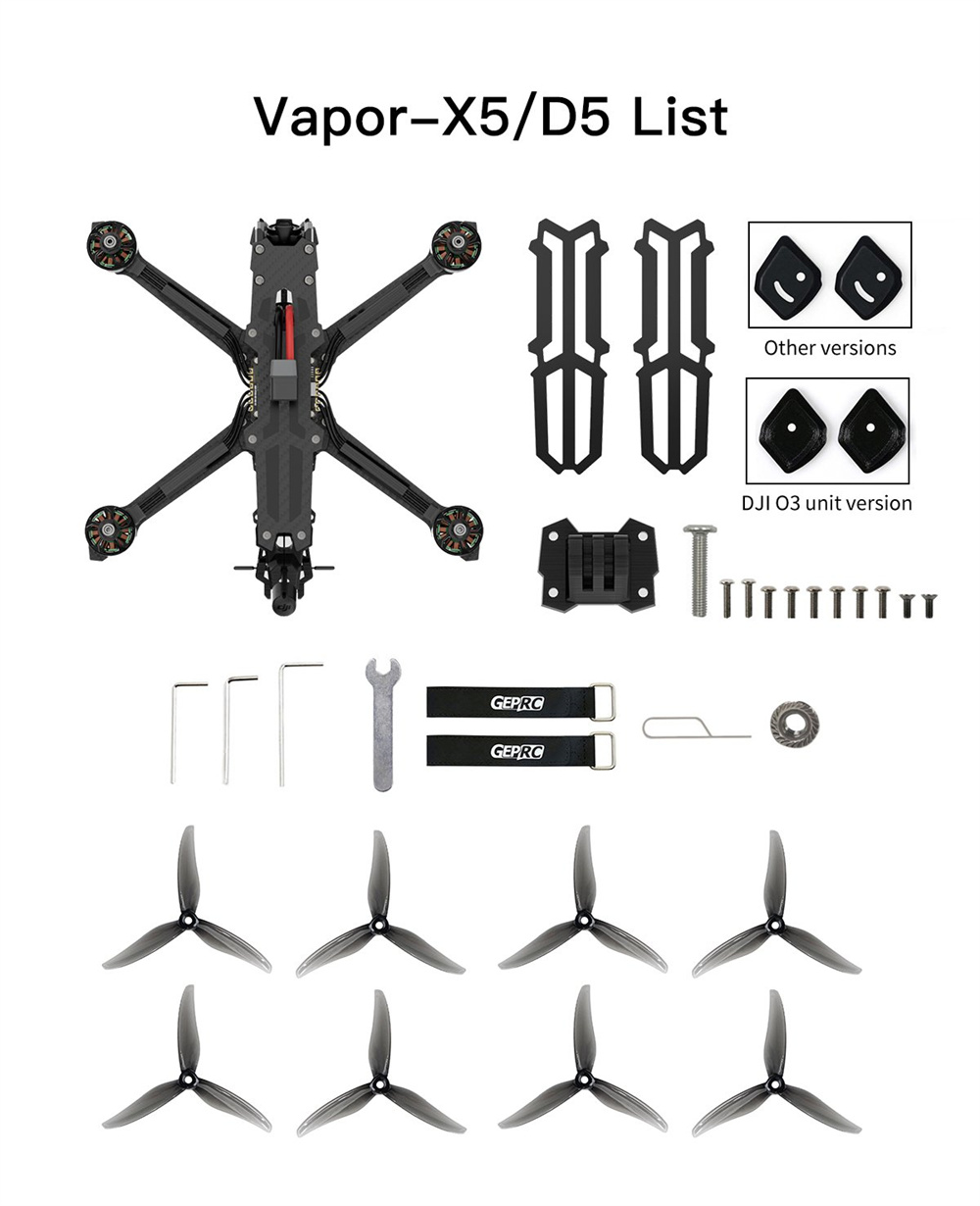

Package Included:

1 x Vapor D5 Analog

2 x GEMFAN 5136

2 x Battery Anti-Slip Pads

1 x Spare Screw Pack

2 x M20*250mm Battery Straps

1 x L-shaped Screwdriver 1.5mm

1 x L-shaped Screwdriver 2.0mm

1 x GPro Mount
