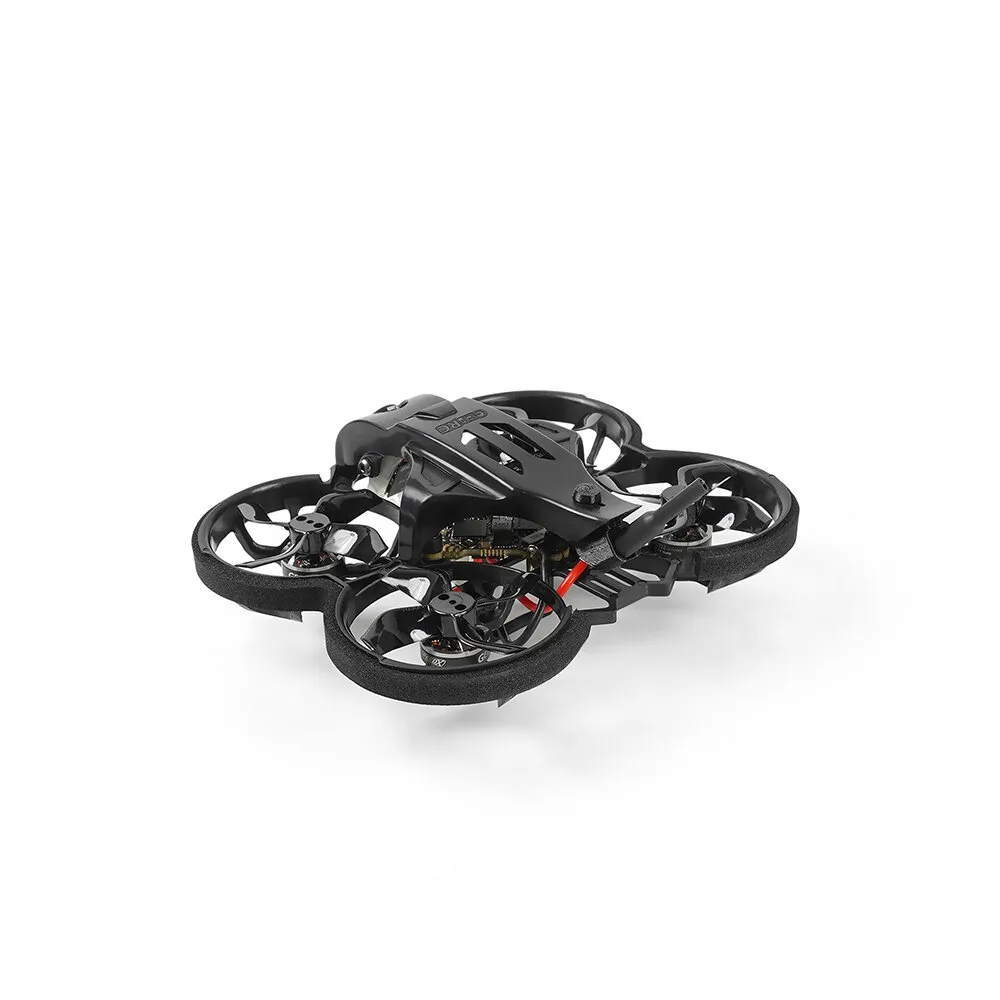

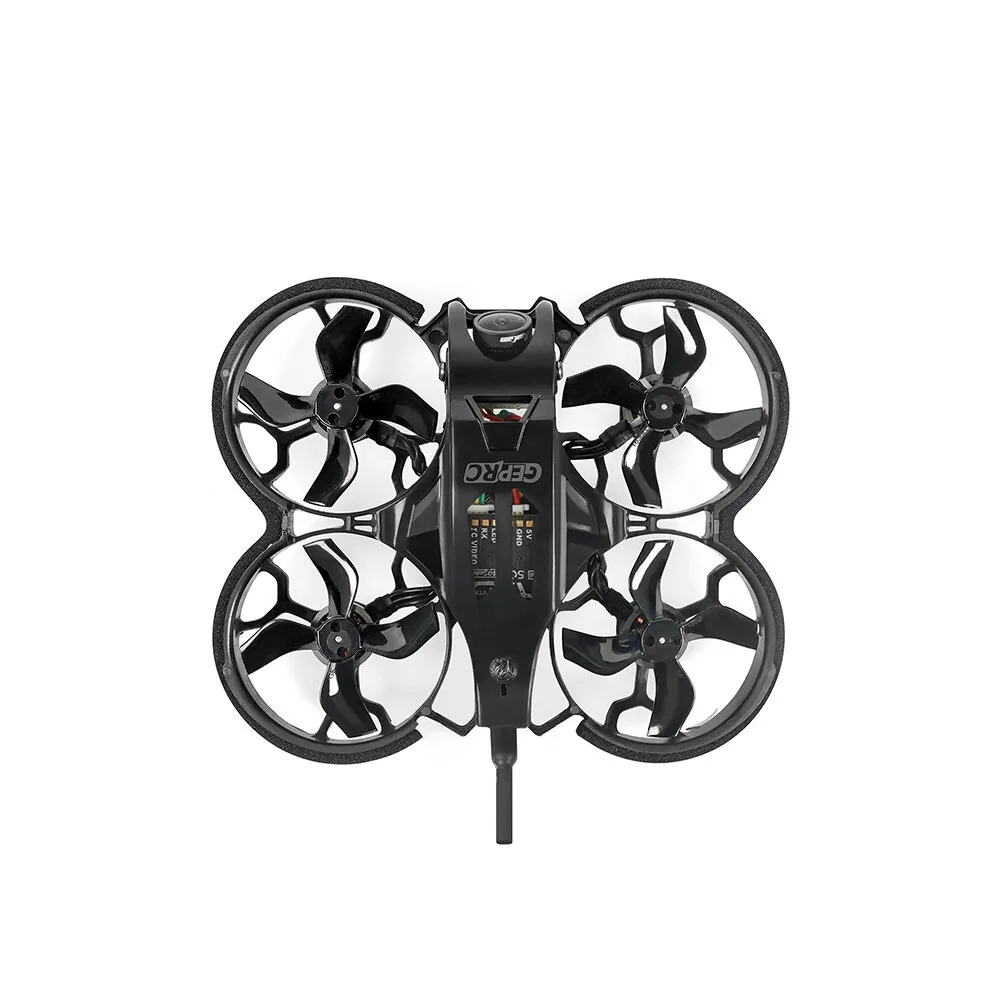

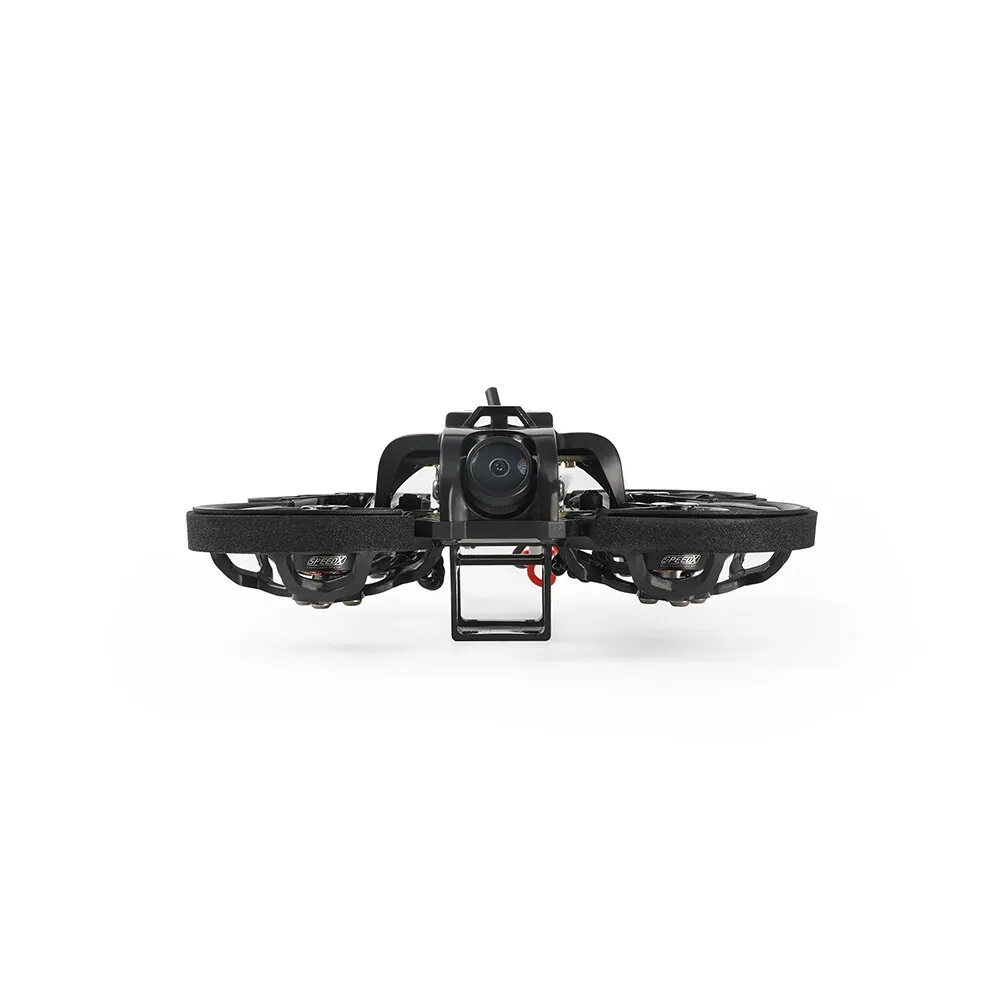

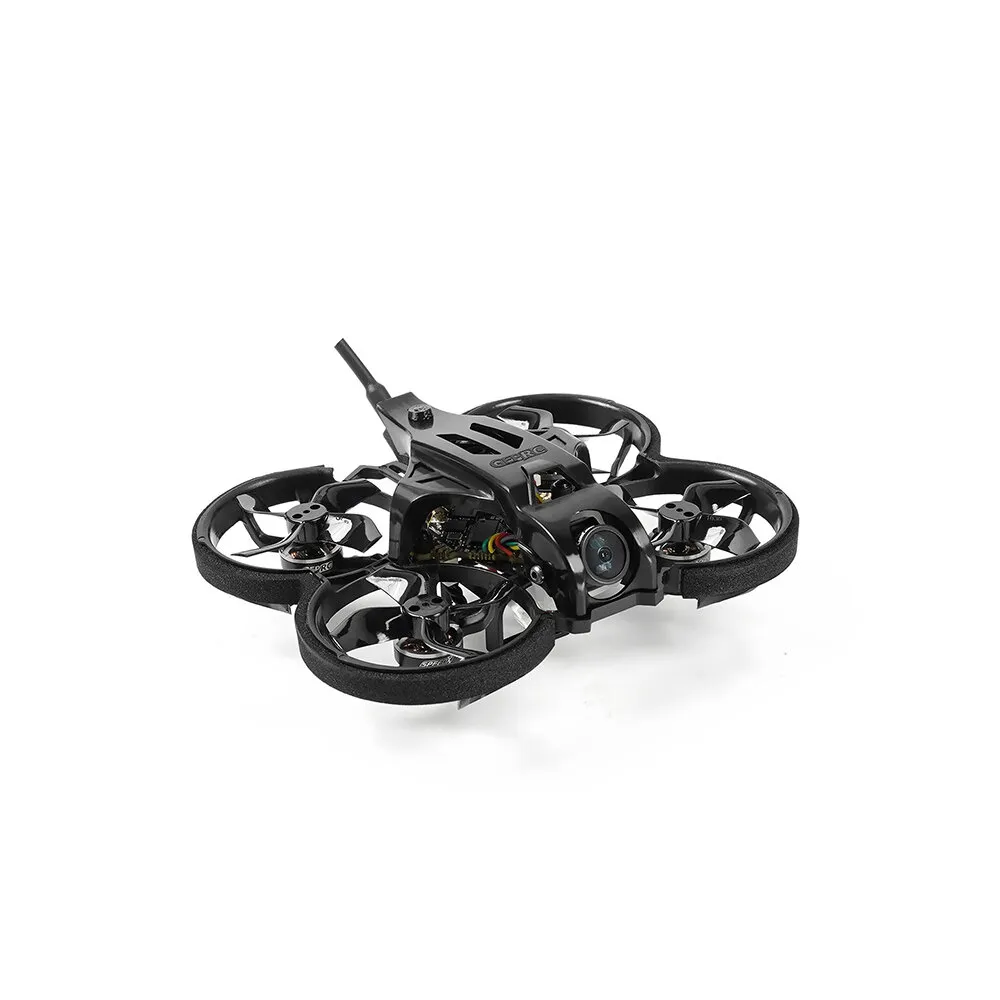

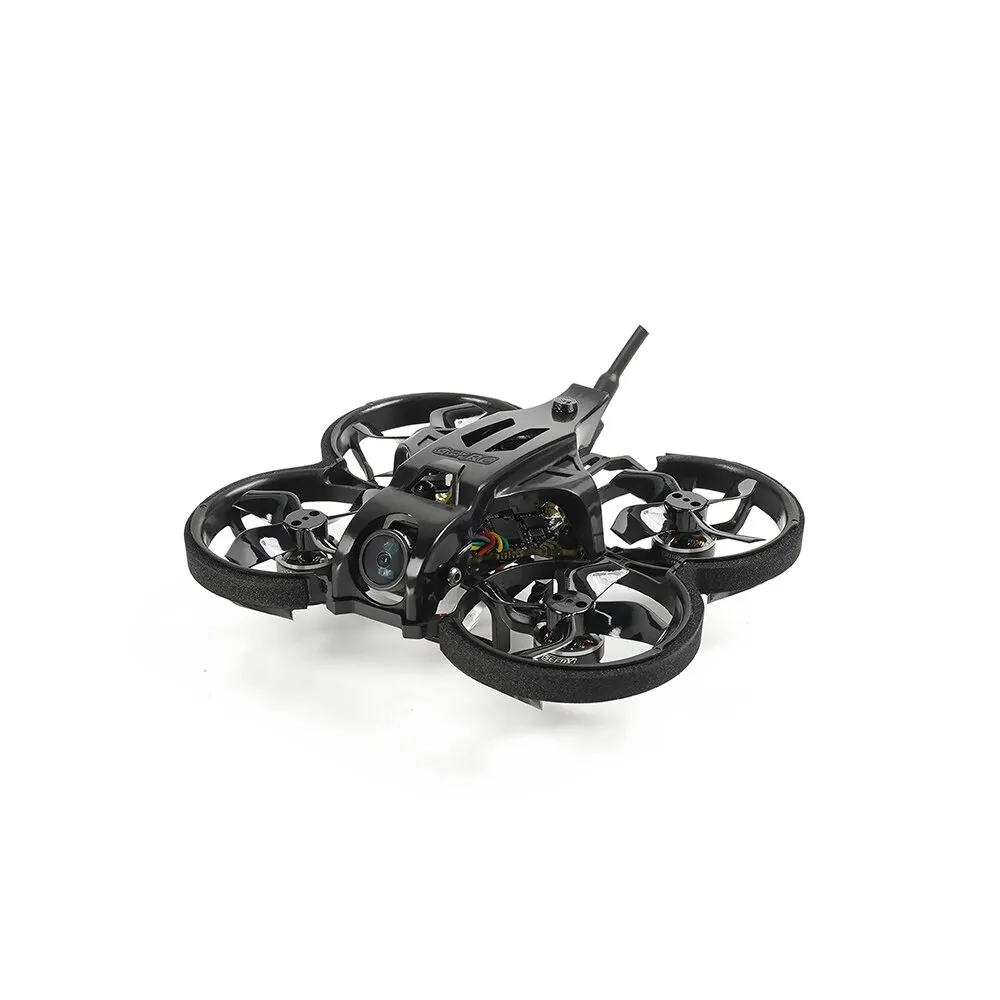

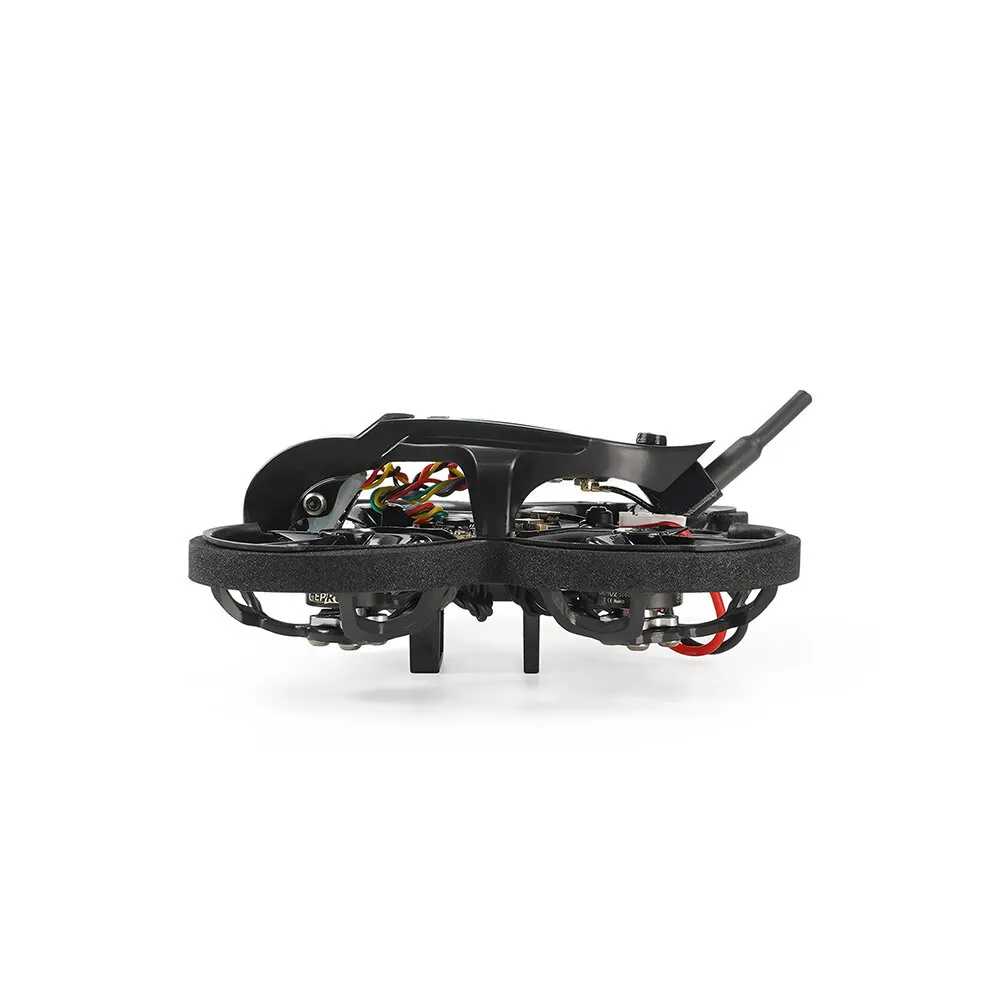

GEPRC TinyGO 4K V1.3 79mm TAKER F411 8Bit 12A 1.6 Inch Whoop FPV Racing Drone RTF with TinyRadio ELRS 2.4G Remote Controller FPV Goggles

• weight: 485 g

Feature:

lTinyGO is very suitable for indoor flight, More than 6 minutes of flight time

lUsing TAKER F411 8Bit 12A FC system, reliable and stable

lNo Propellers in view, Anti-jamming VTX, NO Jello flight Footage, stable flight picture

lThe Newly Developed TinyRadio GR8 Remote Controller is specially designed for Novice and indoor flight

lHigh-Quality FPV Goggle, High definition 800 * 480px, sensitive 5.8G receiver

l Ready To Fly Kit, Including a GEPRC Fashion Fly bag, Portable and Light weight.

lThere are Two versions: The normal version is suitable for daily practice, The 4K version can Record 4K 60fps Video.

Specification:

lBrand: GEPRC

lModel: TinyGO 4K V1.3

lFrame: GEP-TG16

lMotor to Motor: 79mm

lFC: TAKER F411 8Bit 12A

lMCU: STM32F411

lIMU: 42688-P

lBlackbox: 16Mb

lOSD: BetaFlight OSD w/ AT7456E chip

lESC: 8Bit 12A

lVTX: RAD Whoop 5.8G 25~400mw VTX

lCamera: Caddx Loris 4K 60fps

lPropeller: GEMFAN 1636*4 (4 pairs)

lMotors: GR1102 10000Kv

lReceiver: Integrated ELRS SPI receiver

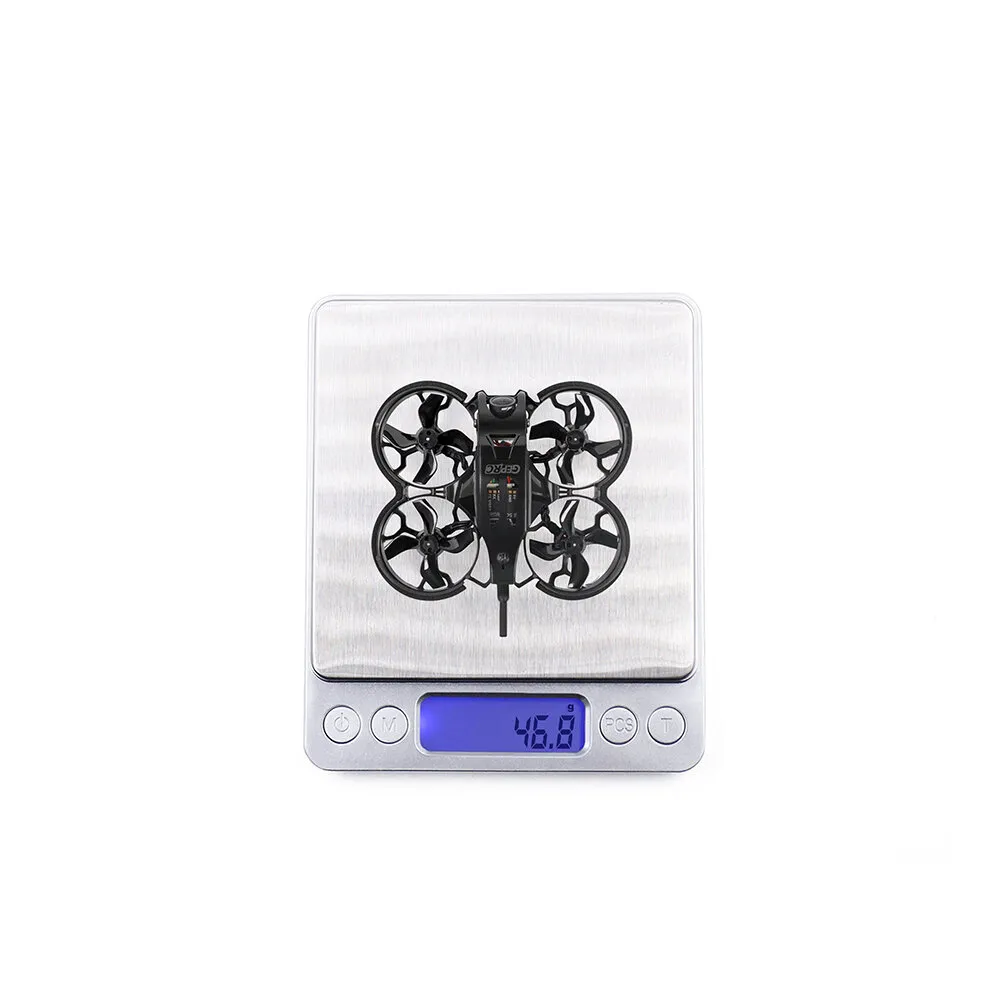

lTinyGO Racing Weight: 48 Grams

Remote Controller:

lTinyRadio ELRS 2.4G Remote Controller

lRadio Frequency: 2.4GHz

lRadio Frequency: 2.4GHz

lRange: 1000+ meter

lChannel: 8

lTransmit Power:<500mW

lAntenna interface : SMA

lLow Voltage alarm: <6.6v

lBatteries: 2 x 18650 Batteries (not included)

lTinyRadio ELRS Remote Controller

lRadio Frequency: 2.4GHz

lRadio Protocol: FHSS

lChannel: 8

lTransmit Power: < 20 dBm

lAntenna interface: SMA

lLow Voltage alarm: <6.6v

lBatteries: two 18650 batteries or a 2S battery.(not included)

FPV Goggle：

lResolution: 800*480px

lSize of Screen: 4.3 inch

lWhole Size: 155mmx144mmx113mm

lIn-built batteries: 3.7v/2000mAh

lWorking Hours: 2.5 Hours

lWeight: 314.6 Grams

FPV Batteries：

lBatteries Capacity: 530mAh

lVoltage: 4.35v 1S1P

lDischarge rate: 90C

lSize:（61mmx16.7mmx7mm）

lWeight: 12.7 Grams

lInterface: PH2.0

Charger：

lInput power:5v（USB & Type C）

lFull charged Voltage:4.35v

lOutput current : 500mAh

lCharging:It can charge 2 PCS 1s HV lipo 4.35v HP2.0/GNB27 plug batteries at the same time

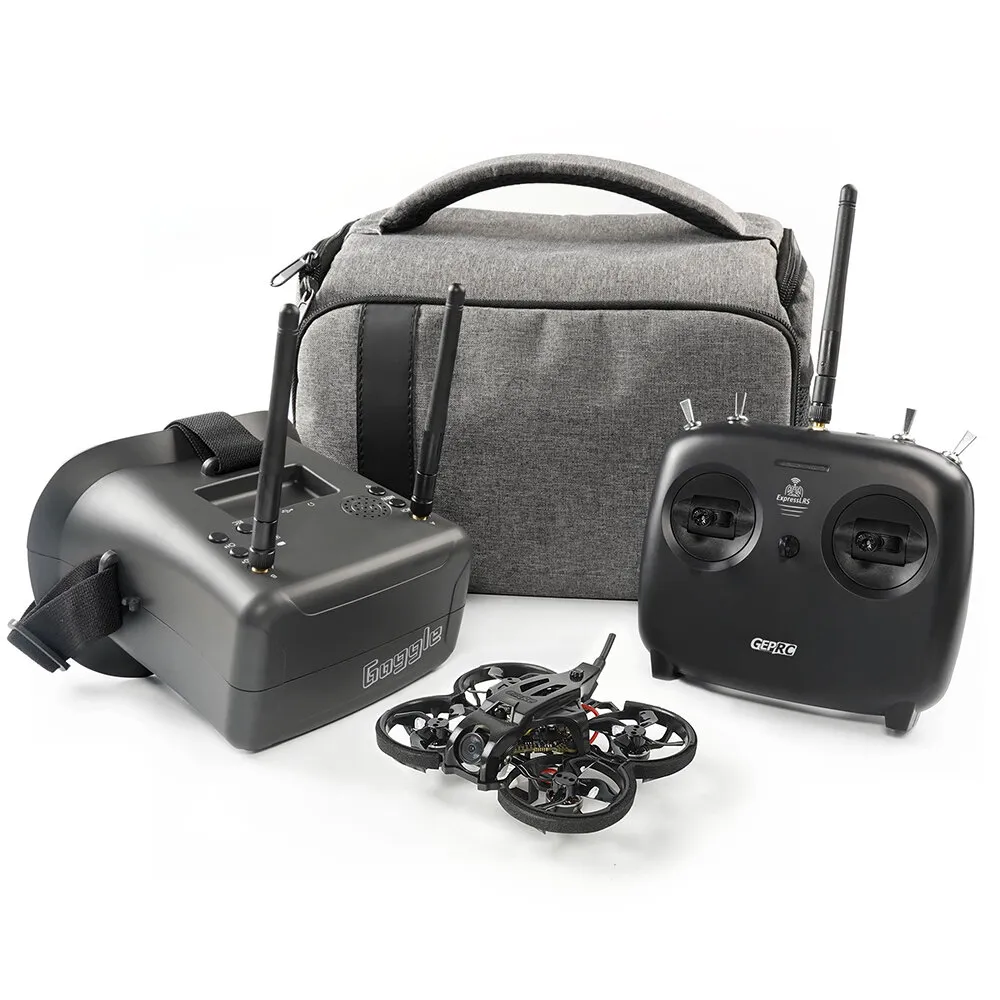

Package Include:

Mode2 RTF Version:

l1x TinyGO TinyWhoop

l1x TinyRadio GR8 Transmitter

l1x GEPRC FPV RG1 Goggle

l4x GEPRC LiHV 4.35v 90C Battery

l1x Battery strap

l4x Gemfan 1636*4 Props(pairs)

l1x GEPRC Fly bag

l1x Screwdriver

BNF Version

l1x TinyGO TinyWhoop

l4x Gemfan 1636*4 Props(pairs)
