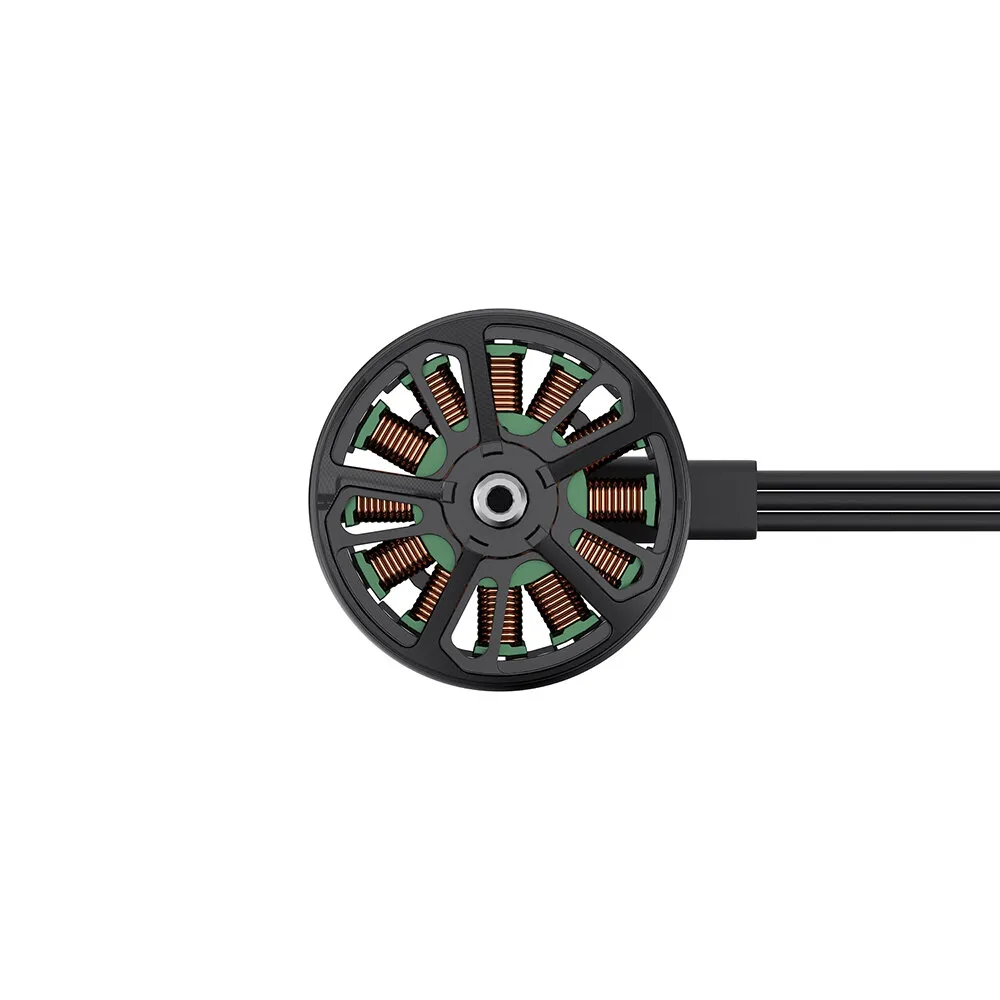

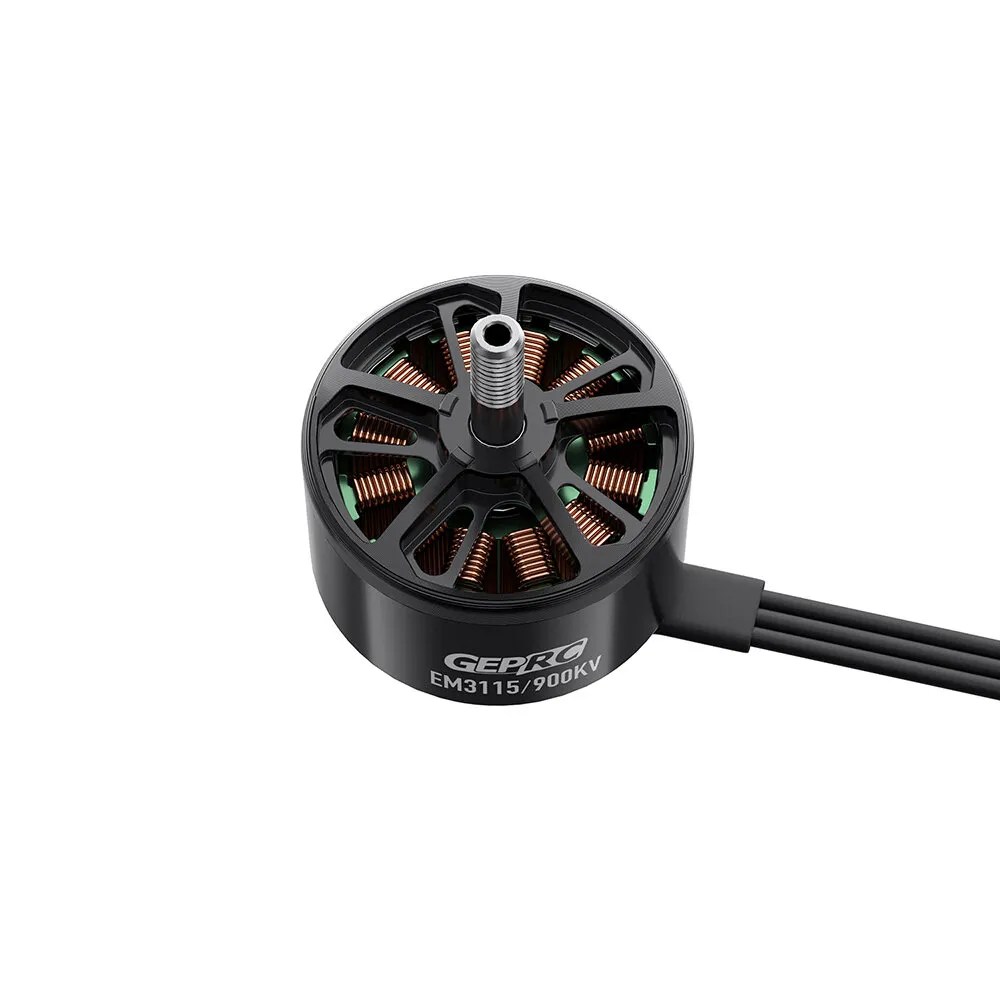

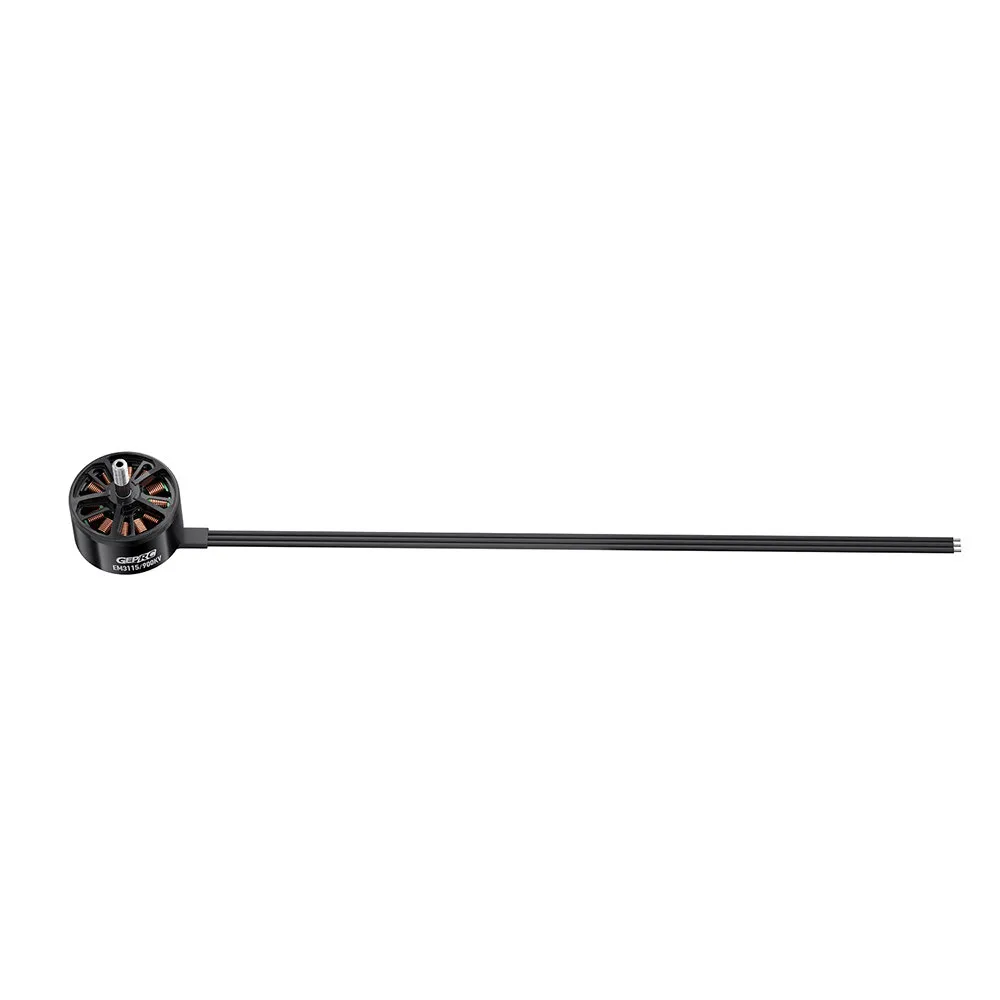

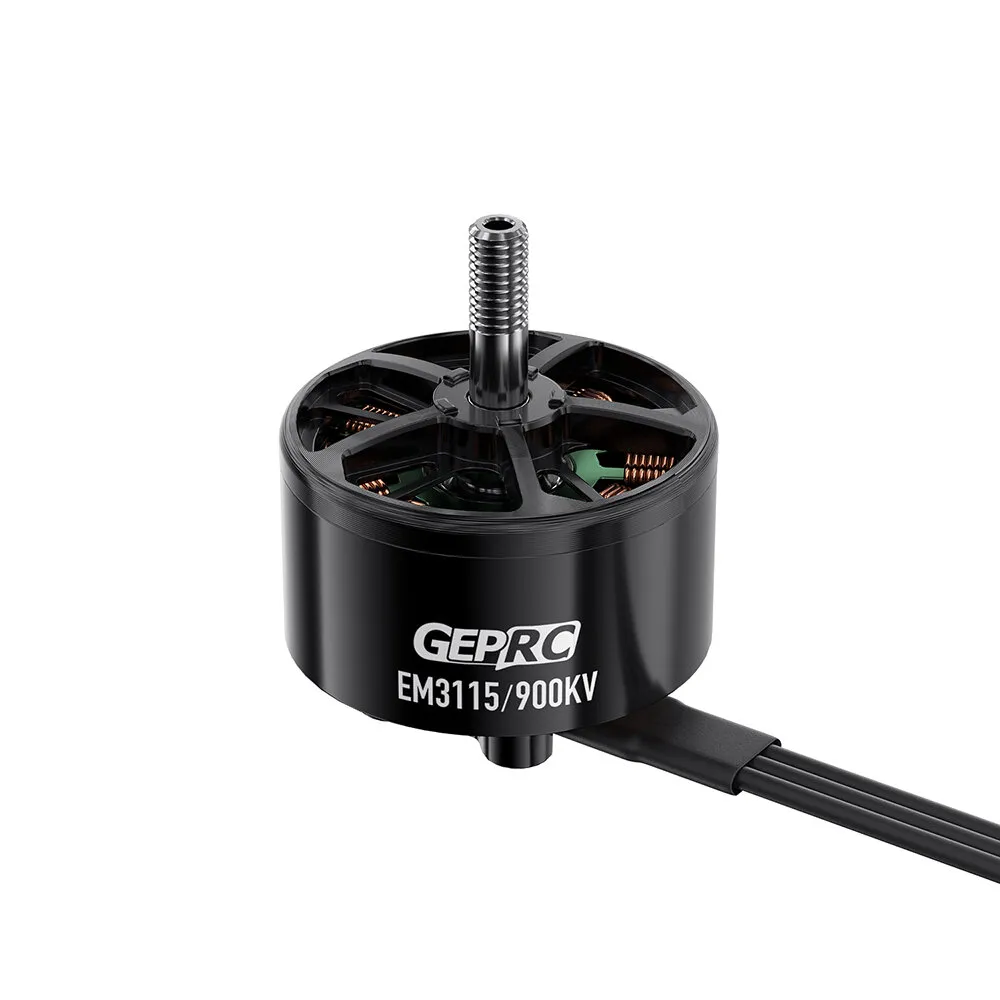

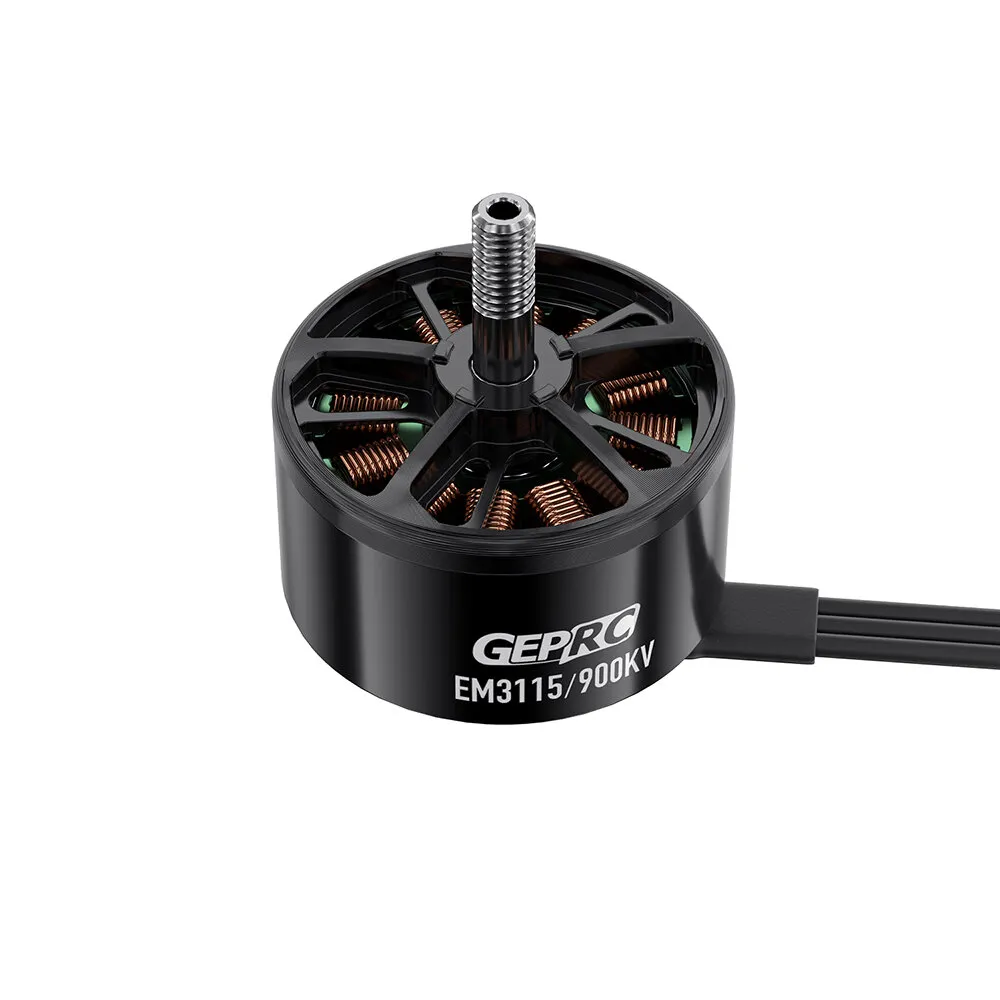

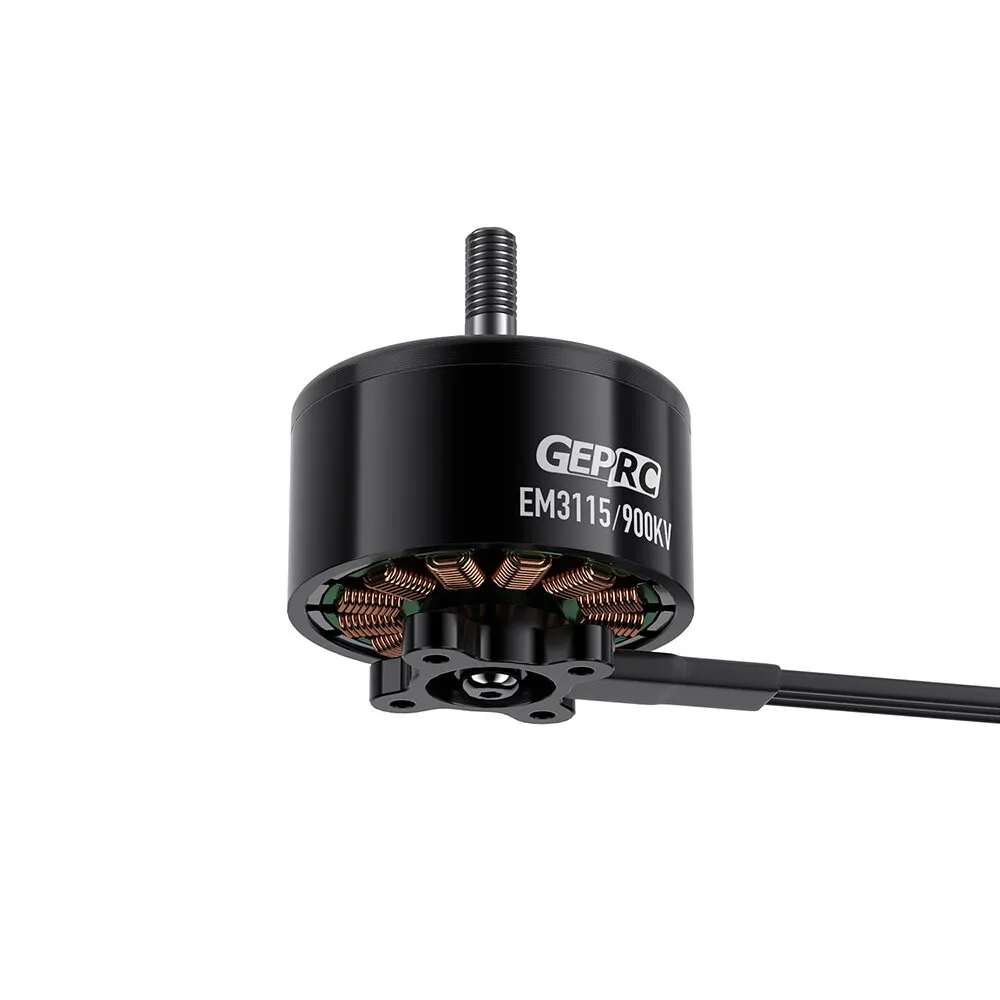

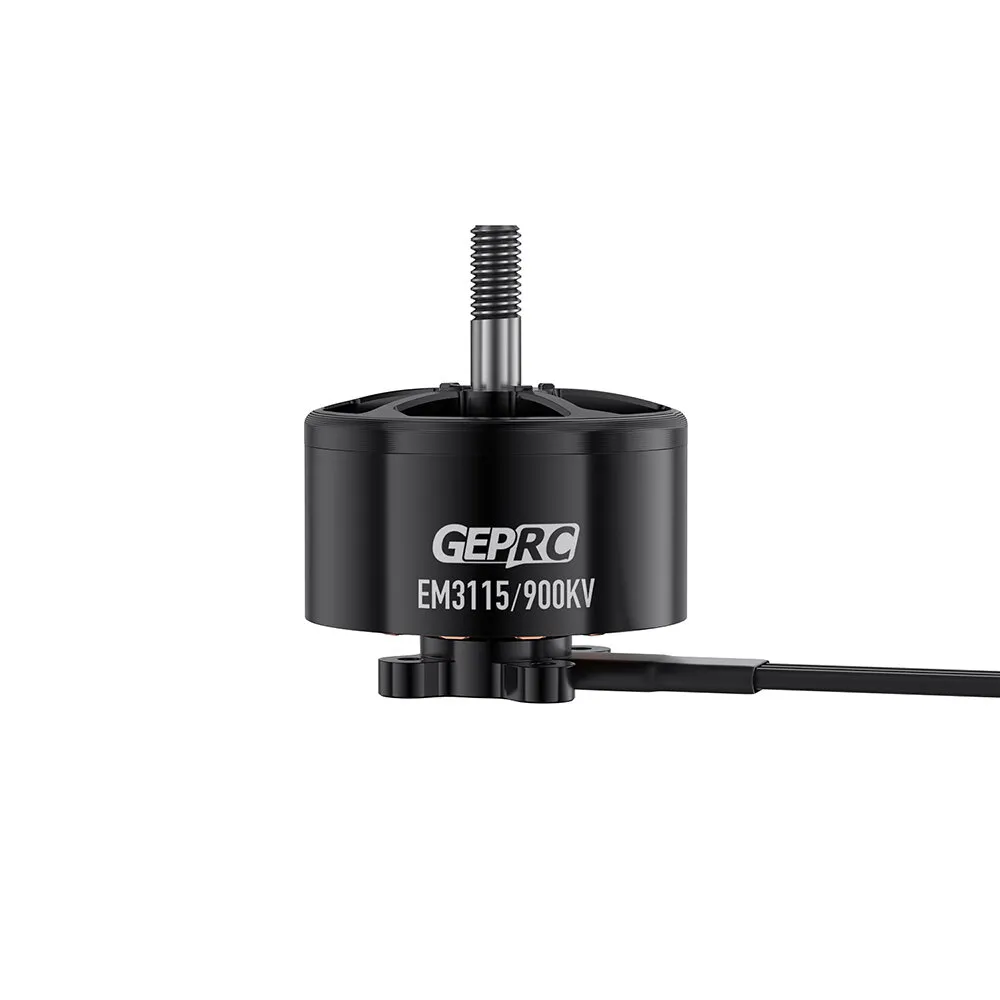

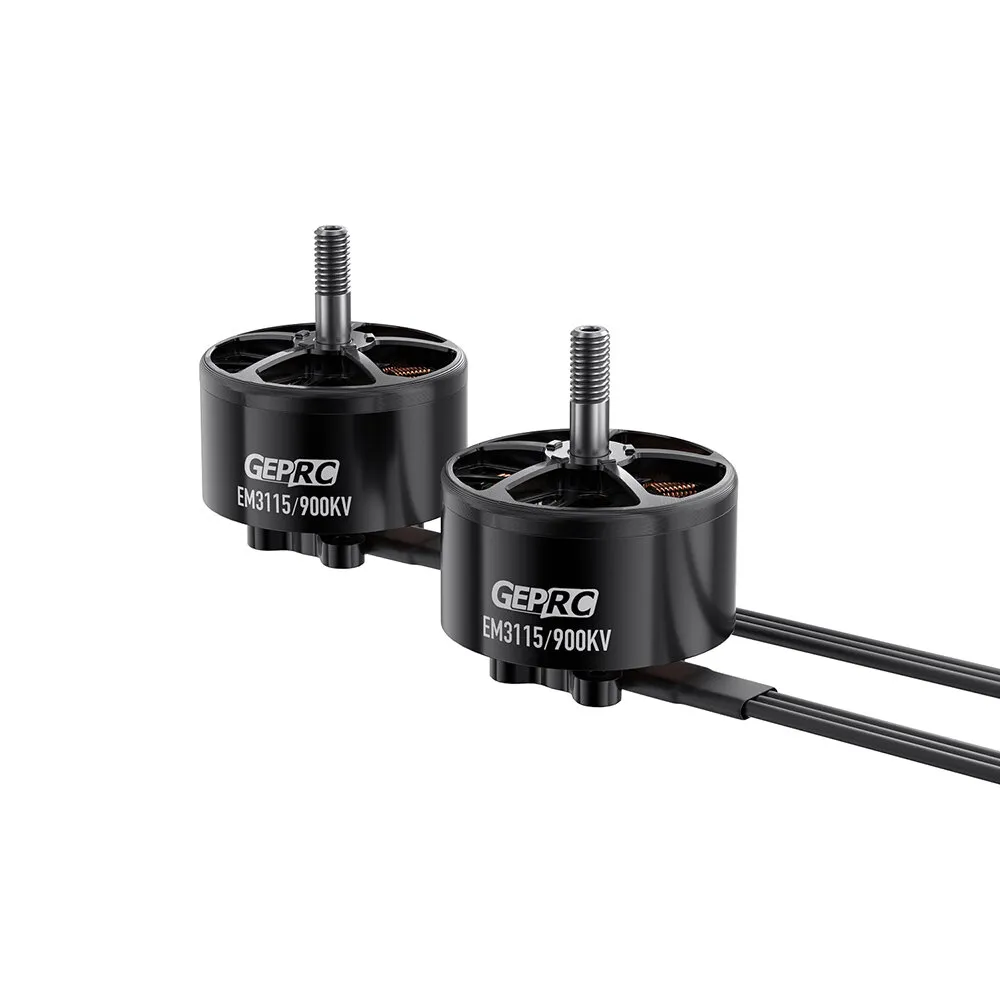

GEPRC EM3115 3115 900KV 6S Brushless Motor for 8 9 10 Inch Long Range FPV RC Racing Drone

• weight: 485 g

Features:
-New EM series motors，mainly designed for long range FPV.
-High-strength M5 steel shaft
-High torque magnetic circuit design
-19mmx19mm base

Specifications:
Brand: Geprc

Model: EM3115

Item Name: 3115 900KV Motor
Max Watt: 1620W
Peak current: 65A
Interphase resistance: 46mΩ
Propeller: 8-10inch Propeller
Magnet: N52H
Bearing type: NSK/NMB
Configuration: 12N14P
Dimension: φ37.5mmx30mm
Shaft Diameter: φ5mm
Shaft Protruding Length: 16mm
Mounting holes: 19mmx19mm
Lead: 310mm/18AWG
ESC: 60A-80A
Input Volts: 25.2V（6S LiPo)
Winding: Single strand copper winding
Weight: 115g(included wire)
Suitable for :8-10 inch long range FPV

Includes:
1 x EM3115 motor
4 x M3*9 round head screws
1 x M5 anti-slip nut
