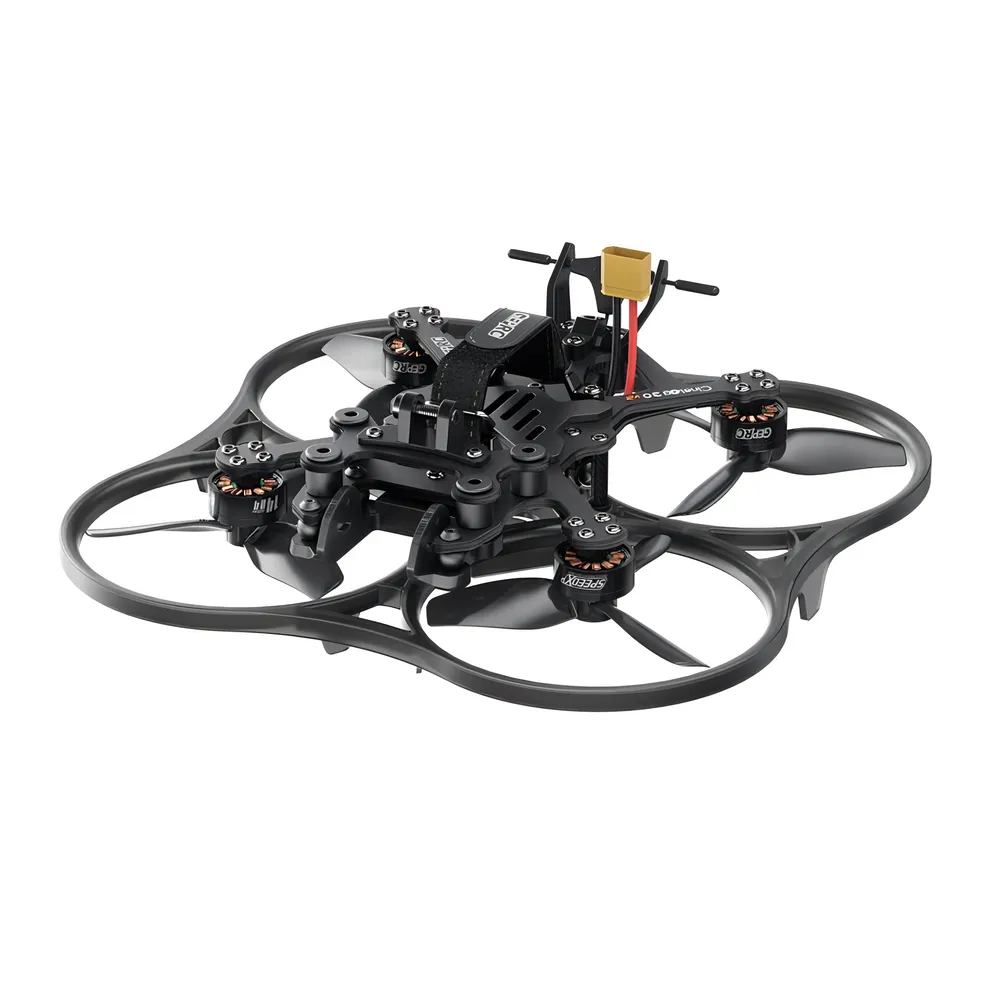

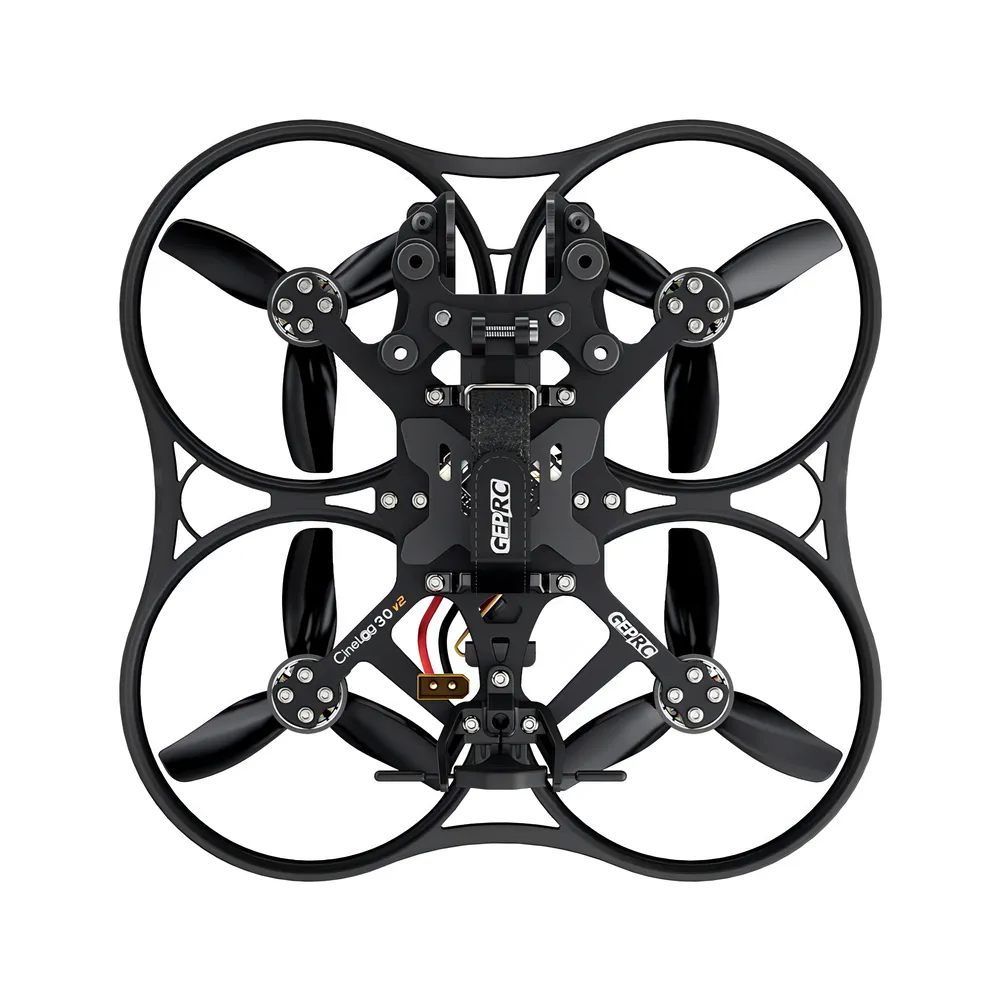

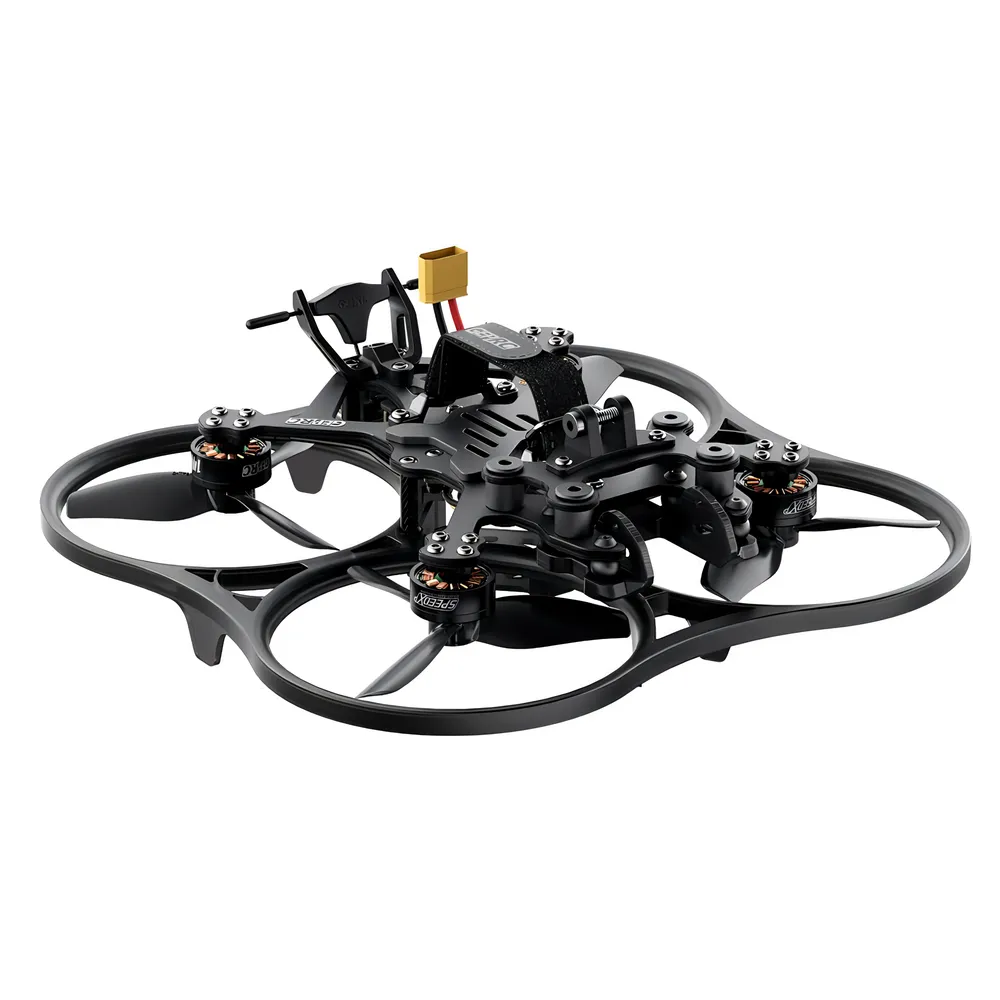

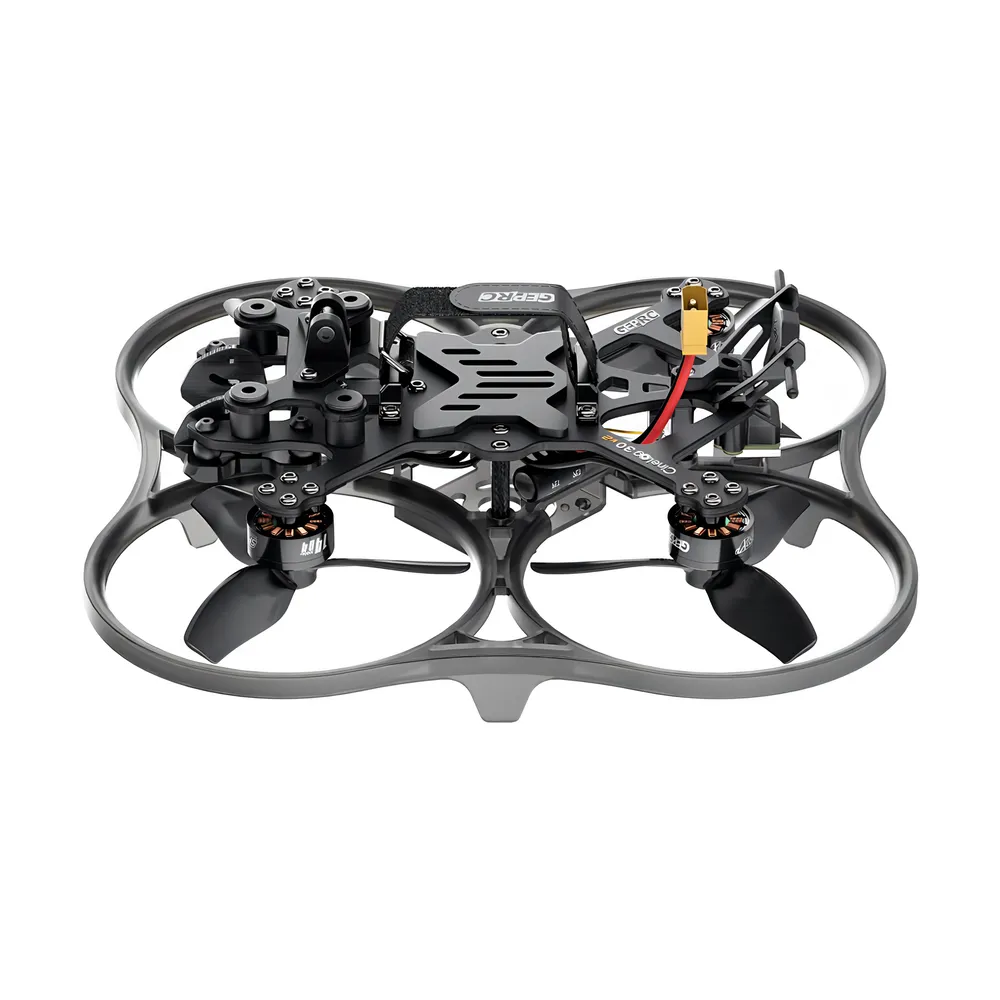

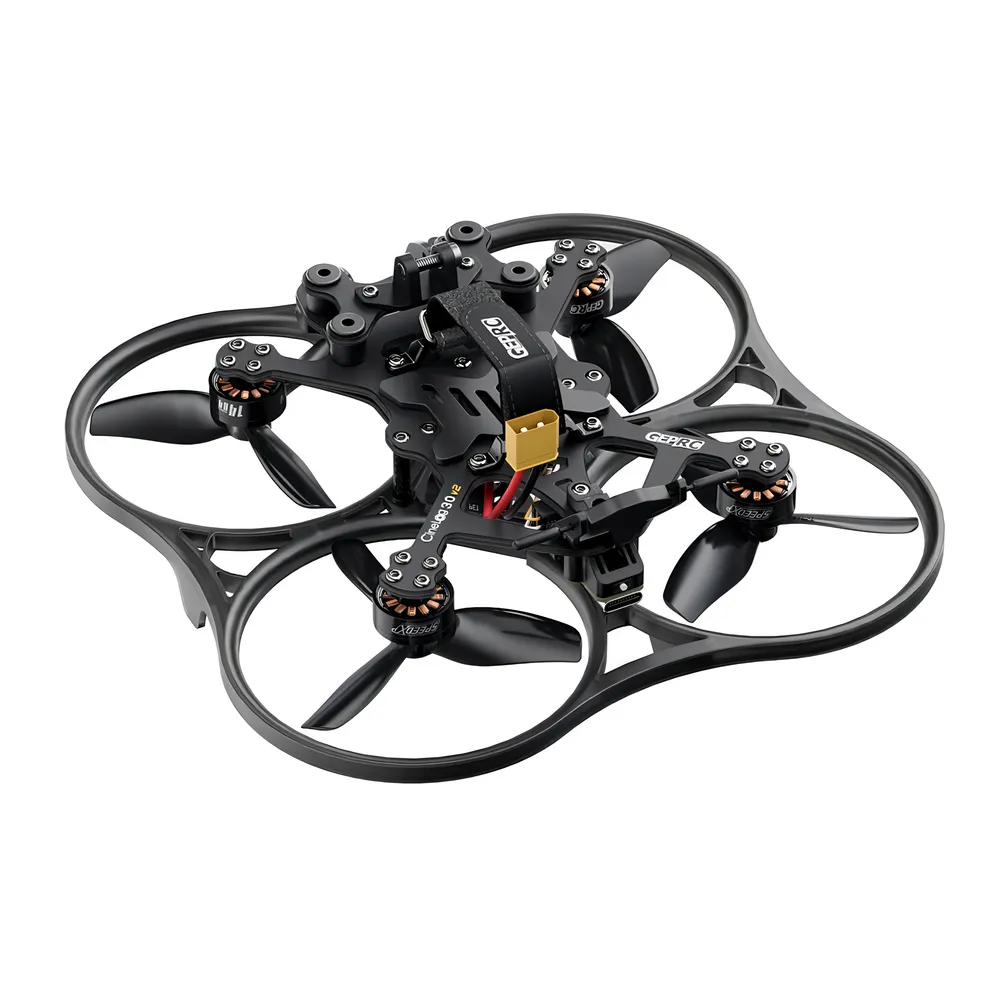

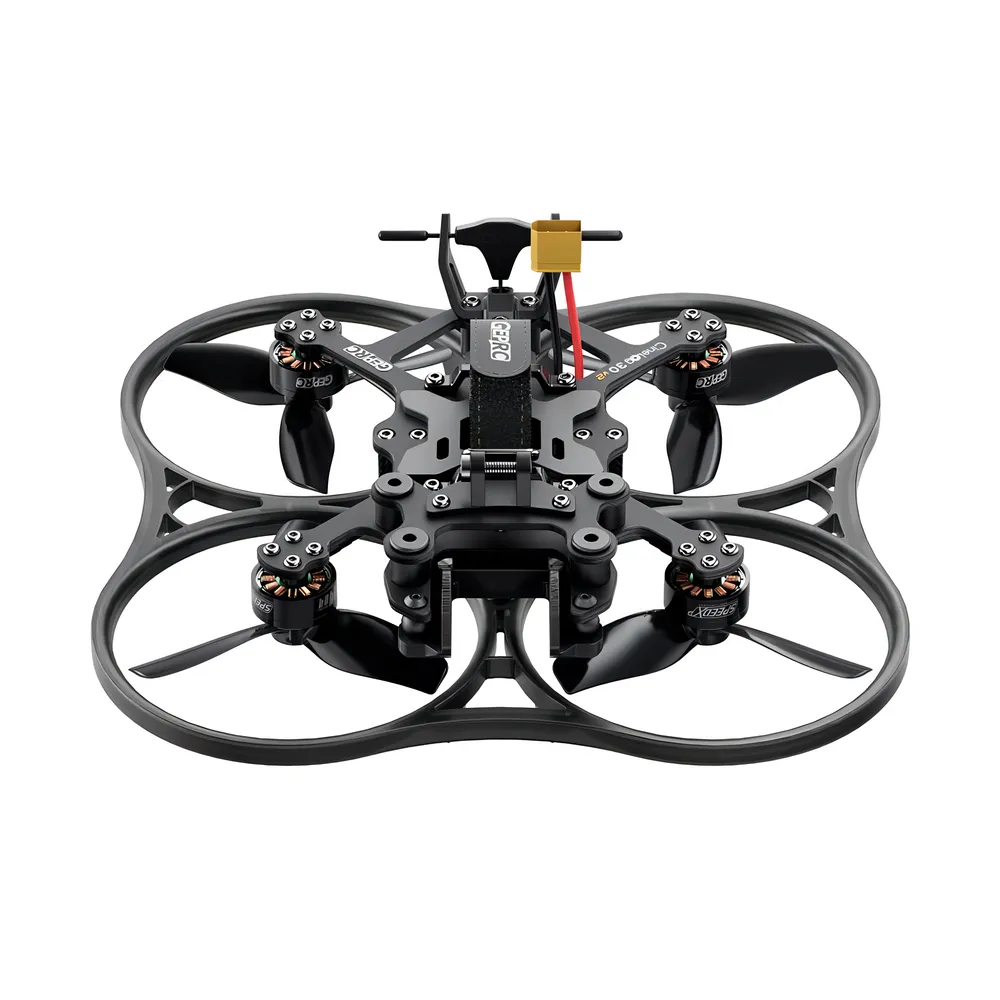

GEPRC Cinelog30 V2 WTFPV 124mm Wheelbase F7 4S RC FPV Racing Drone NO Camera NO VTX

• weight: 485 g

Notes to buyers:
- BNF(Bind-N-Fly) products come with everything you need except for a transmitter and battery. With BNF products you can use the transmitter of your choice and bind it to the receiver included with the model.
- PNP (Plug-and-Play) airplanes include the ESC, motor, and servos all pre-installed from the factory. Transmitter, receiver, battery, and charger are not included.

Summary:
The Cinelog30 V2 is a 3-inch FPV drone designed for both cinematic shots and recreational flying. It features an advanced protective frame and builds on the Cinelog series’ superior handling and stability. With extensive upgrades, it takes everything you loved about the Cinelog series and cranks it up for even better filming and flying.

The advanced shock-absorbing system drastically minimizes instability, ensuring exceptionally stable and high-quality footage. Its quiet operation makes it ideal for various filming scenarios.

Powered by the TAKER F722 45A 32Bit AIO flight controller, 1404 3850KV motors, and HQprop DT76mm propellers, the Cinelog30 V2 offers up to 8’30” of flight time with a LiHV 4S 720mAh battery. Compatible with Naked Gobro, Action2, and Insta360 cameras, it provides versatile shooting options.

Feature:
1. Constructed from advanced materials, the integrated frame is lightweight yet highly rigid.
2. Featuring a LiPo 4S 720mAh battery, the take-off weighs only 249g, complying with FAA regulations.
3. The shock-absorbing gimbal delivers smooth, stable footage compatible with the DJI O3 directly.
4. The rear USB port allows for easy parameter adjustments.
5. Offers superior flying experience with a Naked Gobro.
6. Facilitate battery changing by fastening the battery with a CNC aluminum part and strap together.
7. The drone operates with minimal noise, and the protective frame reduces the risk of injury during impacts.
8. Fine-tuned by the GEPRC team, it offers a refined flying experience with up to 8’30” of flight time.

Specifications:
Brand: GEPRC
Model: Cinelog30 V2 ( WTFPV )
Frame: GEP-CL30 V2
Carbon Plate Thickness: 2.5mm
Wheelbase: 124mm
Flight System: TAKER F722 45A 32Bit AIO
MCU: STM32F722RET6
Gyroscope: ICM 42688-P
FC Firmware: GEPRC_F722_AIO
Flash: 16MB
ESC: 32Bit 45A
Motor: SPEEDX2 1404 3850KV
Propeller: HQprop DT76mmx3 V2
Battery Connector: XT30
VTX: None
Camera: None
Antenna: None
Receiver: PNP / ELRS2.4G / TBS NanoRX
TBS NanoRX Version Weight: 141.1g

Recommended Battery ( NOT Included):

LiHV 4S 660mAh-720mAh XT30
Flight Time: 6′- 8’30” (based on low-speed cruising, actual time varies with flying style)

Package included:
GEPRC Cinelog30 V2 WTFPV Quadcopter:
1 x Cinelog30 V2 Quadcopter
1 x HQprop DT76mmx3 V2 propeller (pack）
2 x 15*150mm battery straps
1 x L-shaped screwdriver 1.5mm
1 x Spare screw pack
2 x Battery anti-slip pads
1 x Damping ball puncher
1 x Frenquency pairing ejector pin
1 x installing mount for Naked Gobro

Spare screws pack included:
4 x M2*5mm Pan-Head screws
1 x Swage nut
4 x M2*4mm Pan-Head screws
4 x 1.6*10mm screws
2 x damping balls for DJI O3
