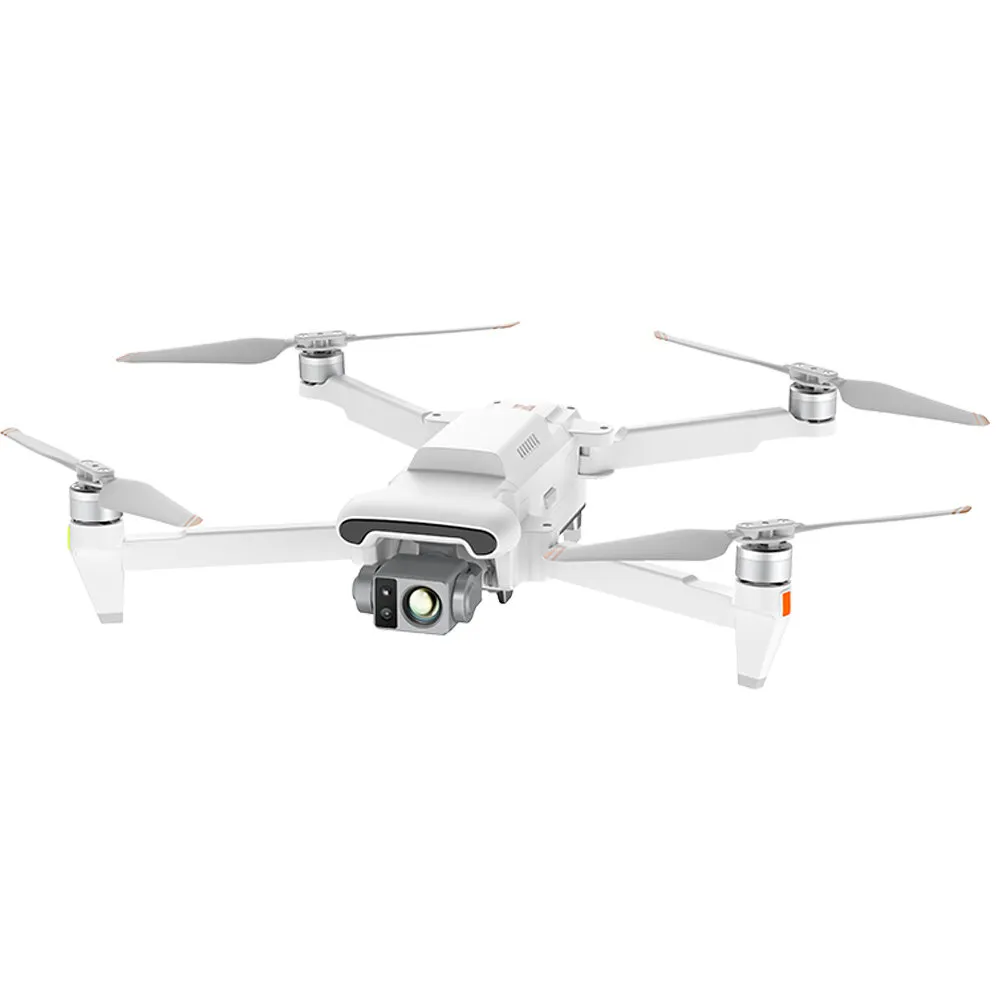

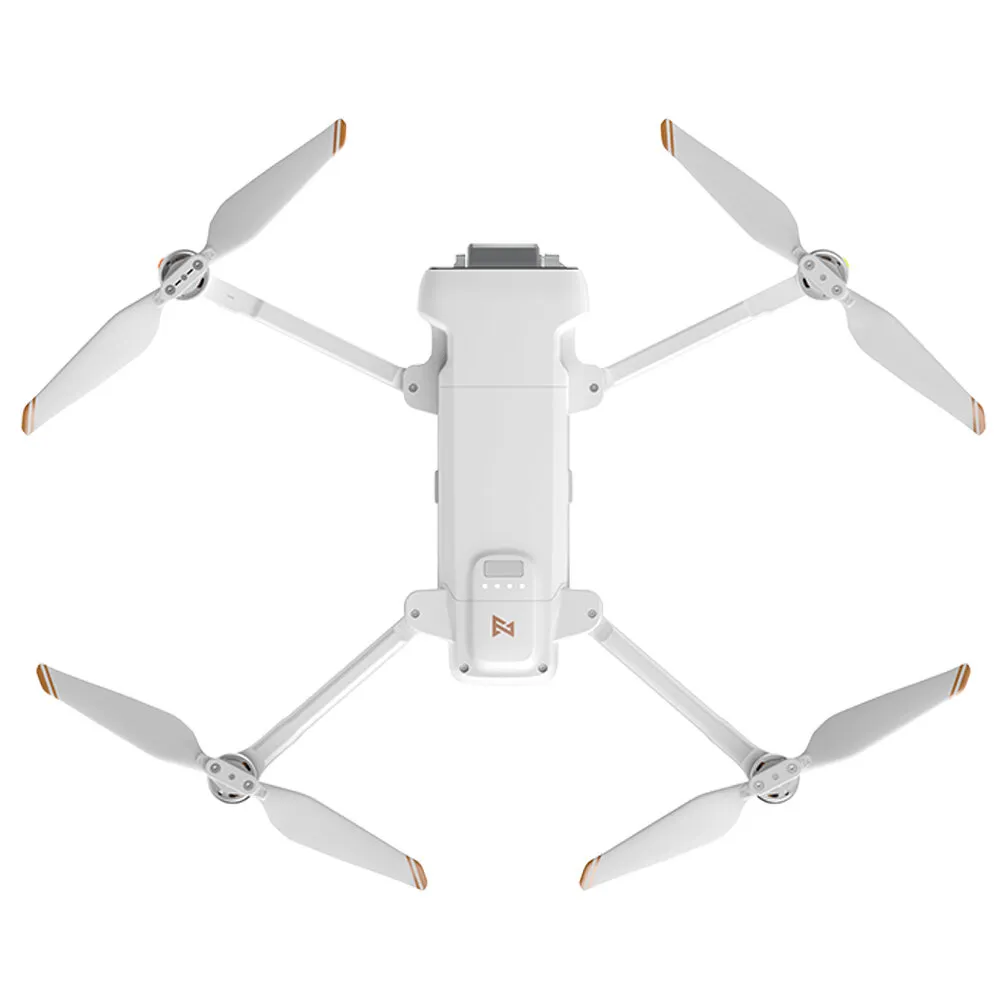

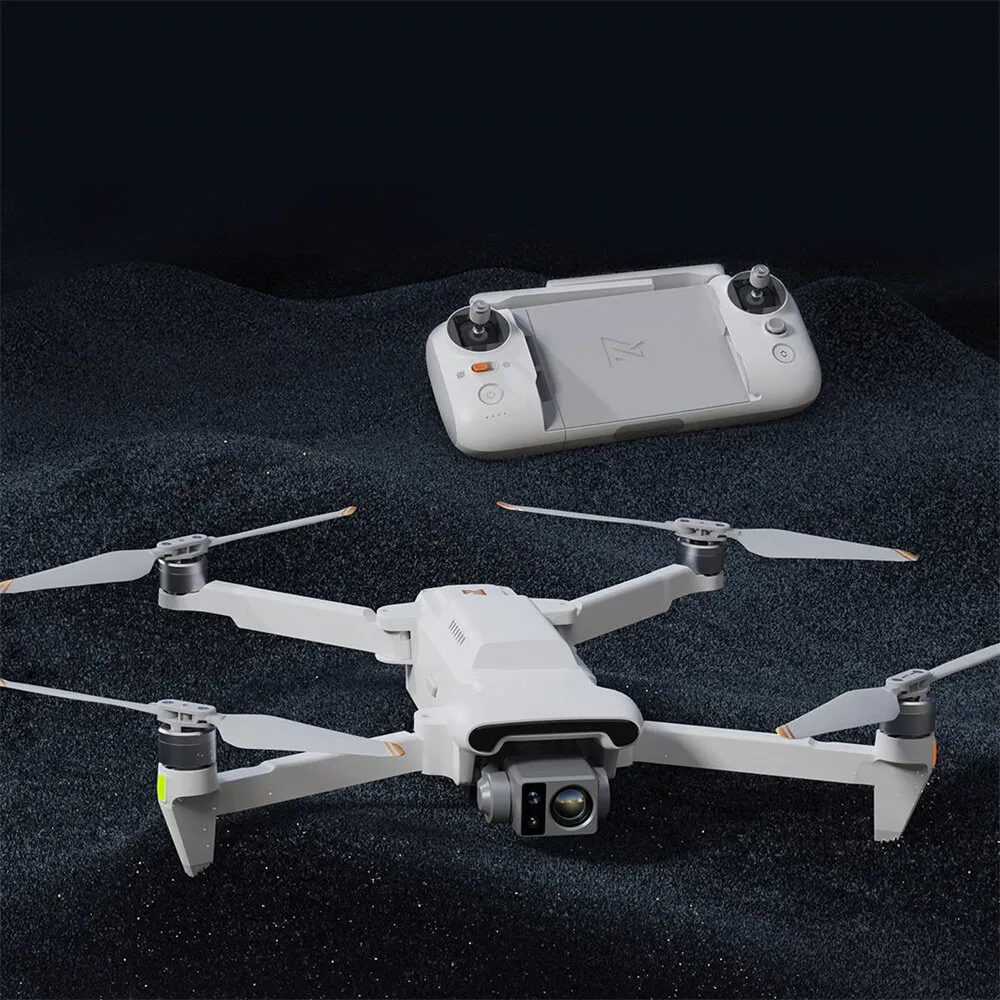

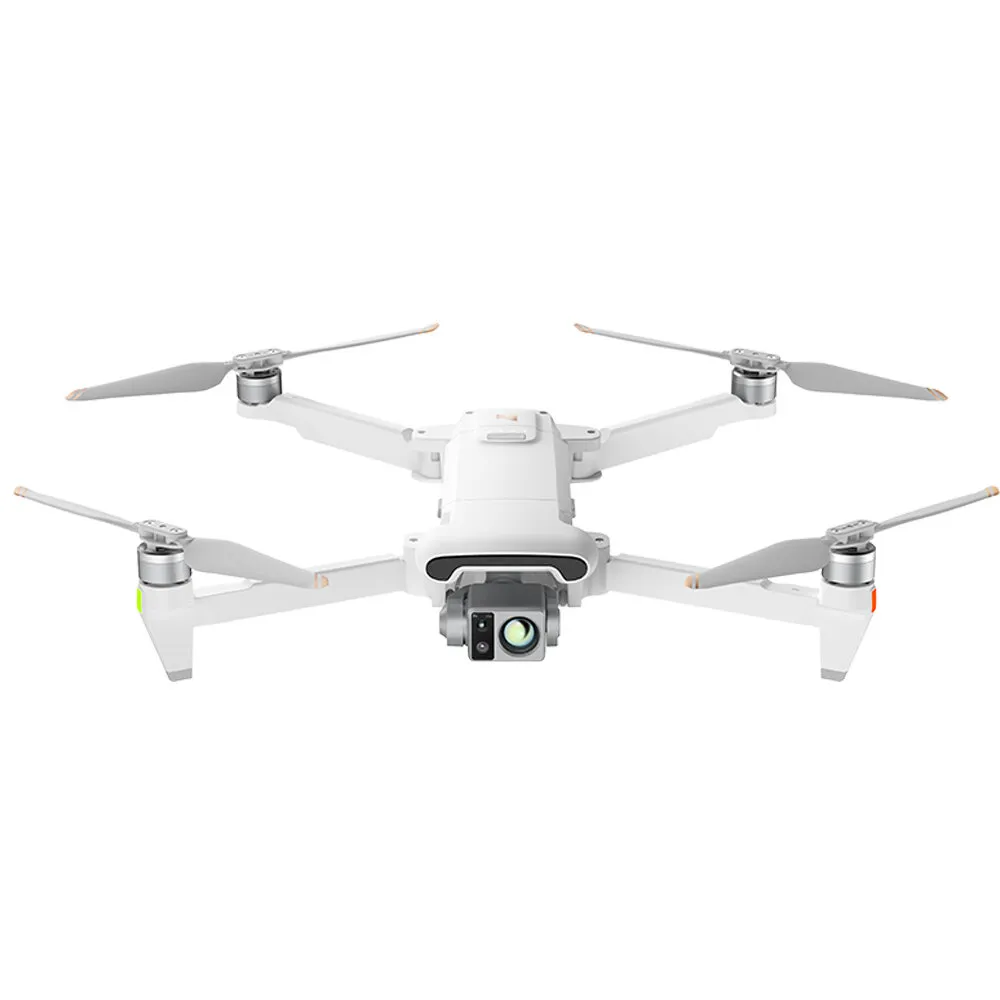

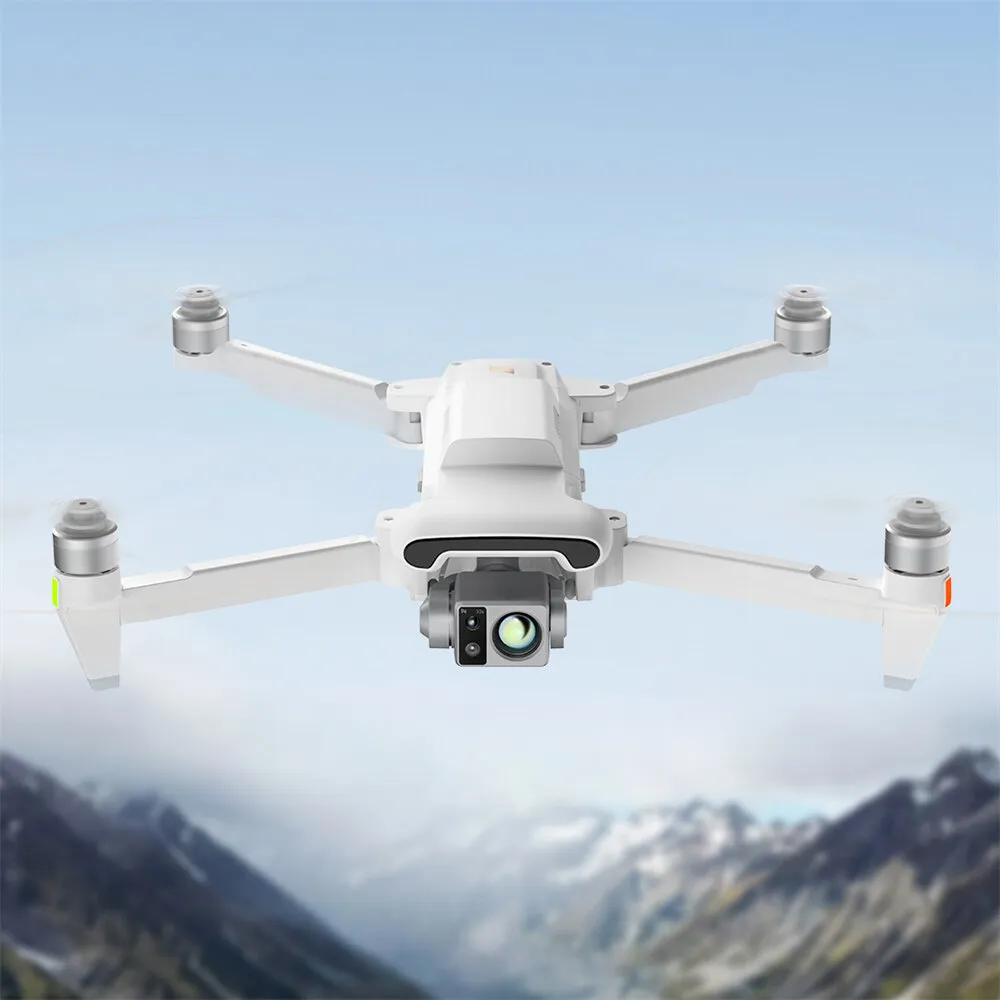

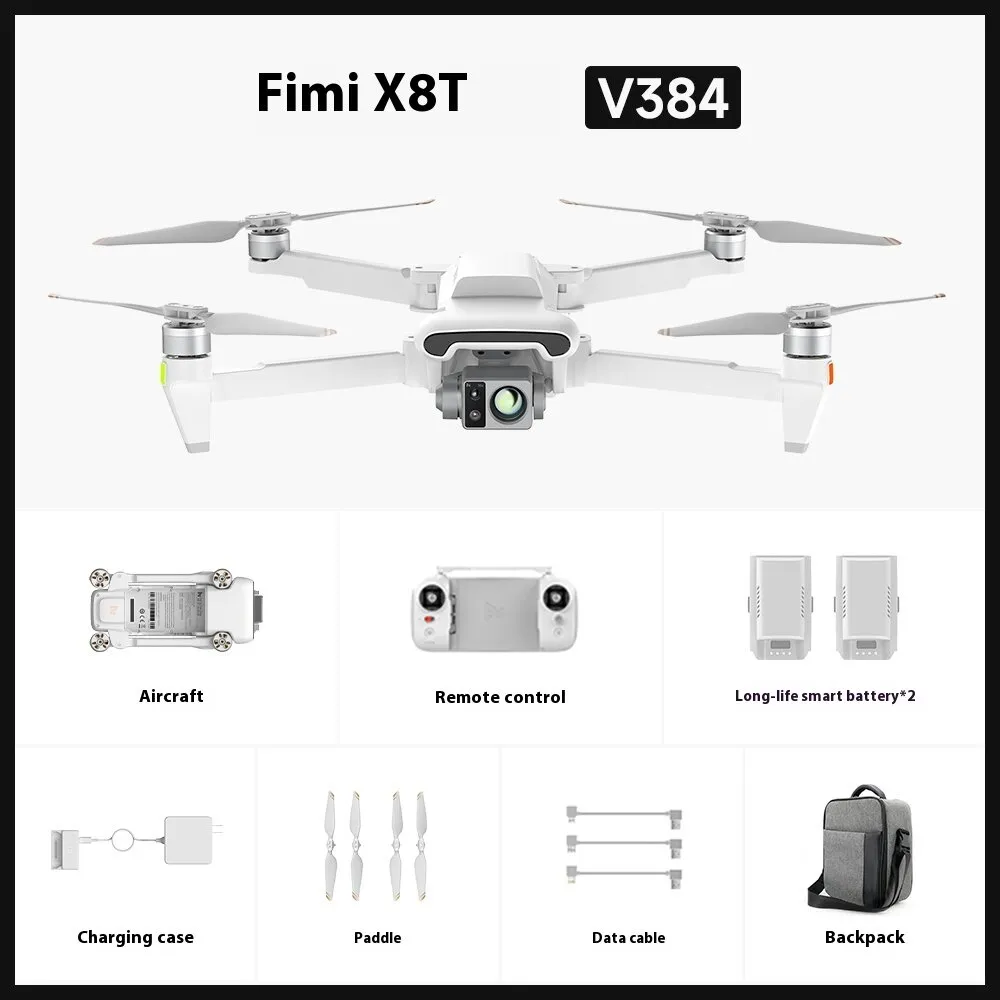

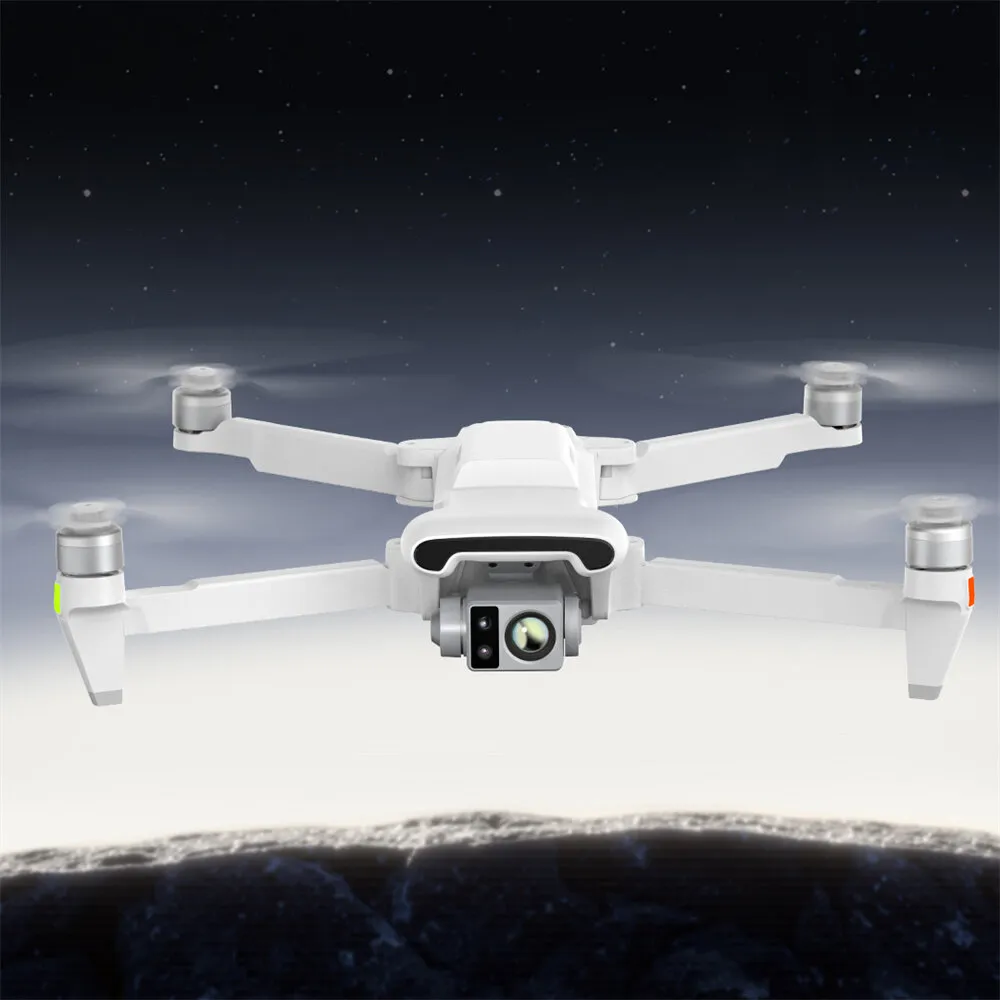

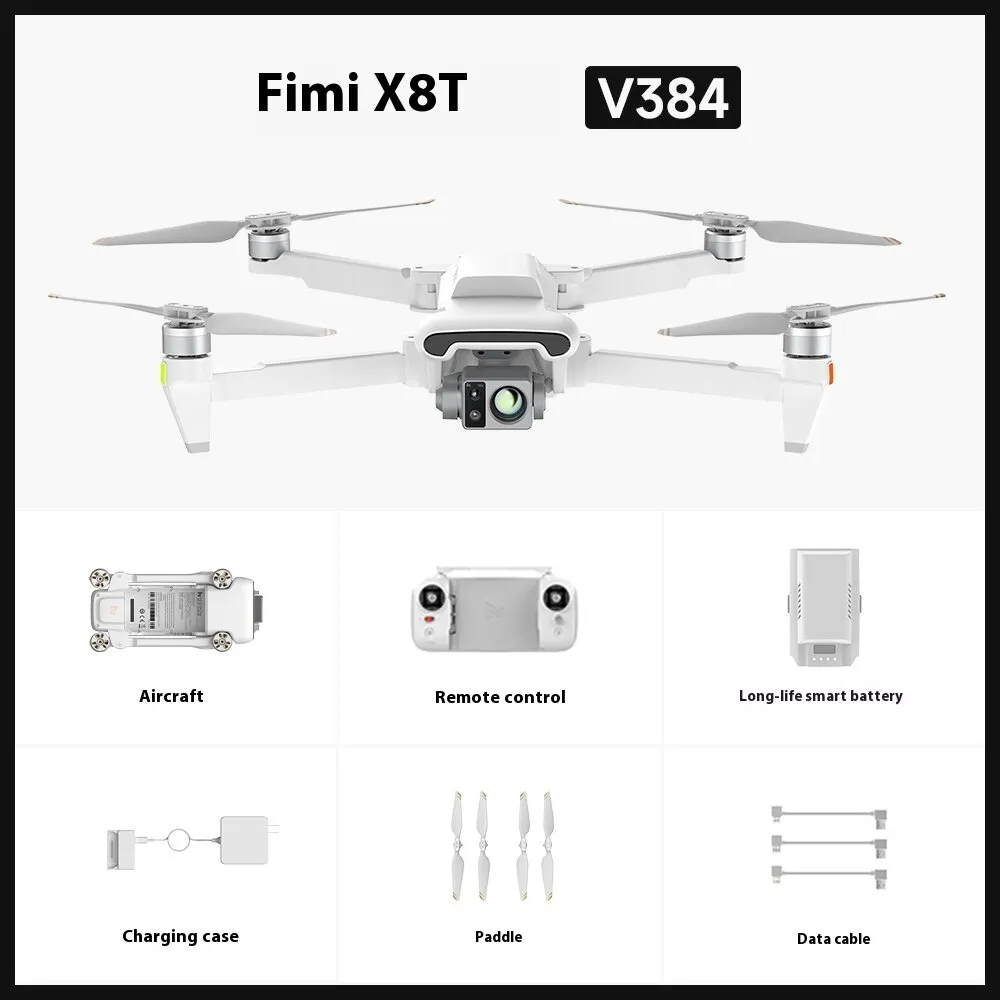

FIMI X8T V384 Roklink 5.0 20KM FPV With 48MP Wide-Angle Tele 18mm Thermal Lens Triple Camera Gimbal AI Super Night Video 47mins Flight Time Foldable RC Drone Quadcopter RTF

Drone

Dimensions (folded, without propellers):

Length 218mm × Width 106mm × Height 72.6mm

Dimensions (unfolded, without propellers):

Length 242mm × Width 334mm × Height 72.6mm

Takeoff Weight:

Intelligent Flight Battery: Approx. 768g

Intelligent Flight Battery Plus: Approx. 837g

Diagonal Distance:

372mm

Max Ascension Speed:

5m/s

Max Descent Speed:

4m/s

Max Flying Speed:

18m/s (in a windless environment at sea level)

Max Takeoff Altitude:

≤5000m

Max Hovering Time:

Approximately 29 minutes (conditions apply)

Max Flying Time:

38 / 47 minutes (conditions apply)

Max Tilt Angle:

35°

Max Wind Speed Resistance:

12m/s

Operating Temperature Range:

0~40°C

SateIlite Navigation Systems:

BeiDou / GPS / Galileo / GLONASS

Hovering Accuracy:

Vertical:

±0.1m (when Vision Positioning is active),

±0.5m (when GPS is active)

Horizontal:

±0.3m (when Vision Positioning is active),

±0.5m (when GPS is active)

Expansion Port:

12-PIN data interface (female)

Remote Controller

Product Weight:

Approx. 373g

Dimensions:

204 × 91 × 47mm

Operating Frequency:

2.4000 GHz - 2.4835 GHz

Max Battery Life:

8 hours (without charging the mobile device)

4 hours (charging the mobile device)

Battery Type:

Li-ion

Battery Capacity:

3900mAh

Nominal Voltage:

3.7V

Input:

5V ⎓ 2A

Operating Temperature Range:

0~40°C

Charging Temperature Range:

5~40°C

Max Signal Effective Range (No interference, no obstruction) FCC:

Approximately 20 km

Minimum Latency:

Approx. 120 milliseconds

Supported Mobile Device Interface Types:

Lightnning, USB-C, Micro-USB

Gimbal

Three-axis Mechanical Gimbal:

-115° ~ 40° (Pitch)

-30° ~ 30° (Roll)

-40° ~ 40° (Yaw)

Controllable Rotation Range:

10° ~ -90° (Pitch)

Angular Vibration Range:

±0.01°

Thermal Camera

Thermal Sensor:

Uncooled Microbolometer

Lens:

FOV 30.7°

Aperture:

F/1.1

Focal Length:

19mm

Format Equivalent:

80mm

Depth of Field:

7.6m to ∞

Wavelength Range:

8~14μm

Digital Zoom:

8x

Photo Resolution:

640×480

Photo Format:

JPG

Video Resolution:

640×480 @ 30fps

Video Format:

MP4

Color Palettes:

Multiple options including White Hot, Gold, Iron Red, Rainbow, and others

Downward Positioning

Technology:

Monocular Optical Flow and TOF

Distance Measurement Precise Range:

0.3m - 6m

Downward Auxiliary Light:

Dual LED

Intelligent Flight Battery

Capacity:

4650mAh

Weight:

Approx. 260g

Nominal Voltage:

11.55V

Charging Limited Voltage:

13.2V

Battery Type:

Li-Po 3S

Energy:

53.7Wh

Operating Temperature:

0~40°C

Intelligent Flight Battery Plus

Capacity:

5000mAh

Weight:

Approx. 333g

Nominal Voltage:

14.4V

Charging Limited Voltage:

16.8V

Battery Type:

Li-ion 4S

Energy:

72Wh

Operating Temperature:

0~40°C

Charging Hub

Input USB-C:

5V-20V

Fast Charging Protocols:

Supports PD, QC3.0

Output (Charging):

13.05V-17.6V

Battery Interface:

13.05V-17.6V

Operating Temperature:

5~40°C

Charger

Input:

100V - 240V (AC) , 50Hz - 60Hz , 1.5A

Output:

USB-C

5.0V ⎓ 3.0A

9.0V ⎓ 3.0A

12.0V ⎓ 3.0A

15.0V ⎓ 3.0A

20.0V ⎓ 2.25A

Rated Power:

45W

APP

FIMI Navi 3.0 Mobile Device System Requirements:

iOS 12.0 or later, Android 9.0 or later
