FIMI X8 TELE MAX Beyond Vision Roklink 5.0 20KM FPV With Dual Camera 4K 60fps 30X ZOOM 3-axis Mechanical Gimbal AI Super Night Video 47mins Flight Time GPS RC Drone Quadcopter RTF
| Qty: | 4-7 | >=8 |
| Price: | $417.60 | $394.40 |
- weight: 485 g
FIMI X8 TELE MAX Beyond Vision Roklink 5.0 20KM FPV With Dual Camera 4K 60fps 30X ZOOM 3-axis Mechanical Gimbal AI Super Night Video 47mins Flight Time GPS RC Drone Quadcopter RTF
NOTE: TELE MAX without Remote ID !
Specifications:
| Drone | Dimensions | Folded: 204 x 106 x 72.6mm (without propellers) Unfolded: 242 x 334 x 72.6mm (without propellers) |
| Diagonal Distance | 372mm | |
| Takeoff Weight | Intelligent Flight Battery Approx. 760g Intelligent Flight Battery Plus Approx. 832g | |
| Max Ascension Speed | 5m/s | |
| Max Descent Speed | 4m/s | |
| Max Flying Speed | 18m/s (in a windless environment at sea level) | |
| Max Takeoff Altitude | ≤5000m | |
| Max Hovering Time | Approximately 29 minutes (Measured with the aircraft stationary, camera parameters set to 720p/30fps, recording mode turned off, hovering at sea level altitude until the remaining battery level reaches 0%, for reference only. Actual flight time may vary; please pay attention to app prompts during actual flights.) | |
| Max Flying Time | 38/47 minutes (Measured with the aircraft flying forward at a speed of 25.2 km/h at sea level altitude, camera parameters set to 720p/30fps, recording mode turned off, until the remaining battery level reaches 0%, for reference only. Actual flight time may vary; please pay attention to app prompts during actual flights.) | |
| Max Tilt Angle | 35° | |
| Max Wind Speed Resistance | 12m/s | |
| Operating Temperature Range | 0～40°C | |
| Sate1lite Navigation Systems | BeiDou/GPS/ Galileo/GLONASS | |
| Hovering Accuracy | Vertical: ±0.1m (when Vision Positioning is active) ±0.5m(when GPS is active) Horizontal: ±0.3m (when Vision Positioning is active) ±0.5m (when GPS is active) | |
| Expansion Port | 12-PIN data interface (female) | |
| Camera | Lens | FOV 79° |
| Aperture | f/1.6 | |
| Format Length | 4.71mm | |
| Format Equivalent | 24mm | |
| Sensor | 1/2-inch CMOS | |
| Effective Pixels | 48 million | |
| ISO Range | Video Manual 100-6400Video Automatic 100-25600Photo 100-6400 | |
| Shutter Speed | 2s-1/8000s | |
| Max Photo Resolution | 8064 × 6048 | |
| Max Video Resolution | 3840 × 2160@60/30/25/24fps | |
| Max Video Bitrate | 100Mbps | |
| Video Format | MP4 | |
| Photo Format | JPEG/DNG | |
| Digital Zoom | 1-5x | |
| File System | FAT32/exFAT | |
| Recommended Memory Card | Micro SD 8~256GB (Class 10 or U3 above) | |
| Remote Controller | Product Weight | Approx. 373g |
| Dimensions | 204 x 91 x 47mm | |
| Operating Frequency | 2.4000GHz to 2.4835GHz | |
| Max Battery Life | 8 hours (Without charging the mobile device) 4 hours (Charging the mobile device) | |
| Battery Type | Li-ion | |
| Battery Capacity | 3900mAh | |
| Nominal Voltage | 3.7V | |
| Input | 5V=2A | |
| Operating Temperature Range | 0～40°C | |
| Charging Temperature Range | 5～40°C | |
| Max Signal Effective Range (No interference, no obstruction) | FCC: Approximately 20km The above data is measured in an outdoor open environment without interference and is the farthest communication distance for one-way non-return flights under various standards. Please pay attention to the app's return prompts during actual flights. | |
| Minimum Latency | Approx. 120 milliseconds | |
| Supported Mobile Device Interface Types | Lighting, USB-C, Micro-USB | |
| Gimbal | Three-axis Mechanical Gimbal | - 115° ~ 40° (Pitch) - 40° ~ 40° (Roll) - 40° ~ 40° (Yaw) |
| Controllable Rotation Range | 10° -90° (Pitch) | |
| Angular Vibration Range | ±0.005° | |
| Intelligent Flight Battery | Capacity | 4650mAh |
| Weight | Approx. 260g | |
| Nominal Voltage | 11.55V | |
| Charging Limited Voltage | 13.2V | |
| Battery Type | Li-Po 3S | |
| Energy | 53.7Wh | |
| Operation Temperature | 0～40°C | |
| Intelligent Flight Battery Plus | Capacity | 5000mAh |
| Weight | Approx. 333g | |
| Nominal Voltage | 14.4V | |
| Charging Limited Voltage | 16.8V | |
| Battery Type | Li-ion 4S | |
| Energy | 72Wh | |
| Operation Temperature | 0～40°C | |
| Charging Hub | Input USB-C | 5V-20V |
| Fast Charging Protocols | Supports PD, QC3.0 | |
| Output (Charging) | Battery Interface: 13.05V-17.6V | |
| Operation Temperature | 5～40°C | |
| Charger | Input | 100V - 240V (AC), 50Hz - 60Hz, 1.5A |
| Output | USB-C 5.0V - 3.0A, 9.0V - 3.0A 12.0V - 3.0A, 15.0V - 3.0A 20.0V - 2.25A | |
| Rated Power | 45W | |
| App | FIMI Navi 3.0 | iOS 12.0 or later , Android 9.0 or later |
Camera Specifications:
| Wide-Angle Camera | Tele Camera | |
| Image Sensor | 1/2-inch CMOS | 1/2.5-inch CMOS |
| Lens | FOV 79° | FOV 21.5° |
| Aperture | F/1.6 | F/3.0 |
| Format Length | 4.71mm | 14.46mm |
| Format Equivalent | 24mm | 120mm |
| Focus | 1m to ∞ | 10m to ∞ |
| Effective Pixels | 48 million | 13 million |
| ISO Range | Video Manual 100-6400Video Automatic 100-25600Photo 100-6400 | Video 100-6400Photo 100-6400 |
| Shutter Speed | 1/8000s - 2s | 1/8000s - 2s |
| Max Photo Size | 8064x6048 | 4000x3000 |
| Max Video Resolution | 3840 × 2160@60/30/25/24fps | 3840 × 2160@30/25/24fps |
| Max Bitrate | 100Mbps | 100Mbps |
| Video Format | MP4 | MP4 |
| Photo Format | JPEG | JPEG |
| File System | FAT32/exFAT | FAT32/exFAT |
| Digital Zoom | 1-5x | 5-30x |
Features:

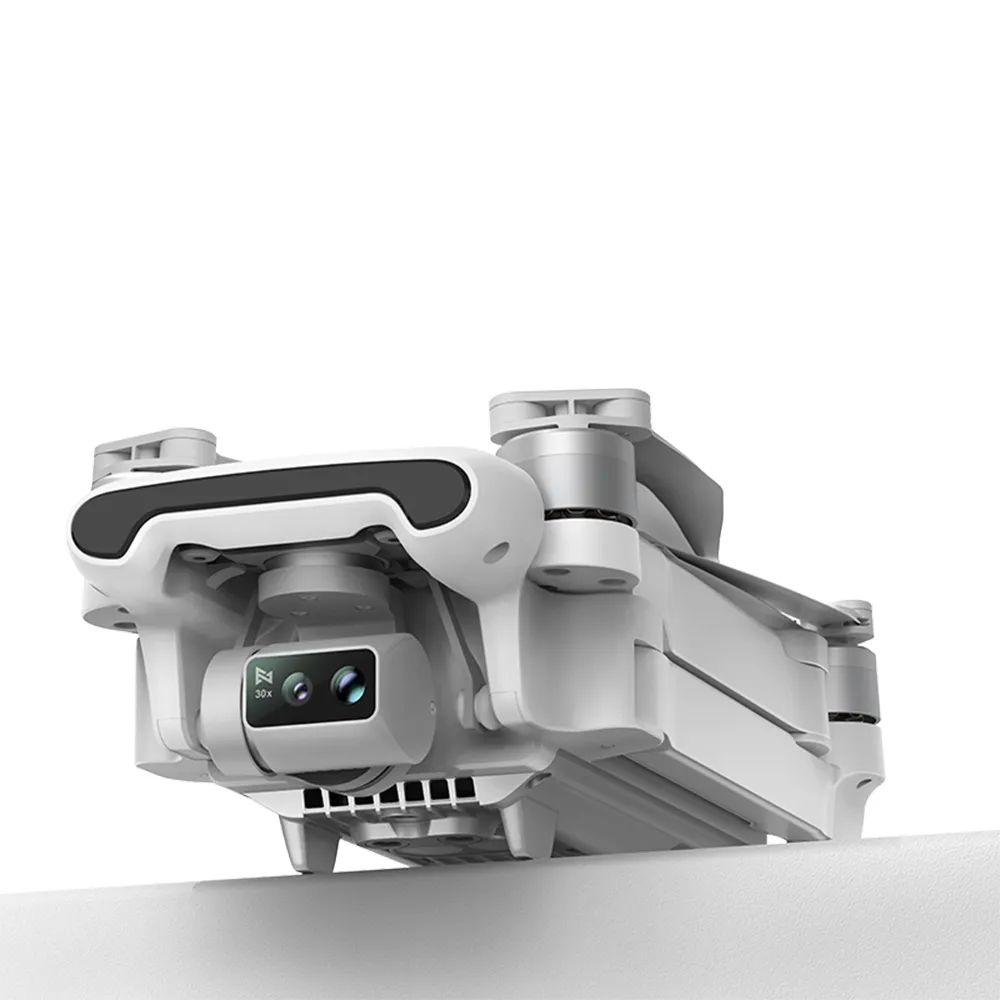

1. Dual Cameras SystemFIMI's dual-camera system includes a Sonies 1/2-inch 48 million pixels wide-angle camera and a 1/2.5-inch 13 million pixels 5x tele camera. The dual cameras work together to support 30x hyybrid zoom, covering both expansive scene narration and detailed insights into the distance. With up to 30x zoom capability, even details of subjects and scenes 2KM away can be discerned.2. 4K/60fps VideoSupports 4K/60fps high-speed video recording, each frame is full of lively details, and sports scenes are smoother and silkier. Higher resolution and higher frame rate bring sufficient space for post-production upscaling and lossless zoom in processing.3. New Generation RokLink 5.0 20KM digital Video Transmission SystemThe RokLink 5.0 system features enhanced RF sensitivity and improved adjacent frequency suppression. Leveraging modern communication technologies, it supports adaptive fast frequency hopping and dynamic modulation and coding, intelligently detecting electromagnetic interference and automatically adjusting uplink and downlink bandwidth. This ensures stable and clear image transmission with a range of up to 20 km and ultra-low latency as low as 120 ms, capturing distant landscapes with an immersive experience.4. AI Super Night VideoThe latest Generation AI ISP, super photosensitive and noise reduction, improves the signal-to-noise ratio by 4 times, can challenge larger image sensors, and capture pure and translucent images in low-light environments at night.
