EMAX Tinyhawk Nanoscout 65mm 1S Whoop FPV Racing Drone BNF/RTF with 08015 22000KV Motor RunCam Nano 3 Camera
| Qty: | 4-7 | >=8 |
| Price: | $183.59 | $173.39 |
- weight: 485 g
BNF Version Introduction Clink Here, RTF Version Introduction Clink Here.
Description:

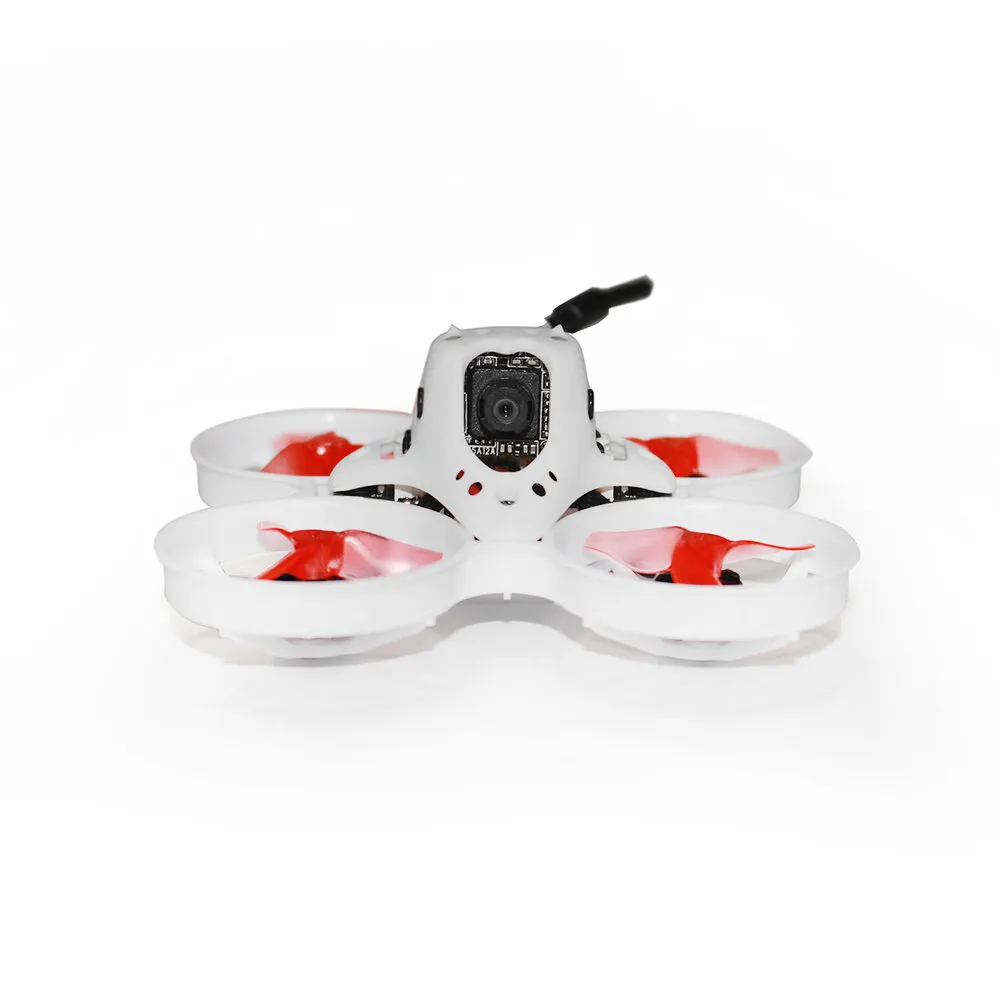

Tinyhawk Nanoscout is a return to tradition, bringing to the table a more traditional "whoop" frame with superior Tinyhawk performance and durability. Crafted meticulously with a 65mm wheelbase, this compact redefines what it means to experience flight.
Notes to Buyers:
BNF (Bind-N-Fly) only has a receiver, no transmitter, no remote control.
RTF (Ready to Fly) airplanes come with everything you need to fly in the box. A transmitter, receiver, battery, charger, and all other required electronics are included and pre-installed from the factory.
Feature:

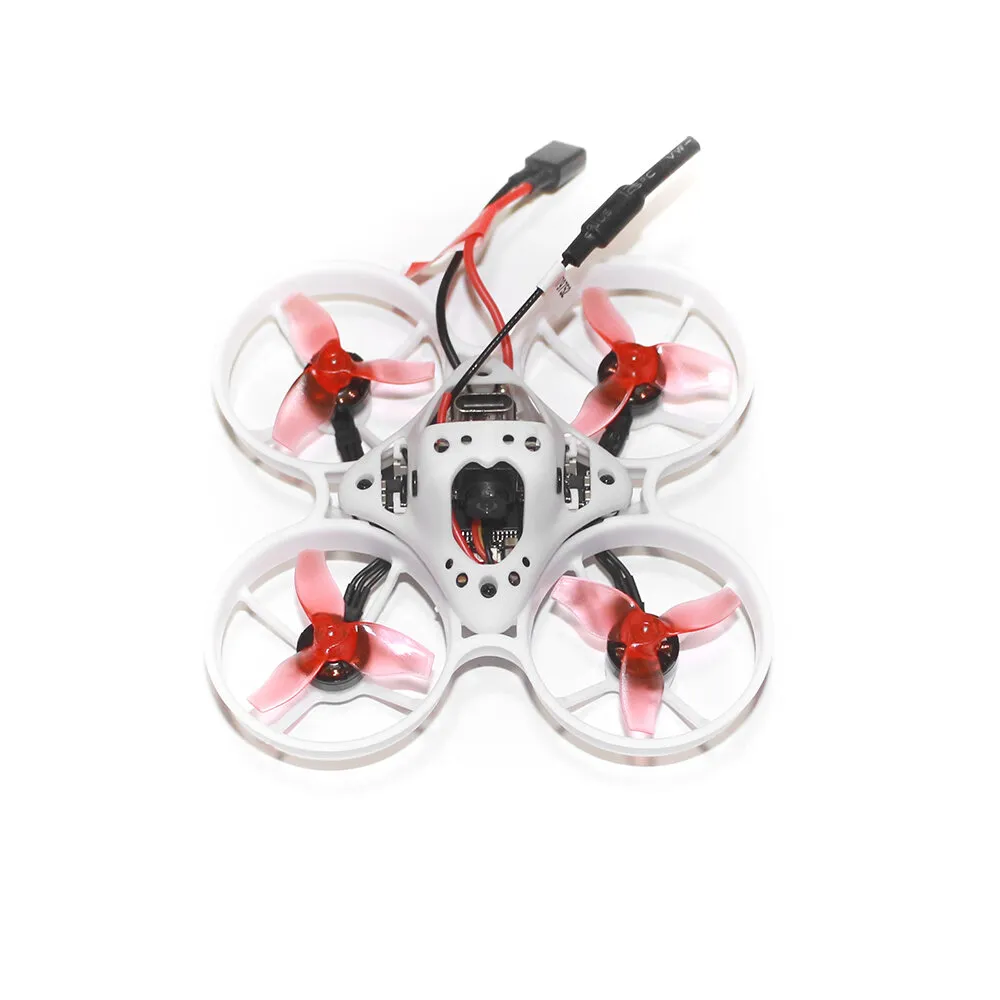

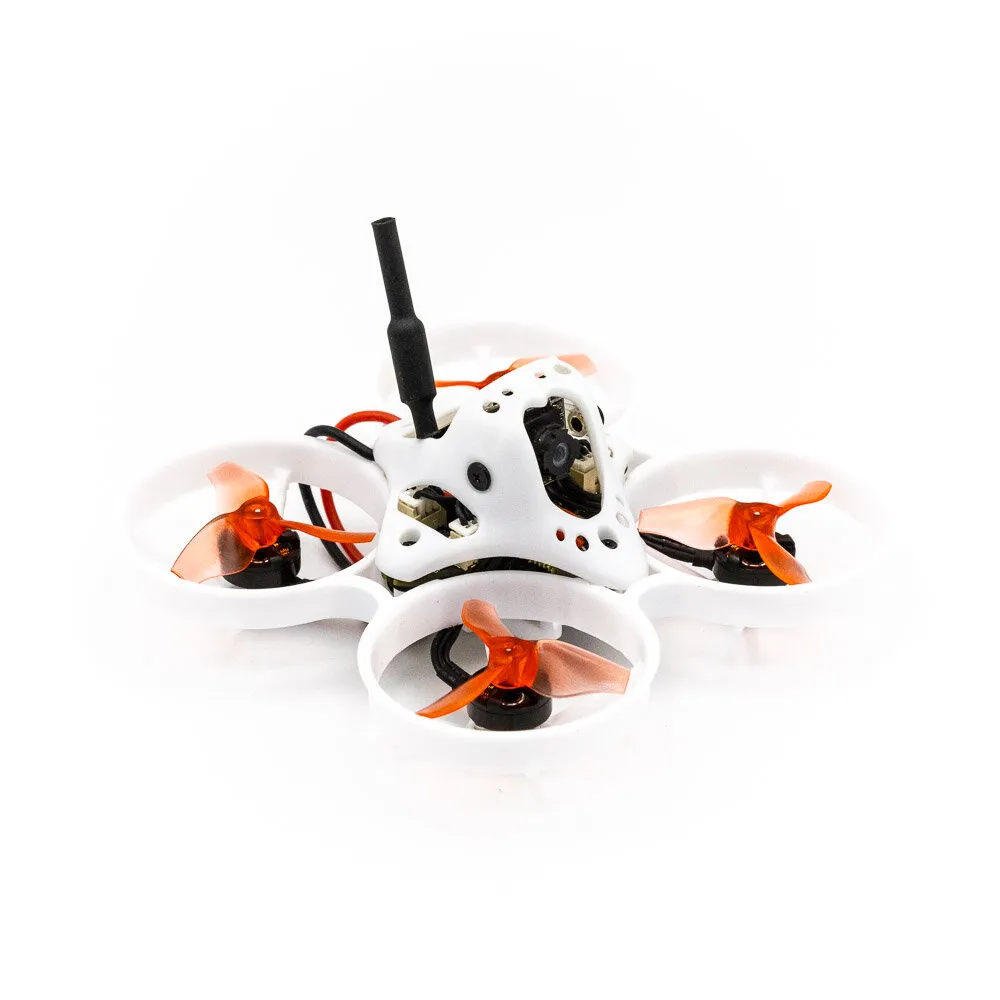

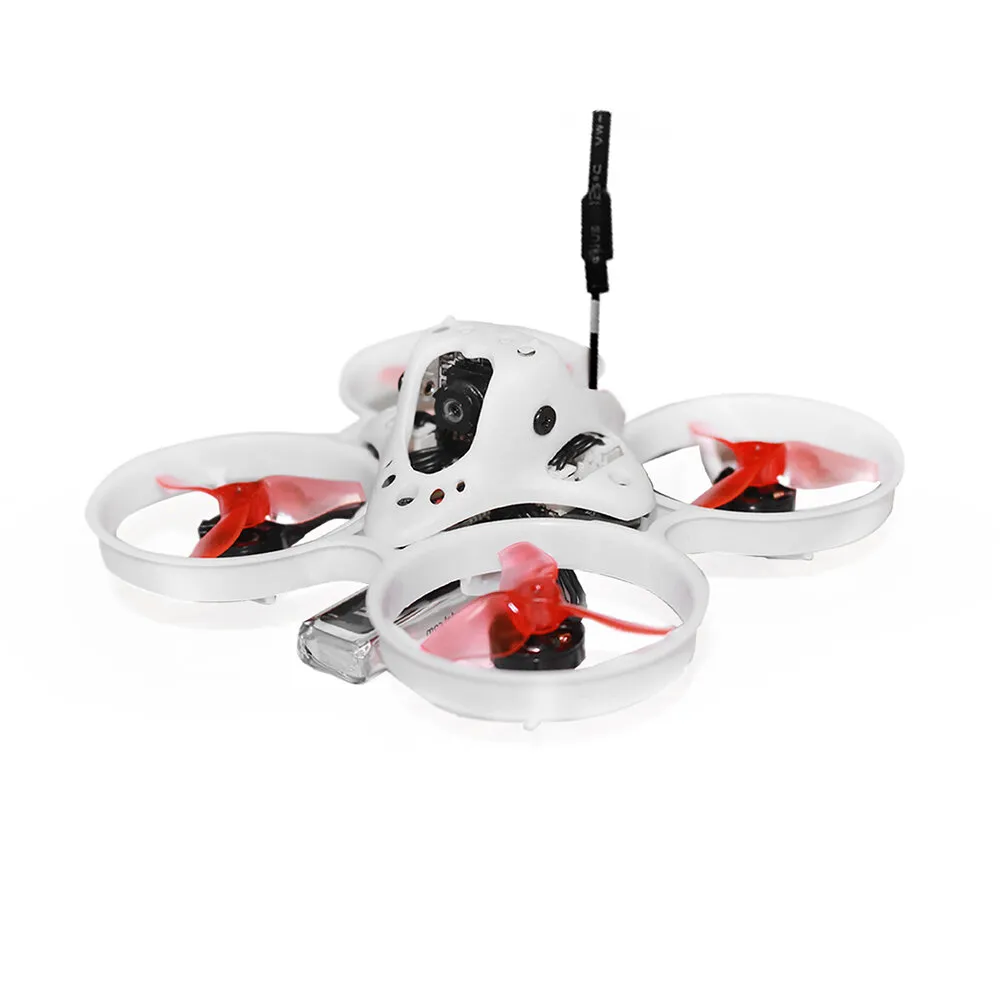

1. Lightweight body design, more comfortable flight control, the new Tinyhawk Nanoscout, the aircraft wheelbase is only 65mm, and the bare weight is only 23.1g.
2. Excellent performance, durabl The sturdy frame made of high-quality materials can withstand the test of intense flight.
3. The newly designed 0801522000KV double ball high-speed bearing brushless motor is adopted, and it is matched with 31mm propeller to better improve flight efficiency and show extraordinary speed and responsiveness.

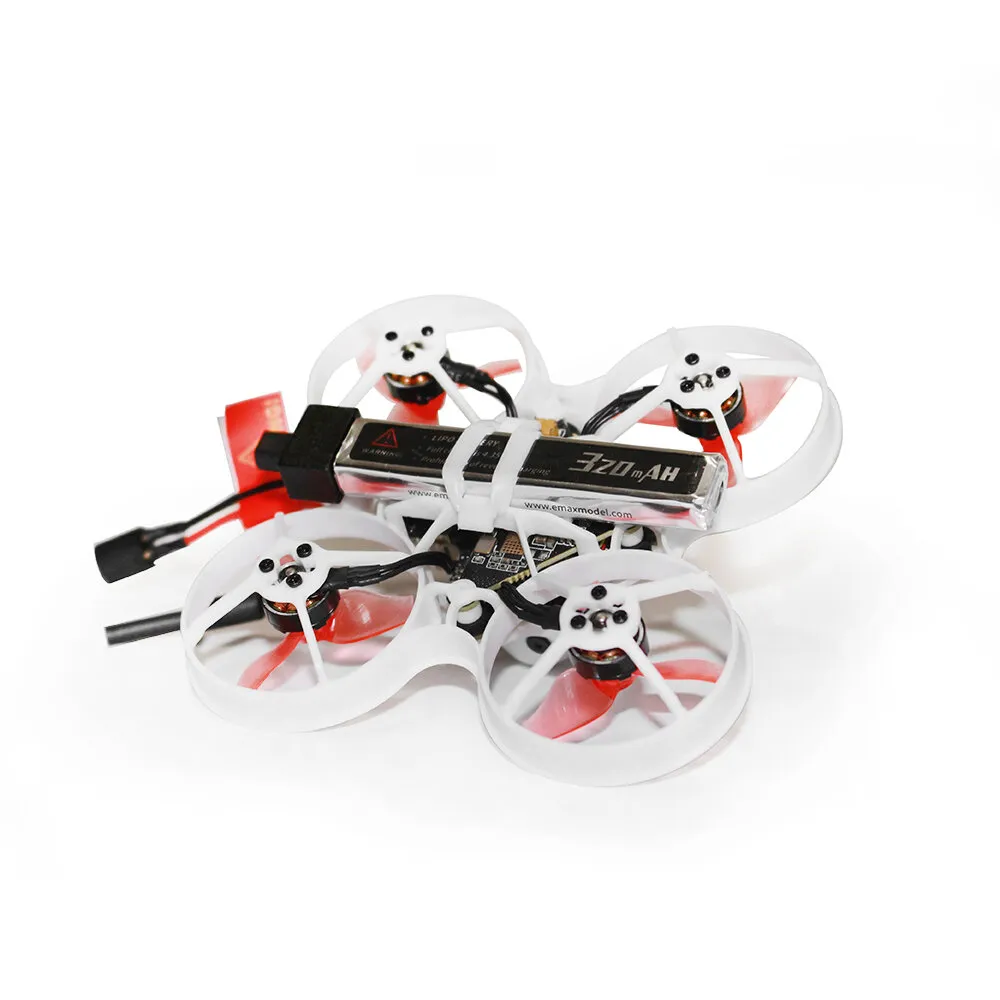

4. It adopts high-capacity 320mAh 1S high-voltage lithium battery, Emax's self-developed EM2.0 power interface, and continuous and stable discharge performance, making flying more handy.
5. 4 types of image transmission power are adjustable 25mW/100mW/200mW/400mW, matched with RunCam Nano 3 camera with both clarity and low latency, ELRS (2.4G) receiver.

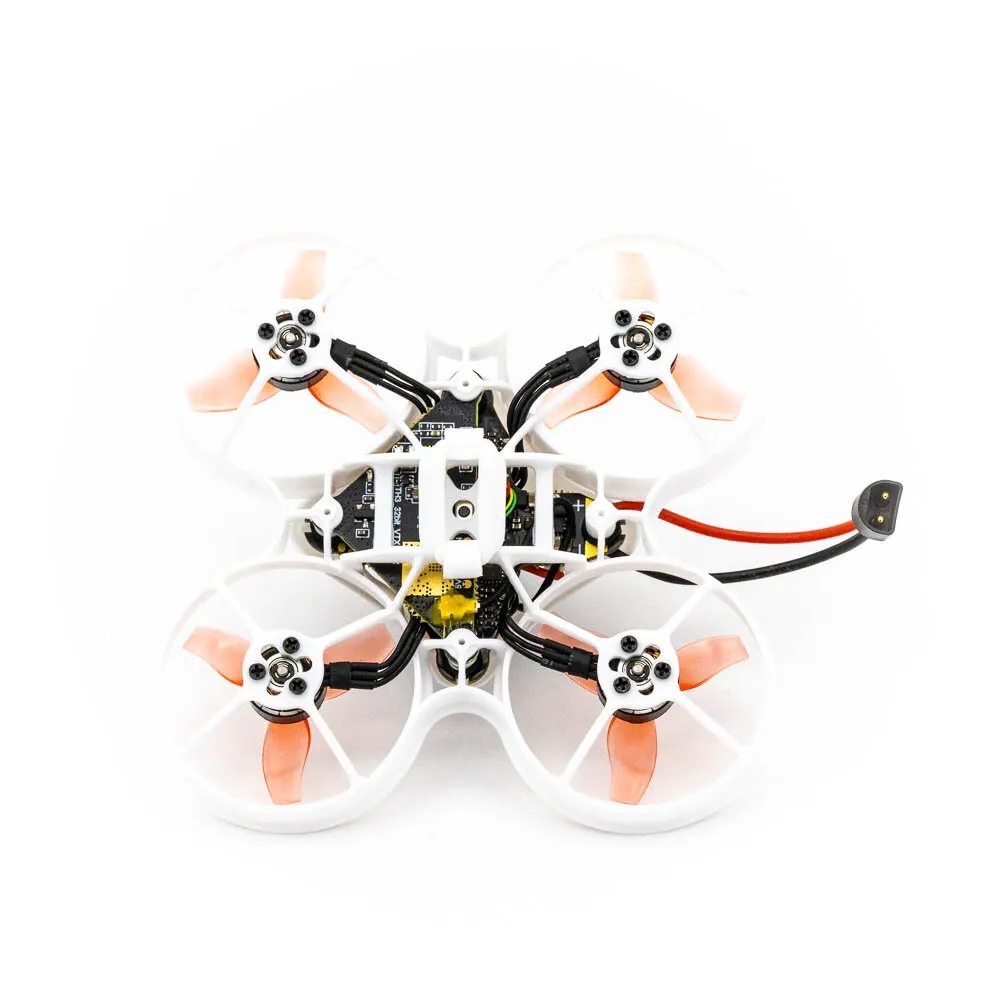

6. The Tinyhawk Nanoscout flight control system integrates the ELRS (2.4G) receiver, 6A BlHeliSuite ESC, and F411 integrated board.
Specification：
Brand: EMAX
Model: Tinyhawk Nanoscout
Item: 65mm 1S Whoop FPV Racing Drone
Name | Specification | |
Tinyhawk Nanoscout | Wheelbase: | 65mm |
Motor: | ||
Propeller: | ||
Battery: | ||
Camera: | ||
VTX: | EMAX-32-bit open-source simulation image transmission Power: 25mW/100mW/200mW/400mW | |
FC: | STM32F411 (100MHz) main control Integrated 4-in-1-6A-8 bit electronic control, input voltage 1S Onboard ELRS (2.4G) receiver (SPI communication) | |
Maximum Size: | L*W*H=84x84x35mm | |
Weight: | 23.1g (excluding battery) | |
E8 Transmitter(ELRS-2.4G)
| Maximum Size: | L*W*H=150x140x45mm |
Weight： | 260g(excluding battery) | |
Number of Channels： | 8CH | |
Agreement： | ELRS-2.4G | |
Working Frequency： | 2.4gHz（2400-2483.5MHz） | |
Power： | 10mW/25mW/50mW/100mW | |
Battery： | 1800mAh-18650-Lithium ion battery(Not included) | |
Charging System： | Built in USB 1A linear lithium-ion battery charging system | |
Working Voltage： | 3.7-4.2V | |
External Interface: | Type-C interface, 3.5mm audio interface (wired coac interface) | |
Other： | Support emulator, support joystick calibration, support switching between left and right hands, support firmware updates (USB mode), support adjustable power Support adjustable sending/returning rates, support changing binding keys | |
Transporter II FPV Goggles | Maximum Size: | L*W*H=155x100x90mm |
Weight: | 398g(including headband and antenna) | |
Screen Resolution: | 480x800 | |
Display Size: | 4.3inch | |
Battery: | Built in 1300mAh lithium-ion battery(Not included) | |
Voltage: | 3.7V-4.2V | |
Working Frequency: | 5.8GHz（5658-5945MHz） | |
Charging System: | Built in USB 1A linear lithium-ion battery charging system Maximum supported memory 32GB TF card | |
DVR: | File format AV size: VGA/D1/HD (optional) | |
Package Included:

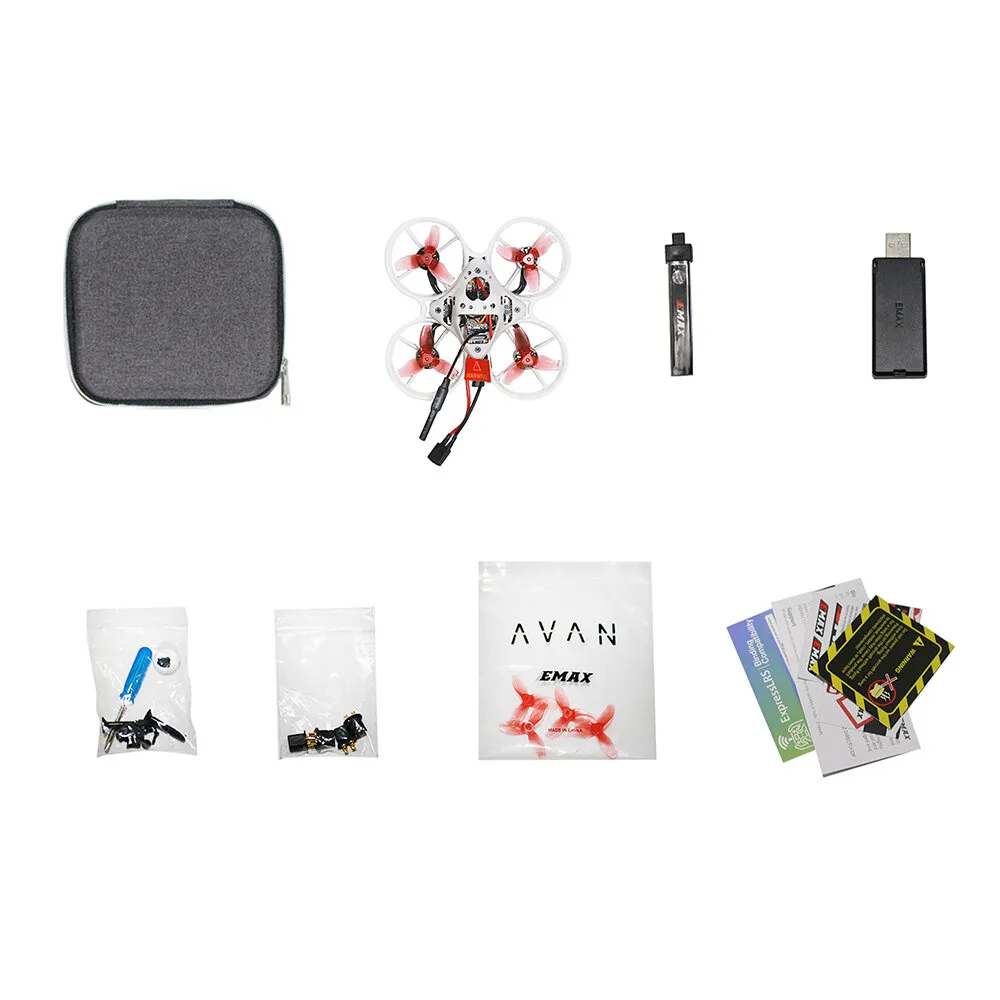

BNF Version:
1X Tinyhawk Nanoscout
1X EMAX 1S HV 320mAh Battery
1X Charger
2x Propellers CW
2x Propellers CCW
1x Accessory Pack

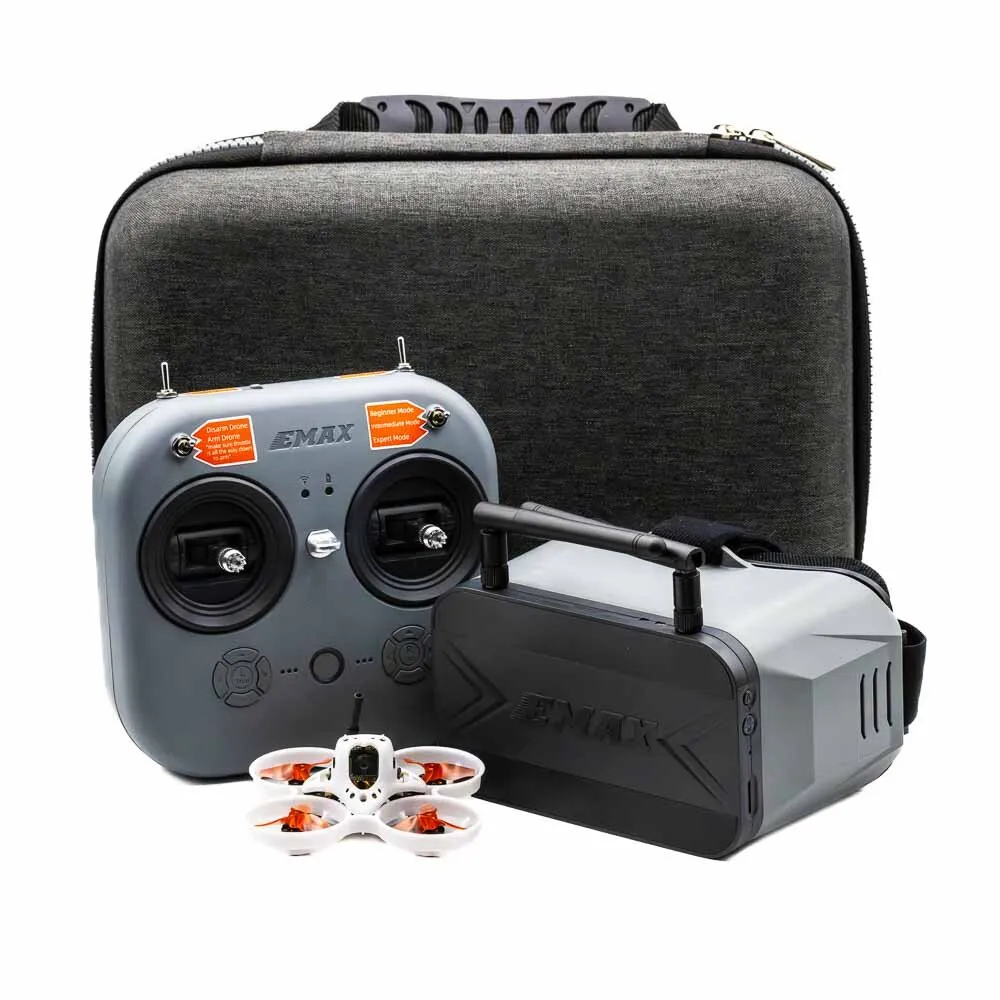

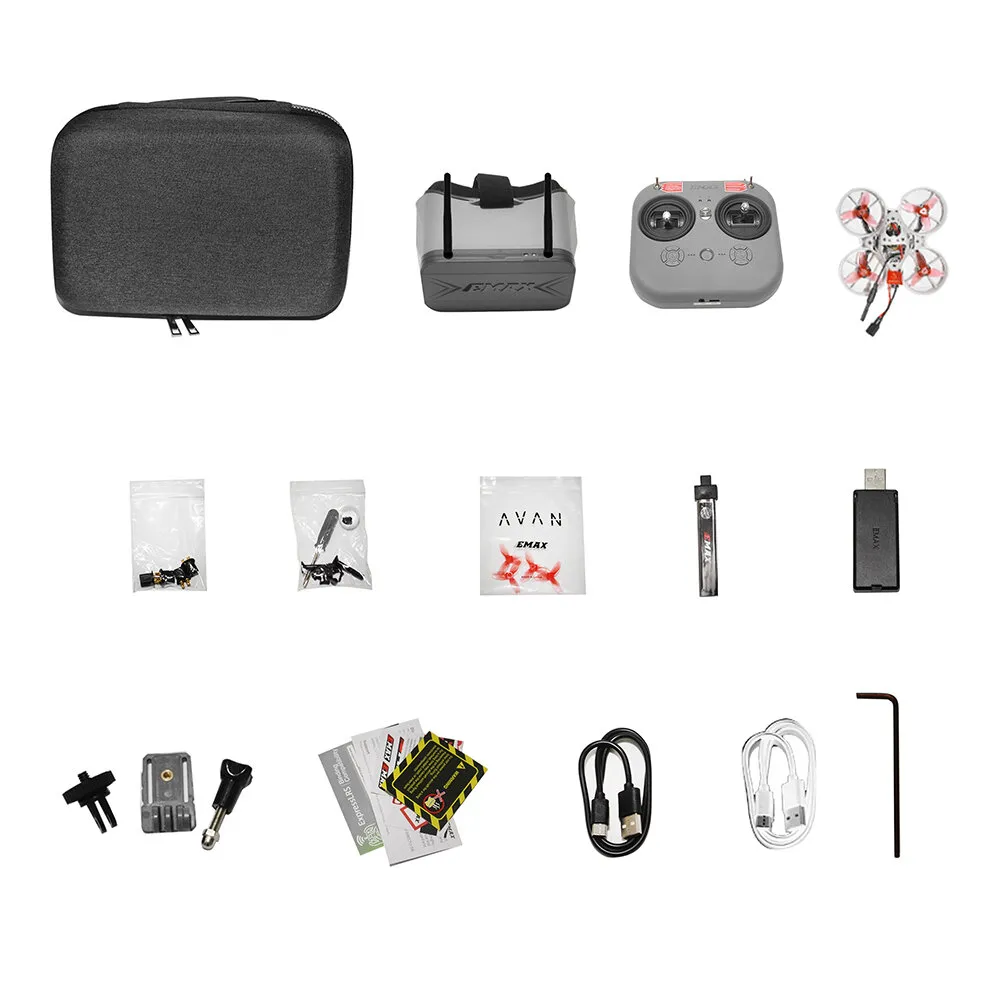

RTF Version:
1x Tinyhawk Nanoscout
1x EMAX E8 Transmitter (ELRS 2.4G)
1x EMAX Transporter II FPV Goggles
1x EMAX 1S HV 320mAh Battery
1x Charger
2x Propellers CW
2x Propellers CCW
1x Accessory Pack
