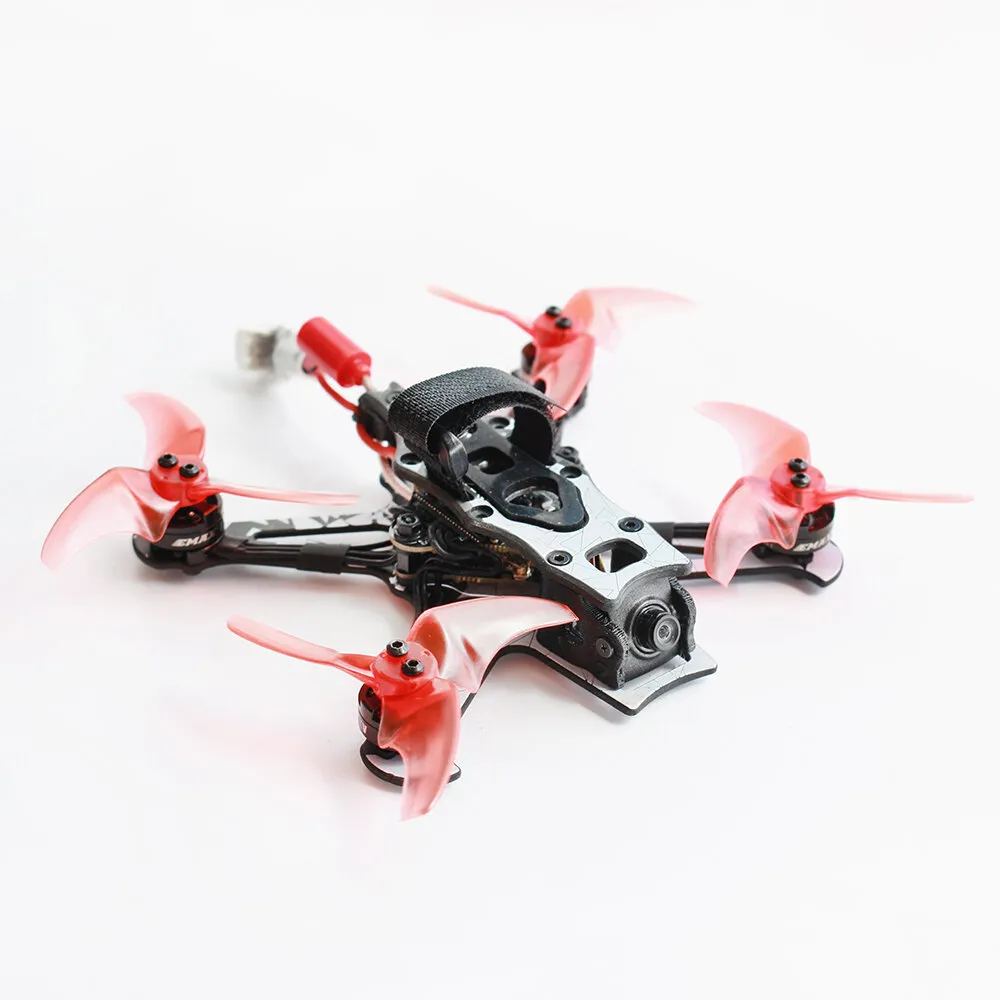

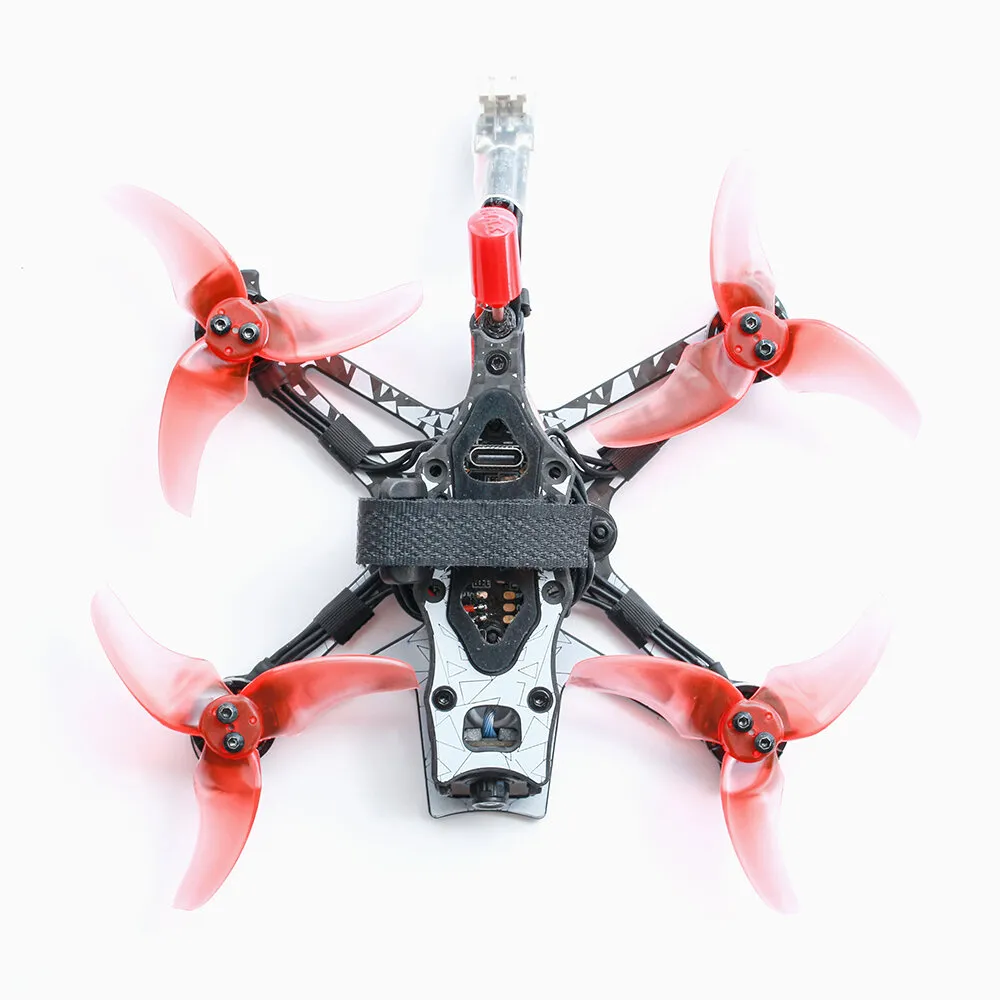

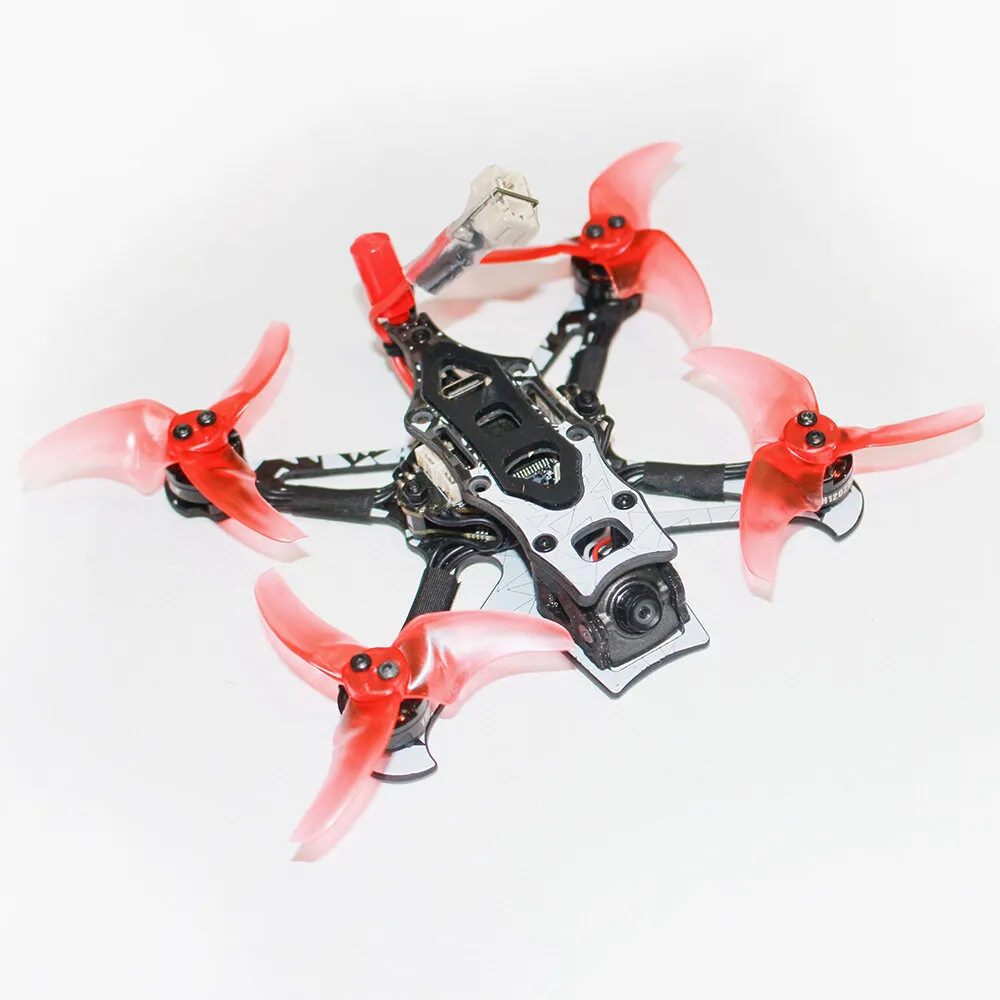

EMAX Tinyhawk III Plus Freestyle Analog / HDZero HD Digital 2.5 Inch 1S FPV Racing Drone BNF RTF
| Qty: | 4-7 | >=8 |
| Price: | $141.47 | $133.61 |
- weight: 485 g
Specifications:
Brand: EMAX
Model: Tinvhawk III PLUS Freestyle
Optional Version: Analog / HDZero
Optional Mode: BNF / RTF
Aircraft model | HDZero Version | Analog Version |
Wheelbase | 110mm | |
Maximum appearance size | 100×104×22mm(Propeller not included) | |
Weight | about 65.5g (excluding battery) | about 62.5g (excluding battery) |
Motor | 12025 7000KV | |
Propeller | AVAN Rush 2.5inch three-blade propeller | |
Main control board | F411 (100MHz) main control, integrated 4-in-16A 8-bit ESC, onboard ELRS (2.4G) receiver (SPI communication), input voltage 1-2S | |
Camera | HDZERO Nano Lite Camera | RunCam Nano 6 |
Image transmission | HDZero whoop Lite 0/25mW/200mW | 32-bit 40CH open source image transmission 0/25mW/100mW/200mW |
Battery | 1S HV 650mAh (With 2 1S batteries) | |
Remote Controller ( Only RTF Version has) : E8 Transmitte (ELRS-2.4G) | ||
Maximum appearance size | L×W×H=150×140×45mm | |
Weight | about 260g (excluding battery) | |
Number of channels | 8 channels | |
Protocol | ELRS-2.4G protocol | |
Working frequency | 2.4gHz frequency band (2400-2483.5MHz) | |
Power | 10mW/25mW/50mW/100mW | |
Battery | Built-in 1800mAh 18650 lithium-ion battery | |
Charging system | Built-in USB1A linear lithium-ion battery charging system | |
Working voltage | 3.7-4.2V | |
External interface | Type-C interface. 3.5mm audio interface (wired trainer interface) | |
Others | Support simulator, support joystick calibration, support left and right hand switching, support firmware update (USB method), support adjustable power, support adjustable send/return rate, support changing binding key | |
FPV Goggles ( ONLY RTF Version has) | Transporter II HD | Transporter II |
Maximum appearance size | 145×155×92mm (excluding antenna) 145×155×190mm (including antenna) | L×W×H=150×100×90mm |
Weight | about 425g (including headband and antenna) | about 398g (including headband and antenna) |
Screen resolution | 720*1080 | 480x800 |
Display size | 4.45 inches | 4.3 inches |
Battery | Built-in one 2200mAh-2C lithium battery | Built-in one 1300mAh lithium battery |
Voltage | 3.7-4.2V | |
Working frequency | 5.8GHz frequency band (5658-5945MHz) | |
Charging system | 5V/3A when turned on, 5V/1A charging when turned off | Built-in USB 1A linear lithium battery charging system |
DVR | It is recommended to use memory 8-32GB TF card (C10 high-speed TF card), video format TS, MOV | Maximum supported memory 32G TF card, file format AV size: VGA/D1/HD (three modes optional) |
1. Enhanced HD Video: Experience superior video quality with the upgraded analog version.
2. Durabl Construction: Built with high-quality materials, ensuring longevity and resistance to crashes.
3. Powerful Motors: Equipped with strong motors for rapid acceleration and impressive flying performance.
4. Advanced Flight Controller: Enjoy stable and precise flight control, perfect for beginners and enthusiasts.
5. Extended Flight Time: With its efficient battery system, have longer flight sessions and more fun.
Package Included:

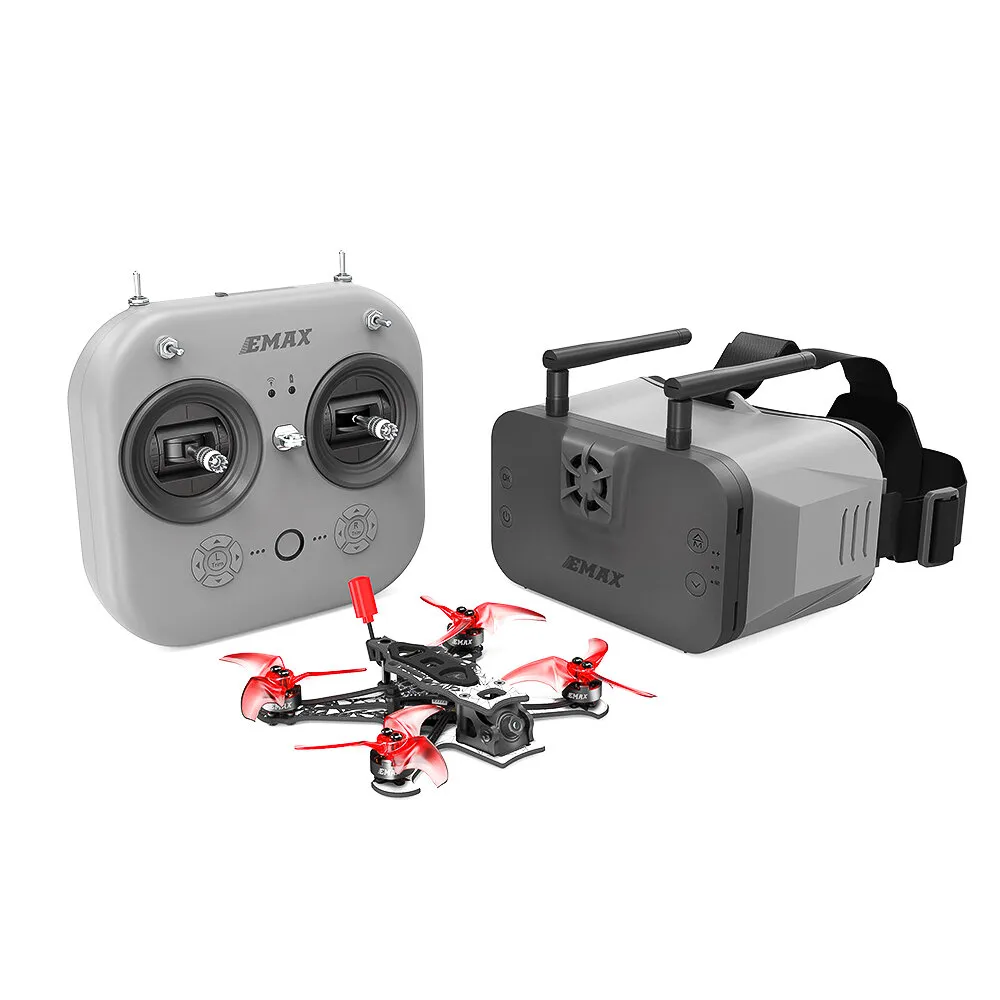

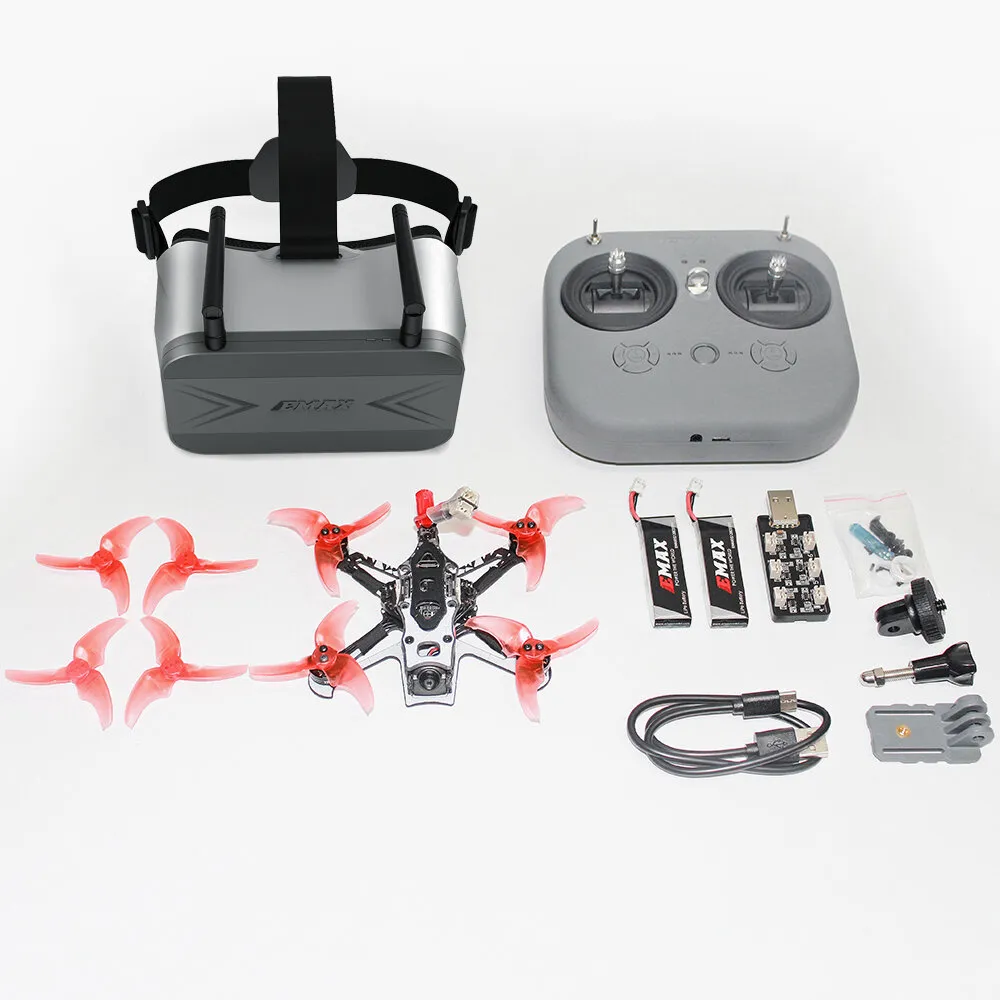

RTF Set:
1x Tinyhawk III PLUS Freestyle
1x FPV Goggles
1x E8 Remote Controller(ELRS-2.4G)
2x Battery 1S HV 650mAH
1x Charger
4x Blades(2 CW and 2 CCW）
1x Accessory package
1x USB data cable
1x Screw
3x Screen adapter (component)
1x Instructions and Disclaimer
2x Adapter cable (not included in analog version)

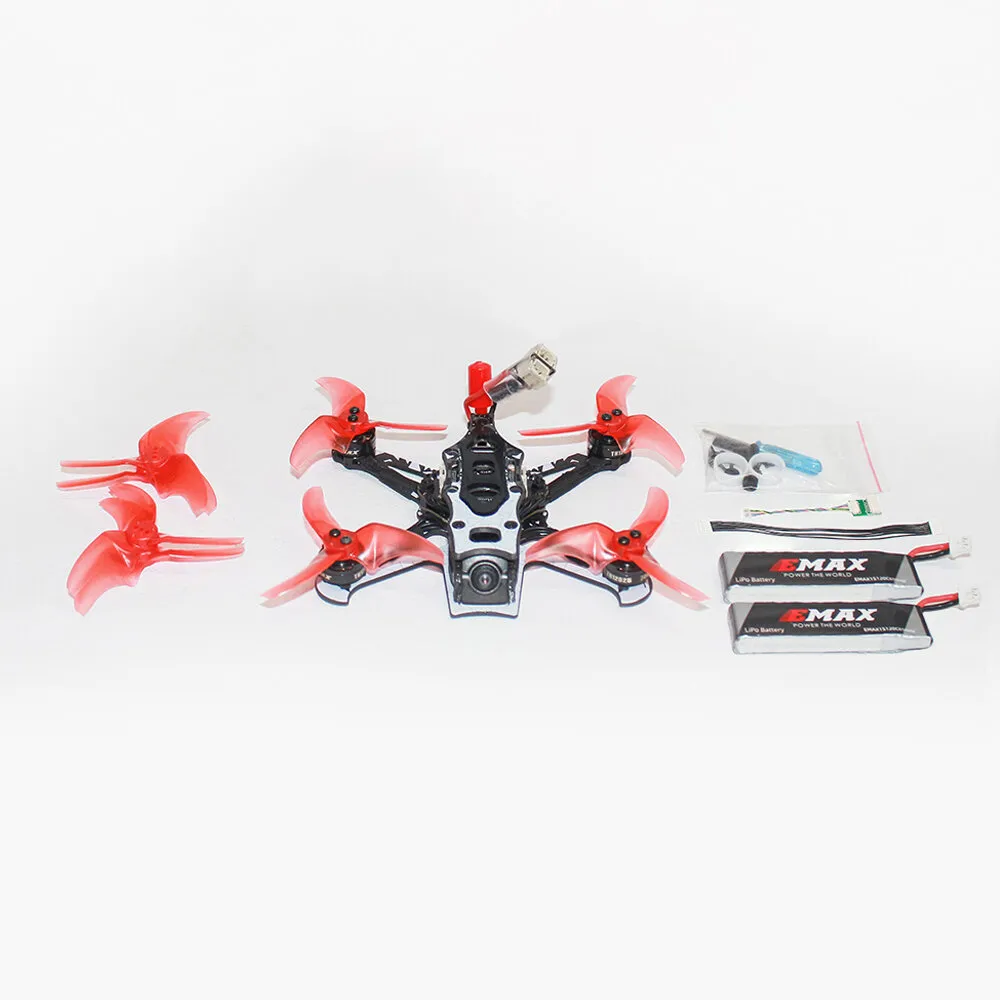

BNF Set:
1x Tinyhawk III PLUS Freestyle
2x Battery 1S650mAH
1x Charger
4x Blades(2 CW and 2 CCW）
1x Accessory package
1x Instructions and Disclaimer
2x Adapter cable (not included in analog version)
