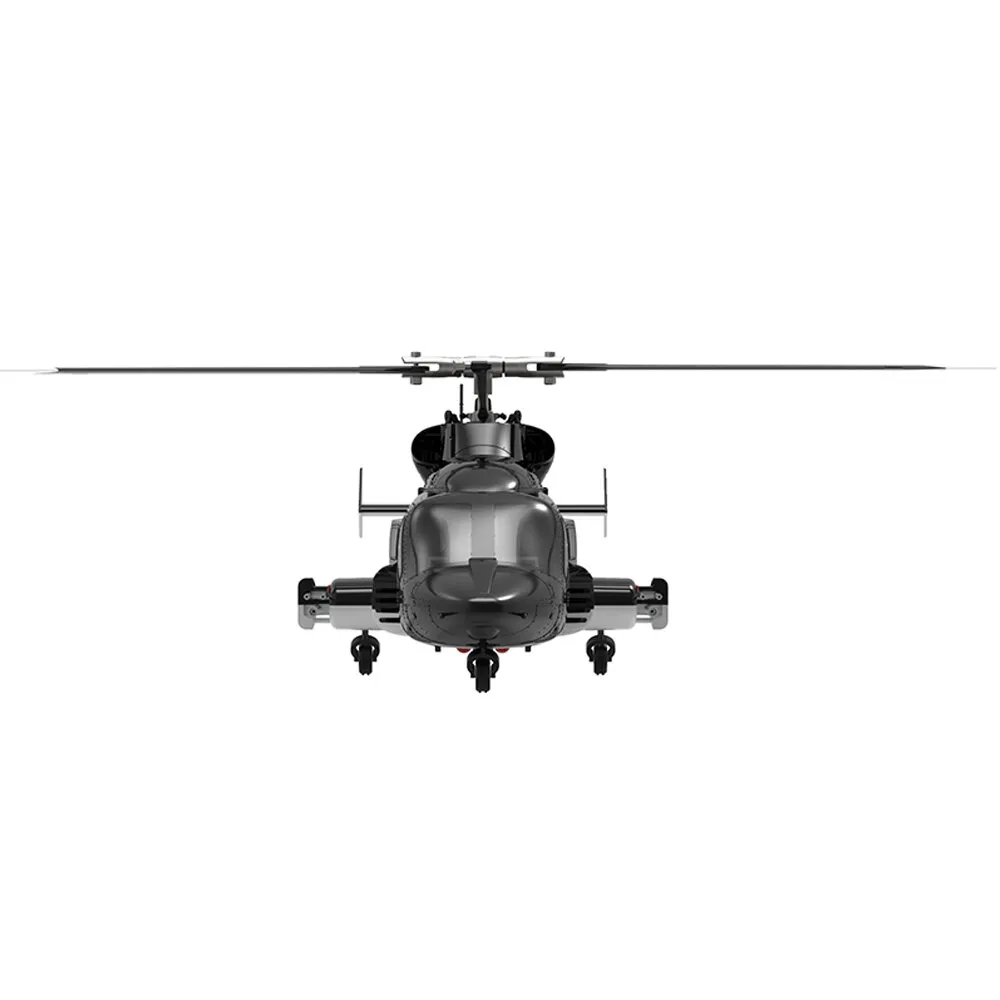

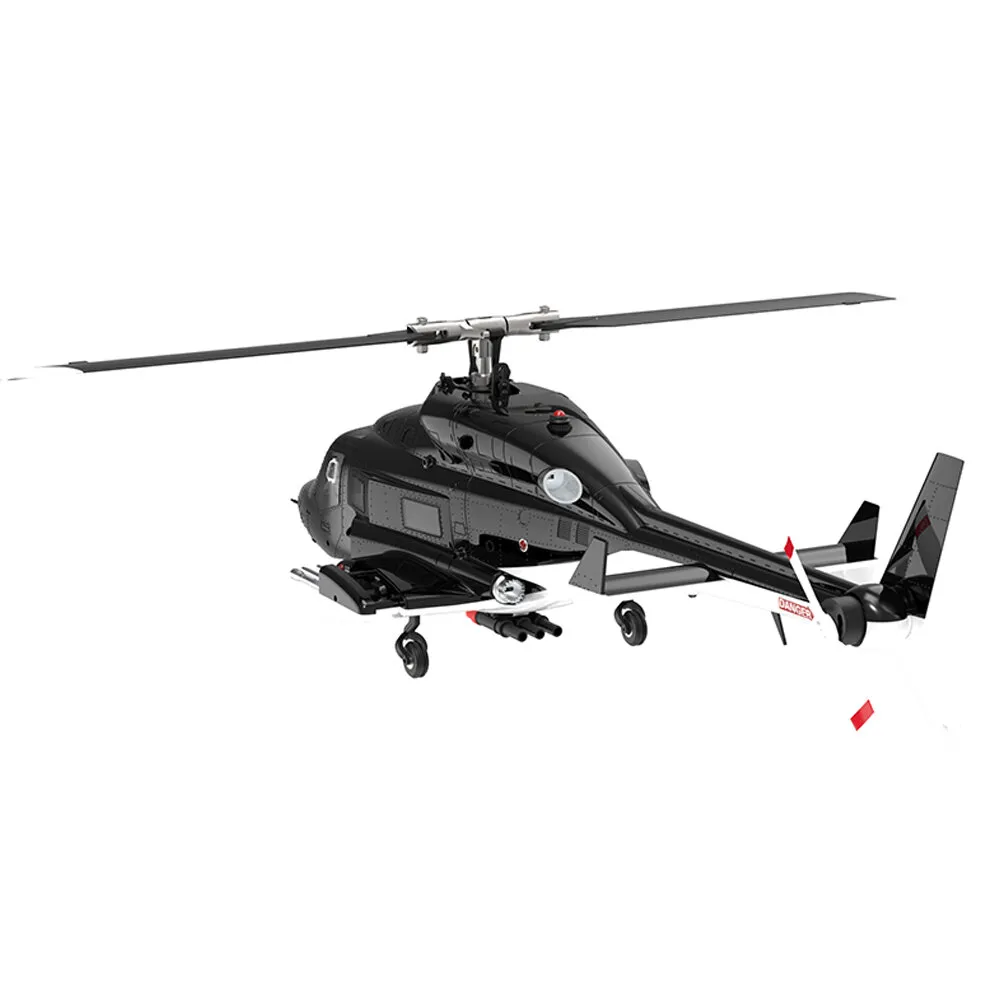

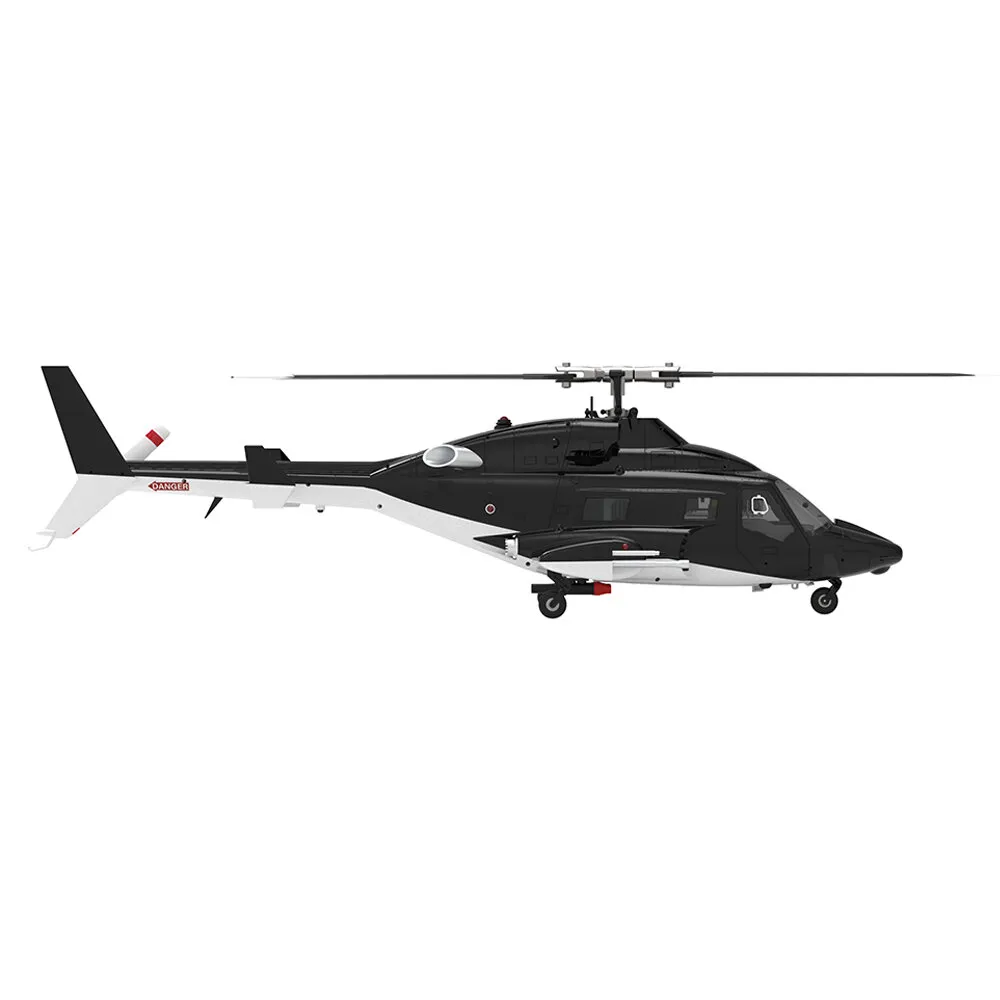

Eachine E188S AirWolf 2.4G 9CH 6G GPS Optical Flow Localization LiDAR TOF Altitude Hold Dual Brushless Motor 1:34 Scale Flybarless RC Helicopter RTF With Aluminum Box

• weight: 485 g

Specification:

Brand: EachineItem: E188SProduct size:Rotor diameter:375mmBody length: 415mmHeight:118mmRadio Frequency Band: 2.4GHzRemote control distance (m): More than 120 metersBattery:Body:LI-POLY 7.4V(1200mAh) 25CCharging time: about 60 minutesUse time: about 10-12 minutes Aluminum box specifications: 460*270*155mm

Flights weight: 310g

Function Description:

1> It is scaled down according to the proportion of the American Flying Wolf helicopter, with high-simulation appearance details and cool lights.

2> It adopts a flybarless design, a dual-axis co-drive motor, and an electronic stabilization system, which makes the feel more precise, the flight more stable, and the optimized structure reduces the chance of damage.

3> The propeller is designed based on the aerodynamic principle to provide strong power and self-stability of the fuselage. It is efficient, power-saving, and has a long flight time. The blades are made of nylon + carbon fiber composite materials, which are high in strength, good in toughness, impact-resistant, non-deformable, and durables.

4> It adopts laser radar + lower visual optical flow positioning and height determination system, which is more stable and more accurate in height

5> It uses 2511 1200KV brushless motor self-stabilizing co-drive to reduce gear agitation, with low noise, high torque, sufficient power, and high efficiency. The special high-temperature resistant magnetic steel can withstand 150 degrees high temperature without damage, which increases the service life.

6> The tail lock motor uses a special 1204 5500KV brushless motor, which is resistant to high temperature, fast responses, stable tail lock, and not easy to damage after long-term work.

7> Using an enlarged 4.3g metal gear servo, it has the characteristics of high torque, fast responses, high precision, and accurate return to the center. The response speed is 60°/0.05ms, which makes the aircraft fly accurately, feel good, and last longer. Using 3 servos, it can fly accurately even if there is a 4-5 level wind outdoors.

8> Intelligent flight control, equipped with GPS module, compass module, lower vision module, and air pressure height setting module, with GPS stabilization, lower vision flight, manual self-stabilization mode, and multi-function flight mode, with one-key return, low-power intelligent return, out-of-control return, one-key landing, electronic fence, one-key 8-shaped route flight, one-key circular flight and other safe flight functions.

9> Brand new 8-channel high-precision remote control, 2.4GHZ two-way communication protocol. With 1024-level operation feel, high-definition display, and two-way data transmission, it can provide real-time feedback on important information such as aircraft power, flight speed, flight altitude, flight distance, flight direction, GPS number, etc., effectively improving users' precise control of aircraft.

10> Adopt high-precision CNC rotor head cross plate to optimize structure, reduce weight, and greatly reduce the probability of aircraft damage.

11> The casing adopts hot runner injection molding process, with high simulation details, good elasticity, toughness, and not easy to crash.

12> Standard six-channel remote control, independent potentiometer optimizes the output of the joystick, and the operation is more refined.

13> Can be connected to ELRS receiver, open source remote control on the general market.

14> Professionally customized high-rate lithium polymer 7.4V 1200mah 25C battery, high discharge rate, long service life, flight time of about 9-12 minutes, normal use can reach 500+ cycles. It has functions such as preventing overcharge, over-discharge, and low-power indication, which can more effectively extend the battery life.

15> Intelligent module battery, with charging protection and low power protection function, using the universal TYPE-C plug on the market, charging is more convenient.

Note:Eachine E188S Manual Click Here

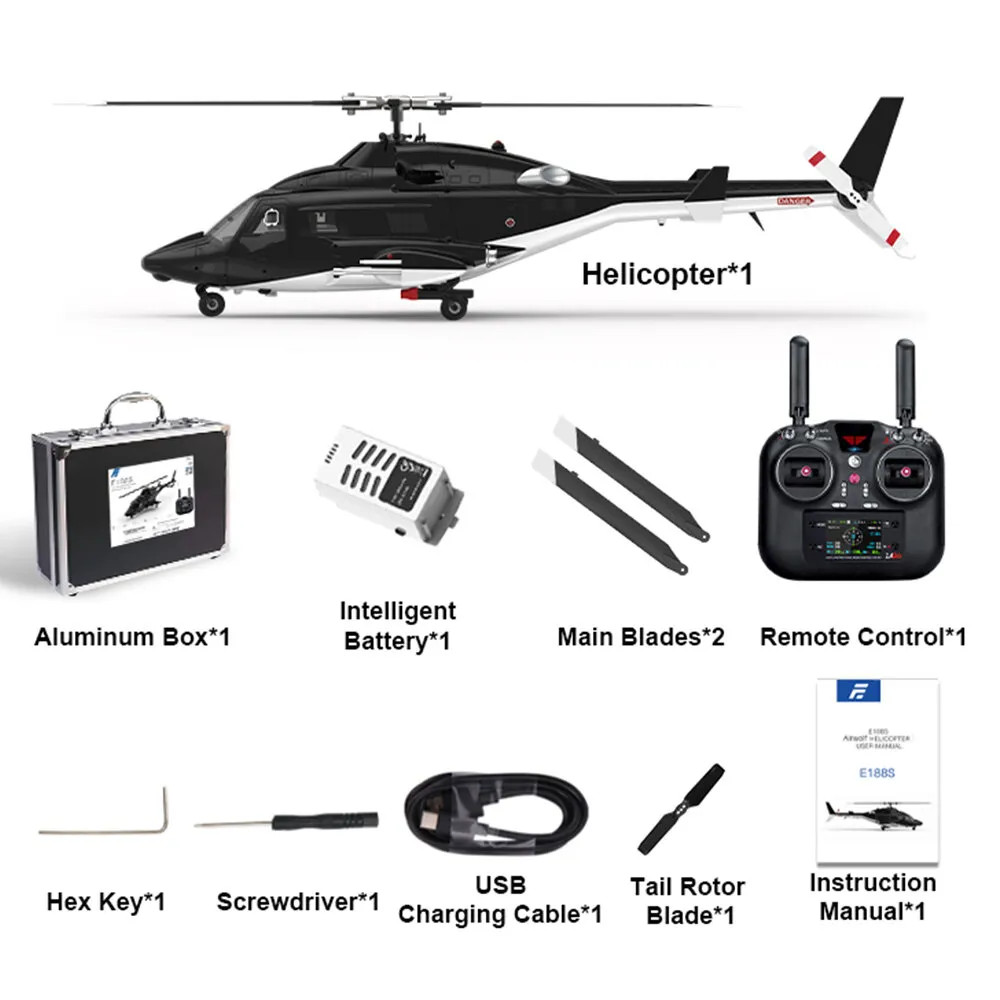

Package included:

1 x E188S RC Helicopter1 x Remote Control1 x USB Cable1 x Battery（1,2 or 3 Optional）2 x Main Blades1 x Tail Rotor Blade1 x Screwdriver1 x Hex Key1 x Instruction1 x Aluminum Box
