DJI NEO 135g Ultralight with 4K Ultra-Stabillized Video AI Subject Tracking Quickshots Multiple Control Palm Takeoff Landing RC Drone Quadcopter RTF
| Qty: | 4-7 | >=8 |
| Price: | $231.30 | $218.45 |
- weight: 485 g
Specifications:
NEO | Takeoff Weight | Approx. 135 g |
| Dimensions | 130 × 157 × 48.5 mm (L×W×H) | |
| Max Ascension Speed | 0.5 m/s (Cine Mode) 2 m/s (Normal Mode)3 m/s (Sport Mode) | |
| Max Descent Speed | 0.5 m/s (Cine Mode) 2 m/s (Normal Mode)2 m/s (Sport Mode) | |
| Max Horizontal Speed (near sea level, no wind) | 6 m/s (Normal Mode) 8 m/s (Sport Mode)16 m/s (Manual Mode) | |
| Max Takeoff Altitude | 2000 m | |
| Max Flying Time | Approx. 18 mins (Approx. 17 mins with the Propeller Guards) Each battery allows Neo to perform at least 20 palm takeoff and landing for shoots in succession | |
| Max Hovering Time | Approx. 18 mins (Approx. 17 mins with the Propeller Guards) | |
| Max Flying Distance | 7 km | |
| Max Wind Speed Resistance | 8 m/s (Level 4) | |
| Operating Temperature | -10° to 40° C (14° to 104° F) | |
| Class | C0 (EU) | |
Camera | Image Sensor | 1/2-inch Image Sensor |
| Lens | FOV: 117.6° Format Equivalent: 14 mmAperture: f/2.8Focus: 0.6 m to ∞ | |
| ISO Range | 100-6400 (Auto) 100-6400 (Manual) | |
| Shutter Speed | Video: 1/8000-1/30 s Photo: 1/8000-1/10 s | |
| Max Image Size | 12 MP Photo 4000×3000 (4∶3)4000×2256 (16∶9) | |
| Still Photography Modes | Single/Timed Shot | |
| Photo Format | JPEG | |
| Video Resolution | EIS Off: 4K (4:3): 3840×2880@30fps1080p (4:3): 1440×1080@60/50/30fpsEIS On:4K (16:9): 3840×2160@30fps1080p (16:9): 1920×1080@60/50/30fps | |
| Video Format | MP4 | |
| Max Video Bitrate | 75Mbps | |
| Supported File System | exFAT | |
| Color Mode | Normal | |
| EIS | Supports RockSteady, HorizonBalancing, and turning stabilization off. | |
Gimbal | Stabilization | Single-axis mechanical gimbal (tilt) |
| Mechanical Range | Tilt: -120° to 120° | |
| Controllable Range | Tilt: -90° to 60° | |
| Max Control Speed (tilt) | 100°/s | |
| Angular Vibration Range | ±0.01° | |
| Image Roll Correction | Supports correction of footage recorded on NEO Live view correction is unavailable only when used with additional accessories. | |
Sensing | Sensing Type | Downward Visual Positioning |
| Downward | Precise Hovering Range: 0.5-10 m | |
| Operating Environment | Downward: Non-reflective, discernible surfaces with diffuse reflectivity of >20% (such as walls, trees, or people)Adequate lighting (lux > 15, normal indoor lighting conditions) | |
| Capacity | 1435 mAh | |
| Weight | Approx. 45 g | |
| Nominal Voltage | 7.3 V | |
| Max Charging Voltage | 8.6 V | |
| Type | Li-ion | |
| Energy | 10.5 Wh | |
| Charging Temperature | 5° to 40° C (14° to 104° F) | |
| Charging Time | When Using the Two-Way Charging Hub (60W max charging power): Approx. 60 minutes to charge three batteries simultaneously from 0% to 100% When Directly Charging Neo (15W max charging power): Approx. 50 minutes to charge from 0% to 100% | |
Wi-Fi | Protocol | 802.11a/b/g/n/ac |
| Operating Frequency | 2.400-2.4835 GHz5.725-5.850 GHz | |
| Transmitter Power (EIRP) | 2.4 GHz: < 20 dBm (FCC/CE/SRRC/MIC) 5.8 GHz:＜20 dBm (FCC/SRRC)＜14 dBm (CE) | |
| Effective Operating Range | 50 m | |
| Bluetooth | Protocol | Bluetooth 5.1 |
| Operating Frequency | 2.400-2.4835 GHz | |
| Transmitter Power (EIRP) | ＜ 10 dBm | |
Battery Charging Hub | Input | 5 V, 3 A 9 V, 3 A12 V, 3 A15 V, 3 A20 V, 3 A |
| Output (Charging) | 5 V, 2 A | |
| Charging Type | 3 batteries charged simultaneously | |
| Compatibility | DJI Neo Intelligent Flight Battery | |
| Charger | Recommended Charger | DJI 65W Portable Charger USB Power Delivery charger |
RC-N3 Version:
| DJI RC-N3 Remote Controller | Operating Temperature | Without Charging Any Mobile Device: 3.5 hours When Charging a Mobile Device: 1.5 hours |
| Operating Temperature | -10° to 40° C (14° to 104° F) | |
| Charging Temperature | 5° to 40° C (41° to 104° F) | |
| Charging Time | 2 hours | |
| Charging Type | 5 V, 2 A | |
| Battery Capacity | 2600 mAh | |
| Weight | Approx. 320 g | |
| Dimensions | 104.2×150×45.2 mm (L×W×H) | |
| Operating Frequency | 2.400-2.4835 GHz5.170-5.250 GHz5.725-5.850 GHz | |
Transmitter Power (EIRP) | 2.4 GHz: ＜33 dBm (FCC)< 20 dBm (CE/SRRC/MIC)5.1 GHz:< 23 dBm (CE)5.8 GHz:＜33 dBm (FCC)< 14 dBm (CE)< 30 dBm (SRRC) | |
| Video Transmission | Video Transmission System | O4 |
| Live View Quality | With DJI RC-N3 Remote Controller: Up to 1080p/60fps With DJI Goggles 3 plus DJI RC Motion 3/DJI FPV Remote Controller 3: Up to 1080p/60fps | |
| Operating Frequency | 2.400-2.4835 GHz5.170-5.250 GHz5.725-5.850 GHz | |
| Transmitter Power (EIRP) | 2.4 GHz: ＜26 dBm (FCC)< 20 dBm (CE/SRRC/MIC)5.1 GHz:< 23 dBm (CE)5.8 GHz:＜26 dBm (FCC)< 14 dBm (CE)< 26 dBm (SRRC) | |
| Communication Bandwidth | Max 40 MHz | |
| Max Transmission Distance (unobstructed, free of interference) | FCC: 10 kmCE: 6 kmSRRC: 6 kmMIC: 6 km | |
| Max Transmission Distance (unobstructed, with interference) | Strong Interference (urban landscape): Approx. 1.5-3 kmMedium Interference (suburban landscape): Approx. 3-6 kmLow Interference (suburb/seaside): Approx. 6-10 km | |
| Max Transmission Distance (obstructed, with interference) | Low Interference and Obstructed by Buildings: Approx. 0-0.5 kmLow Interference and Obstructed by Trees: approx. 0.5-3 km | |
| Max Download Speed | Wi-Fi: 25 MB/s | |
| Lowest Latency | With DJI RC-N3 Remote Controller: Approx. 120 ms | |
| Max Video Bitrate | 50Mbps | |
| Antennas | Two antennas, 1T2R |
Features:

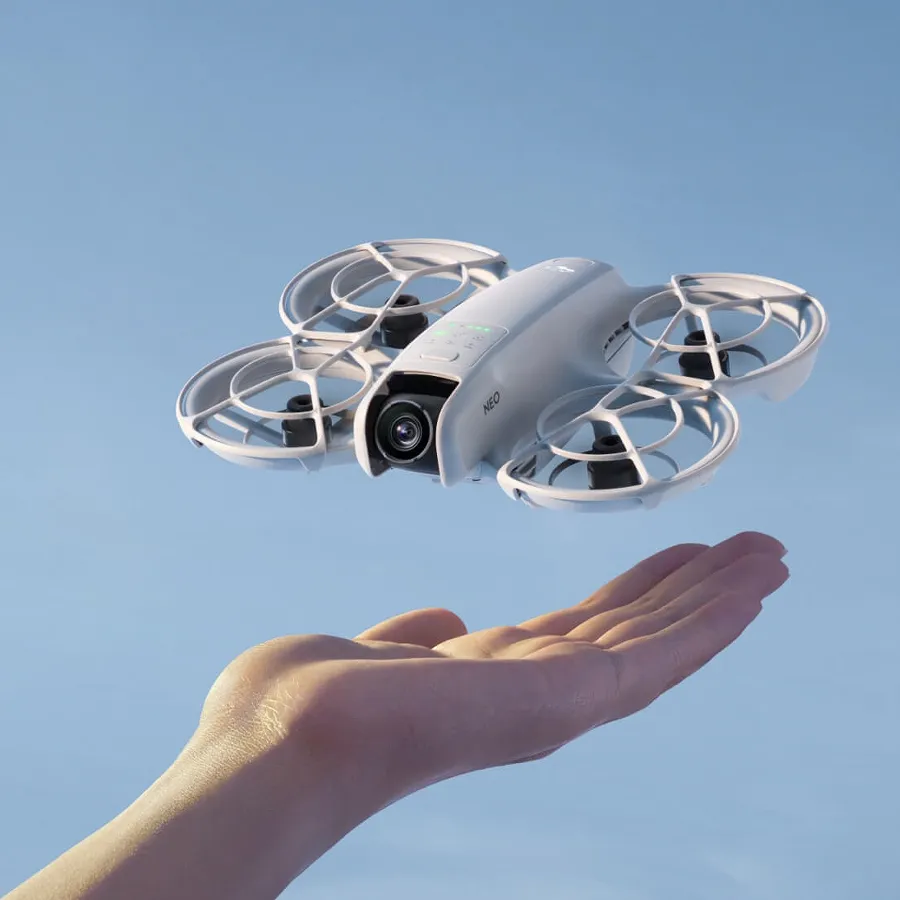

- 135g Only, Light & Portable- Palm Takeoff & Landing- Easy Editing with QuickShots- Multiple Control Options- 4K Ultra-Stabilized Video- Full-Coverage Propeller Guards
Package Included:

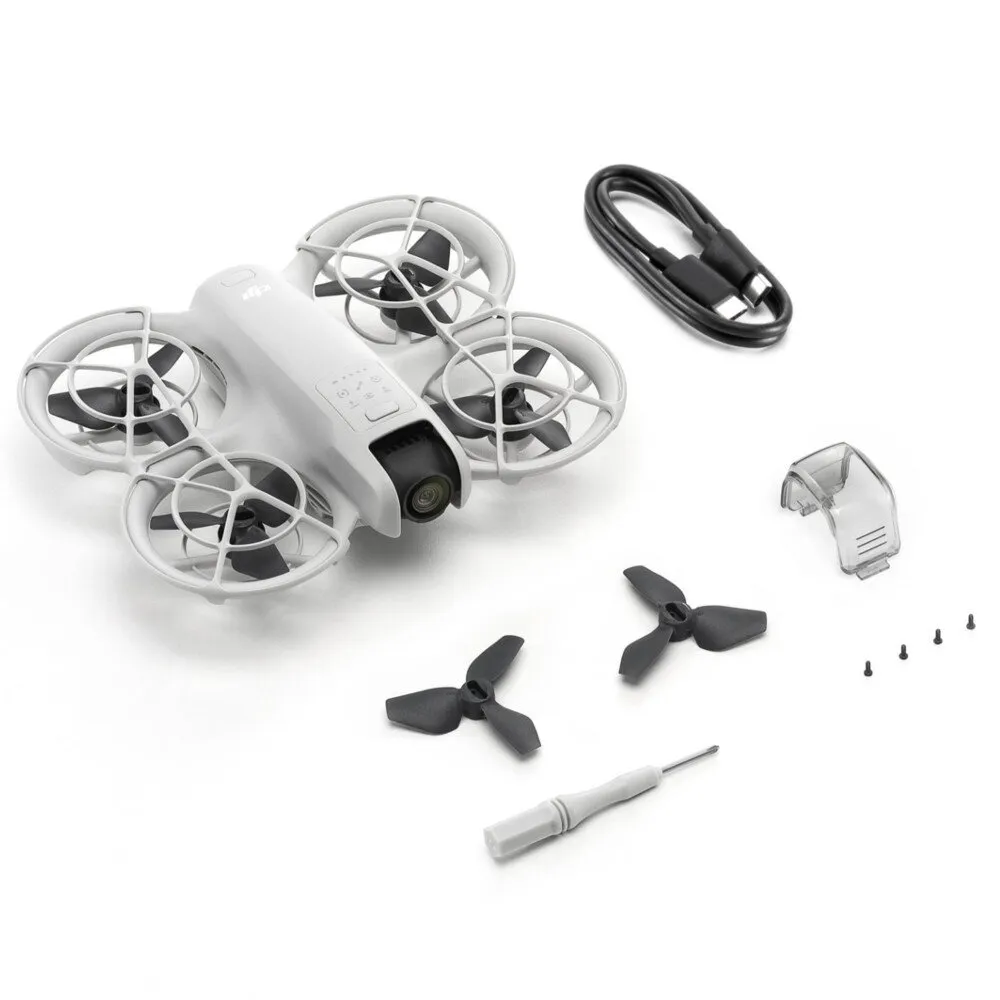

DJI NEO (NO RC):
1 x DJI NEO1 x Intelligent Flight Battery1 x Propeller Guard2 x Spare Propellers1 x Gimbal Protector1 x Type-C to Type-C PD Cable1 x Screwdriver4 x Spare Propeller Screw

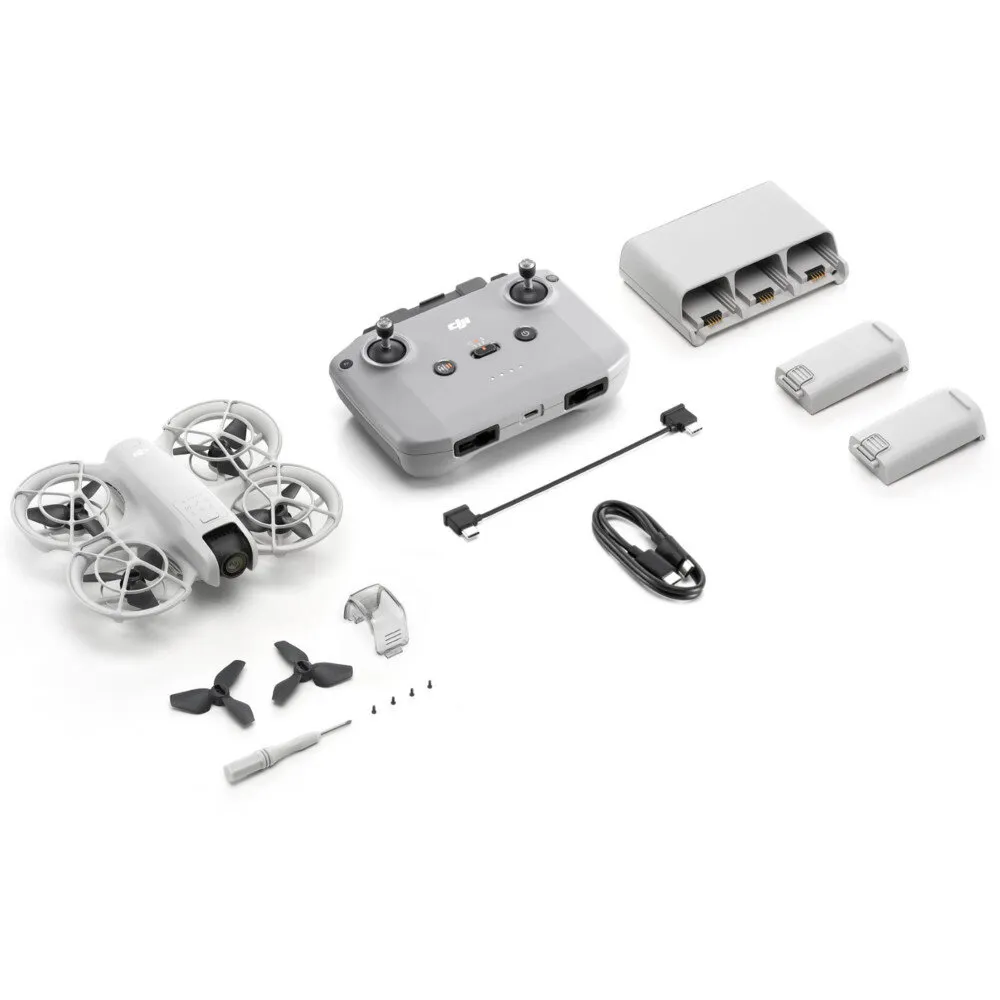

DJI NEO Combo (RC-N3):
1 x DJI NEO1 x DJI RC-N3 Controller3 x Intelligent Flight Battery1 x Two-Way Charging Hub1 x Propeller Guard2 x Spare Propellers1 x Gimbal Protector1 x RC Cable (USB-C Connector)1 x Type-C to Type-C PD Cable1 x Screwdriver4 x Spare Propeller Screw
