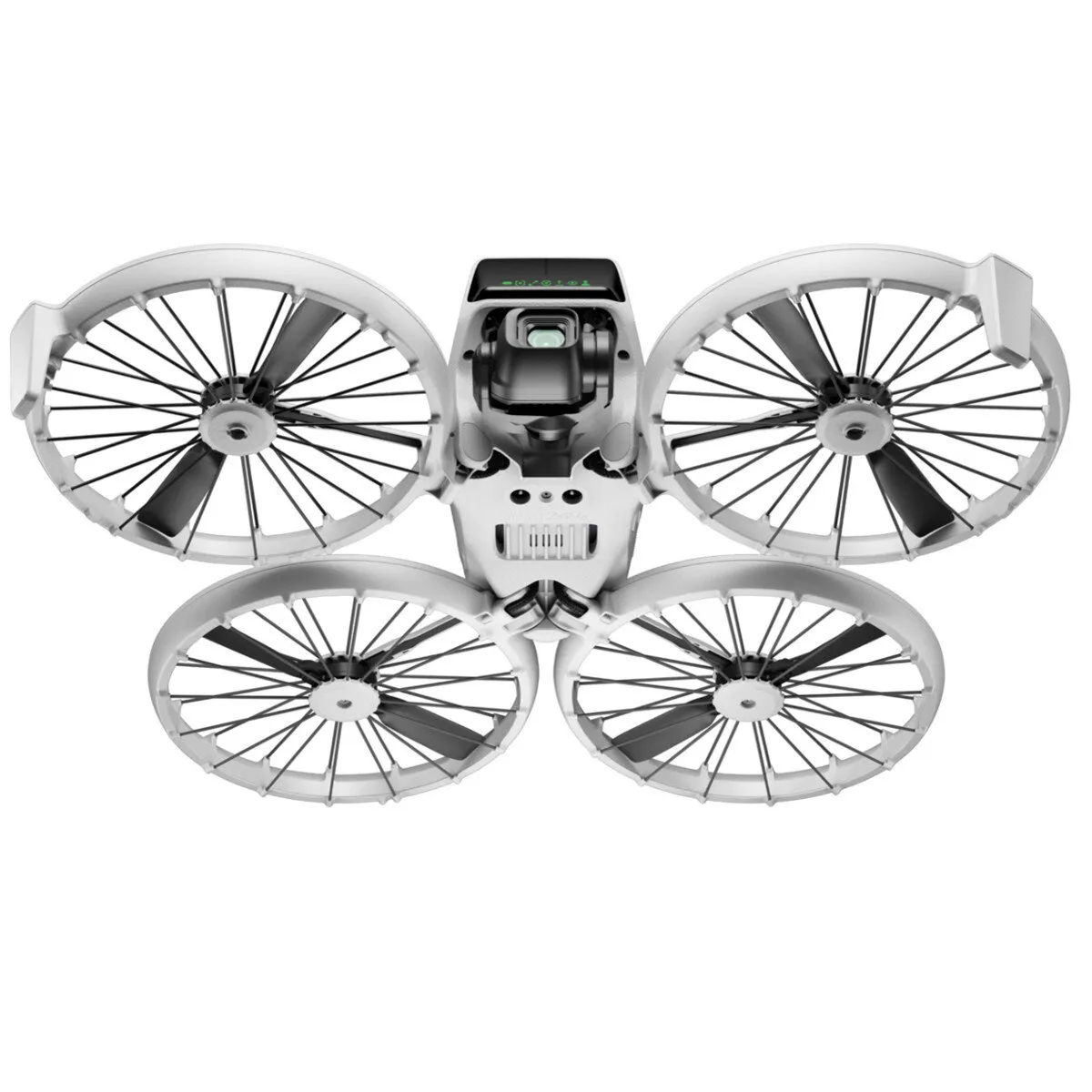

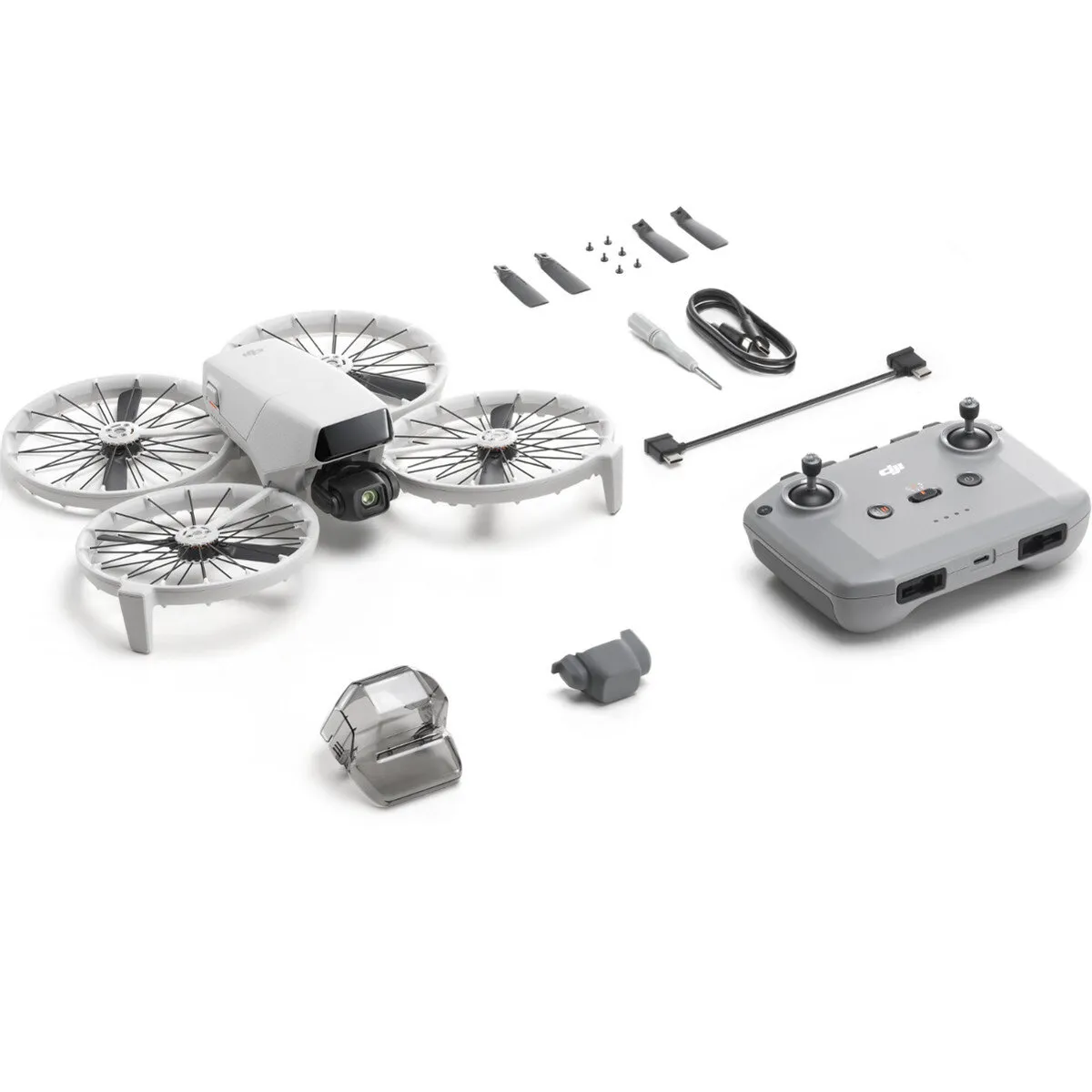

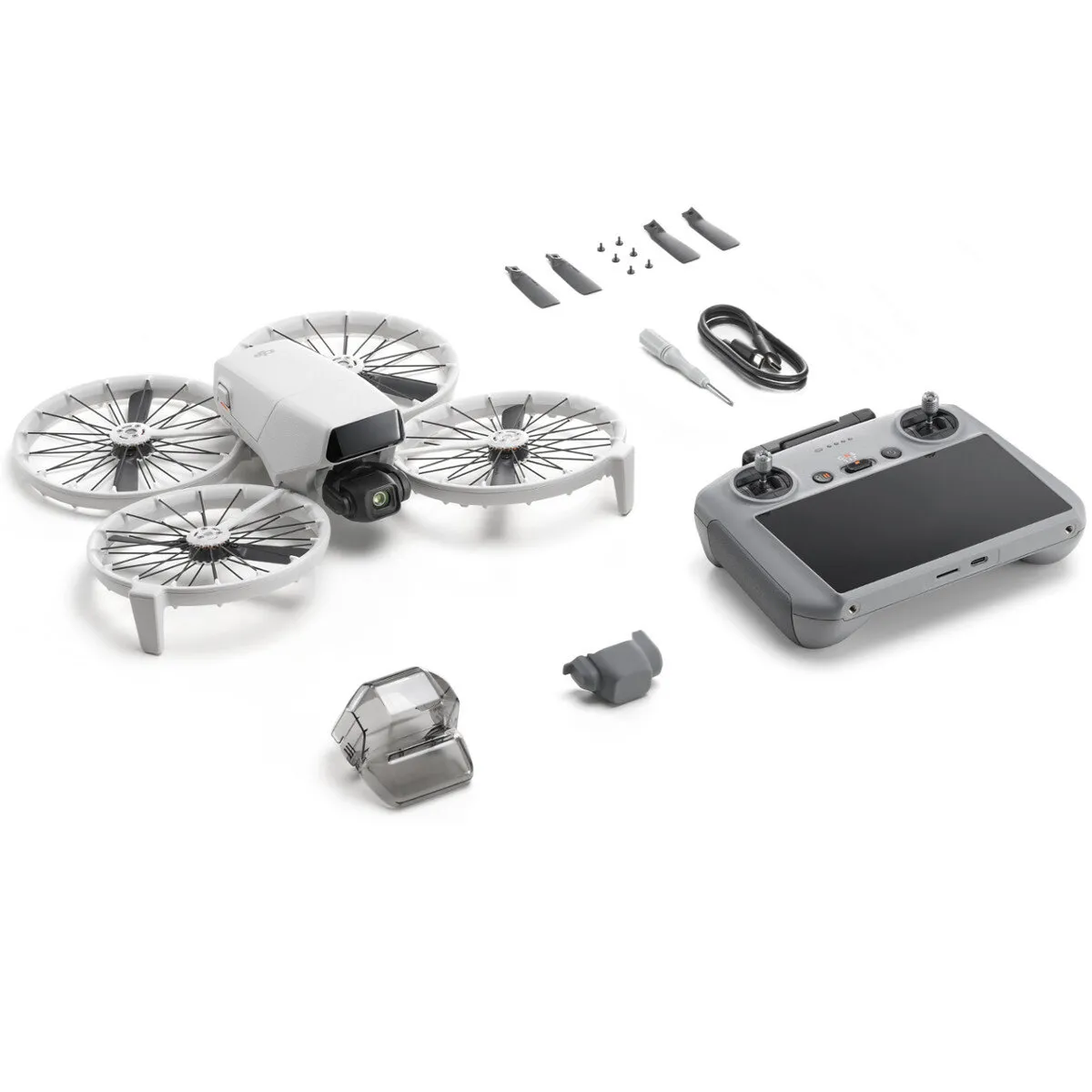

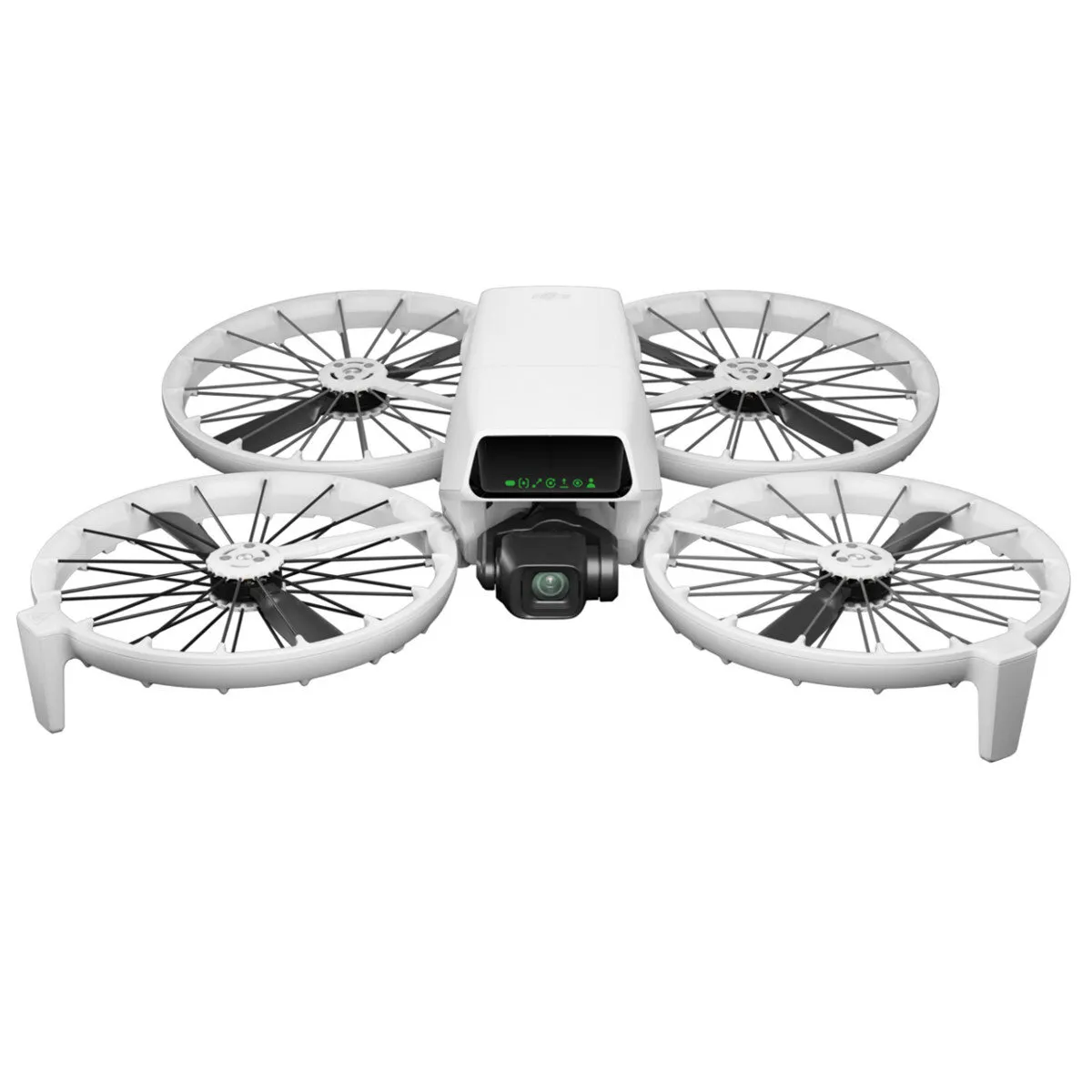

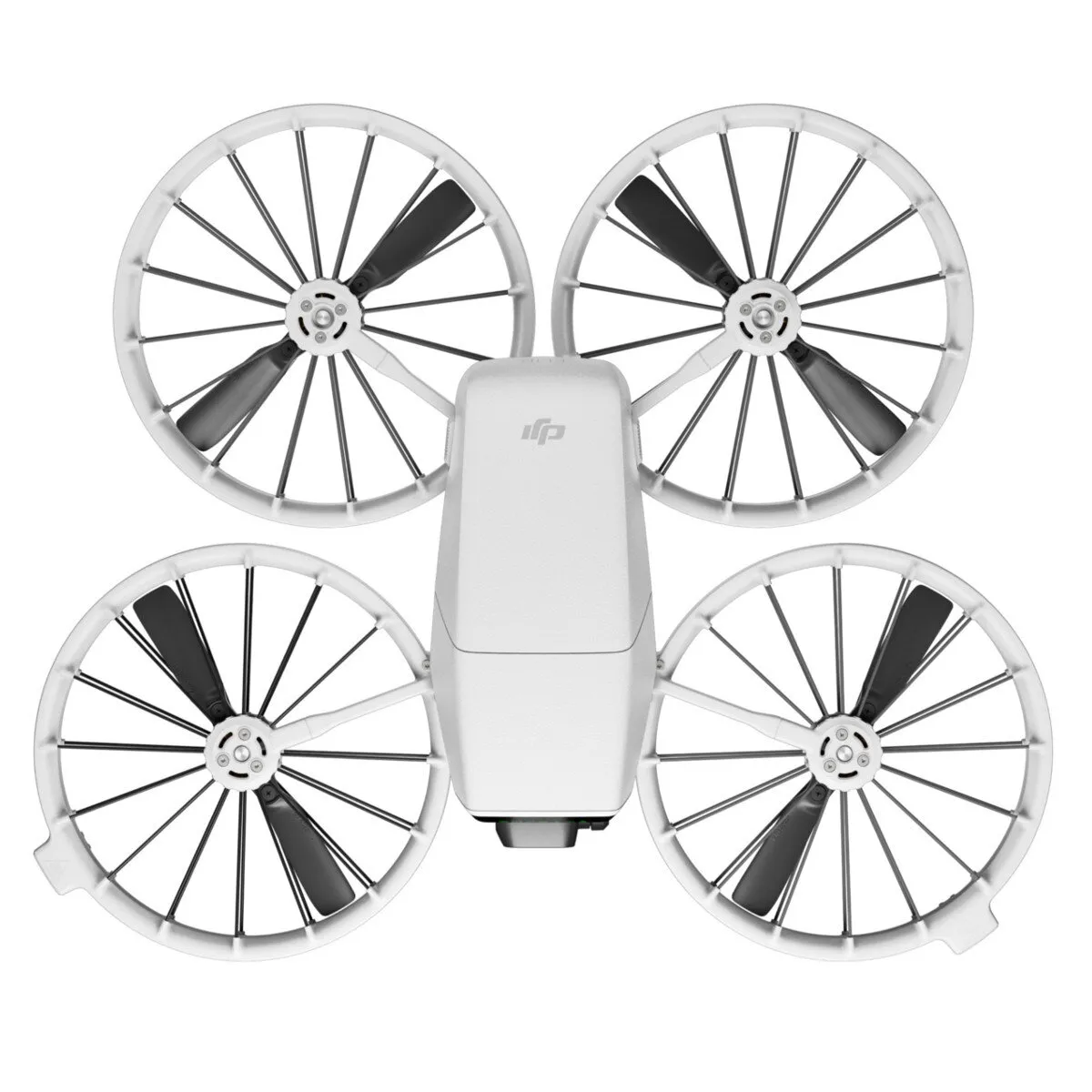

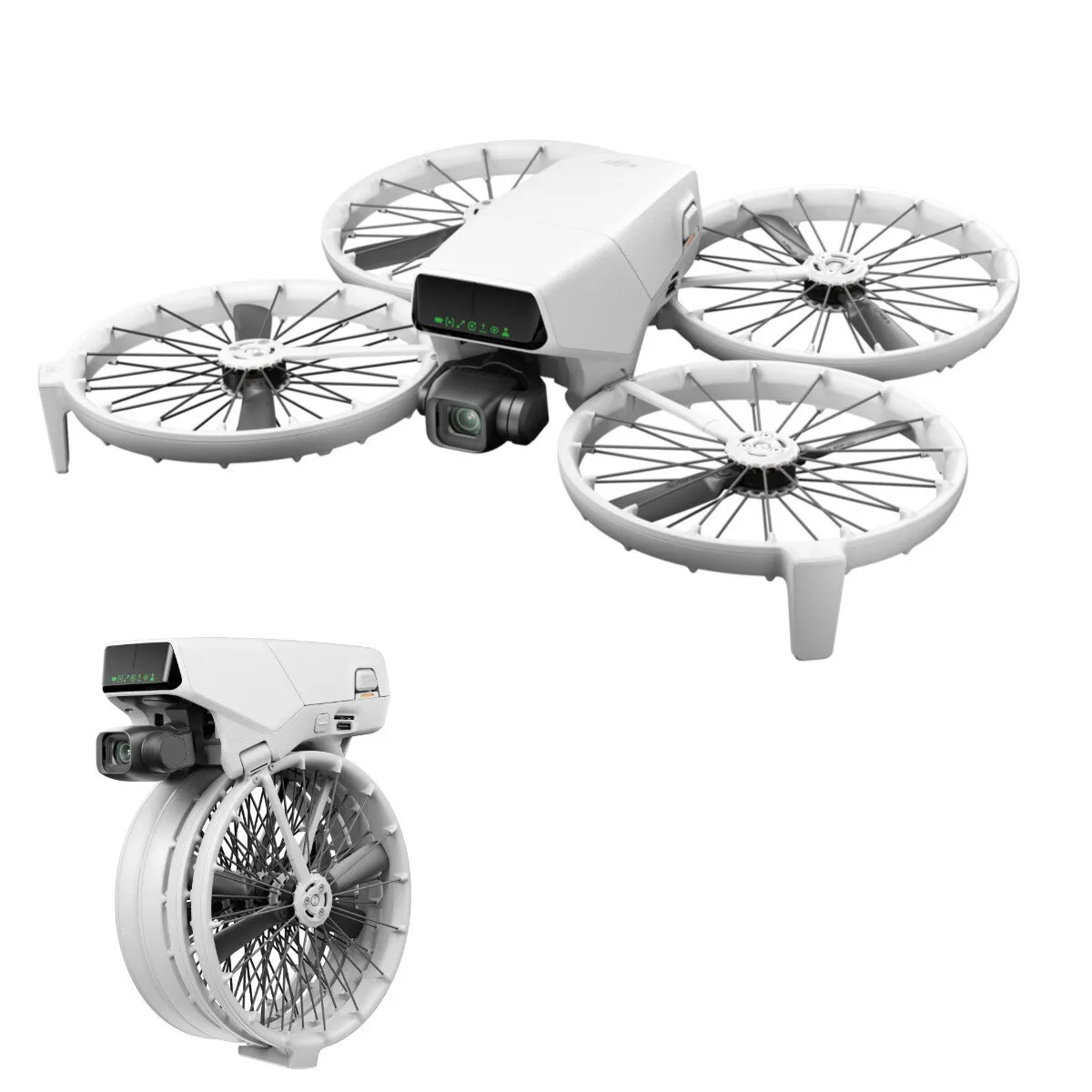

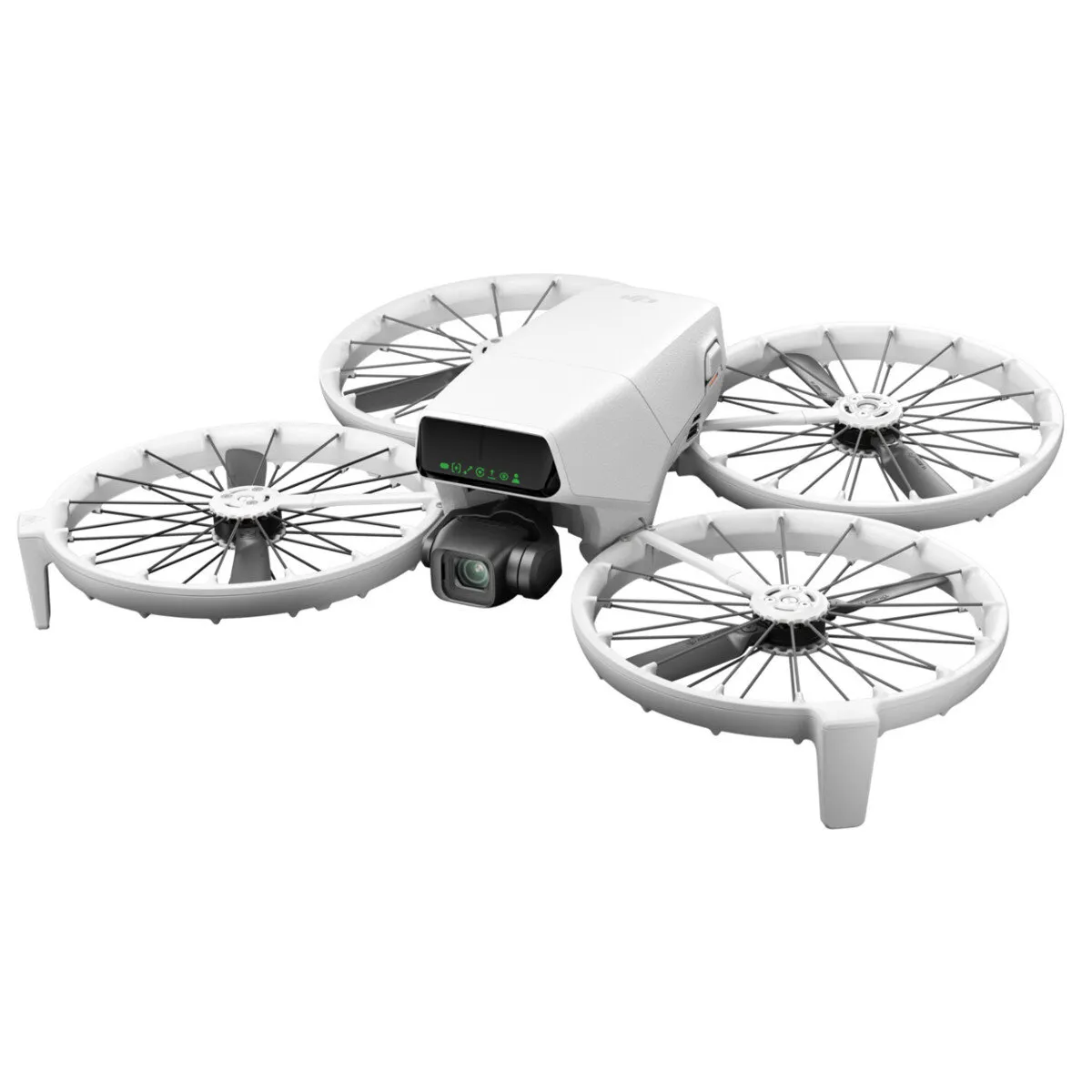

DJI Flip All-in-One Vlog Camera Drone with 1/1.3'' CMOS Sensor 4K 60fps HDR Video AI Subject Tracking 31mins Flight Time Foldable Full-Coverage Props Guard 249g

RC Quad

Takeoff weight:

Less than 249 grams

Standard weight of aircraft (including DJI Flip Intelligent Flight Battery and microSD card). Product weight may vary due to different material batches and other reasons. Please refer to the actual product; this product is free of registration in some countries or regions. Please check and confirm local laws and regulations. If using the enhanced image transmission module and mounting bracket, the fuselage weight will exceed 249 grams (about 295 grams). Please check, confirm and strictly abide by local laws and regulations before flying.

Dimensions:

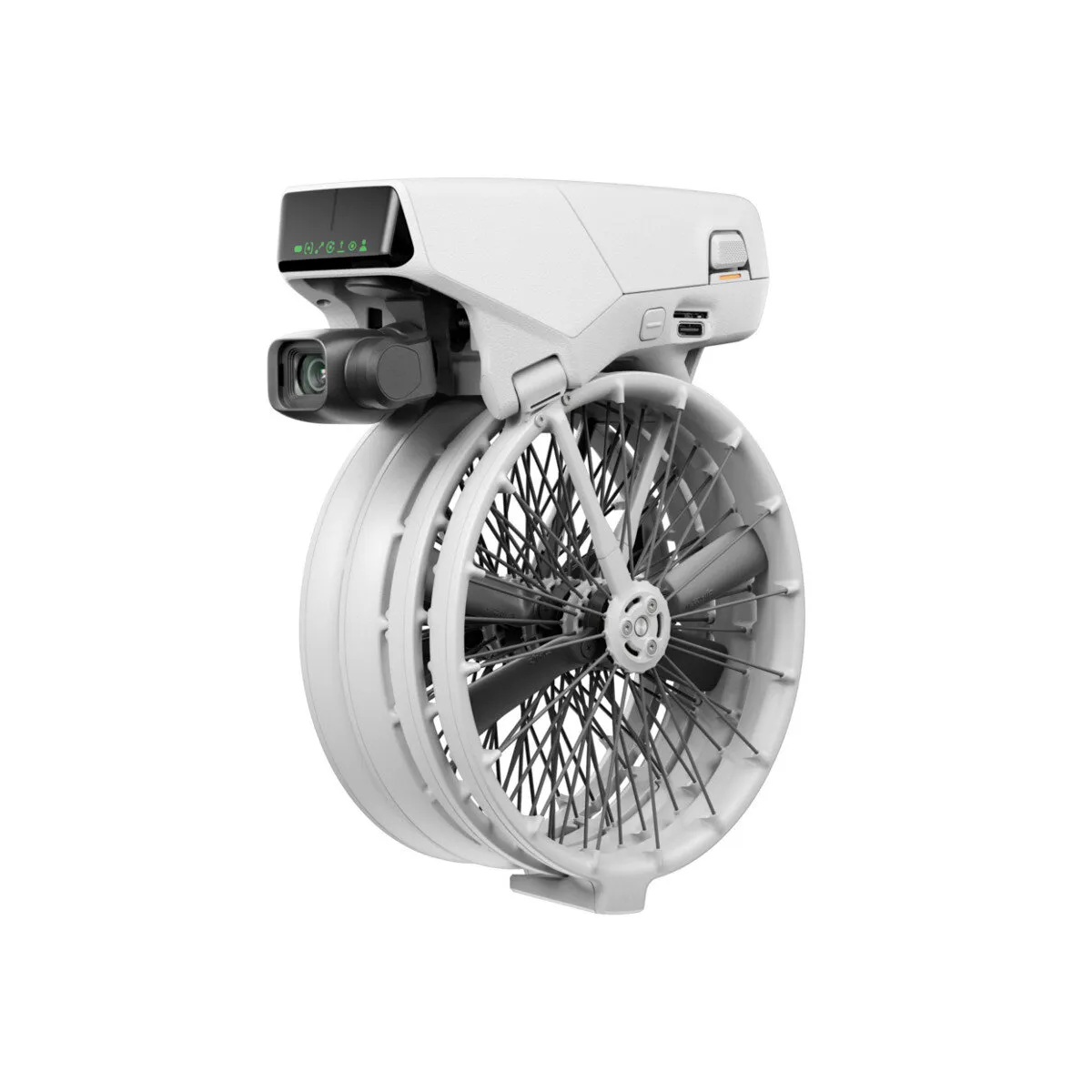

Folded: 136 mm long, 62 mm wide, 165 mm high

Unfolded: 233 mm long, 280 mm wide, 79 mm high

Maximum ascension speed:

5 m/s (sport mode)

5 m/s (normal mode)

2 m/s (steady mode)

Maximum descent speed:

5 m/s (sport mode)

5 m/s (normal mode)

1.5 m/s (steady mode)

Maximum horizontal flight speed:

At sea level, no wind:

12 m/s* (sport mode)

12 m/s (follow mode)

At sea level, 4 m/s downwind, the drone's flight direction is consistent with the wind direction:

16 m/s* (sport mode)

12 m/s (follow mode)

* In the wind tunnel test environment, the aircraft took off at an altitude of 0 meters and rose vertically to 1.5 Meters, measured in sport mode, for reference only. Please pay attention to the prompts on the image transmission interface during actual flight.

Maximum take-off altitude:

3000 meters

In a windless environment, a fully charged aircraft can take off at an altitude of 3000 meters, rise vertically to 500 meters above the ground, and fly in sport mode until the remaining power is 20%. For reference only, please pay attention to the prompts on the image transmission interface during actual flight.

Maximum Flying Time:

31 minutes

In a windless environment, the camera is in photo mode, and it is measured at an altitude of 20 meters at a constant speed of 6 meters/second until the remaining power is zero. Under different external environments, usage methods, and firmware versions, the results may vary to varying degrees. Please refer to the actual experience.

Maximum hovering time:

28 minutes

In a windless environment, the camera is in photo mode, and it is measured at an altitude of 20 meters until the remaining power is zero. Under different external environments, usage methods, and firmware versions, the results may vary to varying degrees. Please refer to the actual experience.

Maximum cruising range:

14 km

In a windless environment, the camera is in photo mode, and the battery is measured at an altitude of 20 meters and a constant speed of 9 meters per second until the remaining power is zero. The results may vary to varying degrees under different external environments, usage methods, and firmware versions. Please refer to the actual experience.

Maximum wind speed:

10.7 meters per second (level 5 wind)

Working environment temperature:

-10℃ to 40℃

Sate1lite navigation system:

GPS + Galileo + BeiDou

Hovering accuracy:

Vertical:

±0.1 meters (when visual positioning works normally)

±0.5 meters (when sate1lite positioning works normally)

Horizontal:

±0.3 meters (when visual positioning works normally)

±1.5 meters (when sate1lite positioning works normally)

Onboard memory:

2GB

Classification:

EU C0c

Camera

Image sensor:

1/1.3-inch image sensor

Lens:

Field of view (FOV): 82.1°

Equivalent focal length: 24 mm

Aperture: f/1.7

Focus: 1m to ∞

ISO range:

Video

Normal, slow motion:

100 to 6400 (normal color)

100 to 1600 (D-Log M)

Photo:

12 megapixels: 100 to 6400

48 megapixels: 100 to 3200

Shutter speed:

12 megapixels: 1/16000 sec to 2 sec (2.5 sec to 8 sec shutter simulates long exposure)

48 megapixels: 1/8000 sec to 2 sec

Maximum photo size:

48 megapixel photo

8064 × 6048

Photo shooting mode and parameters:

Single shot: 12 megapixels and 48 megapixels

Multi-shot continuous shooting:

12 megapixels, 3/5/7 frames

Auto Exposure Bracketing (AEB):

12 megapixels: 3/5/7 frames @2/3EV step

Timer shooting:

12 megapixels: 2/3/5/7/10/15/20/30/60 seconds

Image format:

JPEG

DNG/RAW

Video resolution:

4K: 3840 × 2160@24/25/30/48/50/60/100fps

FHD: 1920 × 1080@24/25/30/48/50/60/100fps

Vertical 2.7K: 1512 × 2688@24/25/30fps

Vertical FHD: 1080 × 1920@24/25/30fps

Video format:

MP4

Video maximum bitrate:

150Mbps

Supported file system:

exFAT

Color mode:

Normal mode

D-Log M

Digital zoom:

4K: 3x

FHD: 4x

Vertical 2.7K: 3x

Vertical FHD: 4x

12MP photo: 3x

Gimbal

Stabilization system:

Three-axis mechanical gimbal (pitch, roll, yaw)

Structural design range:

Pitch axis: -130° to 63°

Roll axis: -47° to 47°

Yaw axis: -30° to 30°

Controllable rotation range:

Pitch axis: -90° to 35°

Maximum control speed (pitch):

100°/s

Angular jitter:

±0.01°

Perception

Perception system type:

Downward-looking monocular vision with infrared sensor, forward-looking with 3D infrared sensor system

Forward-looking:

3D infrared ranging sensor ranging range: 0.3m to 8m (reflectivity greater than 10%)

Viewing angle (FOV): horizontal 60°, vertical 60°

Downward-looking:

Ranging range: 0.3m to 8m (reflectivity greater than 10%)

Precise hovering range: 0.5m to 10m

Viewing angle (FOV): horizontal 60°, vertical 60°

Effective use environment:

Downward:

The surface has rich texture, sufficient lighting conditions (greater than 15 lux, normal indoor fluorescent lighting environment), the surface is a diffuse reflective material with a reflectivity greater than 20% (such as cement pavement, etc.)

Image transmission

Image transmission solution:

O4

Real-time image transmission quality:

Remote controller: up to 1080p/60fps

Operating frequency band:

2.4000 GHz to 2.4835 GHz

5.170 GHz to 5.250 GHz

5.725 GHz to 5.850 GHz

The operating frequency bands supported by each country/region and their corresponding available ranges vary. Please refer to local laws and regulations for details.

Transmit power (EIRP):

2.4 GHz:

<30 dBm (FCC)

<20 dBm (CE/SRRC/MIC)

5.1 GHz:

<23 dBm (CE)

5.8 GHz:

<33 dBm (FCC)

<14 dBm (CE)

<30 dBm (SRRC)

Maximum signal effective distance (no interference, no obstruction):

FCC: 13 km

CE: 8 km

SRRC: 8 km

MIC: 8 km

The above data is measured in an open, unobstructed outdoor environment. It is the maximum communication distance of the image transmission function under each standard. The maximum communication distance in the actual flight scenario is limited by the maximum range of the aircraft. Please pay attention to the return prompt on the image transmission interface during actual flight.

Maximum signal effective distance (with interference, without obstruction):

Strong interference (urban center): about 1 to 2.5 kilometers

Medium interference (suburban county): about 2.5 to 7 kilometers

Micro interference (remote suburbs/seaside): about 7 to 13 kilometers

The above data is measured under FCC standards in an unobstructed environment under various typical interference intensity scenarios. The actual flight distance is not guaranteed and is only used as a distance reference for users to fly on their own.

Maximum signal effective distance (with interference, with obstruction):

Micro interference, with building obstruction: about 0 kilometers to 0.5 kilometers

Micro interference, with bush obstruction: about 0.5 kilometers to 2 kilometers

The above data is measured under FCC standards in various typical micro interference intensity and obstructed environments. The actual flight distance is not guaranteed and is only used as a distance reference for users to fly on their own.

Maximum download rate:

DJI O4:

DJI RC-N3 remote controller: 10MB/s

DJI RC remote controller with screen: 10MB/s

Wi-Fi 5: Maximum 30MB/s

This data is measured in a low-interference laboratory environment in countries or regions that support 2.4 GHz and 5.8 GHz dual-band.

Minimum latency:

About 120 milliseconds

Depends on the actual shooting environment and mobile device.

Antenna:

Four antennas (2.4 GHz: one transmit and two receive; 5.2/5.8 GHz: two transmit and two receive)

Wi-Fi

Protocol:

802.11a/b/g/n/ac

Operating frequency band:

2.4000 GHz to 2.4835 GHz

5.7250 GHz to 5.850 GHz

The operating frequency bands supported by each country/region and their corresponding available ranges vary. Please refer to local laws and regulations for details.

Transmitting power (EIRP):

2.4 GHz:

<20 dBm (FCC/CE/SRRC/MIC)

5.8 GHz:

<20 dBm (FCC/SRRC)

<14 dBm (CE)

Effective operating range:

50 meters

Measured in an open, interference-free environment. The actual transmission distance may vary depending on the usage environment. Please refer to the actual experience.

Bluetooth

Protocol:

Bluetooth 5.0

Operating frequency band:

2.4000 GHz to 2.4835 GHz

The operating frequency bands supported by each country/region and their corresponding available ranges vary. Please refer to local laws and regulations for details.

Transmitting power (EIRP):

<10 dBm

Battery

Capacity:

3110 mAh

Weight:

About 83.5 g

Nominal voltage:

7.16 V

Battery type:

Li-ion

Chemistry:

LiNiMnCoO2

Energy:

22.3 Wh

Charging ambient temperature:

5°C to 40°C

Charging time:

Charging via the body (maximum charging power 30W):

Battery from zero to full: about 70 minutes*

Using the charging hub to charge (maximum charging power 48W):

Battery from zero to full: about 45 minutes**

Using the charging hub to charge (maximum charging power 65W):

Dual batteries from zero to full: about 70 minutes***

* Use DJI 30W USB-C charger or a charger that supports PD protocol and has a power higher than 30W.

** Use DJI 65W USB-C charger or a charger that supports PD protocol and has a power higher than 48W.

*** Use DJI 65W USB-C charger or a charger that supports PD protocol and has a power higher than 65W.

Charging Manager

Input:

5V, 4.3A

9V, 4.3A

12V, 4.3A

15V, 4.3A

Output (collection):

Maximum support 45W

Output (charging)

15V, 2A

12V, 2A

9V, 3A

5V, 3A

Rated power:

65W

Charging method:

Supports simultaneous charging of 2 batteries

When charging simultaneously, you must use the DJI 65W portable charger (or a charger with an output power greater than or equal to 65W, a current greater than or equal to 4.3A at 15V and supports the PD protocol), and a charging cable with a current greater than or equal to 5A and also supports the PD protocol. Otherwise, you can only charge the batteries one by one.

Applicable batteries:

Support DJI Flip Intelligent Flight Battery

Charger

Recommended charger:

DJI 65W portable charger*

USB charger that supports USB PD fast charging protocol

* Charging through the drone body supports a maximum power of 30 watts.

* Charging through DJI Flip and Charging Hub supports a maximum power of 65 watts.

DJI RC-N3 Remote Controller

Maximum battery life:

Without charging the mobile device: about 3.5 hours

With charging the mobile device: about 1.5 hours

Working temperature:

-10℃ to 40℃

Maximum supported mobile device size:

180 mm long, 86 mm wide, 10 mm high

App

Mobile device App:

DJI Fly

Mobile device system version requirements:

iOS 13.0 or higher

Android 7.0 or higher
